  1. Introduction to the Common Gateway Interface (CGI) Instructor: Joseph DiVerdi, Ph.D., M.B.A.

  2. CGI Examples • Web Clock Changes from one viewing to another

  3. CGI Examples • Simple Survey

  4. CGI Examples • Simple Game

  5. CGI Examples • Quiz

  6. CGI Examples • Search Engine

  7. CGI Examples • Database access

  8. CGI Overview • CGI stands for Common Gateway Interface • It is a Specification Which Permits The Web Server Program to Communicate With Other Programs That Are Running On The Server • Web Server Only Knows How to Serve Up HTML Pages • CGI Enables Server to Interact With Other Programs

  9. CGI Overview • Operation is as follows: • Client Requests a Document • Server Recognizes That Document is a Program • Server Executes Program • Supplies Data to Program Obtained From Client Request • Server Receives Program Output • Server ReturnsDocument to Browser • Client Renders Document

  10. Dynamic Image Inclusion <HTML> <HEAD> <TITLE>Digital Clock Demo</TITLE> </HEAD> <BODY> <IMG SRC="/cgi/digital_clock.pl"> </BODY> </HTML>

  11. CGI Examples • Web Clock Changes from one viewing to another

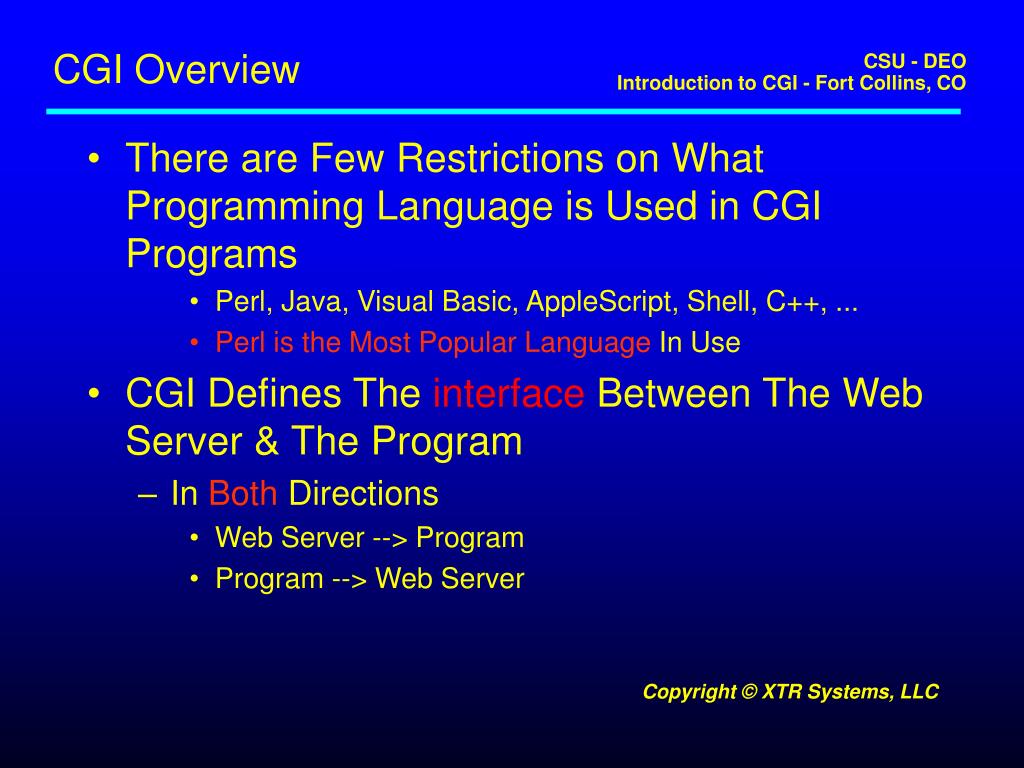

  12. CGI Overview • There are Few Restrictions on What Programming Language is Used in CGI Programs • Perl, Java, Visual Basic, AppleScript, Shell, C++, ... • Perl is the Most Popular Language In Use • CGI Defines The interface Between The Web Server & The Program • In Both Directions • Web Server --> Program • Program --> Web Server

  13. CGI In Brief

  14. Uses of CGI • Page Serving is Not Limited To Previously Written Documents • Web Pages Can Created On-The-Fly • Can Be Based on The Viewer's Input • Collect Viewer Comments • Respond to Responses

  15. Dynamic Page Content • Page Created Dynamically Via CGI Program • Page With Server Side Includes (SSI) • Page With Embedded Call to CGI Program • The Result is Still an HTML Page • Viewer's Browser Just Sees HTML • CGI Interaction is Behind The Scenes

  16. CGI Database Interaction • Web Interface to Relational Database Management System (RDBMS) • CGI Program is Required to • Decode Viewer Input • Assemble Query • Send Query to Database • Process Data Returned From Database • Create Return HTML Document

  17. CGI Gateway to a Database

  18. Setting Up For CGI Programs • Create cgi directory in html directory • CaSe iS vErY iMpOrTaNt! • Ensure cgi directory has 755 permission • Programs must be placed in this directory • Server is configured only to execute from there • Programs placed in and viewed from other directories will not execute and the program contents will be rendered on the browser

  19. Using CGI Programs • Ensure CGI programs have 755 permission • Always test program with telnet client FIRST! • Login to your account • Navigate to the html/cgi directory • Check if the program executes successfully env.cgi • Then test using Browser http://linus.ulltra.com/~my_account/cgi/env.cgi

  20. Simple Shell Program • Create a file "env.cgi" #! /bin/sh echo "Content-type: text/html" echo env • Remember... • CGI programs can be written in many languages

  21. Simple But Useful Program • Create a file "simple.pl" #! /usr/bin/perl -w print "Content-type: text/html\n\n"; print "Hello, CGI Programmer!<BR>"; exit; • Save file in cgi directory • Ensure program has 755 permission • Test using telnet client • Test using browser

  22. More Useful Program • Modify the file "simple.pl" #! /usr/bin/perl -w print "Content-type: text/html\n\n"; print "Hello, CGI Programmer!<BR>"; print "The current time is ", scalar localtime, "<BR>"; print "You are using the computer: ", $ENV{'REMOTE_HOST'}, "<BR>"; exit;

  23. CGI Form Processing • Client Requests a Form

  24. CGI Form Processing • Client Renders Form

  25. CGI Form Processing • Viewer Fills in Form • Client Sends Form to Server

  26. CGI Form Processing • Client Sends Data to Server • Uses POST Method in HTTP Request POST /cgi/formmail.pl HTTP/1.0 Host: xtrsystems.com ... more headers here ... ice_cream_flavor=chocolate

  27. CGI Form Processing • Server Recognizes URL • URL Points to CGI Program • It knows because of the directory in the URL /cgi/formmail.pl • Server Executes Program • Supplies Form Data to Program • Form Data Received From POST Request "ice_cream_flavor=chocolate"

  28. CGI In Brief

  29. CGI Form Processing • Program Performs Some Work • Some Combination of the Following • Stores Submitted Data in Database • Creates e-mail Message From Submitted Data • Always Does This • Creates HTML Thank You Page • Sends Program Output to Server • HTML Thank You Page is Program Output

  30. CGI Form Processing • Server Sends HTML Document to Browser • Client Renders HTML

  31. CGI and Form Processing

  32. Executing CGI Programs • CGI Programs Are Just Like Other Resources • Can Reside on Your Host • The Host With the Server • Can Reside on Some Other Host • With the Owner's Agreement • Without the Owner's Agreement • Unlike Other Resources • Must Reside in Specific Directories on Each Host • Directory Selected by Webmaster or Site Administrator • Much Harder to Write than HTML Documents

  33. Hands On Work • Create an Ice Cream Survey Form Page • Include the following HTML: <FORM METHOD=POST ACTION="http://xtrsystems.com/cgi/formmail"> • You are using the formmail program • Executing On the xtrsystems.com Server Host

  34. Using Your own Programs • Install formmail.pl in Your Own Account • Download From Course Materials Page • Upload to cgi Directory • Check Program Permission • Modify Form HTML • Test as Described Earlier • Modify Program • Be Very Careful • Have Fun
