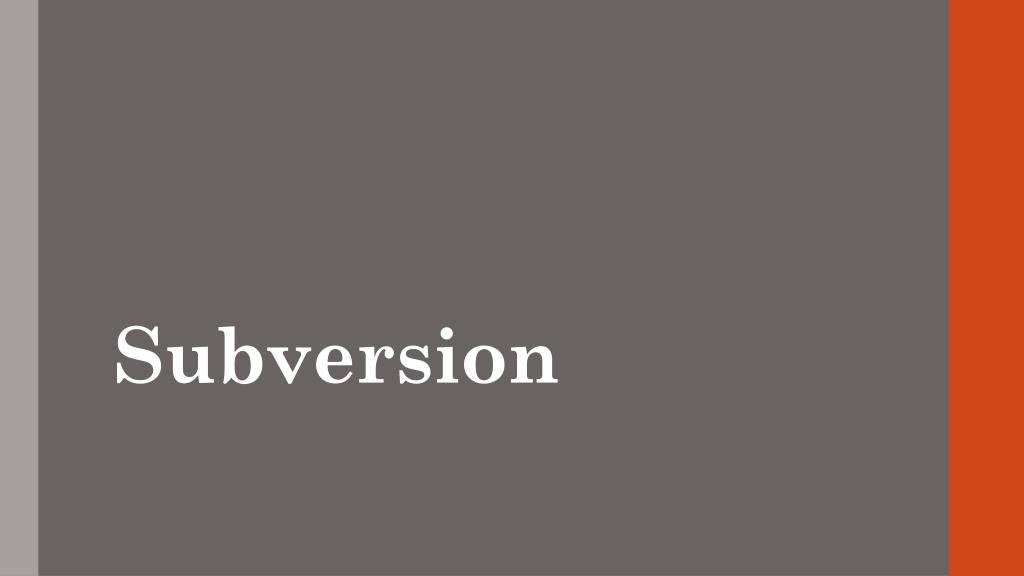

  1. Subversion

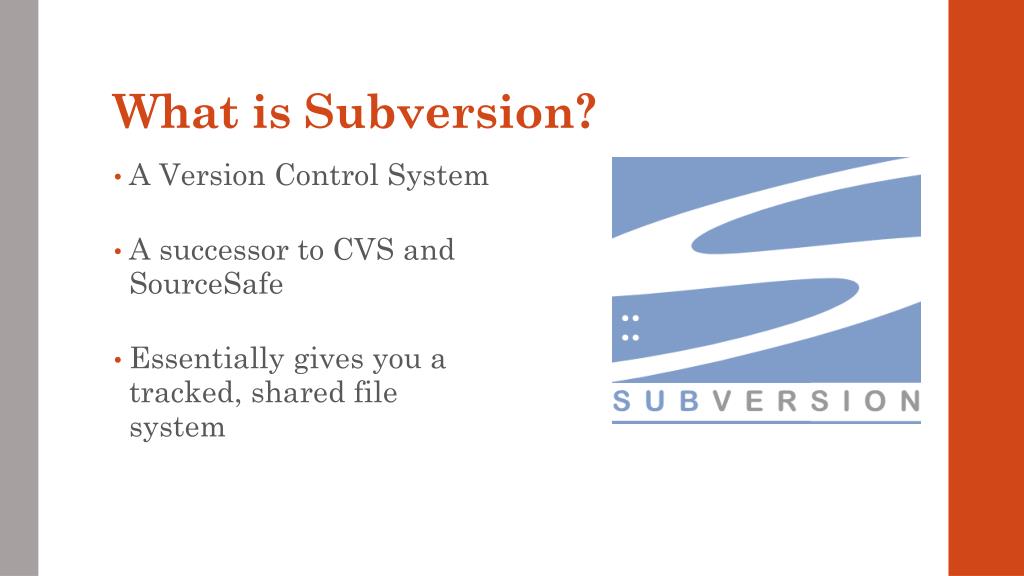

  2. What is Subversion? • A Version Control System • A successor to CVS and SourceSafe • Essentially gives you a tracked, shared file system

  3. How does Subversion Work? • Create a repository • Import files • Checkout into Working Directory • Make Changes • Commit back to Repository • Update MY REPOSITORY File 1 File 1 File 1 File 1 File 1 File 1 File 2 File 2 File 2 File 2 File 2 File 3 File 3 File 3 File 3 File 3 File 3 File 2 My Working Dir Your Working Dir File 2 File 1 File 3

  4. Importing Into A Repository $> ls branches tags trunk lstrunk login.js main.html map.js movement.js style.css svnimport svn://url/of/repo -m 'Initial commit' Adding trunk Adding trunk/login.js Adding trunk/movement.js Adding trunk/style.css Adding trunk/main.html Adding trunk/map.js Adding branches Adding tags Committed revision 1. • Add any directory to a repository • The source directory does not become a working directory or a repo • Directories typically structured with three subdirectories: trunk, branches, tags $> $>

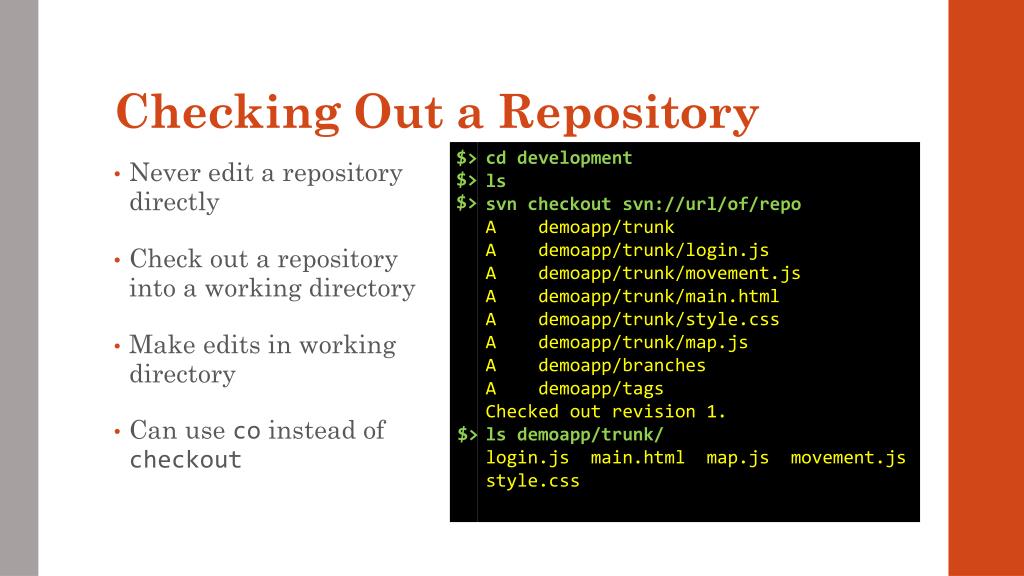

  5. Checking Out a Repository $> cd development ls svncheckout svn://url/of/repo A demoapp/trunk A demoapp/trunk/login.js A demoapp/trunk/movement.js A demoapp/trunk/main.html A demoapp/trunk/style.css A demoapp/trunk/map.js A demoapp/branches A demoapp/tags Checked out revision 1. lsdemoapp/trunk/ login.js main.html map.js movement.js style.css • Never edit a repository directly • Check out a repository into a working directory • Make edits in working directory • Can use co instead of checkout $> $> $>

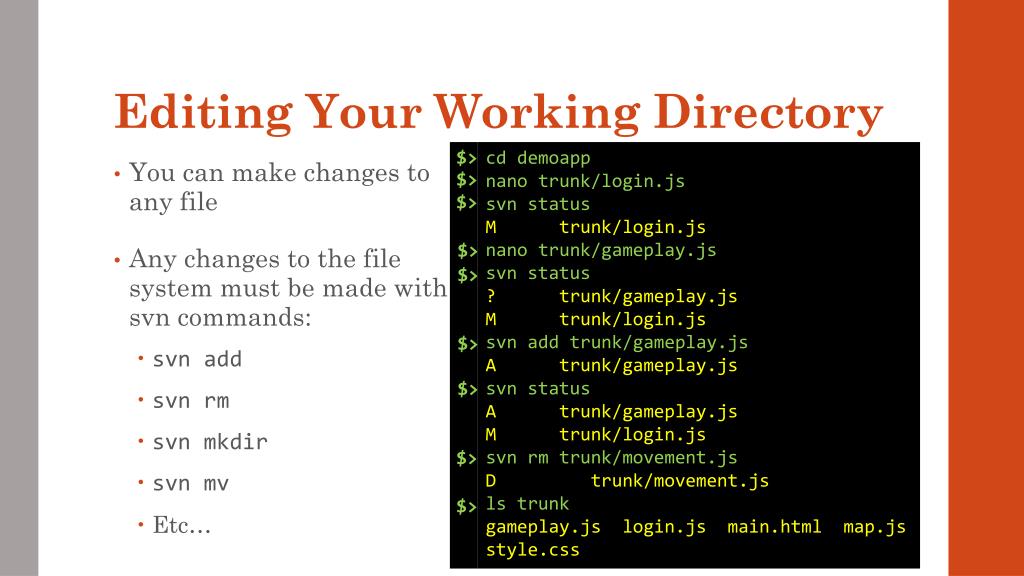

  6. Editing Your Working Directory $> cd demoapp nanotrunk/login.js svnstatus M trunk/login.js nanotrunk/gameplay.js svnstatus ? trunk/gameplay.js M trunk/login.js svnadd trunk/gameplay.js A trunk/gameplay.js svnstatus A trunk/gameplay.js M trunk/login.js svnrm trunk/movement.js D trunk/movement.js lstrunk gameplay.js login.js main.html map.js style.css • You can make changes to any file • Any changes to the file system must be made with svn commands: • svn add • svnrm • svnmkdir • svn mv • Etc… $> $> $> $> $> $> $> $>

  7. Updating Your Working Directory • Before committing changes to the repo, always update • Pulls in changes that anyone else might have made • Automatically merges changes, even to the same file (sort of). svnupdate U trunk/map.js Updated to revision 2. svnstatus M trunk/login.js D trunk/movement.js A trunk/gameplay.js $> $>

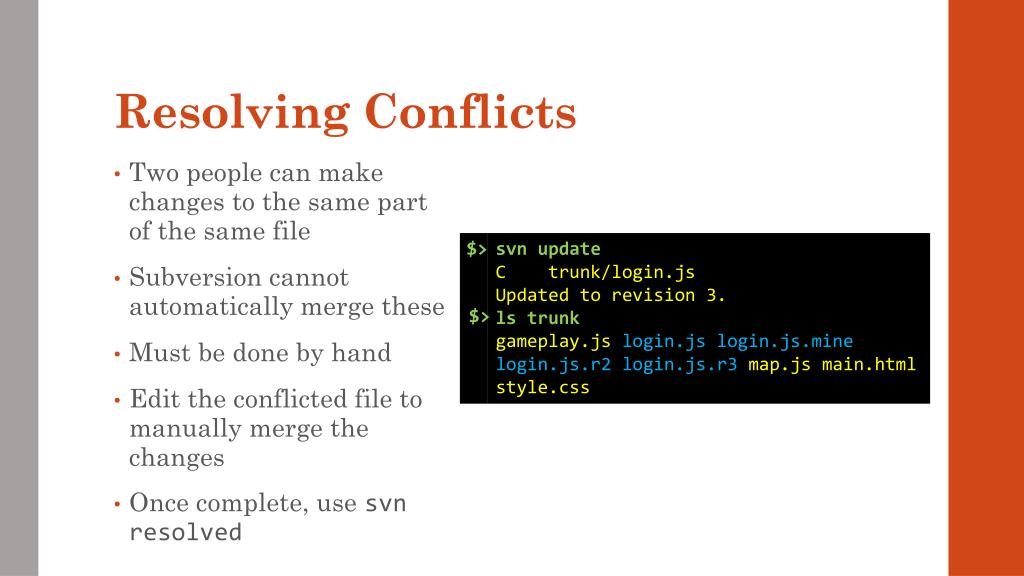

  8. Resolving Conflicts • Two people can make changes to the same part of the same file • Subversion cannot automatically merge these • Must be done by hand • Edit the conflicted file to manually merge the changes • Once complete, use svn resolved $> svnupdate C trunk/login.js Updated to revision 3. lstrunk gameplay.js login.js login.js.minelogin.js.r2 login.js.r3map.js main.html style.css $>

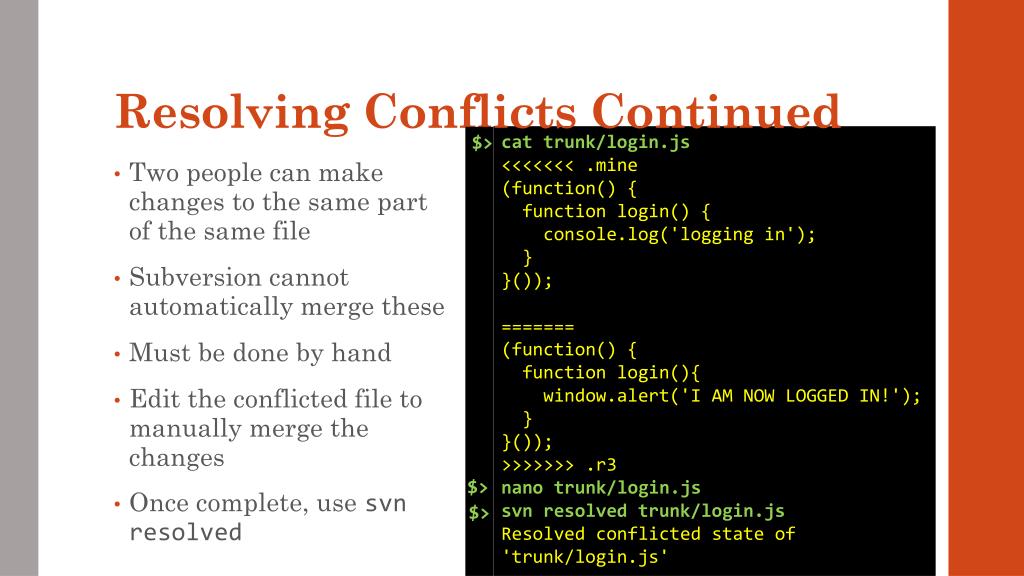

  9. Resolving Conflicts Continued cat trunk/login.js <<<<<<< .mine (function() { function login() { console.log('logging in'); } }()); ======= (function() { function login(){ window.alert('I AM NOW LOGGED IN!'); } }()); >>>>>>> .r3 nanotrunk/login.js svnresolved trunk/login.js Resolved conflicted state of 'trunk/login.js' $> • Two people can make changes to the same part of the same file • Subversion cannot automatically merge these • Must be done by hand • Edit the conflicted file to manually merge the changes • Once complete, use svn resolved $> $>

  10. Commiting Your Changes • Tell the repo about all the changes you’ve made to the working directory so far • Use svn commit • Always include a useful commit message • Use –m to include on the command line • Use –F to use the contents of a file svnstatus M trunk/login.js D trunk/movement.js A trunk/gameplay.js svncommit –m ‘Did awesome stuff’ Adding trunk/gameplay.js Sending trunk/login.js Deleting trunk/movement.js Transmitting file data .. Committed revision 4. svn status $> $> $> $>

  11. Looking at History svnlog ----------------------------------------r4 | yule | 2013-05-23 14:08:42 -0300 (Thu, 23 May 2013) | 1 line Did awesome stuff ----------------------------------------r3 | yule | 2013-05-23 13:51:00 -0300 (Thu, 23 May 2013) | 1 line made the login code 100% more awesome ----------------------------------------r2 | yule | 2013-05-23 13:40:19 -0300 (Thu, 23 May 2013) | 1 line Fixed a bug in the mapping code ... $> • svn log shows a history of all commits

  12. Looking at History svndiff -r 3 Index: trunk/gameplay.js ==========================================Index: trunk/login.js ==========================================--- trunk/login.js (revision 3) +++ trunk/login.js (working copy) @@ -1,5 +1,5 @@ -(function() { - function login(){ - window.alert('I AM NOW LOGGED IN!'); +function() { + function login() { + console.log('logging in'); } }()); $> • svn log shows a history of all commits • svn diff shows the difference between revisions

  13. Looking at History • svn log shows a history of all commits • svn diff shows the difference between revisions • svncat shows how a file looks at a certain revision svncat trunk/login.js -r 3 (function() { function login(){ window.alert('I AM NOW LOGGED IN!'); } }()); $>

  14. Looking at History • svn log shows a history of all commits • svn diff shows the difference between revisions • svncat shows how a file looks at a certain revision • svnlist gives the layout of the repo at a certain revision svnlist trunk -r 3 login.js main.html map.js movement.js style.css $> svn cat trunk/login.js -r 3 (function() { function login(){ window.alert('I AM NOW LOGGED IN!'); } }()); $>

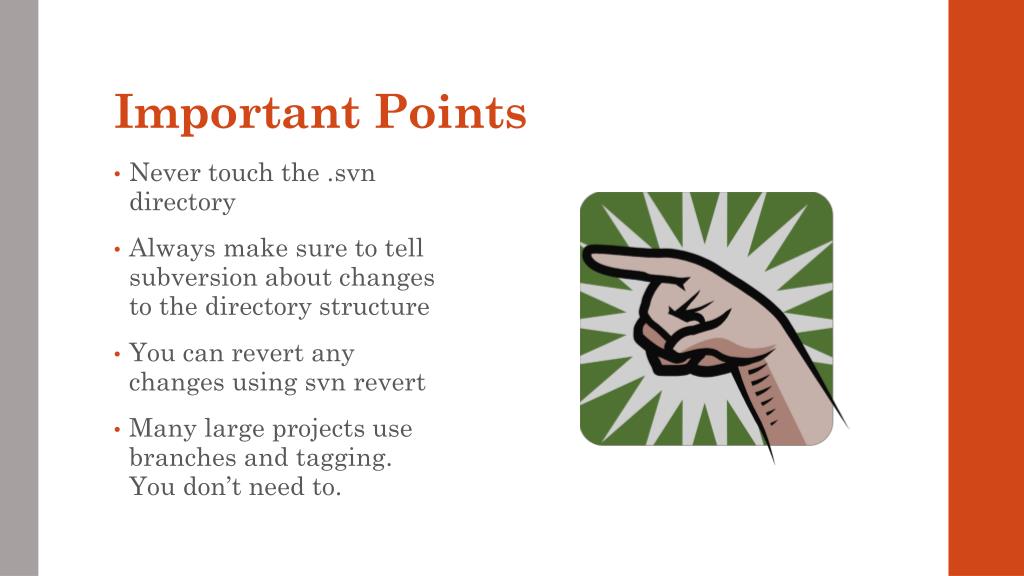

  15. Important Points • Never touch the .svn directory • Always make sure to tell subversion about changes to the directory structure • You can revert any changes using svn revert • Many large projects use branches and tagging. You don’t need to.

  16. This is way too hard! • Use the svn help command • Eclipse has the Subclipse plugin • On Windows, you can use TortoiseSVN
