Ödev 01-01:

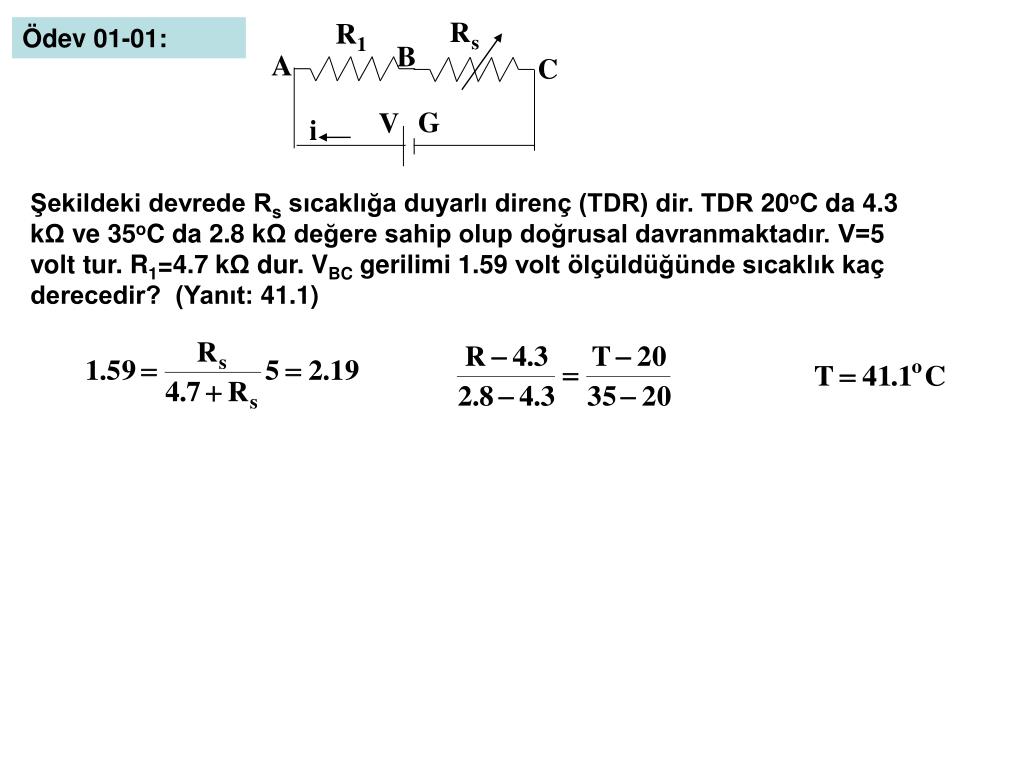

Ödev 01-01:. Şekildeki devrede R s sıcaklığa duyarlı direnç (TDR) dir. TDR 20 o C da 4.3 k Ω ve 35 o C da 2.8 k Ω değere sahip olup doğrusal davranmaktadır. V=5 volt tur. R 1 =4.7 k Ω dur. V BC gerilimi 1.59 volt ölçüldüğünde sıcaklık kaç derecedir? (Yanıt: 41.1).

shino
Télécharger la présentation

Ödev 01-01:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ödev 01-01: Şekildeki devrede Rs sıcaklığa duyarlı direnç (TDR) dir. TDR 20oC da 4.3 kΩ ve 35oC da 2.8 kΩ değere sahip olup doğrusal davranmaktadır. V=5 volt tur. R1=4.7 kΩ dur. VBC gerilimi 1.59 volt ölçüldüğünde sıcaklık kaç derecedir? (Yanıt: 41.1)
