  1. ARK-1382 series Ultra Compact, Fan-less and Powerful embedded system Ally Huang 07-Jan-2009 Update ally.huang@advantech.com.tw Rev. 04

  2. ARK-1382 sales kit revision

  3. ARK-1382 Compelling Features: • Dual DVI-I Independent display and support 16:9 wide screen • Excellent Computing and Multimedia Performance • Over Heat Alarm LED • Support 802.11b/g WLAN • Faster boot up timing Ultra compact size With the most powerful Performance

  4. ARK-1382 Spec Highlights • High Computing solution • Intel Core Duo 1.2GHz/Celeron M 423 1.06GHz with 945GM solution • Support up to 8GB CF card and 2GB DDR2 memory* • Excellent Display mode for different purpose • Dual DVI Independent display • Dual VGA clone mode display • DVI + VGA independent display • ARK-1382 design to save your time • Boot from USB • Boot from LAN, Wake on LAN • Over Heat Alarm • OS support always available • Multi-language XPe images are ready now ** DDR2 memory please order the one in the following compatibility table.

  5. Main board • SOM-4780FL-S0A1E • Intel Celeron M ULV 423@ 1.06GHz • SOM-4780FL-S2A1E • Intel Core Duo U2500 @1.2GHz • Intel 945GM Expansion • 1 x miniPCI ( ARK-1382W equipped with WLAN card ) Environment • Temperature (CF) • ARK-1382-S0A1E: 0~60˚C • ARK-1382-S2A1E: 0~50 ˚C • Vibration: 5G (w/ CF) • Shock: 50G (w/ CF) Storage • 1*Compact Flash Socket • 1* eSATA ( do not support PnP, PnP function is by project requirement) ARK-1382 :Product Detail Spec Display • 2 x DVI-I, (VGA by cable) • DVI + DVI _ dual display • DVI + VGA_ dual display • VGA + VGA_ clone mode I/O ports • Front IO • 1 x GigaLAN RJ45 ( support WOL, boot from LAN) • 4 x USB 2.0 • 2 x RS-232 ( RS-422/485 by jumper) • 1 x External CF socket • 2 x Thermal LED, 1 x Power/ CF • 1 x power on/off • Rear IO • 2 x DVI-I (VGA by cable) • 2 x Line out ( Left and Right) 2.2W • 1 x eSATA/ USB • 1 x power input • 1 x WLAN antenna ( for ARK-1382W)

  6. Dual DVI Independent Display Target Application/ MarketPOS with Dual view DVI x1 DVI x1 Boot from LAN Wake on LAN 4 x USB 2.0 2 x RS-232/422/485 Fast GigaLAN Information center

  7. Intel Core Duo 1.2GHz Excellent media performance Target Application/ MarketGaming VGA x1 VGA x1 Boot from LAN Wake on LAN Line out Left & Right Channel Information center Fast GigaLAN

  8. WLAN Information center Target Application/ MarketVehicle Fanless and Robust design External CF socket 2 x RS-232/422/485 Operating Vibration : 5G shock:50G

  9. VESA Mounting Kit DIN –Rail Mounting Kit Design to take care your applicationMounting kit

  10. ARK-1000 series Computing Performance ARK-1382 Coreduo High performance ALU: 35.79% FPU: 37.42% ARK-1382-S2A1E

  11. ARK-1000 series 3D performance ARK-1382 3D performance ARK-1382-S2A1E

  12. ARK-1000 series Power Consumption ARK-1382-S2A1E

  13. ARK-1382 :Dual VGA independent display • To support dual VGA independent display, please apply T-P/N and order below parts: • Using the DVI-I to VGA connector (p/n: 1700004713) in package • MiniPCI Z9 VGA card and change rear I/O plate to support 1 x DVI-I and 1 x VGA

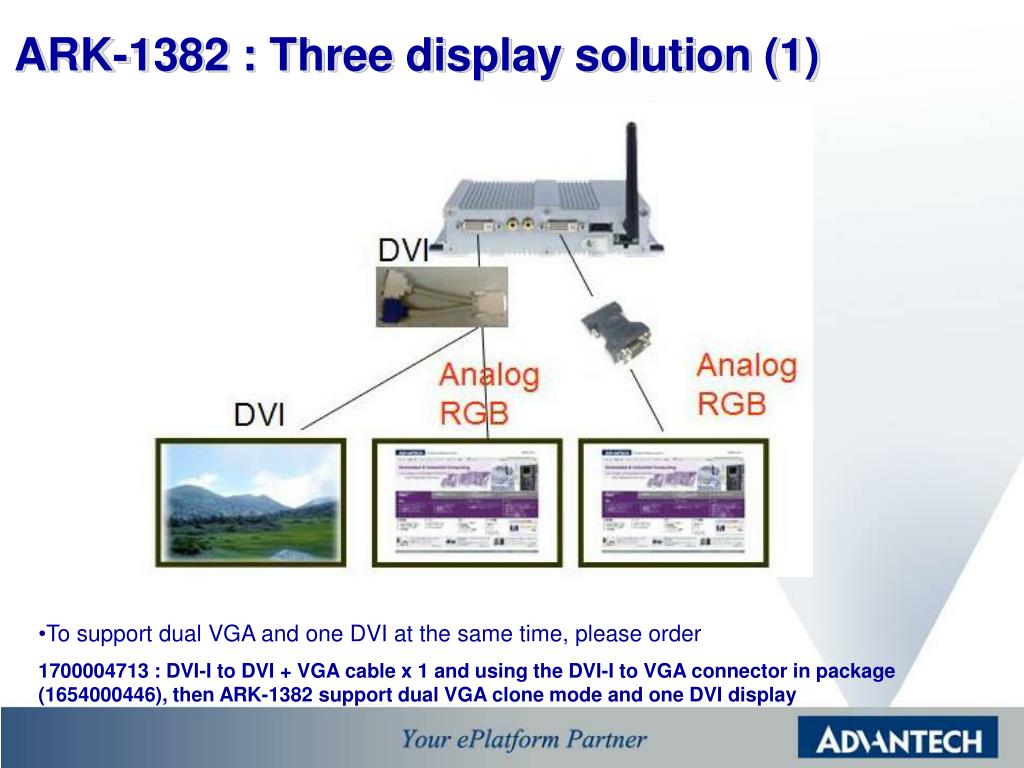

  14. ARK-1382 : Three display solution (1) • To support dual VGA and one DVI at the same time, please order • 1700004713 : DVI-I to DVI + VGA cable x 1 and using the DVI-I to VGA connector in package (1654000446), then ARK-1382 support dual VGA clone mode and one DVI display

  15. ARK-1382 : Three display solution (cont.) • To support triple independent display, please apply T-P/N and order below parts: • 1700004713 : DVI-I to DVI + VGA cable x 1 • MiniPCI Z9 VGA card and change rear I/O plate to support 1 x DVI-I and 1 x VGA

  16. LED Over Heat Alarm Measure the internal temperature Internal temp: <90, LED is blue light Internal temp: >90, LED is orange light • Advantech QA testing profile is to make sure system is stable under 60C environment temperature, chamber air flow rate: 0.7m/s; To reflect customer’s installation site sometimes will be non air flow condition, over heat LED is to alarm customer that environment temp is too high, suggest to enhance the air flow rate. • Internal temperature 75C; the main components are within spec;

  17. ARK-1382 Ordering Information ** ARK-1382 Core duo 1.2GHz solution will phase in around the end of August

  18. ARK-1382 Standard Packing List • ARK-1382-S0A1E/S2A1E • 1 x 1700001394 : Wire plug lock 2P 4.5cm with DC Jack • 1 x 1654000446 : DVI to VGA con • 1 x CD Driver

  19. ARK-1382 Standard Packing List (with WLAN) • ARK-1382W-S0A1E/S2A1E • 1 x 1700001394 : Wire plug lock 2P 4.5cm with DC Jack • 1 x 1654000446 : DVI to VGA con • 1 x CD Driver • 1 x 1750000318: WLAN antenna • 1 x 9680005627: 1 x 802.11b/g miniPCI WLAN card • 96SD2I-512M66NN-TR : 512MB DDR2 memory extended temp. • 96FMCFI-1G-ET-SK: 1GB CF card, extended temp. • 2070003783: XPE V3.01 ENG,French,German,Italy,Spanis ** Items 5~8 all installed in system.

  20. ARK-1382 OEM T-PartsFrequently Use of Compatible Peripherals DDR2 SODIMM Memory( -40~85ﾟC) DDR2 SODIMM Memory ( 0~70ﾟC) * OS ** ARK-1382 system support 0~60C need to integrated with extended temp accessories.

  21. ARK-1382 OEM T-Parts (cont.)Frequently Use of Compatible Peripherals Compact Flash ( Industrial grade) Mounting Kit Others

  22. ARK-1382 OEM T-Parts (cont.)Frequently Use of Compatible Peripherals Power adapter ** 1757000222 also passed PSE for Japan region.

  23. ARK-1382 OEM T-Parts (cont.)Frequently Use of Compatible Peripherals Power Core

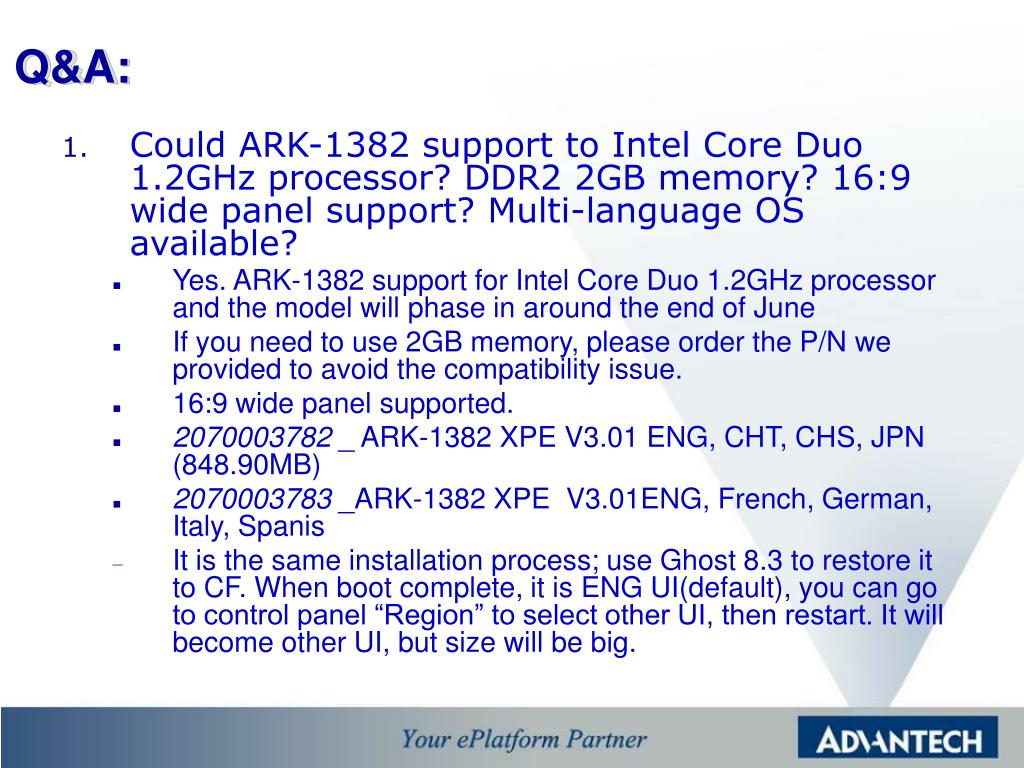

  24. Q&A: • Could ARK-1382 support to Intel Core Duo 1.2GHz processor? DDR2 2GB memory? 16:9 wide panel support? Multi-language OS available? • Yes. ARK-1382 support for Intel Core Duo 1.2GHz processor and the model will phase in around the end of June • If you need to use 2GB memory, please order the P/N we provided to avoid the compatibility issue. • 16:9 wide panel supported. • 2070003782 _ ARK-1382 XPE V3.01 ENG, CHT, CHS, JPN (848.90MB) • 2070003783 _ARK-1382 XPE V3.01ENG, French, German, Italy, Spanis • It is the same installation process; use Ghost 8.3 to restore it to CF. When boot complete, it is ENG UI(default), you can go to control panel “Region” to select other UI, then restart. It will become other UI, but size will be big.

  25. Q&A: (cont.) • Modify logo from Advantech to customer brand? Or non brand? • Modify as customer brand logo: MOQ=50pcs; please provide JPG/DXF file mark with size, color; After receiving file, we will confirm drawing with 3 days. • Remove Advantech logo, no MOQ, please apply T-P/N and change the chassis P/N to 1960012213T020. • Support dual independent VGA display? • Yes, we have outsourcing miniPCI VGA card which adopt XGI Z9 IC; You can use T-P/N to get ARK-1382 w/ miniPCI VGA card and IO panel change to 1 x DVI-I (VGA model by package: 1654000446) and 1 x VGA

  26. Q&A: (cont.) 4. Could we provide remote on/off power bottom to replace the on/off switch? • Yes, modify the power connector as phone jack, MOQ= 50pcs and w/o NRE 5. Wide screenresolution up to? • 1388 x 768 ; 1920 x 1080 (TBD) • Why the temperature is high on the surface? • ARK-1000 use the whole alumni chassis as heatsink, the boards contact with the chassis directly to enhance dissipate heat; All the main components are within spec, please refer to the thermal condition data in next page. (ARK-1382W-S0A1E)

  27. Q&A: (cont.)

  28. Product need to notice point • [China] ARK-1382W version, we do not provide CCC_SRRC certification; If China require for WLAN version, please order ARK-1382-S0A1E and WLAN module/cable together, CTOS installation locally. • [eSATA] There is no Plug and Play function for eSATA, by project requirement; (BIOS need to modify and check the customer’s device can be controlled by AHCI) • [Thermal Alarm] under the non air flow condition, when internal temp is 75C, the reference environment temperature is around 45C. (It depends on the system is full loading or not and other issues, so please still depends on the internal temp: LED light) • [COM port] Default setting is RS-232, if need to use RS-422/485, need to adjust by jumper. • [DOS] under DOS, DVI only support x 1 the red mark is the disable one

  29. Thank you Appendix

  30. ARK-1382 Dimension • Dimension: 189 x 41 x 130.6mm (7.44” x 1.61” x 5.14”) (W x H x D)

  31. ARK-1382 Photo Gallery
