  1. 代理伺服器 Proxy

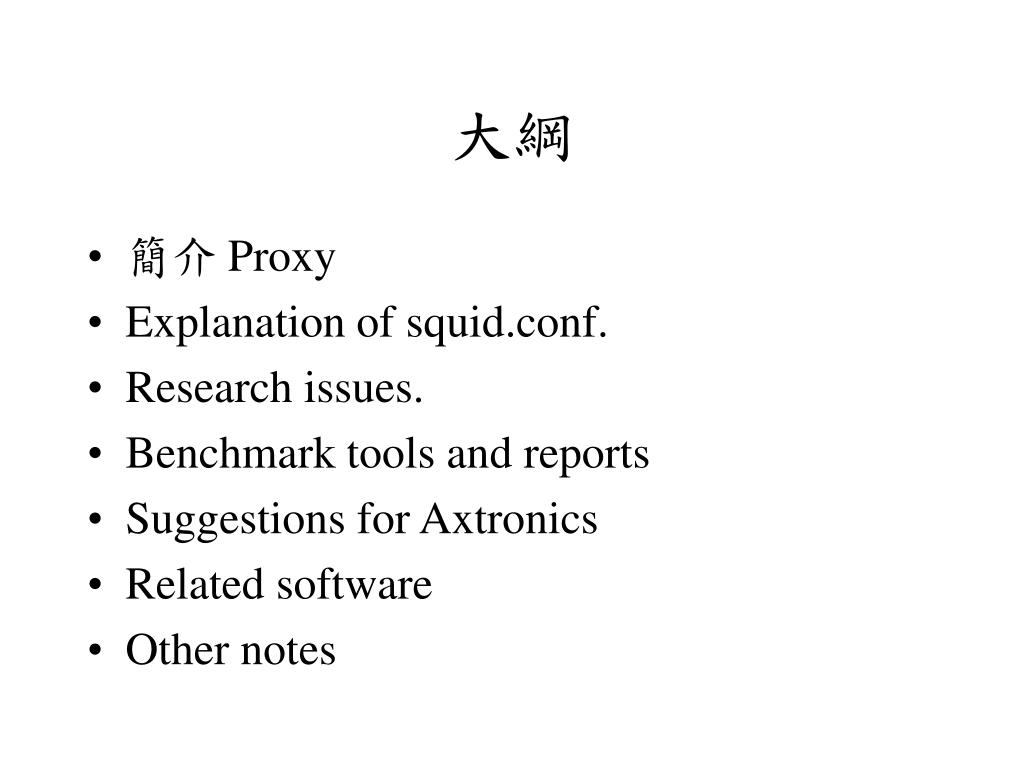

  2. 大綱 • 簡介 Proxy • Explanation of squid.conf. • Research issues. • Benchmark tools and reports • Suggestions for Axtronics • Related software • Other notes

  3. 代理伺服器 ( Proxy ) • 原為防火牆的一部分 • 為增加安全性而設計的一種「應用程式閘道」 • 內部系統和外界系統都只能看到 Proxy • 可在 Proxy 任意一層加入檢查安全性資料的過濾機制 • Proxy 只有一個 IP • 必須透過 Protocol Number 和 Port Number 來區分連線

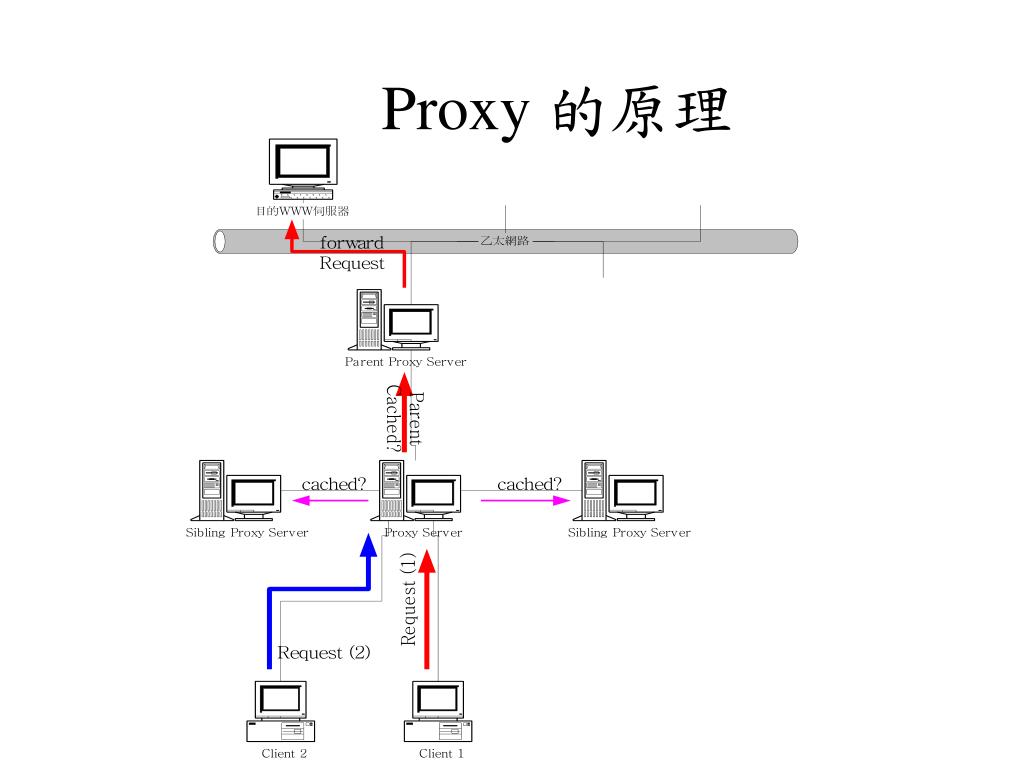

  4. Proxy 的原理

  5. Proxy 的運作（1/4） • 輸入一個 URL 並且按下 Enter，Client 1 瀏覽器會發出一個要求（Request 1)指向 Proxy Server • Proxy Server 檢查自己的磁碟內有沒有 Client 1 所需要的資料 • 如果沒有，則向同儕代理伺服器（Sibling Proxy Server）發出 ICP_QUERY，看看有沒有Client 1 所要的資料

  6. Proxy 的運作（2/4） • 如果 Sibling Proxy Server 沒有資料，Proxy Server 會再送出 ICP_QUERY 給他的 Parent Proxy • 如果還是沒有，Proxy Server 將這一個要求（Request 1）傳給他的 Parent Proxy Server • Parent Proxy Server 負責 Forward 這一個 Request，向目地的WWW伺服器擷取資料

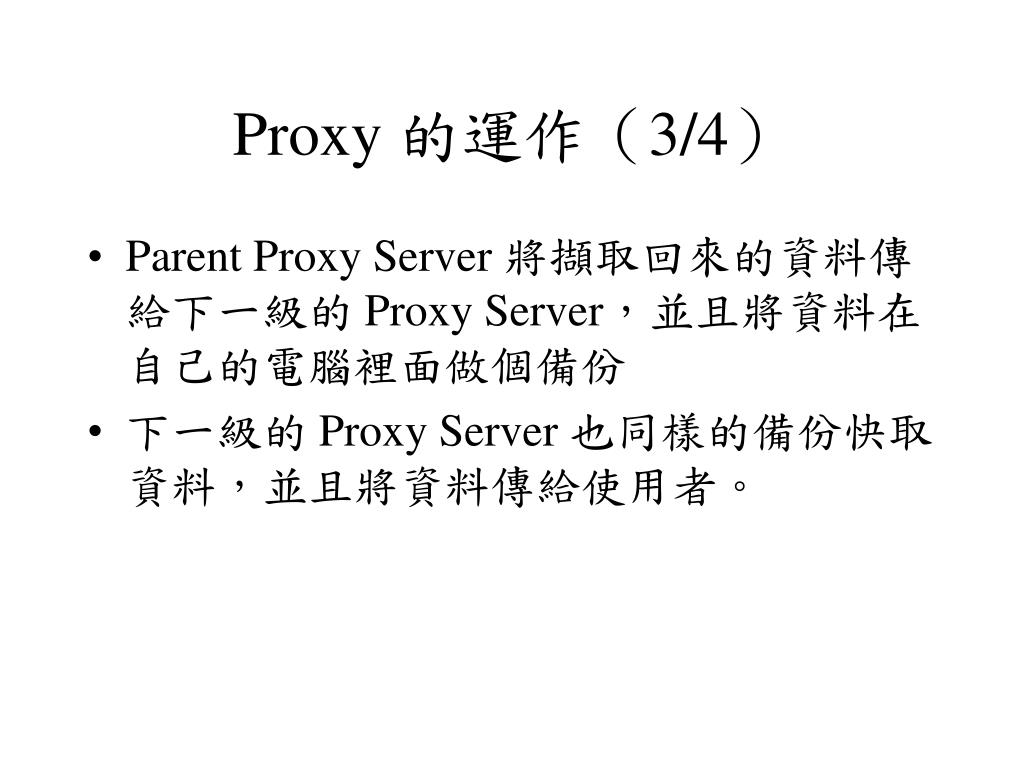

  7. Proxy 的運作（3/4） • Parent Proxy Server 將擷取回來的資料傳給下一級的 Proxy Server，並且將資料在自己的電腦裡面做個備份 • 下一級的 Proxy Server 也同樣的備份快取資料，並且將資料傳給使用者。

  8. Proxy 的運作（4/4） Parent1 Sibling1 If no ‘ICP_MISS’ replies Requested Object (URL) Local Proxy Server With ‘query-icmp’ enabled Sibling2 RTT=2 Parent2 Fresh or Stale ? Sibling3 RTT=3 Parent3 RTT will be checked Client 1. : ICP_QUERY 2. : ICP_REPLY 3. : ICP_NOFETCH 4. : Retrieving object

  9. Proxy 的命令格式 • ICP & SQUID • ICP header format • ICP query algorithm

  10. ICP Header format OPCODE VERSION PACKET LENGTH REQUEST NUMBER OPTIONS SENDER HOST ADDRESS PAYLOAD (Ex:Receiver’s address , piggyback..etc) OPCODE: Message type,for ex: ICP_HIT , ICP_MISS , ICP_NOFETCH…etc VERSION: Version of ICP protocol REQUEST NUMBER: identifier to match queries and responses.

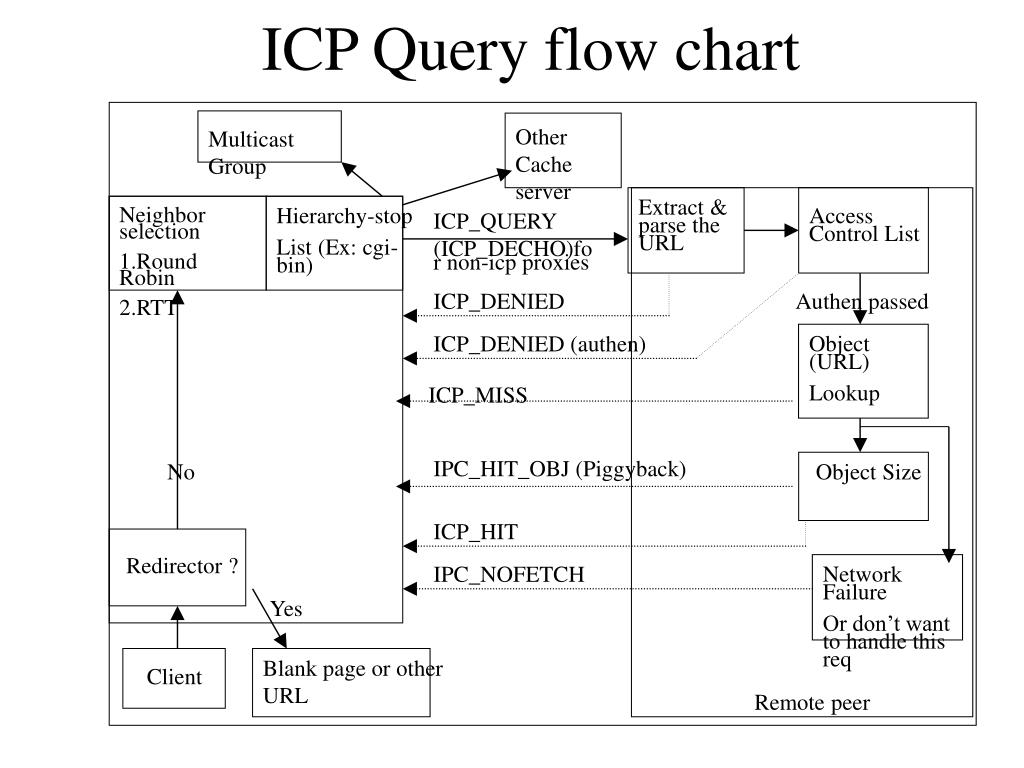

  11. ICP Query flow chart Other Cache server Multicast Group Extract & parse the URL Neighbor selection 1.Round Robin 2.RTT Hierarchy-stop List (Ex: cgi-bin) Access Control List ICP_QUERY (ICP_DECHO)for non-icp proxies ICP_DENIED Authen passed ICP_DENIED (authen) Object (URL) Lookup ICP_MISS No Object Size IPC_HIT_OBJ (Piggyback) ICP_HIT Redirector ? IPC_NOFETCH Network Failure Or don’t want to handle this req Yes Blank page or other URL Client Remote peer

  12. Explanation of squid.conf • Part 1 ：General options • Part 2 ：Ops which affect the neighbor selection algorithm • Part 3 ：Options which affect the cache size • Part 4 ：Logfile pathnames and cache directories • Part 5 ：Options for external support programs • Part 6 ：Options for tuning the cache • Part 7 ：Timeout • Part 8 ：Access Controls • Part 9：Other important tags

  13. Part 1 ：General options（1）

  14. Part 1 ：General options（2）

  15. Part 2 ： Ops which affect the neighbor selection algorithm（1） Ex: cache_peer proxy.nctu.edu.tw parent 3128 3130 no-digest cache_peer_domain proxy.edu.tw .jp cache_peer_domain proxy.nctu.edu.tw ! .nctu.edu.tw

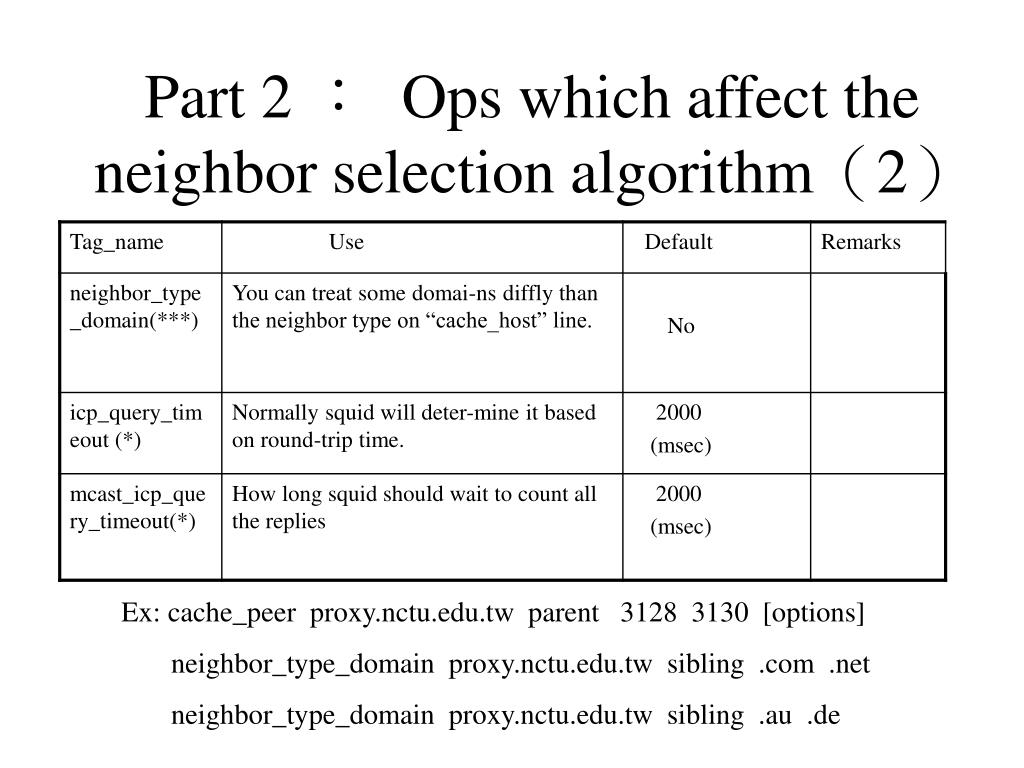

  16. Part 2 ： Ops which affect the neighbor selection algorithm（2） Ex: cache_peer proxy.nctu.edu.tw parent 3128 3130 [options] neighbor_type_domain proxy.nctu.edu.tw sibling .com .net neighbor_type_domain proxy.nctu.edu.tw sibling .au .de

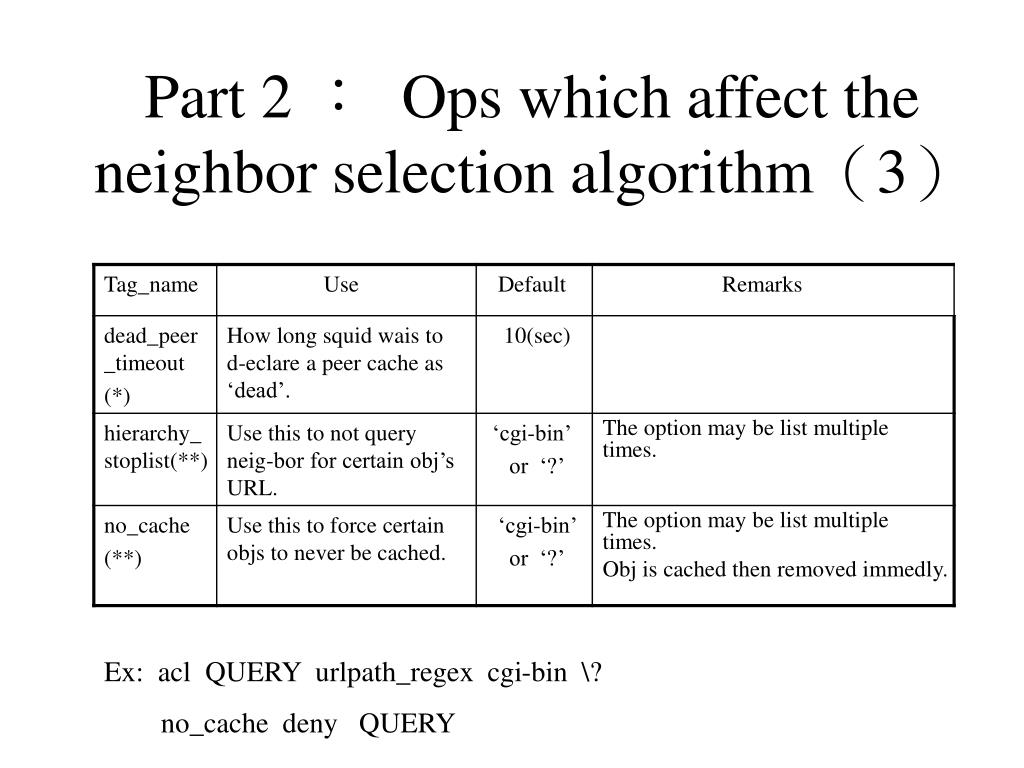

  17. Part 2 ： Ops which affect the neighbor selection algorithm（3） Ex: acl QUERY urlpath_regex cgi-bin \? no_cache deny QUERY

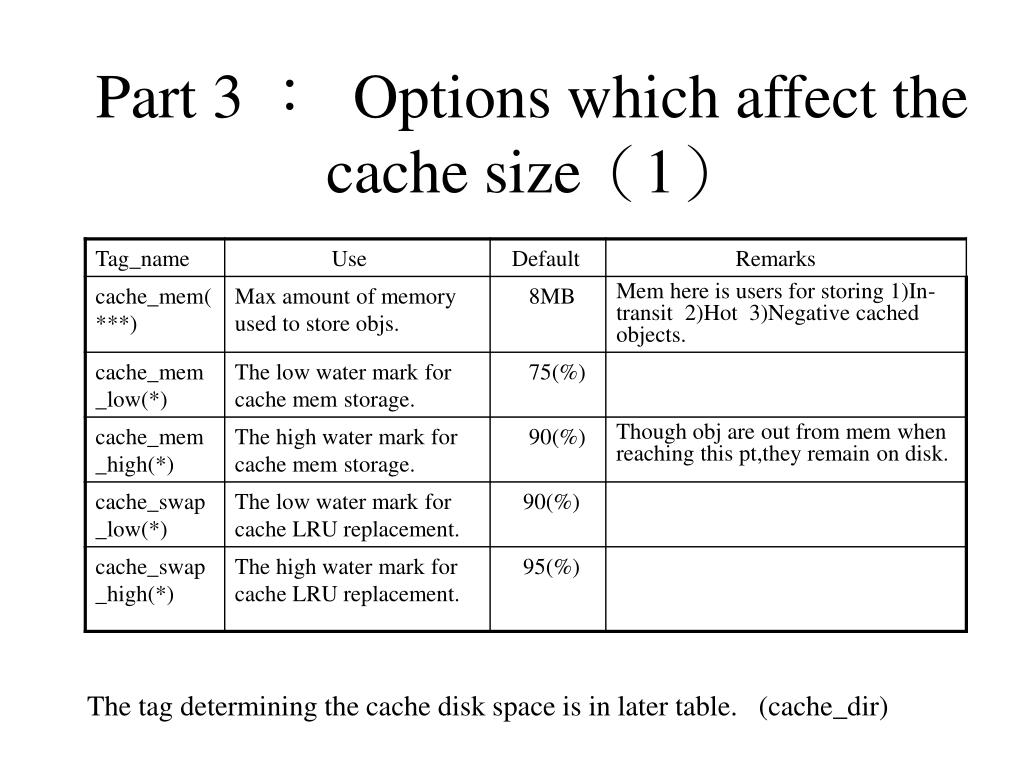

  18. Part 3 ： Options which affect the cache size（1） The tag determining the cache disk space is in later table. (cache_dir)

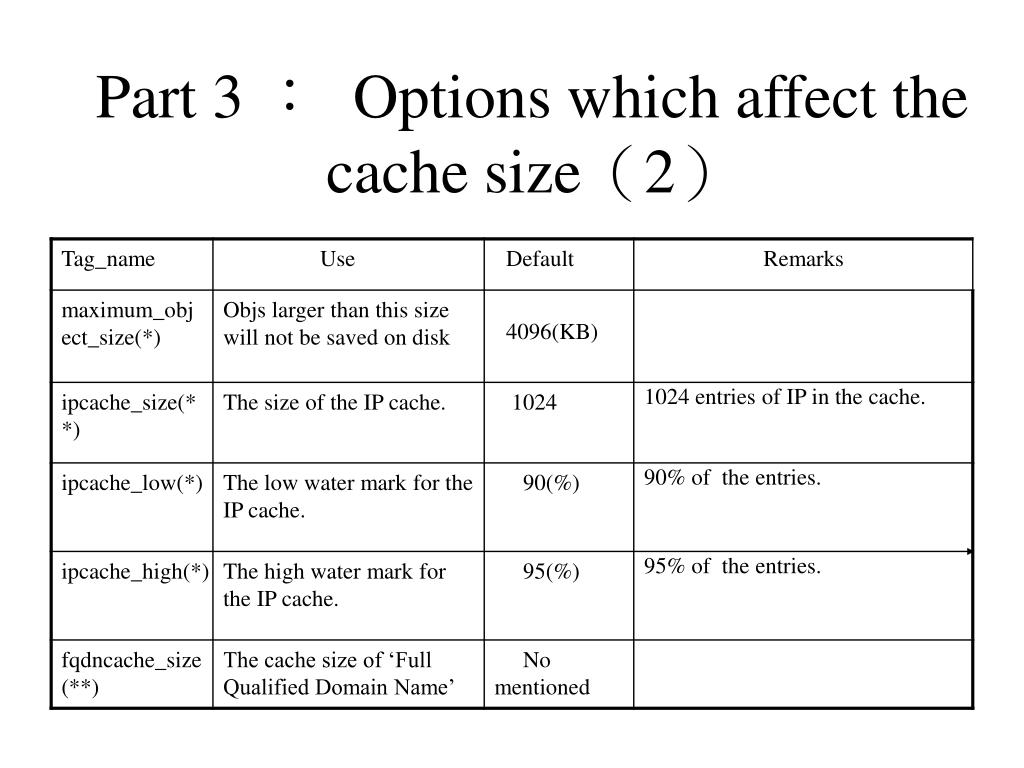

  19. Part 3 ： Options which affect the cache size（2）

  20. Part 4 ： Logfile pathnames and cache directories（1） Cache_dir /usr/local/squid/cache 100 16 256

  21. Part 4 ： Logfile pathnames and cache directories（2）

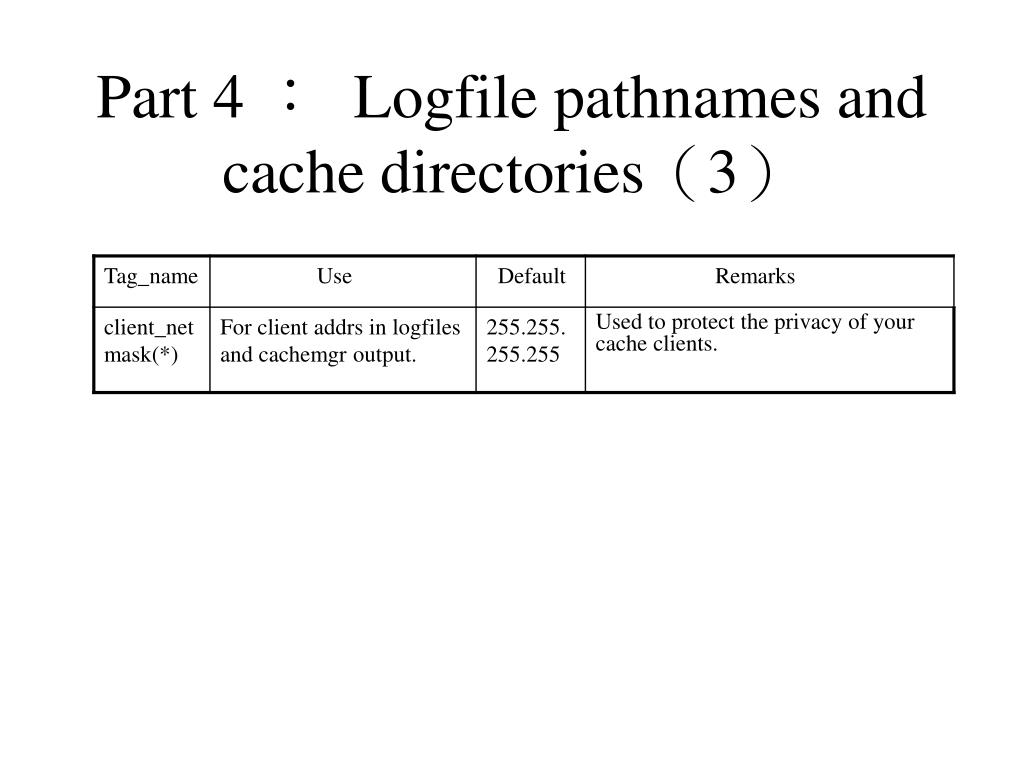

  22. Part 4 ： Logfile pathnames and cache directories（3）

  23. Part 5 ：Options for external support programs（1） ftp_user squid@ynlin.cis.nctu.edu.tw

  24. Part 5 ：Options for external support programs（2）

  25. Part 6 ：Options for tuning the cache（1） refresh_pattern ^ftp: 1440 20% 10080

  26. Part 6 ：Options for tuning the cache（2） quick_abort_min 1KB quick_abort_max 16KB quick_abort_pct 95

  27. Part 7 ：Timeout

  28. Part 8 ：Access Controls（1） Example: 1. acl Cooking1 url_regex cooking acl Recepie1 url_regex recepie http_access deny Cooking1 http_access deny Recepie1 PS: case-sensitive for all regular expression 2. acl Cooking2 dstdomain gourmet-chef.com http_access deny Cooking2 http_access allow all

  29. Part 8 ：Access Controls（2） Example: 1. acl game dst 210.62.177.70 139.175.208.190 http_access deny game 2. acl ncturc src 140.113.0.0 http_access allow ncturc http_access deny all

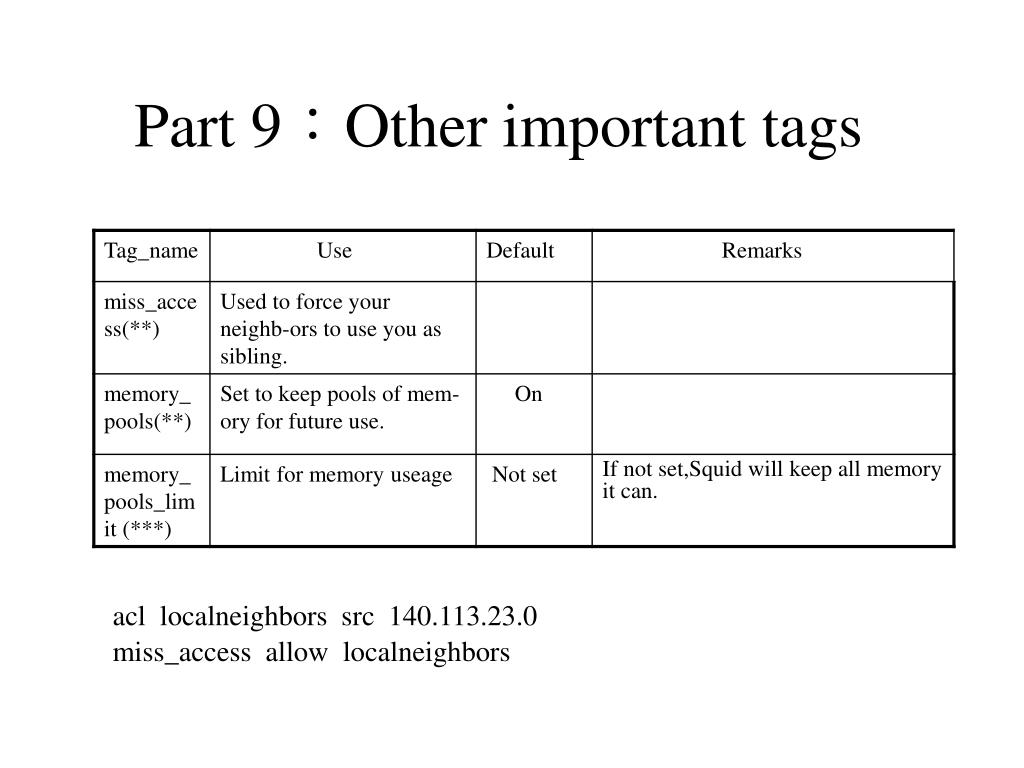

  30. Part 9：Other important tags acl localneighbors src 140.113.23.0 miss_access allow localneighbors

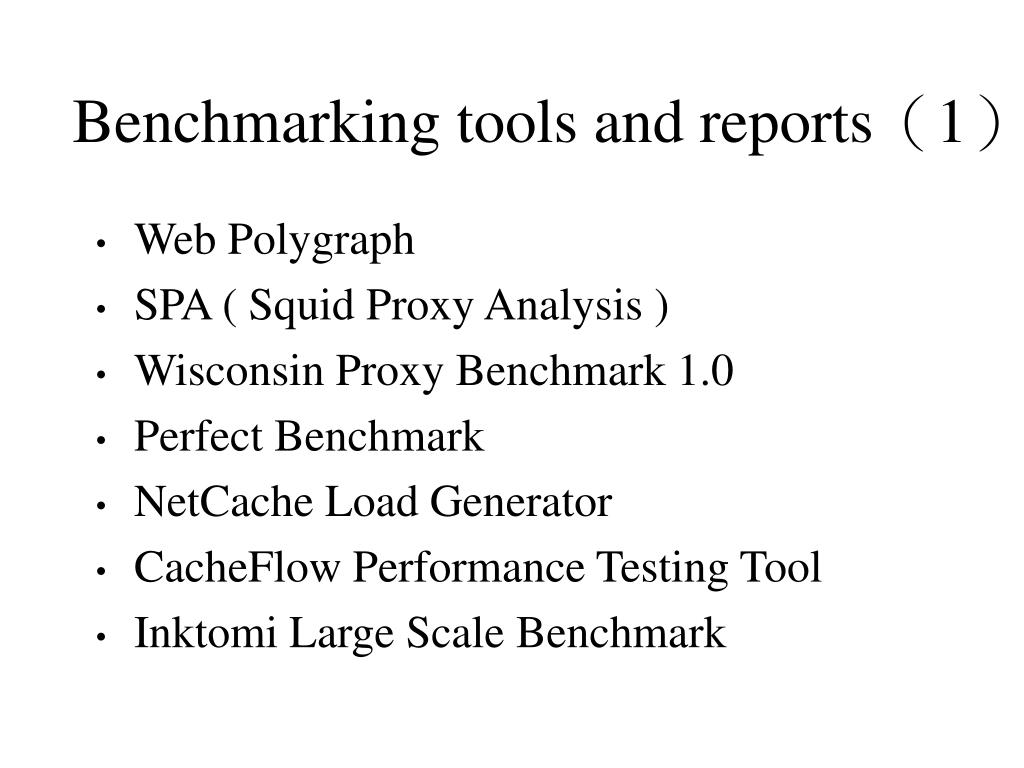

  31. Benchmarking tools and reports（1） • Web Polygraph • SPA ( Squid Proxy Analysis ) • Wisconsin Proxy Benchmark 1.0 • Perfect Benchmark • NetCache Load Generator • CacheFlow Performance Testing Tool • Inktomi Large Scale Benchmark

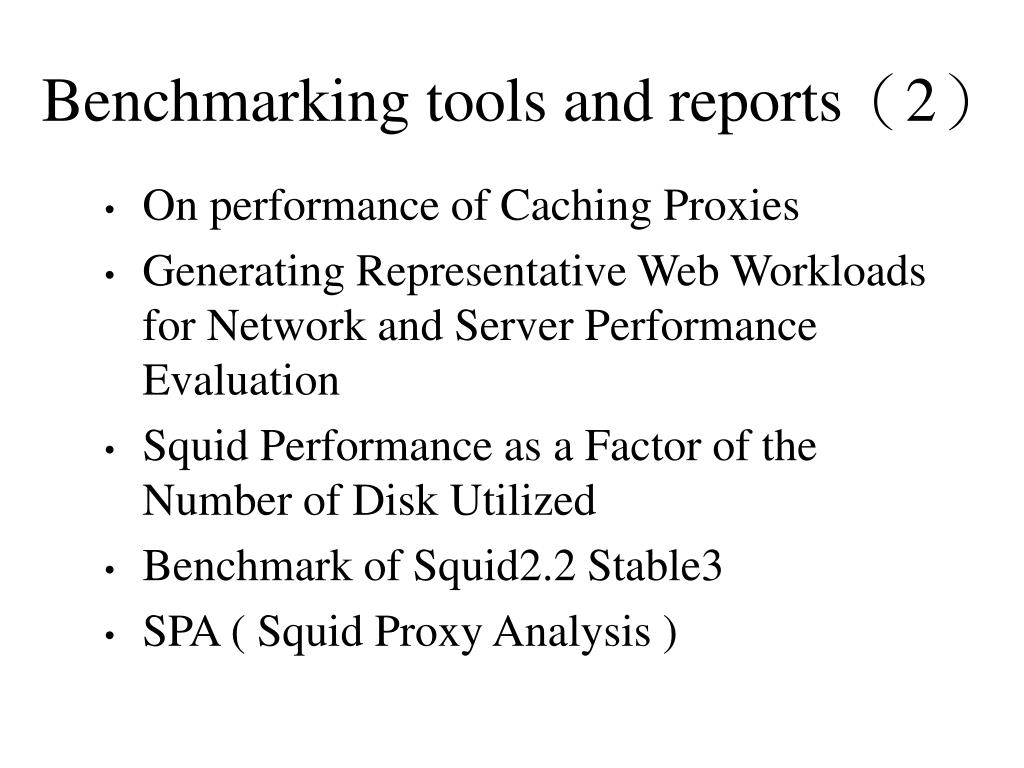

  32. Benchmarking tools and reports（2） • On performance of Caching Proxies • Generating Representative Web Workloads for Network and Server Performance Evaluation • Squid Performance as a Factor of the Number of Disk Utilized • Benchmark of Squid2.2 Stable3 • SPA ( Squid Proxy Analysis )

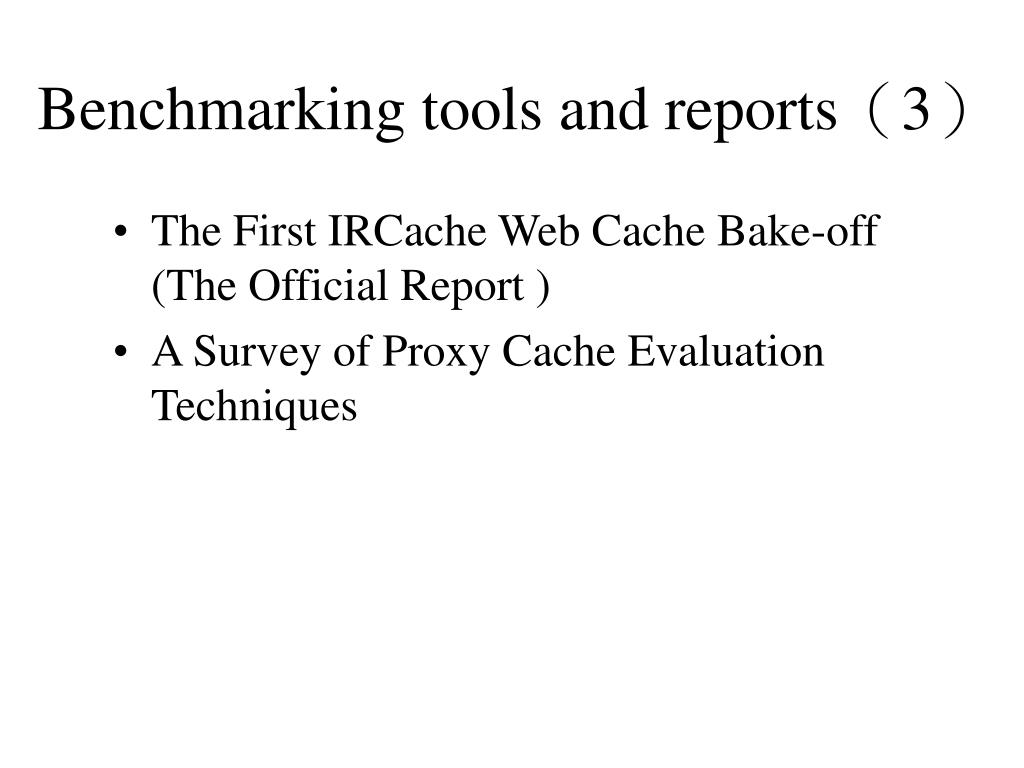

  33. Benchmarking tools and reports（3） • The First IRCache Web Cache Bake-off (The Official Report ) • A Survey of Proxy Cache Evaluation Techniques

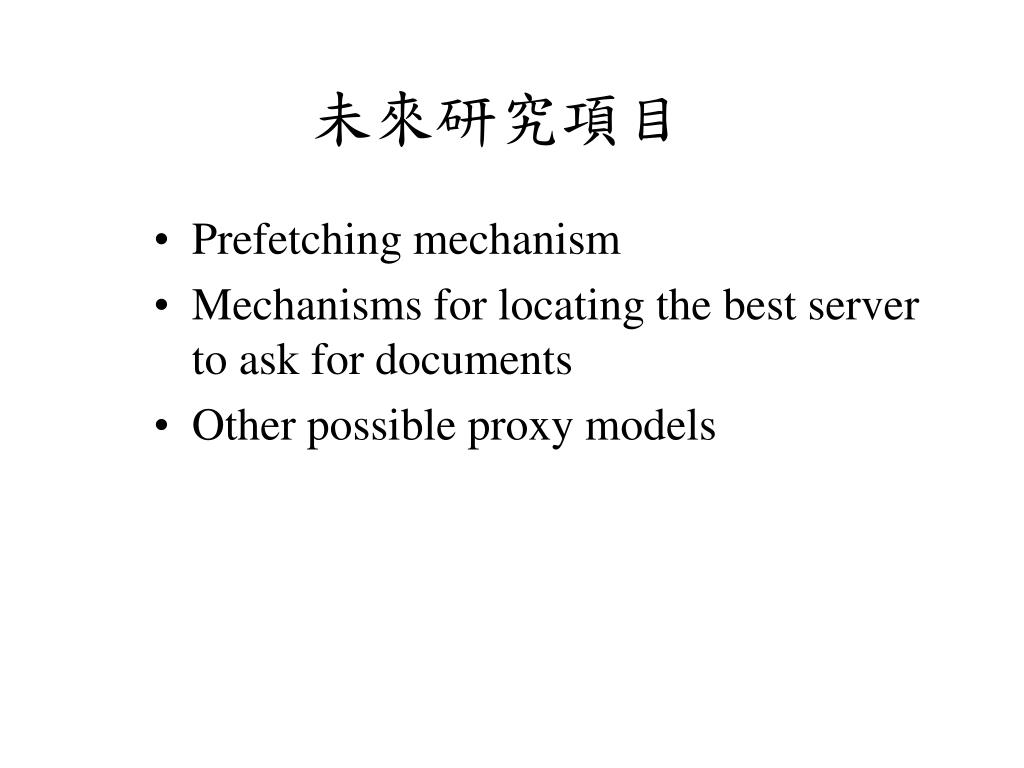

  34. 未來研究項目 • Prefetching mechanism • Mechanisms for locating the best server to ask for documents • Other possible proxy models

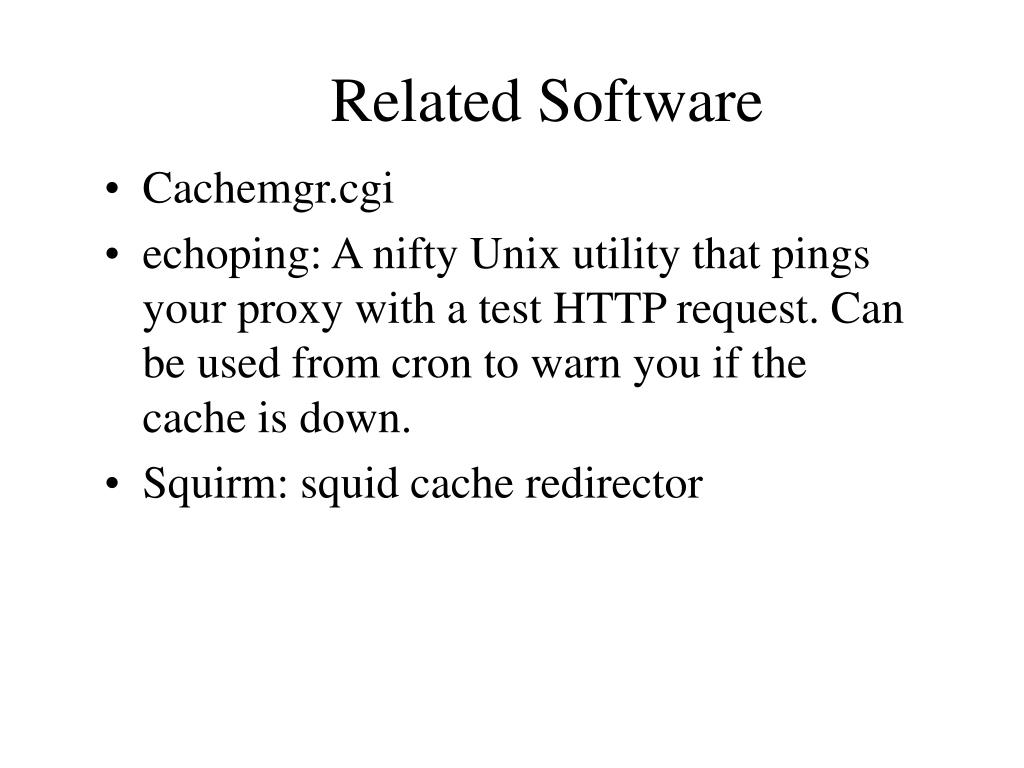

  35. Related Software • Cachemgr.cgi • echoping: A nifty Unix utility that pings your proxy with a test HTTP request. Can be used from cron to warn you if the cache is down. • Squirm: squid cache redirector

  36. Other notes: The difference between ipcache and fqdncache FQDN Cache Contents: IP-Number Flags TTL N Hostname 130.149.17.15 C -45570 1 andele.cs.tu-berlin.de 194.77.122.18 C -58133 1 komet.teuto.de 206.155.117.51 N -73747 0 Flags: C --> Cached D --> Dispatched N --> Negative Cached L --> Locked TTL: Time-To-Live until information expires N: Count of names IP Cache Contents: Hostname Flags lstref TTL N [IP-Number] gorn.cc.fh-lippe.de C 0 21581 1 193.16.112.73 lagrange.uni-paderborn.de C 6 21594 1 131.234.128.245 www.altavista.digital.com C 10 21299 4 204.123.2.75 ... 2/ftp.symantec.com DL 1583 -772855 0 Flags: C --> Cached D --> Dispatched N --> Negative Cached L --> Locked lstref: Time since last use TTL: Time-To-Live until information expires N: Count of addresses

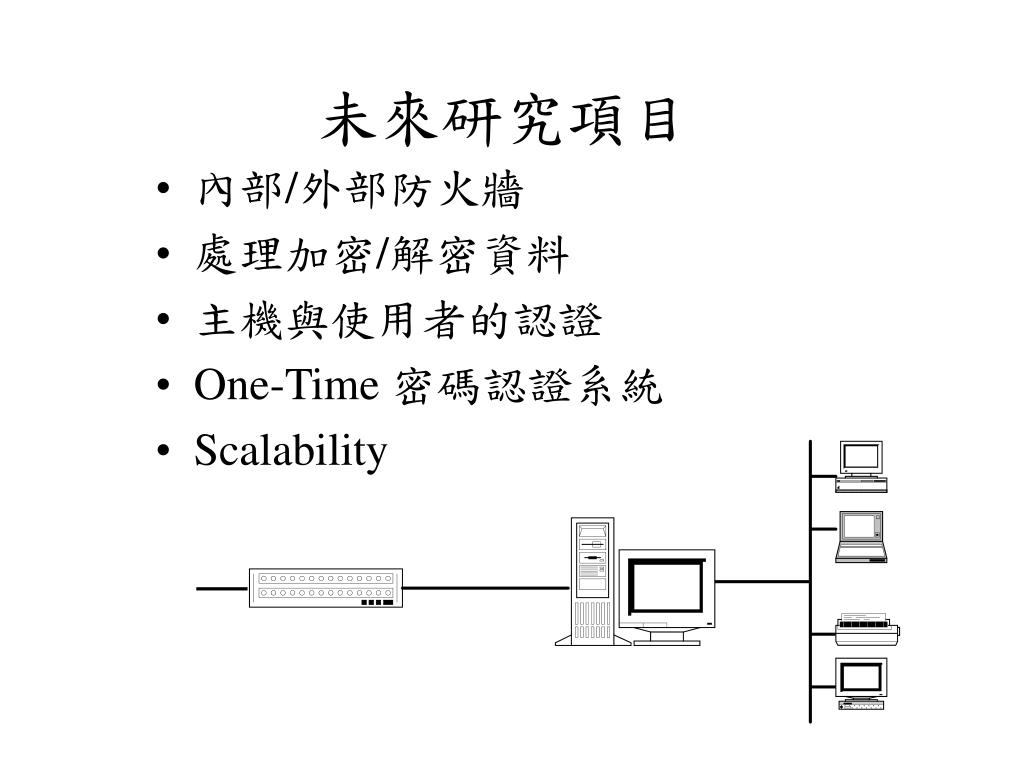

  37. 未來研究項目 • 內部/外部防火牆 • 處理加密/解密資料 • 主機與使用者的認證 • One-Time 密碼認證系統 • Scalability
