CALIBRATION CORRECTION CHART

CALIBRATION CORRECTION CHART. READING (fpm). CORRECTION. READING (fpm). CORRECTION. 500. 50. + 15. - 5. 550. 75. + 15. - 8. 600. 100. + 14. - 10. 700. 125. + 14. - 15. 800. 150. + 14. - 20. 900. 175. - 25. + 13. 1000. 200. + 12. - 30. 250. - 35. + 11. 1200.

sian
Télécharger la présentation

CALIBRATION CORRECTION CHART

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CALIBRATION CORRECTION CHART READING (fpm) CORRECTION READING (fpm) CORRECTION 500 50 + 15 - 5 550 75 + 15 - 8 600 100 + 14 - 10 700 125 + 14 - 15 800 150 + 14 - 20 900 175 - 25 + 13 1000 200 + 12 - 30 250 - 35 + 11 1200 1400 300 - 45 + 10 1600 350 + 5 - 50 1800 400 0 - 60 2000 450 - 2 - 65

  2. CALIBRATION CORRECTION CHART Air Velocity = Reading + Correction READING (fpm) CORRECTION READING (fpm) CORRECTION 50 + 15 500 - 5 R = 600 R = reading on anemometer R = 620 fpm 75 + 15 550 - 8 1 - 10 100 600 + 14 C =- 10 1 700 125 - 15 + 14 C=- 15 800 150 + 14 - 20 2 + 13 900 175 - 25 R = 700 2 1000 200 - 30 + 12 1200 250 - 35 + 11 Interpolation Formula 1400 - 45 + 10 300 350 1600 - 50 + 5 400 1800 0 - 60 (C-C) 2000 450 - 65 - 2 2 1 C = x (R - R ) + C 1 1 (R - R ) 2 1 ((-15)-(-10)) C = x (620 - 600) + (-10) = -11 fpm (700 - 600) Air Velocity = 620 fpm +(- 11 fpm) = 609 fpm

  3. Medium Velocity Air Measurements (anemometers) 6.2’ 5.8’ 5.8’ 18.7’ The dimensions of the mine entry were measured. H + H + H 1 2 3 Average H = 3 (C-C) 2 1 C = x (R - R ) + C A = W x H 1 1 (R - R ) 2 1 CALIBRATION CORRECTION CHART R = reading on anemometer R = 380 fpm READING (fpm) CORRECTION READING (fpm) CORRECTION 50 + 15 500 - 5 75 + 15 550 - 8 - 10 100 600 + 14 700 125 - 15 + 14 800 150 + 14 - 20 + 13 900 175 - 25 1000 200 - 30 + 12 250 - 35 1200 + 11 1400 - 45 + 10 300 350 1600 - 50 + 5 400 1800 0 - 60 2000 450 - 65 - 2 Interpolation Formula Air Velocity = Reading + Correction q = V x A

  4. Medium Velocity Air Measurements (anemometers) H + H + H 1 2 3 Average H = 3 6.2’+5.8’+5.8’ Average H = 3 (C-C) 2 1 C = x (R - R ) + C 1 1 (R - R ) 2 1 CALIBRATION CORRECTION CHART R = reading on anemometer R = 380 fpm READING (fpm) CORRECTION READING (fpm) CORRECTION 6.2’ 5.8’ 5.8’ 50 + 15 500 - 5 75 + 15 550 - 8 18.7’ - 10 100 600 + 14 700 125 - 15 + 14 800 150 + 14 - 20 + 13 900 175 - 25 R = 350 1000 200 - 30 1 + 12 1200 250 - 35 + 11 C =+ 5 1400 - 45 + 10 300 1 350 1600 - 50 + 5 C=0 400 1800 0 - 60 2 = 5.9’ 2000 450 - 65 - 2 R = 400 2 Interpolation Formula A = W x H =18.7’ x 5.9’ = 110 sq.ft. q = V x A q = 382 fpm x 110 sq.ft. ((0)-(+ 5)) C = x (380 - 350) + (+ 5) = + 2 fpm q = 42,020 cfm (400 - 350) Air Velocity = 380 fpm +(+ 2 fpm) = 382 fpm

  5. Medium Velocity Air Measurements (anemometers) 3.5’ 3.4’ 3.3’ 20.2’ The dimensions of the mine entry were measured. H + H + H 1 2 3 Average H = 3 (C-C) 2 1 C = x (R - R ) + C A = W x H 1 1 (R - R ) 2 1 CALIBRATION CORRECTION CHART R = reading on anemometer R = 310 fpm READING (fpm) CORRECTION READING (fpm) CORRECTION 50 + 15 500 - 5 75 + 15 550 - 8 - 10 100 600 + 14 700 125 - 15 + 14 800 150 + 14 - 20 + 13 900 175 - 25 1000 200 - 30 + 12 1200 250 - 35 + 11 1400 - 45 + 10 300 350 1600 - 50 + 5 400 1800 0 - 60 2000 450 - 65 - 2 Interpolation Formula Air Velocity = Reading + Correction q = V x A

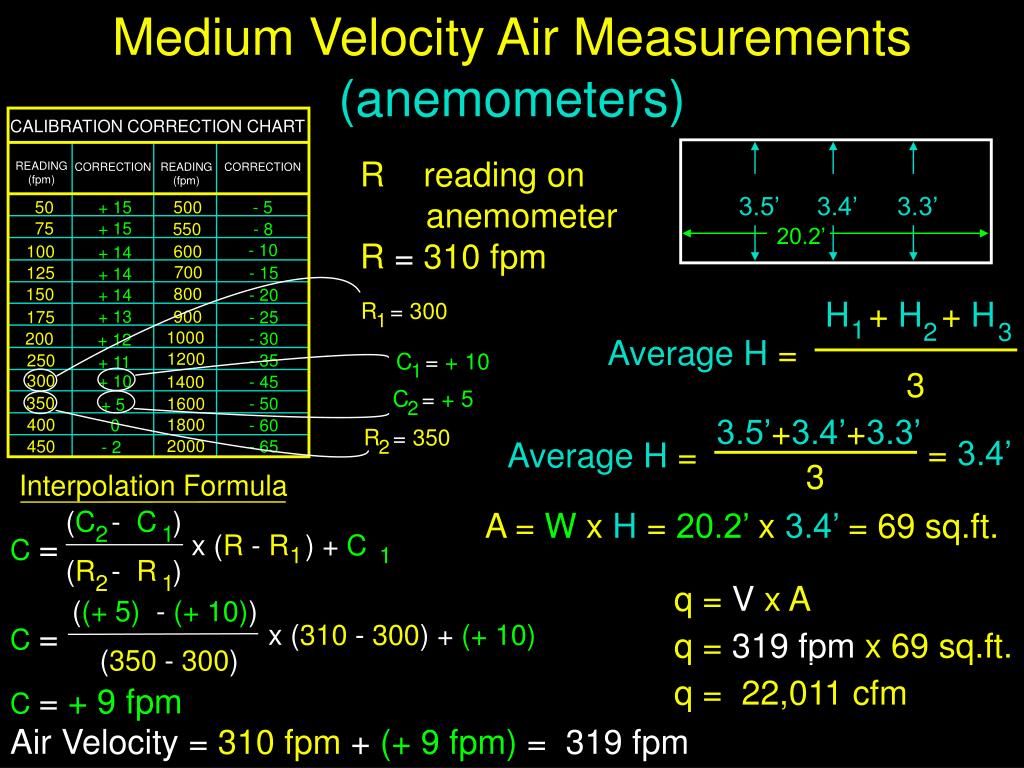

  6. Medium Velocity Air Measurements (anemometers) H + H + H 1 2 3 Average H = 3 3.5’+3.4’+3.3’ Average H = 3 (C-C) 2 1 C = x (R - R ) + C 1 1 (R - R ) 2 1 ((+ 5)-(+ 10)) C = x (310 - 300) + (+ 10) (350 - 300) CALIBRATION CORRECTION CHART R = reading on anemometer R = 310 fpm READING (fpm) CORRECTION READING (fpm) CORRECTION 3.5’ 3.4’ 3.3’ 50 + 15 500 - 5 75 + 15 550 - 8 20.2’ - 10 100 600 + 14 700 125 - 15 + 14 800 150 + 14 - 20 R = 300 + 13 900 175 - 25 1 1000 200 - 30 + 12 C =+ 10 1200 250 - 35 + 11 1 300 + 10 1400 - 45 C=+ 5 350 1600 - 50 + 5 2 400 1800 0 - 60 R = 350 = 3.4’ 2 2000 450 - 65 - 2 Interpolation Formula A = W x H =20.2’ x 3.4’ = 69 sq.ft. q = V x A q = 319 fpm x 69 sq.ft. q = 22,011 cfm C = + 9 fpm Air Velocity = 310 fpm +(+ 9 fpm) = 319 fpm
