  1. Error Correction and Partial Information Rewriting for Flash Memories Yue Li joint work with Anxiao (Andrew) Jiang and JehoshuaBruck

  2. Block Erasure is Harmful • Decreasing cell level triggers block erasure • Erasure degrades cell quality E. Cohen, “The Nibbles and Bits of SSD Data Integrity”, Flash Memory Summit, 2013.

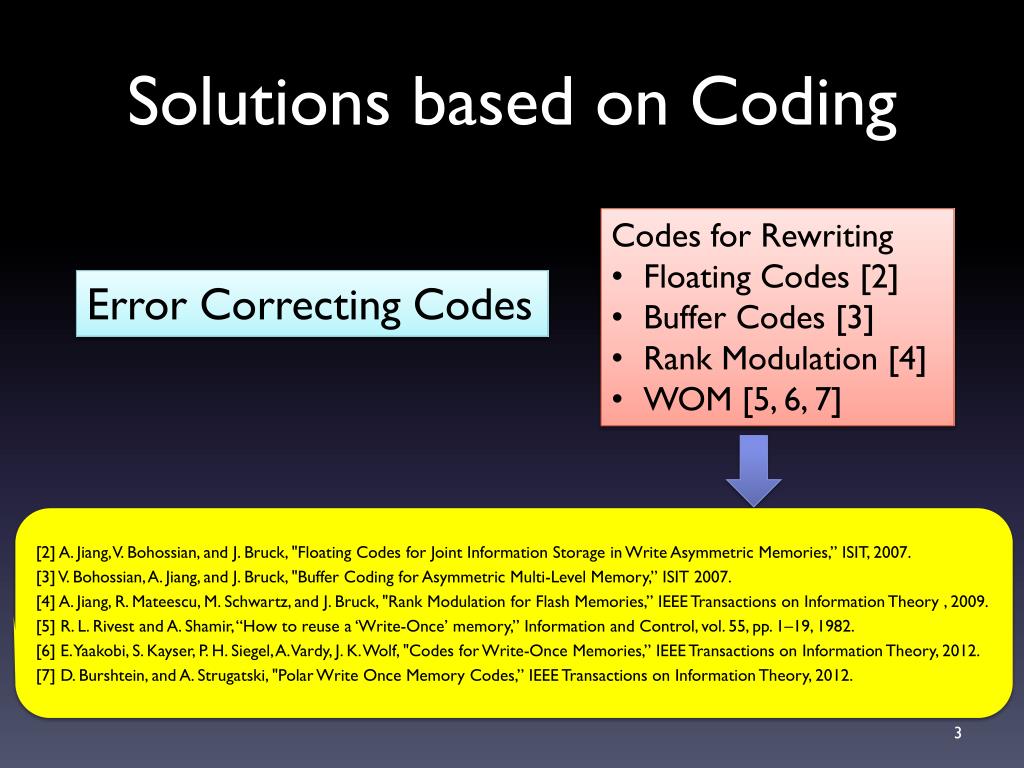

  3. Solutions based on Coding • Codes for Rewriting • Floating Codes [2] • Buffer Codes [3] • Rank Modulation [4] • WOM [5, 6, 7] Error Correcting Codes [2] A. Jiang, V. Bohossian, and J. Bruck, "Floating Codes for Joint Information Storage in Write Asymmetric Memories,” ISIT, 2007. [3] V. Bohossian, A. Jiang, and J. Bruck, "Buffer Coding for Asymmetric Multi-Level Memory,” ISIT 2007. [4] A. Jiang, R. Mateescu, M. Schwartz, and J. Bruck, "Rank Modulation for Flash Memories,” IEEE Transactions on Information Theory , 2009. [5] R. L. Rivest and A. Shamir, “How to reuse a ‘Write-Once’ memory,” Information and Control, vol. 55, pp. 1–19, 1982. [6] E. Yaakobi, S. Kayser, P. H. Siegel, A. Vardy, J. K. Wolf, "Codes for Write-Once Memories,” IEEE Transactions on Information Theory, 2012. [7] D. Burshtein, and A. Strugatski, "Polar Write Once Memory Codes,” IEEE Transactions on Information Theory, 2012. Trajectory Codes[8] [8] A. Jiang, M. Langberg, M. Schwartz, and J. Bruck, "Trajectory Codes for Flash Memory,” IEEE Transactions onInformation Theory, vol. 59, no. 7, pp. 4530-4541, July 2013.

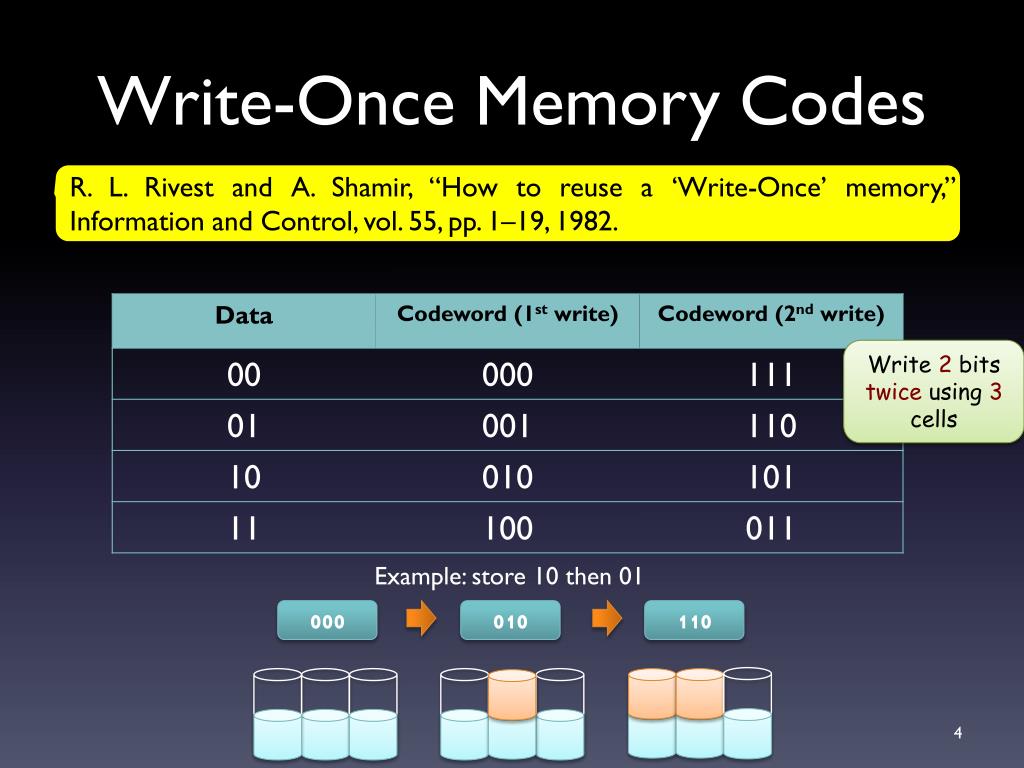

  4. Write-Once Memory Codes R. L. Rivest and A. Shamir, “How to reuse a ‘Write-Once’ memory,” Information and Control, vol. 55, pp. 1–19, 1982. Write 2 bits twice using 3 cells Example: store 10 then 01 000 010 110

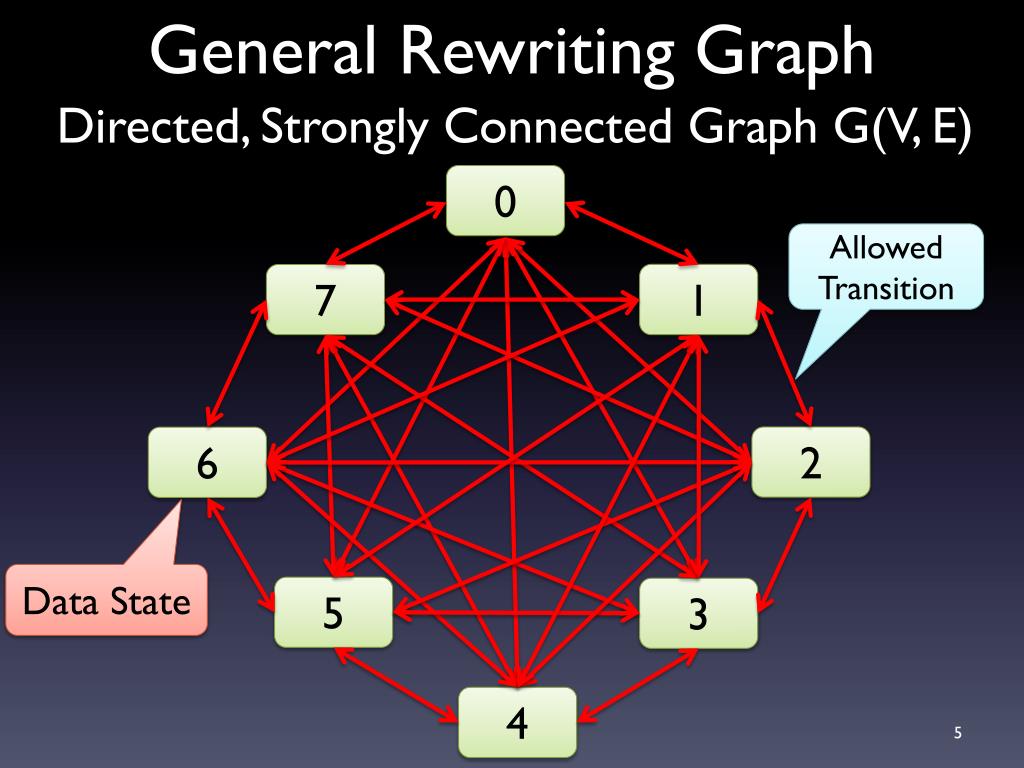

  5. General Rewriting Graph Directed, Strongly Connected Graph G(V, E) 0 Allowed Transition 1 7 2 6 Data State 5 3 4

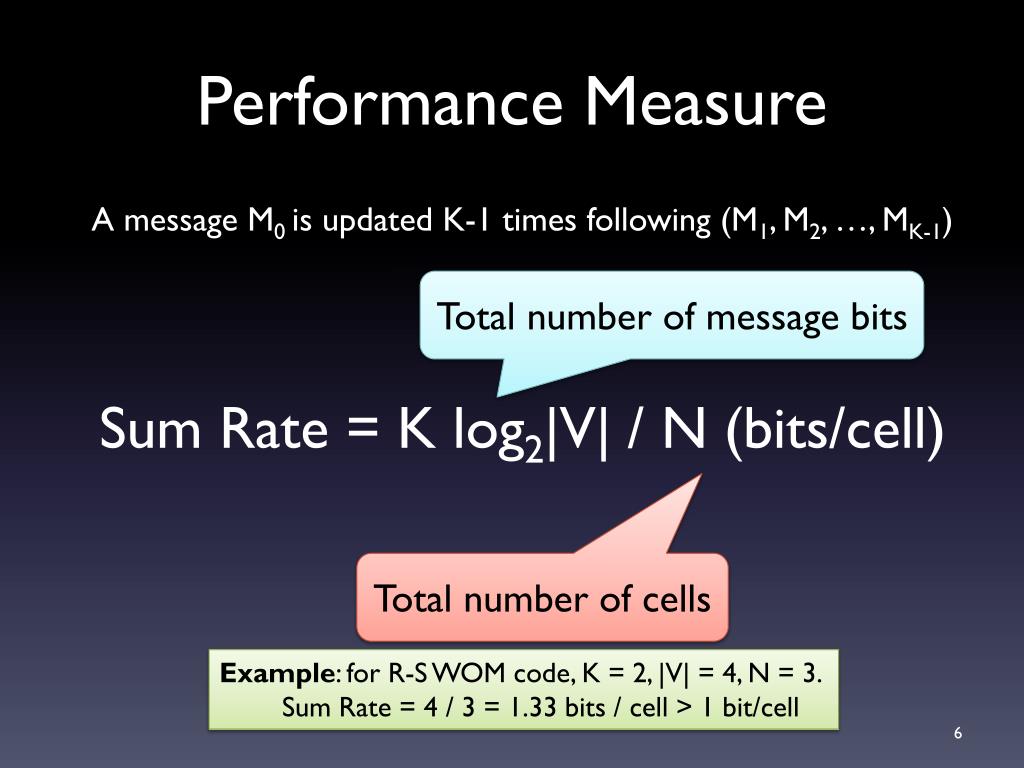

  6. Performance Measure A message M0 is updated K-1 times following (M1, M2, …, MK-1) Total number of message bits Sum Rate = K log2|V| / N (bits/cell) Total number of cells Example: for R-S WOM code, K = 2, |V| = 4, N = 3. Sum Rate = 4 / 3 = 1.33 bits / cell > 1 bit/cell

  7. Partial General Rewriting Graph Directed, Strongly Connected Graph G(V, E) 0 Allowed Transition 1 7 2 6 Data State 5 3 Maximum outdegree<< |V| 4

  8. Motivation of Partial Rewriting Remote File Synchronization Server Dropbox or Mobile App Server Synchronization Synchronization Update A C B

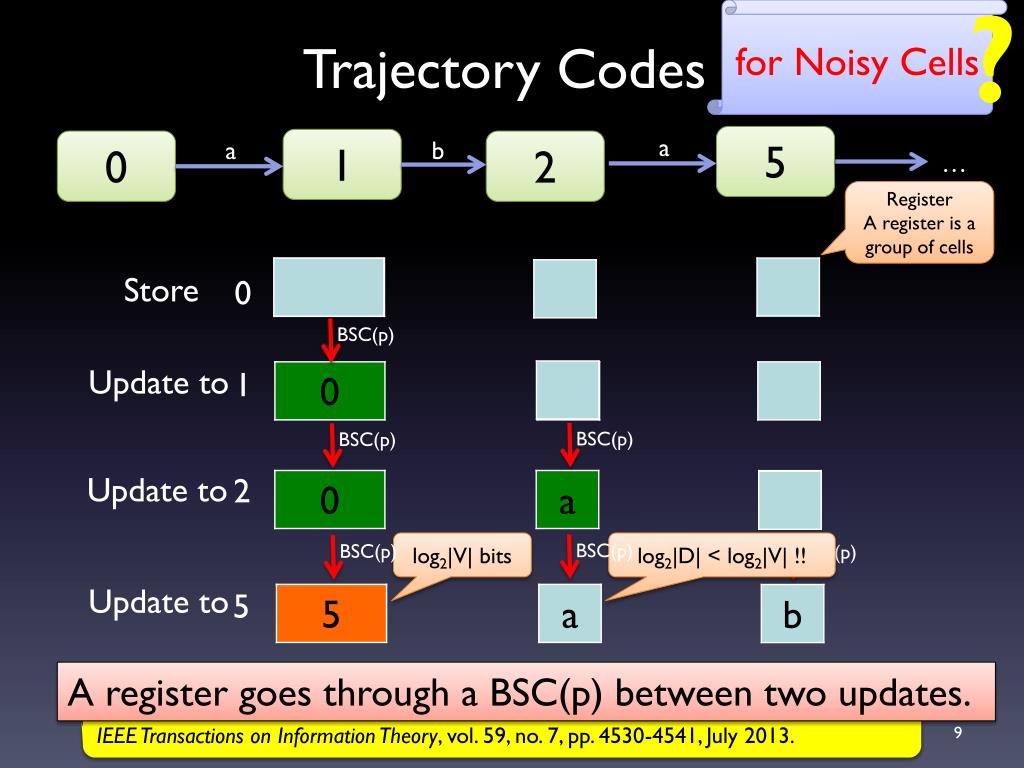

  9. ? for Noisy Cells Trajectory Codes a 5 a 1 b 0 2 … Register A register is a group of cells Store 0 BSC(p) BSC(p) BSC(p) BSC(p) BSC(p) BSC(p) Update to 1 Update to 2 log2|V| bits log2|D| < log2|V| !! Update to 5 A register goes through a BSC(p) between two updates. [1] A. Jiang, M. Langberg, M. Schwartz, and J. Bruck, "Trajectory Codes for Flash Memory,” IEEE Transactions onInformation Theory, vol. 59, no. 7, pp. 4530-4541, July 2013.

  10. Construction 1 (Example: C = 3, t = 2, K = 6) a 5 a 1 b 0 2 … Corrects BSC(p*3) Corrects BSC(p*2) Corrects BSC(p) Update to Update to Update to Write 1 2 5 0 BSC(p) BSC(p) BSC(p) BSC(p) BSC(p) BSC(p)

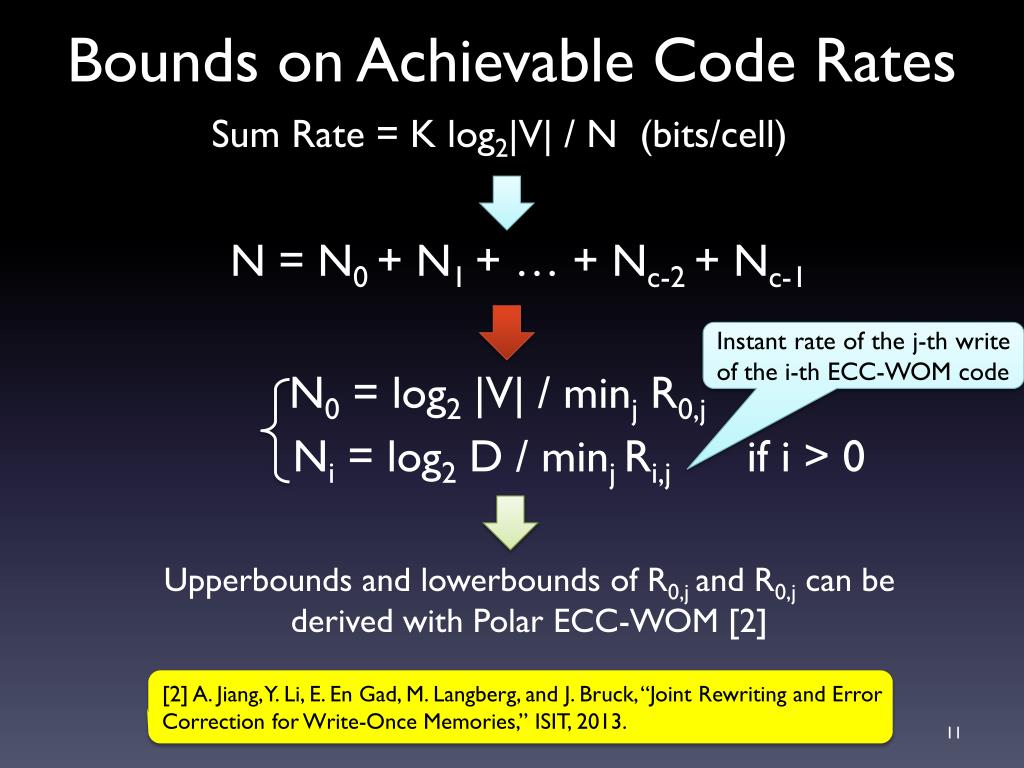

  11. Bounds on Achievable Code Rates Sum Rate = K log2|V| / N (bits/cell) N = N0 + N1 + … + Nc-2 + Nc-1 Instant rate of the j-th write of the i-th ECC-WOM code N0= log2 |V| / minjR0,j Ni = log2 D / minjRi,j if i > 0 Upperbounds and lowerbounds of R0,j and R0,j can be derived with Polar ECC-WOM [2] [2] A. Jiang, Y. Li, E. En Gad, M. Langberg, and J. Bruck, “Joint Rewriting and Error Correction for Write-Once Memories,” ISIT, 2013.

  12. Performance of Construction 1 • Compare the bounds of three cases • Max degree: D is larger 21024 • D is smaller 213 • Basic ECC-WOM using only 1 register • Parameters • Message length: log2|V| = 1KByte (213 bits) • Number of registers: C = 8 • Channel error rate p = 10-3

  13. Performance of Construction 1

  14. Construction 2 (Example: C = 3, t = 2, K = 6) a 5 a 1 b 0 2 … Recover S2by decoding S’2 = S2 + BSC(p) Recover S0by decoding (S’’0 + (S0 + S’0)) = S0 + BSC(p) Recover S1by decoding S’1 = S1+ BSC(p) Recover S1by decoding (S’’1 + (S1 + S’1))= S1+ BSC(p) Recover S0by decoding S’0 = S0 + BSC(p) Recover S0by decoding (S’’’0 + (S0 + S’0) +(S’0 + S’’0))= S0 + BSC(p) Corrects BSC(p) Corrects BSC(p) Corrects BSC(p) Write 0 BSC(p) BSC(p) BSC(p) BSC(p) BSC(p) BSC(p) S0 1 S’0 S1 2 S2 S’1 S’’0 Read 2 S’2 S’’’0 S’’1

  15. Performance of Construction 2

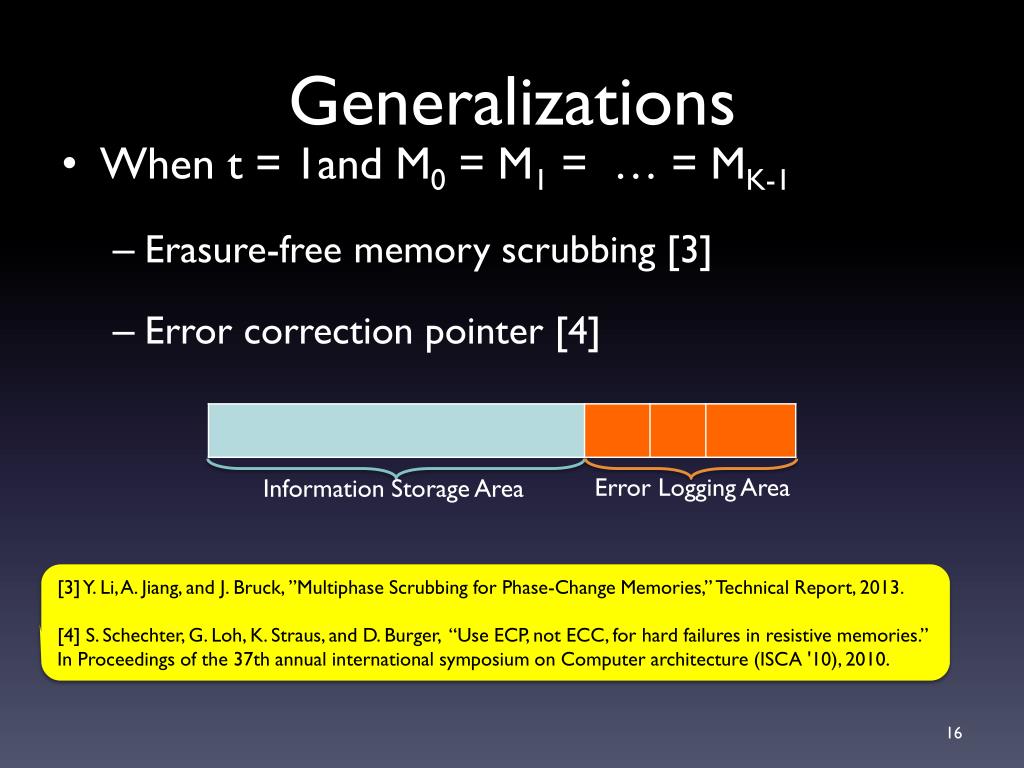

  16. Generalizations • When t = 1and M0 = M1 = …= MK-1 • Erasure-free memory scrubbing [3] • Error correction pointer [4] Error Logging Area Information Storage Area [3] Y. Li, A. Jiang, and J. Bruck, ”Multiphase Scrubbing for Phase-Change Memories,” Technical Report, 2013. [4] S. Schechter, G. Loh, K. Straus, and D. Burger, “Use ECP, not ECC, for hard failures in resistive memories.” In Proceedings of the 37th annual international symposium on Computer architecture (ISCA '10), 2010.

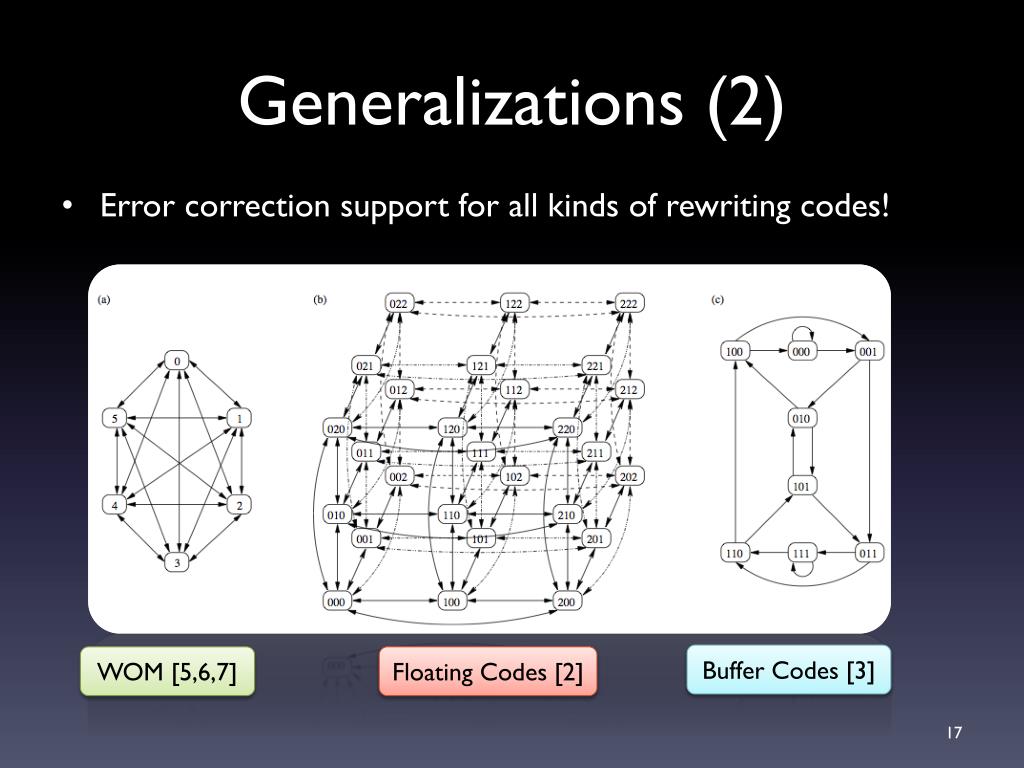

  17. Generalizations (2) • Error correction support for all kinds of rewriting codes! Buffer Codes [3] WOM [5,6,7] Floating Codes [2]

  18. Summary • Error correction trajectory codes are • Efficient • when D << |V| • General • Existing practical memory scrubbing/ECP schemes • Error correction for various rewriting codes • Extensible • q-ary? • Asymmetric noise channel ? • Capacity ? Thank You
