  1. C# Introduction ISYS 350

  2. Visual Studio 2010 Demo • Start page: New project/ Open project/Recent projects • Starting project: • File/New Project/ • C# • Windows • Windows form application • Project name • Project windows: • Form design view/Form code view • Solution Explorer • View/Solution Explorer • Server Explorer • Property Window • Properties and Events • ToolBox • Project/Add New Item • Property window example

  3. Introduction to C# • Event-driven programming • The interface for a C# program consists of one or more forms, containing one or more controls (screen objects). • Form and controls have events that can respond to. Typical events include clicking a mouse button, type a character on the keyboard, changing a value, etc. • Event procedure

  4. Form • Properties: • Name, FormBorderStyle, Text, BackColor, BackImage, Opacity • Events: • Load, FormClosing, FormClosed • GotFocus, LostFocus • MouseHover, Click, DoubleCLick

  5. Typical Controls • TextBox • Label • Button • CheckBox • RadioButton • ListBox • ComboBox • PictureBox

  6. Text Box • Properties: • AutoSize, BorderStyle, CauseValidation, Enabled, Locked, Multiline, PasswordChar, ReadOnly, ScrollBar, TabIndex, Text, Visible, WordWrap, etc. • Properties can be set at the design time or at the run time using code. • To refer to a property: • ControlName.PropertyName • Ex. TextBox1.Text • Note: The Text property is a string data type and automatically inherits the properties and methods of the string data type.

  7. Typical C# Programming Tasks • Creating the GUI elements that make up the application’s user interface. • Visualize the application. • Make a list of the controls needed. • Setting the properties of the GUI elements • Writing procedures that respond to events and perform other operations.

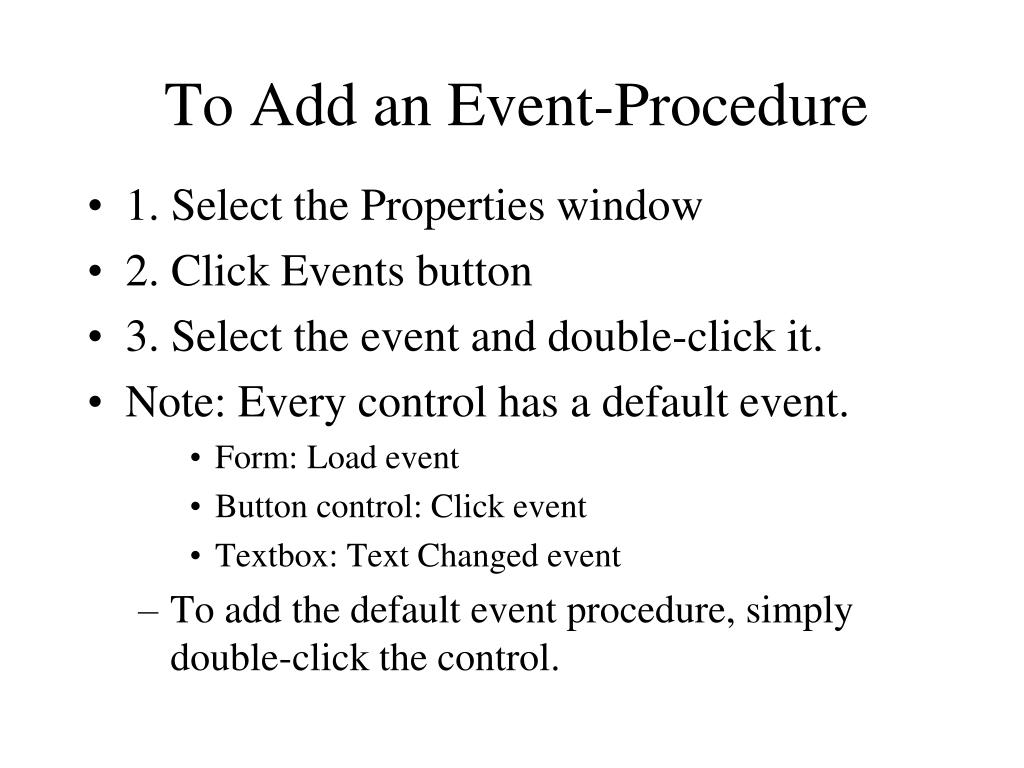

  8. To Add an Event-Procedure • 1. Select the Properties window • 2. Click Events button • 3. Select the event and double-click it. • Note: Every control has a default event. • Form: Load event • Button control: Click event • Textbox: Text Changed event • To add the default event procedure, simply double-click the control.

  9. Demo FirstName LastName FullName .Control properties .Event: Click, MouseMove, FormLoad, etc. .Event procedures FullName: textBox3.Text textBox3.Text = textBox1.Text + " " + textBox2.Text; Demo: Text alignment (TextAlign property)

  10. Demo Num1 Num2 Sum = .Control properties .Event: Click, MouseMove, FormLoad, etc. .Event procedures Sum: textBox3.Text = (double.Parse(textBox1.Text) + double.Parse(textBox2.Text)).ToString();

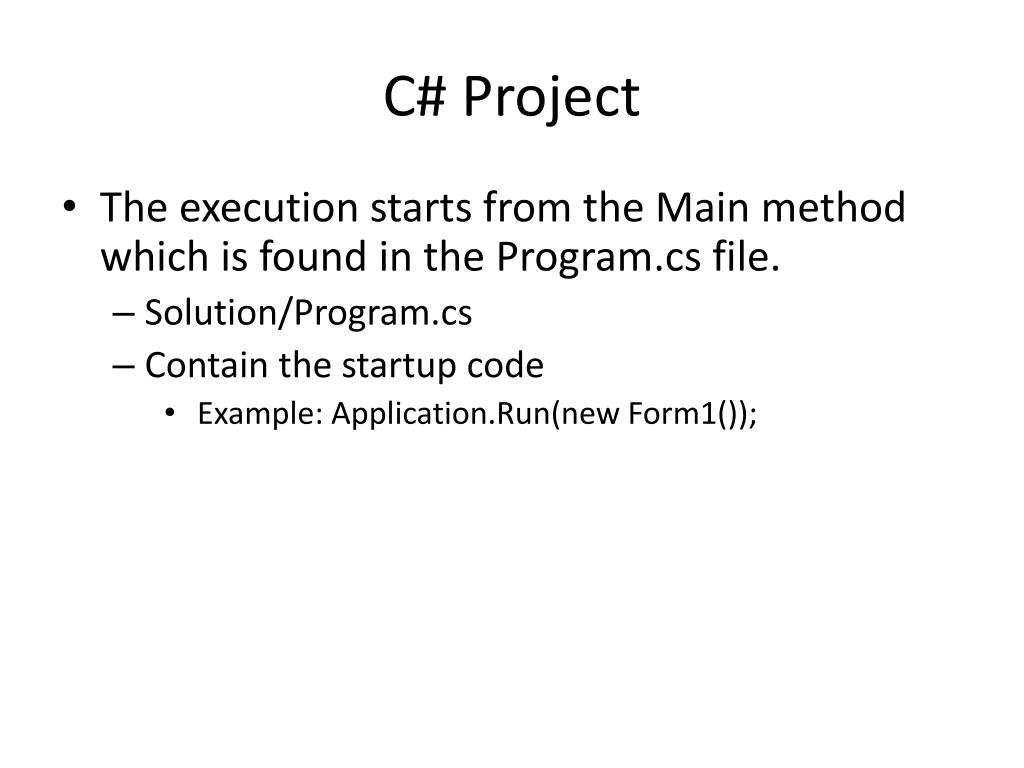

  11. C# Project • The execution starts from the Main method which is found in the Program.cs file. • Solution/Program.cs • Contain the startup code • Example: Application.Run(new Form1());

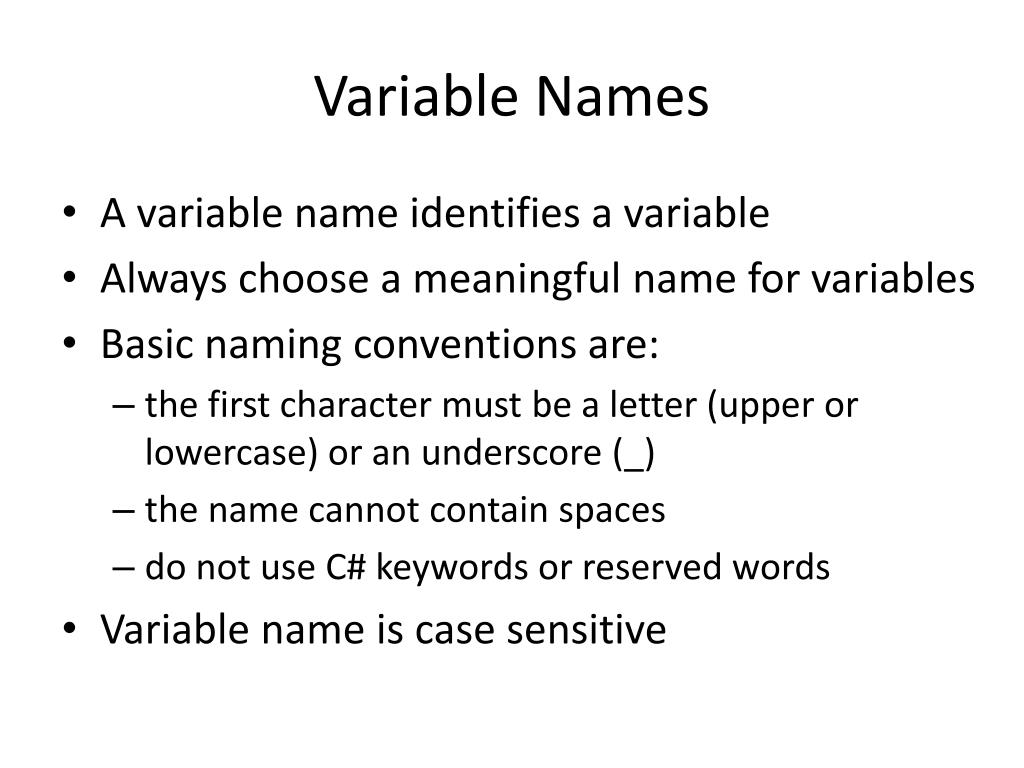

  12. Variable Names • A variable name identifies a variable • Always choose a meaningful name for variables • Basic naming conventions are: • the first character must be a letter (upper or lowercase) or an underscore (_) • the name cannot contain spaces • do not use C# keywords or reserved words • Variable name is case sensitive

  13. Declare a Variable • C# is a strongly typed language. This means that when a variable is defined we have to specify what type of data the variable will hold. • DataType VaraibleName; • A C# statement ends with “;”

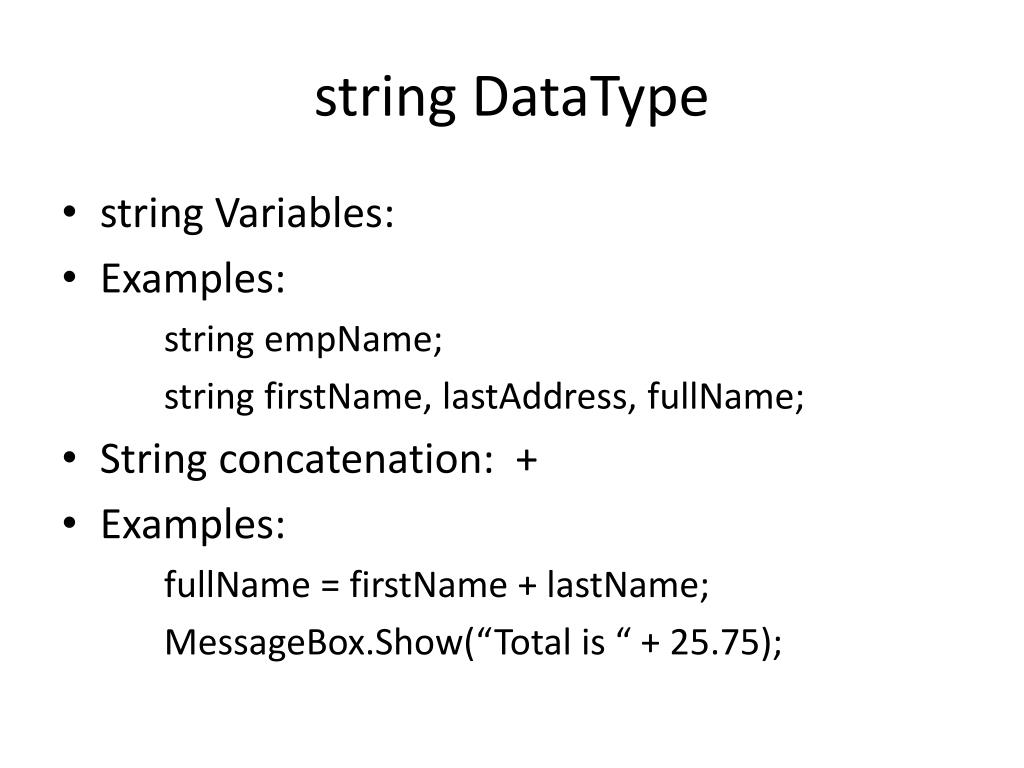

  14. string DataType • string Variables: • Examples: string empName; string firstName, lastAddress, fullName; • String concatenation: + • Examples: fullName = firstName + lastName; MessageBox.Show(“Total is “ + 25.75);

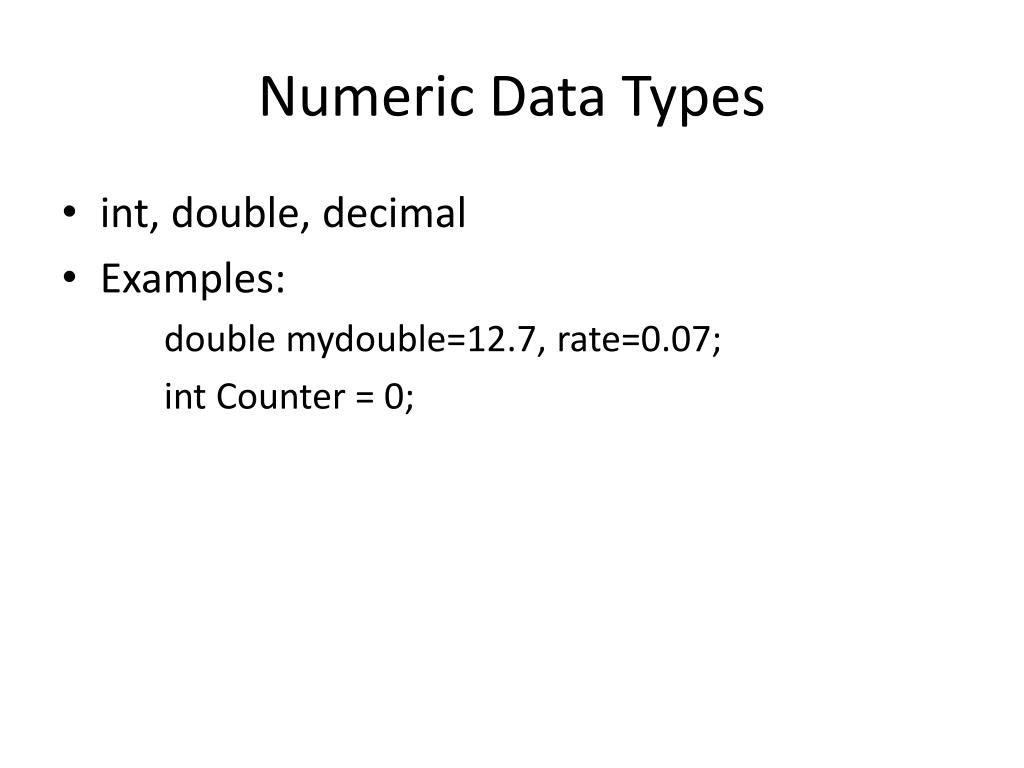

  15. Numeric Data Types • int, double, decimal • Examples: double mydouble=12.7, rate=0.07; int Counter = 0;

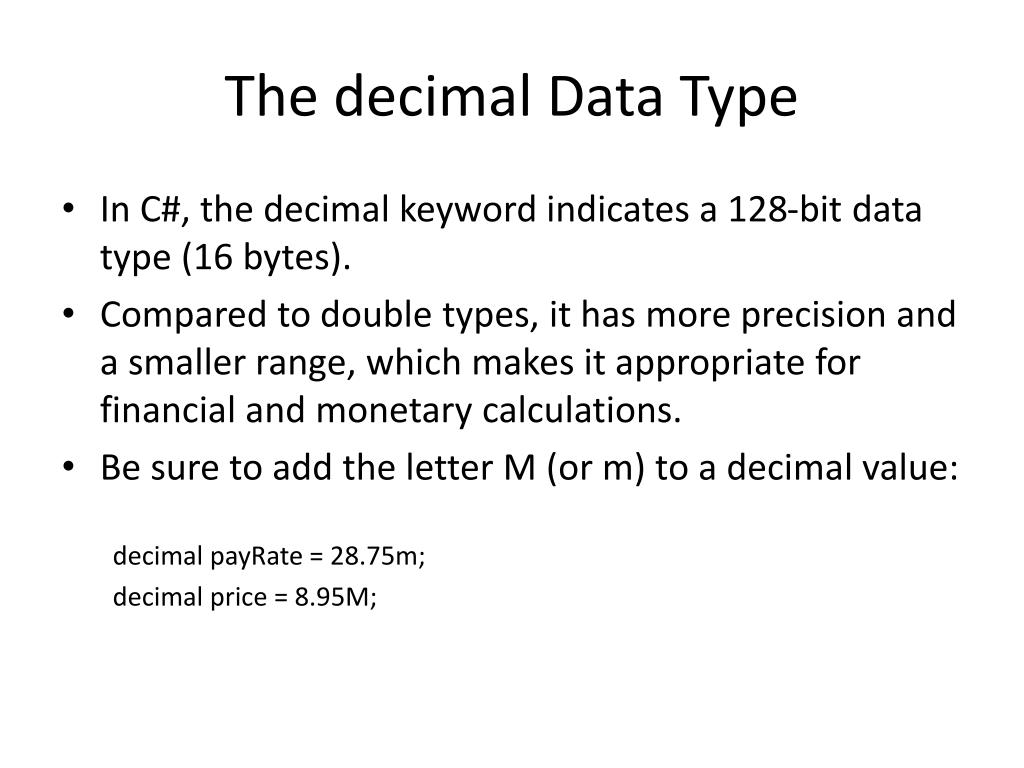

  16. The decimal Data Type • In C#, the decimal keyword indicates a 128-bit data type (16 bytes). • Compared to double types, it has more precision and a smaller range, which makes it appropriate for financial and monetary calculations. • Be sure to add the letter M (or m) to a decimal value: decimal payRate = 28.75m; decimal price = 8.95M;

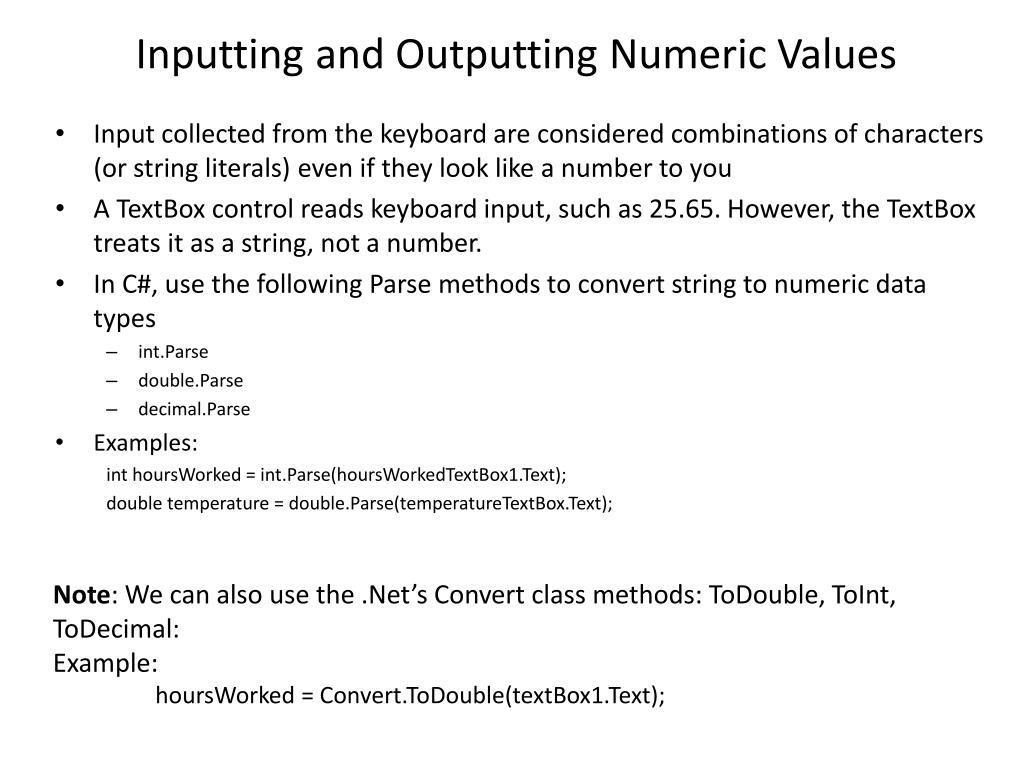

  17. Inputting and Outputting Numeric Values • Input collected from the keyboard are considered combinations of characters (or string literals) even if they look like a number to you • A TextBox control reads keyboard input, such as 25.65. However, the TextBox treats it as a string, not a number. • In C#, use the following Parse methods to convert string to numeric data types • int.Parse • double.Parse • decimal.Parse • Examples: int hoursWorked = int.Parse(hoursWorkedTextBox1.Text); double temperature = double.Parse(temperatureTextBox.Text); Note: We can also use the .Net’s Convert class methods: ToDouble, ToInt, ToDecimal: Example: hoursWorked = Convert.ToDouble(textBox1.Text);

  18. Explicit Conversion between Numeric Data Types with Cast Operators • C# allows you to explicitly convert among types, which is known as type casting • You can use the cast operator which is simply a pair of parentheses with the type keyword in it int wholeNumber; decimal moneyNumber = 4500m; wholeNumber = (int) moneynumber; double realNumber; decimal moneyNUmber = 625.70m; realNumber = (double) moneyNumber; moneyNumber=(decimal) realNumber; Note: All variables come with a ToString() method. Note: We can also use the .Net’s Convert class methods

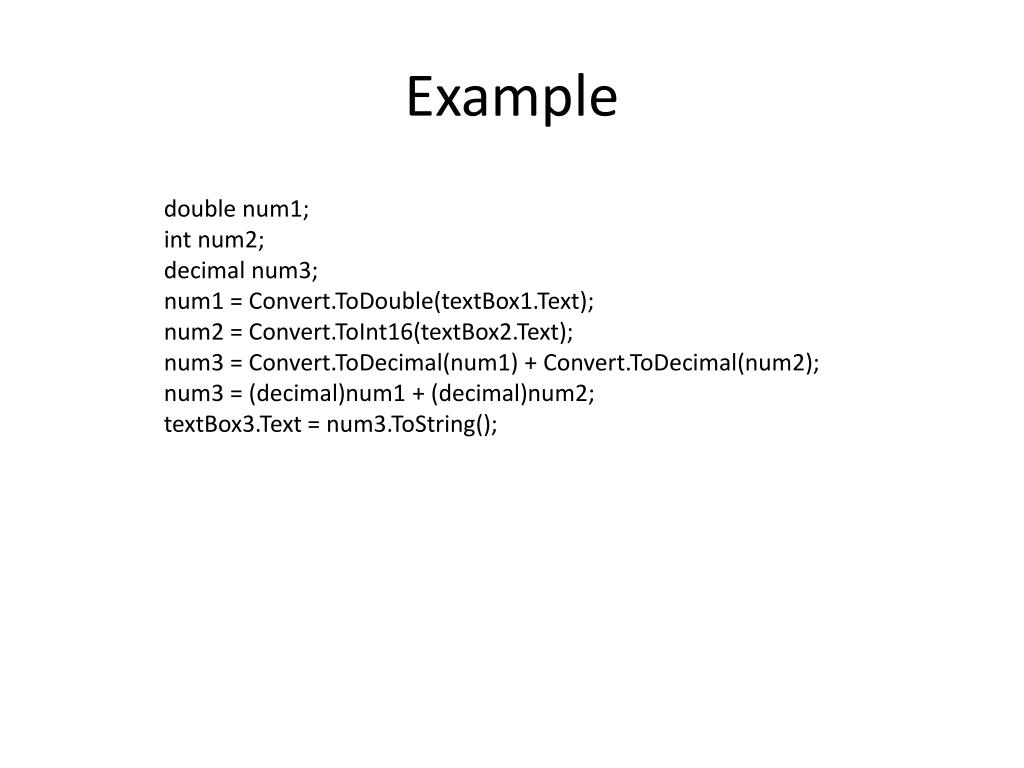

  19. Example double num1; int num2; decimal num3; num1 = Convert.ToDouble(textBox1.Text); num2 = Convert.ToInt16(textBox2.Text); num3 = Convert.ToDecimal(num1) + Convert.ToDecimal(num2); num3 = (decimal)num1 + (decimal)num2; textBox3.Text = num3.ToString();

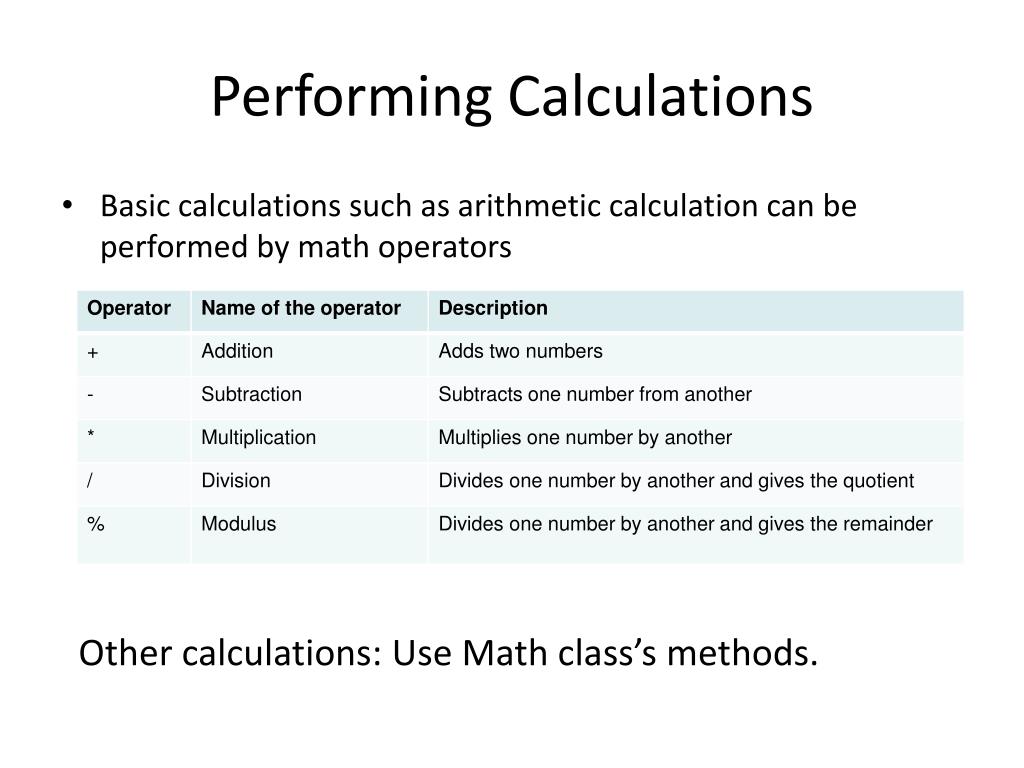

  20. Performing Calculations • Basic calculations such as arithmetic calculation can be performed by math operators Other calculations: Use Math class’s methods.

  21. Example int dividend, divisor, quotient, remainder; dividend = int.Parse(textBox1.Text); divisor = int.Parse(textBox2.Text); quotient = dividend / divisor; remainder = dividend % divisor; textBox3.Text = quotient.ToString(); textBox4.Text = remainder.ToString();

  22. Change Machine to Return Smallest Number of Coins int changes, quarters, dimes, nickles, pennies; changes = int.Parse(textBox1.Text); quarters = changes / 25; dimes = (changes % 25) / 10; nickles = (changes - quarters * 25 - dimes * 10) / 5; pennies = changes - quarters * 25 - dimes * 10 - nickles * 5; textBox2.Text = quarters.ToString(); textBox3.Text = dimes.ToString(); textBox4.Text = nickles.ToString(); textBox5.Text = pennies.ToString();

  23. FV = PV * (1 +Rate) Year double pv, rate, years, fv; pv = double.Parse(textBox1.Text); rate = double.Parse(textBox2.Text); years = double.Parse(textBox3.Text); fv = Math.Pow(pv * (1 + rate), years); textBox4.Text = fv.ToString();

  24. Formatting Numbers with the ToString Method • The ToString method can optionally format a number to appear in a specific way • The following table lists the “format strings” and how they work with sample outputs

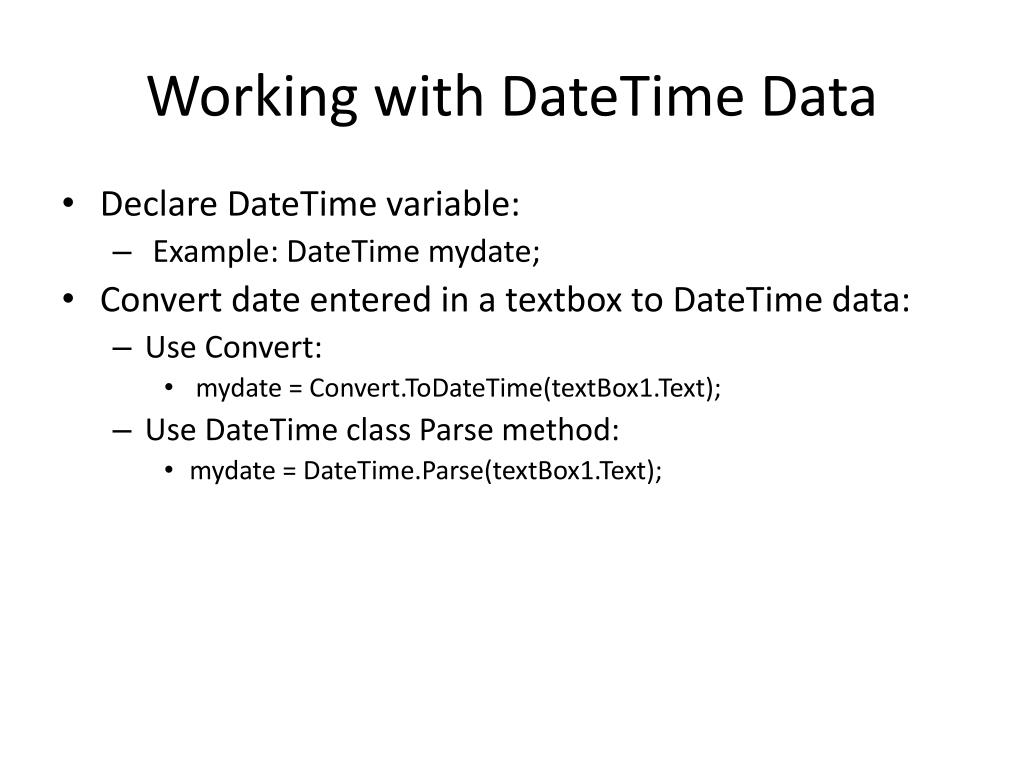

  25. Working with DateTime Data • Declare DateTime variable: • Example: DateTime mydate; • Convert date entered in a textbox to DateTime data: • Use Convert: • mydate = Convert.ToDateTime(textBox1.Text); • Use DateTime class Parse method: • mydate = DateTime.Parse(textBox1.Text);

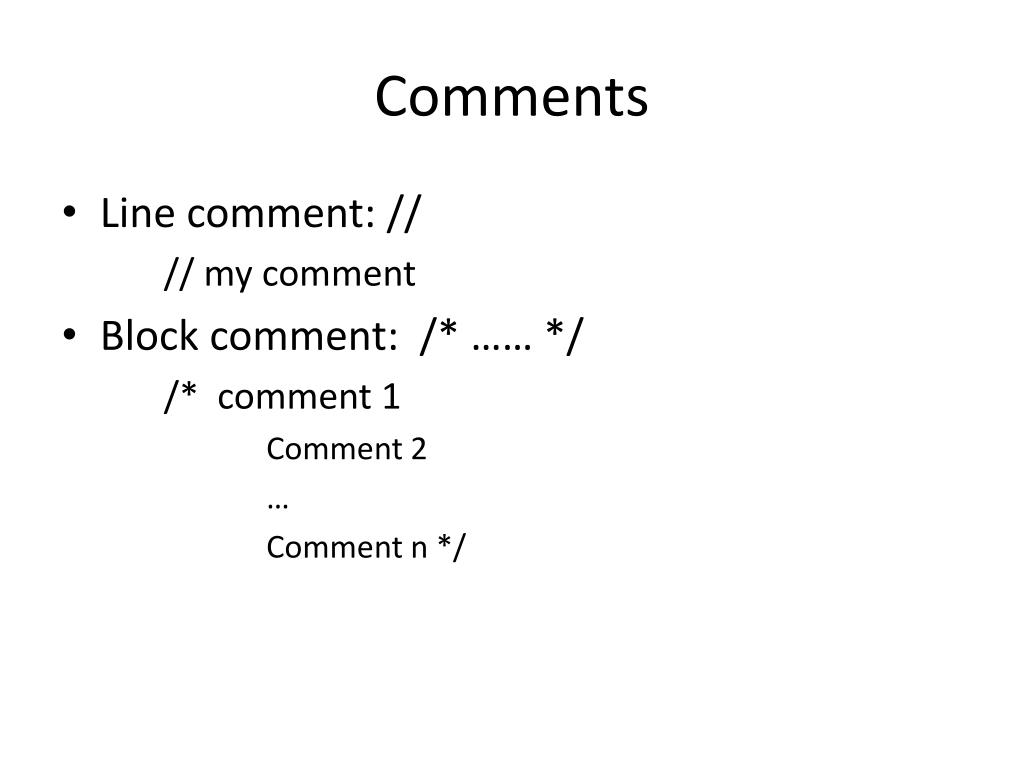

  26. Comments • Line comment: // // my comment • Block comment: /* …… */ /* comment 1 Comment 2 … Comment n */
