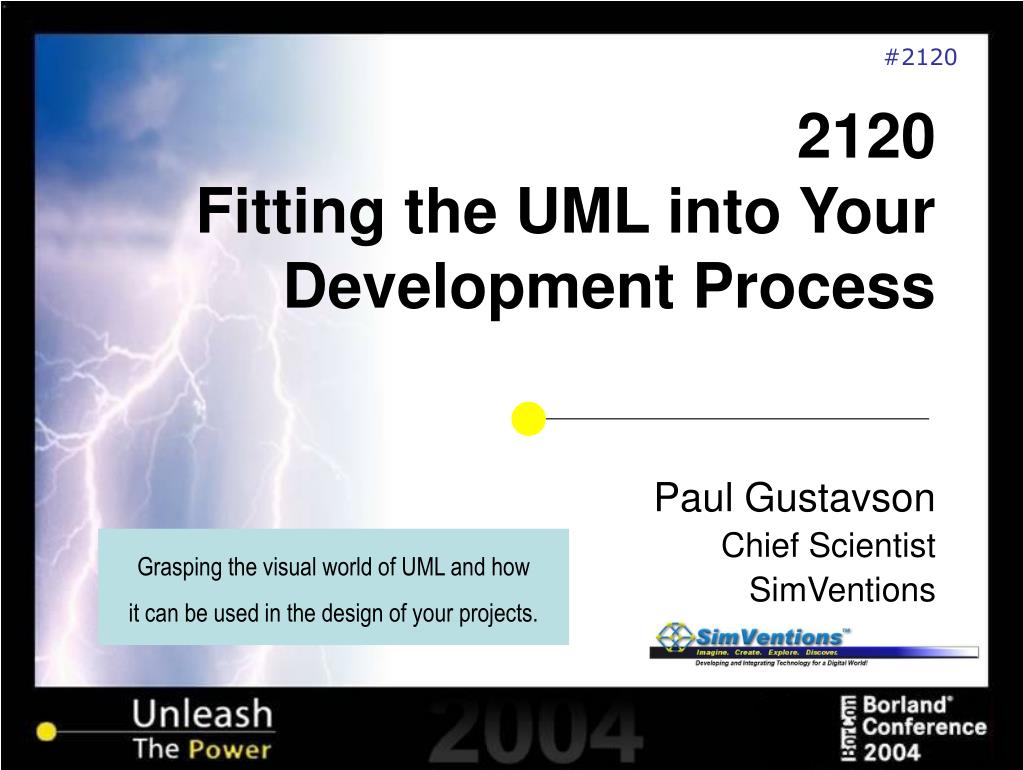

1. 2120 Fitting the UML into Your Development Process Paul Gustavson Chief Scientist SimVentions Grasping the visual world of UML and howit can be used in the design of your projects.

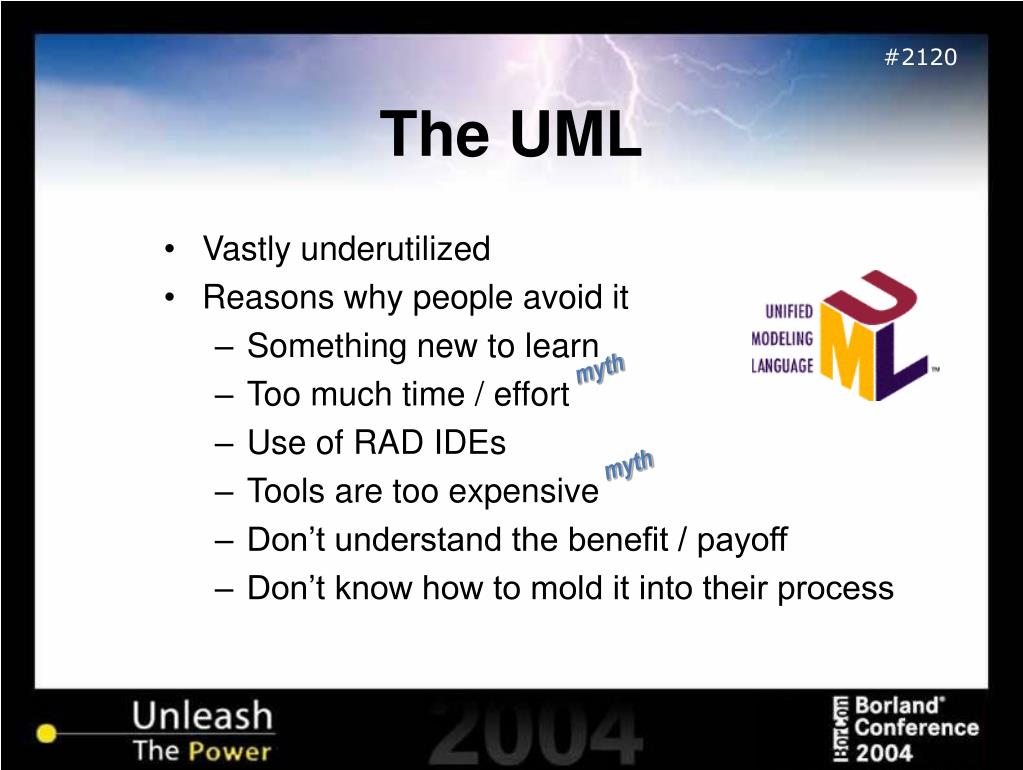

2. The UML • Vastly underutilized • Reasons why people avoid it • Something new to learn • Too much time / effort • Use of RAD IDEs • Tools are too expensive • Don’t understand the benefit / payoff • Don’t know how to mold it into their process myth myth

3. Survey • What is your role? • What are your project goals? • What are the hurdles you face?

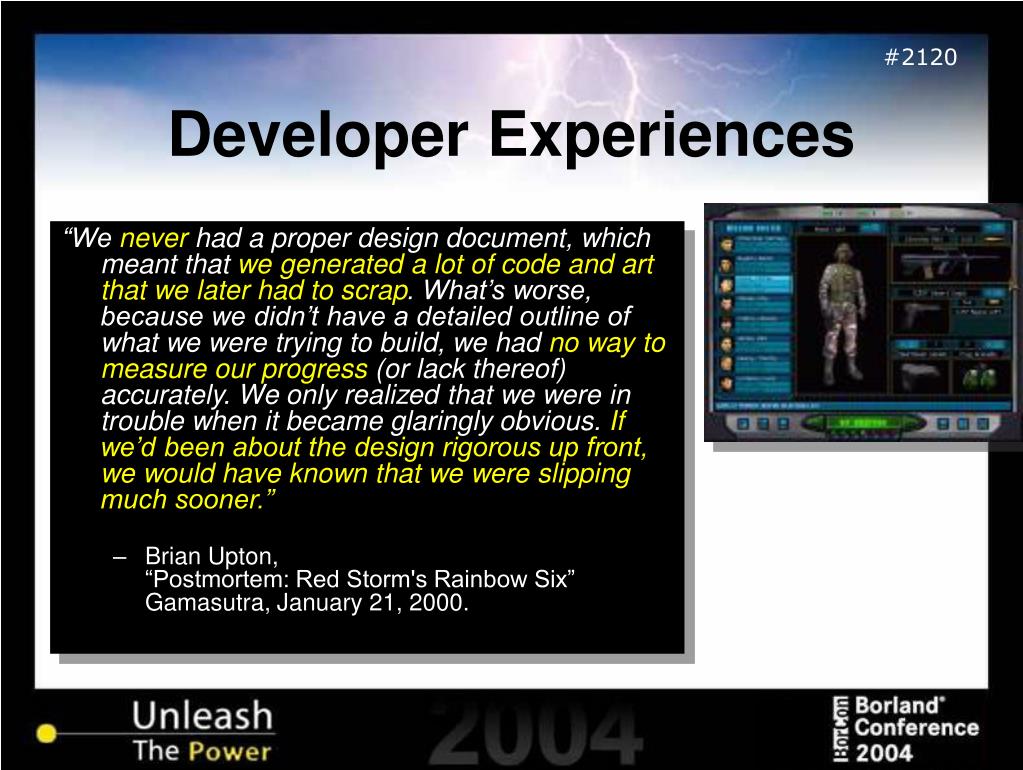

4. Developer Experiences “We never had a proper design document, which meant that we generated a lot of code and art that we later had to scrap. What’s worse, because we didn’t have a detailed outline of what we were trying to build, we had no way to measure our progress (or lack thereof) accurately. We only realized that we were in trouble when it became glaringly obvious. If we’d been about the design rigorous up front, we would have known that we were slipping much sooner.” • Brian Upton, “Postmortem: Red Storm's Rainbow Six” Gamasutra, January 21, 2000.

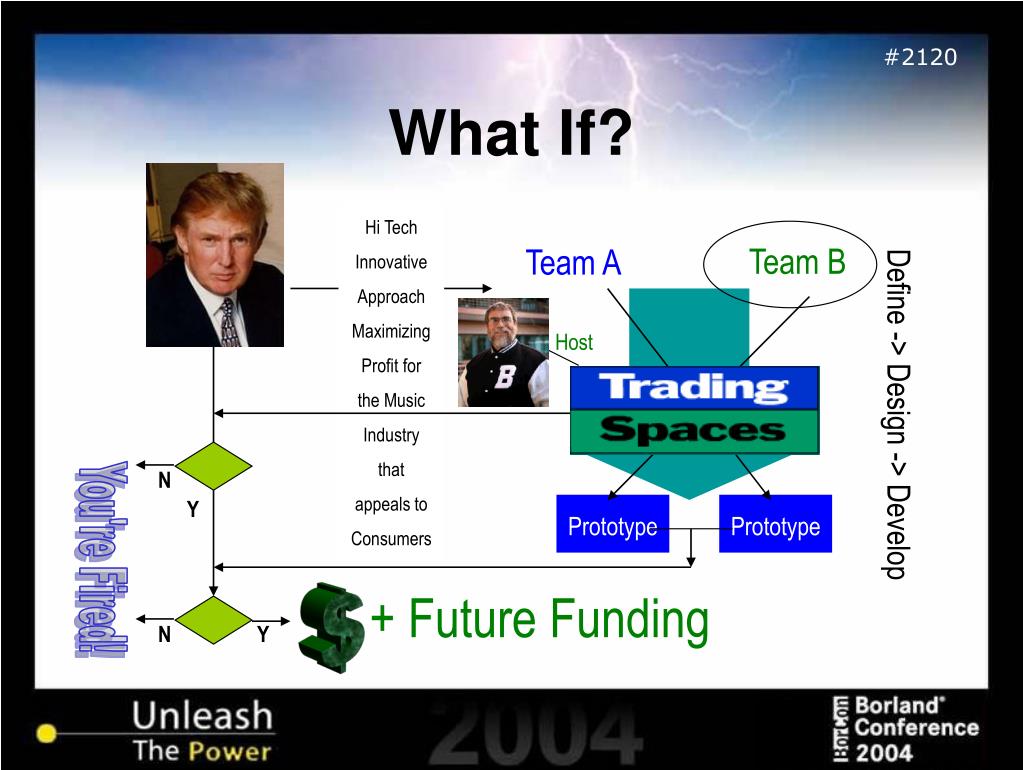

5. Hi Tech Innovative Approach Maximizing Profit for the Music Industry that appeals to Consumers Team B Team A Design N Y Prototype Prototype N Y What If? Sponsor Define -> Design -> Develop You're Fired! + Future Funding $

6. Our Idea mp3 • Next Generation JukeBox • Restaurants • Satellite Radio • Internet Radio Phones

7. What it takes • Policy / Process • Roles • Roadmap • Communication • Tools, templates and techniques.  • Capability…Understanding… Vision… Purpose! Productivity increases when a team has purpose!

8. Class • Sequence • Package • State • Deployment • Use Cases • Class • Activity • State UML Process Blueprint Corrective Actions • There is no UML process. • UML cannot be used effectively without application to a process. Sketch Borland’s Application Lifecycle Management

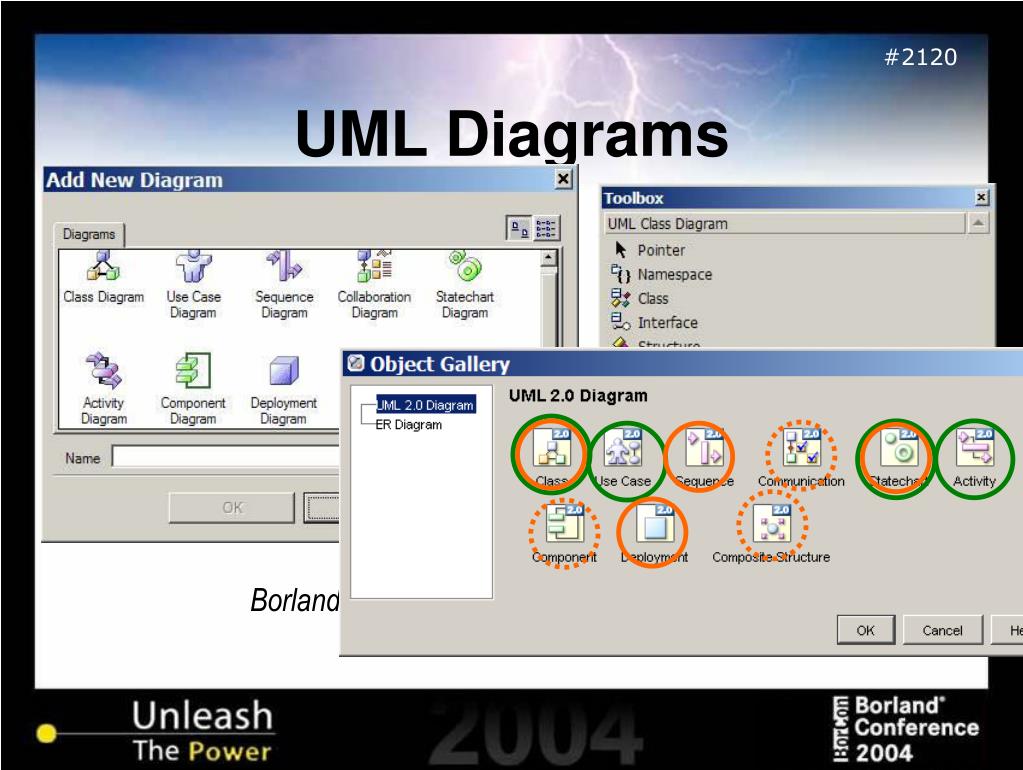

9. UML Diagrams Borland® Together® Edition for Visual Studio

11. Conceptual Model

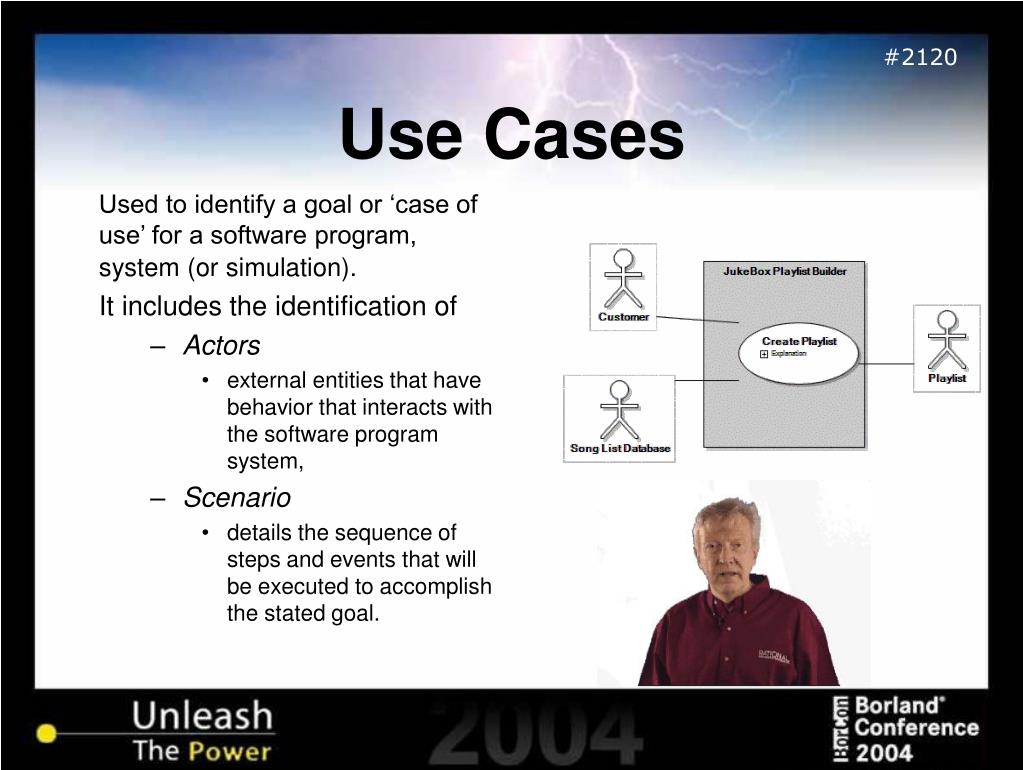

12. Use Cases • Used to identify a goal or ‘case of use’ for a software program, system (or simulation). • It includes the identification of • Actors • external entities that have behavior that interacts with the software program system, • Scenario • details the sequence of steps and events that will be executed to accomplish the stated goal.

13. Use Case Diagram • Potential Questions • “What are these "use case" things, really?” • “How do I know if I am doing them right?” • “How do I know when I am done?" • “How do I link large numbers of them?” Use Case Diagram for Creating a Play List for our Jukebox • Go to example using Together®

14. Use Case Templates (1/2) Use Case Template for Creating a Play List for our Jukebox

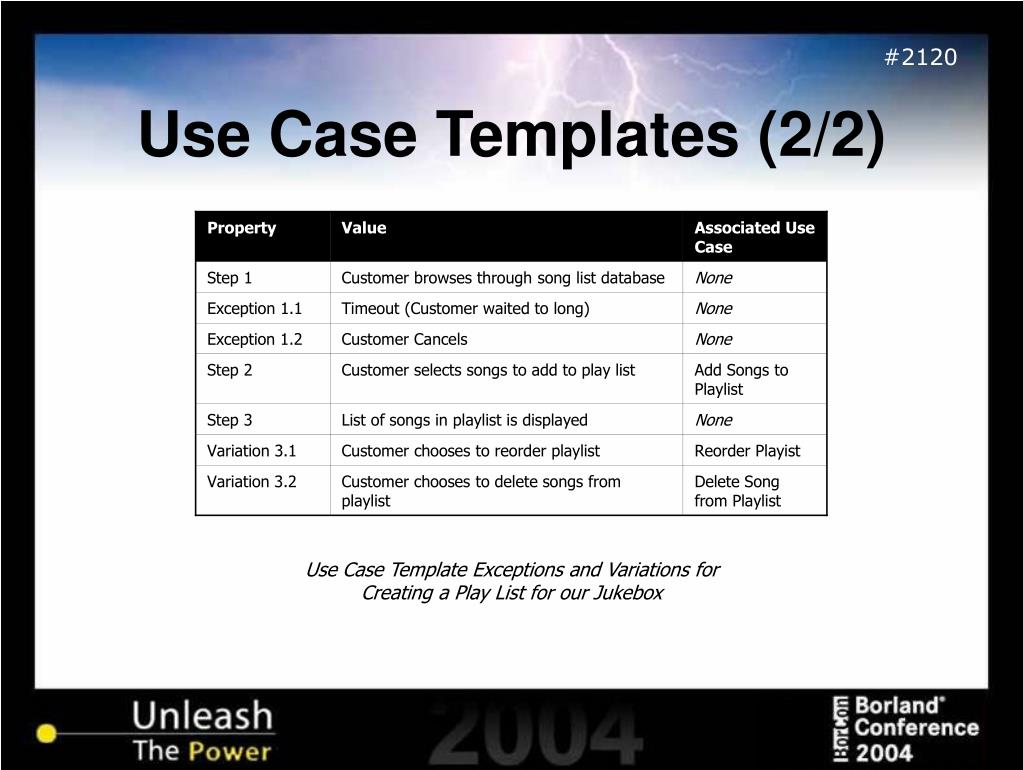

15. Use Case Templates (2/2) Use Case Template Exceptions and Variations for Creating a Play List for our Jukebox

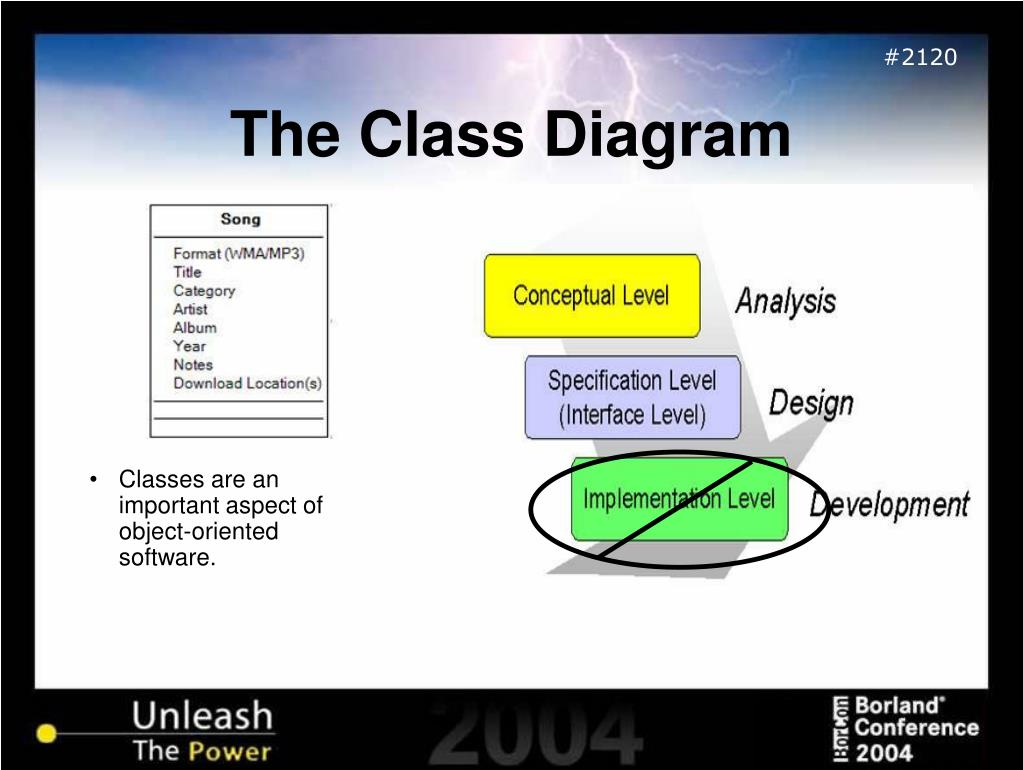

17. Classes are an important aspect of object-oriented software.  The Class Diagram

18. UML Syntax for Classes • attributes visibility name: type = defaultValue; • operations • visibility name(parameters) : return_type-expression

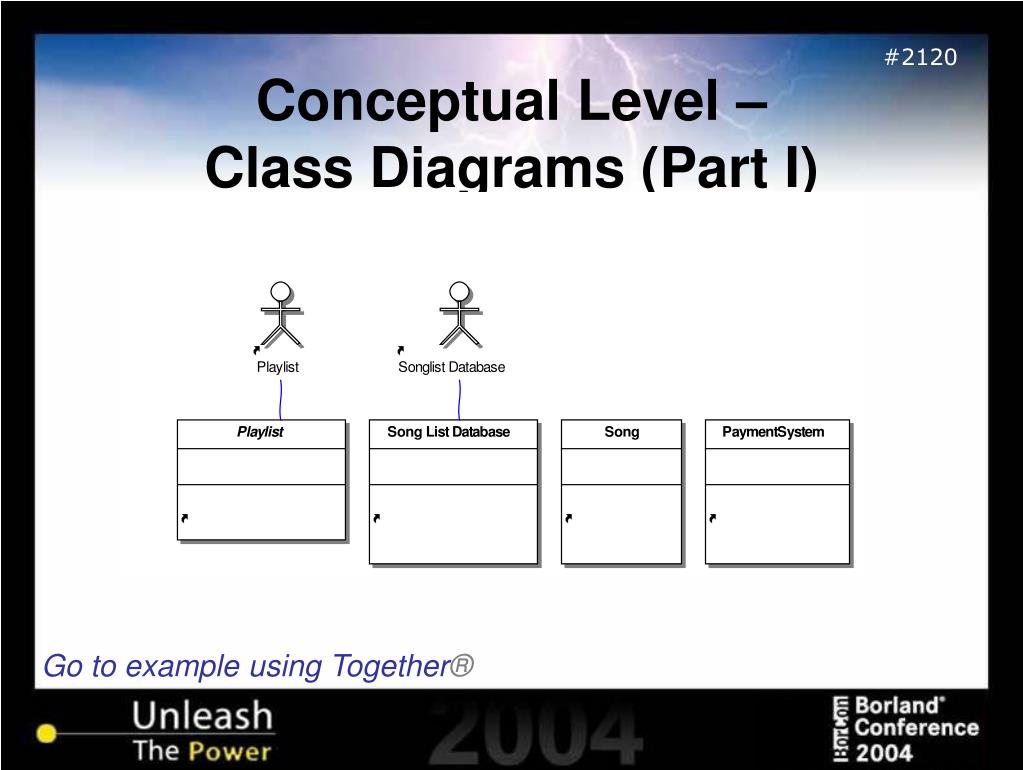

19. Conceptual Level – Class Diagrams (Part I) • Go to example using Together®

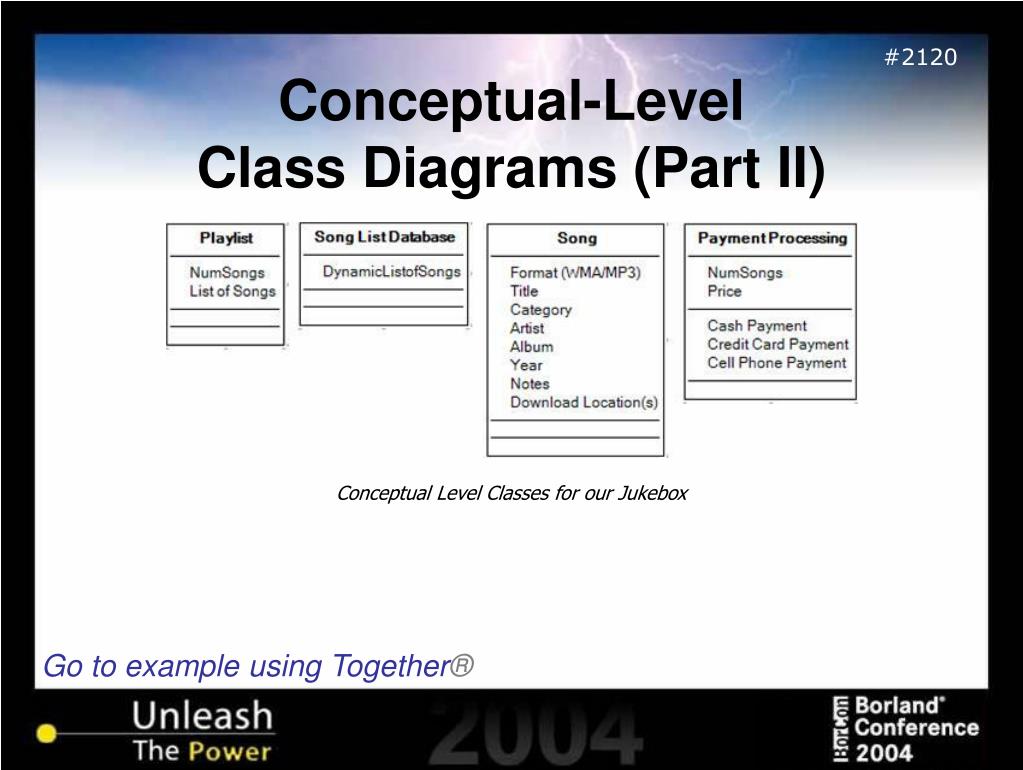

20. Conceptual-LevelClass Diagrams (Part II) Conceptual Level Classes for our Jukebox • Go to example using Together®

21. The Activity Diagram Jukebox - Customer Activity Diagram • Go to example using Together®

22. The Activity Diagramw/ Swim Lanes Jukebox - Customer Activity Diagram with Swim Lanes

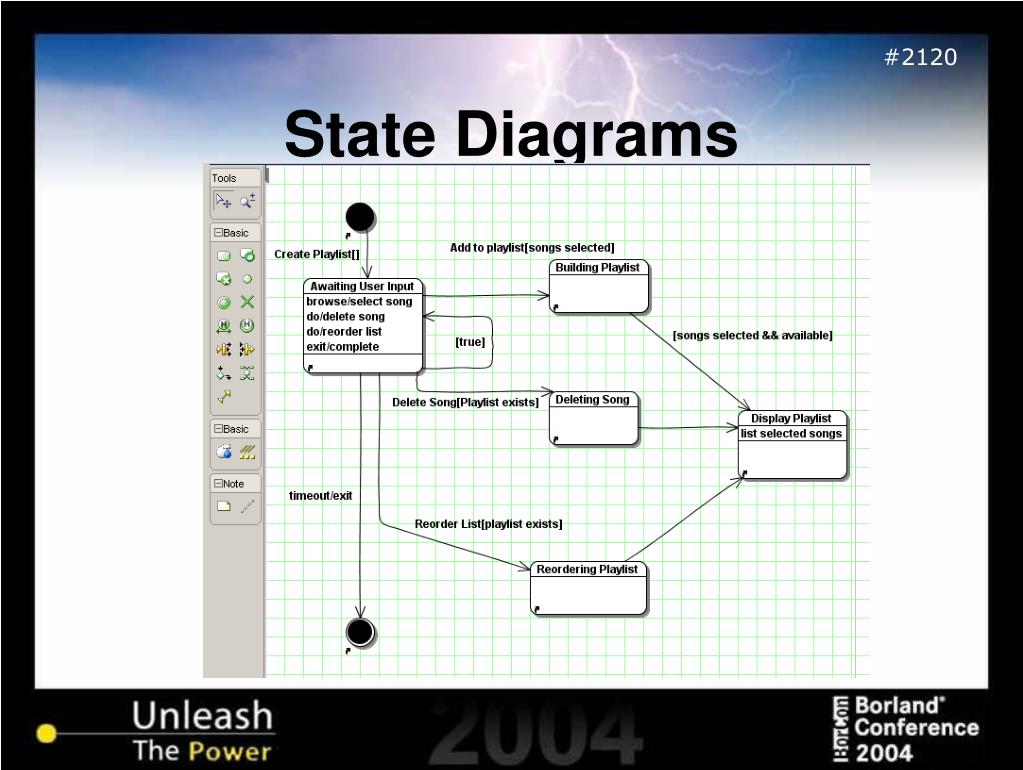

23. State Diagrams State Diagram for Creating a Jukebox Play List • Go to example using Together®

24. State Diagrams State Diagram for Creating a Jukebox Play List

26. Specification-LevelClass Diagrams Specification Level Classes for our Jukebox • Go to example using Together®

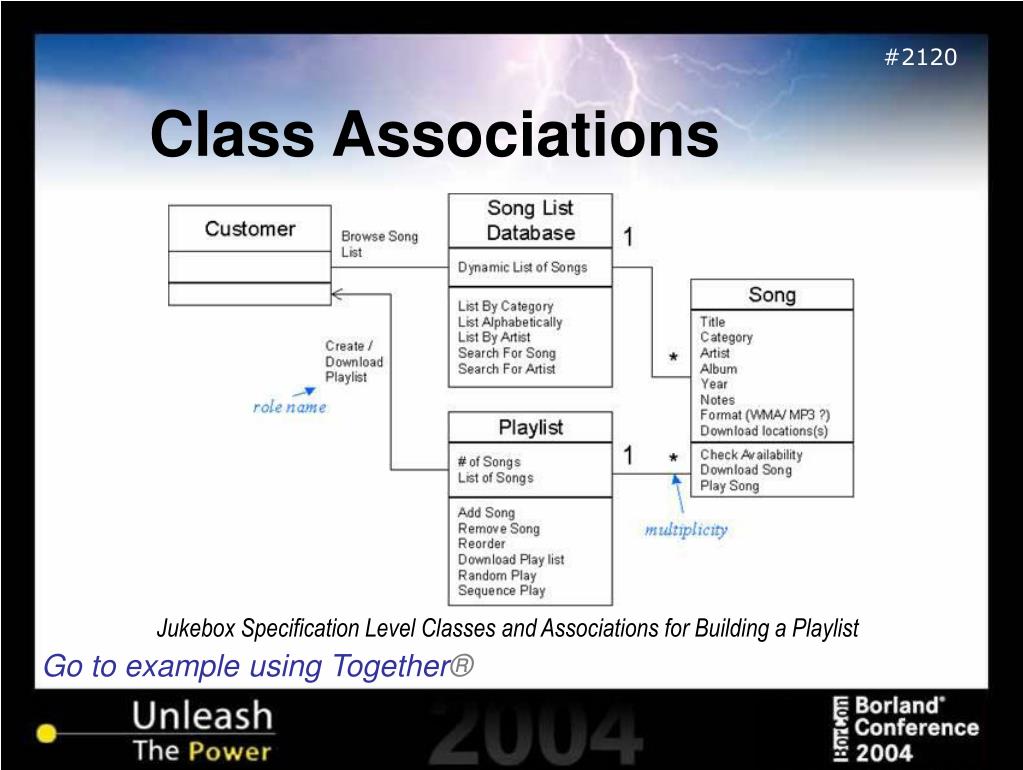

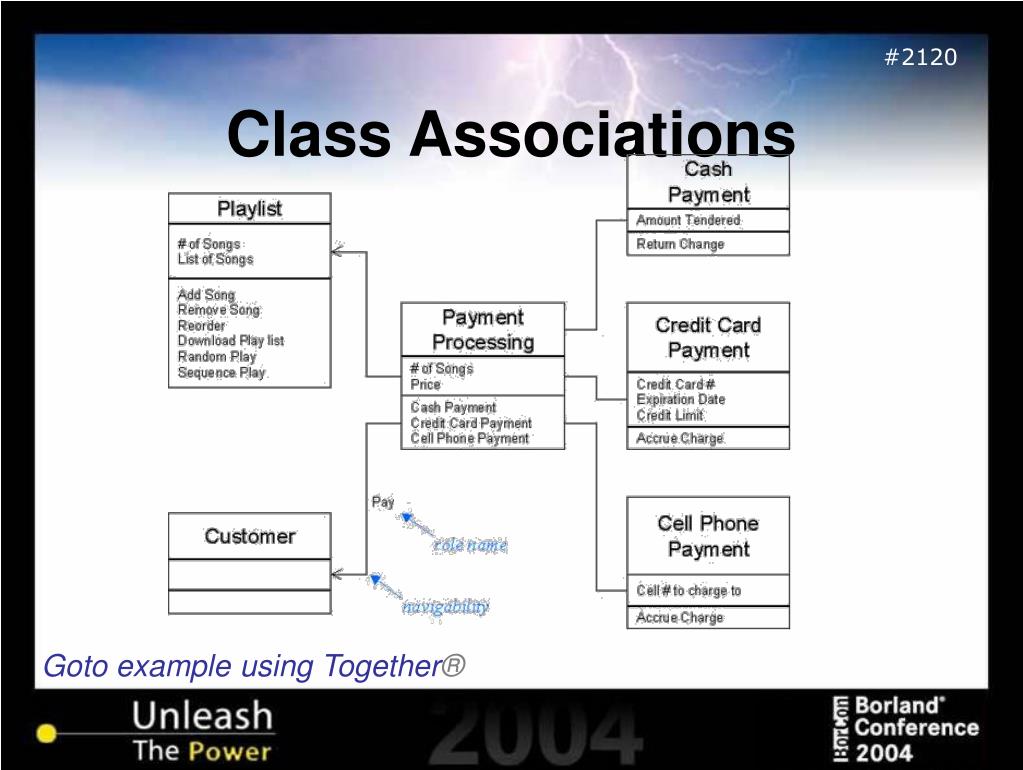

27. Class Associations Jukebox Specification Level Classes and Associations for Building a Playlist • Go to example using Together®

28. Class Associations • Goto example using Together®

29. Object Diagram Jukebox Song Object

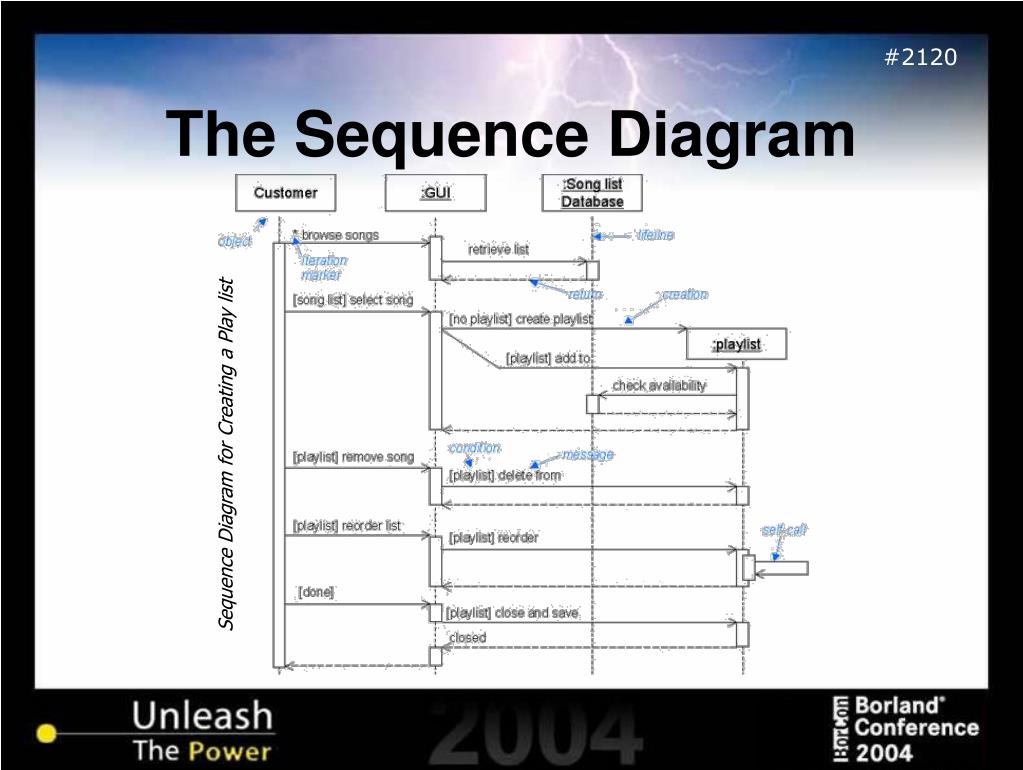

30. The Sequence Diagram Sequence Diagram for Creating a Play list

31. The Communication Diagram (formerly known as Collaboration Diagram in 1.4) Collaboration Diagram for the “Add Song To Play List” Scenario

32. Packages Jukebox Package Diagram

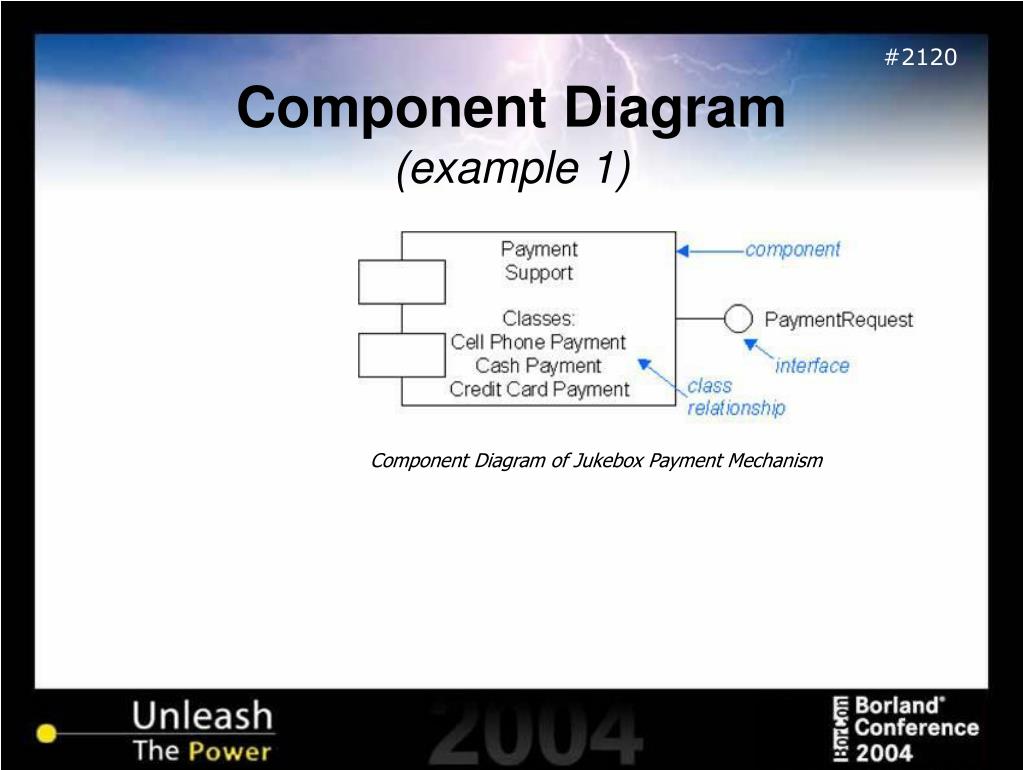

33. Component Diagram (example 1) Component Diagram of Jukebox Payment Mechanism

34. Component Diagram(example 2) Jukebox Component Playback / Payment Dependency

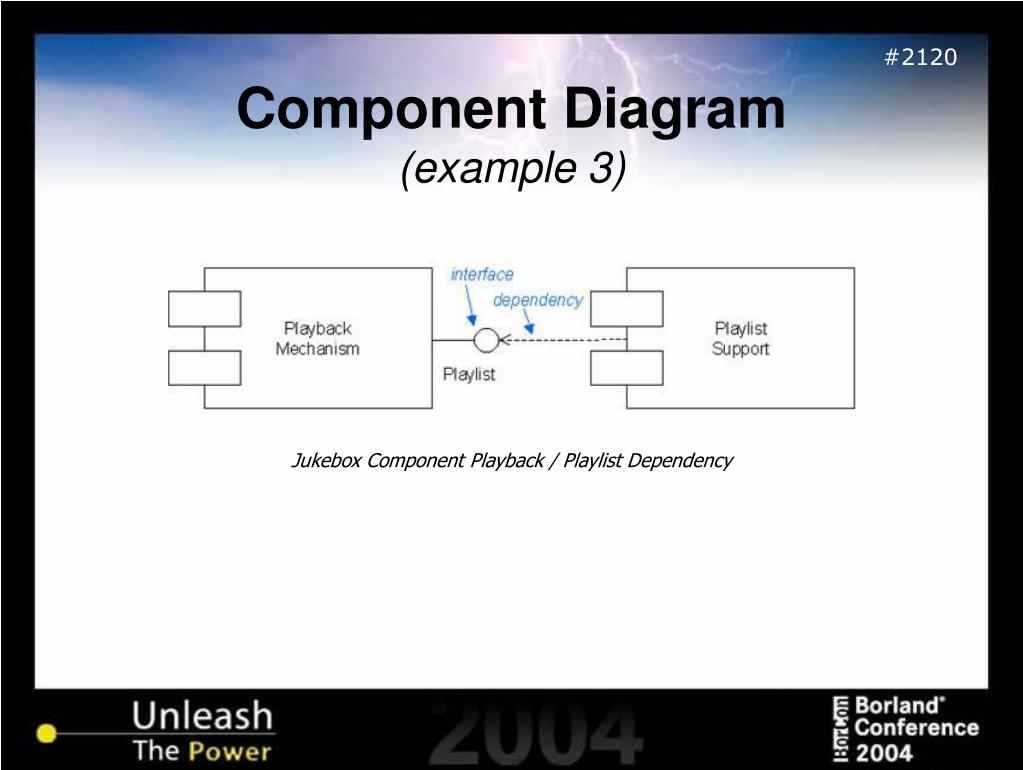

35. Component Diagram(example 3) Jukebox Component Playback / Playlist Dependency

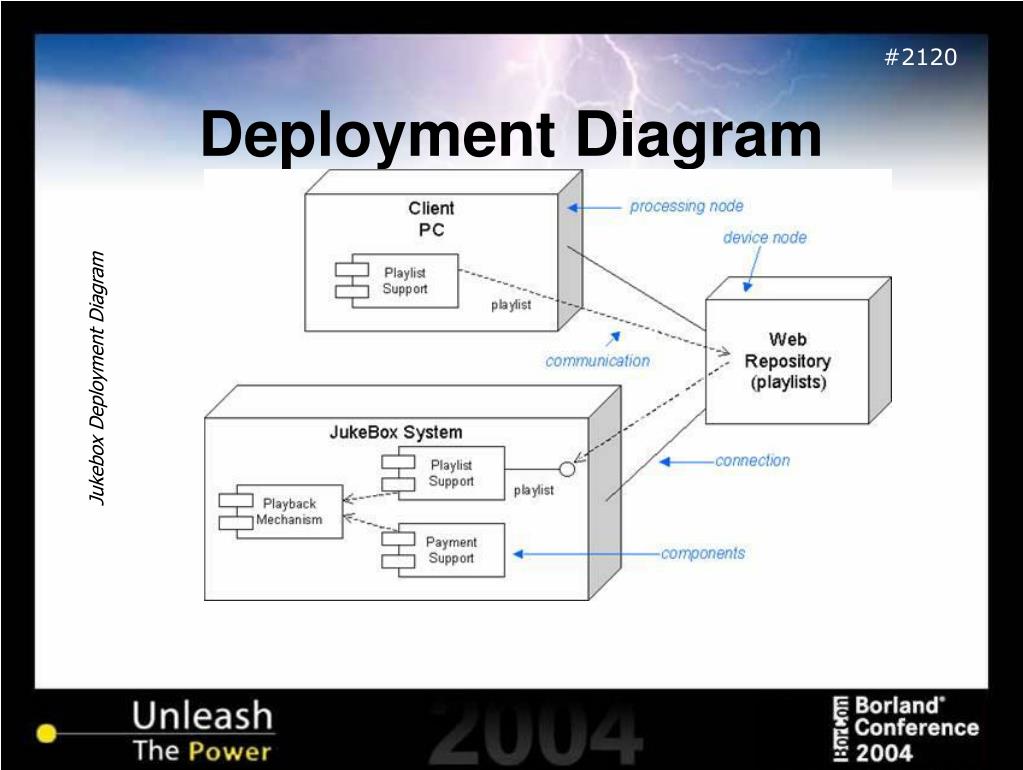

36. Deployment Diagram Jukebox Deployment Diagram

37. Implementation-LevelClass Diagrams Discussion

38. Hi Tech Innovative Approach Maximizing Profit for the Music Industry that appeals to Consumers Team B Team A Host Design N Y Prototype Prototype N Y What If? Sponsor Define -> Design -> Develop You're Fired! + Future Funding $

39. Other Things To Do & Try • Dog eared rectangles • Color UML (post-it pastels) • Patterns ! • OCL – Object Constraint Language • Use XMI to move between UML tools (1.4) • Version Control Class Diagrams • Take advantage of LiveSource (once you reach Blueprint) • Look at MDA

40. Goals best met if they are backed with a plan Use UML To produce plan <- design To communicate and involve all stakeholders To produce useful artifacts To reverse engineer / perform code reviews Map to ALM process – provides foundation for which UML can be applied Keep things Iterative and incremental Separate interface from Implementation Sketch ->Sketch Again -> Blueprint <- ITERATE Conclusion / Recommendations “Be prepared to break the rules of the UML at anytime if helps you communicate better” [MF] -- but don’t break away from your process

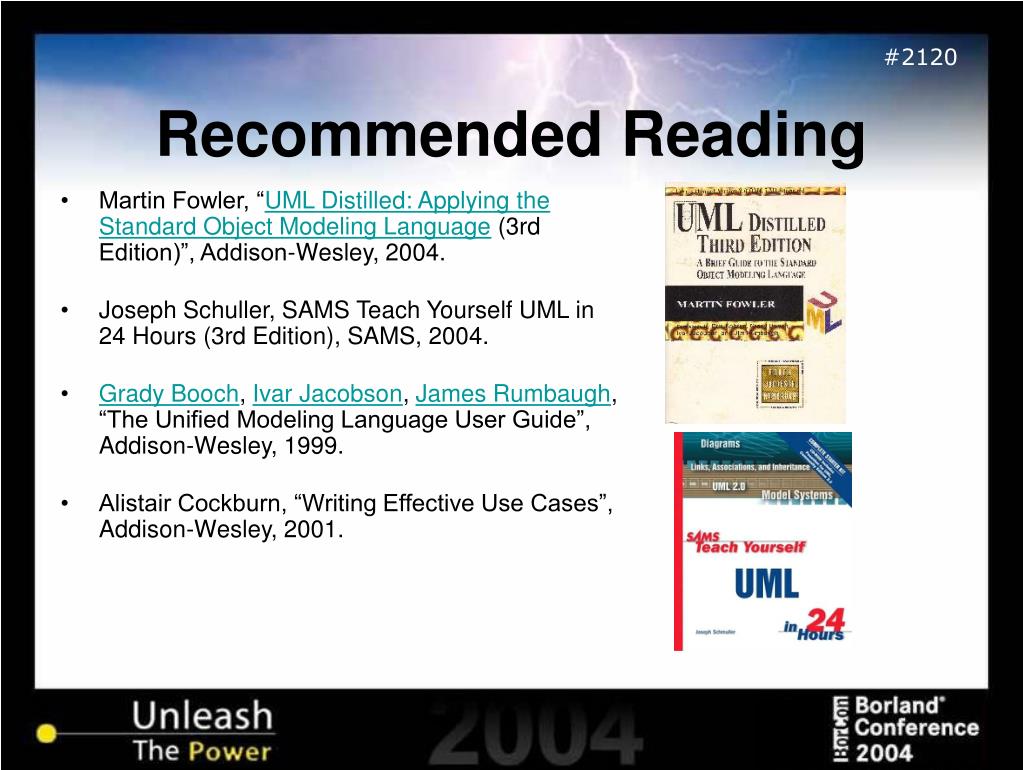

41. Recommended Reading • Martin Fowler, “UML Distilled: Applying the Standard Object Modeling Language (3rd Edition)”, Addison-Wesley, 2004. • Joseph Schuller, SAMS Teach Yourself UML in 24 Hours (3rd Edition), SAMS, 2004. • Grady Booch, Ivar Jacobson, James Rumbaugh, “The Unified Modeling Language User Guide”, Addison-Wesley, 1999. • Alistair Cockburn, “Writing Effective Use Cases”, Addison-Wesley, 2001.

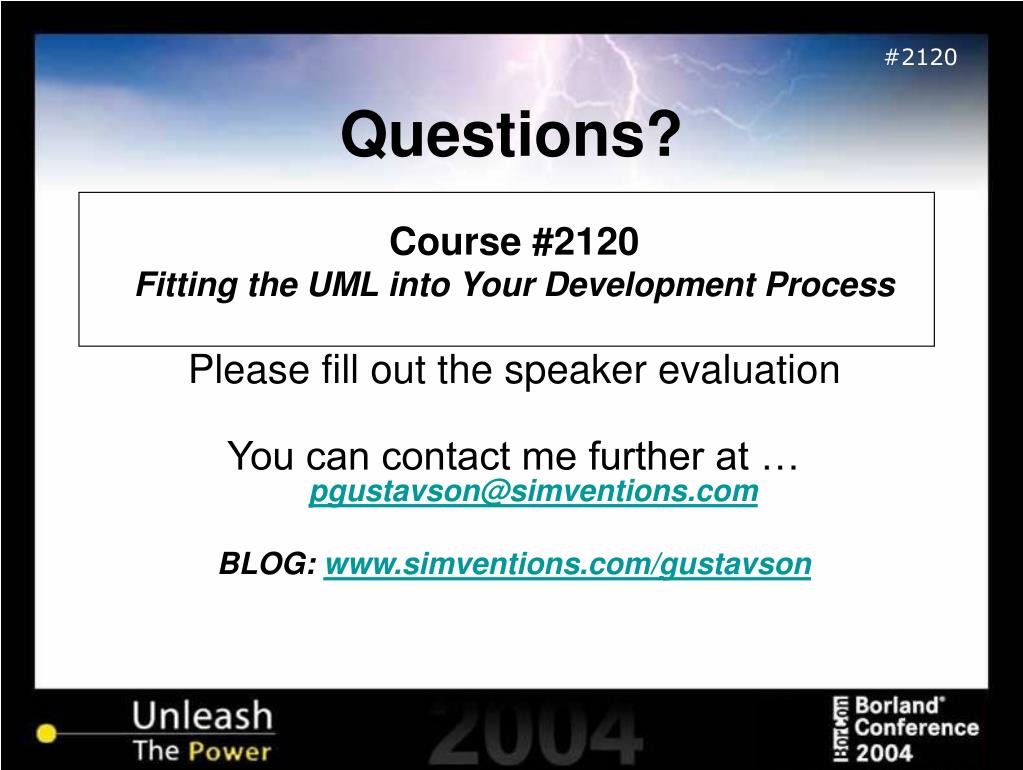

42. Questions? • Course #2120 • Fitting the UML into Your Development Process • Please fill out the speaker evaluation • You can contact me further at …pgustavson@simventions.com • BLOG: www.simventions.com/gustavson

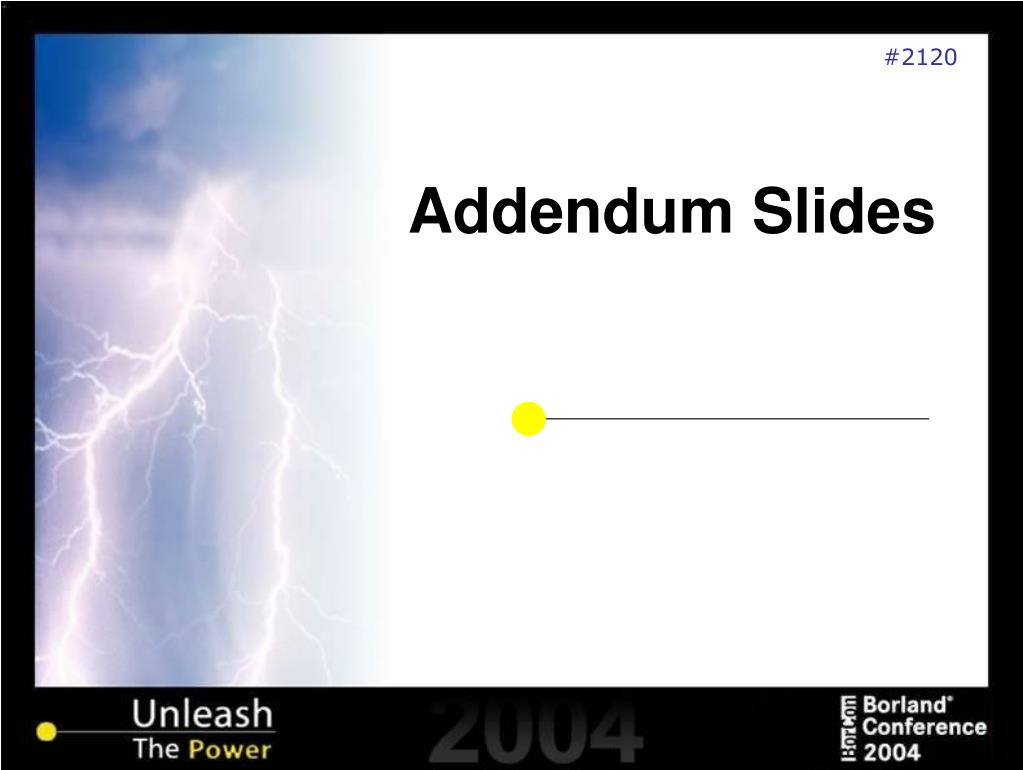

43. Addendum Slides

44. Trading Spaces • Selected FAQs • What happens when a designer goes over budget? • What happens when the [Donald doesn’t] like what you have done? • What happens if a [project] isn't done on time?

46. Overcoming the Mental Hurdles • UML simply takes too much time to learn and use • UML will add an extra burden on the development effort • Developers would rather code than draw UML diagrams • Managers may fear the expense of training • Managers may fear the cost of tools needed to support the job

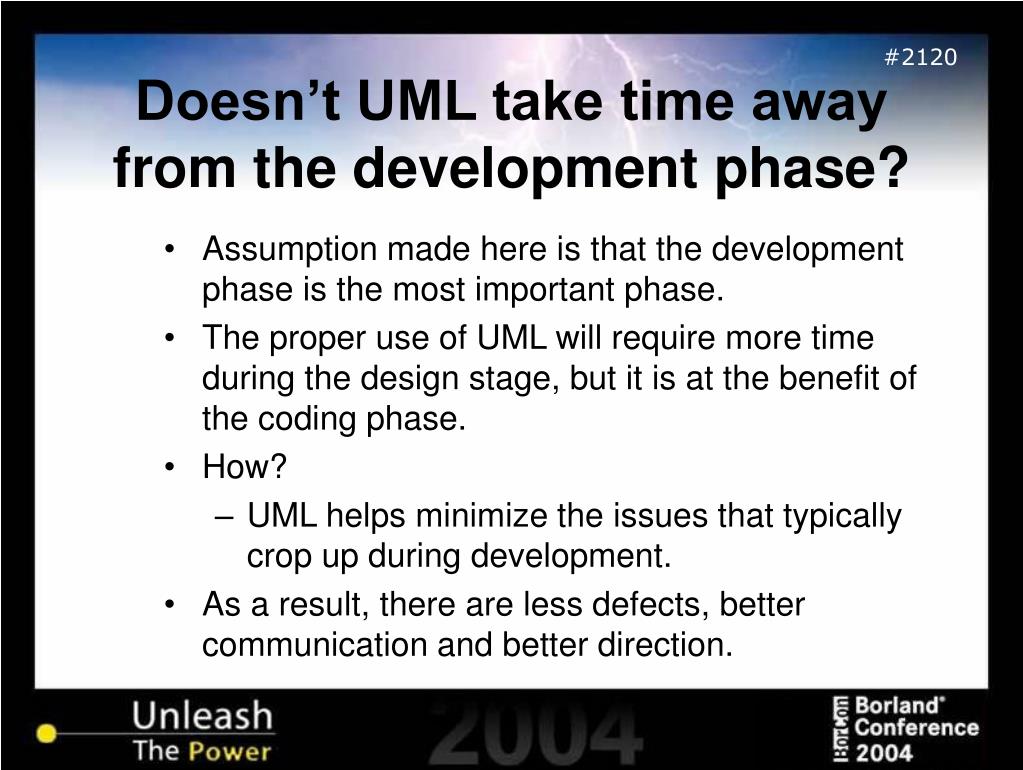

47. Doesn’t UML take time away from the development phase? • Assumption made here is that the development phase is the most important phase. • The proper use of UML will require more time during the design stage, but it is at the benefit of the coding phase.  • How?  • UML helps minimize the issues that typically crop up during development.  • As a result, there are less defects, better communication and better direction.

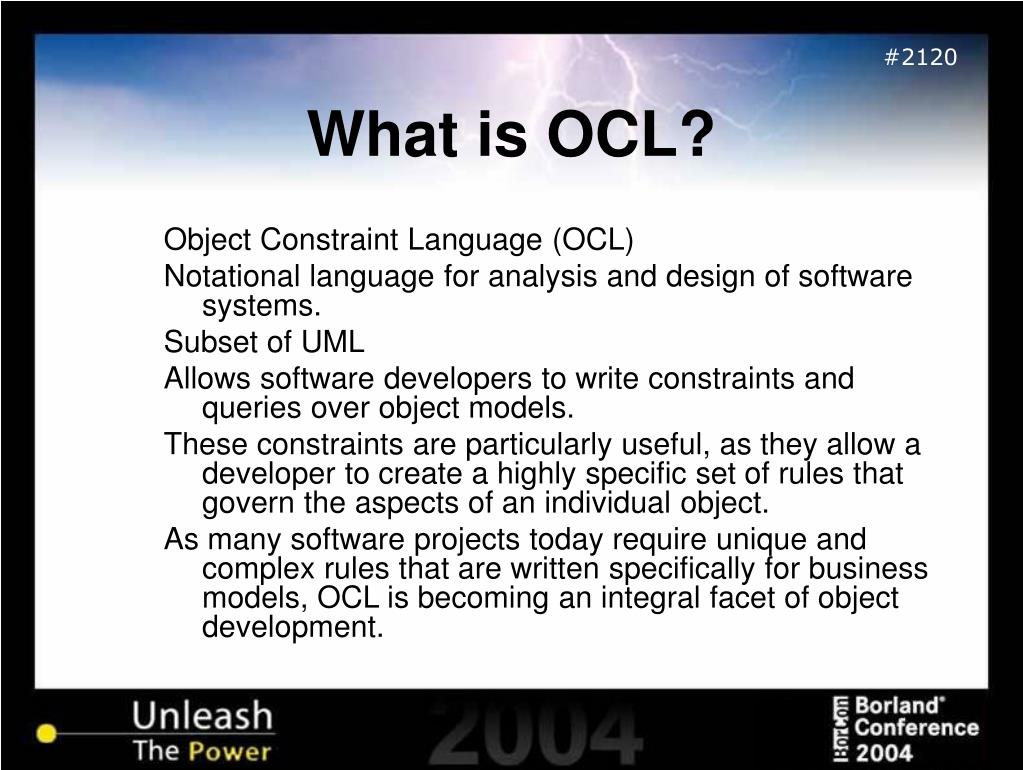

48. What is OCL? • Object Constraint Language (OCL) • Notational language for analysis and design of software systems. • Subset of UML • Allows software developers to write constraints and queries over object models. • These constraints are particularly useful, as they allow a developer to create a highly specific set of rules that govern the aspects of an individual object. • As many software projects today require unique and complex rules that are written specifically for business models, OCL is becoming an integral facet of object development.

49. Object Constraint Language Used to describe expressions and constraints on object models expression - an indication or specification of a value. constraint - a restriction on one or more values of (part of) a model / system. Expressions Constraints invariant – a condition that must always be met precondition - a restriction that must be true at the moment that the operation is going to be executed. postcondition - a restriction that must be true at the moment that the operation has just ended its execution. guard - must be true before a state transition fires. What is OCL? http://www.klasse.nl/ocl/ocl-introduction.html
