  1. Introduction to Database System Chapter 1 < PART 2 > Instructors: Churee Techawut CS (204)321 Database System I

  2. Outlines • 1) Basic definitions • 2) Database system environment • 3) Examples of database • 4) Typical DBMS functionality • 5) Major characteristics of database approach • 6) Different types of database users • 7) Additional characteristics of database approach • 8) When not to use a DBMS • 9) Components of a database system 10) Database system concepts and architecture

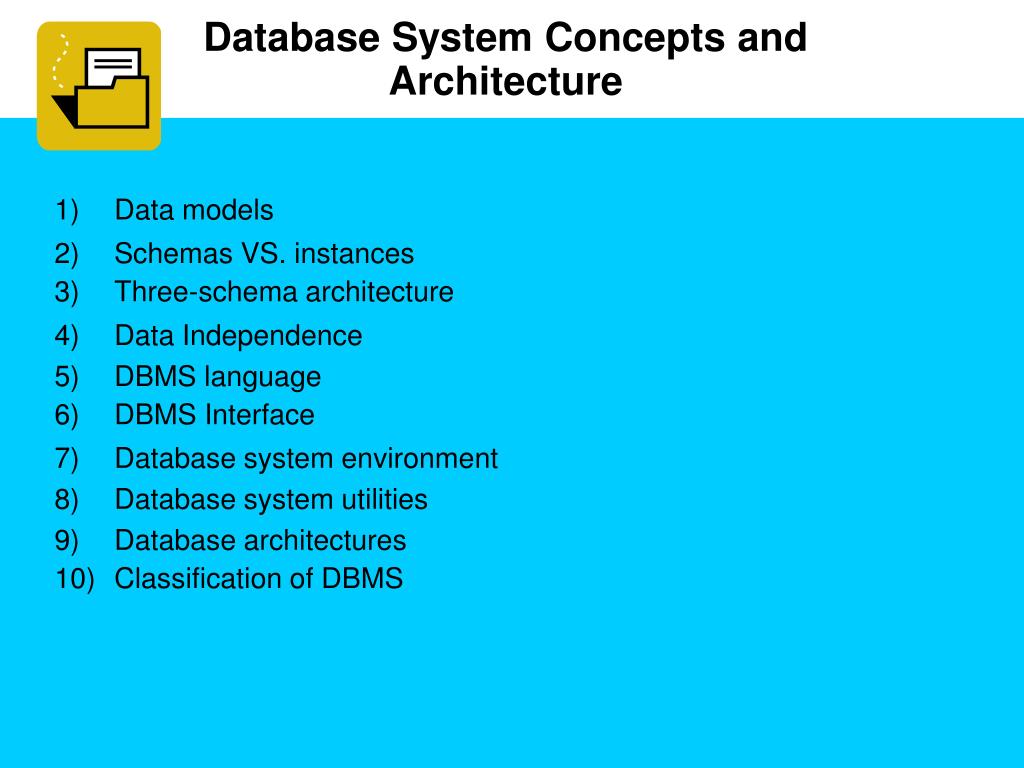

  3. Database System Concepts and Architecture Data models Schemas VS. instances Three-schema architecture Data Independence DBMS language DBMS Interface Database system environment Database system utilities Database architectures Classification of DBMS

  4. Data model “A set of concepts that can be used to describe the structure of a database (data types and relationships) and certain constraints that the database should obey.” • Data model operations “Operations for specifying database retrievals and updates by referring to the concepts of the data model.” Operations on the data model may include basic operations and user-defined operations. (e.g. A user-defined operation is COMPUTE_GPA which can be applied to a STUDENT object.) Data Models

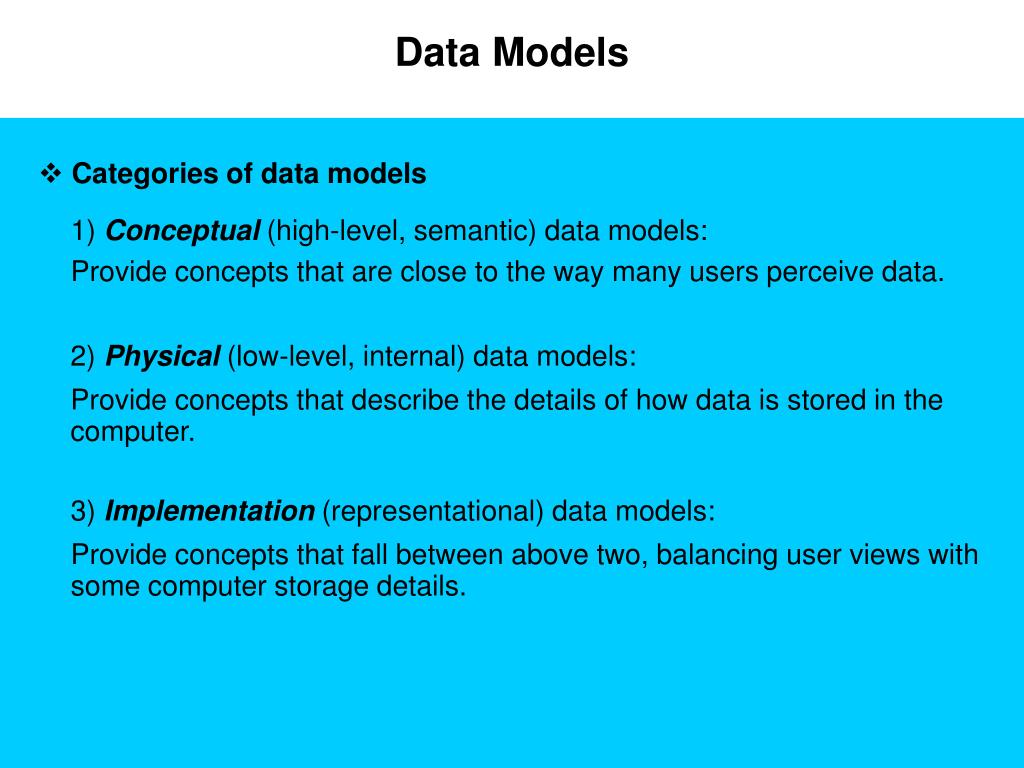

  5. Data Models • Categories of data models 1) Conceptual(high-level, semantic) data models: Provide concepts that are close to the way many users perceive data. 2)Physical(low-level, internal) data models: Provide concepts that describe the details of how data is stored in the computer. 3) Implementation (representational) data models: Provide concepts that fall between above two, balancing user views with some computer storage details.

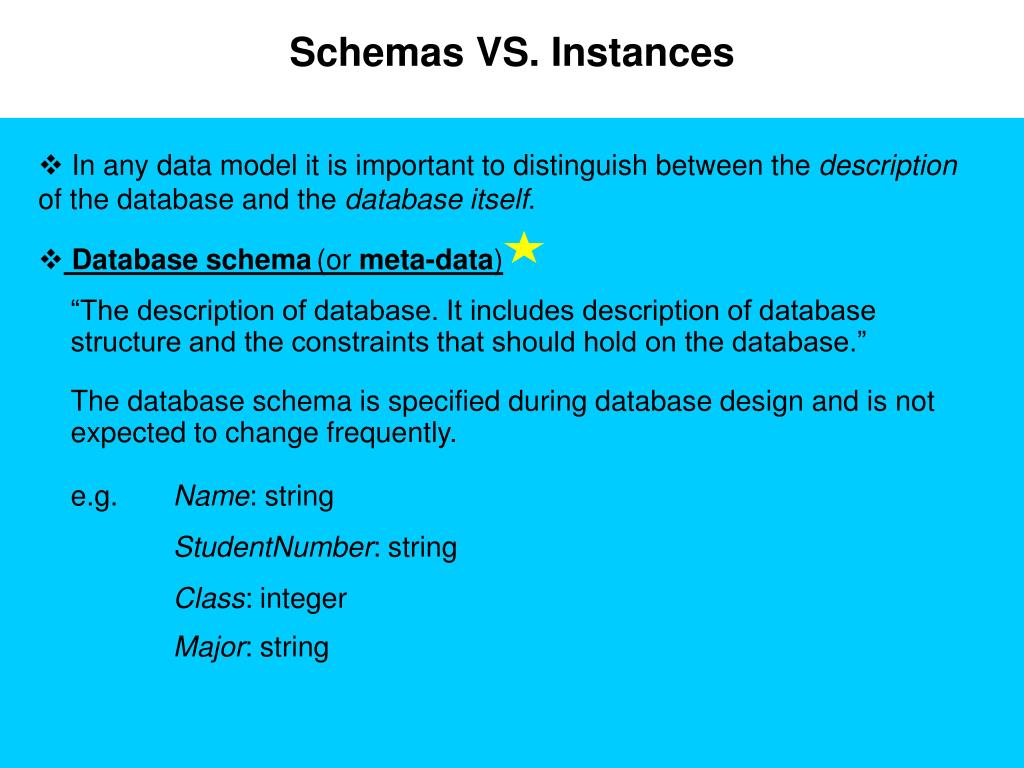

  6. Database schema(or meta-data) Schemas VS. Instances • In any data model it is important to distinguish between the description of the database and the database itself. “The description of database. It includes description of database structure and the constraints that should hold on the database.” The database schema is specified during database design and is not expected to change frequently. e.g. Name: string StudentNumber: string Class: integer Major: string

  7. Schemadiagram Schemas VS. Instances “A diagrammatic display of a database schema – structure of each record type (not the actual instances of a record).” STUDENT COURSE PREREQUITSITE SECTION GRADE_REPORT

  8. Database instances “The actual data stored in a database at a particular moment in time. Also called database state or occurrence.” Many database instances can be constructed to correspond to a particular database schema. Schemas VS. Instances • Schemaconstruct “An object within the schema.” e.g. STUDENT, COURSE.

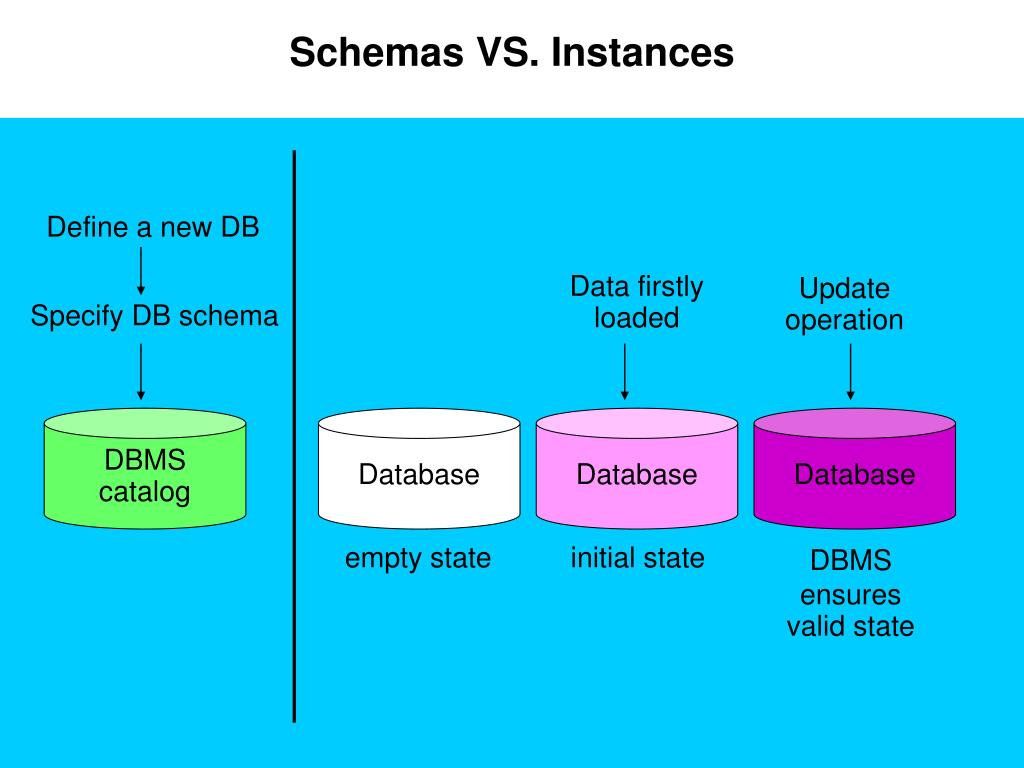

  9. Define a new DB Data firstly loaded Update operation Specify DB schema Database Database Database empty state initial state DBMS ensures valid state Schemas VS. Instances DBMS catalog

  10. Schemas VS. Instances • Distinction The database schema does not frequently change, but the database state changes every time the database is updated. Schemais also called intension, whereas state is called extension.

  11. Three-Schema Architecture • The three-schema architecture was proposed to support DBMS characteristics of : • Program-data independence. Supporting multiple views of the data. • The goal of the three-schema architecture is to separate the user applications and the physical database.

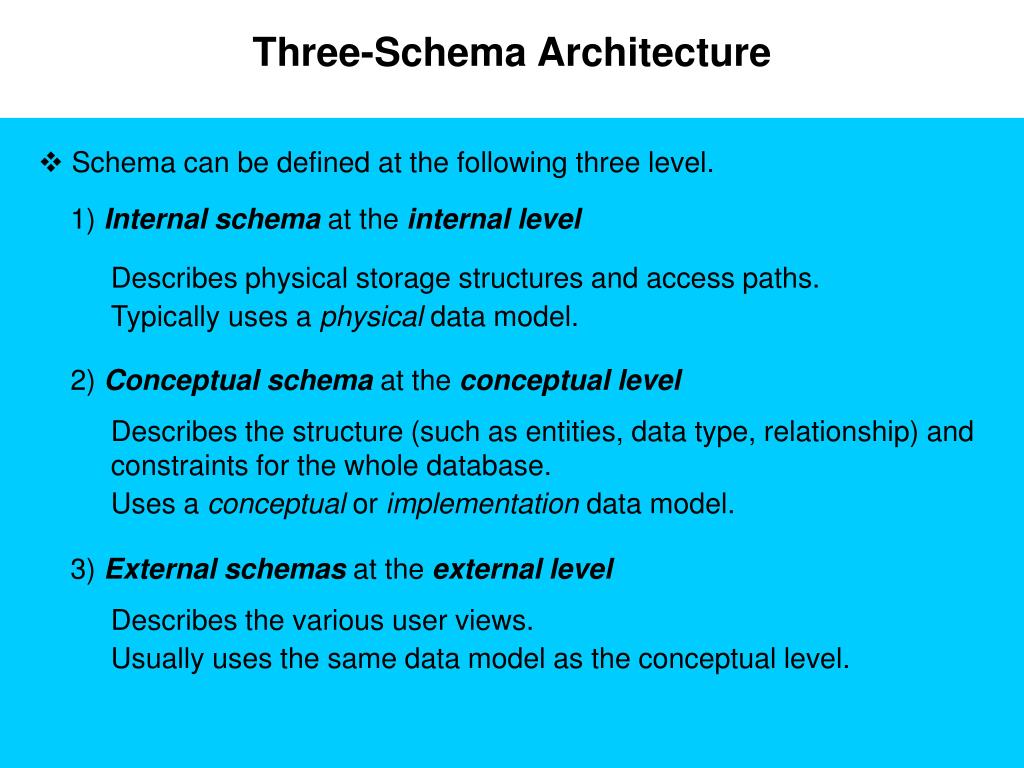

  12. 1) Internal schema at the internal level Describes physical storage structures and access paths. Typically uses a physical data model. 2) Conceptual schema at the conceptual level Describes the structure (such as entities, data type, relationship) and constraints for the whole database. Uses a conceptual or implementation data model. 3) External schemas at the external level Describes the various user views. Usually uses the same data model as the conceptual level. Three-Schema Architecture • Schema can be defined at the following three level.

  13. Three-Schema Architecture END USERS EXTERNAL VIEW1 EXTERNAL VIEWn External level Conceptual level CONCEPTUAL SCHEMA Internal level INTERNAL SCHEMA STORED DATABASE Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems.

  14. Three-Schema Architecture • Mappings among schema levels are needed to transform requests and data. If the request is a database retrieval, the data extracted from the stored database must be reformatted to match the user’s external view. • Programs refer to an external schema, and are mapped by the DBMS to the internal schema for execution. • Notice that the three schemas are only descriptions of data; the only data that actually exists is at the physical level.

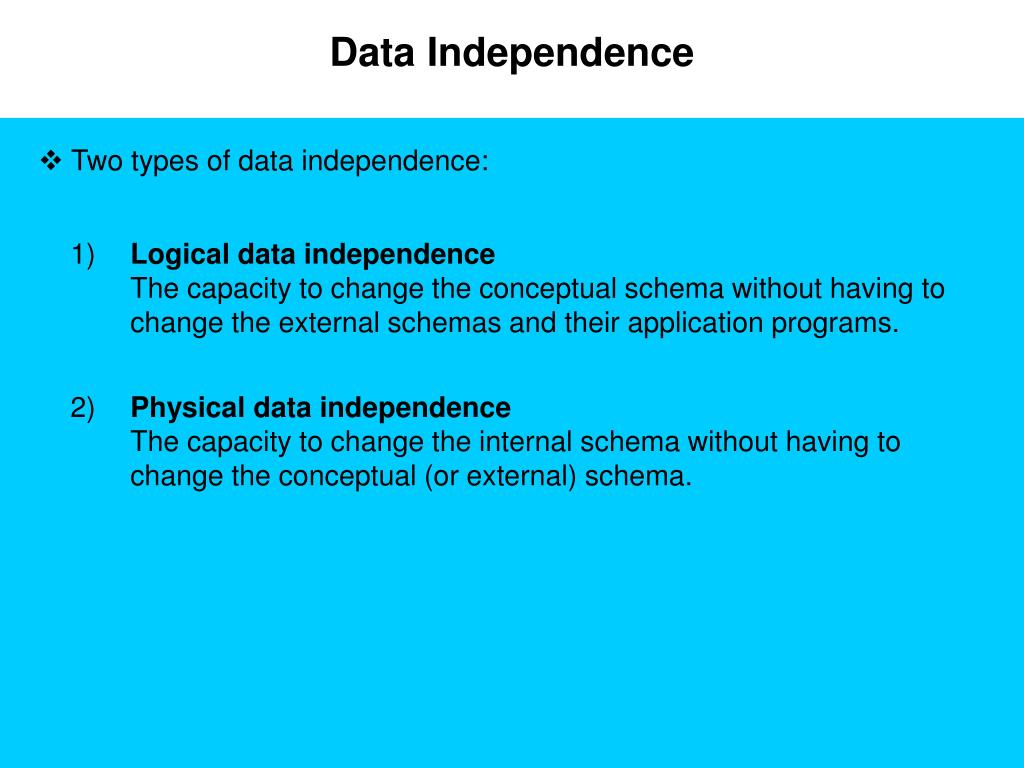

  15. Data Independence • Two types of data independence: 1) Logical data independence The capacity to change the conceptual schema without having to change the external schemas and their application programs. 2) Physical data independence The capacity to change the internal schema without having to change the conceptual (or external) schema.

  16. Data Independence • When a schema at a lower level is changed, only the mappings between this schema and higher-level schemas need to be changed in a DBMS that fully supports data independence. • The higher-level schemas themselves are unchanged. Therefore, the application programs need not be changed since they refer to the external schemas.

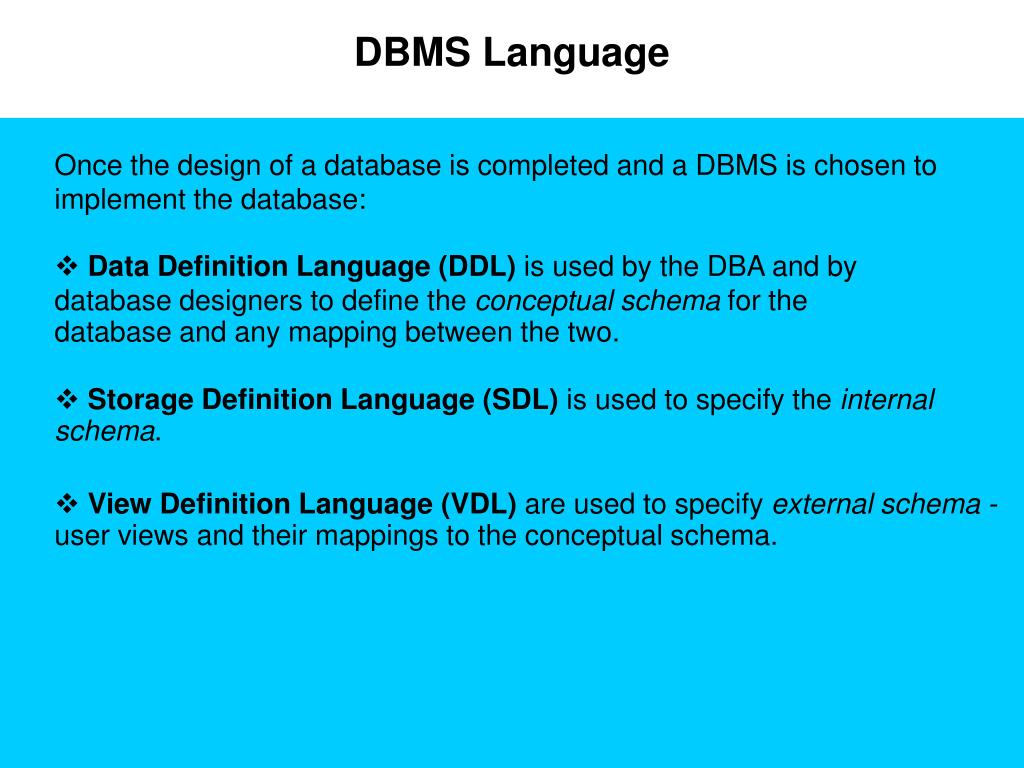

  17. DBMS Language Once the design of a database is completed and a DBMS is chosen to implement the database: • Data Definition Language (DDL) is used by the DBA and by database designers to define the conceptual schema for the database and any mapping between the two. • Storage Definition Language (SDL) is used to specify the internal schema. • View Definition Language (VDL) are used to specify external schema - user views and their mappings to the conceptual schema.

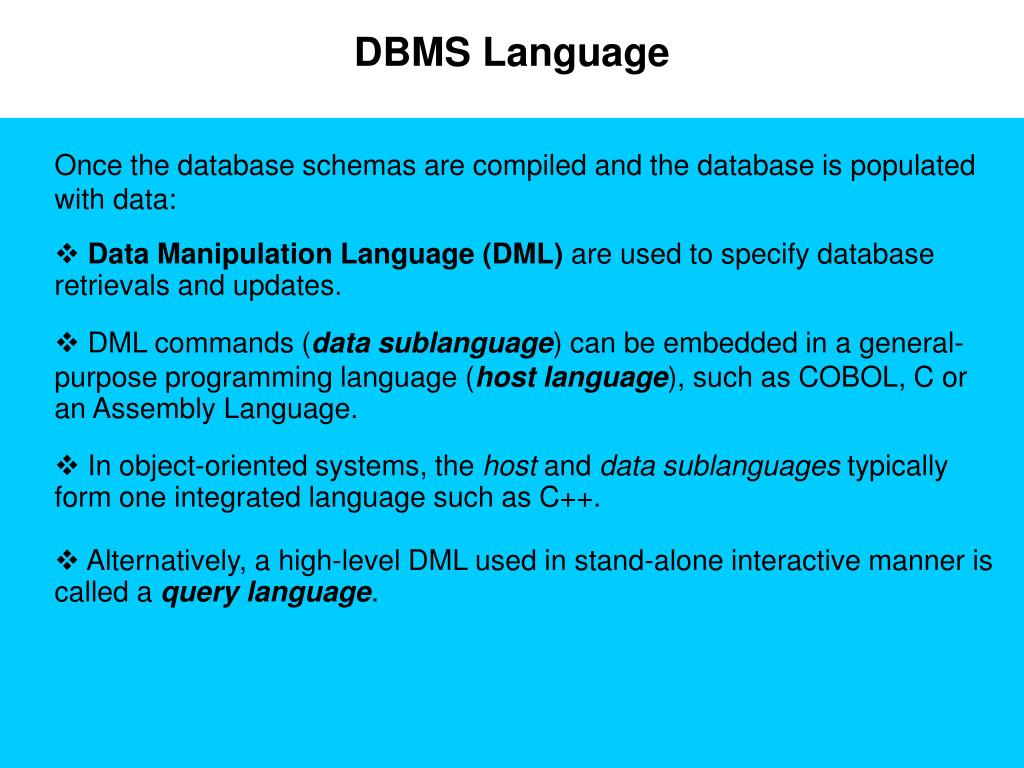

  18. Data Manipulation Language (DML) are used to specify database retrievals and updates. • DML commands (data sublanguage) can be embedded in a general-purpose programming language (host language), such as COBOL, C or an Assembly Language. • In object-oriented systems, the host and data sublanguages typically form one integrated language such as C++. • Alternatively, a high-level DML used in stand-alone interactive manner is called a query language. DBMS Language Once the database schemas are compiled and the database is populated with data:

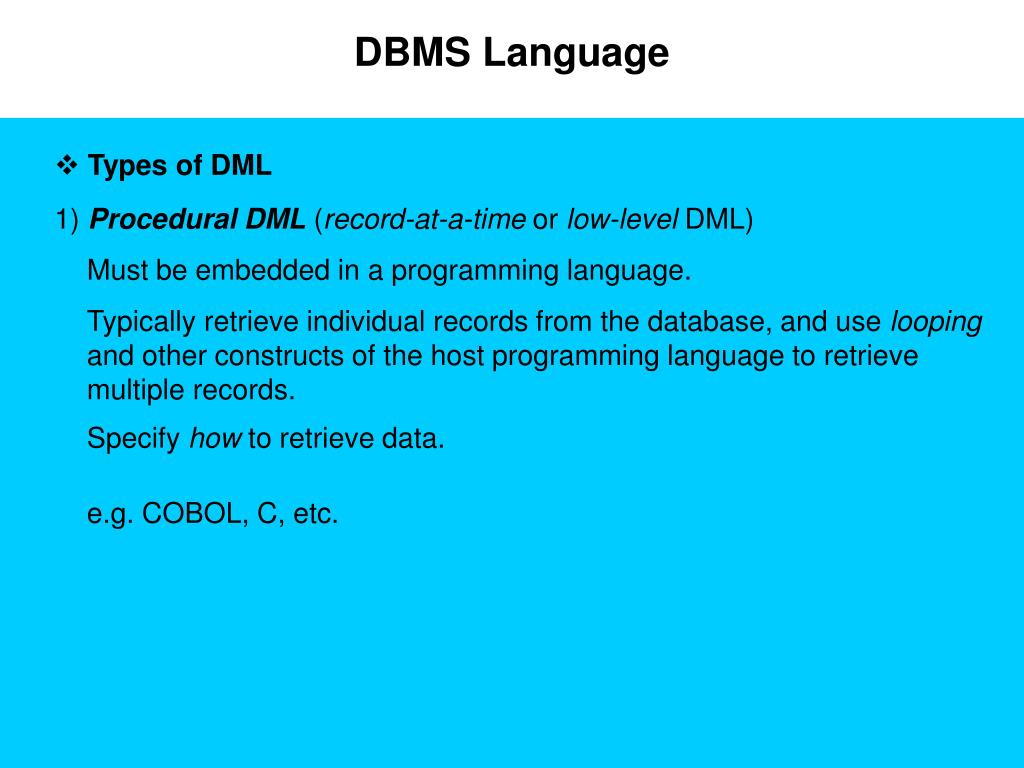

  19. DBMS Language • Types of DML 1) Procedural DML (record-at-a-time or low-level DML) Must be embedded in a programming language. Typically retrieve individual records from the database, and use looping and other constructs of the host programming language to retrieve multiple records. Specify how to retrieve data. e.g. COBOL, C, etc.

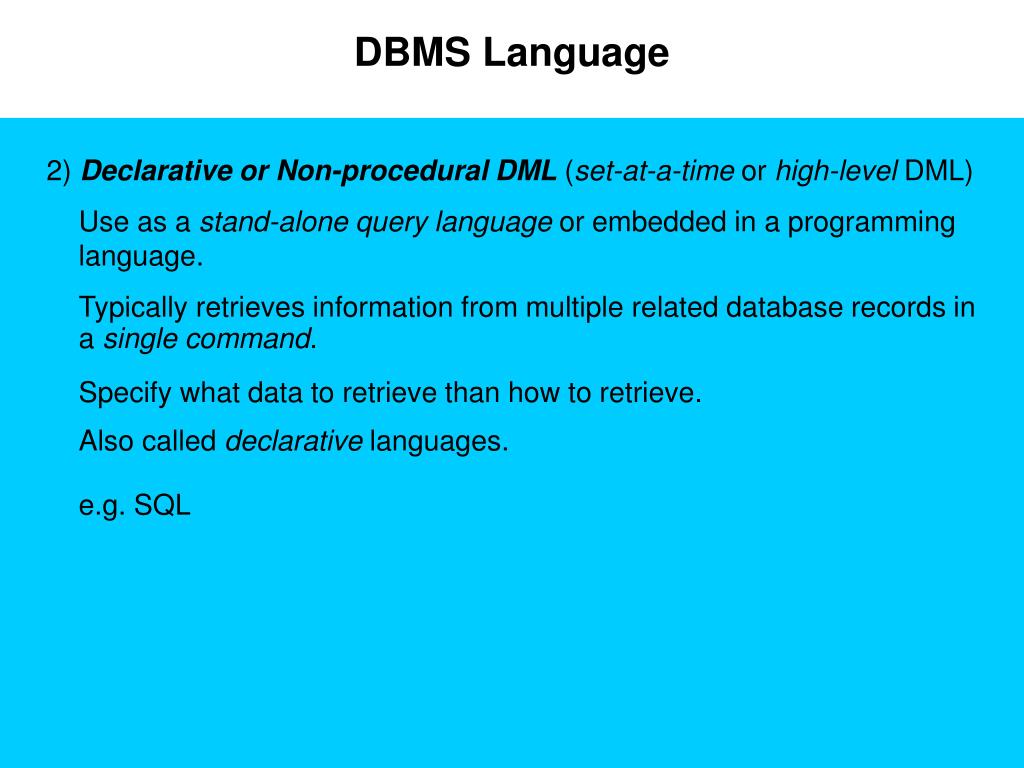

  20. DBMS Language 2) Declarative or Non-procedural DML (set-at-a-time or high-level DML) Use as a stand-alone query language or embedded in a programming language. Typically retrieves information from multiple related database records in a single command. Specify what data to retrieve than how to retrieve. Also called declarative languages. e.g. SQL

  21. DBMS Interface • Stand-alone query language interfaces • Programmer interfaces for embedding DML in programming languages: 1) Pre-compiler Approach 2) Procedure Call Approach

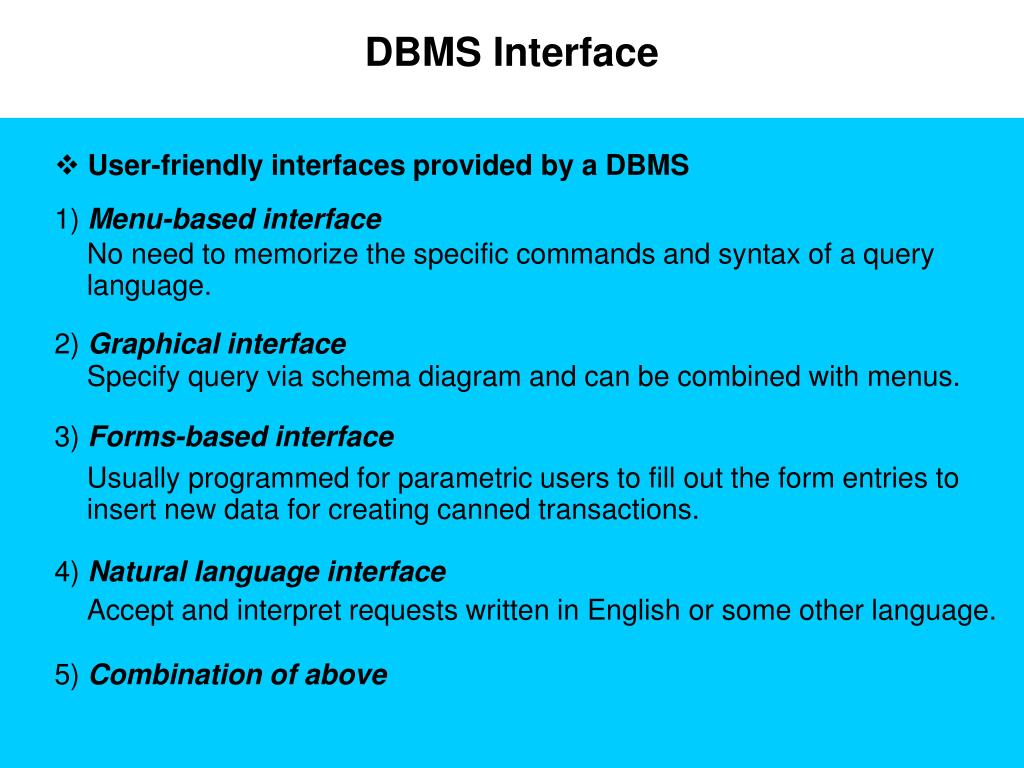

  22. 1) Menu-based interface No need to memorize the specific commands and syntax of a query language. 2) Graphical interface Specify query via schema diagram and can be combined with menus. 3) Forms-based interface Usually programmed for parametric users to fill out the form entries to insert new data for creating canned transactions. 4) Natural language interface Accept and interpret requests written in English or some other language. DBMS Interface • User-friendly interfaces provided by a DBMS 5) Combination of above

  23. Other DBMS Interface • Speech as Input and Output • Web Browser as an interface • Interfaces for parametric users (e.g., bank tellers) Have a small set of operations. Use function keys for minimizing number of keystrokes. • Interface for the DBA Use privileged commands for creating accounts, setting system parameters, granting account authorization, changing schema, and reorganizing the storage structure of a database.

  24. Database System Environment Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems

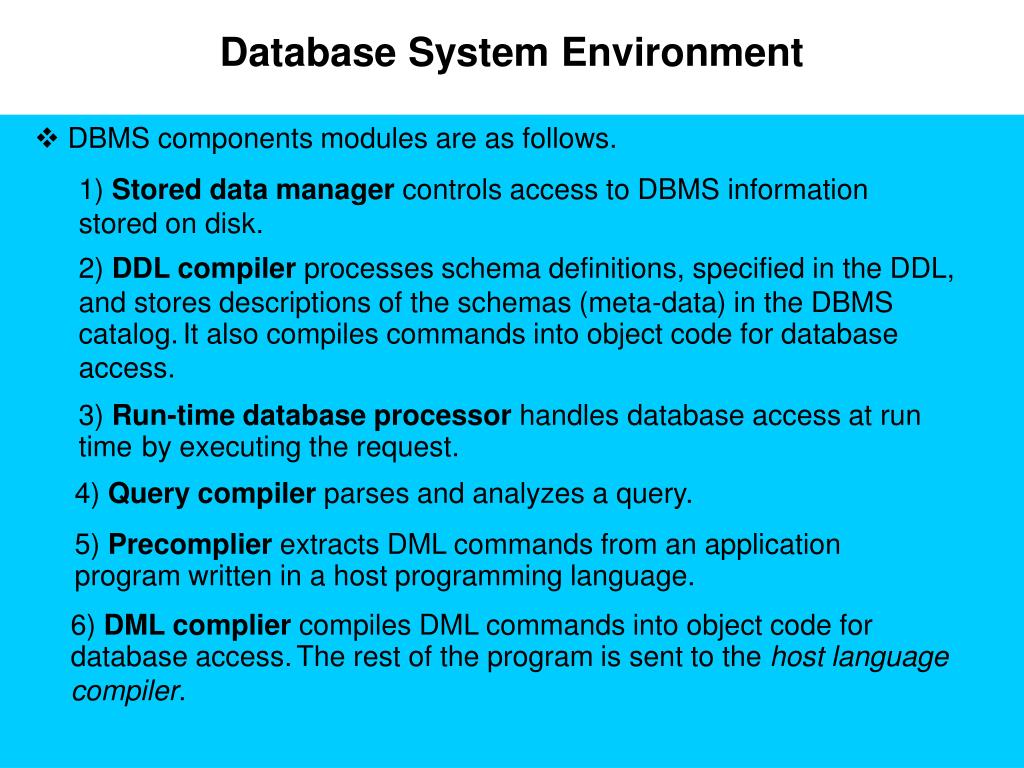

  25. DBMS components modules are as follows. Database System Environment 1) Stored data manager controls access to DBMS information stored on disk. 2) DDL compiler processes schema definitions, specified in the DDL, and stores descriptions of the schemas (meta-data) in the DBMS catalog.It also compiles commands into object code for database access. 3) Run-time database processor handles database access at run timeby executing the request. 4) Query compiler parses and analyzes a query. 5) Precomplier extracts DML commands from an application program written in a host programming language. 6) DML complier compiles DML commands into object code for database access.The rest of the program is sent to the host language compiler.

  26. Database System Utilities • Common database utilities have the following types of functions 1) Loading existing data files into the database. 2) Backing up copy of the database periodically. 3) Reorganizing database file structures to improve performance. 4) Report generation utilities. 5) Monitoring database usage and providing statistics to the DBA. • Other functions, such as sorting, user monitoring, data compression, etc.

  27. Combination of catalog/data dictionary: • Data dictionary is an important and very useful utility. Active data dictionary is accessed by DBMS s/w and users/DBA. Passive data dictionary is accessed by users/DBA only. Used to store schema descriptions and other information such as design decisions, application program descriptions, user information, usage standard, etc. Database System Utilities • Data dictionary vs. DBMS catalog

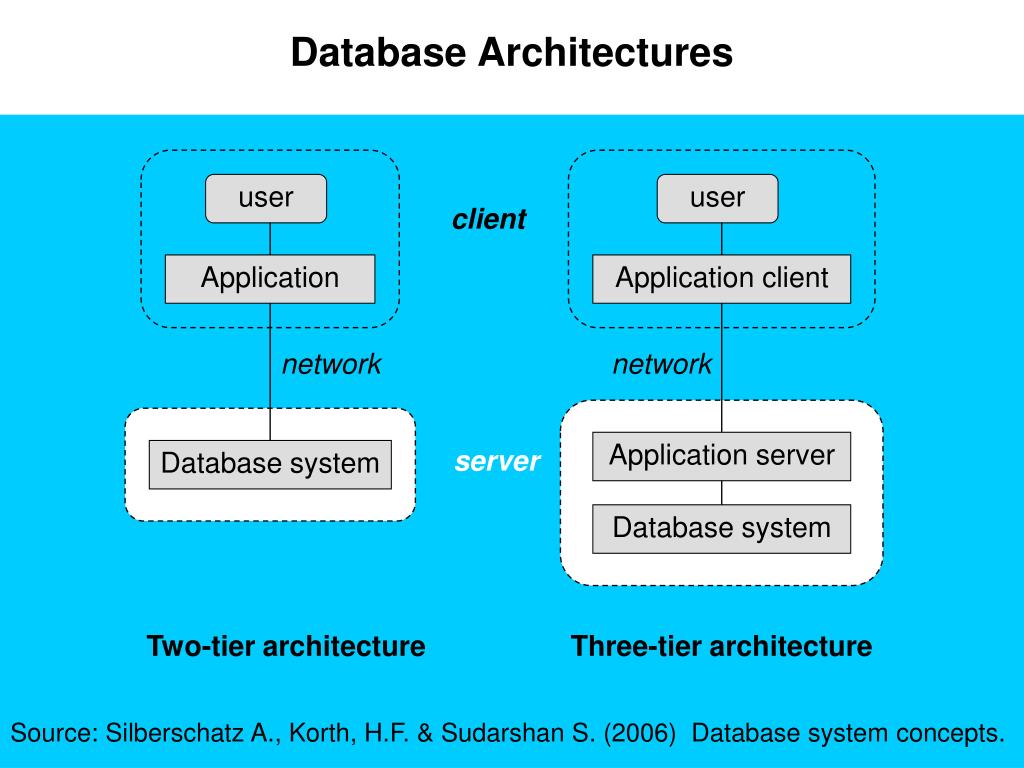

  28. Database Architectures user user client Application Application client network network Application server Database system server Database system Two-tier architecture Three-tier architecture Source: Silberschatz A., Korth, H.F. & Sudarshan S. (2006) Database system concepts.

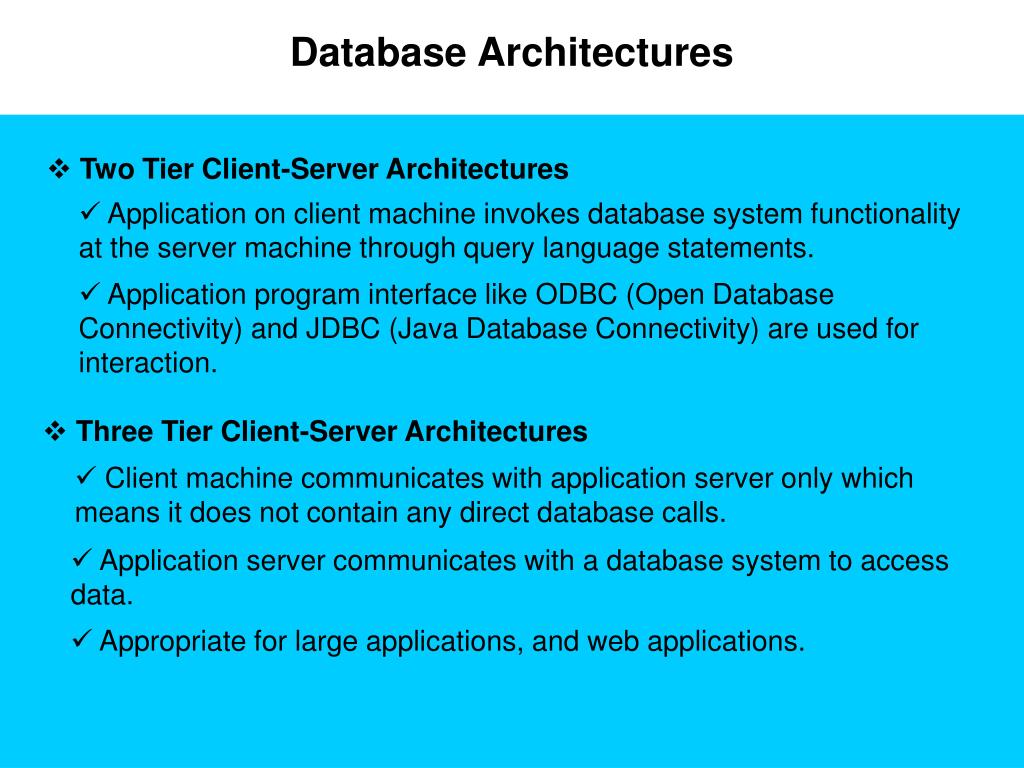

  29. Two Tier Client-Server Architectures • Application on client machine invokes database system functionality at the server machine through query language statements. • Application program interface like ODBC (Open Database Connectivity) and JDBC (Java Database Connectivity) are used for interaction. • Three Tier Client-Server Architectures • Client machine communicates with application server only which means it does not contain any direct database calls. • Application server communicates with a database system to access data. • Appropriate for large applications, and web applications. Database Architectures

  30. Based on the data model used: • Traditional: Relational, Network, Hierarchical • Emerging: Object-oriented, Object-relational • Other classifications • Single-user (typically used with micro-computers) vs. multi-user (most DBMSs). • Centralized (uses a single computer with one database) vs. distributed (uses multiple computers, multiple databases) • Distributed (or client server based database systems, a set of database servers supports a set of clients) Classification of DBMS

  31. Classification of DBMS • Data model is the main criterion used to classify DBMS. 1) Relational data model represents a collection of tables. 2) Network model represents data as record types and limited type of 1:N relationship, called a set type. 3) Hierarchical model represents data as hierarchical tree structures. Each hierarchy represents a number of related records. 4) Object-oriented model defines a database in terms of objects, their properties, and their operations. Object with the same structure and behavior belongs to a class. 5) Object-relational model combines relational data model and object-oriented model to define complex data types.

  32. Example of Relational Data Model Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems

  33. Example of Relational Data Model (Cont.) Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems

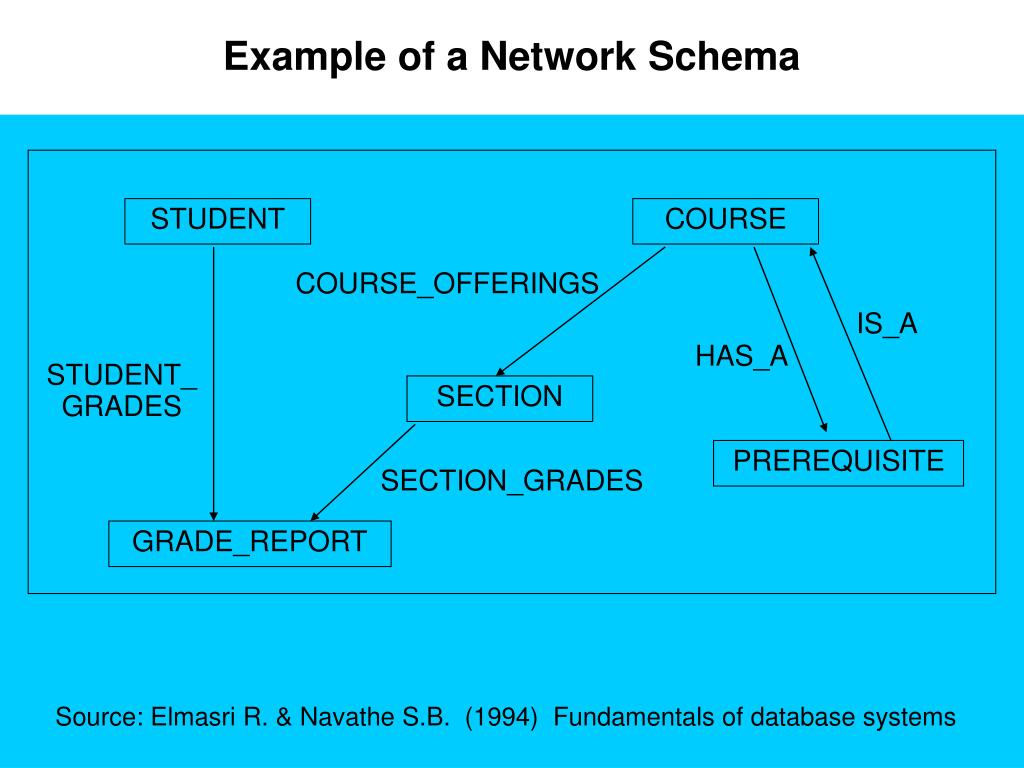

  34. Example of a Network Schema STUDENT COURSE COURSE_OFFERINGS IS_A HAS_A STUDENT_GRADES SECTION PREREQUISITE SECTION_GRADES GRADE_REPORT Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems

  35. Example of a Hierarchical Schema DEPARTMENT EMPLOYEE PROJECT Source: Elmasri R. & Navathe S.B. (1994) Fundamentals of database systems
