Advancements in Illinois Sediment Monitoring via Hydroacoustic Techniques

This workshop, led by Dr. Timothy D. Straub and collaborators, explores the operational aspects of the Illinois Sediment Network, which focuses on sediment gaging and monitoring activities. With over 2,000 sediment samples collected annually across various agricultural and river systems, the network emphasizes data compilation, verification, and guidelines to improve sediment management practices. Key challenges, including data transmission and environmental conditions impacting measurements, will be discussed to enhance future monitoring strategies.

sinead
Télécharger la présentation

Advancements in Illinois Sediment Monitoring via Hydroacoustic Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Illinois Sediment Acoustics OSW Sediment HydroacousticActivities Workshop Timothy D. Straub, P.E., Ph.D. Collaborators: Beaulin, Boldt, Bohall, Bosch, Domanski, Draper, Duncker, Goodwin, Husko, Legg, Lynch, Jackson, Johnson, Johnson, Oberg, Prater, Roseboom, Schrader, Straub, Szupiany

  2. Illinois Sediment Network Background 13 • 15 Sediment Gages • ~2,000 samples per year • 7 Cooperators • 5 Technicians in 3 offices • Project Oriented • Dam Removal • Restoration • OPERATIONAL NOT A RESEARCH focus • i.e. 5 Sediment Acoustic sites slow addition 5 2 4 4

  3. Site 1: • Predominantly Agricultural • Drainage Ditch 14 mi2 drainage area Up-looker used Nearly 100 % fines in suspension No near field corrections

  4. Sediment Concentration and Attenuation Coefficient Two October Storms at Kickapoo (05579630)

  5. Sediment Concentration and Attenuation Coefficient October 2009 Storms at Kickapoo (05579630)

  6. Site 2: • One of the largest contributors of sediment to the Illinois River 1,636 mi2 drainage area Up to ~25 % sands in suspension Side-looker: on-going problems with debris on instrument Wake zone?

  7. Partial cleanup of data (negative slopes taken out) Results with only two cells used -no near field correction -wake zone?

  8. LISST-SL Experience and Testing Results in Illinois FISP Funded 2011-2012

  9. Typical Bridge Setup

  10. Automation Software Development Beta Sediment Stationary Add-in by Boldt, Szupiany, Czuba, and Oberg into VMT by Parsons, Jackson, Czuba, Mueller, and Oberg

  11. Beta Add-inAnimation

  12. FUTURE Illinois Sediment Network

  13. Previous Peak 34.56’ Previous Peak 37.24’ Previous Peak 39.01’ Previous Peak 26.04’

  14. Next Steps for OSW? • Compile data from across the nation/world • Interim guidelines • Three or more iterations emerging • Verification dataset • Utilizing existing index velocity sites • 10x10x(200+200)=$40,000

  15. Additional Complications • Setup • Launches • Data transmission • Cables • Temperature • Power • Silting • Debris

  16. Measured, and Water and Sediment Corrected Backscatter

  17. MultipleWater Corrected Backscatter Readings

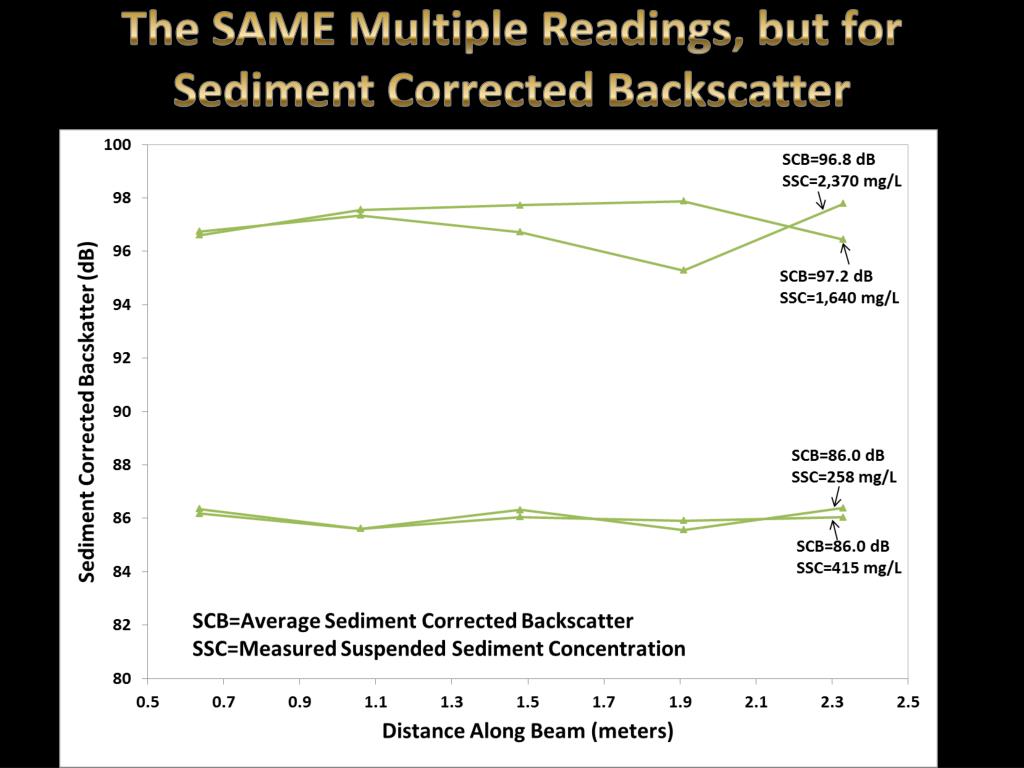

  18. The SAME Multiple Readings, but forSediment Corrected Backscatter
