1. CPSC 233 Tutorial Xin Mar 14, 2011

2. Inheritance • super class – sub class • generic – specific • sub class inherits • non-private attributes • non-private methods • sub class defines new attributes & methods

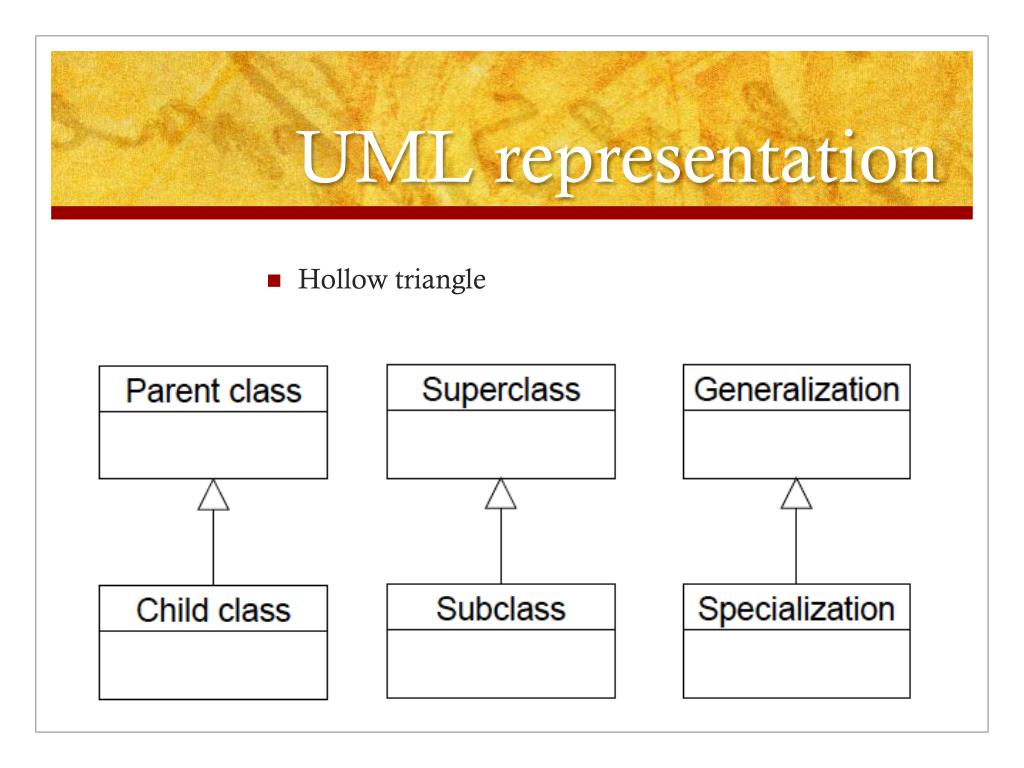

3. UML representation • Hollow triangle

4. Gramma public class superClass { // … } public classsubClassextendssuperClass { // Definition of subclass – only what is unique to subclass }

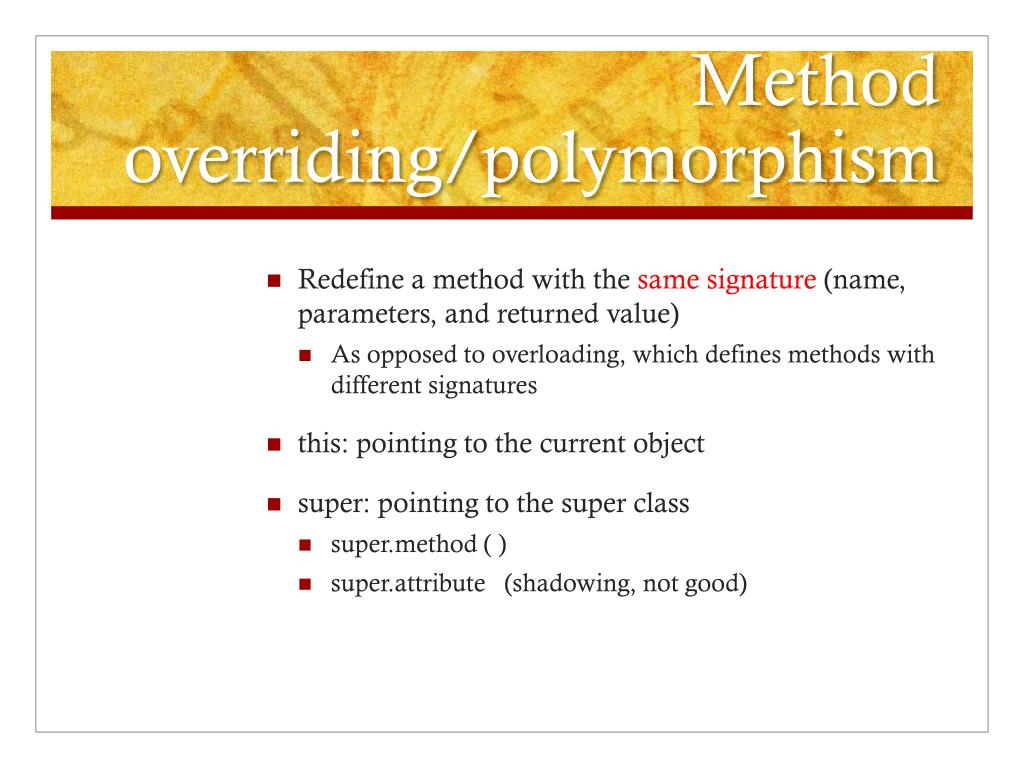

5. Method overriding/polymorphism • Redefine a method with the same signature (name, parameters, and returned value) • As opposed to overloading, which defines methods with different signatures • this: pointing to the current object • super: pointing to the super class • super.method ( ) • super.attribute (shadowing, not good)

6. Example 1

7. Example -> use of super

8. Reference Casting • public class SuperClass {} • public class SubClass extend SuperClass{} • SuperClass sup = new SubClass(); // ✔ no casting needed • SubClass sub = (SubClass) sup; // ✔ casting needed; sup must be an object of SubClass • SubClass sub2 = (SubClass) new SuperClass () // ✗ • Casting between different classes not in a hierarchy is not allowed

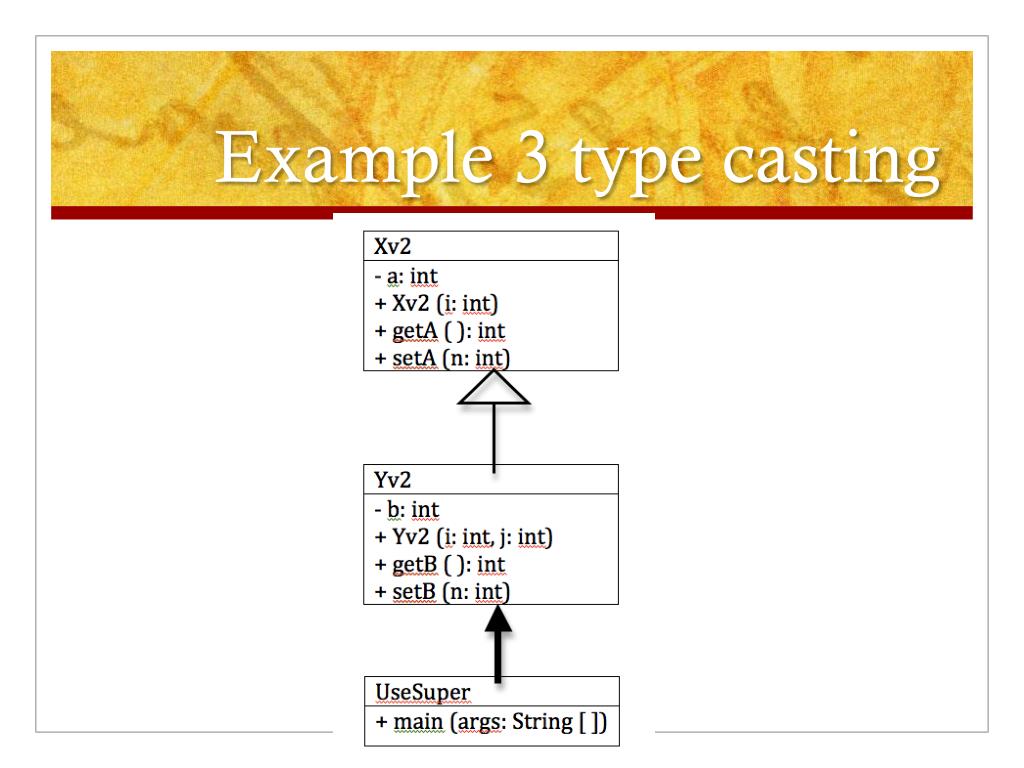

9. Example 3 type casting
