TELECOMMUNICATIONS. Components of the System. Home Phone (Landline): Send/Receive Landline Network Signals through Telephone Wires. Cell Phone: Send/Receive Radio Wave Signals with Cell Tower in Area. Satellite Phone: Send/Receive Radio Wave Signals to/from Communication Satellites.

skah
Télécharger la présentation

Components of the System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

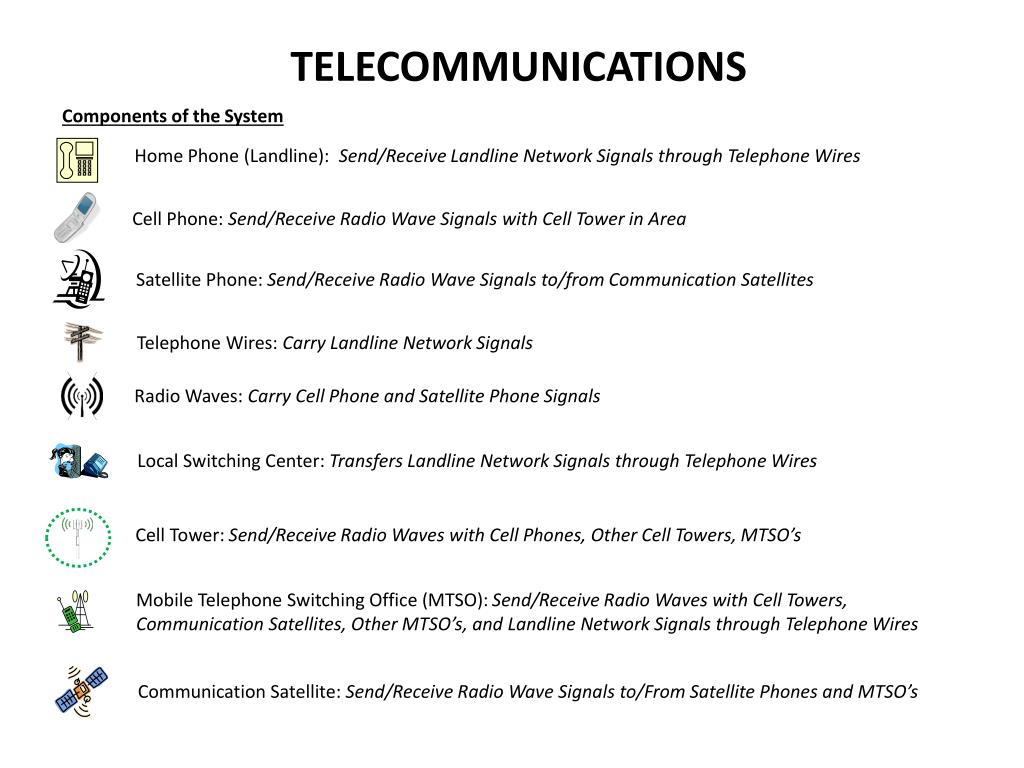

  1. TELECOMMUNICATIONS Components of the System Home Phone (Landline): Send/Receive Landline Network Signals through Telephone Wires Cell Phone: Send/Receive Radio Wave Signals with Cell Tower in Area Satellite Phone: Send/Receive Radio Wave Signals to/from Communication Satellites Telephone Wires: Carry Landline Network Signals Radio Waves: Carry Cell Phone and Satellite Phone Signals Local Switching Center: Transfers Landline Network Signals through Telephone Wires Cell Tower: Send/Receive Radio Waves with Cell Phones, Other Cell Towers, MTSO’s Mobile Telephone Switching Office (MTSO): Send/Receive Radio Waves with Cell Towers, Communication Satellites, Other MTSO’s, and Landline Network Signals through Telephone Wires Communication Satellite: Send/Receive Radio Wave Signals to/From Satellite Phones and MTSO’s

  2. POINTS OF CONTACT TRANSFER STATIONS MEDIUMS Communication Satellite Cell Tower + Coverage Area Mobile Telephone Switching Office Local Switching Center Cell Phone Home Phone (Landline) Telephone Wires Satellite Phone Radio Waves

  3. MATCHING GAME DRAW LINES TO MAKE THE DIRECT CONNECTIONS Through: Through: Through: Through: Through: Through: Local Switching Center DIRECTLY Connects to: Satellite Phone DIRECTLY Connects to: EXAMPLE Landline DIRECTLY Connects to: Cell Phone DIRECTLY Connects to: Cell Tower DIRECTLY Connects to: Mobile Telephone Switching Office DIRECTLY Connects to:

  4. TELECOMMUNICATION NETWORKS • 1) Home to a Home using landline phones: • Same Area Code • Different Area Code

  5. TELECOMMUNICATION NETWORKS • 2) Cell Phone to Cell Phone • Same Cell Tower Area • Different Cell Tower Area

  6. TELECOMMUNICATION NETWORKS • 3) Landline to a Cell Phone

  7. TELECOMMUNICATION NETWORKS • 4) Cell Phone to Satellite Phone

  8. Telecommunications • What is Telecommunications? Give some examples for both pre and post electricity: • How do landline phones work? • How do cell phones work? What type of waves do they use? • What are the different components of the cell phone system? • How does a satellite phone work? • How do you think features like text messages, GPS, and internet work on cell phones?

  9. 857 508 413 LSC 508 MTSO 617 LSC 857 LSC 413 MTSO 508 MTSO 857 5 – Determine the path a call would take from a 617 cell phone to a satellite phone in 413 Instructions: 1 – Draw a house in each Area Code, and connect the landline phones to the system 2 – Determine the path a call would take to go from a home in 617 to a home in 413 3 – Determine the path a call would take from a cell phone in 617 to a landline in 508 4 – Determine the path a call would take from a 857 cell phone to a 413 cell phone LEGEND MTSO 617 Local Switching Center Telephone Wires Mobile Telephone Switching Office LSC 617 Radio Waves Cell Tower 617
