  1. How Cells Make ATP: Energy-Releasing Pathways

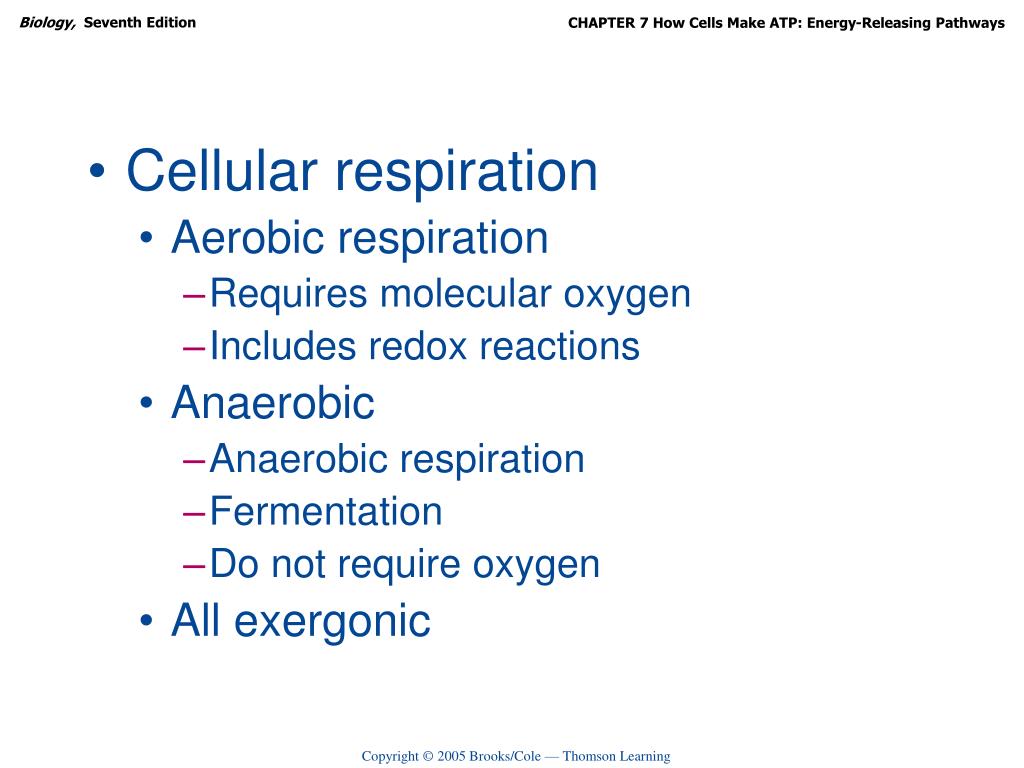

  2. Cellular respiration • Aerobic respiration • Requires molecular oxygen • Includes redox reactions • Anaerobic • Anaerobic respiration • Fermentation • Do not require oxygen • All exergonic

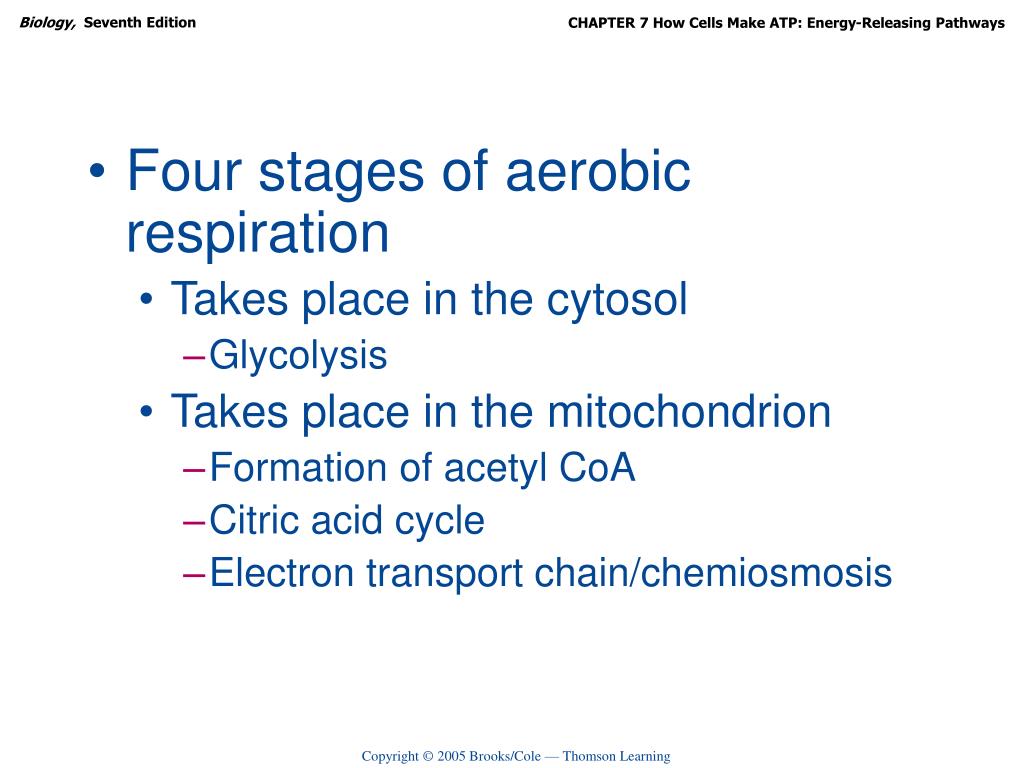

  3. Four stages of aerobic respiration • Takes place in the cytosol • Glycolysis • Takes place in the mitochondrion • Formation of acetyl CoA • Citric acid cycle • Electron transport chain/chemiosmosis

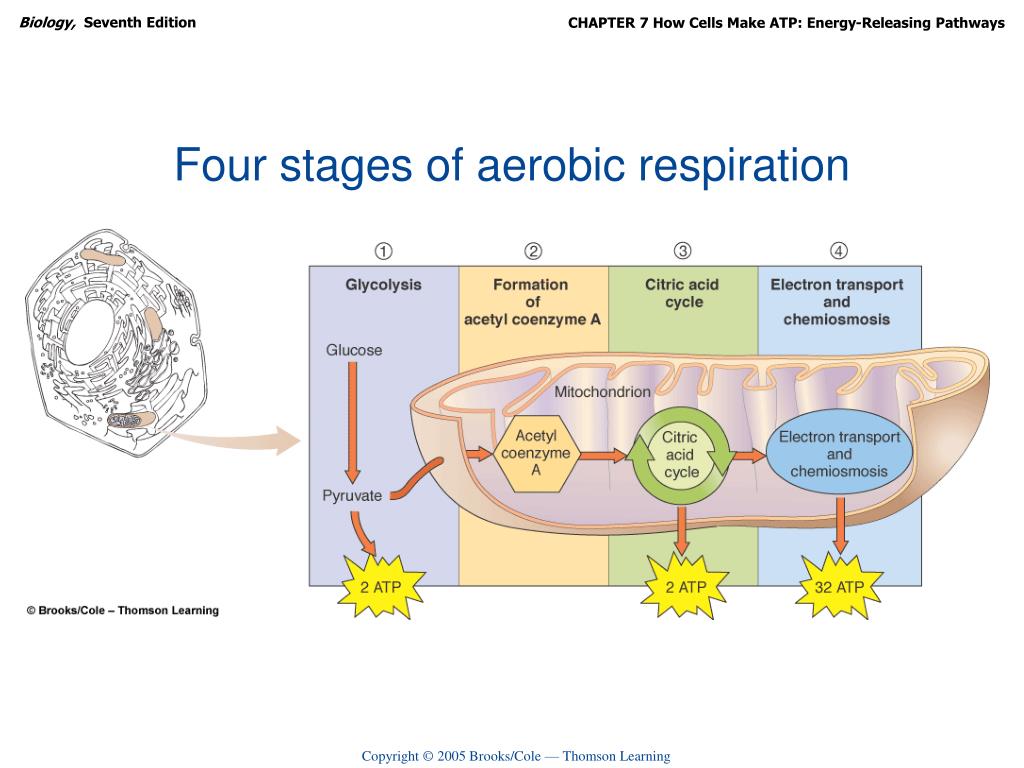

  4. Four stages of aerobic respiration

  5. Summary of aerobic respiration

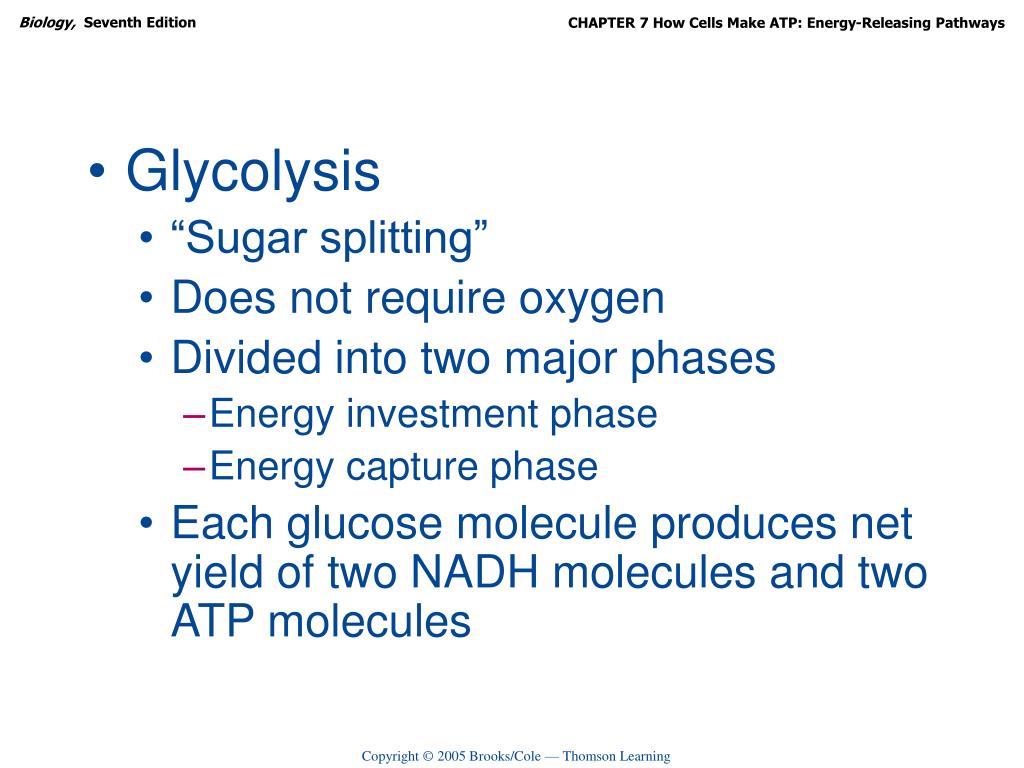

  6. Glycolysis • “Sugar splitting” • Does not require oxygen • Divided into two major phases • Energy investment phase • Energy capture phase • Each glucose molecule produces net yield of two NADH molecules and two ATP molecules

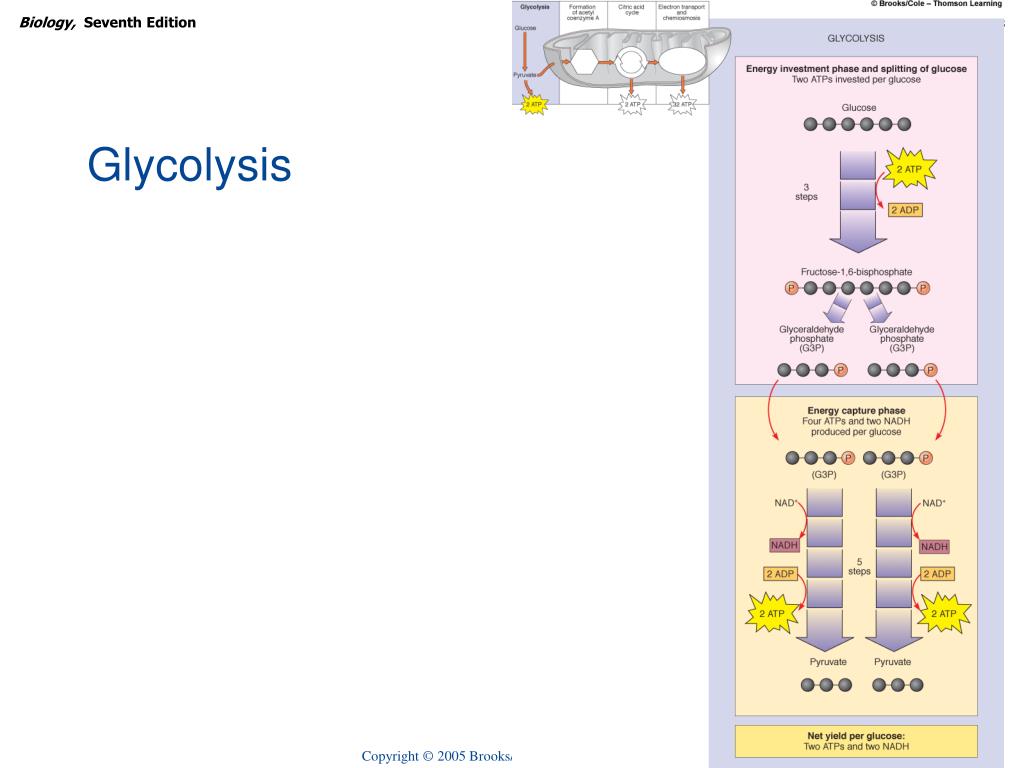

  7. Glycolysis

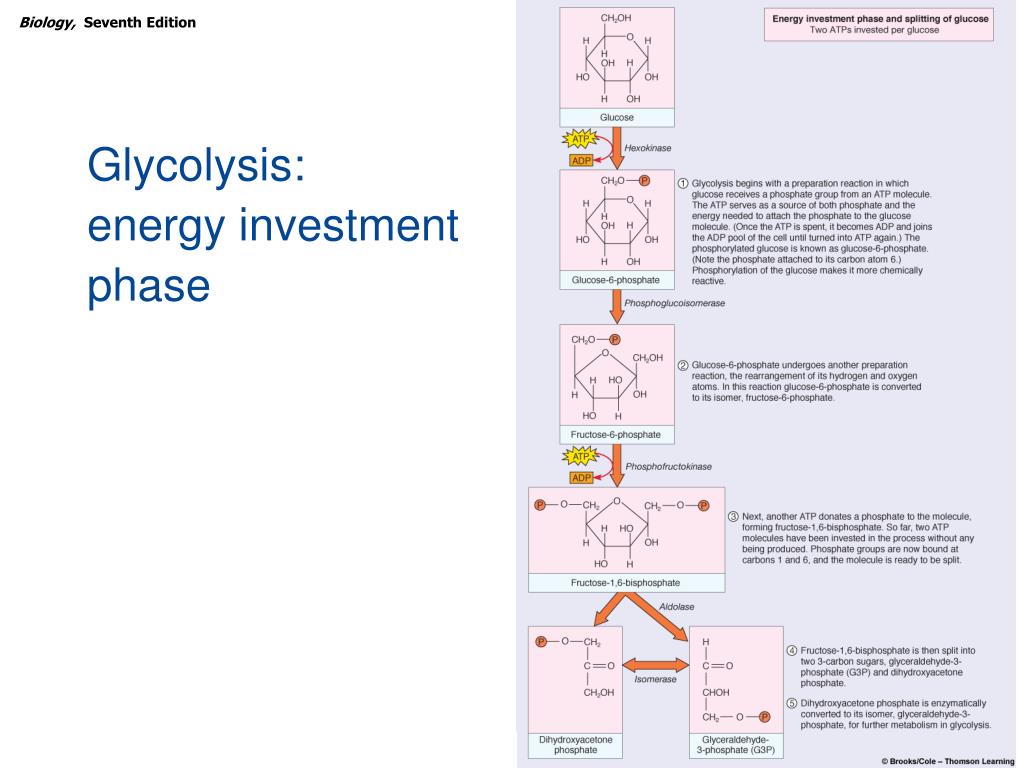

  8. Glycolysis: energy investment phase

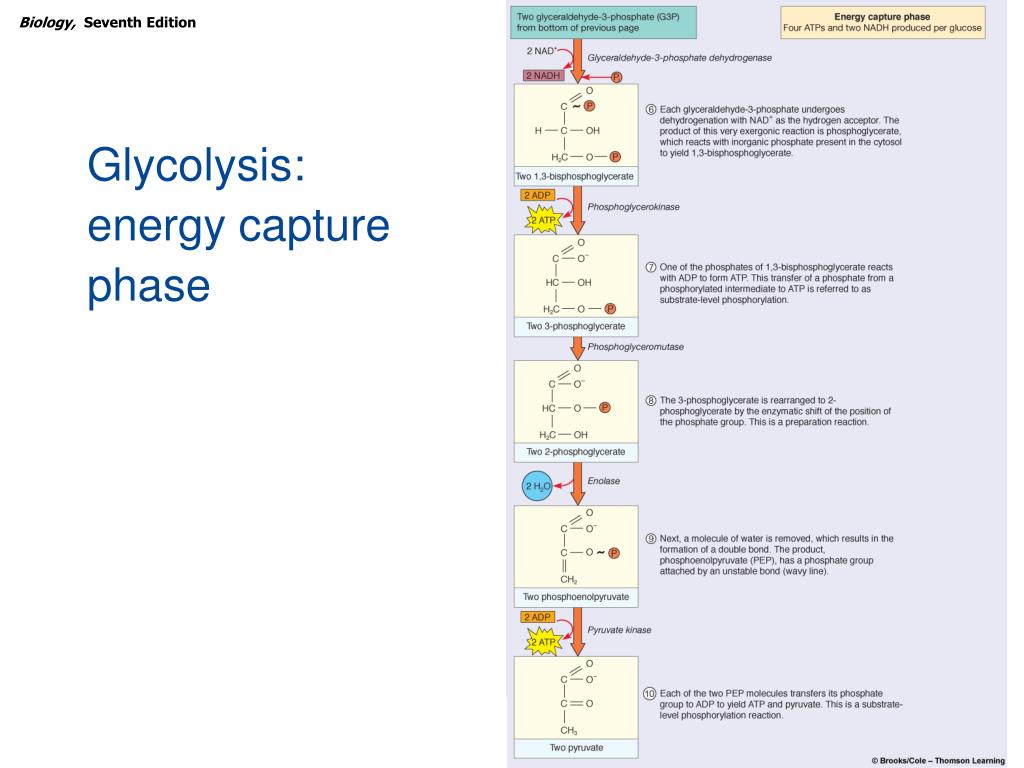

  9. Glycolysis: energy capture phase

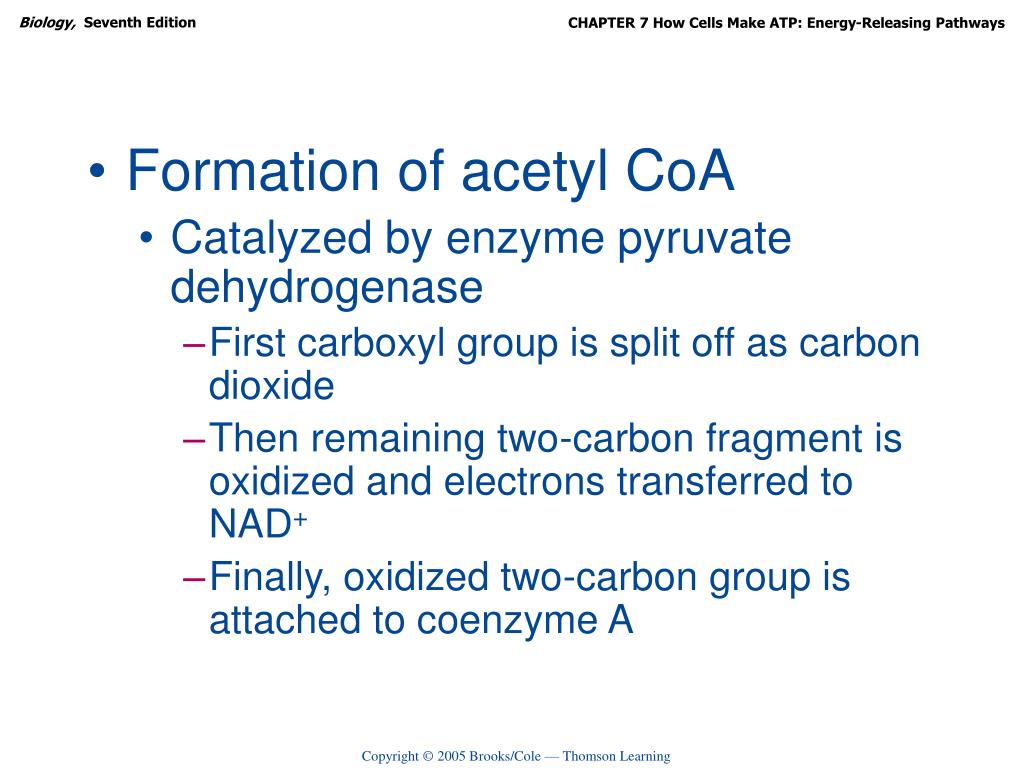

  10. Formation of acetyl CoA • Catalyzed by enzyme pyruvate dehydrogenase • First carboxyl group is split off as carbon dioxide • Then remaining two-carbon fragment is oxidized and electrons transferred to NAD+ • Finally, oxidized two-carbon group is attached to coenzyme A

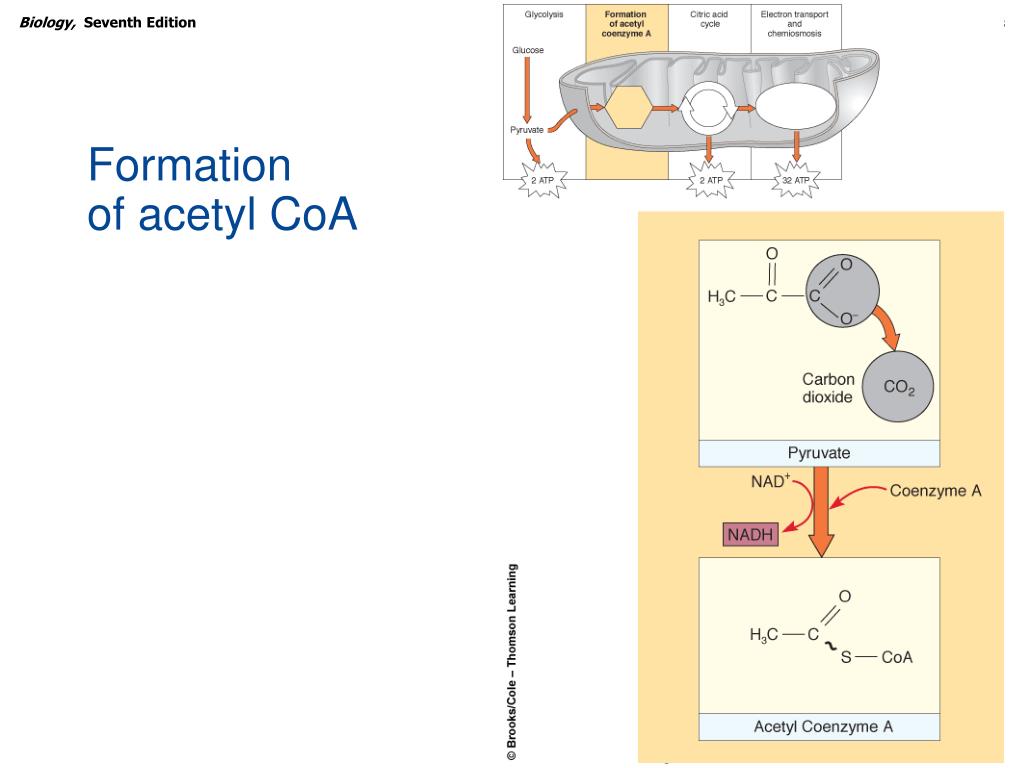

  11. Formationof acetyl CoA

  12. Citric acid cycle • For every glucose, two acetyl groups enter the citric acid cycle • Each two-carbon acetyl group combines with a four-carbon compound • Two CO2 molecules are removed • Energy captured as one ATP, three NADH, and one FADH2 per acetyl group

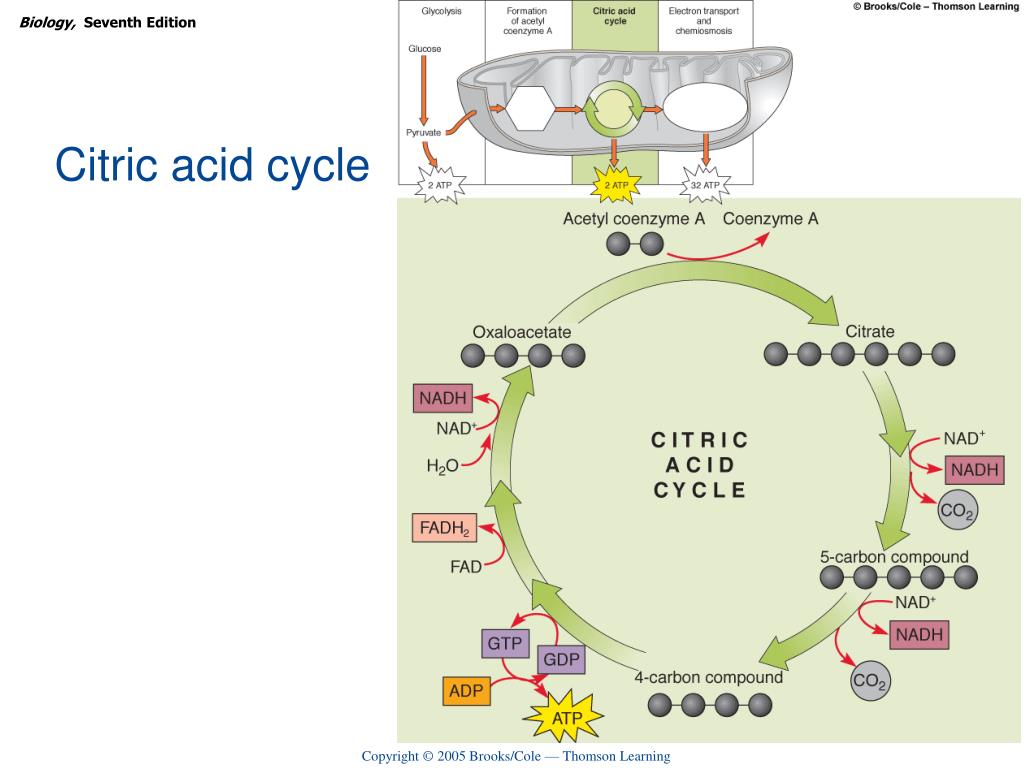

  13. Citric acid cycle

  14. Detail ofcitric acid cycle

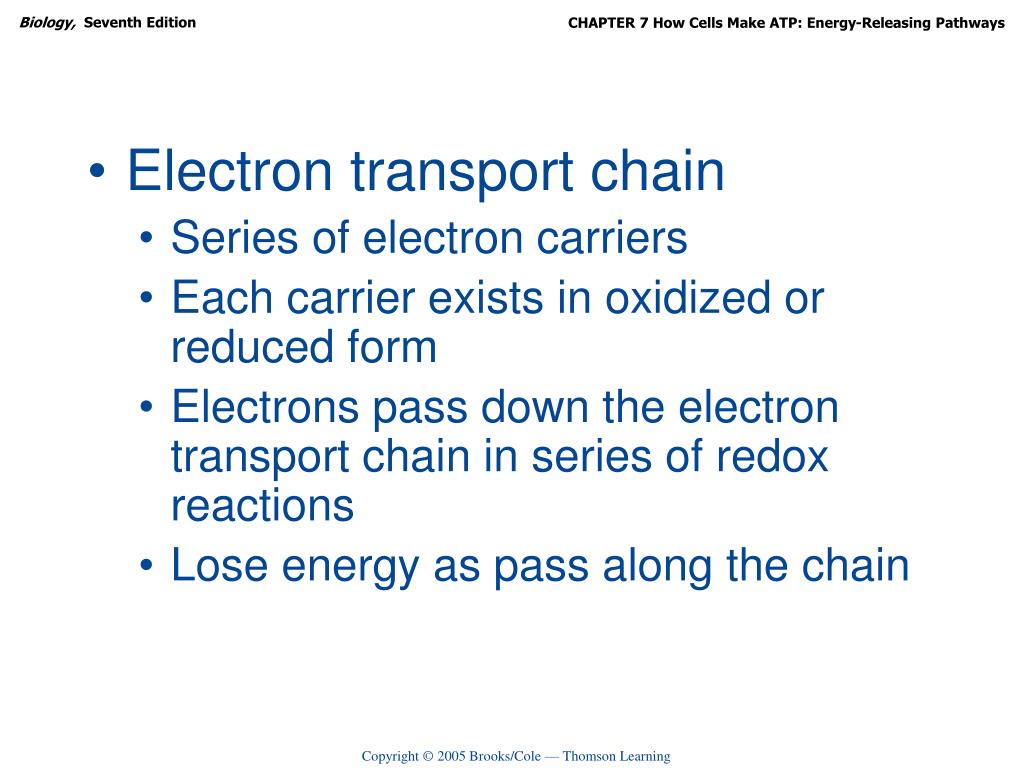

  15. Electron transport chain • Series of electron carriers • Each carrier exists in oxidized or reduced form • Electrons pass down the electron transport chain in series of redox reactions • Lose energy as pass along the chain

  16. Electron transport chain

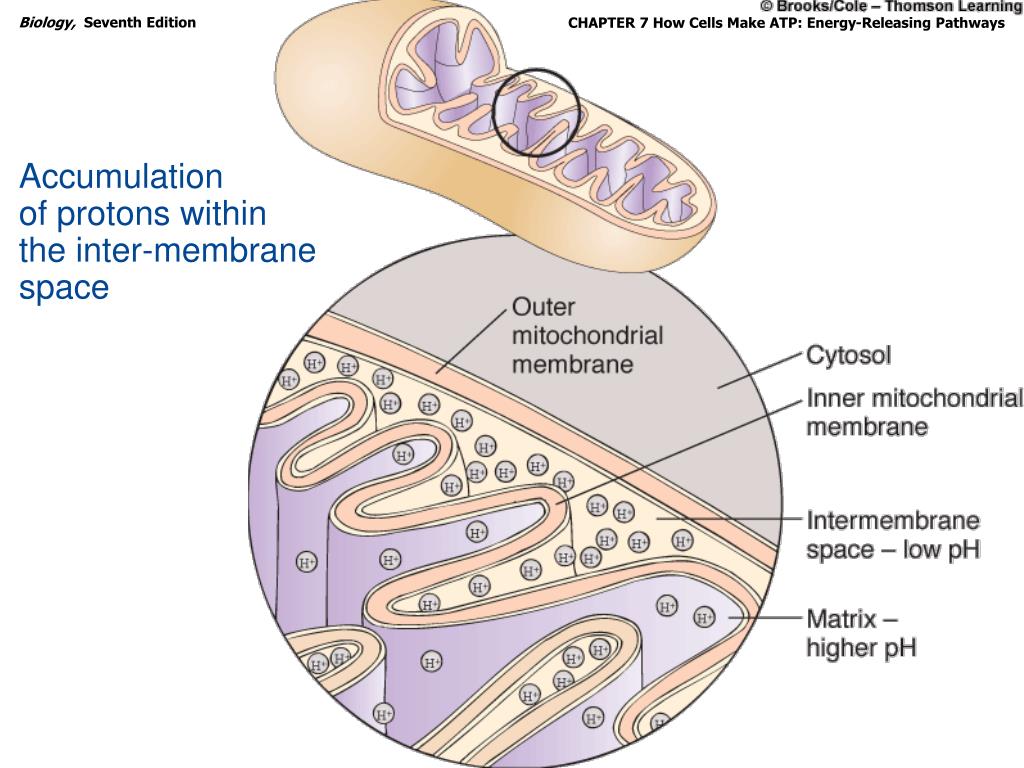

  17. Accumulationof protons withinthe inter-membranespace

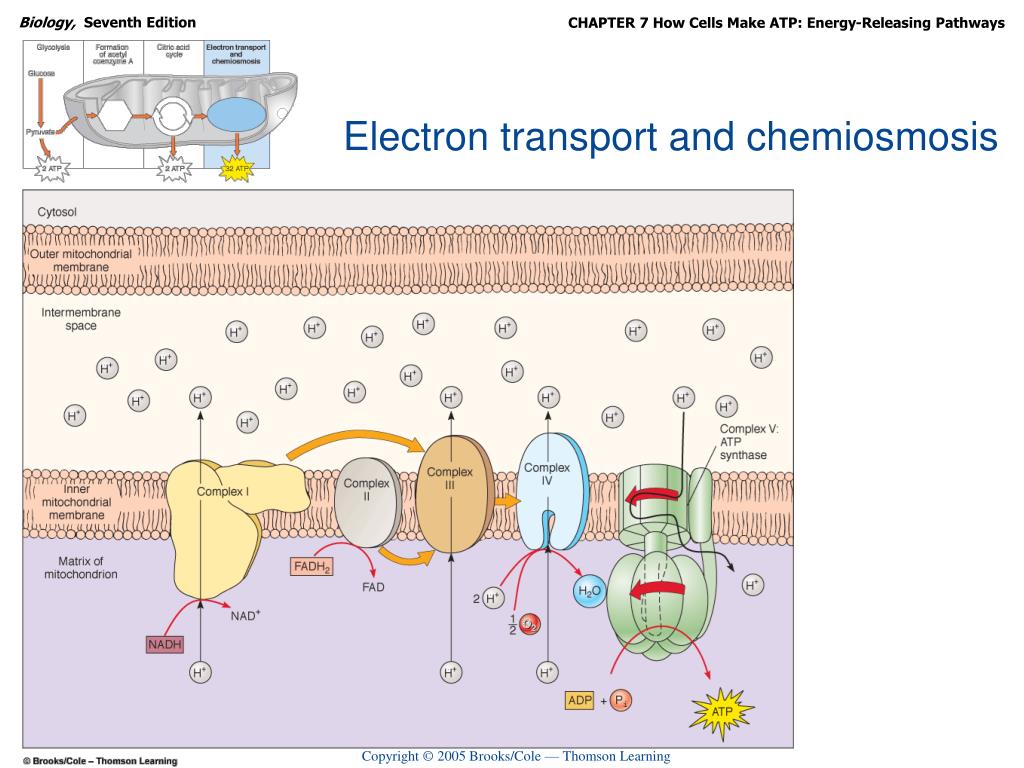

  18. Electron transport and chemiosmosis

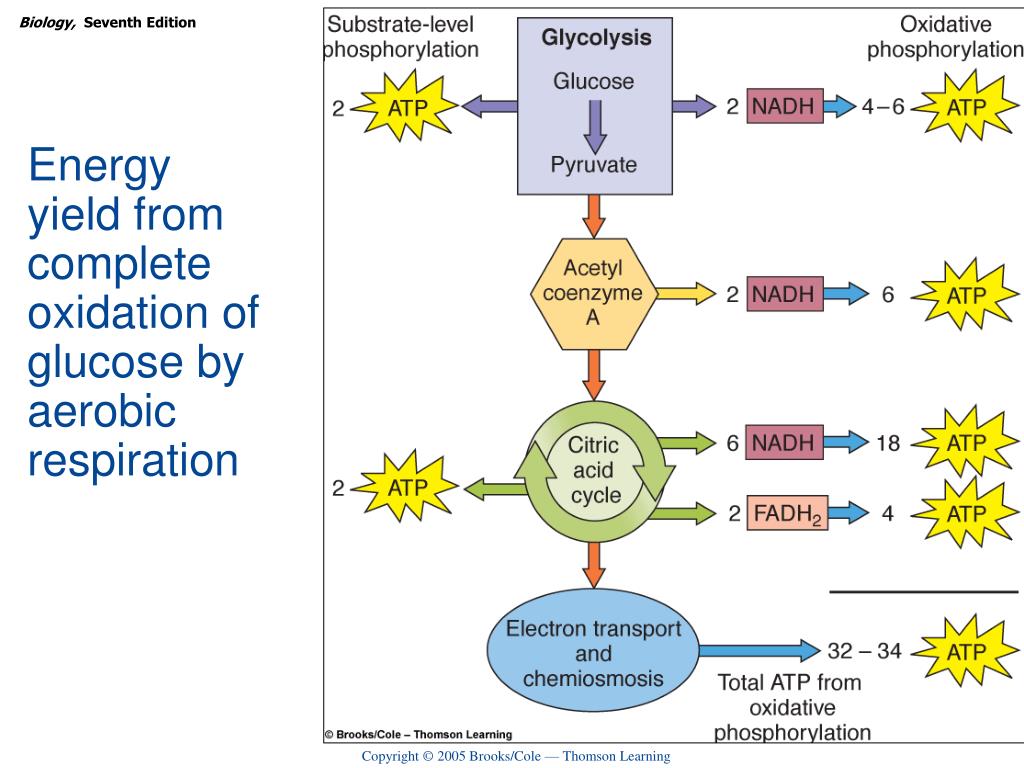

  19. Energyyield fromcompleteoxidation ofglucose byaerobicrespiration

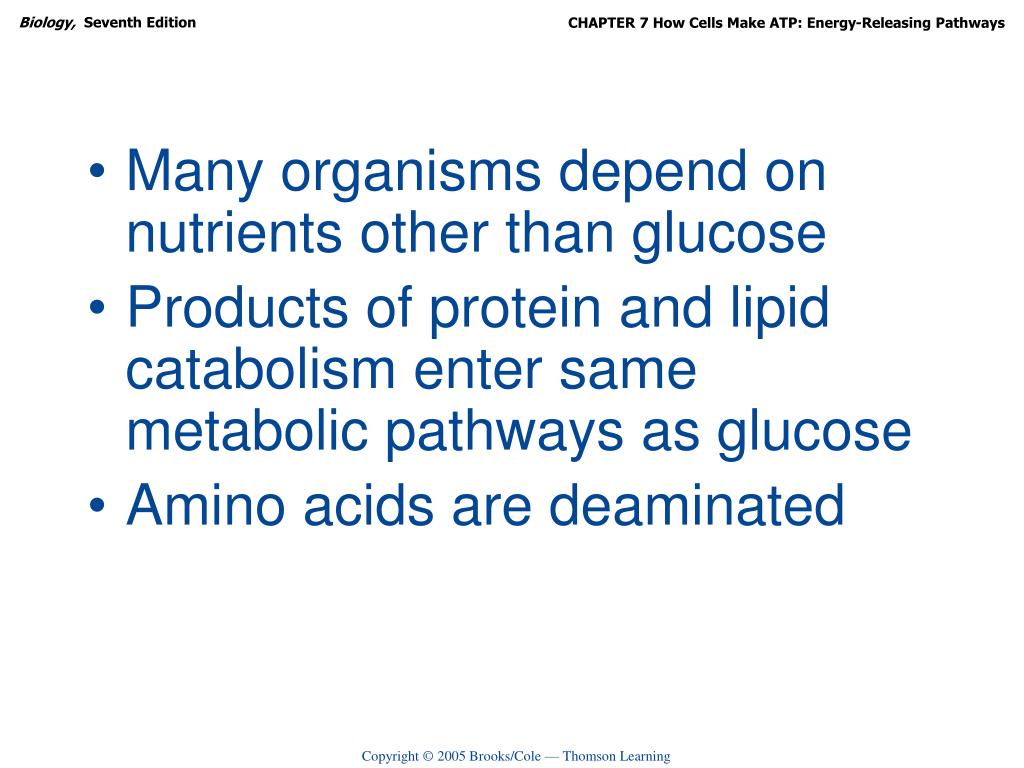

  20. Many organisms depend on nutrients other than glucose • Products of protein and lipid catabolism enter same metabolic pathways as glucose • Amino acids are deaminated

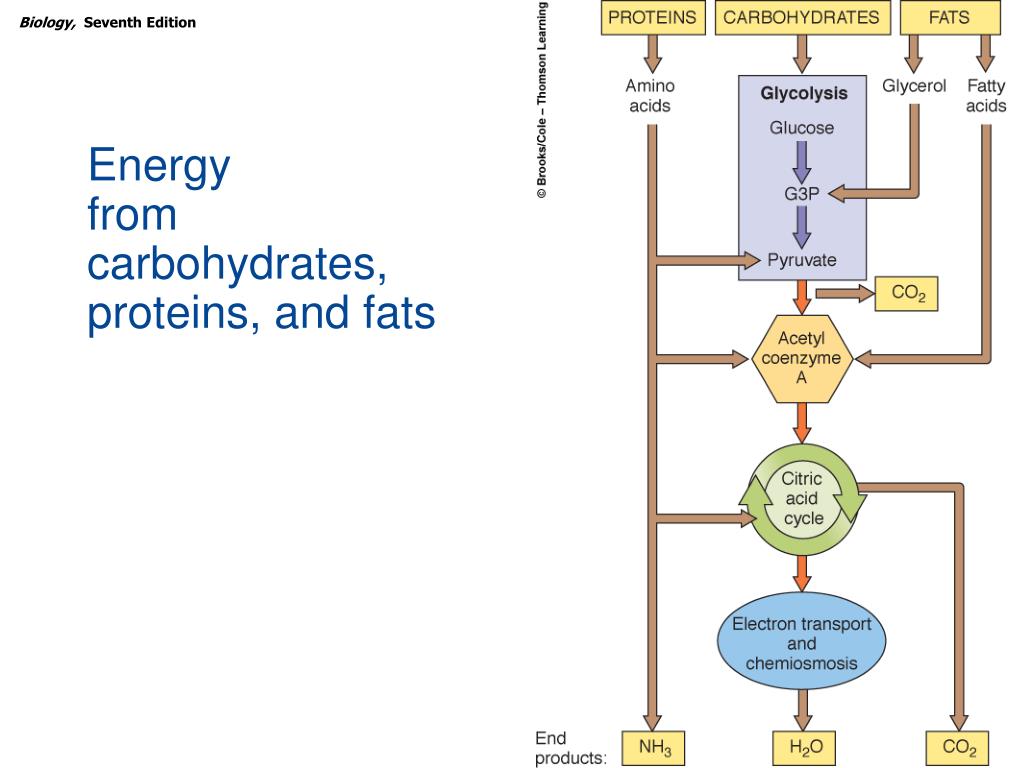

  21. Energyfrom carbohydrates,proteins, and fats

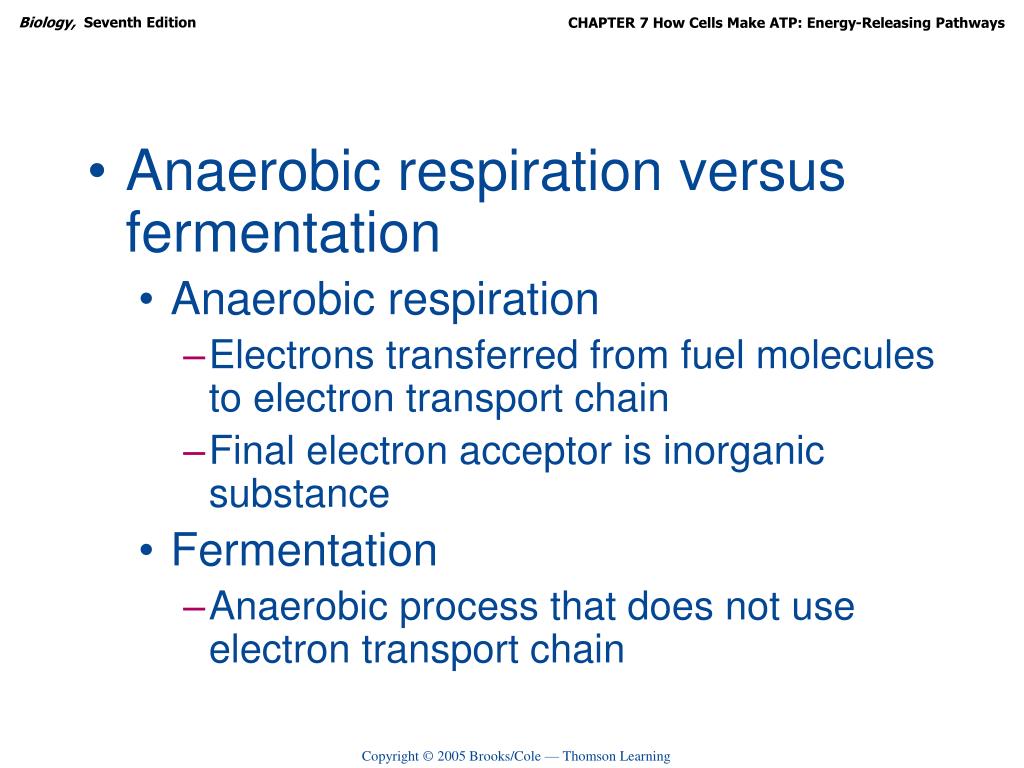

  22. Anaerobic respiration versus fermentation • Anaerobic respiration • Electrons transferred from fuel molecules to electron transport chain • Final electron acceptor is inorganic substance • Fermentation • Anaerobic process that does not use electron transport chain

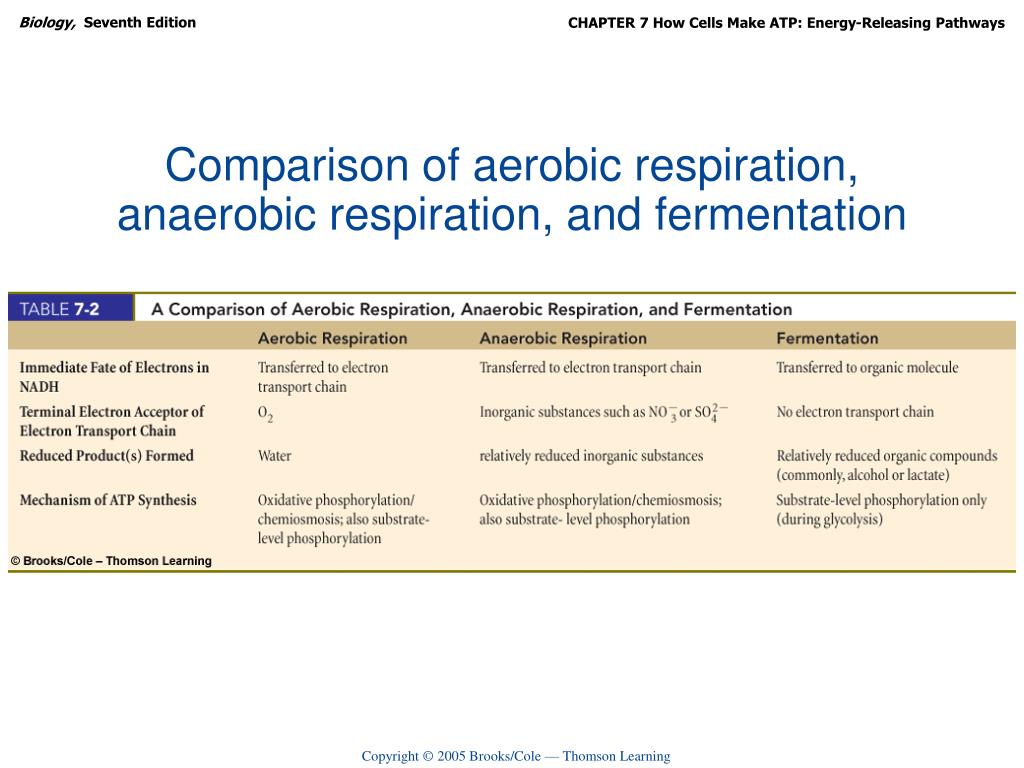

  23. Comparison of aerobic respiration, anaerobic respiration, and fermentation

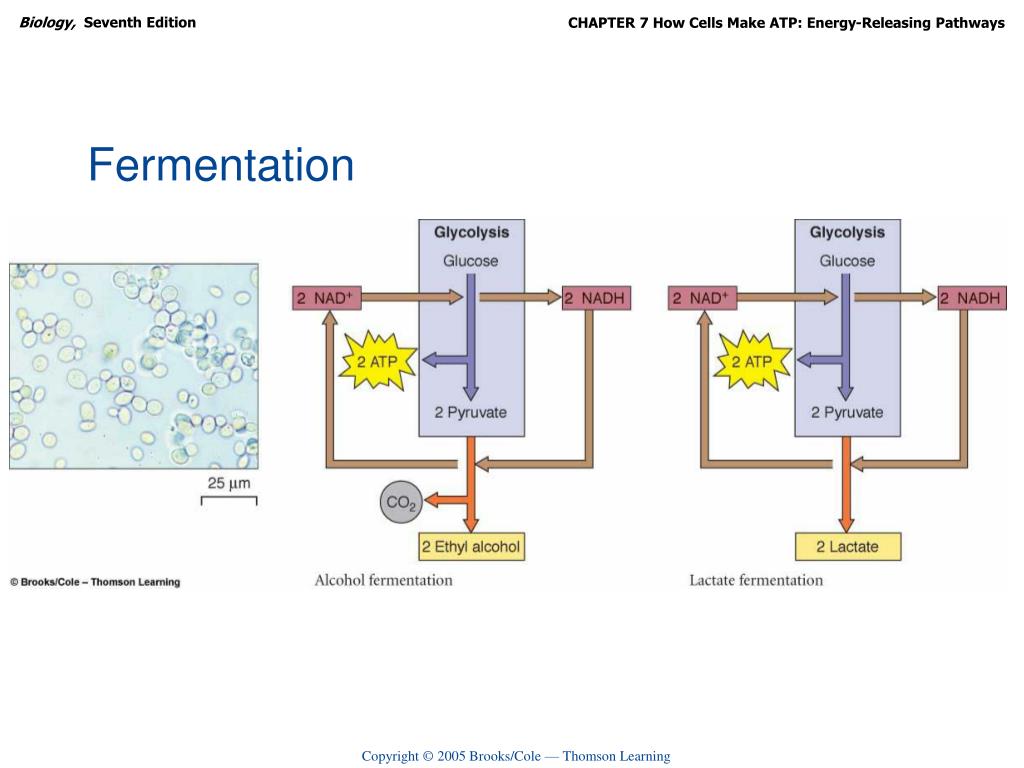

  24. Fermentation
