CS5263 Bioinformatics

1. CS5263 Bioinformatics Lecture 11 Motif finding

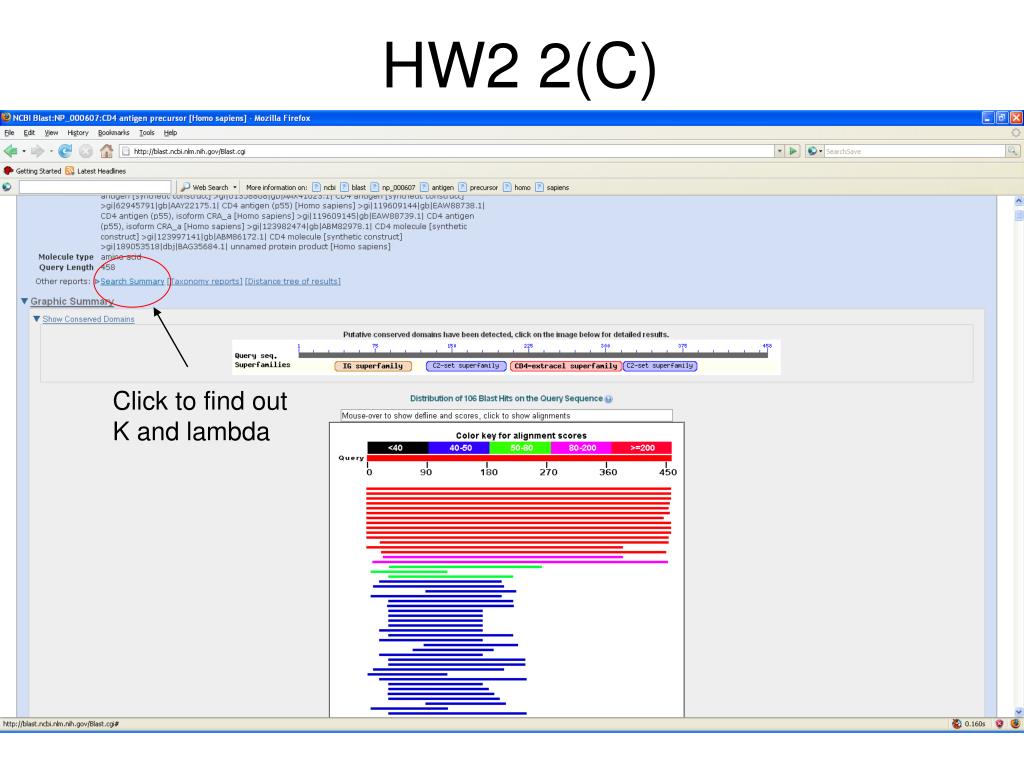

2. HW2 2(C) Click to find out K and lambda

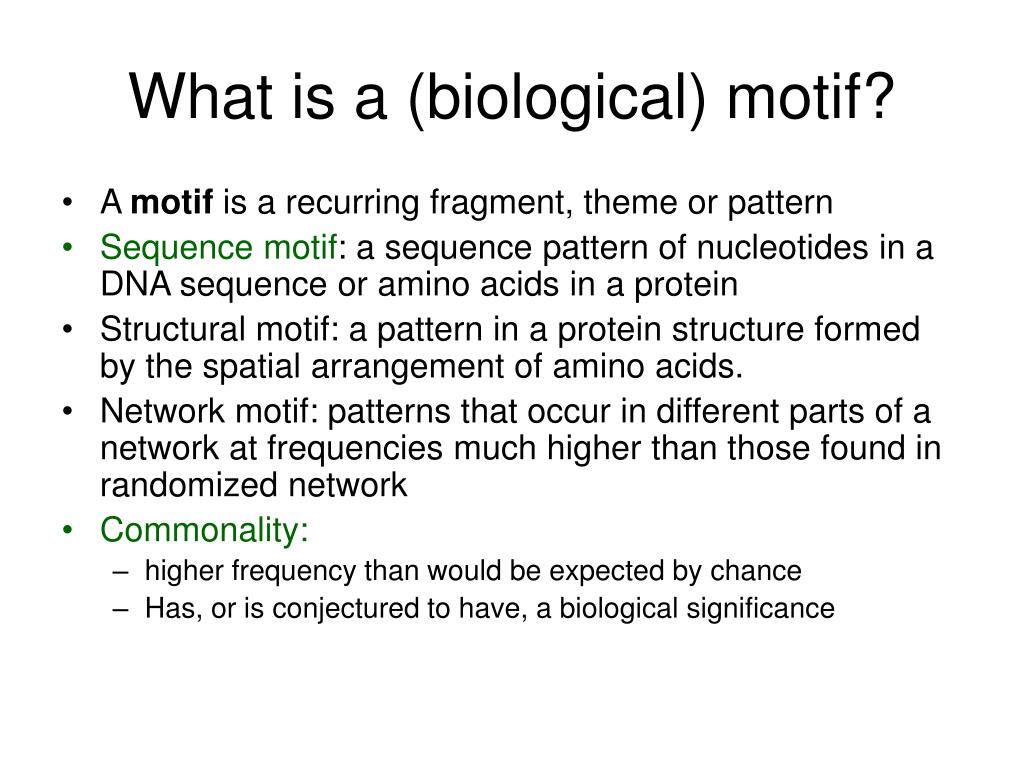

3. What is a (biological) motif? • A motif is a recurring fragment, theme or pattern • Sequence motif: a sequence pattern of nucleotides in a DNA sequence or amino acids in a protein • Structural motif: a pattern in a protein structure formed by the spatial arrangement of amino acids. • Network motif: patterns that occur in different parts of a network at frequencies much higher than those found in randomized network • Commonality: • higher frequency than would be expected by chance • Has, or is conjectured to have, a biological significance

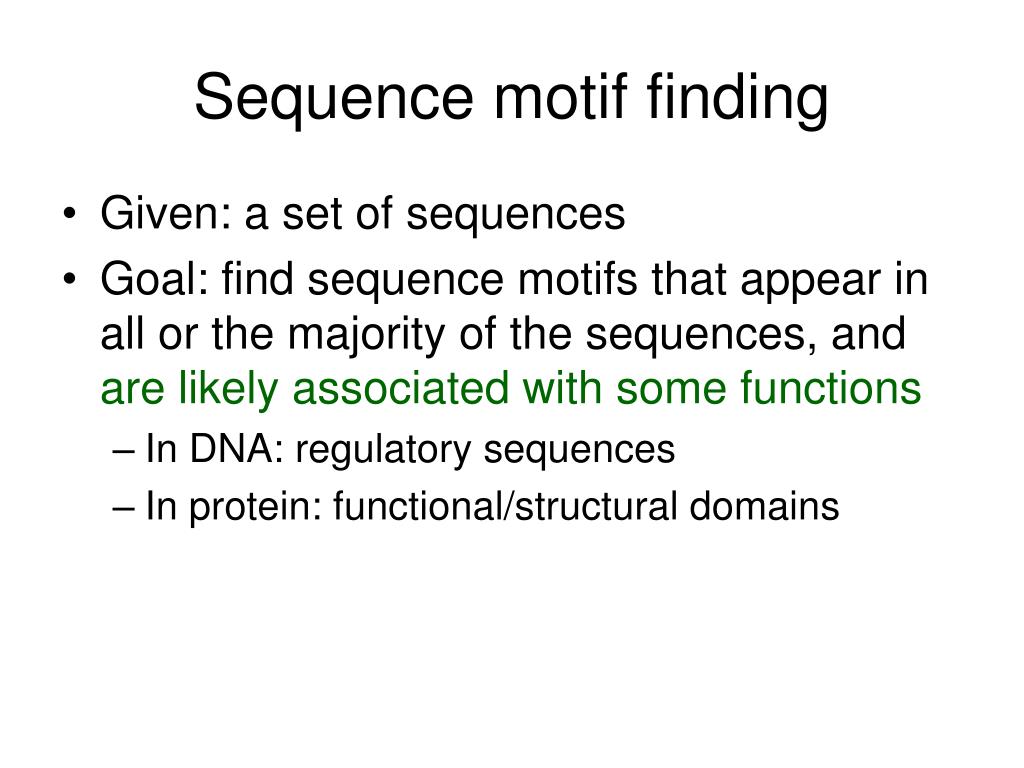

4. Sequence motif finding • Given: a set of sequences • Goal: find sequence motifs that appear in all or the majority of the sequences, and are likely associated with some functions • In DNA: regulatory sequences • In protein: functional/structural domains

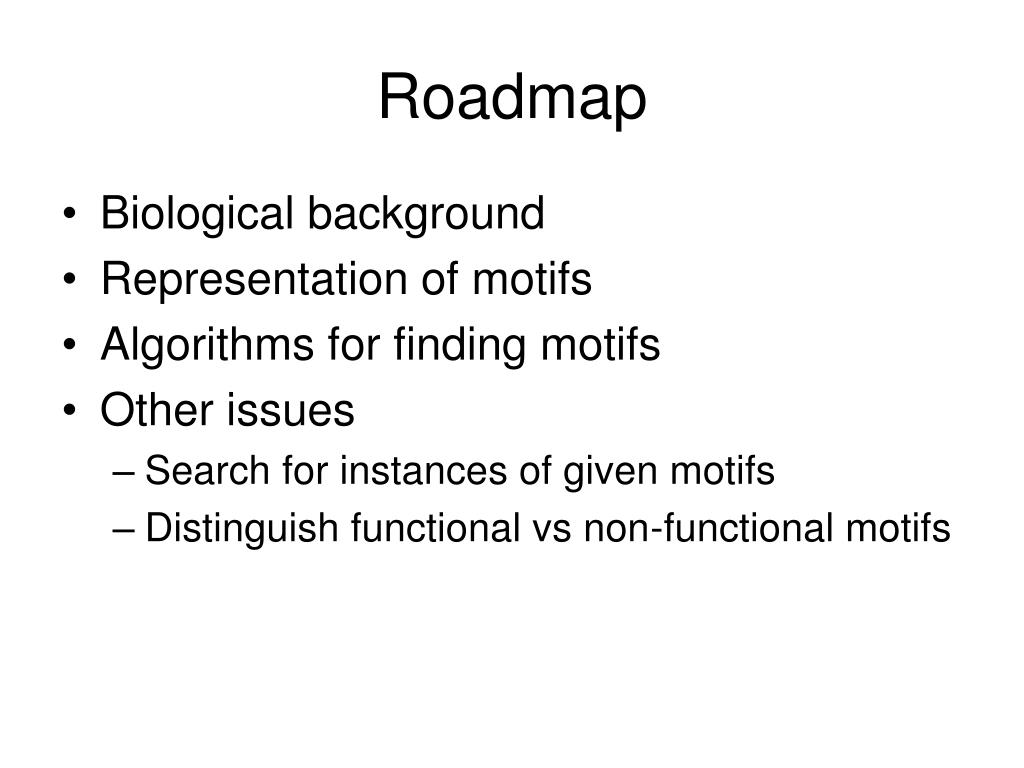

5. Roadmap • Biological background • Representation of motifs • Algorithms for finding motifs • Other issues • Search for instances of given motifs • Distinguish functional vs non-functional motifs

6. Biological background for motif finding

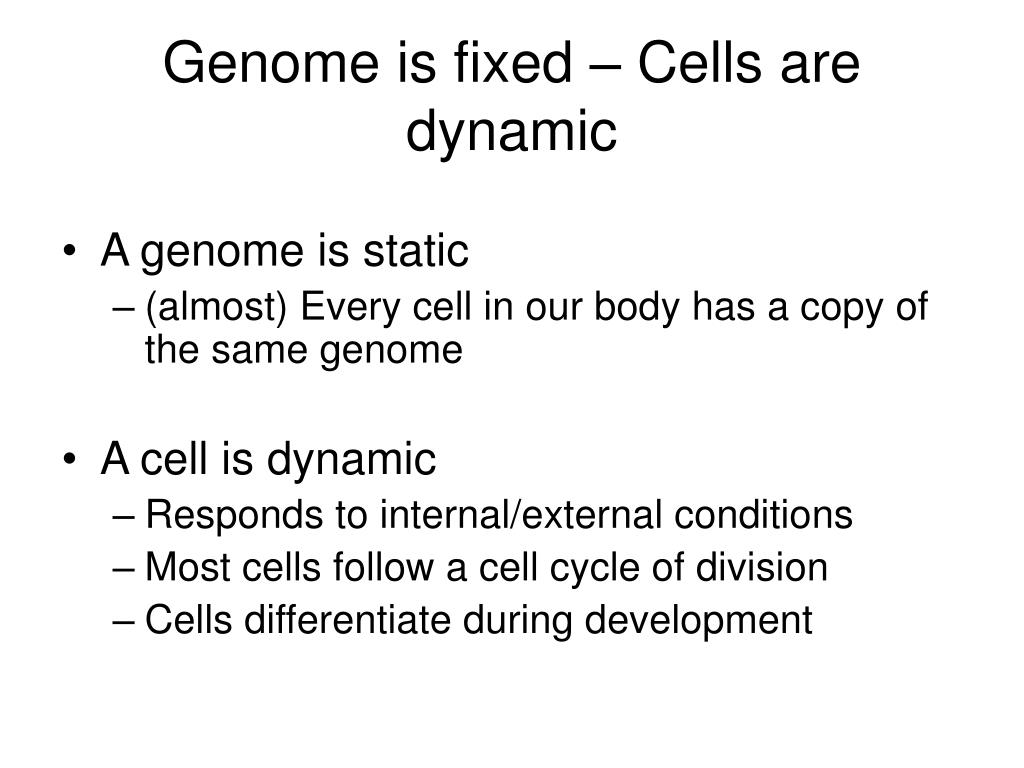

7. Genome is fixed – Cells are dynamic • A genome is static • (almost) Every cell in our body has a copy of the same genome • A cell is dynamic • Responds to internal/external conditions • Most cells follow a cell cycle of division • Cells differentiate during development

8. Gene regulation • … is responsible for the dynamic cell • Gene expression (production of protein) varies according to: • Cell type • Cell cycle • External conditions • Location • Etc.

9. Where gene regulation takes place • Opening of chromatin • Transcription • Translation • Protein stability • Protein modifications

10. Transcriptional Regulation of genes Transcription Factor (TF) (Protein) RNA polymerase (Protein) DNA Promoter Gene

11. Transcriptional Regulation of genes Transcription Factor (TF) (Protein) RNA polymerase (Protein) DNA Gene TF binding site, cis-regulatory element

12. Transcriptional Regulation of genes Transcription Factor (Protein) RNA polymerase DNA Gene TF binding site, cis-regulatory element

13. Transcriptional Regulation of genes New protein RNA polymerase Transcription Factor DNA Gene TF binding site, cis-regulatory element

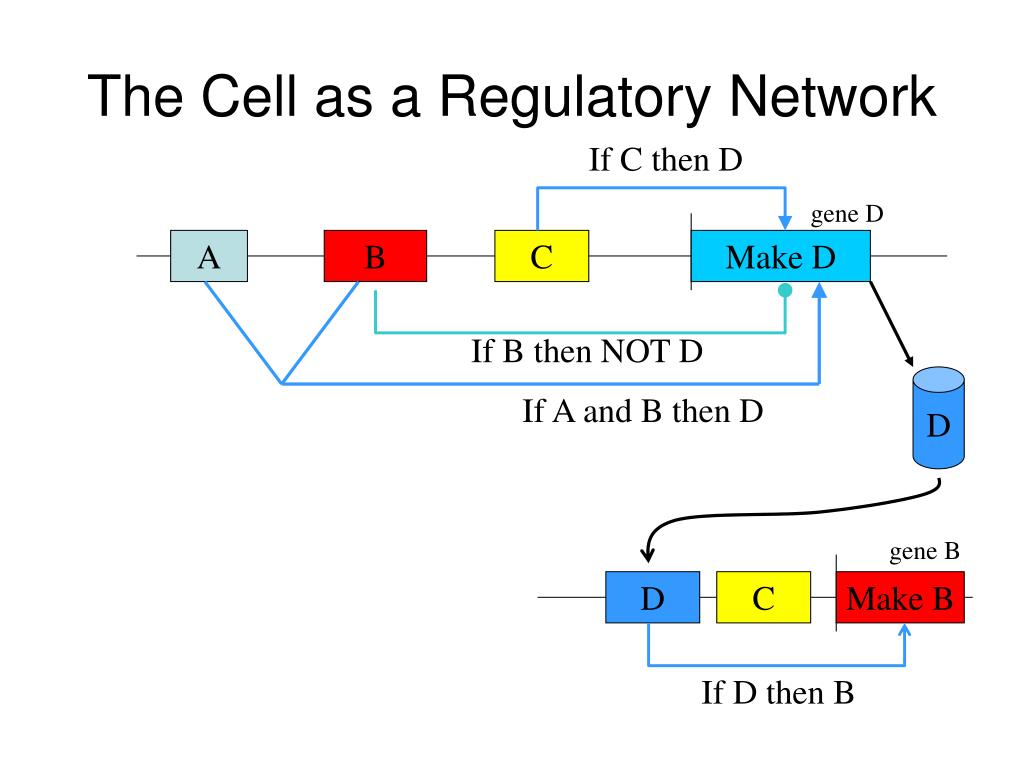

14. The Cell as a Regulatory Network If C then D gene D A B C Make D If B then NOT D D If A and B then D gene B D C Make B If D then B

15. Transcription Factors Binding to DNA Transcriptional regulation: • Transcription factors bind to DNA Binding recognizes specific DNA substrings: • Regulatory motifs

16. Experimental methods • DNase footprinting • Tedious • Time-consuming • High-throughput techniques: ChIP-chip, ChIP-seq • Expensive • Other limitations

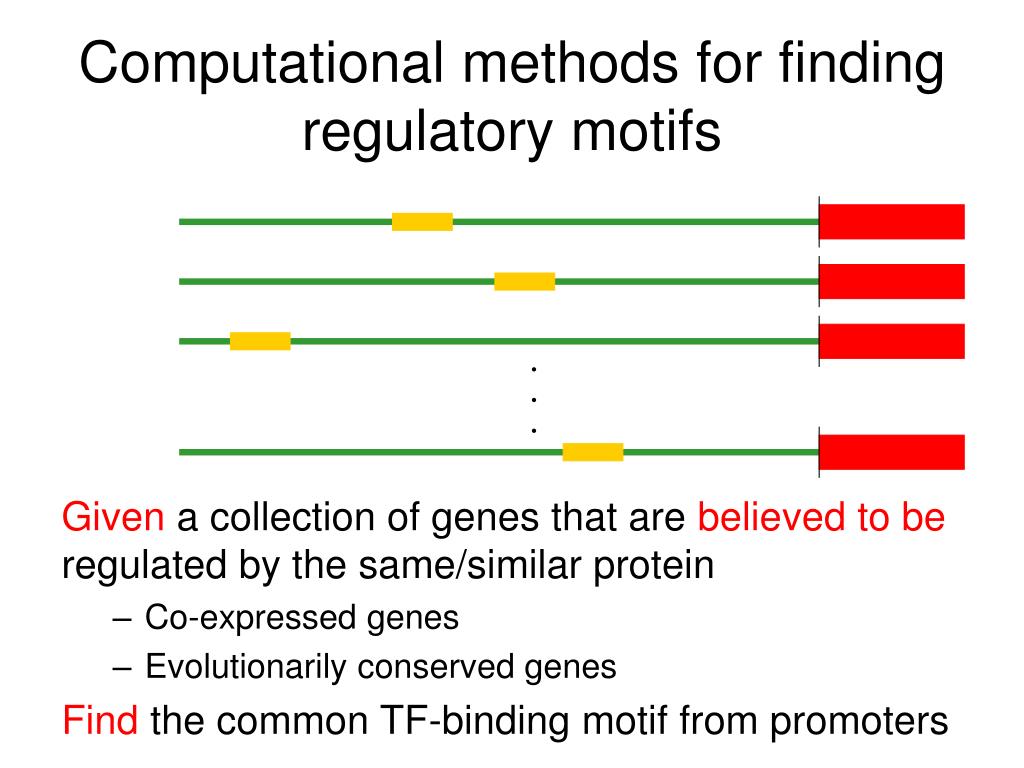

17. Computational methods for finding regulatory motifs Given a collection of genes that are believed to be regulated by the same/similar protein • Co-expressed genes • Evolutionarily conserved genes Find the common TF-binding motif from promoters . . .

18. Essentially a Multiple Local Alignment • Find “best” multiple local alignment • Multidimensional Dynamic Programming? • Heuristics must be used . . . instance

19. Characteristics of Regulatory Motifs • Tiny (6-12bp) • Intergenic regions are very long • Highly Variable • ~Constant Size • Because a constant-size transcription factor binds • Often repeated • Often conserved

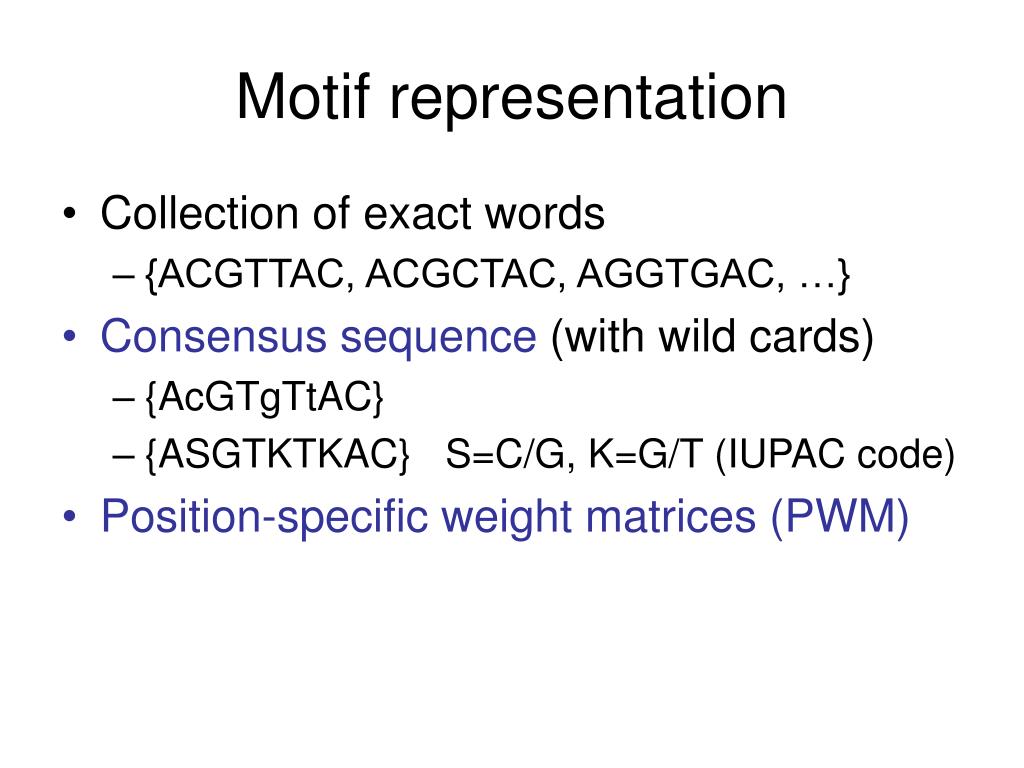

20. Motif representation • Collection of exact words • {ACGTTAC, ACGCTAC, AGGTGAC, …} • Consensus sequence (with wild cards) • {AcGTgTtAC} • {ASGTKTKAC} S=C/G, K=G/T (IUPAC code) • Position-specific weight matrices (PWM)

21. Position-Specific Weight Matrix A S G T K T K A C

22. Sequence Logo frequency http://weblogo.berkeley.edu/ http://biodev.hgen.pitt.edu/cgi-bin/enologos/enologos.cgi

23. Sequence Logo http://weblogo.berkeley.edu/ http://biodev.hgen.pitt.edu/cgi-bin/enologos/enologos.cgi

24. Entropy and information content • Entropy: a measure of uncertainty • The entropy of a random variable X that can assume the n different values x1, x2, . . . , xn with the respective probabilities p1, p2, . . . , pn is defined as

25. Entropy and information content • Example: A,C,G,T with equal probability • H = 4 * (-0.25 log2 0.25) = log2 4 = 2 bits • Need 2 bits to encode (e.g. 00 = A, 01 = C, 10 = G, 11 = T) • Maximum uncertainty • 50% A and 50% C: • H = 2 * (-0. 5 log2 0.5) = log2 2 = 1 bit • 100% A • H = 1 * (-1 log2 1) = 0 bit • Minimum uncertainty • Information: the opposite of uncertainty • I = maximum uncertainty – entropy • The above examples provide 0, 1, and 2 bits of information, respectively

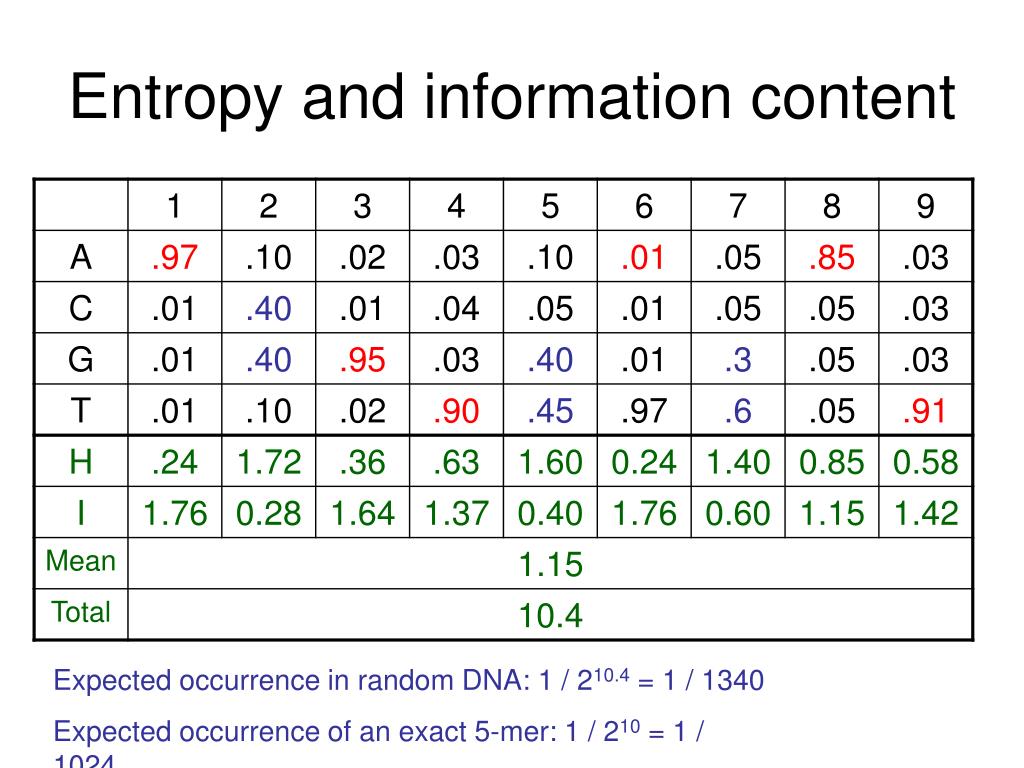

26. Entropy and information content Expected occurrence in random DNA: 1 / 210.4 = 1 / 1340 Expected occurrence of an exact 5-mer: 1 / 210 = 1 / 1024

27. Sequence Logo

28. Real example • E. coli. Promoter • “TATA-Box” ~ 10bp upstream of transcription start • TACGAT • TAAAAT • TATACT • GATAAT • TATGAT • TATGTT Consensus: TATAAT Note: none of the instances matches the consensus perfectly

29. Finding Motifs

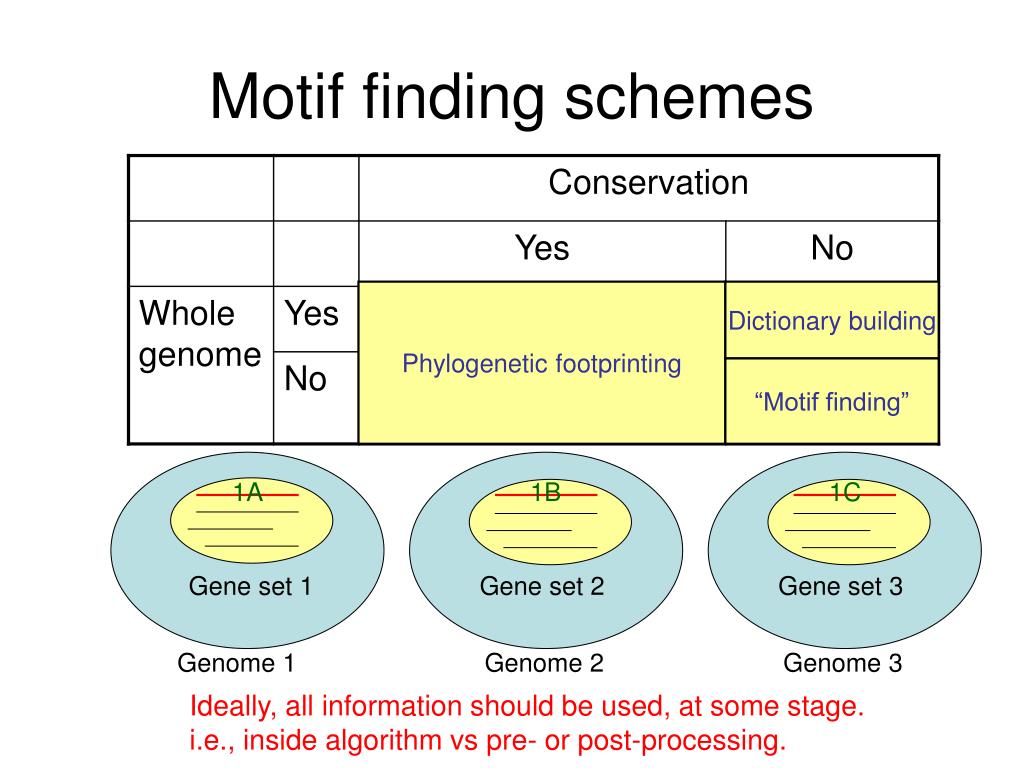

30. Motif finding schemes Phylogenetic footprinting Dictionary building “Motif finding” 1A 1B 1C Gene set 1 Gene set 2 Gene set 3 Genome 1 Genome 2 Genome 3 Ideally, all information should be used, at some stage. i.e., inside algorithm vs pre- or post-processing.

31. Classification of approaches • Combinatorial algorithms • Based on enumeration of words and computing word similarities • Probabilistic algorithms • Construct probabilistic models to distinguish motifs vs non-motifs • Will discuss in later lectures

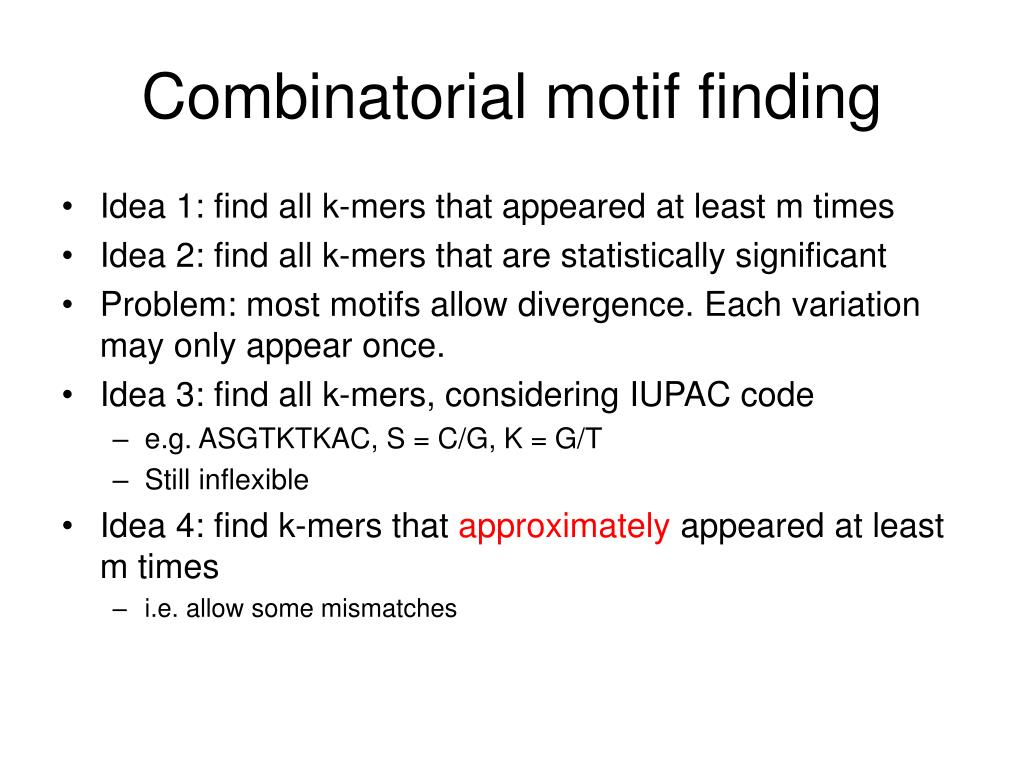

32. Combinatorial motif finding • Idea 1: find all k-mers that appeared at least m times • Idea 2: find all k-mers that are statistically significant • Problem: most motifs allow divergence. Each variation may only appear once. • Idea 3: find all k-mers, considering IUPAC code • e.g. ASGTKTKAC, S = C/G, K = G/T • Still inflexible • Idea 4: find k-mers that approximately appeared at least m times • i.e. allow some mismatches

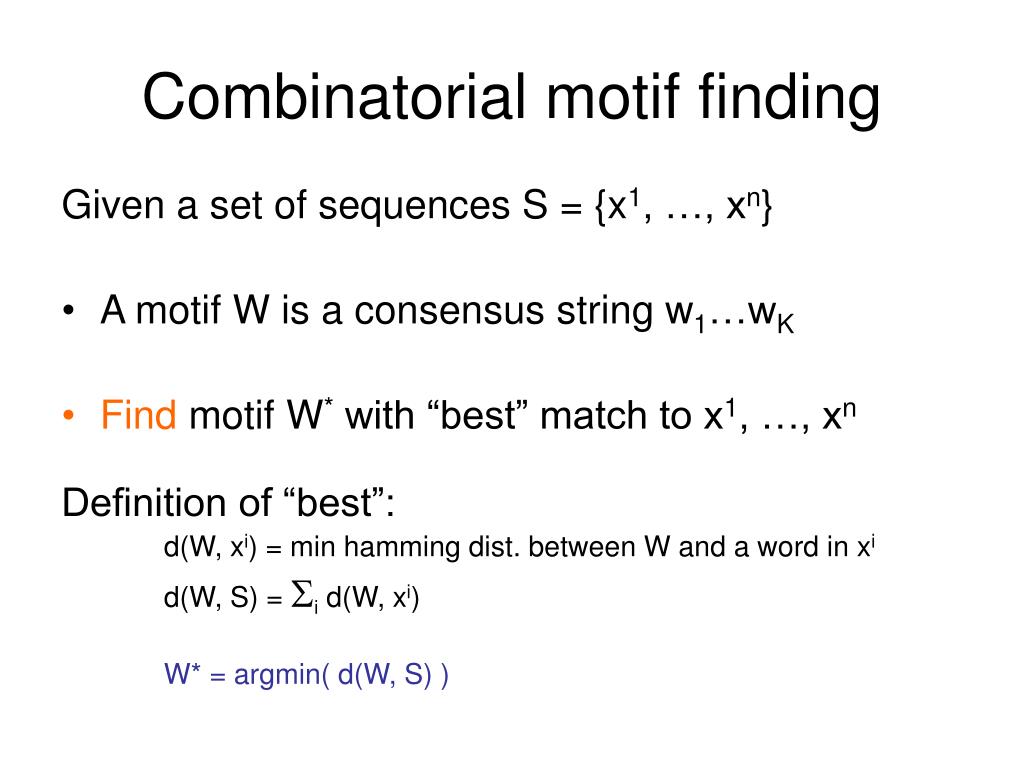

33. Combinatorial motif finding Given a set of sequences S = {x1, …, xn} • A motif W is a consensus string w1…wK • Find motif W* with “best” match to x1, …, xn Definition of “best”: d(W, xi) = min hamming dist. between W and a word in xi d(W, S) = i d(W, xi) W* = argmin( d(W, S) )

34. Exhaustive searches 1. Pattern-driven algorithm: For W = AA…A to TT…T (4K possibilities) Find d( W, S ) Report W* = argmin( d(W, S) ) Running time: O( K N 4K ) (where N = i |xi|) Guaranteed to find the optimal solution.

35. Exhaustive searches 2. Sample-driven algorithm: For W = a K-char word in some xi Find d( W, S ) Report W* = argmin( d( W, S ) ) OR Report a local improvement of W* Running time: O( K N2 )

36. Exhaustive searches • Problem with sample-driven approach: • If: • True motif does not occur in data, and • True motif is “weak” • Then, • random strings may score better than any instance of true motif

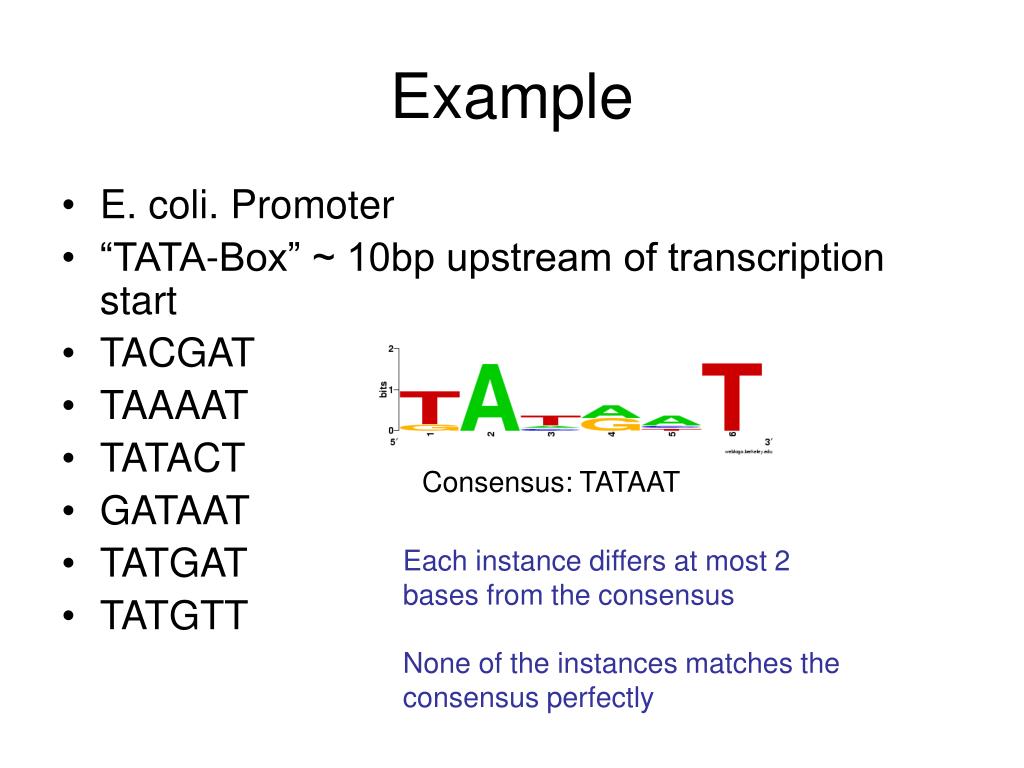

37. Example • E. coli. Promoter • “TATA-Box” ~ 10bp upstream of transcription start • TACGAT • TAAAAT • TATACT • GATAAT • TATGAT • TATGTT Consensus: TATAAT Each instance differs at most 2 bases from the consensus None of the instances matches the consensus perfectly

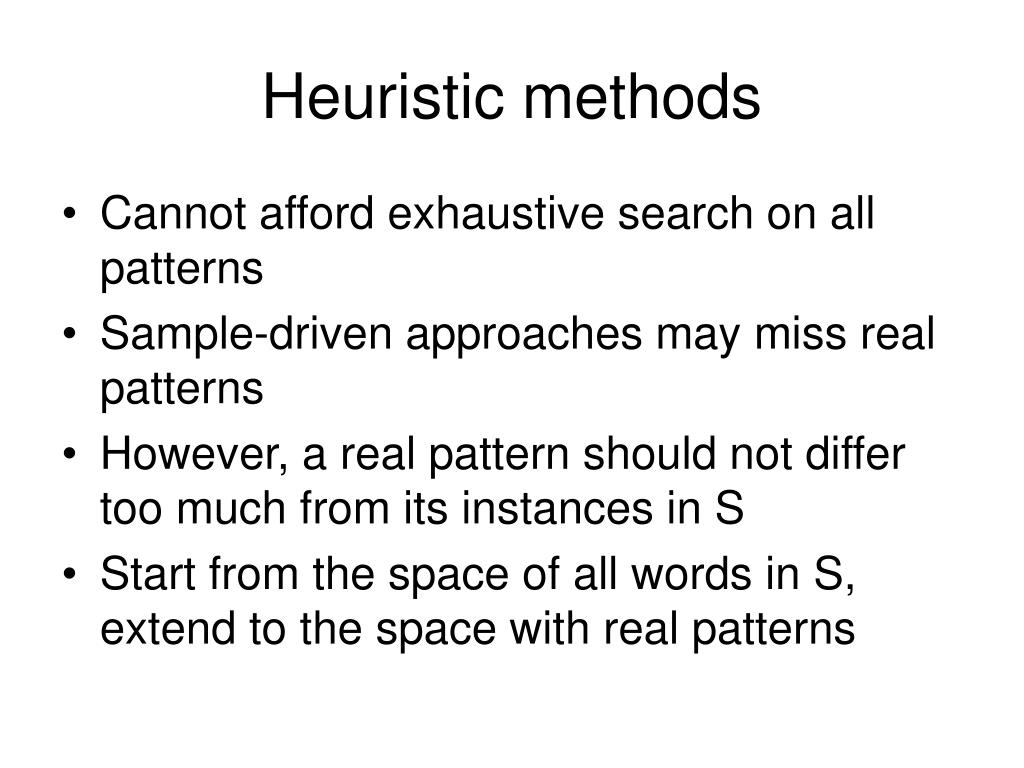

38. Heuristic methods • Cannot afford exhaustive search on all patterns • Sample-driven approaches may miss real patterns • However, a real pattern should not differ too much from its instances in S • Start from the space of all words in S, extend to the space with real patterns

39. Some of the popular tools • Consensus (Hertz & Stormo, 1999) • WINNOWER (Pevzner & Sze, 2000) • MULTIPROFILER (Keich & Pevzner, 2002) • PROJECTION (Buhler & Tompa, 2001) • WEEDER (Pavesi et. al. 2001) • And dozens of others

40. Consensus Algorithm: Cycle 1: For each word W in S For each word W’ in S Create alignment (gap free) of W, W’ Keep the C1 best alignments, A1, …, AC1 ACGGTTG , CGAACTT , GGGCTCT … ACGCCTG , AGAACTA , GGGGTGT …

41. Algorithm (cont’d): Cycle i: For each word W in S For each alignment Aj from cycle i-1 Create alignment (gap free) of W, Aj Keep the Ci best alignments A1, …, ACi

42. C1, …, Cn are user-defined heuristic constants Running time: O(kN2) + O(kN C1) + O(kN C2) + … + O(kN Cn) = O(kN2 + kNCtotal) Where Ctotal = i Ci, typically O(nC), where C is a big constant

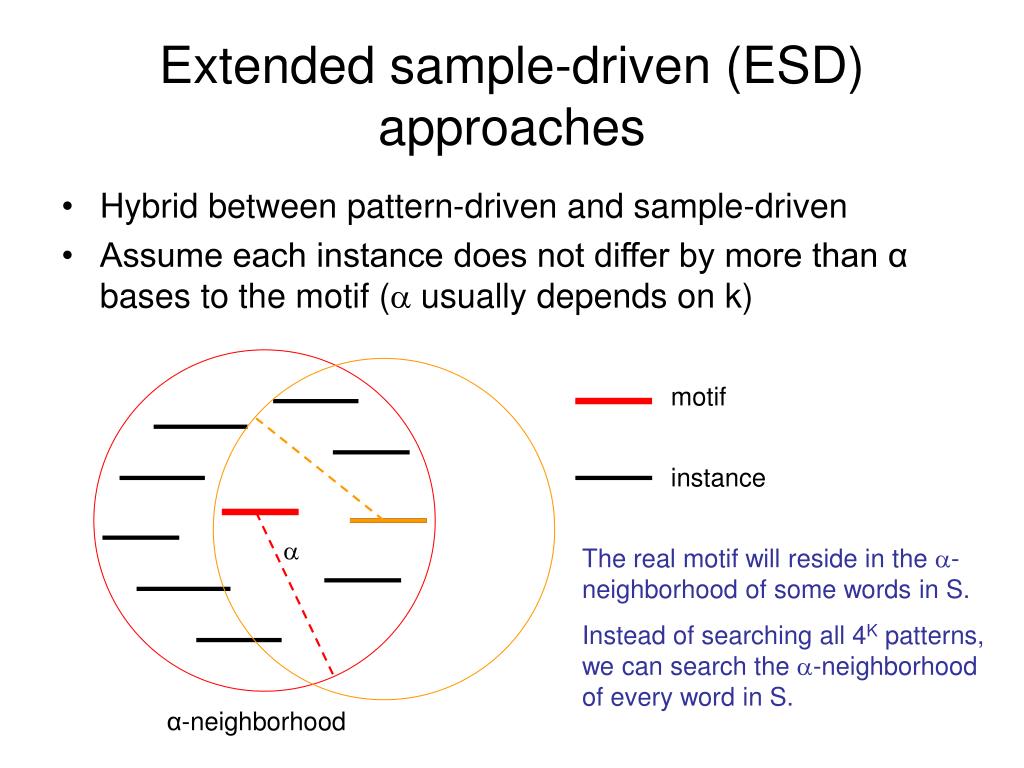

43. Extended sample-driven (ESD) approaches • Hybrid between pattern-driven and sample-driven • Assume each instance does not differ by more than α bases to the motif ( usually depends on k) motif instance  The real motif will reside in the -neighborhood of some words in S. Instead of searching all 4K patterns,we can search the -neighborhood of every word in S. α-neighborhood

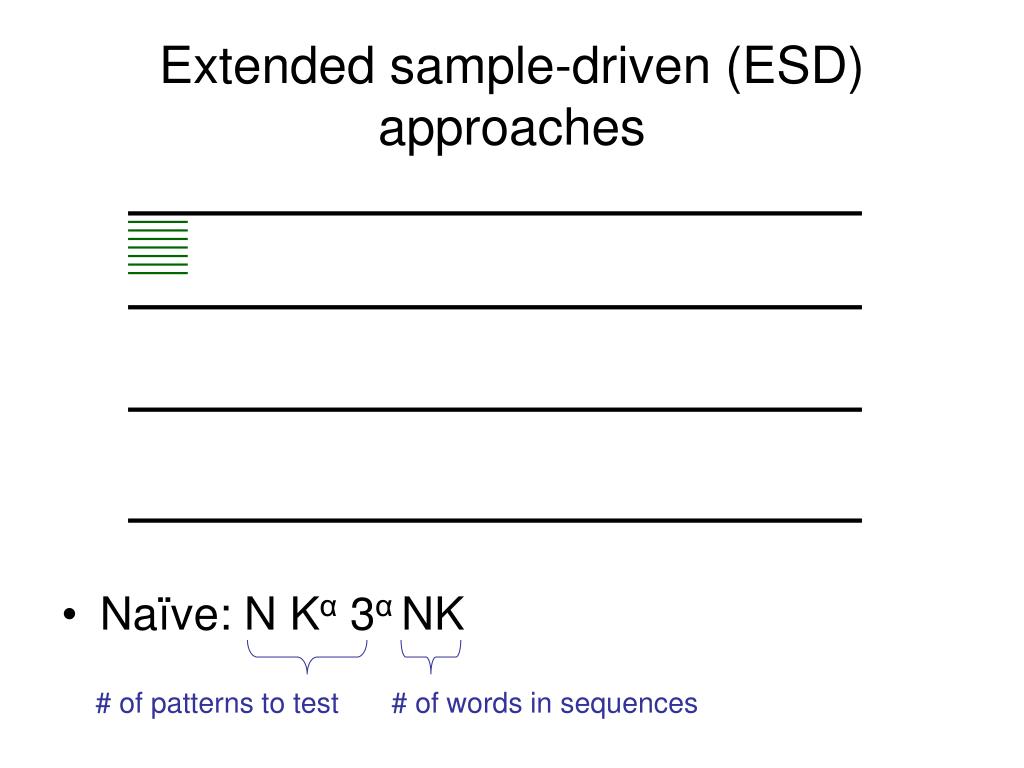

44. Extended sample-driven (ESD) approaches • Naïve: N Kα3αNK # of patterns to test # of words in sequences

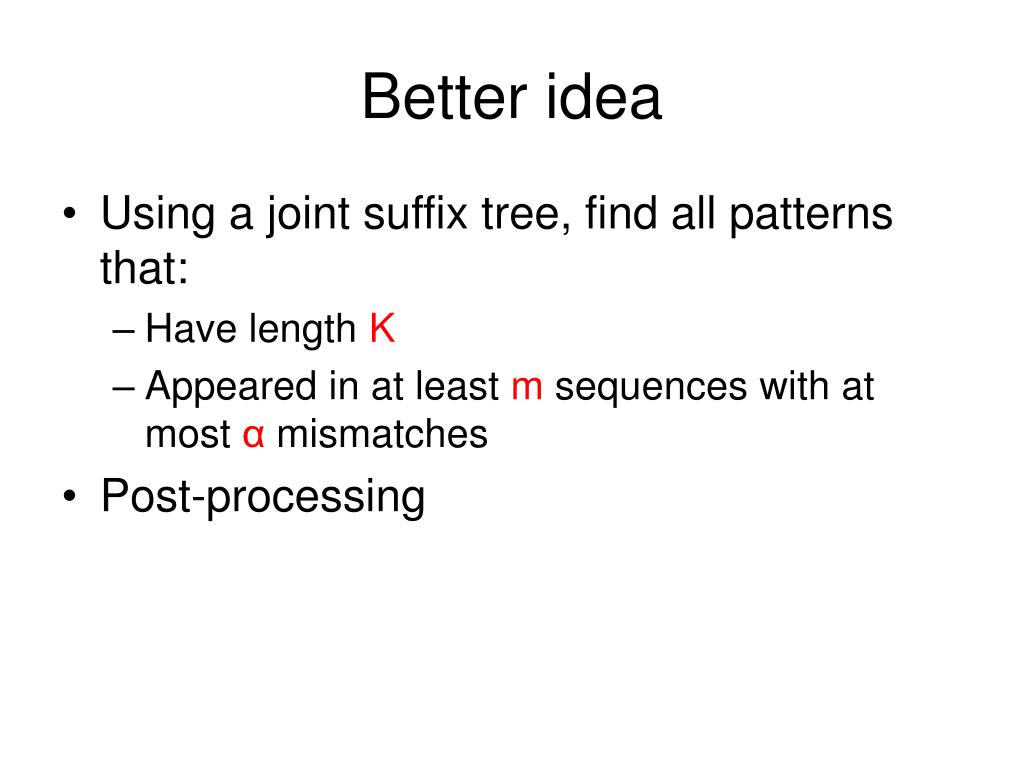

45. Better idea • Using a joint suffix tree, find all patterns that: • Have length K • Appeared in at least m sequences with at most α mismatches • Post-processing

46. WEEDER: algorithm sketch • A list containing all eligible nodes: with at most α mismatches to P • For each node, remember #mismatches accumulated (e), and bit vector (B) for seq occ, e.g. [011100010] • Bit OR all B’s to get seq occurrence for P • Suppose #occ >= m • Pattern still valid • Now add a letter Current pattern P, |P| < K ACGTT # mismatches (e, B) Seq occ

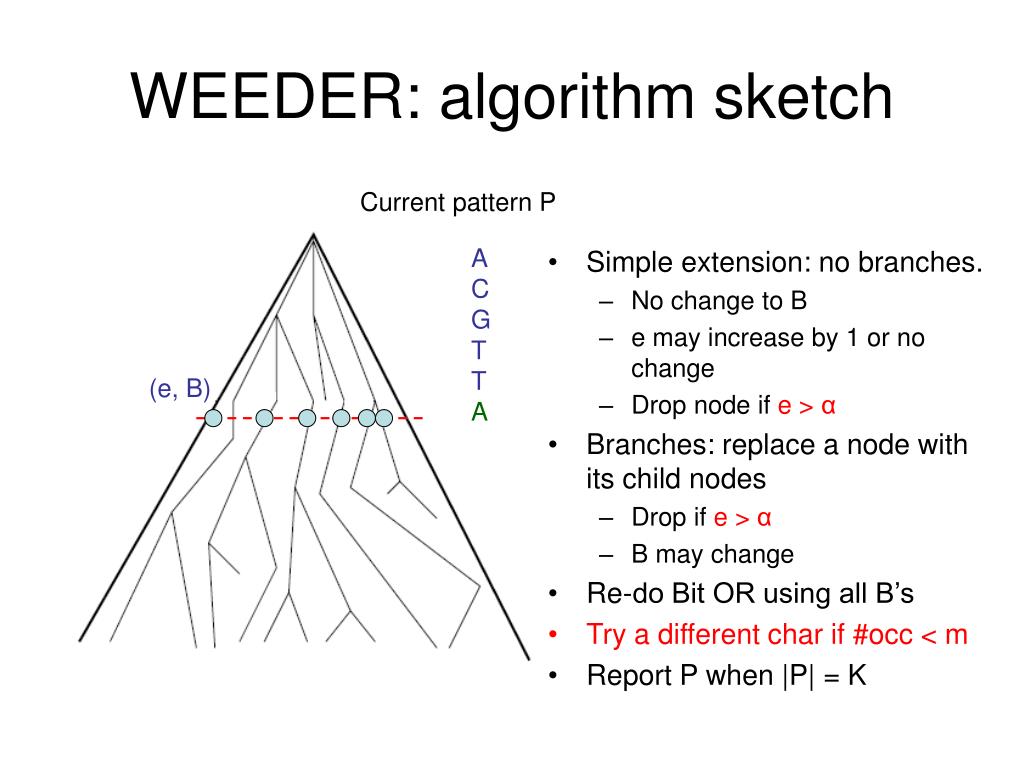

47. WEEDER: algorithm sketch • Simple extension: no branches. • No change to B • e may increase by 1 or no change • Drop node if e > α • Branches: replace a node with its child nodes • Drop if e > α • B may change • Re-do Bit OR using all B’s • Try a different char if #occ < m • Report P when |P| = K Current pattern P ACGTTA (e, B)

48. WEEDER: complexity • Can get all patterns in time O(Nn(K choose α) 3α) ~ O(N nKα3α). n: # sequences. Needed for Bit OR. • Better than O(KN 4K) and O(N Kα3αNK) since usually α << K • Kα3α may still be expensive for large K • E.g. K = 20, α = 6

49. WEEDER: More tricks • Eligible nodes: with at most α mismatches to P • Eligible nodes: with at most min(L, α) mismatches to P • L: current pattern length • : error ratio • Require that mismatches to be somewhat evenly distributed among positions • Prune tree at length K Current pattern P ACGTTA

50. MULTIPROFILER W differs from W* at  positions. The consensus sequence for the words in the -neighborhood of W is similar to W. If we ignore all the chars that are similar to W, the rest may suggest the difference between W and W* W* W W*: ACGTACG W: ATGTAAG
