  1. CISCO Discovery Protocol (CDP) By Alexander Alperovich Alexandra Davidov Boris Kostenko

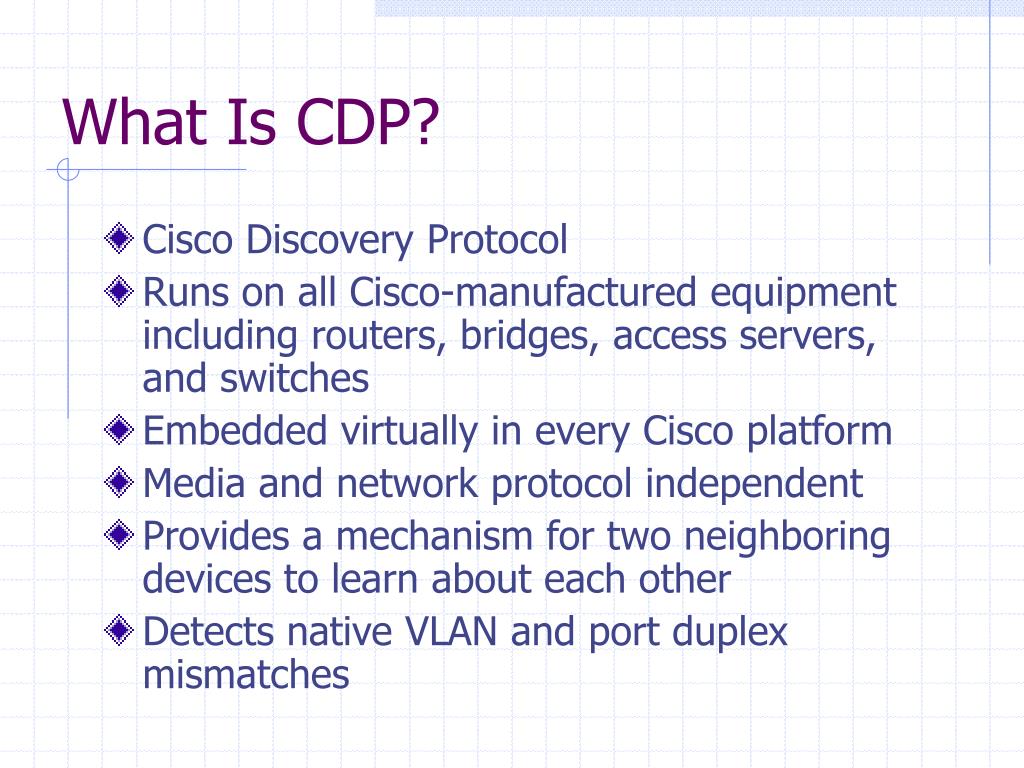

  2. What Is CDP? • Cisco Discovery Protocol • Runs on all Cisco-manufactured equipment including routers, bridges, access servers, and switches • Embedded virtually in every Cisco platform • Media and network protocol independent • Provides a mechanism for two neighboring devices to learn about each other • Detects native VLAN and port duplex mismatches

  3. How it works LANs LANs Two switches and router don’t know about each other – they are not connected switch 1 switch 2 Neighbors: - Neighbors: - Neighbors: - router1 …networks…

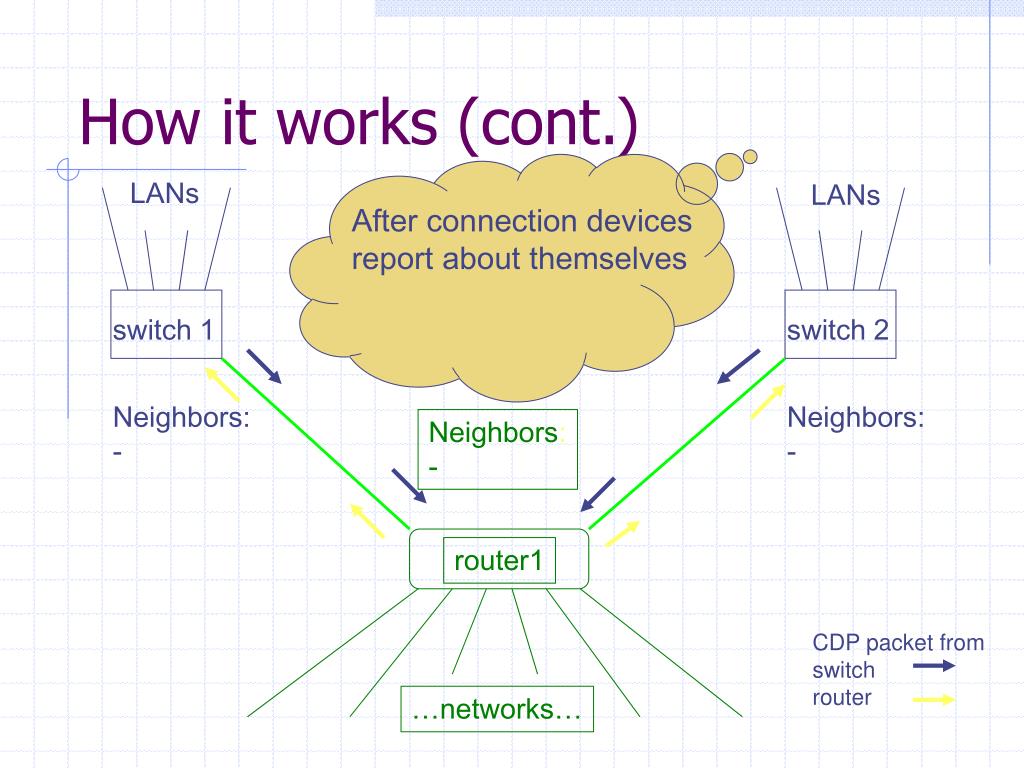

  4. CDP packet from switch router How it works (cont.) LANs LANs After connection devicesreport about themselves switch 1 switch 2 Neighbors: - Neighbors: - Neighbors: - router1 …networks…

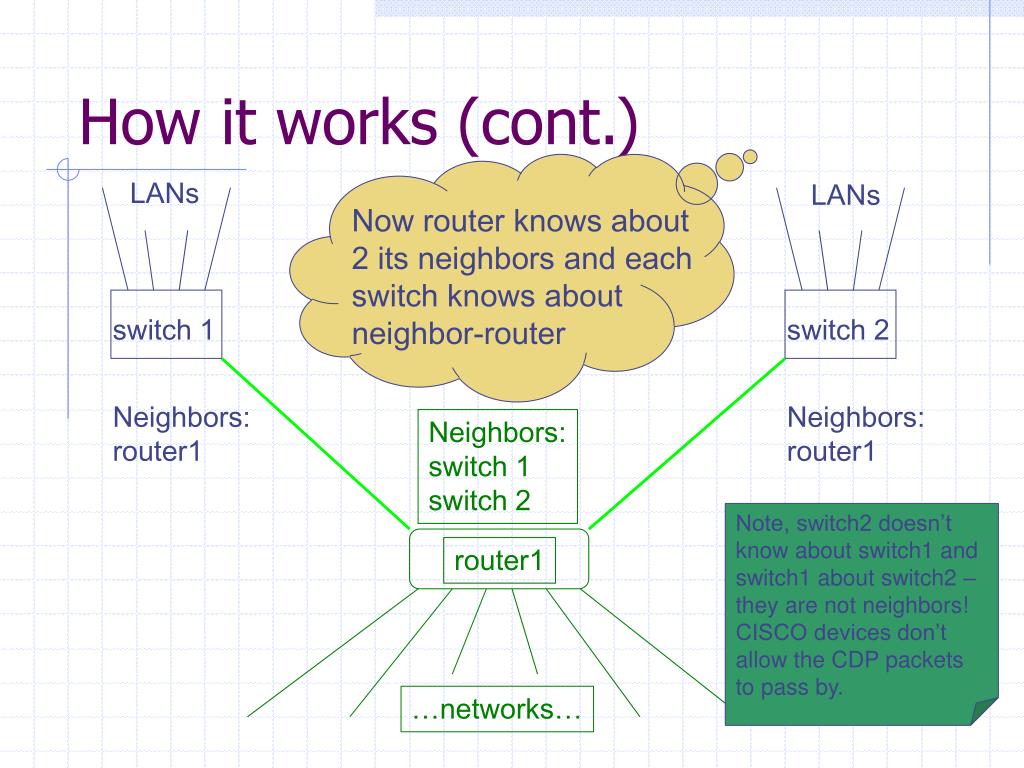

  5. How it works (cont.) LANs LANs Now router knows about 2 its neighbors and each switch knows about neighbor-router switch 1 switch 2 Neighbors: router1 Neighbors: router1 Neighbors: switch 1switch 2 Note, switch2 doesn’t know about switch1 andswitch1 about switch2 – they are not neighbors!CISCO devices don’t allow the CDP packets to pass by. router1 …networks…

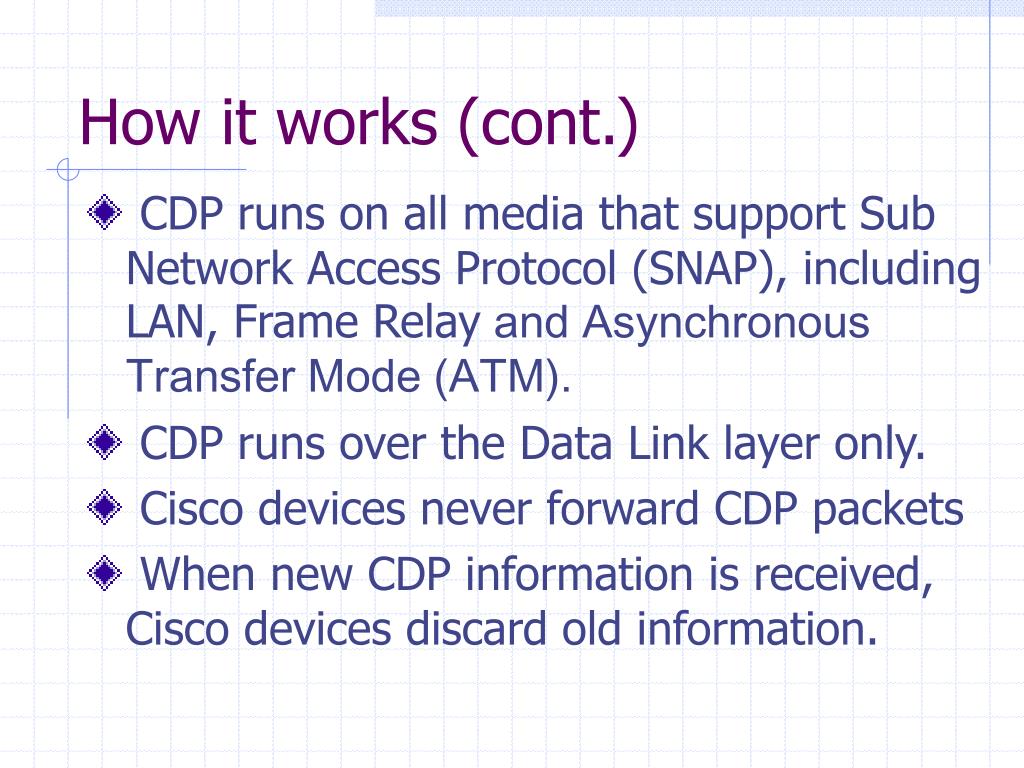

  6. How it works (cont.) • CDP runs on all media that support Sub Network Access Protocol (SNAP), including LAN, Frame Relay and Asynchronous Transfer Mode (ATM). • CDP runs over the Data Link layer only. • Cisco devices never forward CDP packets • When new CDP information is received, Cisco devices discard old information.

  7. How it works (cont.) • Each device configured for CDP periodically sends messages to a multicast address 0100.0CCC.CCCC • Each device advertises at least one address at which it can receive SNMP messages • Each device reads from the LAN CDP messages sent by others in order to learn about neighboring devices and determine when their interfaces to the media go up or down

  8. Each CDP packet contains • header • type/length/value triplets Header Triplet Version – version of CDP packet (can be 0x01 or 0x02) Time-to-live – the amount of time, in seconds, that a receiver should retain the information contained in this packet Checksum – the standard IP checksum

  9. Each CDP packet contains • header • type/length/value triplets Header Triplet Type – the type of information of the triplet. Length – the length of current triplet (includes type and length fields) Value – corresponding information

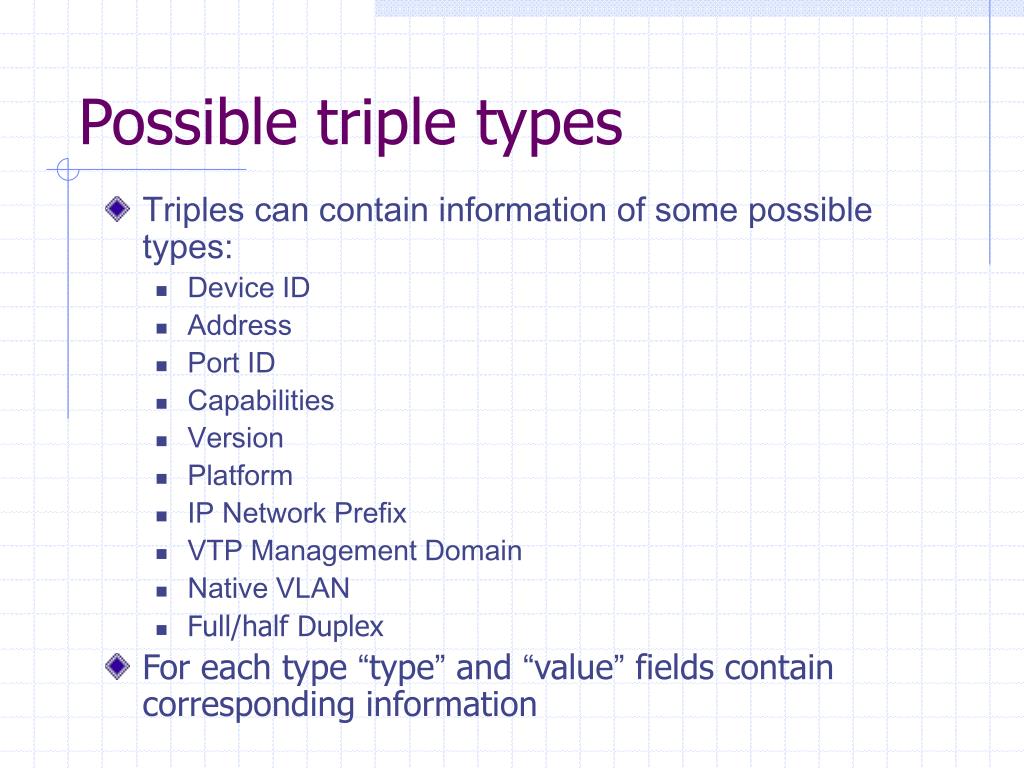

  10. Possible triple types • Triples can contain information of some possible types: • Device ID • Address • Port ID • Capabilities • Version • Platform • IP Network Prefix • VTP Management Domain • Native VLAN • Full/half Duplex • For each type “type” and “value” fields contain corresponding information

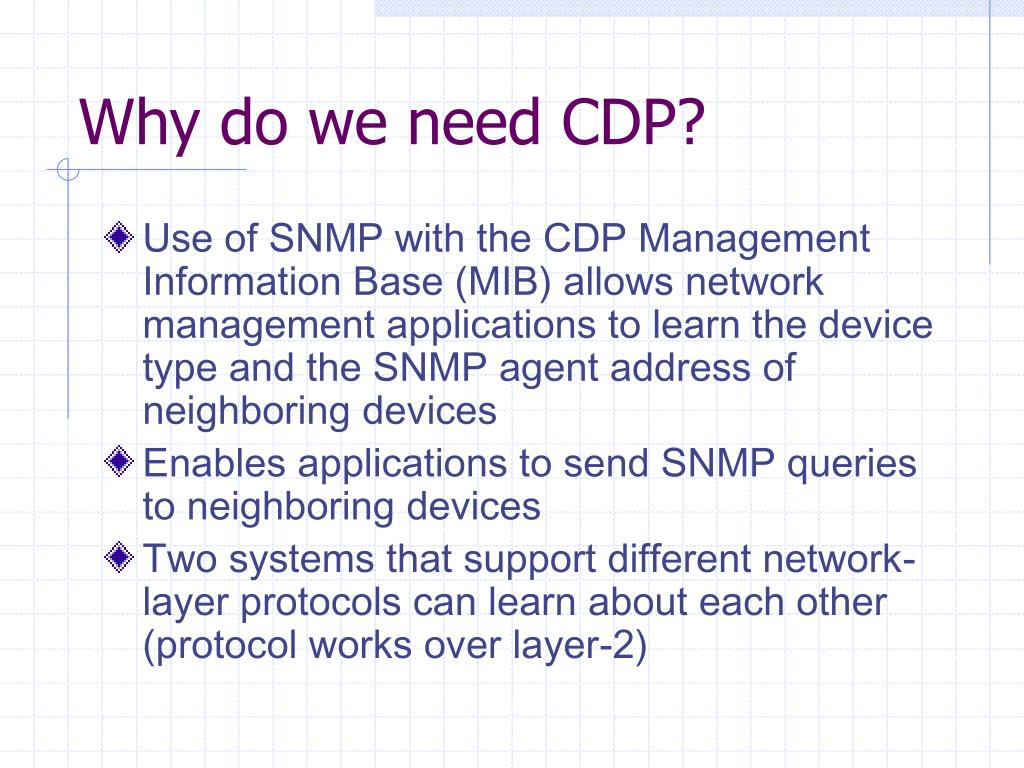

  11. Why do we need CDP? • Use of SNMP with the CDP Management Information Base (MIB) allows network management applications to learn the device type and the SNMP agent address of neighboring devices • Enables applications to send SNMP queries to neighboring devices • Two systems that support different network-layer protocols can learn about each other (protocol works over layer-2)

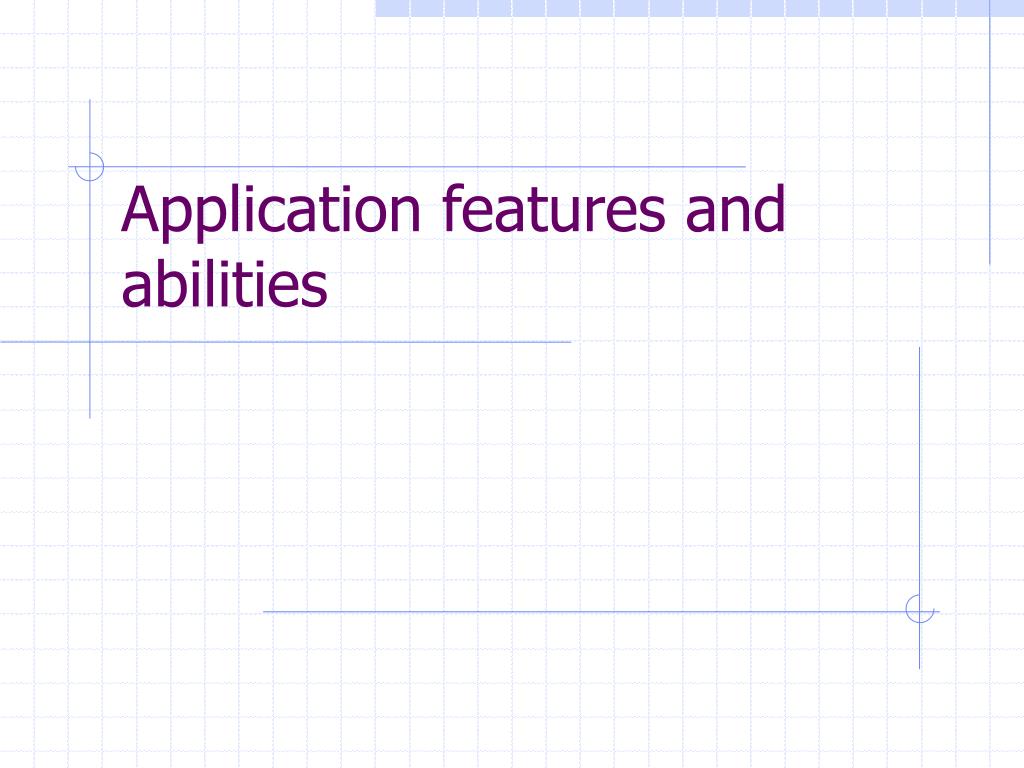

  12. Application features and abilities

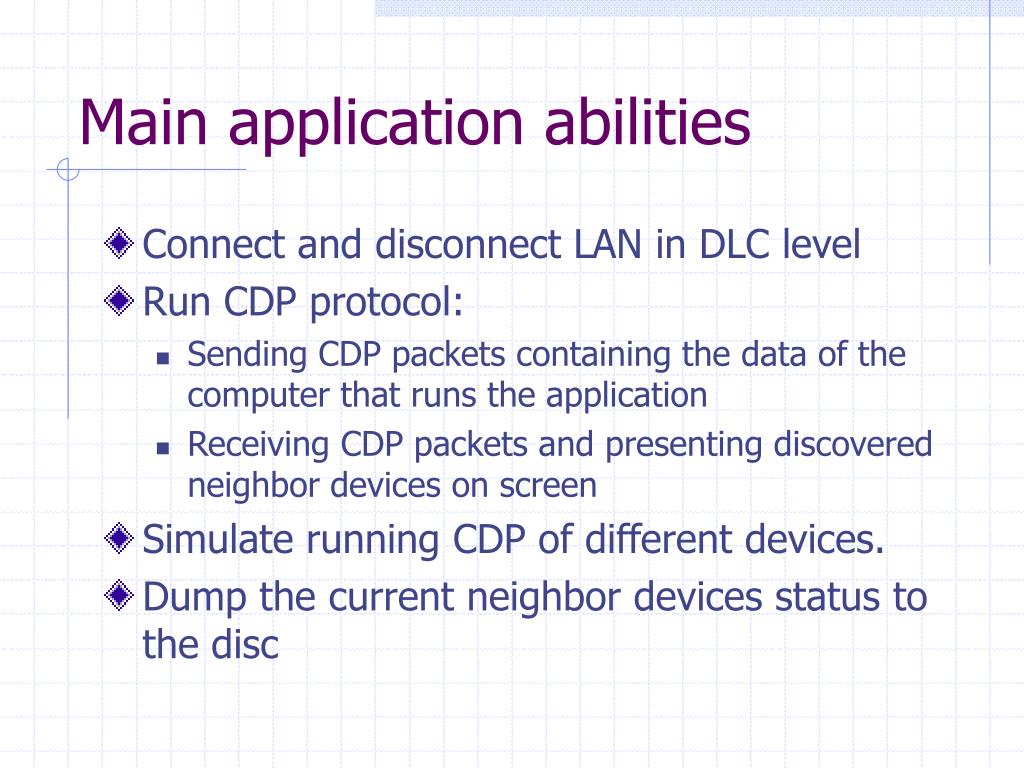

  13. Main application abilities • Connect and disconnect LAN in DLC level • Run CDP protocol: • Sending CDP packets containing the data of the computer that runs the application • Receiving CDP packets and presenting discovered neighbor devices on screen • Simulate running CDP of different devices. • Dump the current neighbor devices status to the disc

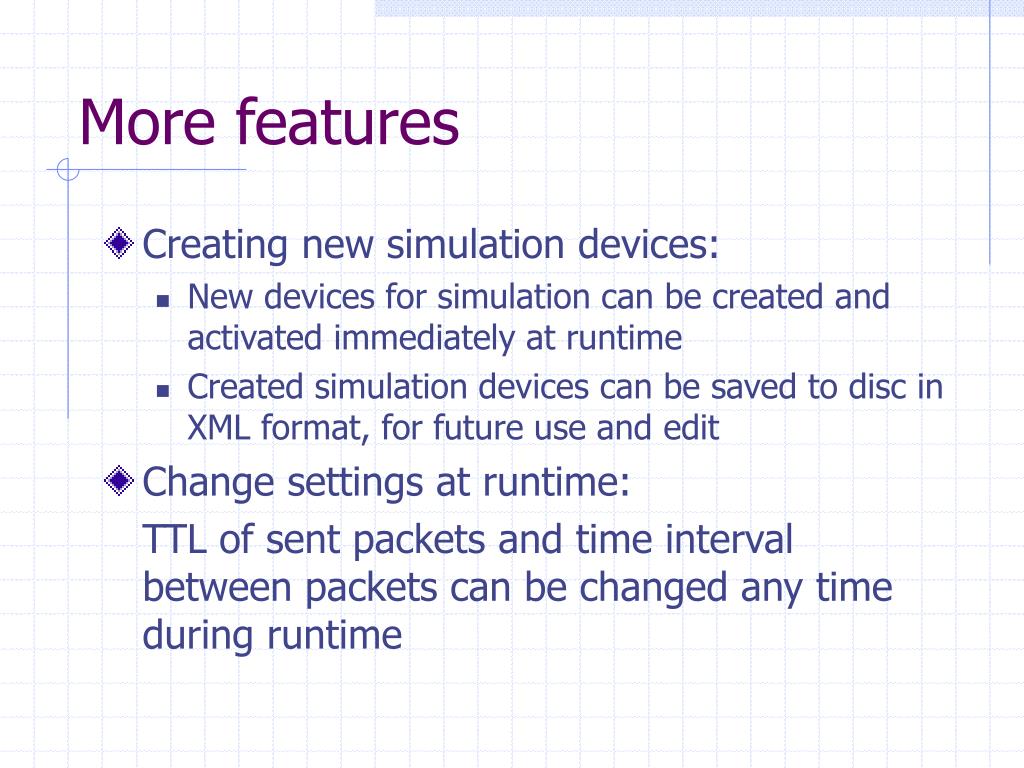

  14. More features • Creating new simulation devices: • New devices for simulation can be created and activated immediately at runtime • Created simulation devices can be saved to disc in XML format, for future use and edit • Change settings at runtime: TTL of sent packets and time interval between packets can be changed any time during runtime

  15. CDP Application description and the User interface

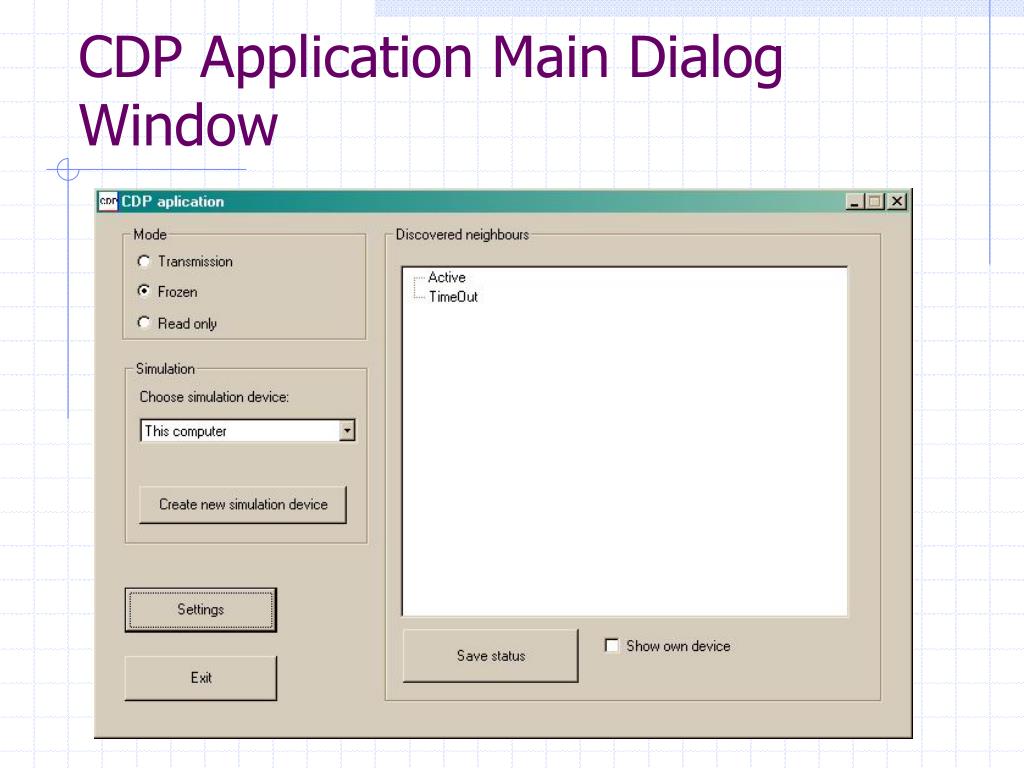

  16. CDP Application Main Dialog Window

  17. Working modes The application has three working modes: • Transmission mode: CDP packets are sent and read from the LAN • Frozen mode: no CDP packets sent, no packets read • Read only mode: CDP packets read, no packets are sent

  18. Simulation devices • Devices for simulation are saved in XML format and read by the application directly from the disk • Simulated device can be changed anytime using “choose simulated device” option

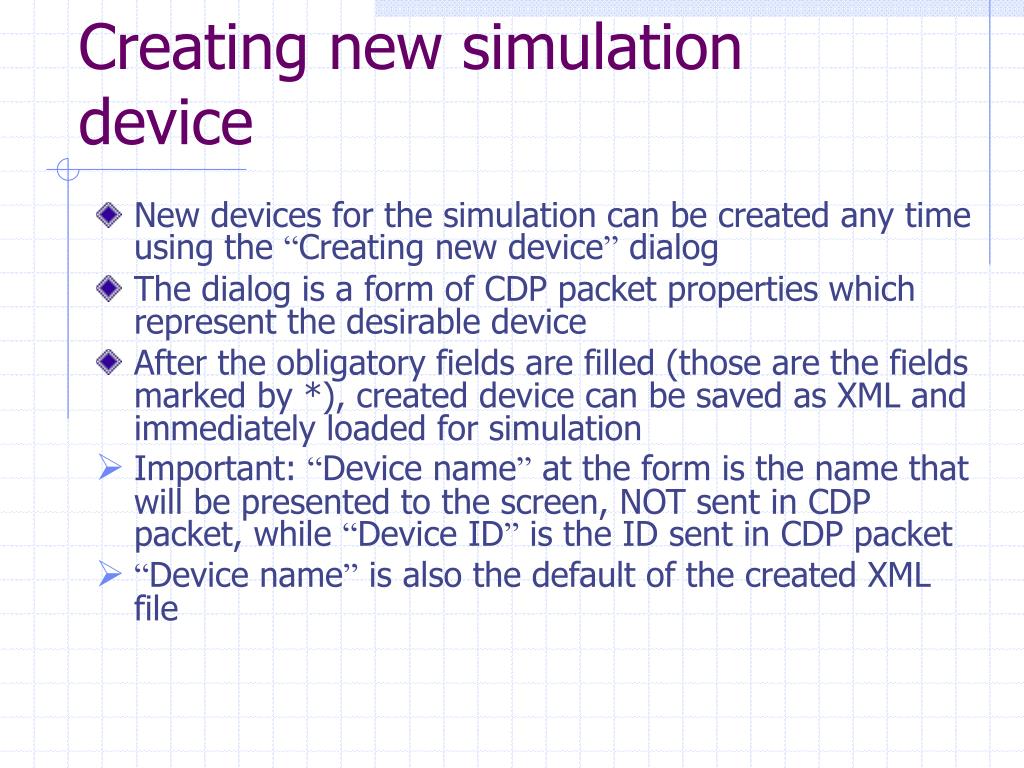

  19. Creating new simulation device • New devices for the simulation can be created any time using the “Creating new device” dialog • The dialog is a form of CDP packet properties which represent the desirable device • After the obligatory fields are filled (those are the fields marked by *), created device can be saved as XML and immediately loaded for simulation • Important: “Device name” at the form is the name that will be presented to the screen, NOT sent in CDP packet, while “Device ID” is the ID sent in CDP packet • “Device name” is also the default of the created XML file

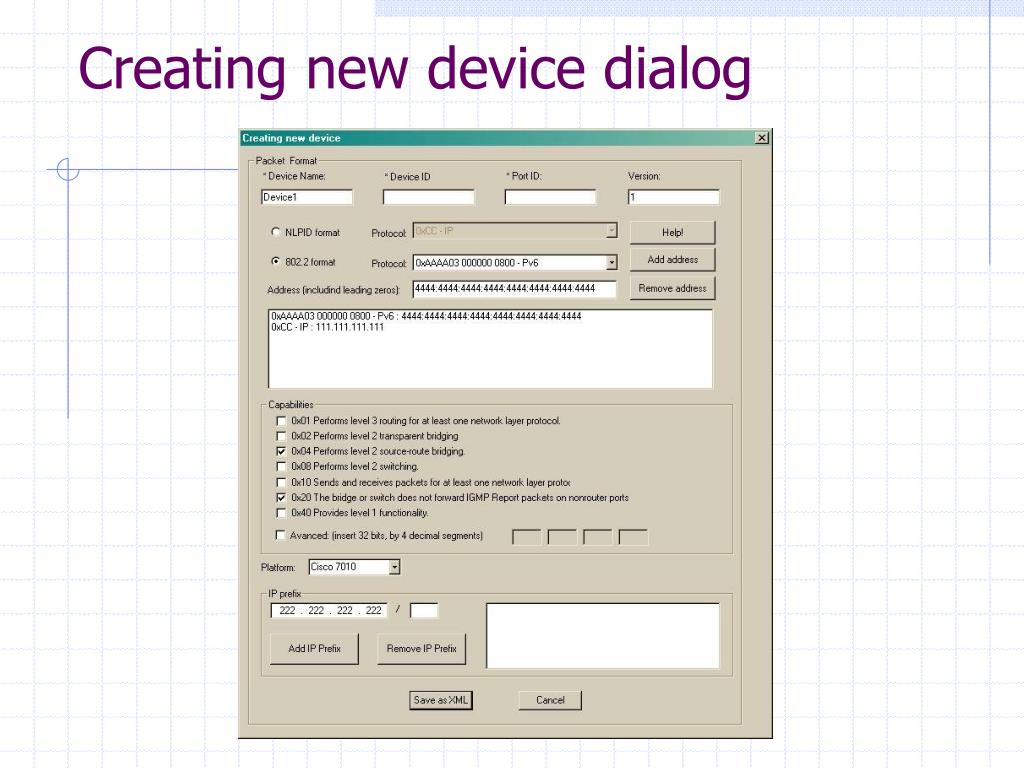

  20. Creating new device dialog

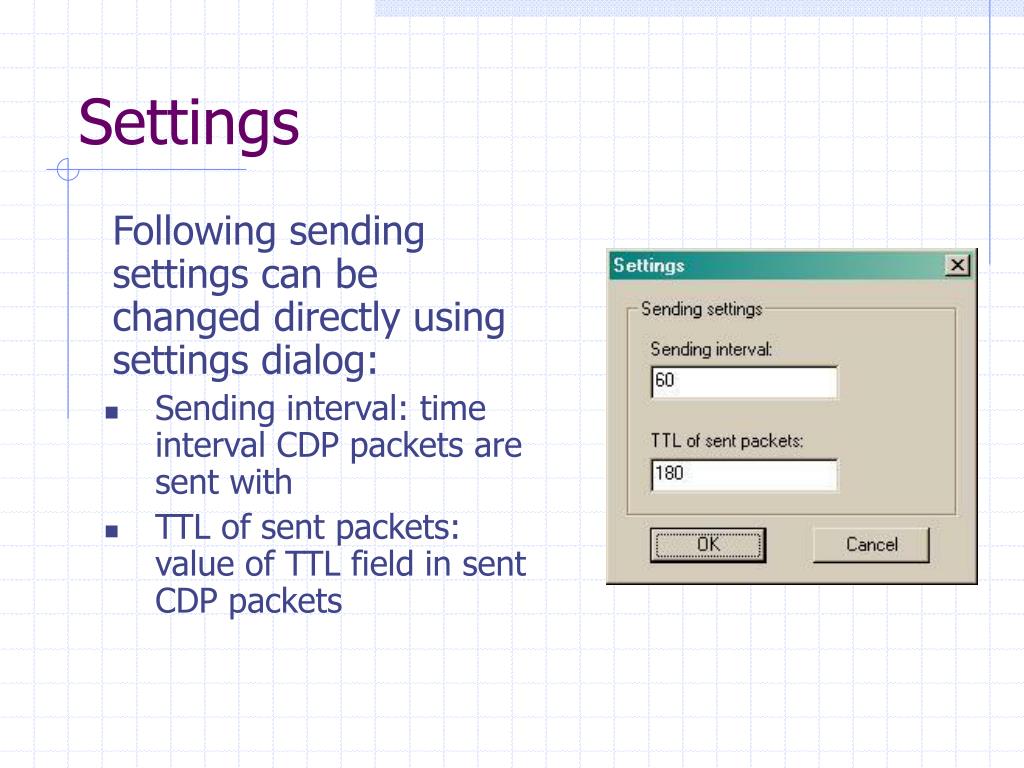

  21. Settings Following sending settings can be changed directly using settings dialog: • Sending interval: time interval CDP packets are sent with • TTL of sent packets: value of TTL field in sent CDP packets

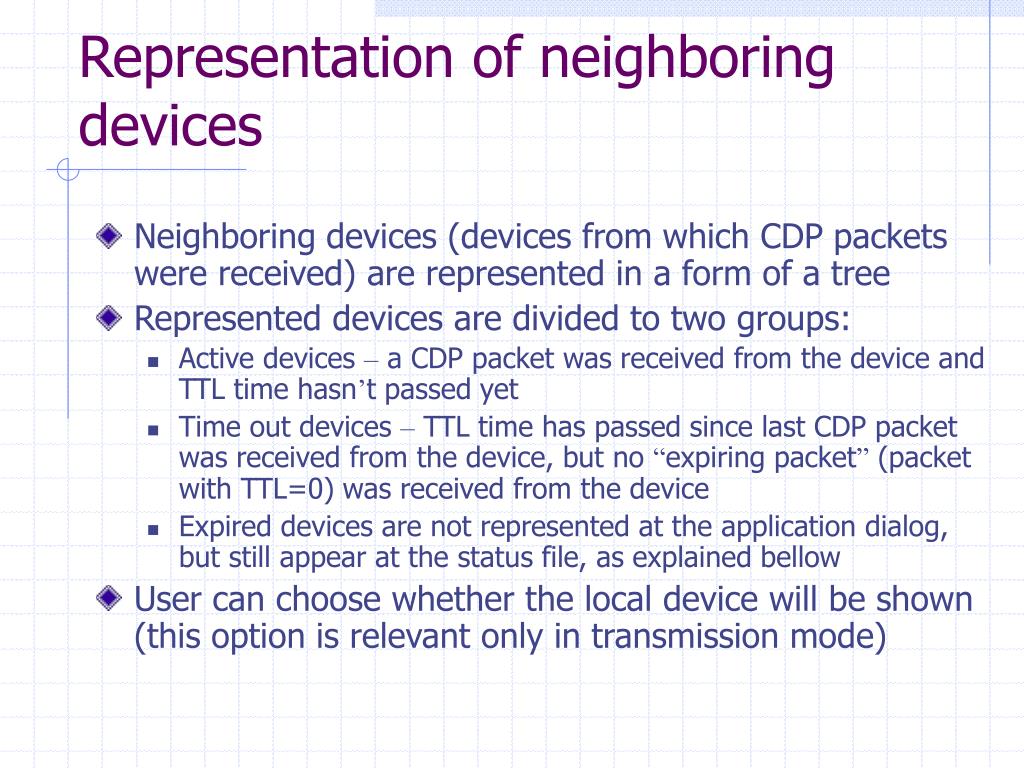

  22. Representation of neighboring devices • Neighboring devices (devices from which CDP packets were received) are represented in a form of a tree • Represented devices are divided to two groups: • Active devices – a CDP packet was received from the device and TTL time hasn’t passed yet • Time out devices – TTL time has passed since last CDP packet was received from the device, but no “expiring packet” (packet with TTL=0) was received from the device • Expired devices are not represented at the application dialog, but still appear at the status file, as explained bellow • User can choose whether the local device will be shown (this option is relevant only in transmission mode)

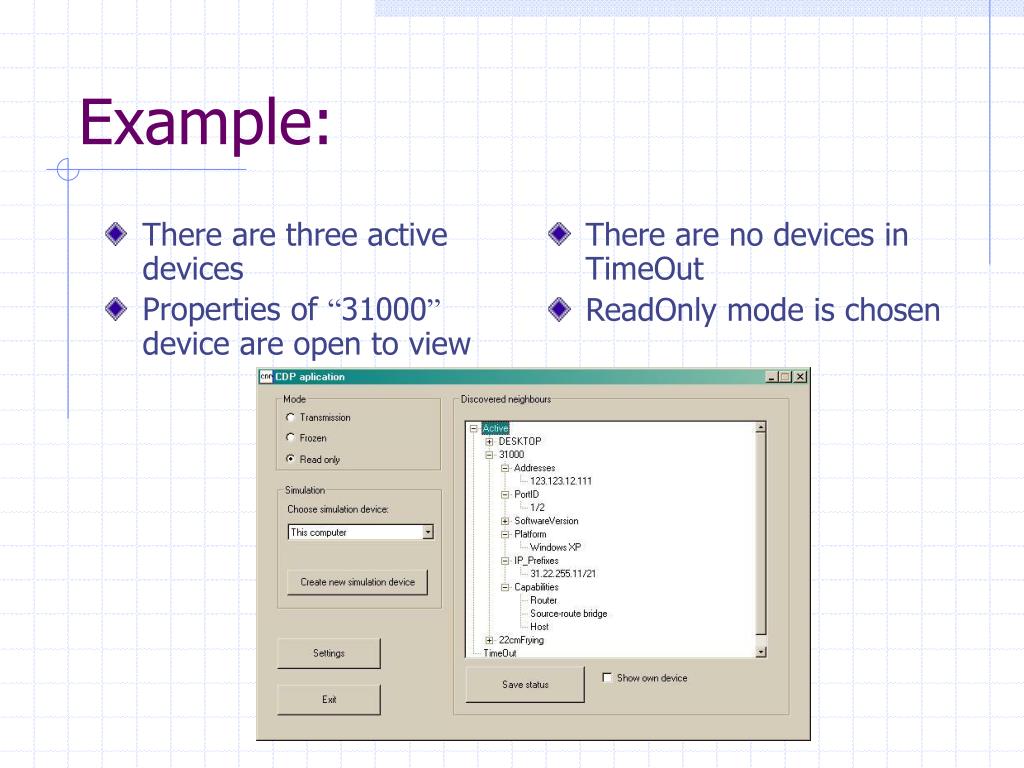

  23. There are three active devices Properties of “31000” device are open to view There are no devices in TimeOut ReadOnly mode is chosen Example:

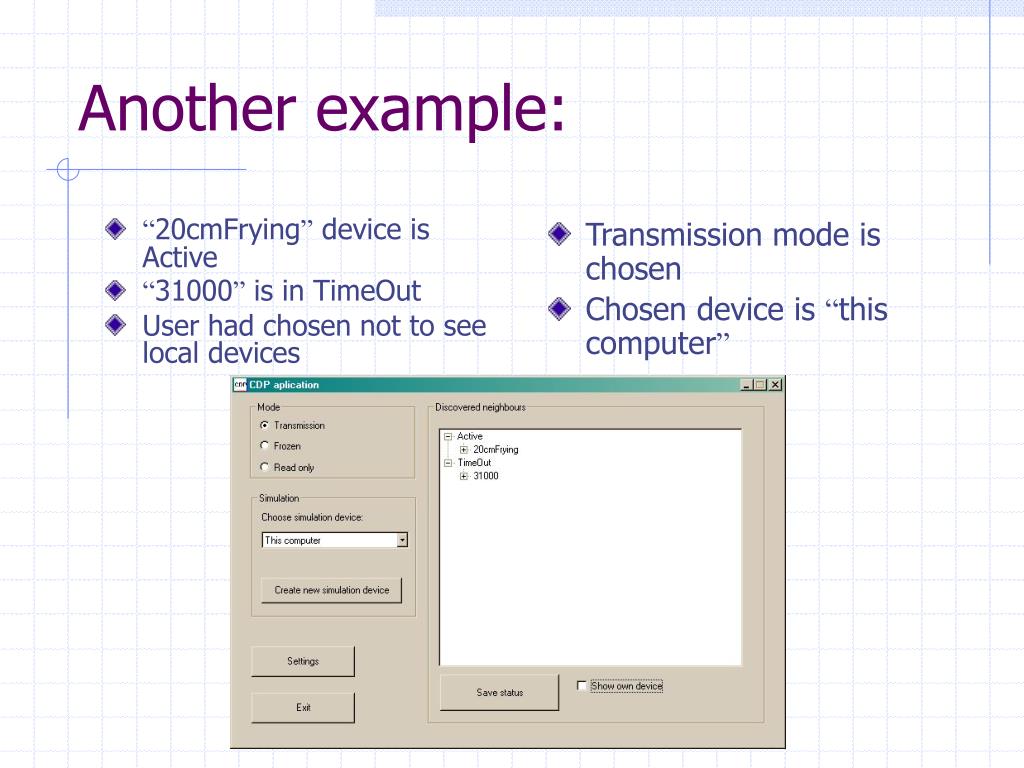

  24. “20cmFrying” device is Active “31000” is in TimeOut User had chosen not to see local devices Transmission mode is chosen Chosen device is “this computer” Another example:

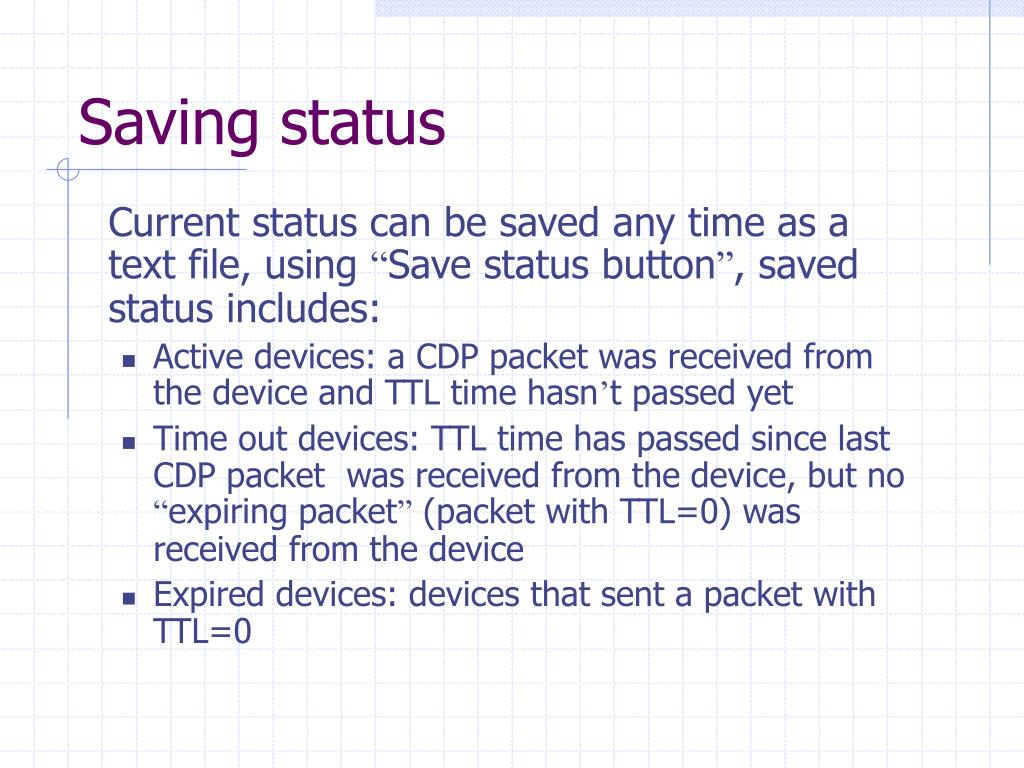

  25. Saving status Current status can be saved any time as a text file, using “Save status button”, saved status includes: • Active devices: a CDP packet was received from the device and TTL time hasn’t passed yet • Time out devices: TTL time has passed since last CDP packet was received from the device, but no “expiring packet” (packet with TTL=0) was received from the device • Expired devices: devices that sent a packet with TTL=0

  26. The end
