  1. Addressing the Network – IPv4 Network Fundamentals – Chapter 6

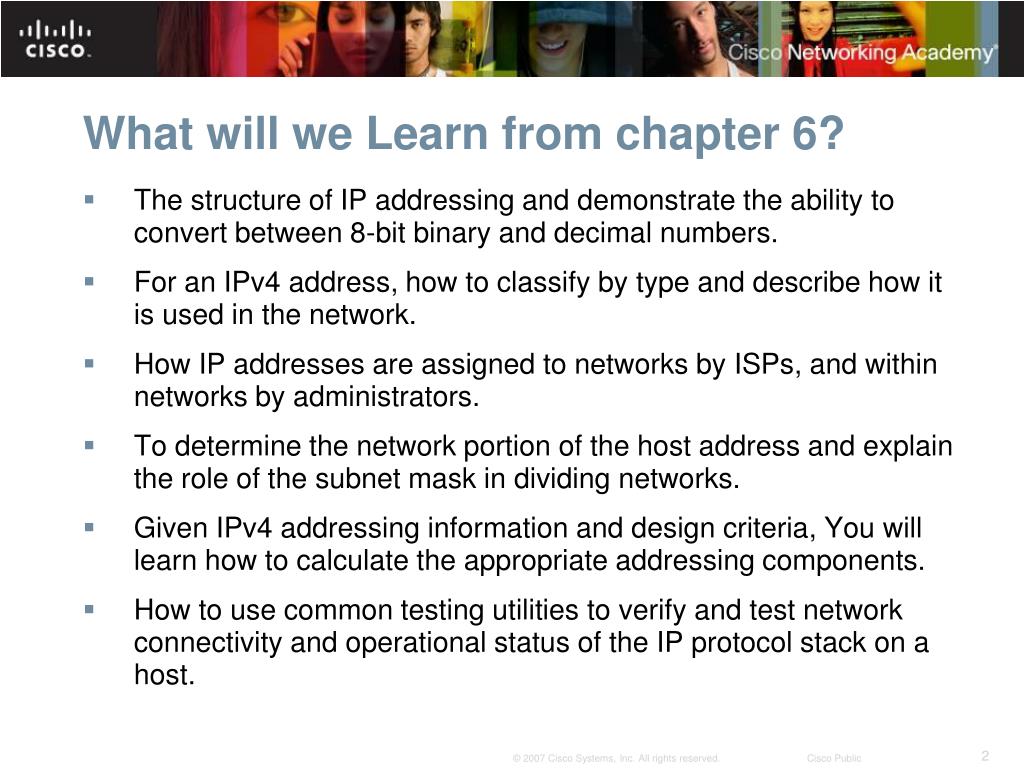

  2. What will we Learn from chapter 6? • The structure of IP addressing and demonstrate the ability to convert between 8-bit binary and decimal numbers. • For an IPv4 address, how to classify by type and describe how it is used in the network. • How IP addresses are assigned to networks by ISPs, and within networks by administrators. • To determine the network portion of the host address and explain the role of the subnet mask in dividing networks. • Given IPv4 addressing information and design criteria, You will learn how to calculate the appropriate addressing components. • How to use common testing utilities to verify and test network connectivity and operational status of the IP protocol stack on a host.

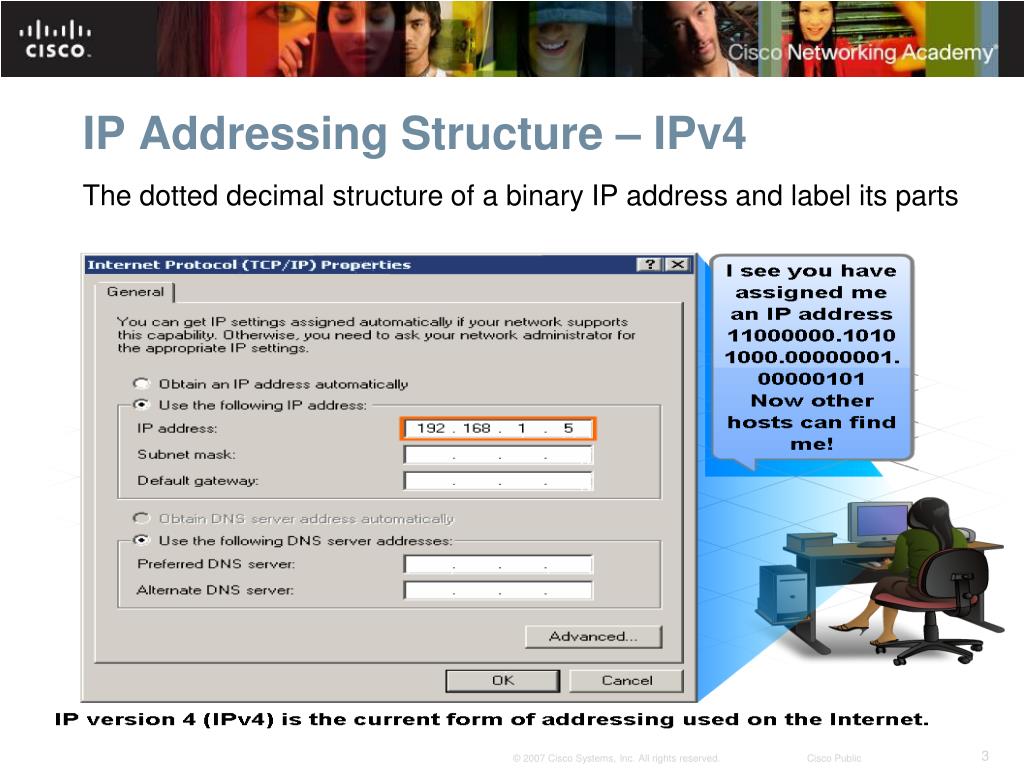

  3. IP Addressing Structure – IPv4 The dotted decimal structure of a binary IP address and label its parts

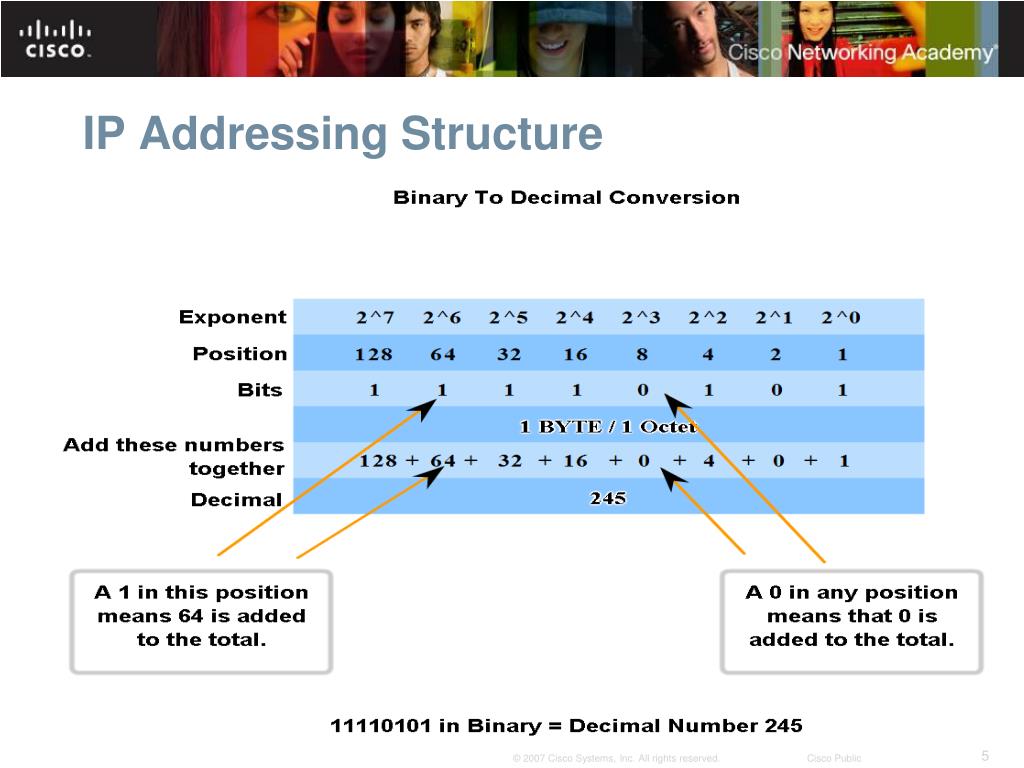

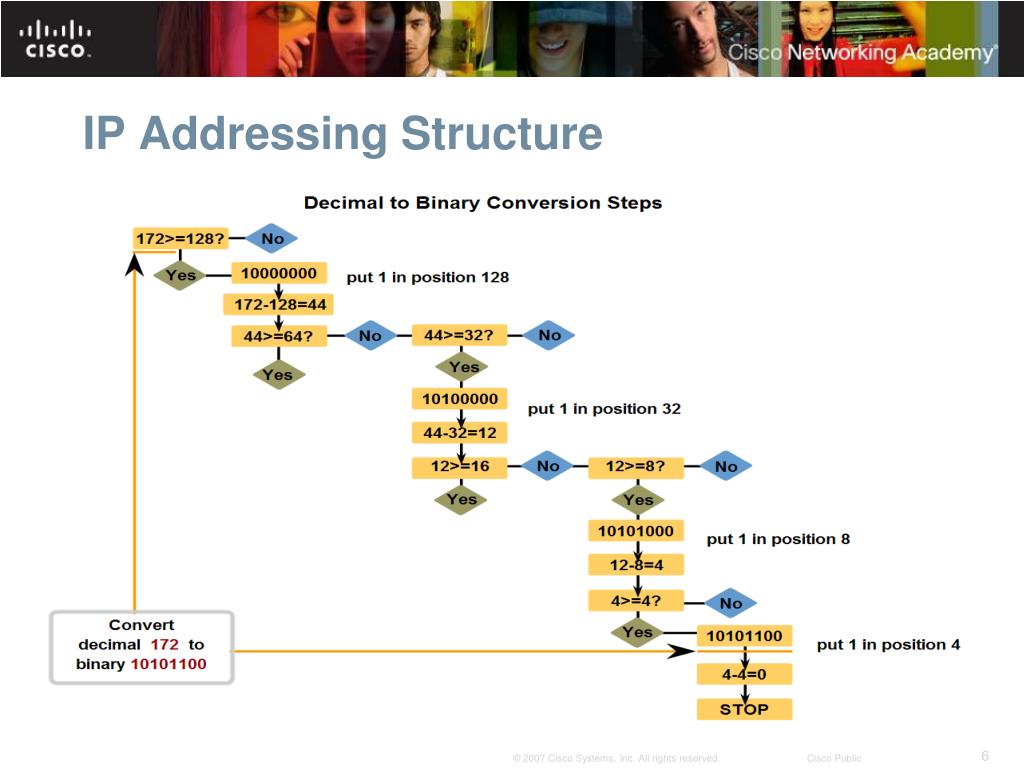

  4. IP Addressing Structure Describe the general role of 8-bit binary in network addressing and convert 8-bit binary to decimal

  5. IP Addressing Structure

  6. IP Addressing Structure

  7. IP Addressing Structure

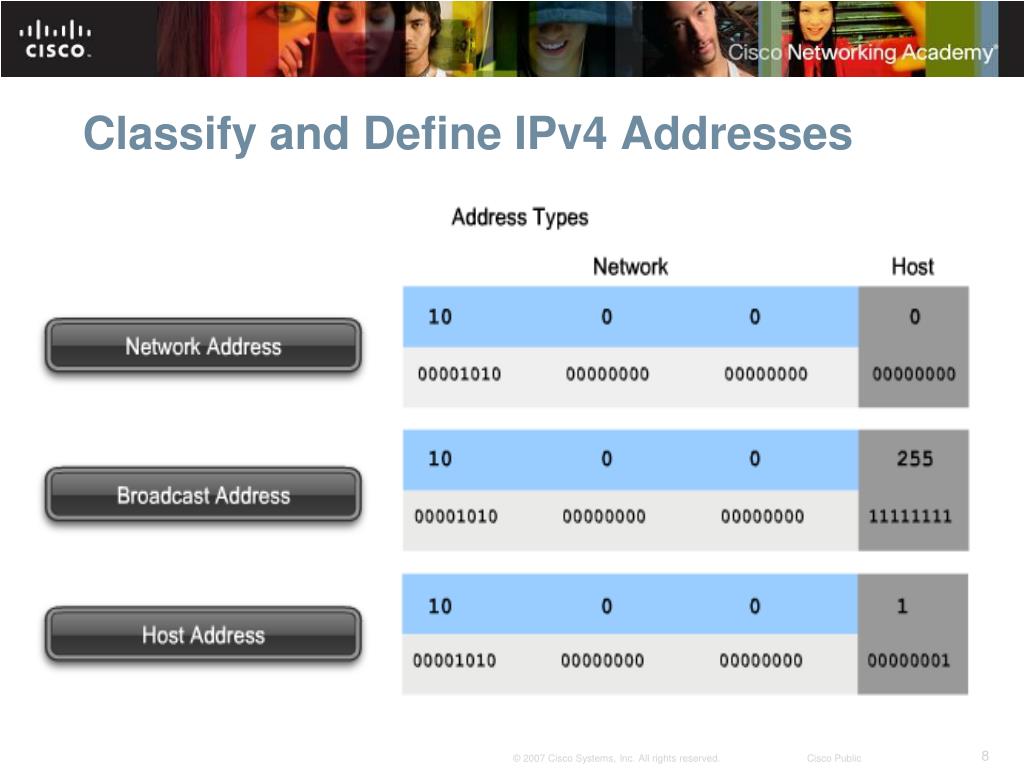

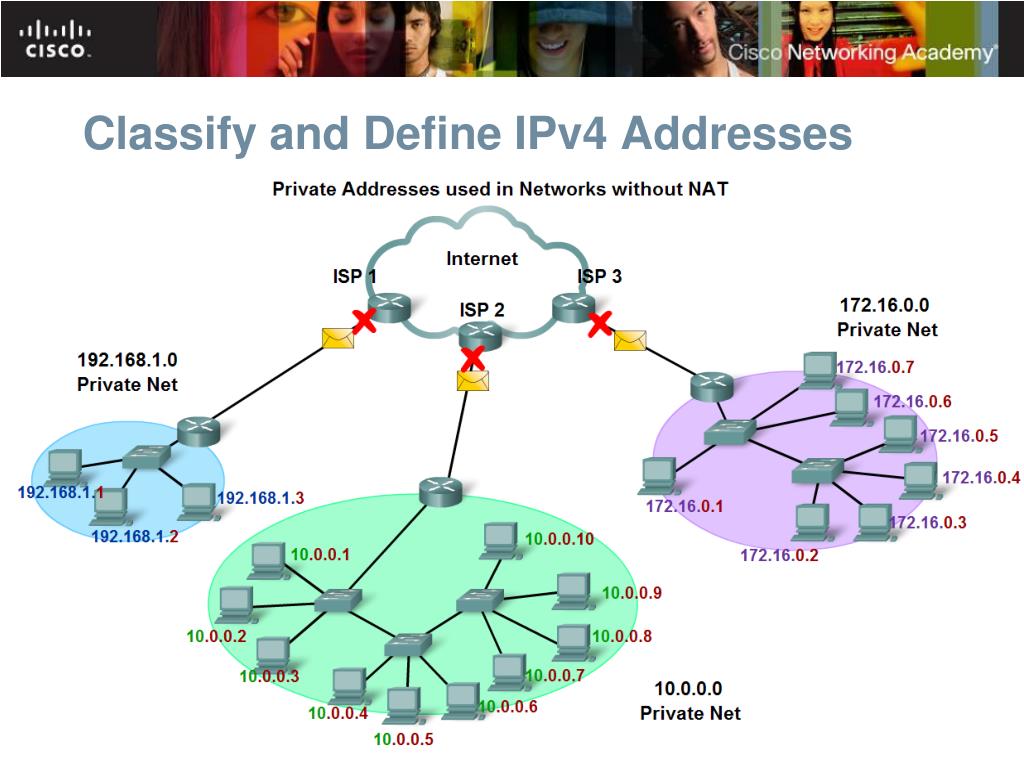

  8. Classify and Define IPv4 Addresses

  9. Classify and Define IPv4 Addresses

  10. Classify and Define IPv4 Addresses

  11. Classify and Define IPv4 Addresses

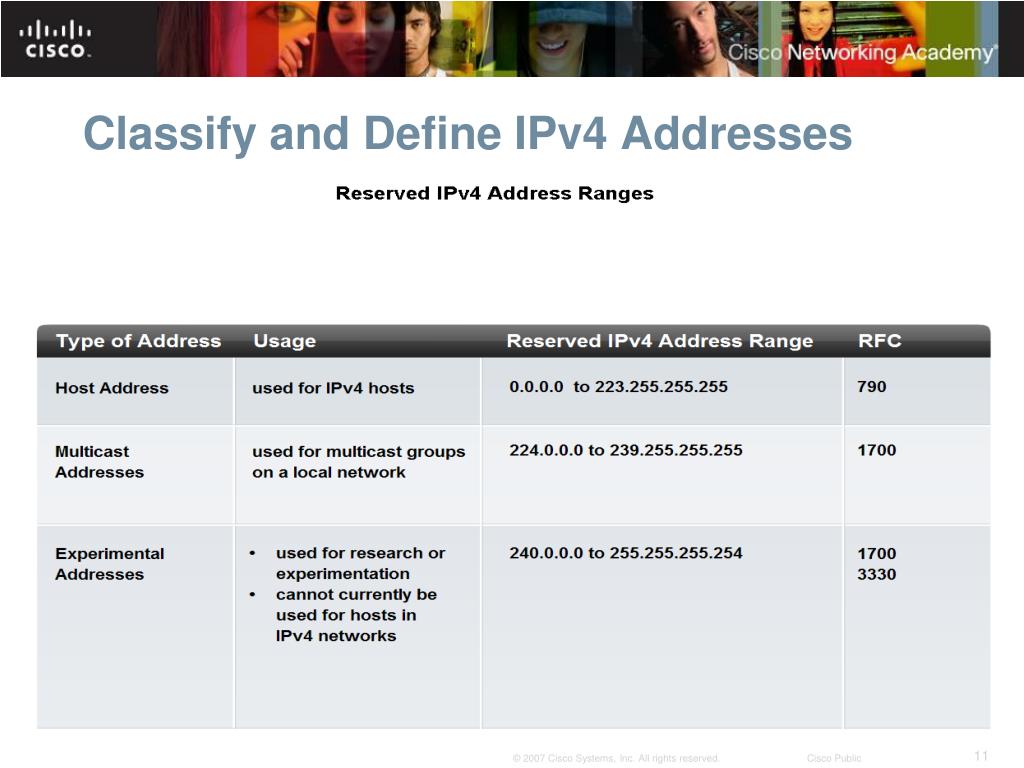

  12. Classify and Define IPv4 Addresses

  13. Classify and Define IPv4 Addresses

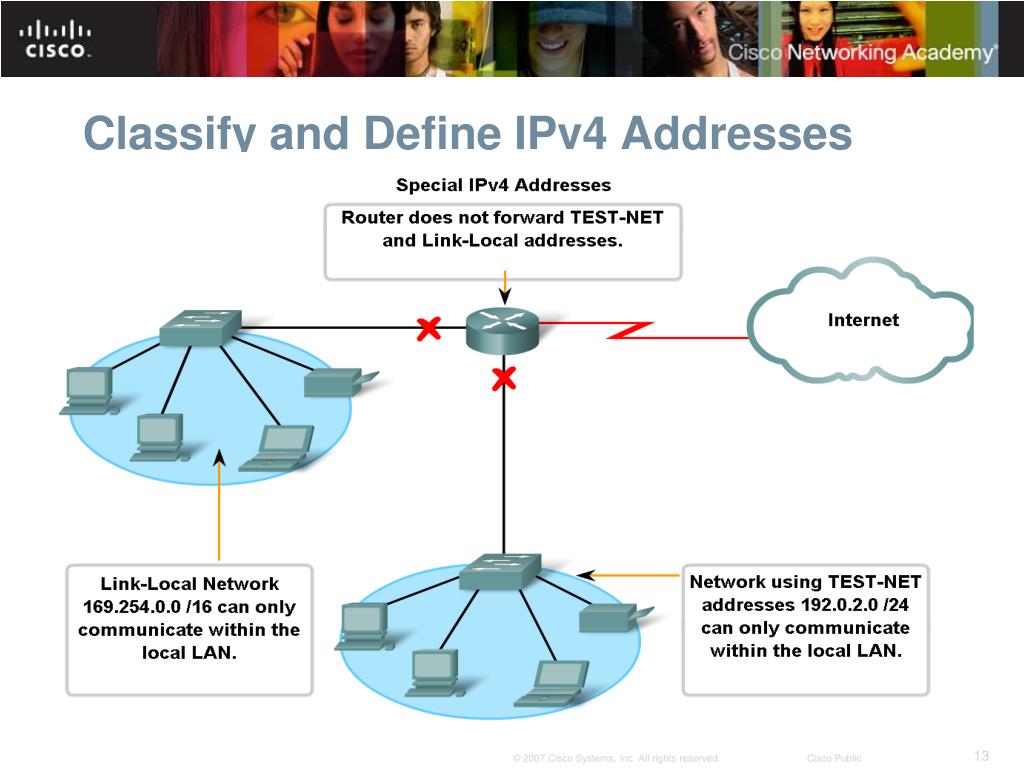

  14. Classify and Define IPv4 Addresses

  15. Assigning Addresses

  16. Assigning Addresses

  17. Assigning Addresses

  18. Assigning Addresses

  19. Assigning Addresses

  20. Assigning Addresses

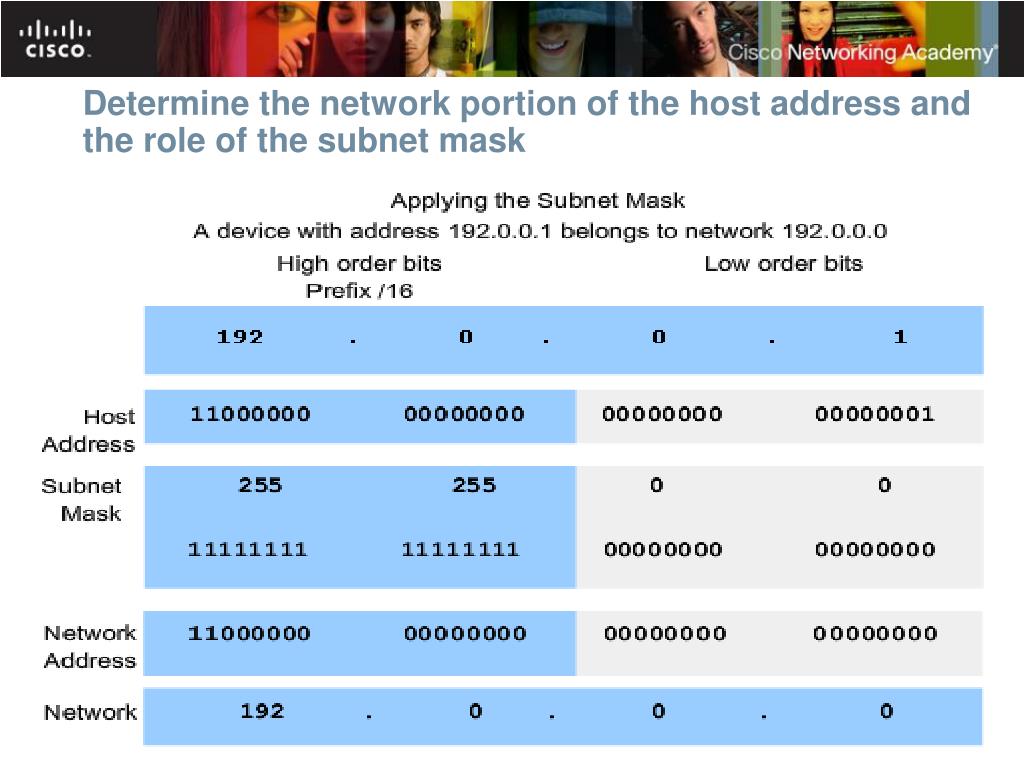

  21. Determine the network portion of the host address and the role of the subnet mask

  22. Determine the network portion of the host address and the role of the subnet mask

  23. Determine the network portion of the host address and the role of the subnet mask

  24. Determine the network portion of the host address and the role of the subnet mask

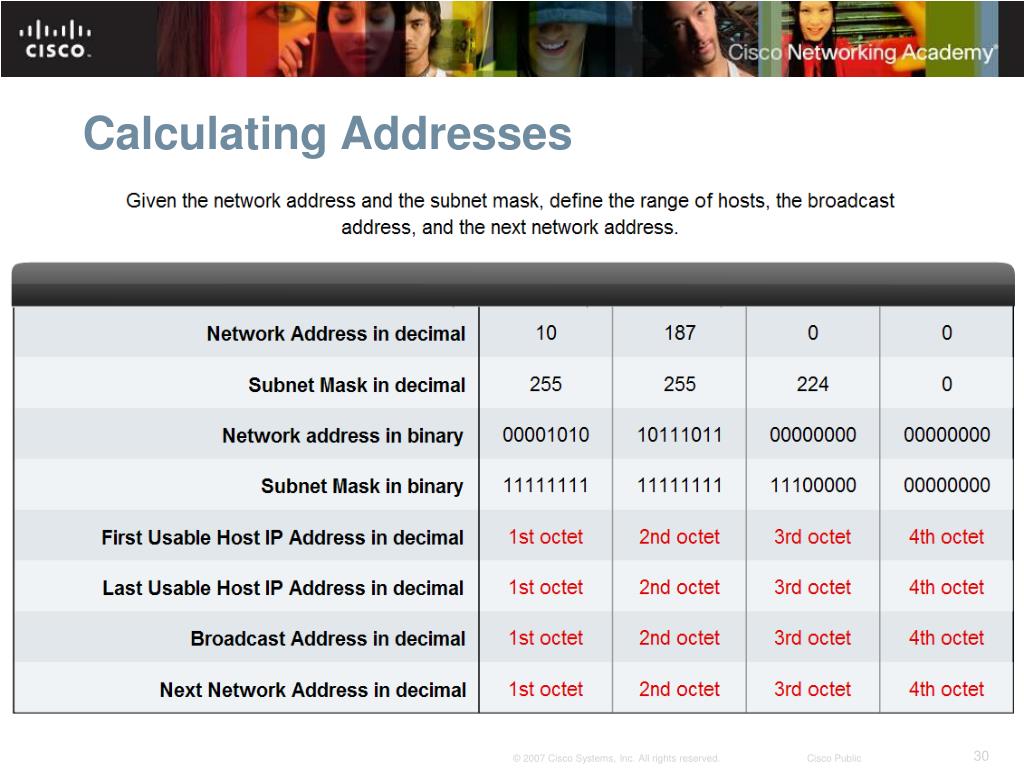

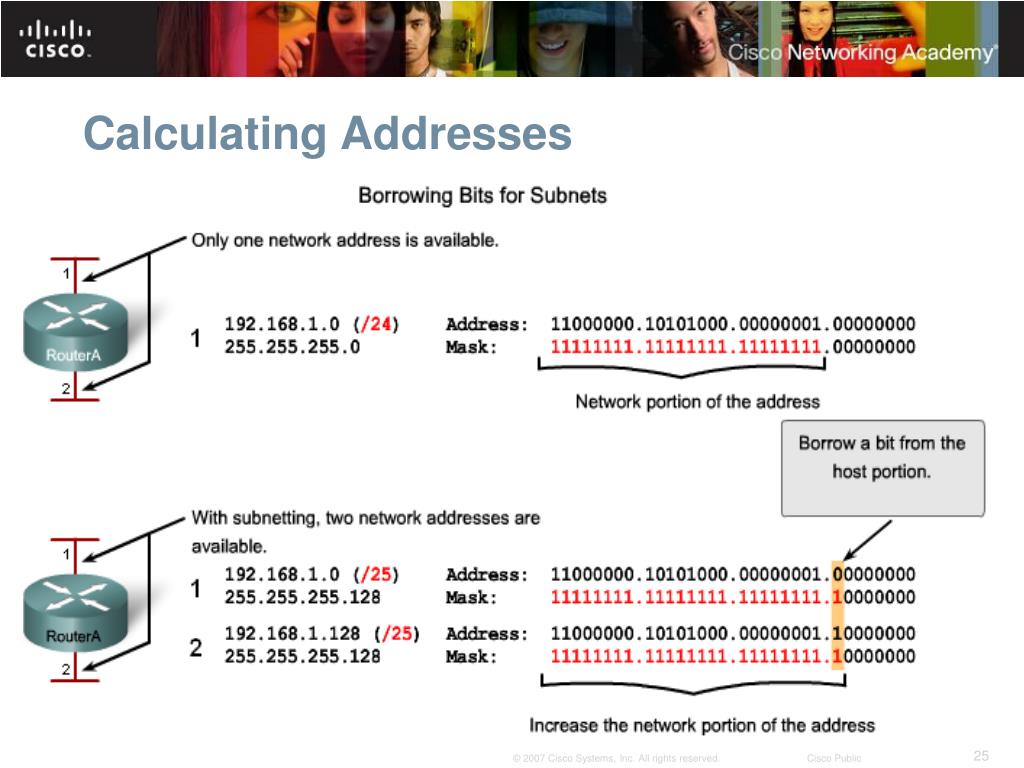

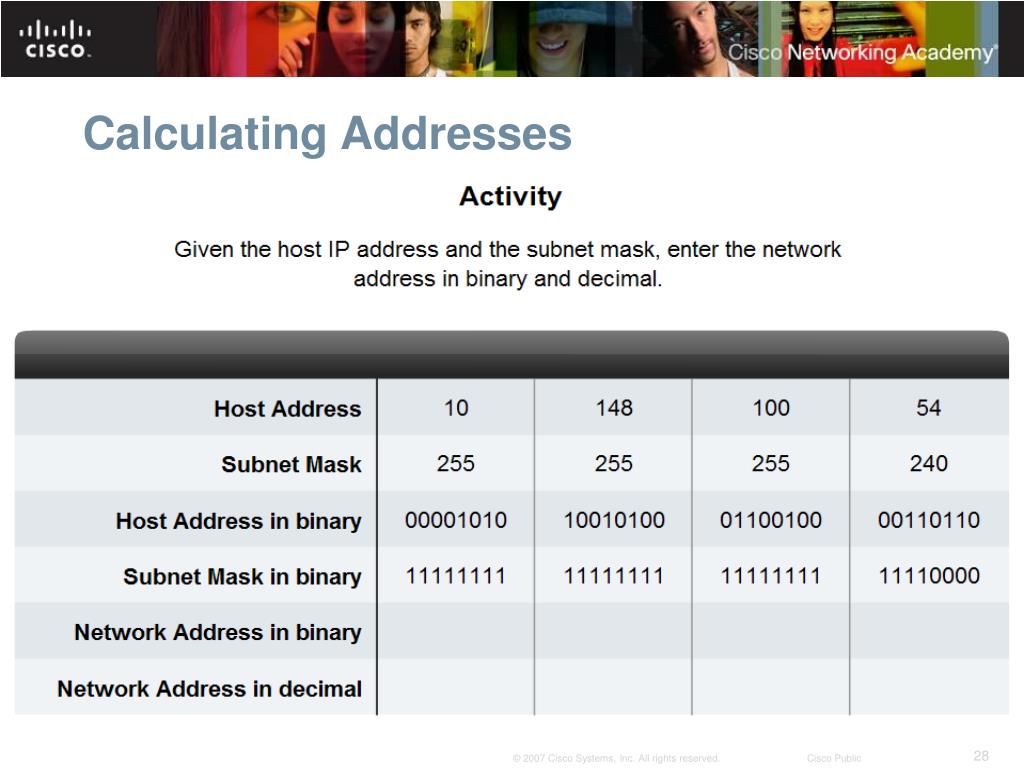

  25. Calculating Addresses

  26. Calculating Addresses

  27. Calculating Addresses

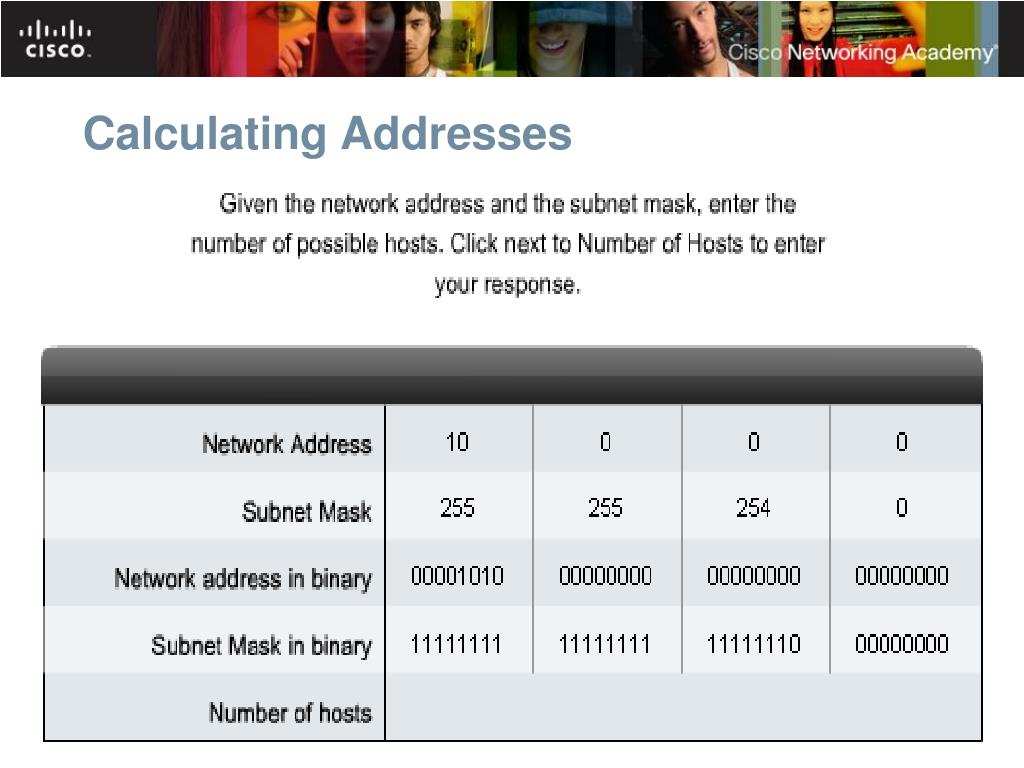

  28. Calculating Addresses

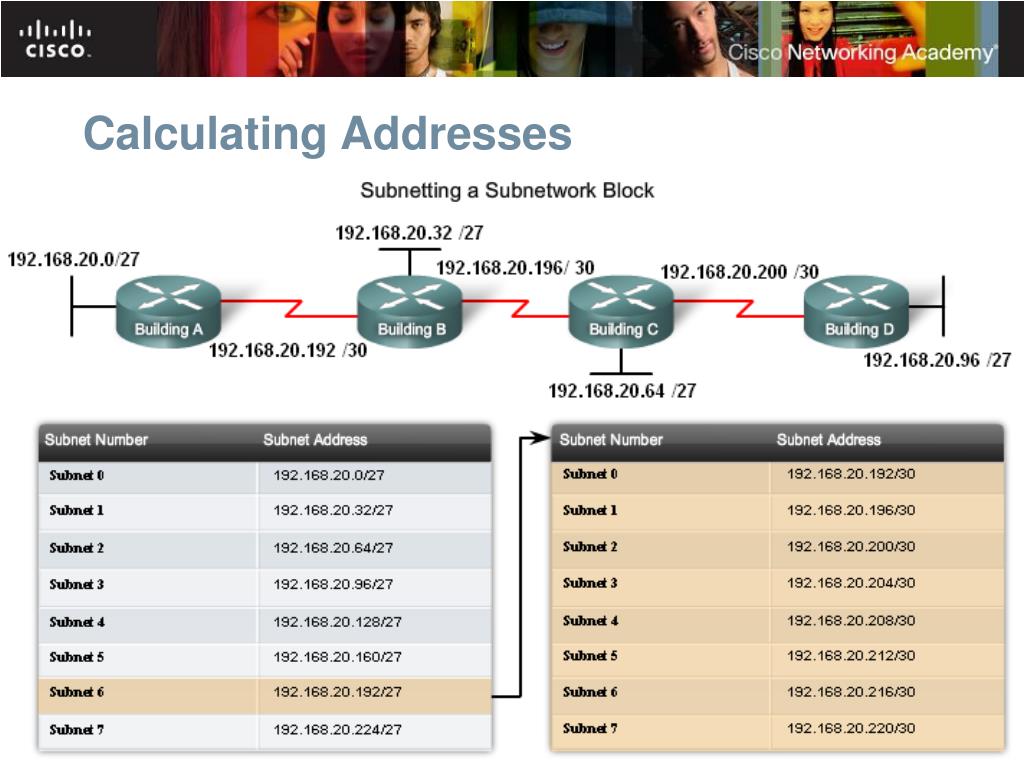

  29. Calculating Addresses

  30. Calculating Addresses

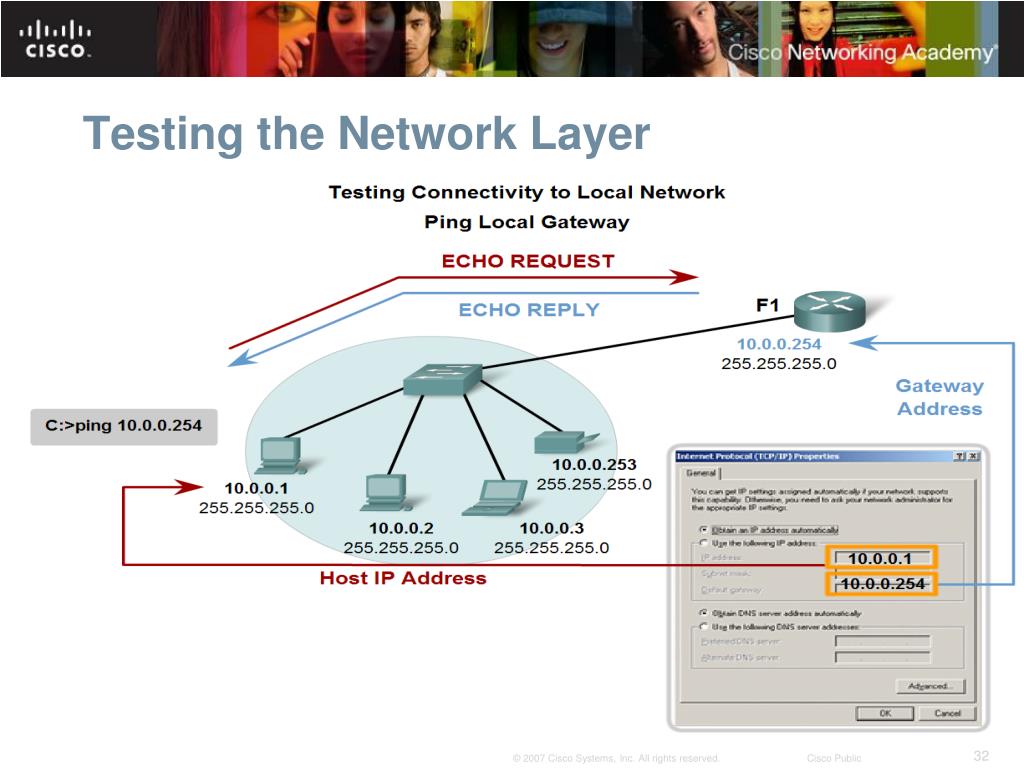

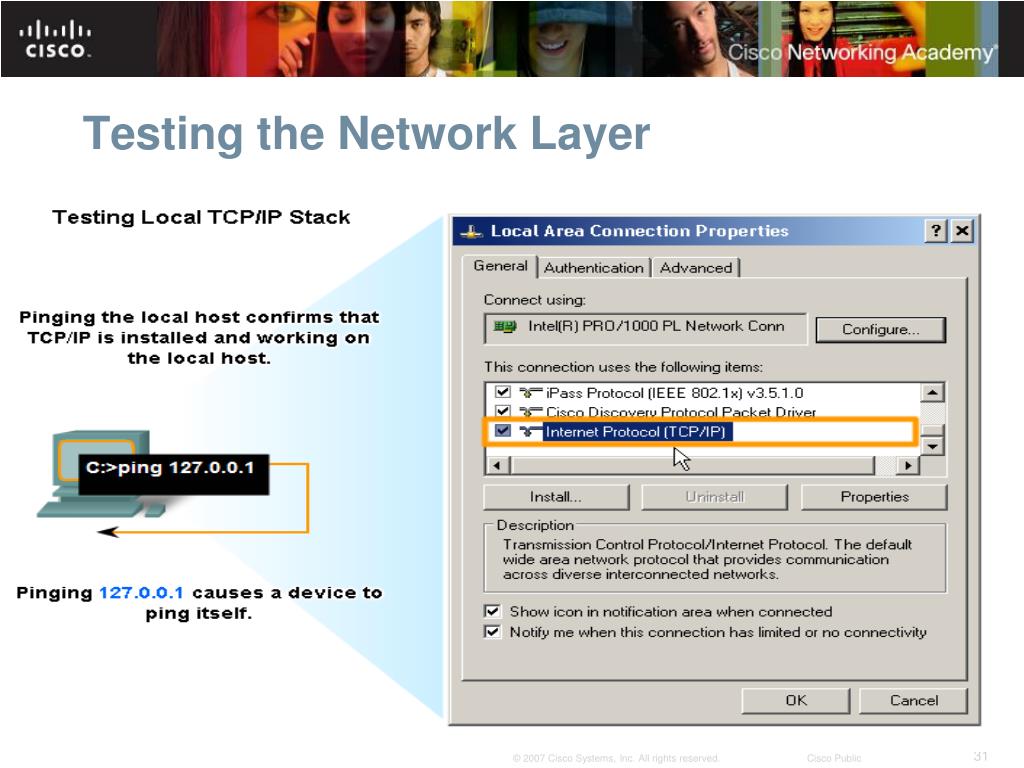

  31. Testing the Network Layer

  32. Testing the Network Layer

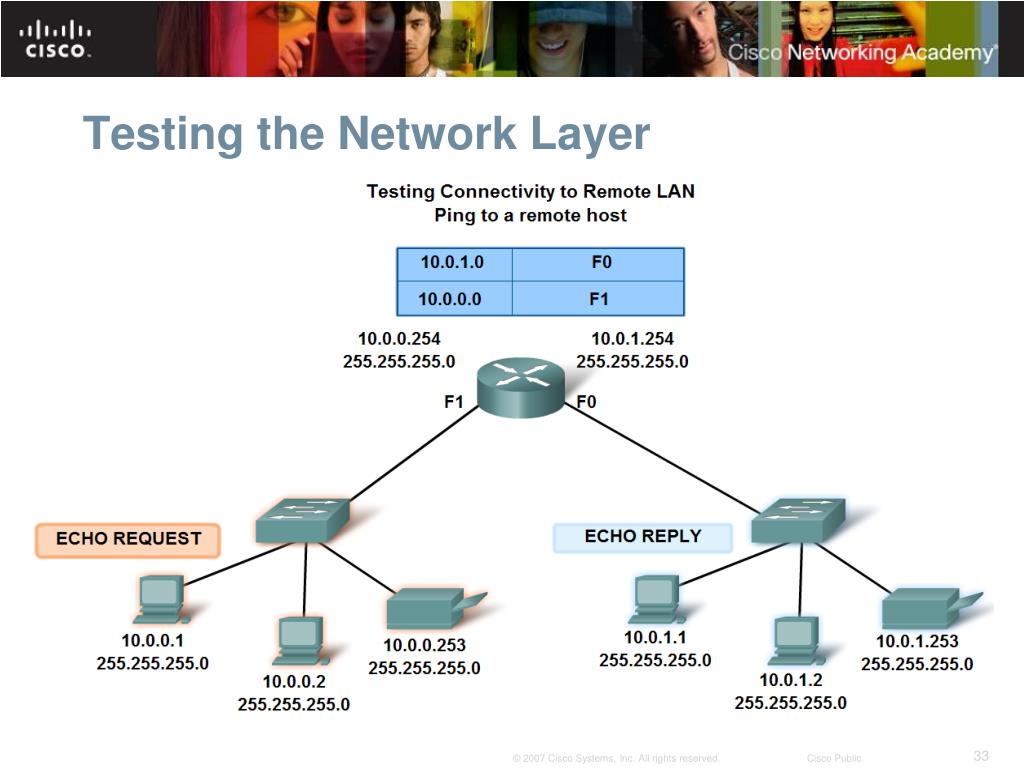

  33. Testing the Network Layer

  34. Testing the Network Layer

  35. Testing the Network Layer

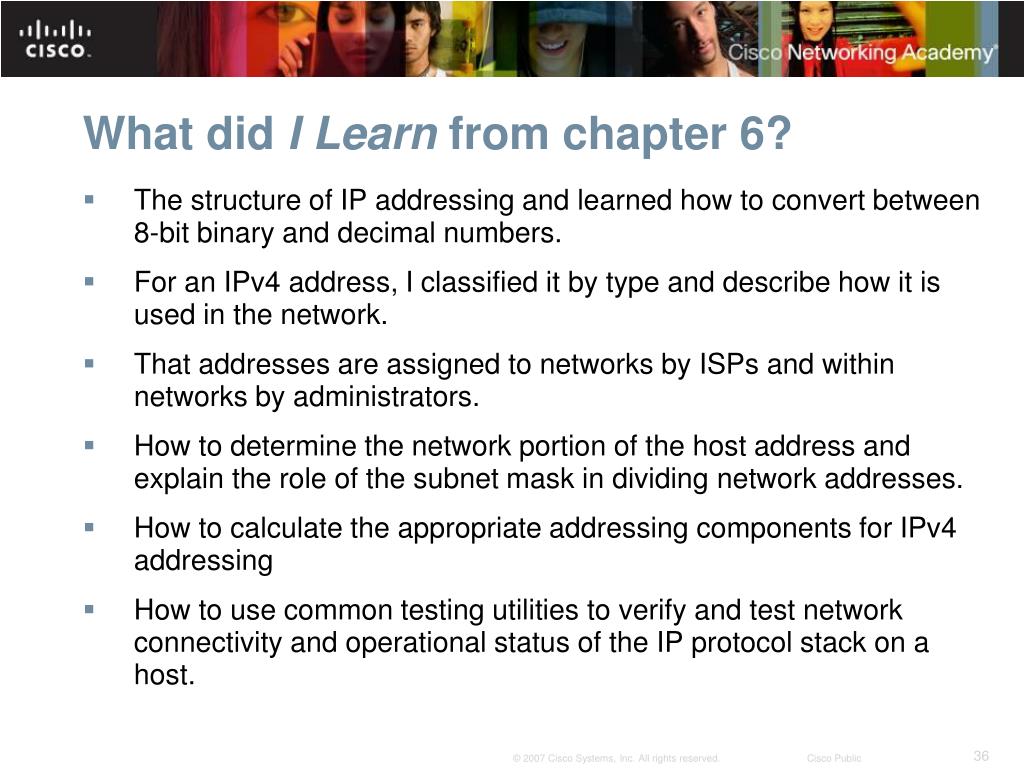

  36. What did I Learn from chapter 6? • The structure of IP addressing and learned how to convert between 8-bit binary and decimal numbers. • For an IPv4 address, I classified it by type and describe how it is used in the network. • That addresses are assigned to networks by ISPs and within networks by administrators. • How to determine the network portion of the host address and explain the role of the subnet mask in dividing network addresses. • How to calculate the appropriate addressing components for IPv4 addressing • How to use common testing utilities to verify and test network connectivity and operational status of the IP protocol stack on a host.
