  1. Introduction to SVG (Part 2) Prepared by K.M.SO Department of Computer Science ver. 2 last update: June 2004

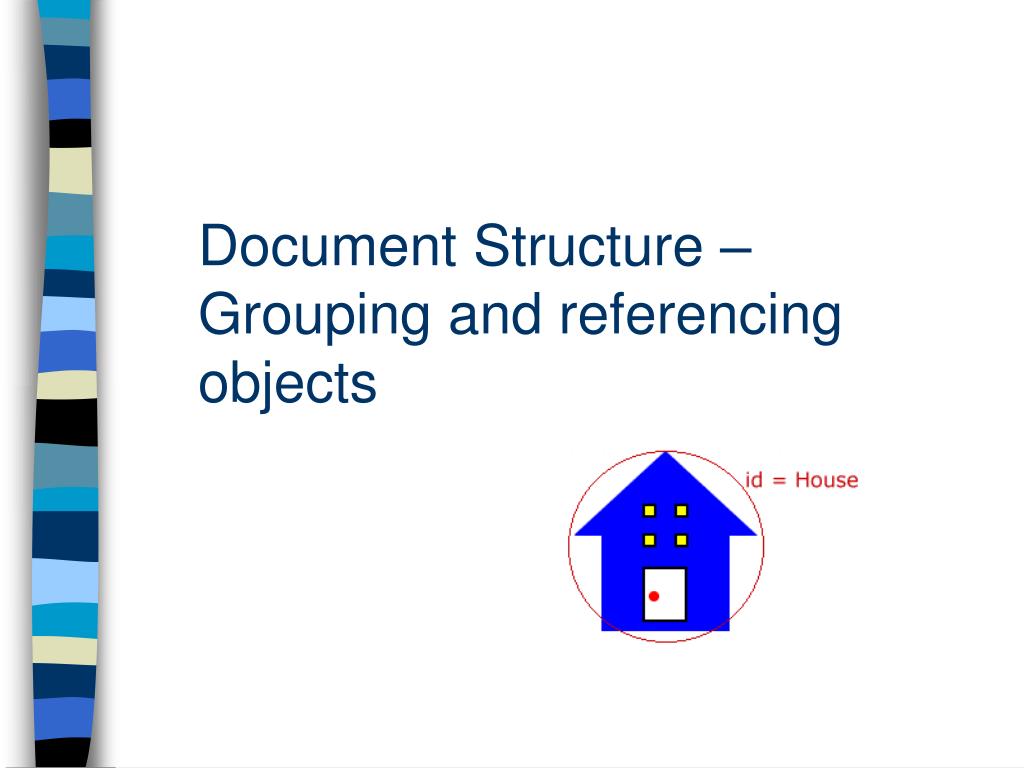

  2. Document Structure –Grouping and referencing objects

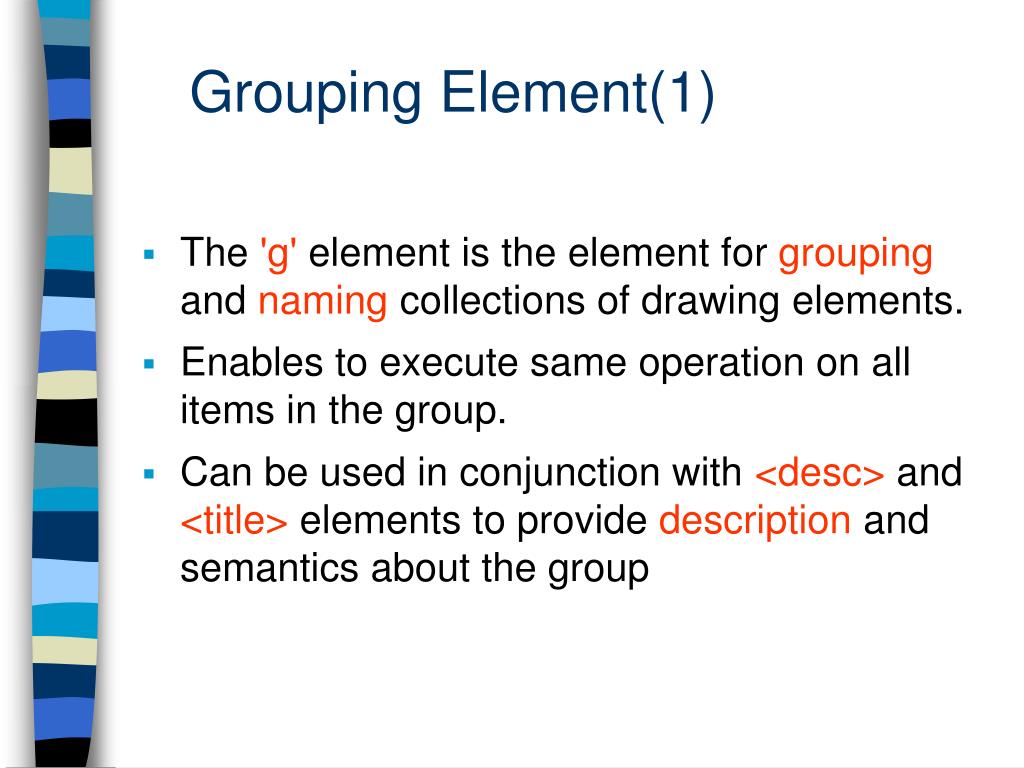

  3. Grouping Element(1) • The 'g' element is the element for grouping and naming collections of drawing elements. • Enables to execute same operation on all items in the group. • Can be used in conjunction with <desc> and <title> elements to provide description and semantics about the group

  4. Grouping Element(2) • Each group can be given the id attribute for purposes of animation and re-usabilty. • Any ‘g’ element can contain other ‘g’ elements nested within it to an arbitrary depth. • Drawing element that is not contained in a ‘g’ element can be considered as a group of its own.

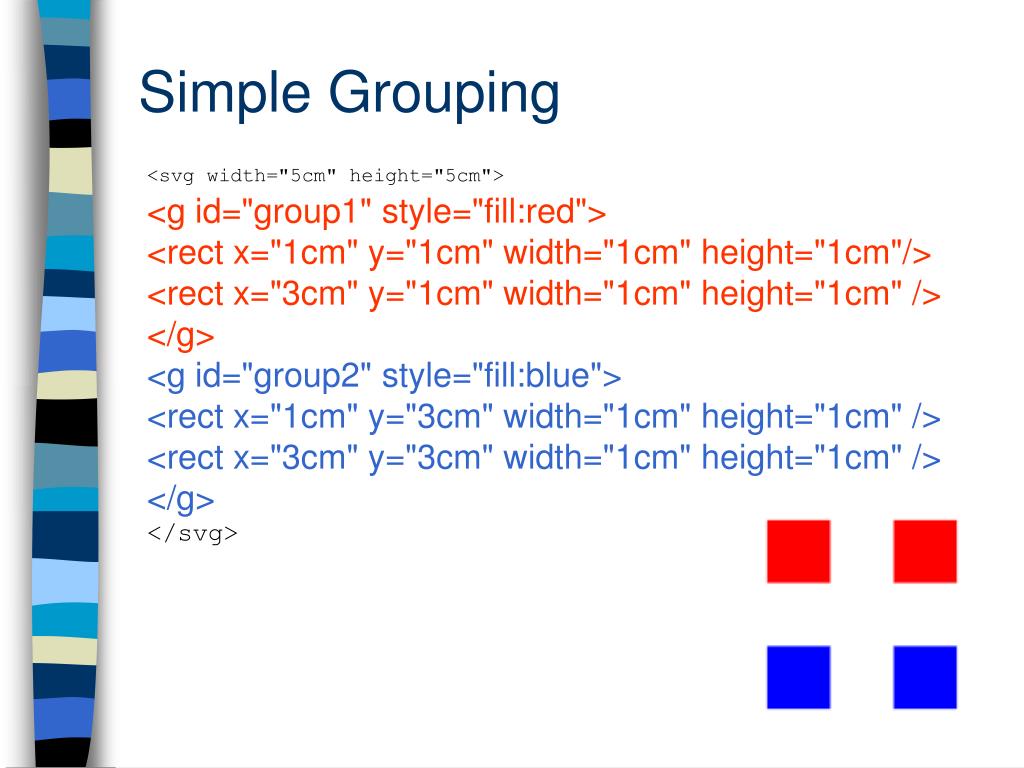

  5. Simple Grouping <svg width="5cm" height="5cm"> <g id="group1" style="fill:red"> <rect x="1cm" y="1cm" width="1cm" height="1cm"/> <rect x="3cm" y="1cm" width="1cm" height="1cm" /> </g> <g id="group2" style="fill:blue"> <rect x="1cm" y="3cm" width="1cm" height="1cm" /> <rect x="3cm" y="3cm" width="1cm" height="1cm" /> </g> </svg>

  6. Another Example (1/3) <svg width="240px" height="240px" viewBox="0 0 240 240"> <g id="house" style="fill: none; stroke: black;"> <desc>House with door</desc> <rect x="6" y="50" width="60" height="60"/> <polyline points="6 50, 36 9, 66 50"/> <polyline points="36 110, 36 80, 50 80, 50 110"/> </g> <g id="man" style="fill: none; stroke: black;"> <desc>Male human</desc> <circle cx="85" cy="56" r="10"/> <line x1="85" y1="66" x2="85" y2="80"/> <polyline points="76 104, 85 80, 94 104" /> <polyline points="76 70, 85 76, 94 70" /> </g> <g id="woman" style="fill: none; stroke: black;"> <desc>Female human</desc> <circle cx="110" cy="56" r="10"/> <polyline points="110 66, 110 80, 100 90, 120 90, 110 80"/> <line x1="104" y1="104" x2="108" y2="90"/> <line x1="112" y1="90" x2="116" y2="104"/> <polyline points="101 70, 110 76, 119 70" /> </g> </svg>

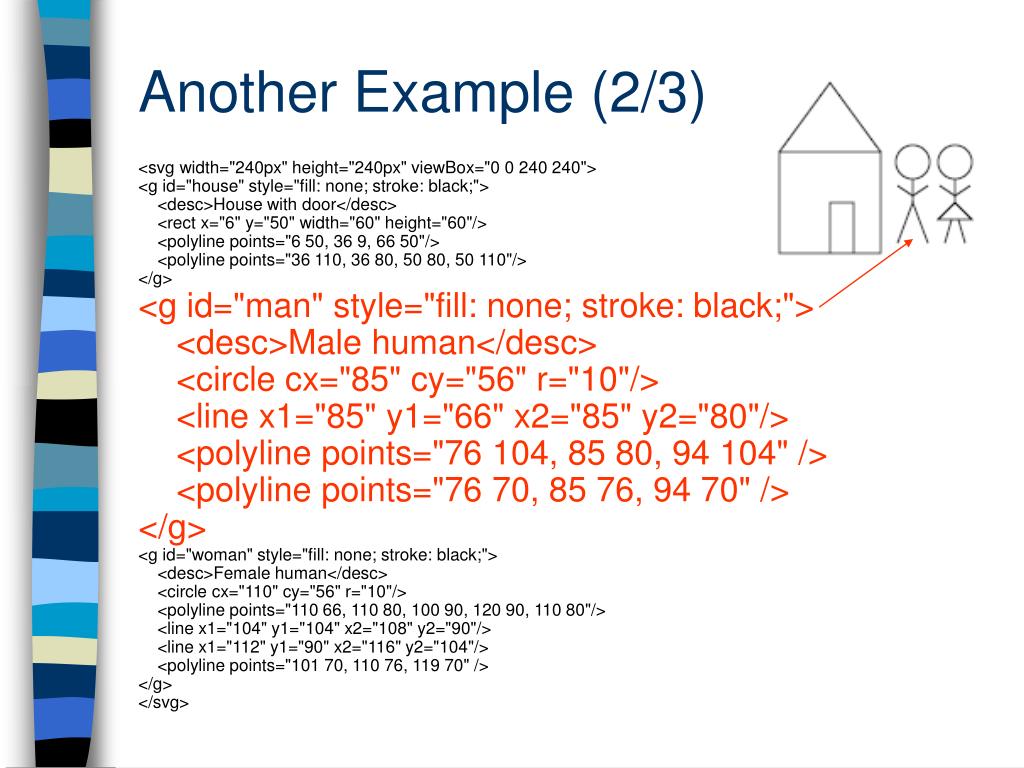

  7. Another Example (2/3) <svg width="240px" height="240px" viewBox="0 0 240 240"> <g id="house" style="fill: none; stroke: black;"> <desc>House with door</desc> <rect x="6" y="50" width="60" height="60"/> <polyline points="6 50, 36 9, 66 50"/> <polyline points="36 110, 36 80, 50 80, 50 110"/> </g> <g id="man" style="fill: none; stroke: black;"> <desc>Male human</desc> <circle cx="85" cy="56" r="10"/> <line x1="85" y1="66" x2="85" y2="80"/> <polyline points="76 104, 85 80, 94 104" /> <polyline points="76 70, 85 76, 94 70" /> </g> <g id="woman" style="fill: none; stroke: black;"> <desc>Female human</desc> <circle cx="110" cy="56" r="10"/> <polyline points="110 66, 110 80, 100 90, 120 90, 110 80"/> <line x1="104" y1="104" x2="108" y2="90"/> <line x1="112" y1="90" x2="116" y2="104"/> <polyline points="101 70, 110 76, 119 70" /> </g> </svg>

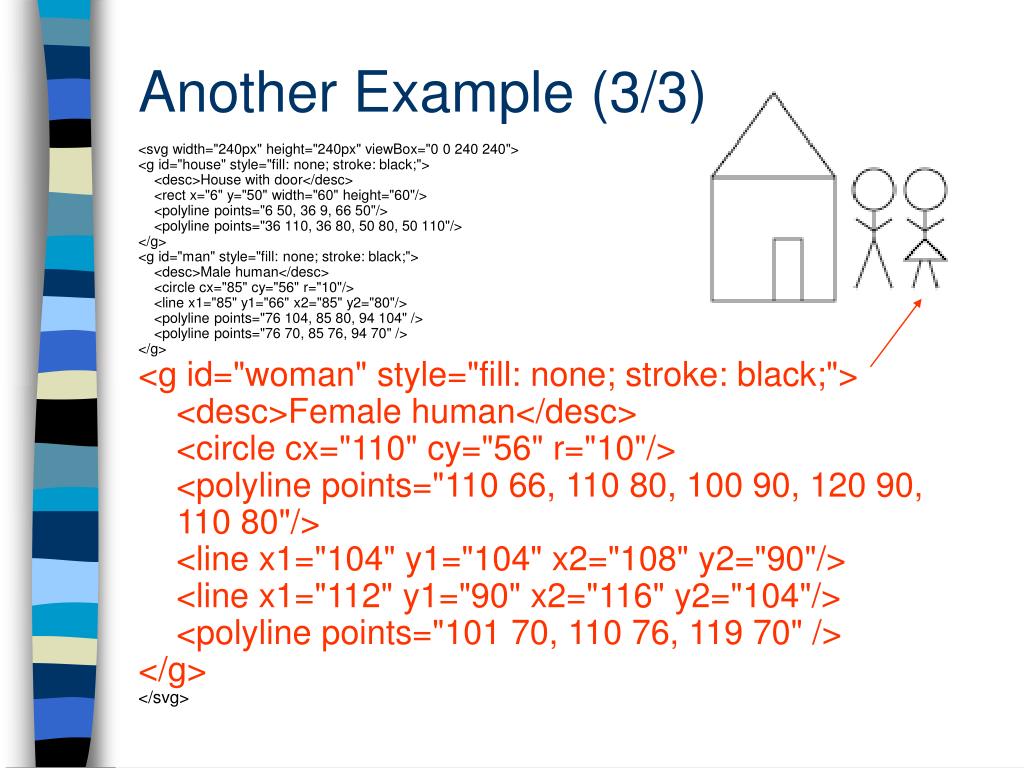

  8. Another Example (3/3) <svg width="240px" height="240px" viewBox="0 0 240 240"> <g id="house" style="fill: none; stroke: black;"> <desc>House with door</desc> <rect x="6" y="50" width="60" height="60"/> <polyline points="6 50, 36 9, 66 50"/> <polyline points="36 110, 36 80, 50 80, 50 110"/> </g> <g id="man" style="fill: none; stroke: black;"> <desc>Male human</desc> <circle cx="85" cy="56" r="10"/> <line x1="85" y1="66" x2="85" y2="80"/> <polyline points="76 104, 85 80, 94 104" /> <polyline points="76 70, 85 76, 94 70" /> </g> <g id="woman" style="fill: none; stroke: black;"> <desc>Female human</desc> <circle cx="110" cy="56" r="10"/> <polyline points="110 66, 110 80, 100 90, 120 90, 110 80"/> <line x1="104" y1="104" x2="108" y2="90"/> <line x1="112" y1="90" x2="116" y2="104"/> <polyline points="101 70, 110 76, 119 70" /> </g> </svg>

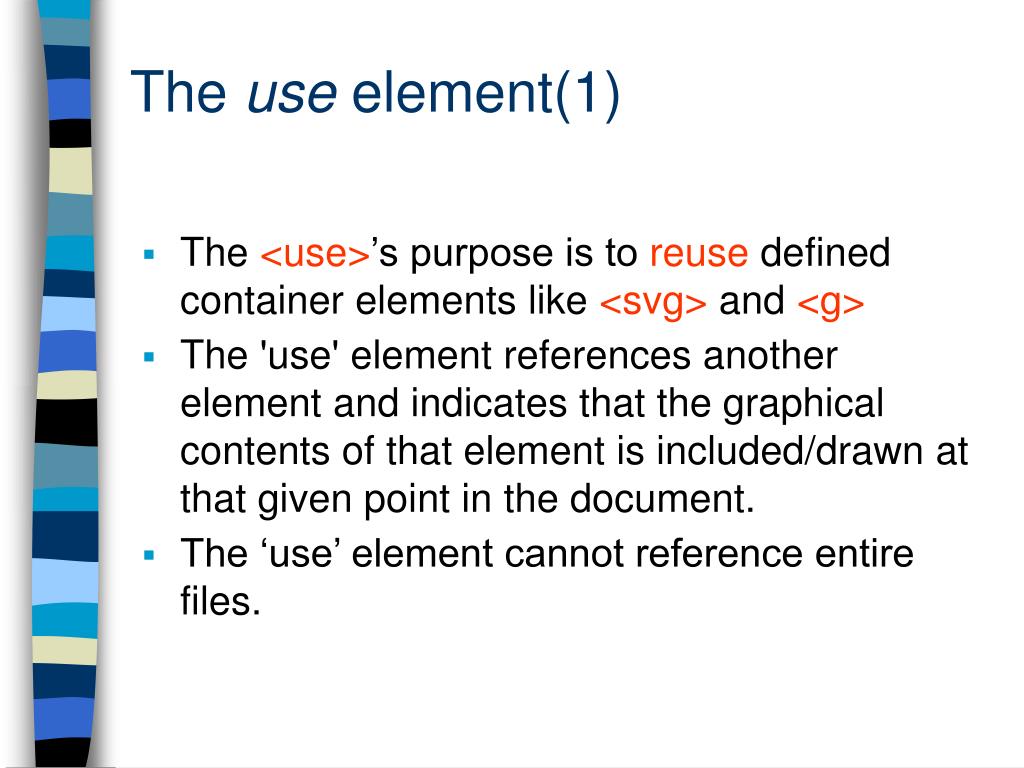

  9. The use element(1) • The <use>’s purpose is to reuse defined container elements like <svg> and <g> • The 'use' element references another element and indicates that the graphical contents of that element is included/drawn at that given point in the document. • The ‘use’ element cannot reference entire files.

  10. The use element(2) • The 'use' element has the attributes x, y, width and height which are used to map the graphical contents of the referenced element onto a rectangular region within the current coordinate system.

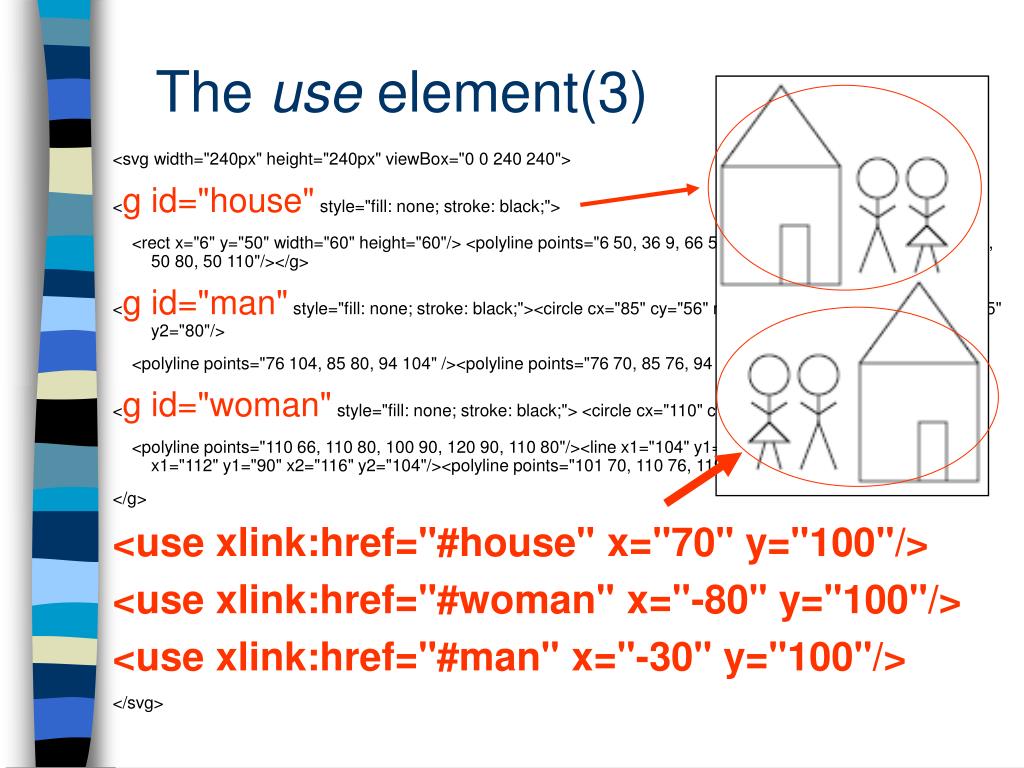

  11. The use element(3) <svg width="240px" height="240px" viewBox="0 0 240 240"> <g id="house" style="fill: none; stroke: black;"> <rect x="6" y="50" width="60" height="60"/> <polyline points="6 50, 36 9, 66 50"/> <polyline points="36 110, 36 80, 50 80, 50 110"/></g> <g id="man" style="fill: none; stroke: black;"><circle cx="85" cy="56" r="10"/><line x1="85" y1="66" x2="85" y2="80"/> <polyline points="76 104, 85 80, 94 104" /><polyline points="76 70, 85 76, 94 70" /></g> <g id="woman" style="fill: none; stroke: black;"> <circle cx="110" cy="56" r="10"/> <polyline points="110 66, 110 80, 100 90, 120 90, 110 80"/><line x1="104" y1="104" x2="108" y2="90"/><line x1="112" y1="90" x2="116" y2="104"/><polyline points="101 70, 110 76, 119 70" /> </g> <use xlink:href="#house" x="70" y="100"/> <use xlink:href="#woman" x="-80" y="100"/> <use xlink:href="#man" x="-30" y="100"/> </svg>

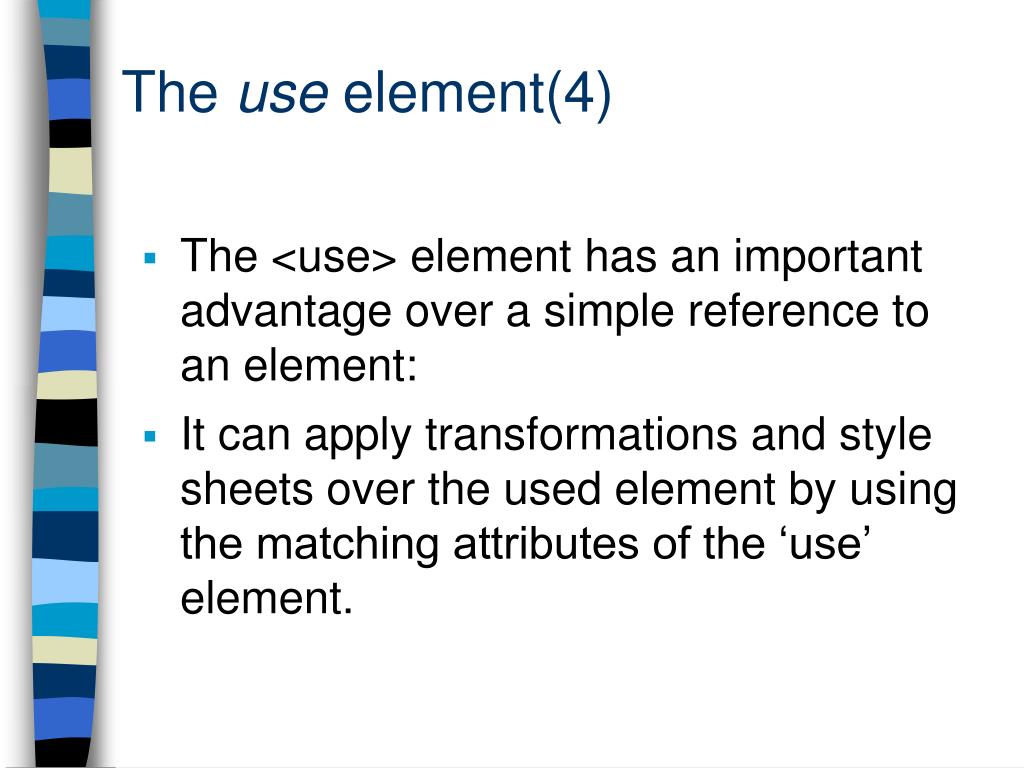

  12. The use element(4) • The <use> element has an important advantage over a simple reference to an element: • It can apply transformations and style sheets over the used element by using the matching attributes of the ‘use’ element.

  13. The defs element(1) • The defs element is a container element for referenced elements. • When SVG elements are drawn into a visual media, the <defs> is not drawn with them.

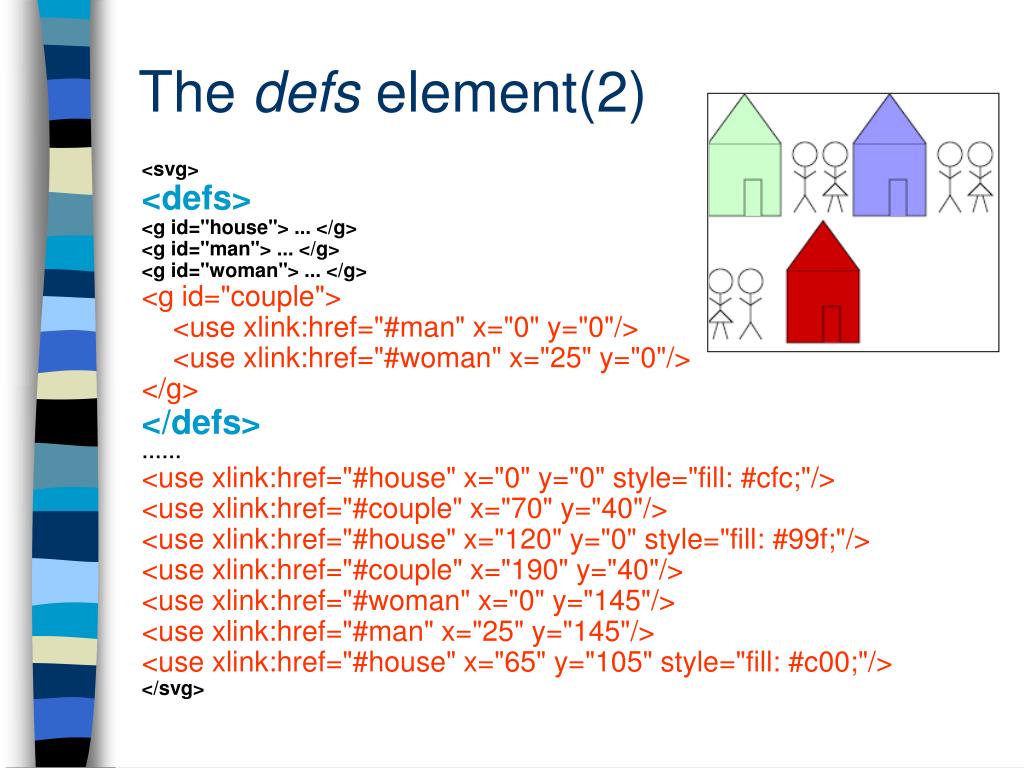

  14. The defs element(2) <svg> <defs> <g id="house"> ... </g> <g id="man"> ... </g> <g id="woman"> ... </g> <g id="couple"> <use xlink:href="#man" x="0" y="0"/> <use xlink:href="#woman" x="25" y="0"/> </g> </defs> …… <use xlink:href="#house" x="0" y="0" style="fill: #cfc;"/> <use xlink:href="#couple" x="70" y="40"/> <use xlink:href="#house" x="120" y="0" style="fill: #99f;"/> <use xlink:href="#couple" x="190" y="40"/> <use xlink:href="#woman" x="0" y="145"/> <use xlink:href="#man" x="25" y="145"/> <use xlink:href="#house" x="65" y="105" style="fill: #c00;"/> </svg>

  15. References in SVG • SVG supports two types of references: • Local URI reference – the referenced object is found in the same document. • *Non-Local URI reference – the referenced object is found in another document.

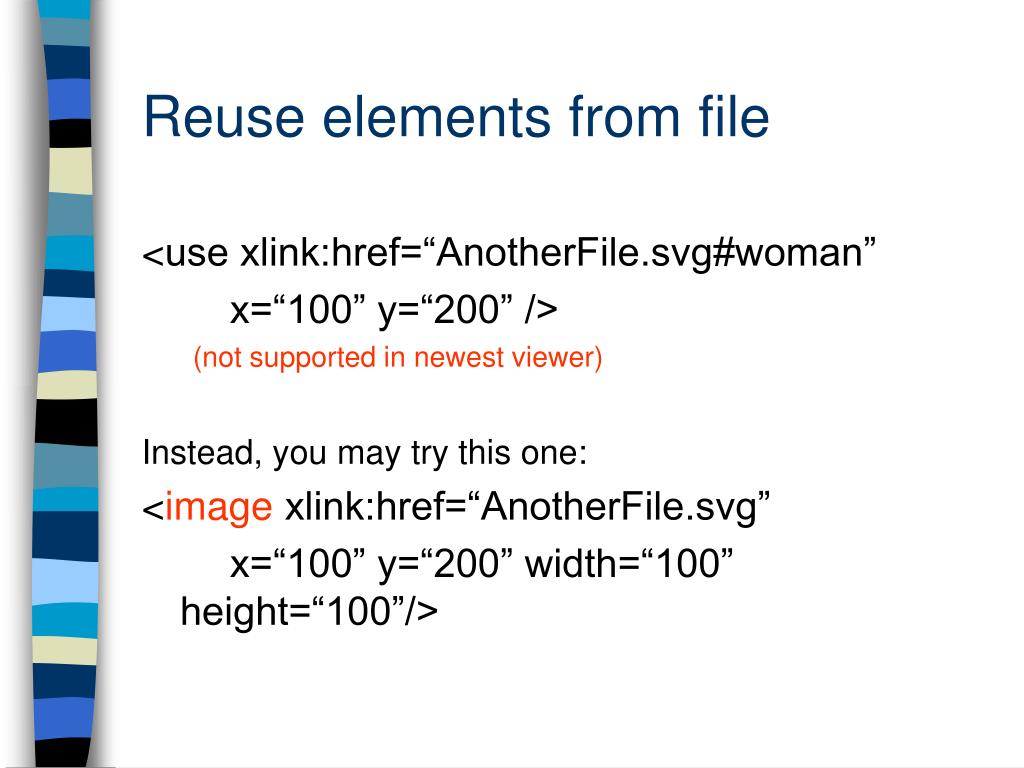

  16. Reuse elements from file <use xlink:href=“AnotherFile.svg#woman” x=“100” y=“200” /> (not supported in newest viewer) Instead, you may try this one: <image xlink:href=“AnotherFile.svg” x=“100” y=“200” width=“100” height=“100”/>

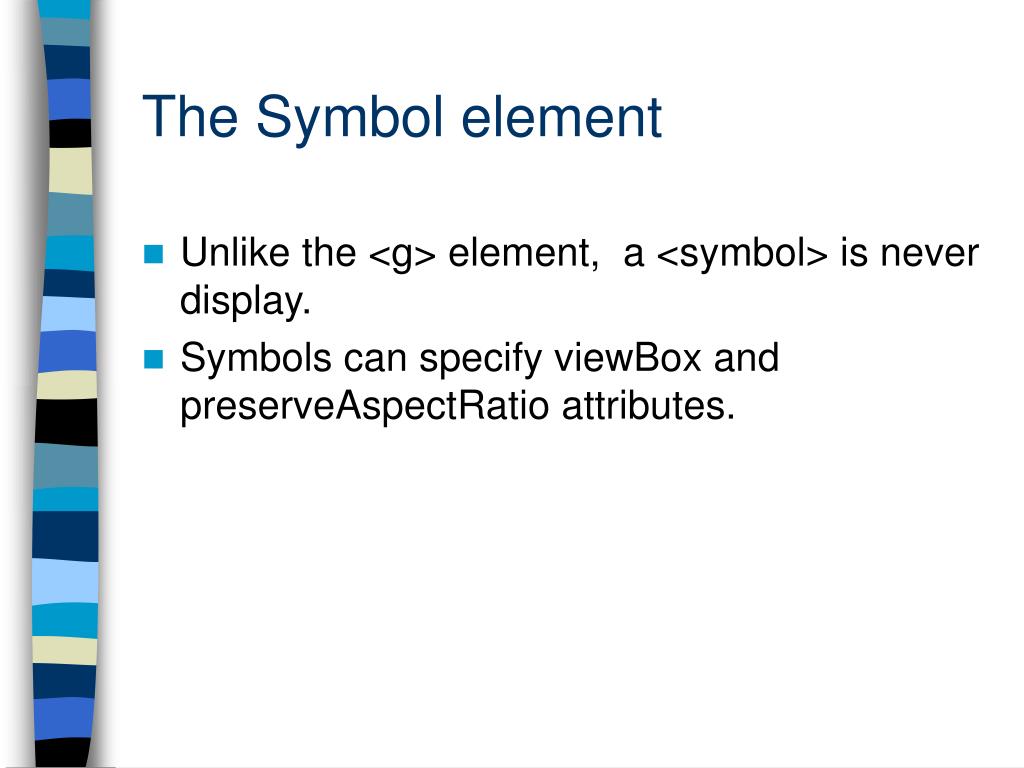

  17. The Symbol element • Unlike the <g> element, a <symbol> is never display. • Symbols can specify viewBox and preserveAspectRatio attributes.

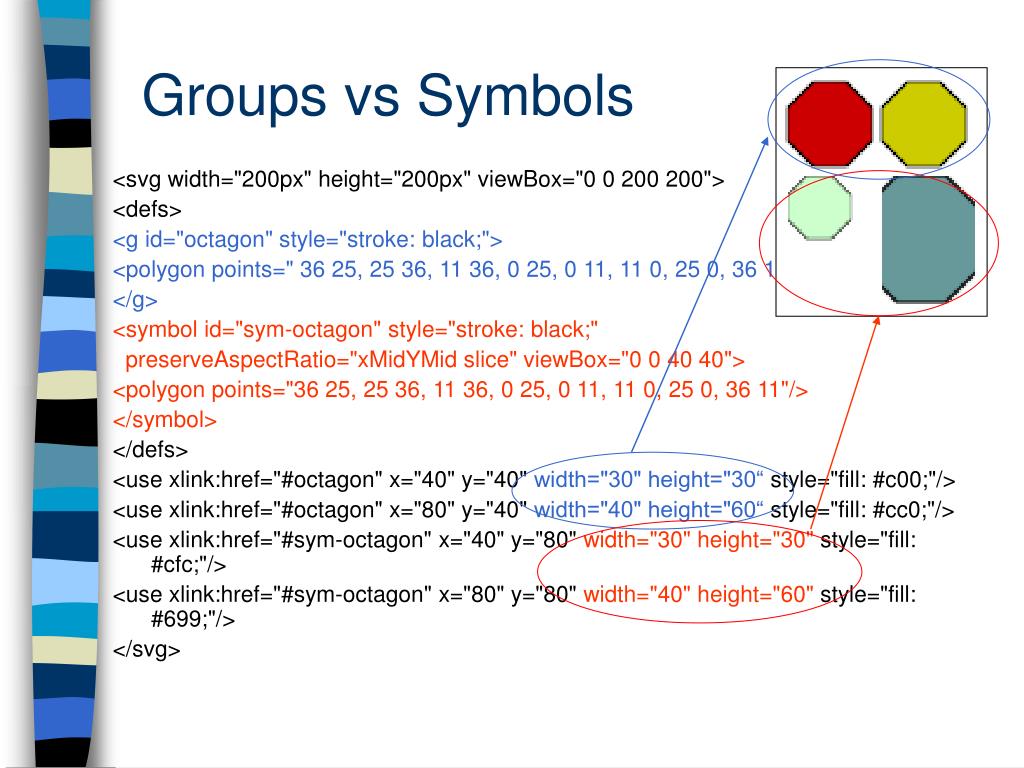

  18. Groups vs Symbols <svg width="200px" height="200px" viewBox="0 0 200 200"> <defs> <g id="octagon" style="stroke: black;"> <polygon points=" 36 25, 25 36, 11 36, 0 25, 0 11, 11 0, 25 0, 36 11"/> </g> <symbol id="sym-octagon" style="stroke: black;" preserveAspectRatio="xMidYMid slice" viewBox="0 0 40 40"> <polygon points="36 25, 25 36, 11 36, 0 25, 0 11, 11 0, 25 0, 36 11"/> </symbol> </defs> <use xlink:href="#octagon" x="40" y="40" width="30" height="30“ style="fill: #c00;"/> <use xlink:href="#octagon" x="80" y="40" width="40" height="60“ style="fill: #cc0;"/> <use xlink:href="#sym-octagon" x="40" y="80" width="30" height="30" style="fill: #cfc;"/> <use xlink:href="#sym-octagon" x="80" y="80" width="40" height="60" style="fill: #699;"/> </svg>

  19. The imageelement(1) • The <image> indicates that the contents of a complete file are to be rendered into a given rectangle within the current user coordinate system • The <image> can refer to raster image files such as PNG or JPEG or to an SVG file. • Main attributes: “x”, “y”, “width”, “height” and “xlink:href”

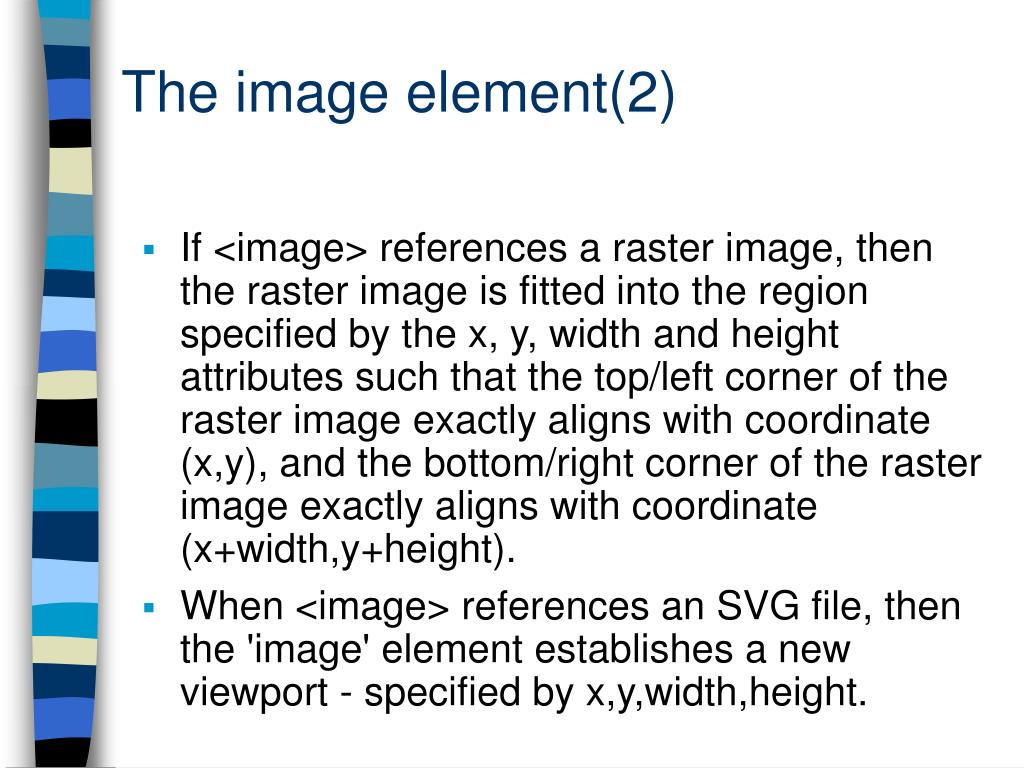

  20. The imageelement(2) • If <image> references a raster image, then the raster image is fitted into the region specified by the x, y, width and height attributes such that the top/left corner of the raster image exactly aligns with coordinate (x,y), and the bottom/right corner of the raster image exactly aligns with coordinate (x+width,y+height). • When <image> references an SVG file, then the 'image' element establishes a new viewport - specified by x,y,width,height.

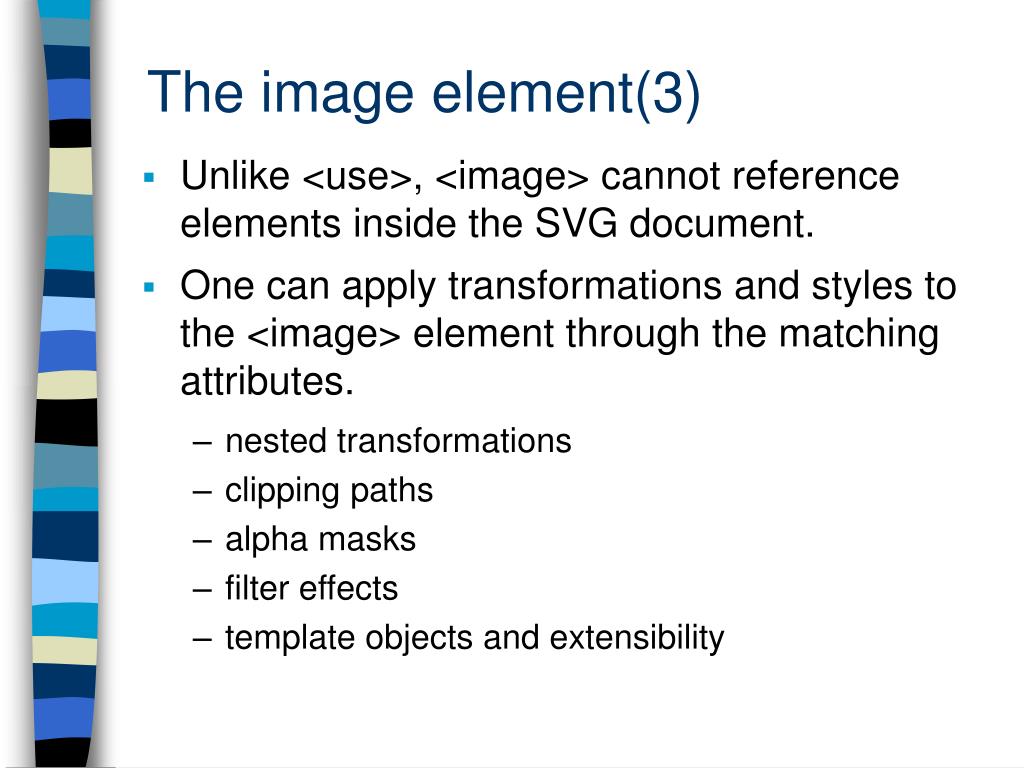

  21. The imageelement(3) • Unlike <use>, <image> cannot reference elements inside the SVG document. • One can apply transformations and styles to the <image> element through the matching attributes. • nested transformations • clipping paths • alpha masks • filter effects • template objects and extensibility

  22. Include a JPEG image with SVG (72,92)

  23. Include a JPEG image with SVG <svg width="310px" height="310px" viewBox="0 0 310 310"> <ellipse cx="154" cy="154" rx="150" ry="120" style="fill: #999999;"/> <ellipse cx="152" cy="152" rx="150" ry="120" style="fill: #cceeff;"/> <image xlink:href="kwanghwamun.jpg" x="72" y="92" width="160" height="120"/> </svg>

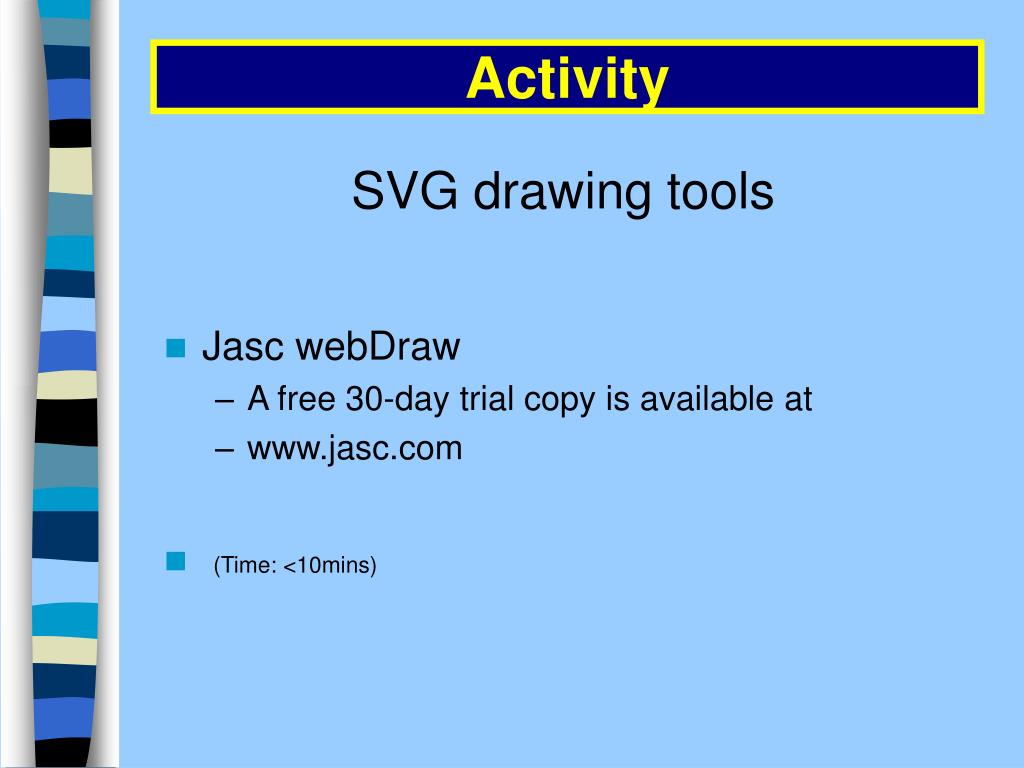

  24. Activity SVG drawing tools • Jasc webDraw • A free 30-day trial copy is available at • www.jasc.com • (Time: <10mins)

  25. Transformations(1) • A new user coordinate system can be established by specifying transformations in the form of a transform attribute on a group of graphical elements. • The transform attribute transforms all user space coordinates and lengths on the given element and all of its ancestors. • Transformations maybe nested and so have cummulative effect.

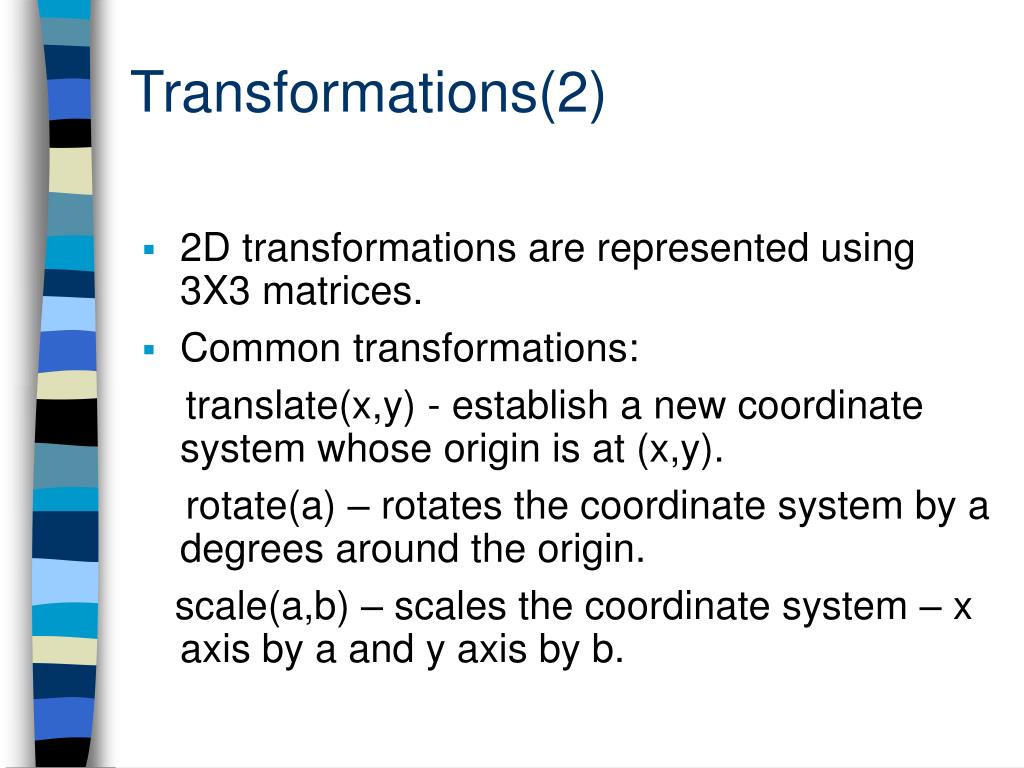

  26. Transformations(2) • 2D transformations are represented using 3X3 matrices. • Common transformations: translate(x,y) - establish a new coordinate system whose origin is at (x,y). rotate(a) – rotates the coordinate system by a degrees around the origin. scale(a,b) – scales the coordinate system – x axis by a and y axis by b.

  27. Transformations(3) • Translation Matrix: • Rotation Matrix: • Scaling Matrix:

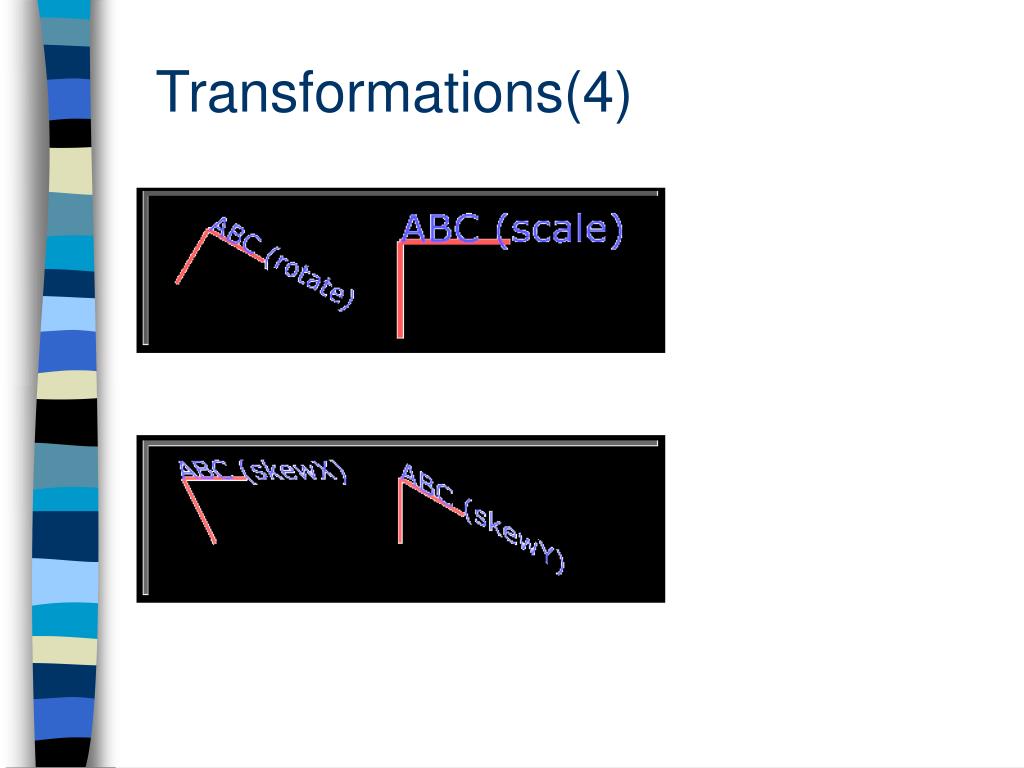

  28. Transformations(4)

  29. Transformations(5) • SVG allows both to apply transformations as translate, rotate, scale or to apply a detailed transformation matrix. • Transformations in SVG are applied by the ‘transform’ element.

  30. Linear Transformations <svg width="200px" height="200px" viewBox="0 0 200 200"> <g id="square"> <rect x="10" y="10" width="20" height="20" style="fill: none; stroke:black; stroke-width: 2;"/> </g> <use xlink:href="#square" transform="translate(50,50)"/> </svg>

  31. Scale Transformations (1) <svg width="300" height="300"> <g id="square"> <rect x="10" y="10" width="20" height="20" style="fill: none; stroke: black;"/> </g> <use xlink:href="#square" transform="scale(2)"/> </svg>

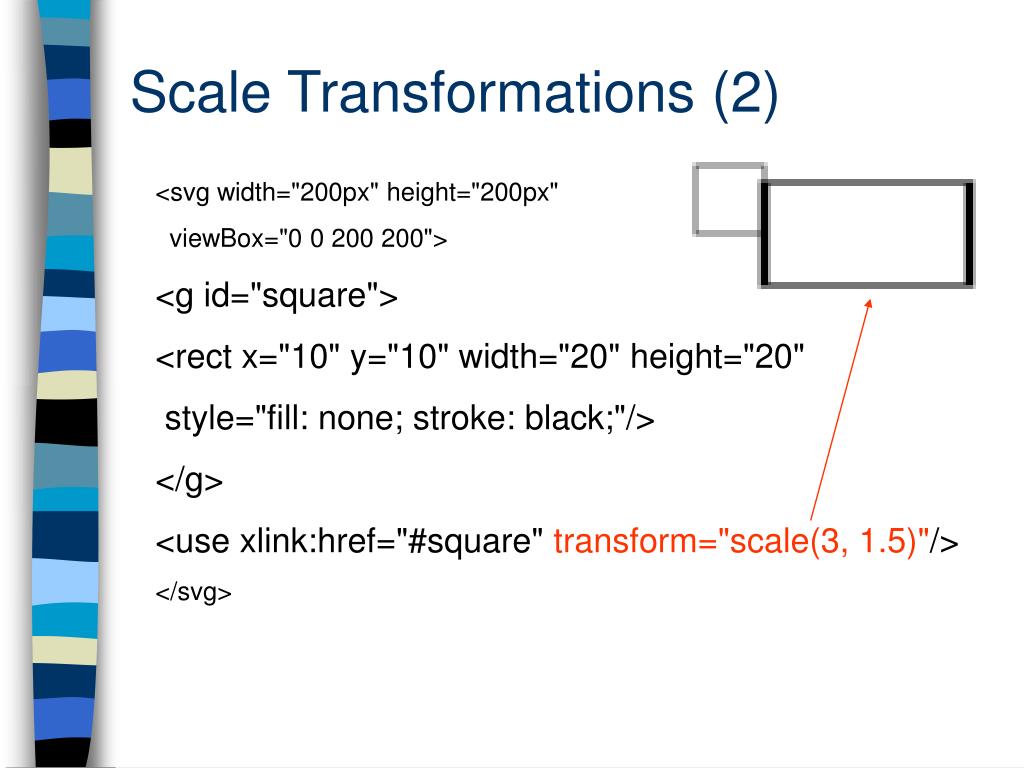

  32. Scale Transformations (2) <svg width="200px" height="200px" viewBox="0 0 200 200"> <g id="square"> <rect x="10" y="10" width="20" height="20" style="fill: none; stroke: black;"/> </g> <use xlink:href="#square" transform="scale(3, 1.5)"/> </svg>

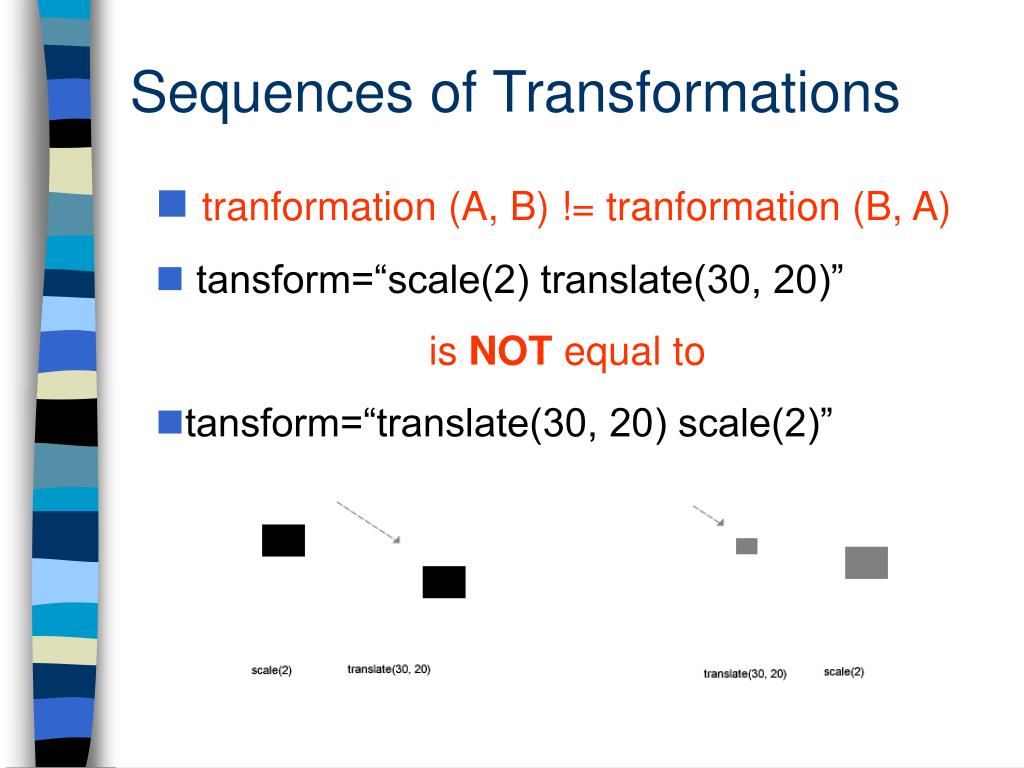

  33. Sequences of Transformations • tranformation (A, B) != tranformation (B, A) • tansform=“scale(2) translate(30, 20)” is NOT equal to • tansform=“translate(30, 20) scale(2)”

  34. Rotation Transformations Rotate the user coordinate by 45 degree. The center of rotation is the origin (0,0) transform=“rotate(45)” Rotate the user coordinate by 45 degree. The center of rotation is the origin (50,50) transform=“rotate(45, 50, 50 )”

  35. Rotation Transformations <svg width="200px" height="200px" viewBox="0 0 200 200"> <!-- axes --> <polyline points="100 0, 0 0, 0 100" style="stroke: black; fill: none;"/> <!-- normal and rotated square --> <rect x="70" y="30" width="20" height="20" style="fill: gray;"/> <rect x="70" y="30" width="20" height="20" transform="rotate(45)" style="fill: black;"/>; </svg>

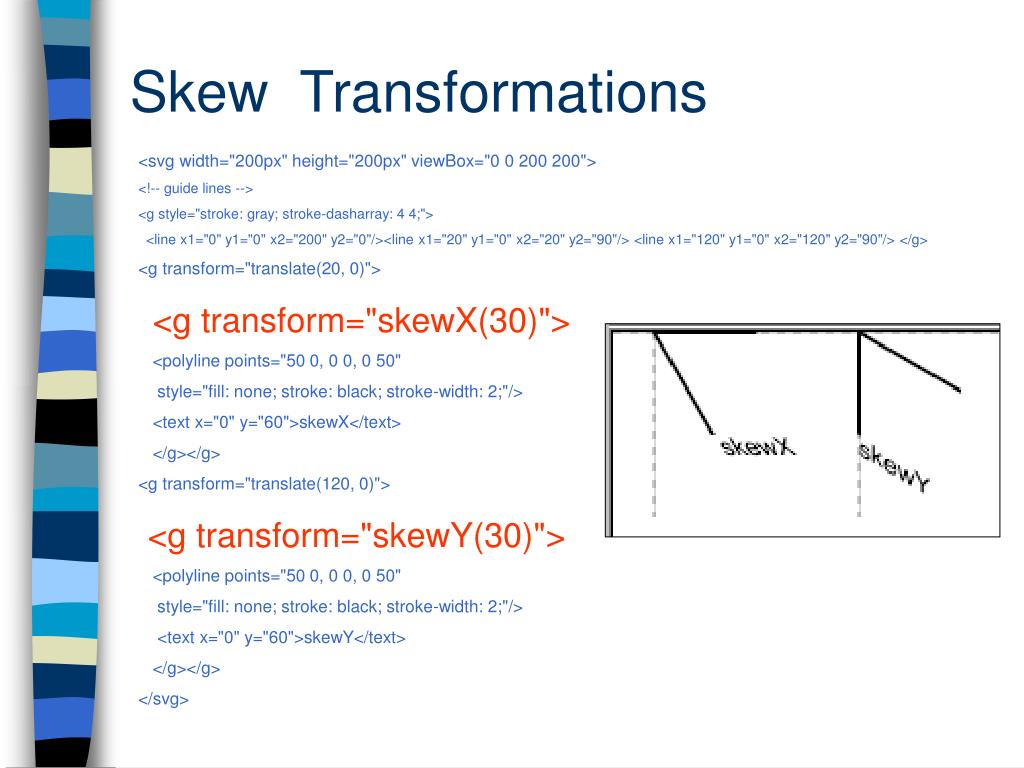

  36. Skew Transformations <svg width="200px" height="200px" viewBox="0 0 200 200"> <!-- guide lines --> <g style="stroke: gray; stroke-dasharray: 4 4;"> <line x1="0" y1="0" x2="200" y2="0"/><line x1="20" y1="0" x2="20" y2="90"/> <line x1="120" y1="0" x2="120" y2="90"/> </g> <g transform="translate(20, 0)"> <g transform="skewX(30)"> <polyline points="50 0, 0 0, 0 50" style="fill: none; stroke: black; stroke-width: 2;"/> <text x="0" y="60">skewX</text> </g></g> <g transform="translate(120, 0)"> <g transform="skewY(30)"> <polyline points="50 0, 0 0, 0 50" style="fill: none; stroke: black; stroke-width: 2;"/> <text x="0" y="60">skewY</text> </g></g> </svg>

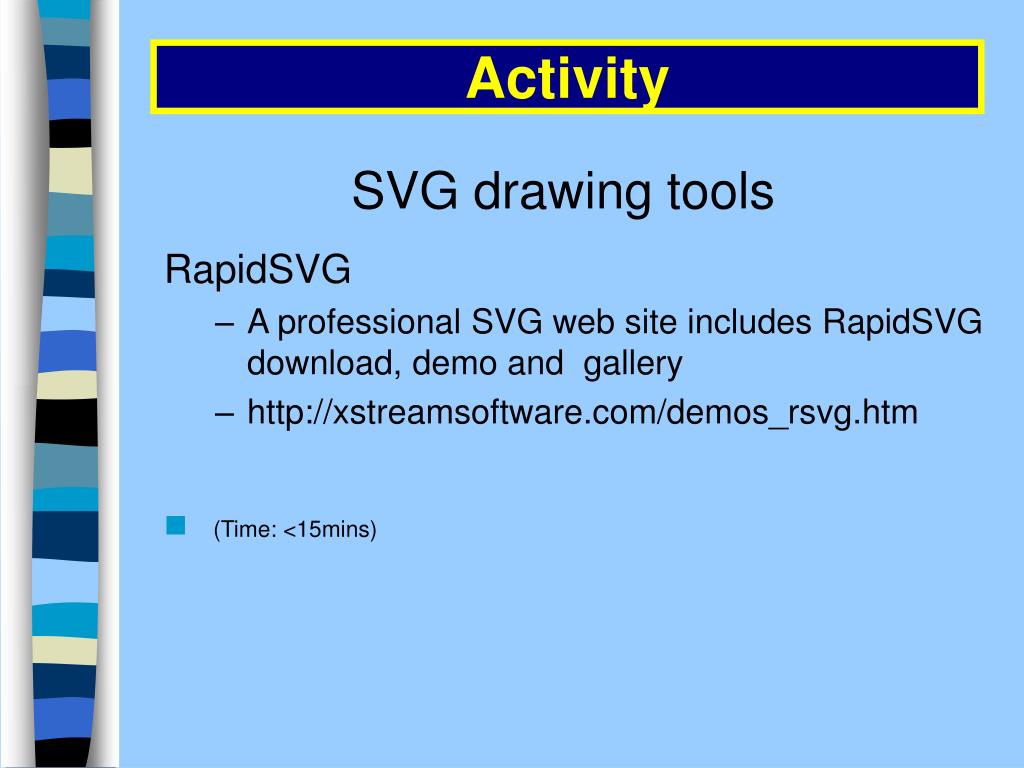

  37. Activity SVG drawing tools RapidSVG • A professional SVG web site includes RapidSVG download, demo and gallery • http://xstreamsoftware.com/demos_rsvg.htm • (Time: <15mins)

  38. Paths(1) • Paths represent the outline of a shape which can be filled, stroked, used as a clipping path, or any combination of the three. • Paths are described by a set of points. • The geometry of the path is defined in terms of moveto (M m) , lineto (L l), and closepath (Z). • Path is represented in SVG by the ‘path’ element.

  39. Paths(2) • <svg width="4cm" height="4cm" viewBox="0 0 400 400"> <rect x="1" y="1" width="398" height="398" style="fill:none; stroke:blue"/> <path d="M 100 100 L 300 100 L 200 300 z" style="fill:red; stroke:blue; stroke-width:3"/> </svg>

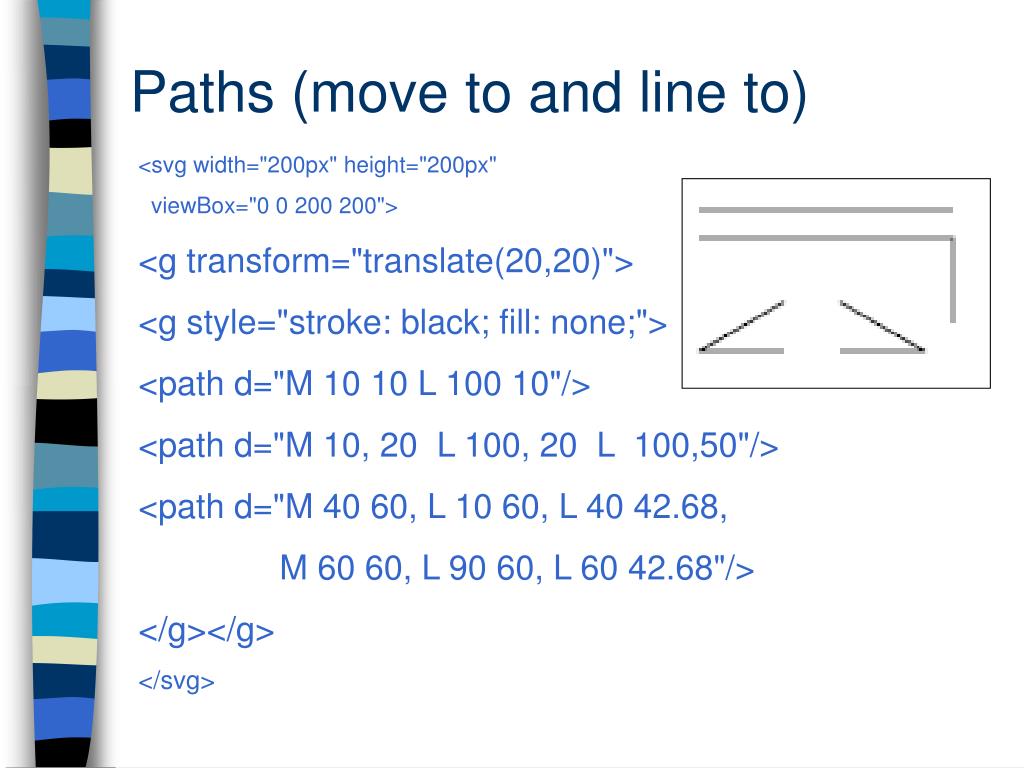

  40. Paths (move to and line to) <svg width="200px" height="200px" viewBox="0 0 200 200"> <g transform="translate(20,20)"> <g style="stroke: black; fill: none;"> <path d="M 10 10 L 100 10"/> <path d="M 10, 20 L 100, 20 L 100,50"/> <path d="M 40 60, L 10 60, L 40 42.68, M 60 60, L 90 60, L 60 42.68"/> </g></g> </svg>

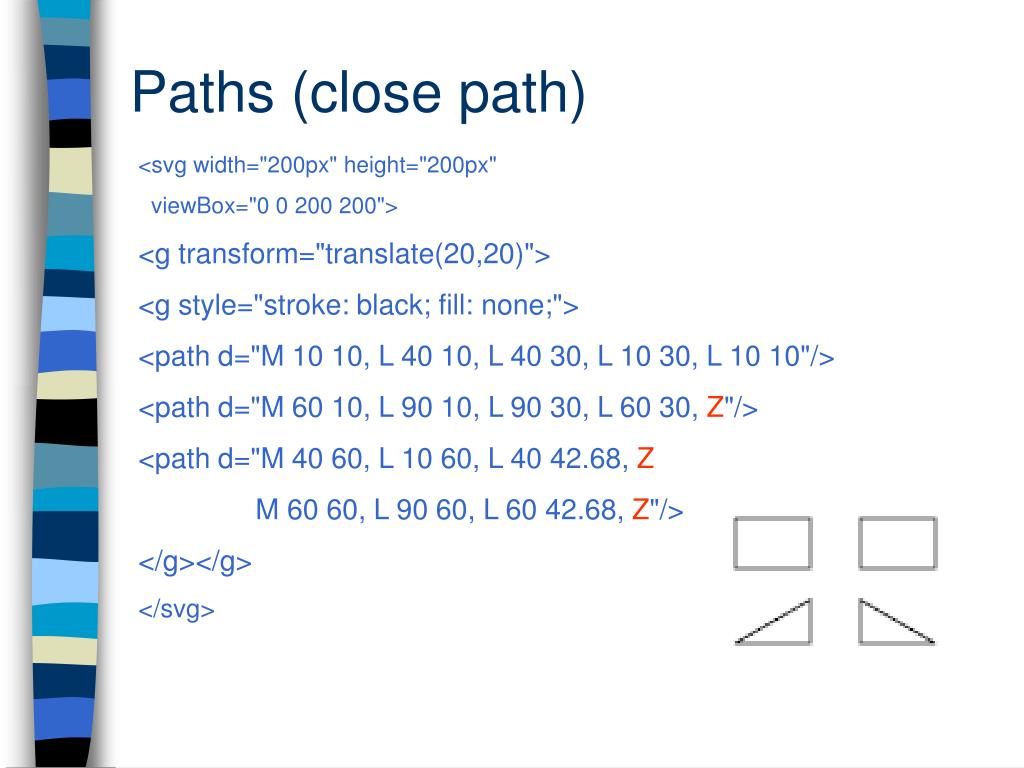

  41. Paths (close path) <svg width="200px" height="200px" viewBox="0 0 200 200"> <g transform="translate(20,20)"> <g style="stroke: black; fill: none;"> <path d="M 10 10, L 40 10, L 40 30, L 10 30, L 10 10"/> <path d="M 60 10, L 90 10, L 90 30, L 60 30, Z"/> <path d="M 40 60, L 10 60, L 40 42.68, Z M 60 60, L 90 60, L 60 42.68, Z"/> </g></g> </svg>

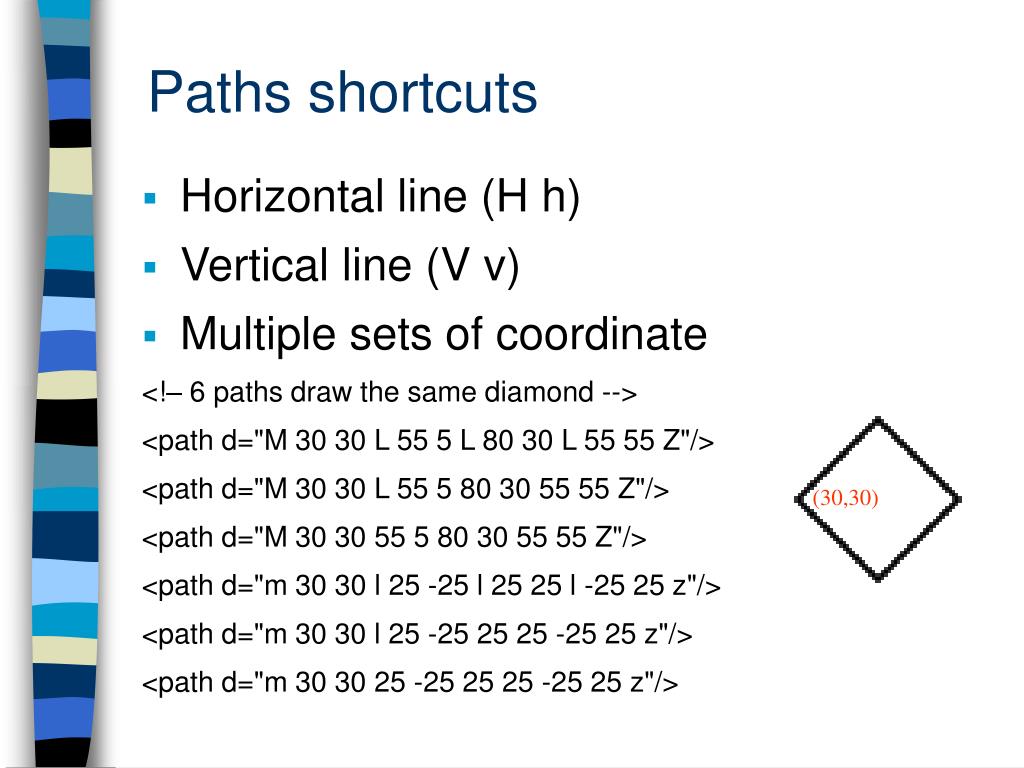

  42. Paths shortcuts • Horizontal line (H h) • Vertical line (V v) • Multiple sets of coordinate <!– 6 paths draw the same diamond --> <path d="M 30 30 L 55 5 L 80 30 L 55 55 Z"/> <path d="M 30 30 L 55 5 80 30 55 55 Z"/> <path d="M 30 30 55 5 80 30 55 55 Z"/> <path d="m 30 30 l 25 -25 l 25 25 l -25 25 z"/> <path d="m 30 30 l 25 -25 25 25 -25 25 z"/> <path d="m 30 30 25 -25 25 25 -25 25 z"/> (30,30)

  43. Elliptical Arc • Specify the elliptical Arc: • (a) x- y-radii two point two possible ellipse • (b) two arcs < 180 degree; • (c) two arcs > 180 degree, • (d) drawn in the direction of incresing negative angle • (e) drawn in the direction of incresing postive angle • (f) x-axis-rotation of ellipse

  44. Elliptical Arc • the paths used to draw the elliptical arcs in section (b) to (e) <path d="M 125, 75 A100,50 0 0,0 225, 125"/><!– b --> <path d="M 125, 75 A100,50 0 0,1 225, 125"/><!– c --> <path d="M 125, 75 A100,50 0 1,0 225, 125"/><!– d --> <path d="M 125, 75 A100,50 0 1,1 225, 125"/><!– e -->

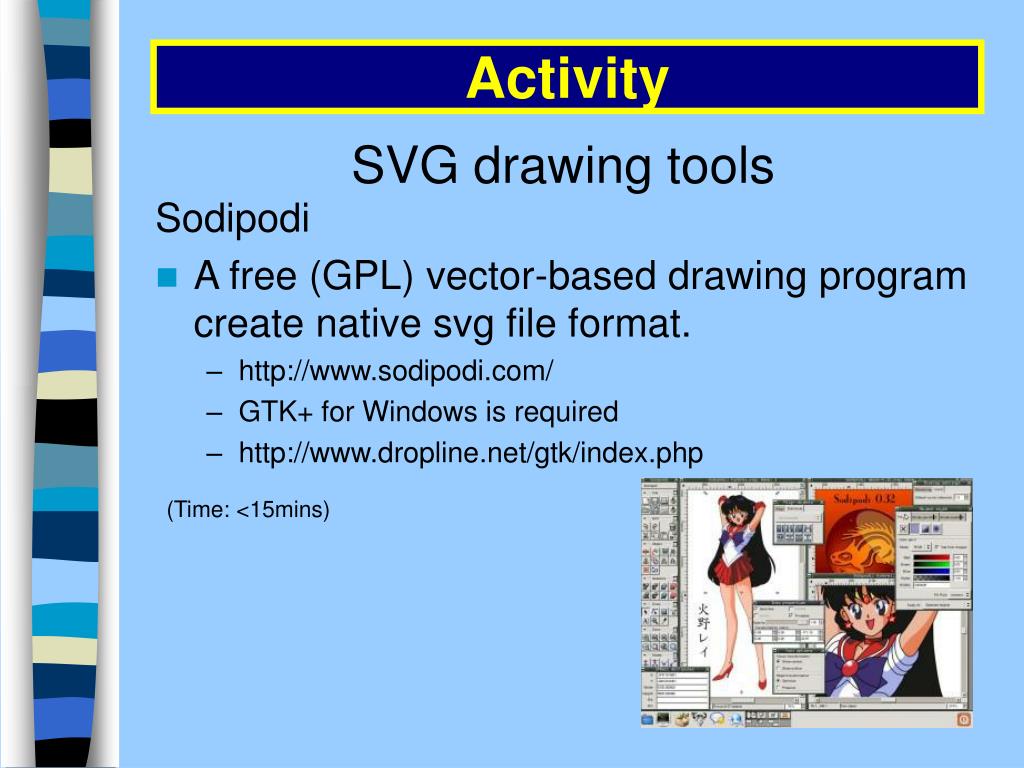

  45. Activity SVG drawing tools Sodipodi • A free (GPL) vector-based drawing program create native svg file format. • http://www.sodipodi.com/ • GTK+ for Windows is required • http://www.dropline.net/gtk/index.php (Time: <15mins)

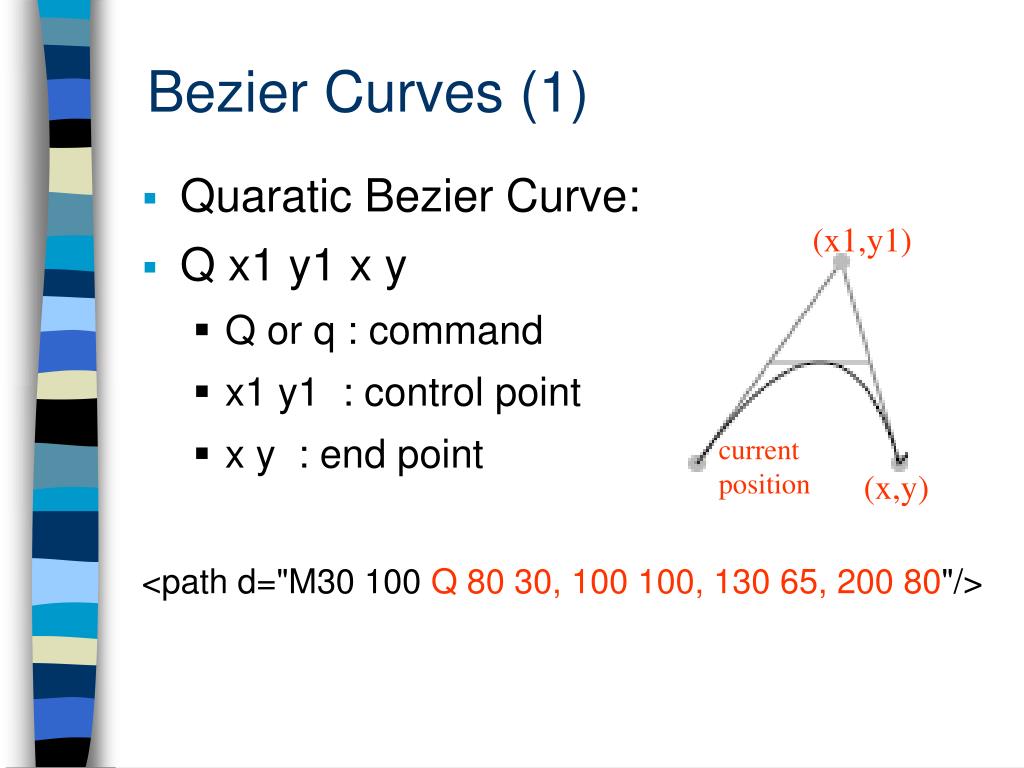

  46. (x1,y1) current position (x,y) Bezier Curves (1) • Quaratic Bezier Curve: • Q x1 y1 x y • Q or q : command • x1 y1 : control point • x y : end point <path d="M30 100 Q 80 30, 100 100, 130 65, 200 80"/>

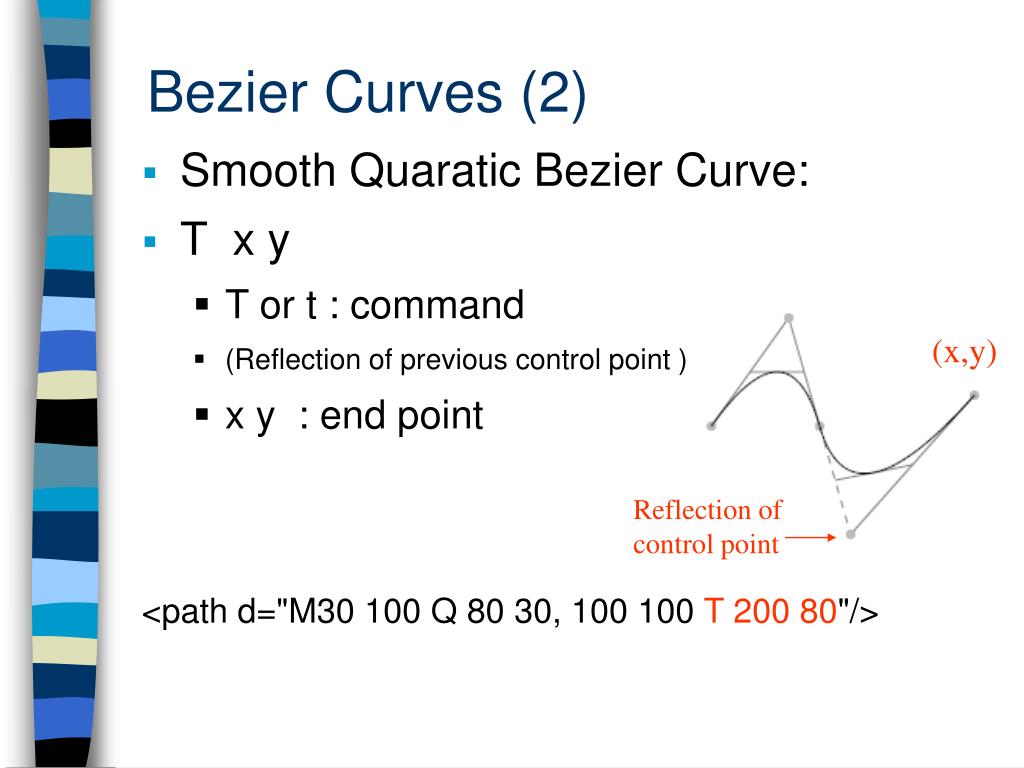

  47. (x,y) Reflection of control point Bezier Curves (2) • Smooth Quaratic Bezier Curve: • T x y • T or t : command • (Reflection of previous control point ) • x y : end point <path d="M30 100 Q 80 30, 100 100 T 200 80"/>

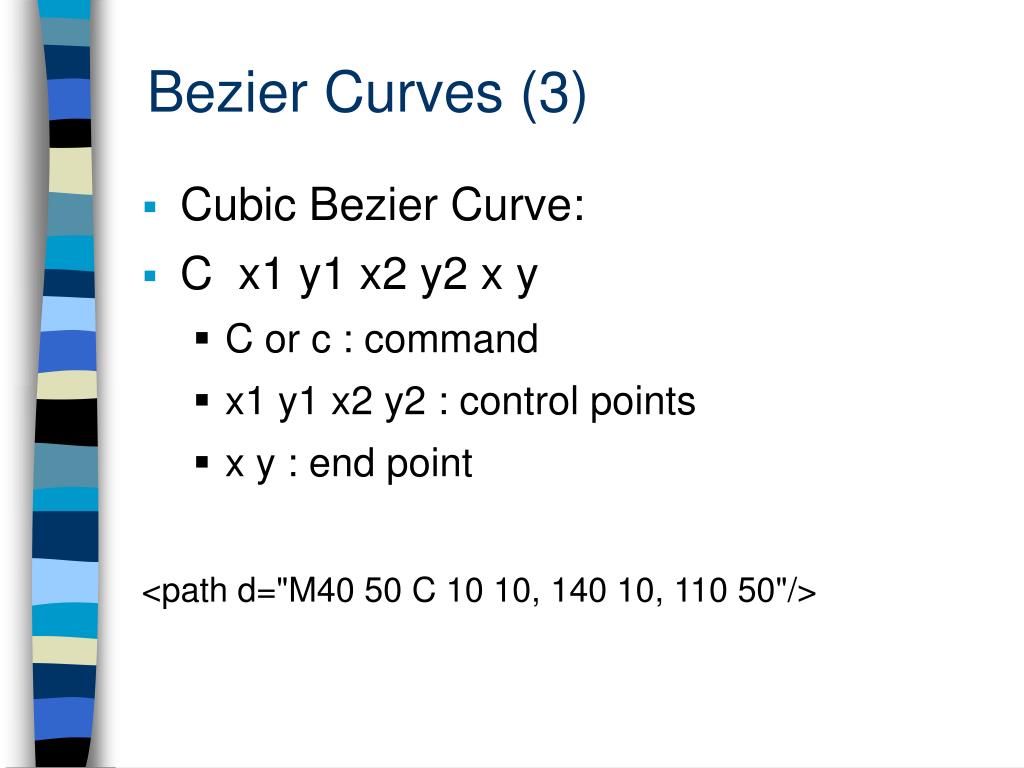

  48. Bezier Curves (3) • Cubic Bezier Curve: • C x1 y1 x2 y2 x y • C or c : command • x1 y1 x2 y2 : control points • x y : end point <path d="M40 50 C 10 10, 140 10, 110 50"/>
