1 H NMR Interpretation Using the NMR Mosaic

1 H NMR Interpretation Using the NMR Mosaic. Each peak represents a fragment of the molecule. Peak carries three critical pieces of information Integration : how many hydrogens on that fragment Chemical shift : functional group on or next to the fragment

snow
Télécharger la présentation

1 H NMR Interpretation Using the NMR Mosaic

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1H NMR Interpretation Using the NMR Mosaic

  2. Each peak represents a fragment of the molecule Peak carries three critical pieces of information • Integration: how many hydrogens on that fragment • Chemical shift: functional group on or next to the fragment • Multiplicity: how many next-door hydrogens

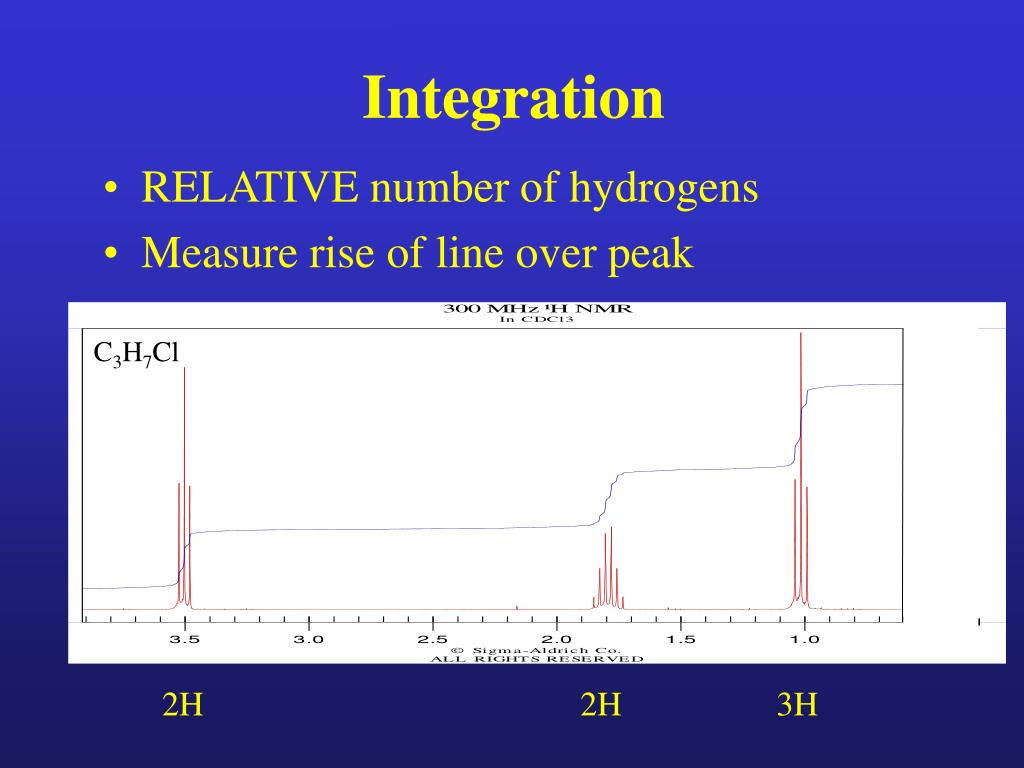

  3. Integration • RELATIVE number of hydrogens • Measure rise of line over peak C3H7Cl 2H 2H 3H

  4. Chemical Shifts • Functional groups on or next to fragment OH, NH Alkene Carboxylic acid hydrogen Adjacent to Oxygen Adjacent to Cl, Br, I Aldehyde hydrogen Adjacent to double bond Alkane-like Aromatic

  5. Chemical Shifts C3H7Cl Next to Cl Alkane-like

  6. Multiplicity (Splitting) • NEIGHBOR hydrogens = number of peaks -1

  7. Multiplicity (Splitting) 3 peaks (triplet) 2 neighbor H’s (probably CH2) 3 peaks (triplet) 2 neighbor H’s (CH2) 6 peaks (hextet) 5 H’s (CH3 & CH2)

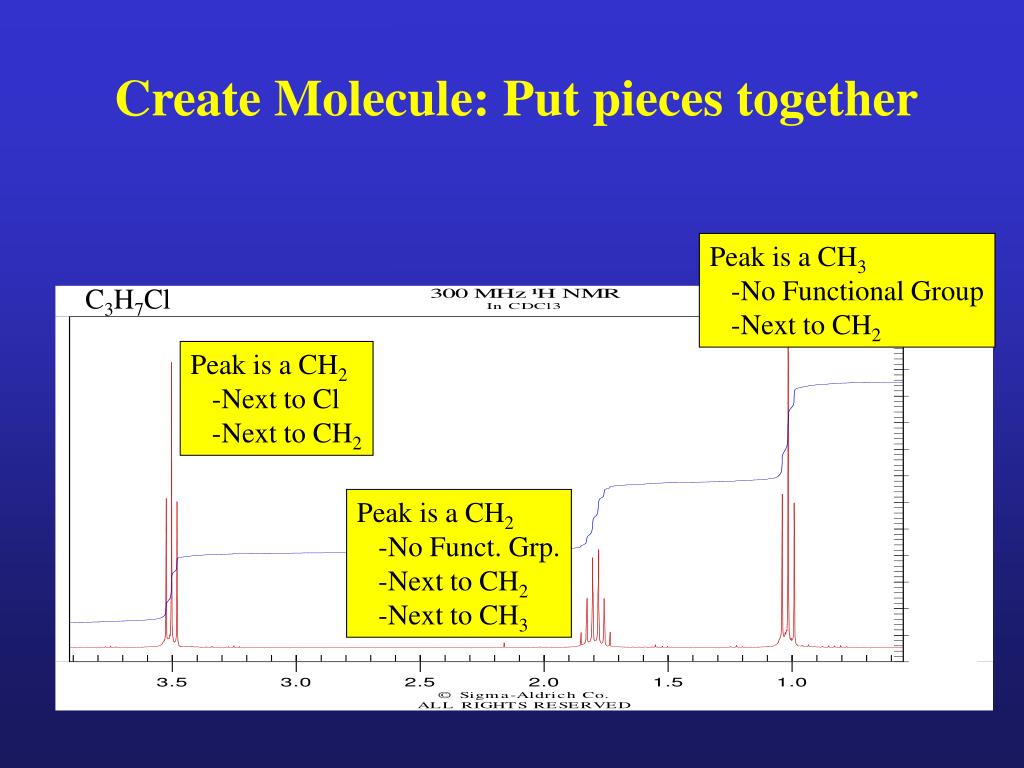

  8. Create Molecule: Put pieces together Peak is a CH3 -No Functional Group -Next to CH2 C3H7Cl Peak is a CH2 -Next to Cl -Next to CH2 Peak is a CH2 -No Funct. Grp. -Next to CH2 -Next to CH3

  9. The NMR Mosaic can help • Reminds you to use integration AND chemical shift AND multiplicity • Helps you visualize how the pieces fit together • Helps you recognize mistakes in interpretation • Helps you interpret complex splitting

  10. Steps for Solving 1H NMR Spectra • Calculate integration for each peak • #H = peak integration x (total # H’s / total integration) • Smallest peak is often 1H • Peaks ~1d are often 3H (methyl) • Determine number of adjacent hydrogens from splitting • - Number of peaks = n+1, where n = number of adjacent • hydrogens • - Attach appropriate static cling(s) • Determine presence of functional group(s) • - Attach functional group static cling(s) • - Choose functional group Mosaic piece(s)

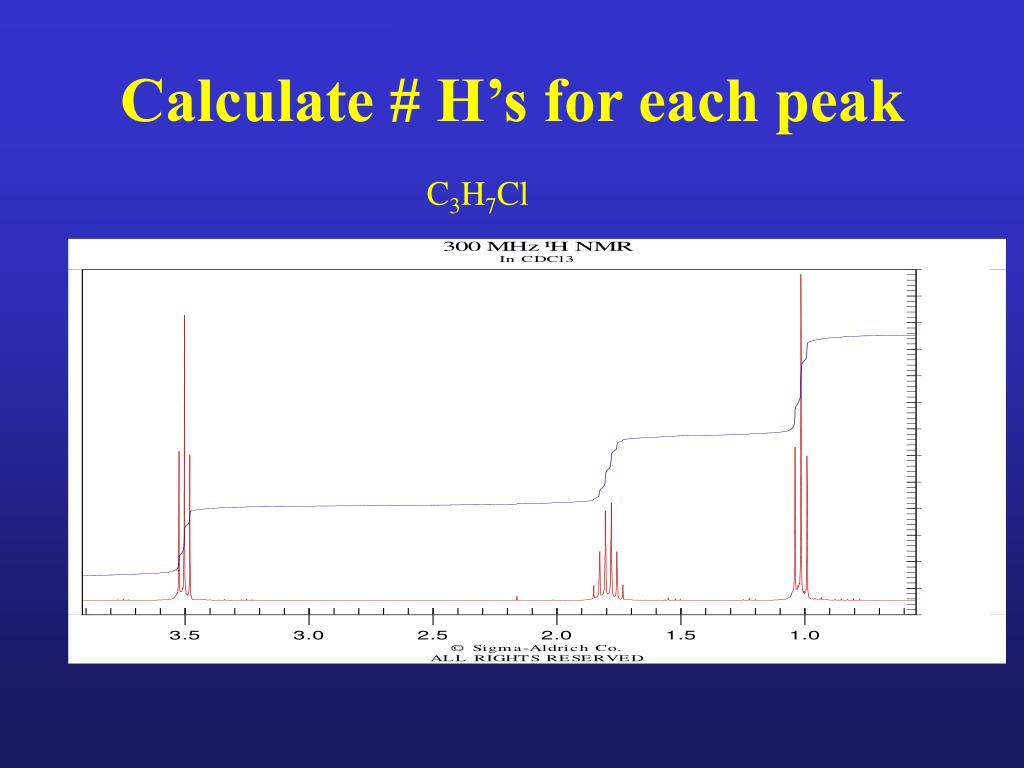

  11. Calculate # H’s for each peak C3H7Cl

  12. Calculate # H’s for each peak C3H7Cl 2H 2H 3H

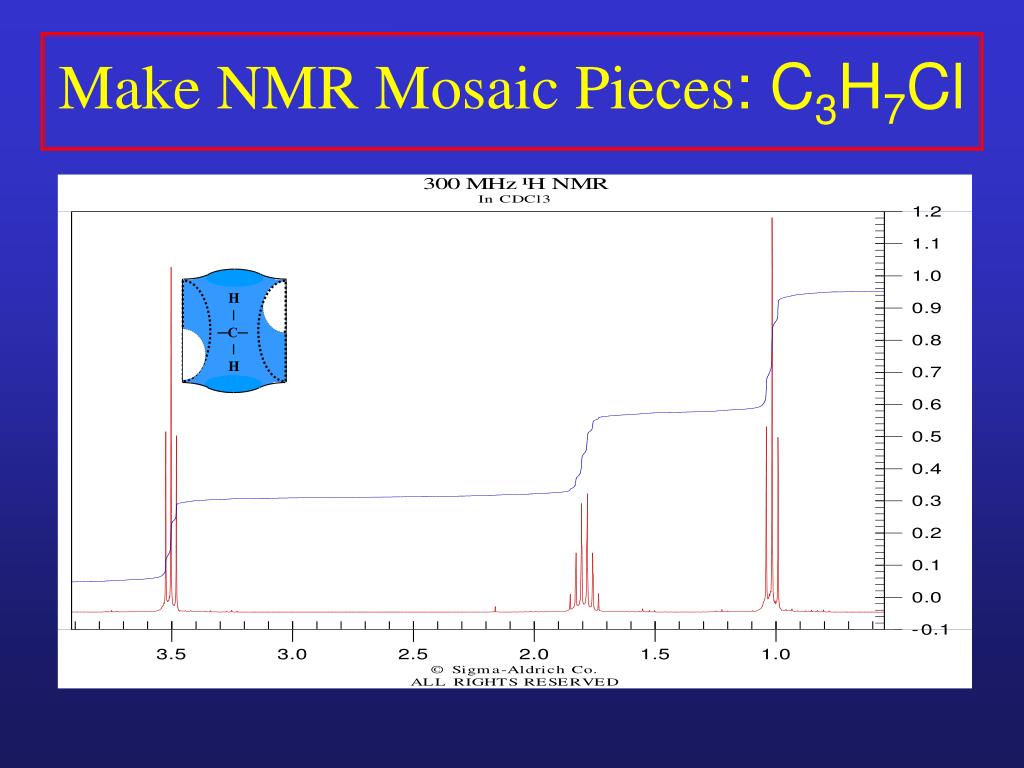

  13. H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl

  14. CH2 H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl

  15. CH2 Funct. Grp. H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl

  16. CH2 Funct. Grp. H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl X-

  17. CH2 Funct. Grp. H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl X- H | ─C─ | H

  18. CH2 Funct. Grp. H | ─C─ | H Make NMR Mosaic Pieces: C3H7Cl X- H | ─C─ | H CH3

  19. H | ─C─ | H CH2 H | ─C─ | H Funct. Grp. CH3 CH2 Make NMR Mosaic Pieces: C3H7Cl X-

  20. H | ─C─ | H CH2 H | ─C─ | H Funct. Grp. CH3 CH2 Make NMR Mosaic Pieces: C3H7Cl H | H─C─ | H X-

  21. H | ─C─ | H CH2 H | ─C─ | H Funct. Grp. CH3 CH2 H | H─C─ | H CH2 Make NMR Mosaic Pieces: C3H7Cl X-

  22. Fit pieces together Great! Errors. Great! Error.

  23. H | ─C─ | H CH2 H | ─C─ | H Funct. Grp. CH3 CH2 H | H─C─ | H CH2 Make NMR Mosaic Pieces: C3H7Cl X- 1-chloropropane

  24. C6H12O2

  25. ─O ─ Funct. Grp. CH H | ─C─ | H C6H12O2

  26. O || ─ C ─ ─O ─ Funct. Grp. Funct. Grp. H | H─C─ | H CH H | ─C─ | H C6H12O2

  27. CH2 CH3 O || ─ C ─ H | ─C─ | ─O ─ Funct. Grp. Funct. Grp. CH3 H | H─C─ | H CH H | ─C─ | H C6H12O2

  28. CH2 CH3 H | H─C─ | H H | H─C─ | H O || ─ C ─ H | ─C─ | CH CH ─O ─ Funct. Grp. Funct. Grp. CH3 H | H─C─ | H CH H | ─C─ | H C6H12O2

  29. CH2 CH3 H | H─C─ | H H | H─C─ | H O || ─ C ─ H | ─C─ | CH CH ─O ─ Funct. Grp. Funct. Grp. CH3 H | H─C─ | H CH H | ─C─ | H C6H12O2: Isobutyl acetate Must Watch Chemical Shifts!

  30. C7H14O2

  31. H | ─C─ | ─O ─ Funct. Grp. CH3 CH3 C7H14O2

  32. O || ─ C ─ H | ─C─ | H H | ─C─ | ─O ─ Funct. Grp. Funct. Grp. CH2 CH3 CH3 C7H14O2

  33. O || ─ C ─ H | ─C─ | H H | ─C─ | H | ─C─ | H CH2 ─O ─ Funct. Grp. Funct. Grp. CH2 CH3 CH3 CH3 C7H14O2

  34. H | H─C─ | H H | H─C─ | H O || ─ C ─ H | ─C─ | H H | ─C─ | H | ─C─ | H CH CH CH2 ─O ─ Funct. Grp. Funct. Grp. CH2 CH3 CH3 CH3 C7H14O2 (2 of these)

  35. H | H─C─ | H H | H─C─ | H O || ─ C ─ H | ─C─ | H H | ─C─ | H | ─C─ | H CH CH CH2 ─O ─ Funct. Grp. Funct. Grp. CH2 CH3 CH3 CH3 H | H─C─ | H CH2 C7H14O2 (2 of these)

  36. H | H─C─ | H H | H─C─ | H O || ─ C ─ H | ─C─ | H H | ─C─ | H | ─C─ | H CH CH CH2 ─O ─ Funct. Grp. Funct. Grp. CH2 CH3 CH3 CH3 H | H─C─ | H CH2 C7H14O2: Isopropyl butyrate

  37. C6H11O2Cl

  38. H | ─C─ | H CH3 ─O ─ Funct. Grp. C6H12O2Cl

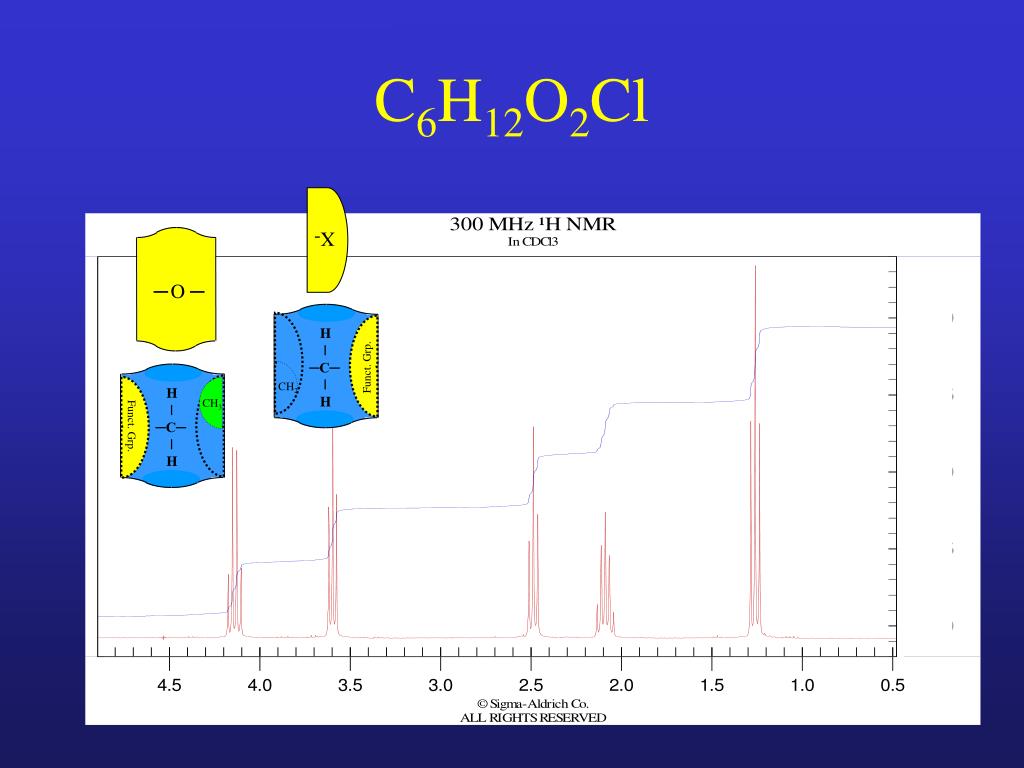

  39. H | ─C─ | H CH3 H | ─C─ | H ─O ─ Funct. Grp. Funct. Grp. CH2 C6H12O2Cl X-

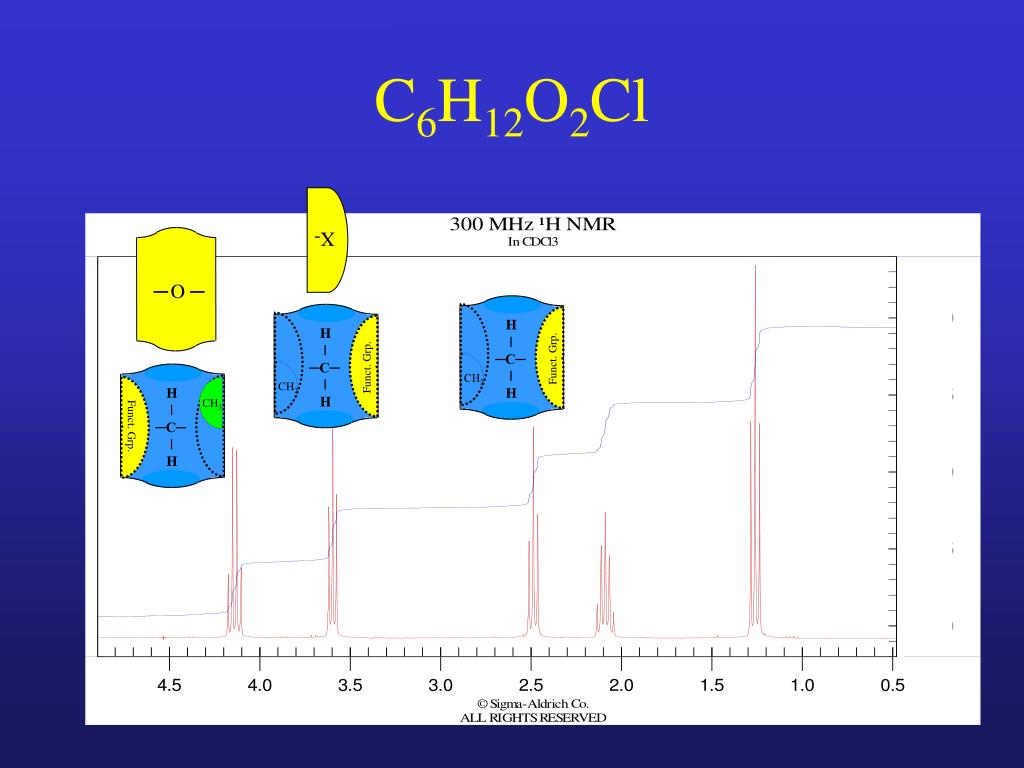

  40. H | ─C─ | H CH3 H | ─C─ | H H | ─C─ | H ─O ─ Funct. Grp. Funct. Grp. Funct. Grp. CH2 CH2 C6H12O2Cl X-

  41. H | ─C─ | H H | ─C─ | H CH2 CH3 H | ─C─ | H H | ─C─ | H ─O ─ Funct. Grp. Funct. Grp. Funct. Grp. CH2 CH2 CH2 C6H12O2Cl X-

  42. H | ─C─ | H H | ─C─ | H CH2 CH3 H | ─C─ | H H | ─C─ | H ─O ─ Funct. Grp. Funct. Grp. Funct. Grp. CH2 CH2 H | H─C─ | H CH2 CH2 C6H12O2Cl X-

  43. H | ─C─ | H H | ─C─ | H CH2 X- CH3 O || ─ C ─ H | ─C─ | H H | ─C─ | H ─O ─ Funct. Grp. Funct. Grp. Funct. Grp. CH2 CH2 H | H─C─ | H CH2 CH2 C6H12O2Cl: Ethyl 4-chlorobutyrate

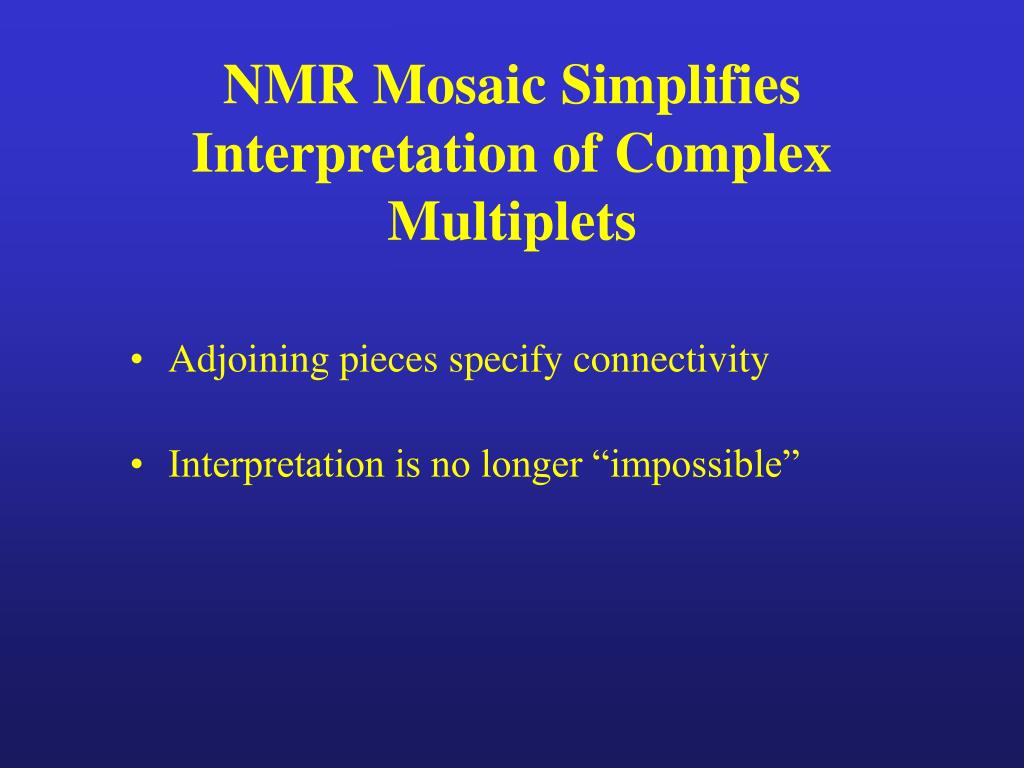

  44. NMR Mosaic Simplifies Interpretation of Complex Multiplets • Adjoining pieces specify connectivity • Interpretation is no longer “impossible”

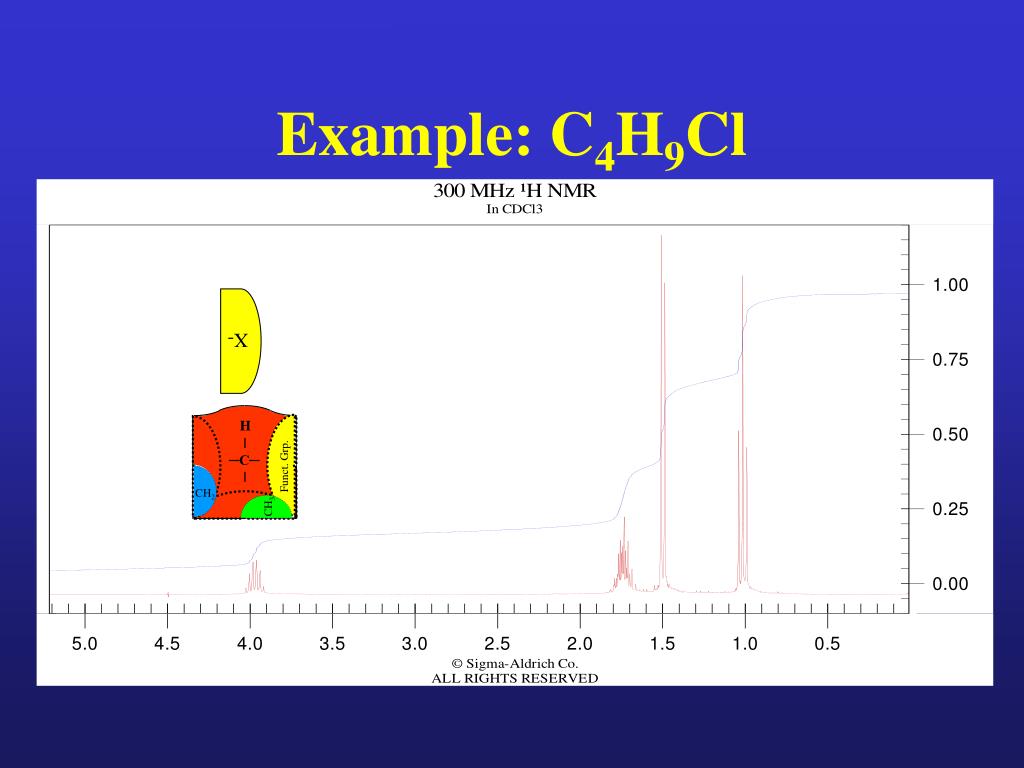

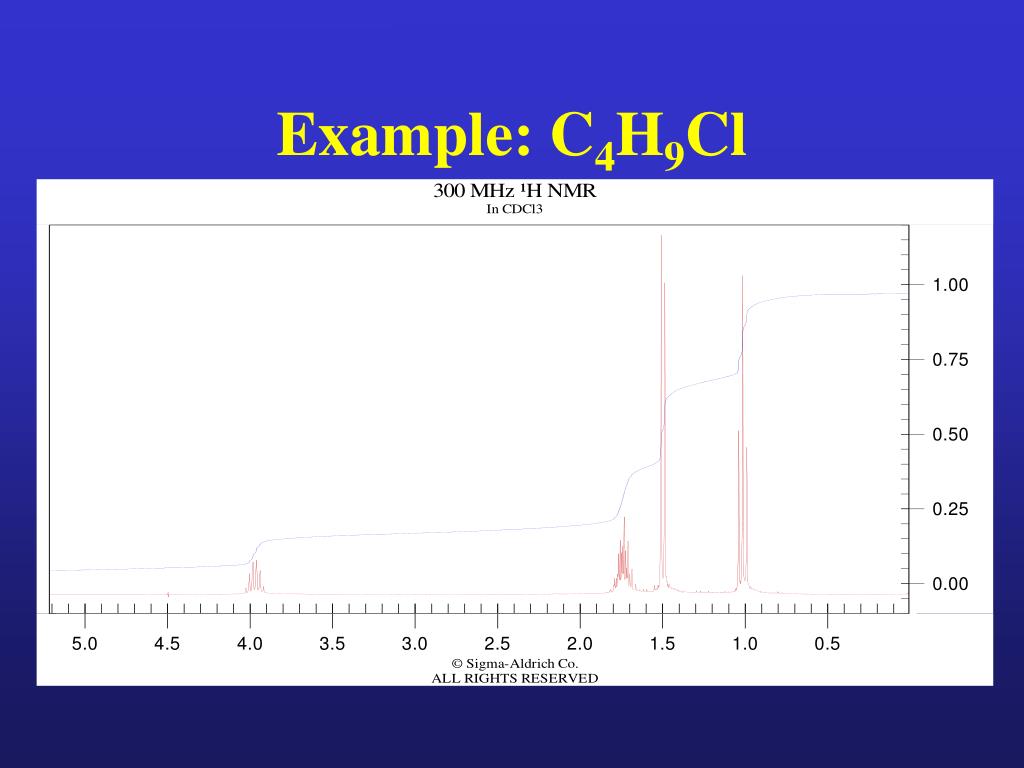

  45. Example: C4H9Cl

  46. CH2 H | ─C─ | Funct. Grp. CH3 Example: C4H9Cl X-

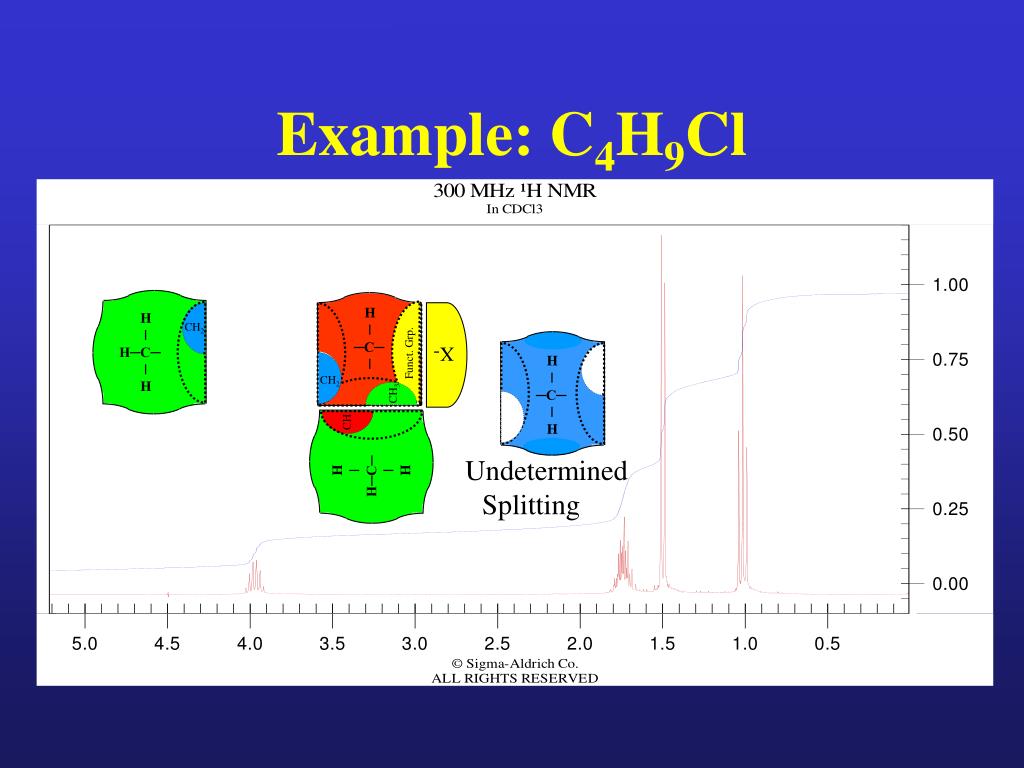

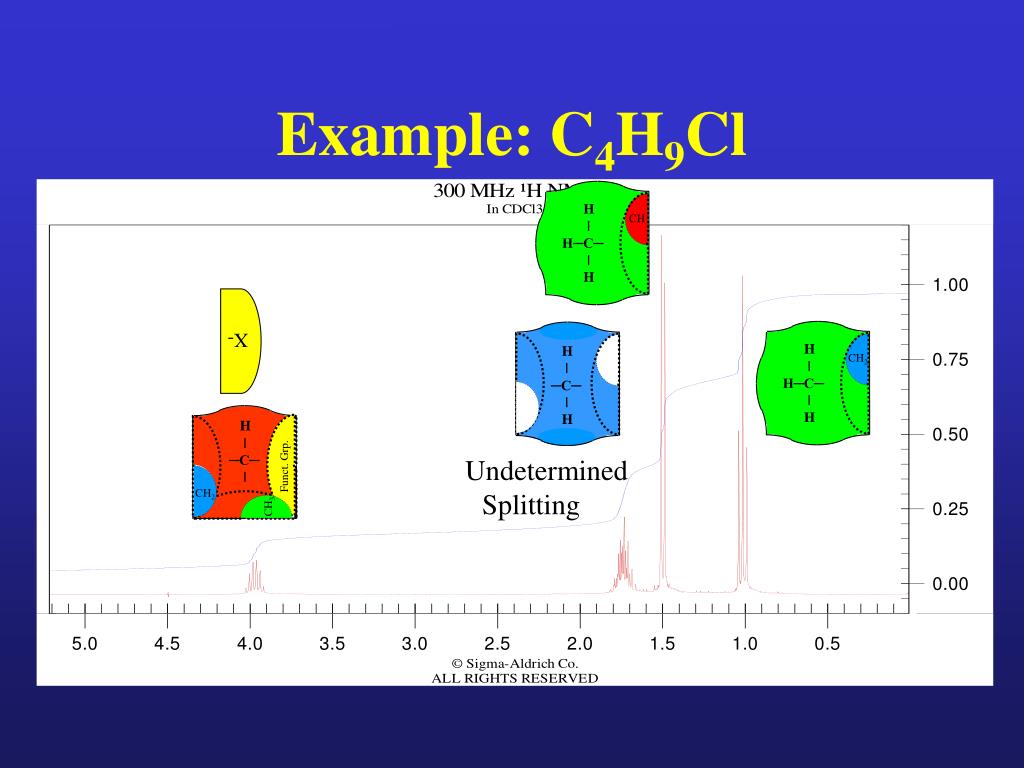

  47. H | ─C─ | H CH2 H | ─C─ | Funct. Grp. CH3 Example: C4H9Cl X- Undetermined Splitting
