  1. Z-stack MAC API & TI cc2530 platform introduction Speaker: 葉俊克 Date: 2010/11/16

  2. Outline • ZigBee Architecture • MAC Layer Operation Scenarios • Introduction to Platform(CC 2530ZDK) • Directory Hierarchy in Developing An Application • Demo Environment • Demo

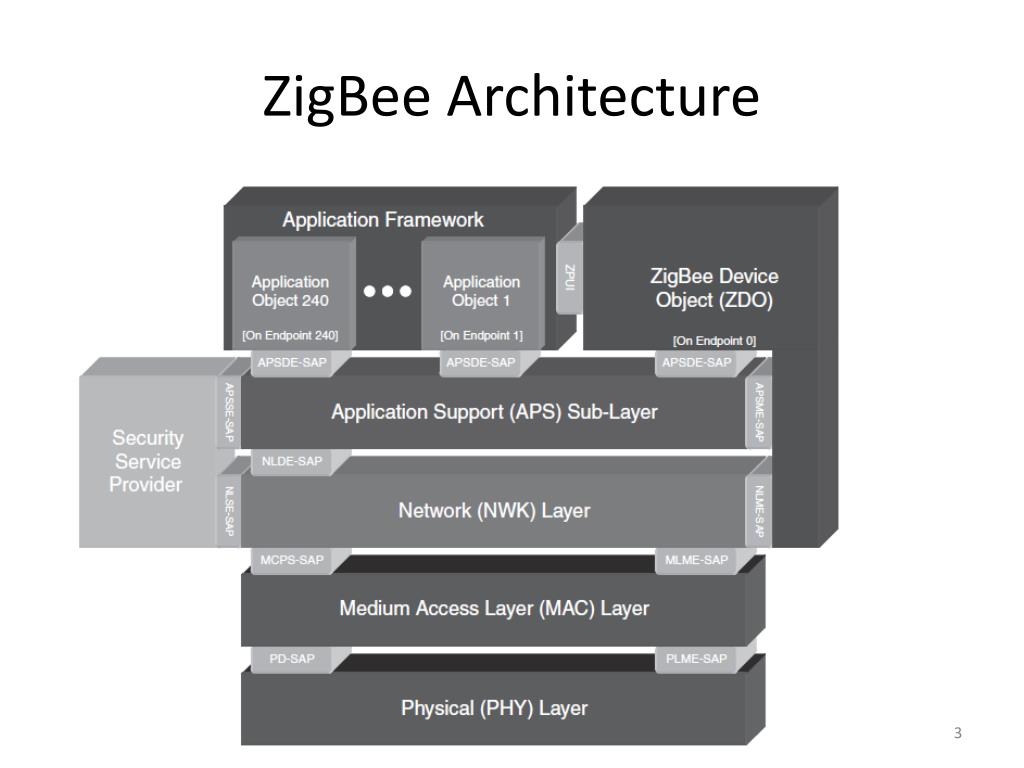

  3. ZigBee Architecture

  4. ZigBee Node Type • ZigBee Node Type : • Coordinator • Forms network • Routes packets • Security Trust Center • Allows nodes to join network • Router • Join network • Routes packets • Allows nodes to join network • End-Device • Join network • Battery operated and may sleep • Smallest code size

  5. MAC API

  6. MAC Layer Operation ScenariosNon Beacon-Enabled Network Start

  7. Non Beacon-enabled Network Scan and Associate

  8. MAC API (Con.)

  9. Beacon-Enabled Network Scan and Sync

  10. Orphan Procedure

  11. Direct Data Transactions

  12. Indirect Data Transactions, Data Poll and Purge

  13. Introduction to Platform • Devices of TI CC2530 ZDK (zigbee development kit): • 2 Collectors (SmartRF05EB Evaluation Boards) • 5 End-devices (SmartRF05 Battery Boards) • 7 CC2530EM Evaluation Modules • USB Dongle Antennas and batteries IAR EW8051 C-compiler with C-SPY debugger  • IAR Embedded Workbench for MCS-51 7.51A Evaluation

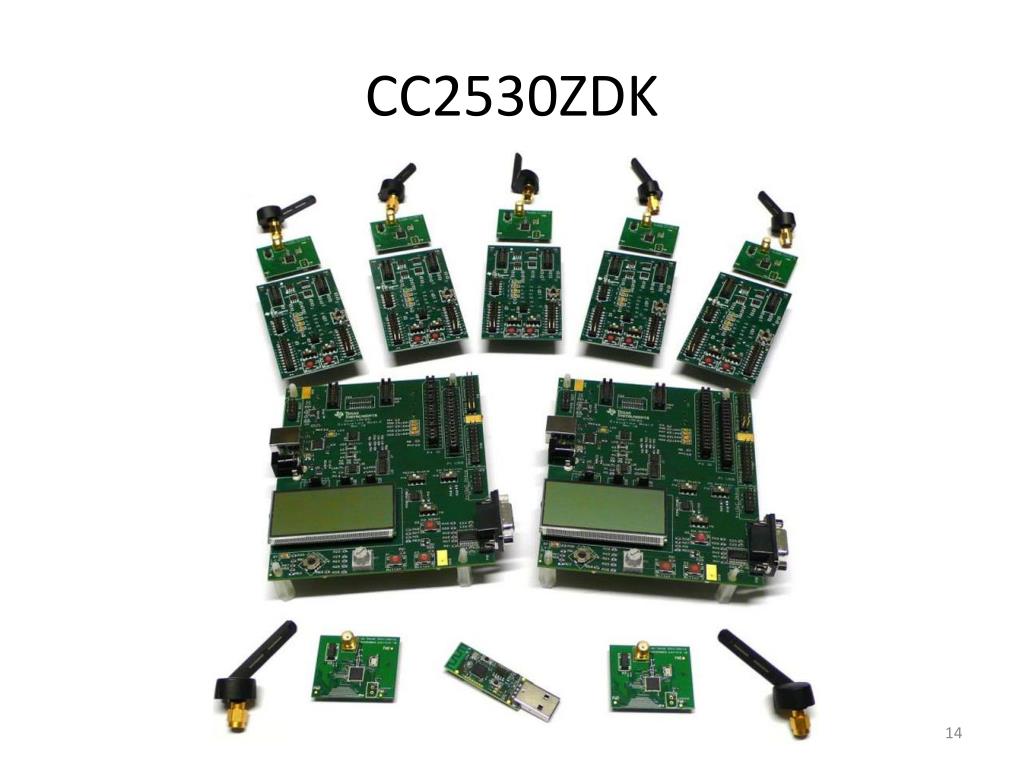

  14. CC2530ZDK

  15. Directory Hierarchy in Developing An Application HAL（Hardware (H/W) Abstraction Layer）：硬體層目錄，包含有與硬體相關的配置和驅動及操作函數。 MAC：MAC層目錄，包含了MAC層的參數配置文件及其MAC的LIB庫的函數介面文件。 NWK（ZigBee Network Layer）：網路層目錄，含網路層配置參數文件及網絡層的函數介面文件，APS層的函數介面。 Profile：AF（Application Framework）層目錄，包含AF層處理函數文件。 ZDO（ZigBee Device Objects）：ZDO目錄。 Security：安全層目錄，安全層處理函數，比如加密函數等。

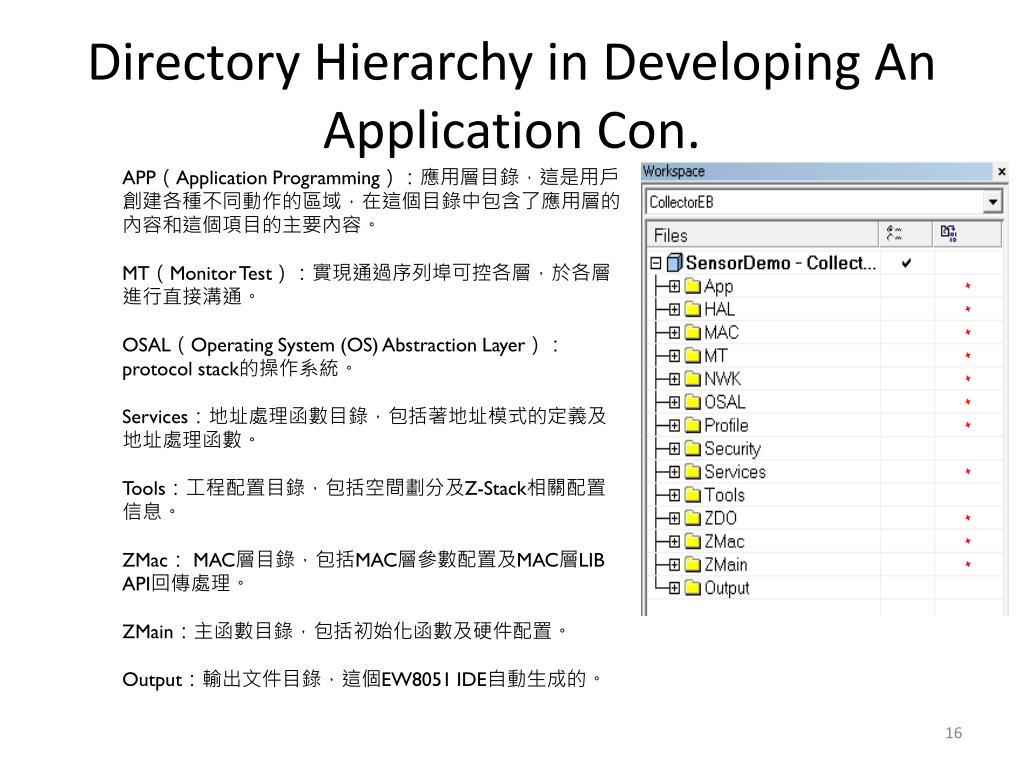

  16. Directory Hierarchy in Developing An Application Con. APP（Application Programming）：應用層目錄，這是用戶創建各種不同動作的區域，在這個目錄中包含了應用層的內容和這個項目的主要內容。 MT（Monitor Test）：實現通過序列埠可控各層，於各層進行直接溝通。 OSAL（Operating System (OS) Abstraction Layer）：protocol stack的操作系統。 Services：地址處理函數目錄，包括著地址模式的定義及地址處理函數。 Tools：工程配置目錄，包括空間劃分及Z-Stack相關配置信息。 ZMac： MAC層目錄，包括MAC層參數配置及MAC層LIB API回傳處理。 ZMain：主函數目錄，包括初始化函數及硬件配置。 Output：輸出文件目錄，這個EW8051 IDE自動生成的。

  17. Demo Environment • CC2530ZDK Sensor Demo Software • ZStack-CC2530-2.3.0-1.4.0 • SmartRF Flash Programmer(swrc044i) • IAR 8051 7.51A • Zigbee SFTP • 10.10.59.32 • Driver • C:\Program Files\Texas Instruments\Extras\Drivers

  18. Open Workspace • IAR Embedded Workbench

  19. Open Workspace • IAR Embedded Workbench

  20. EDIT • IAR Embedded Workbench

  21. Set Virtual Registers • IAR Embedded Workbench

  22. Rename and Output Format • IAR Embedded Workbench

  23. Build Hex • IAR Embedded Workbench

  24. Download hex • SmartRF Flash Programmer

  25. Demo 情境1 • Non enable security over NWK layer • Coordinator • CollectorEB.hex • Sensor • SensorEB.hex

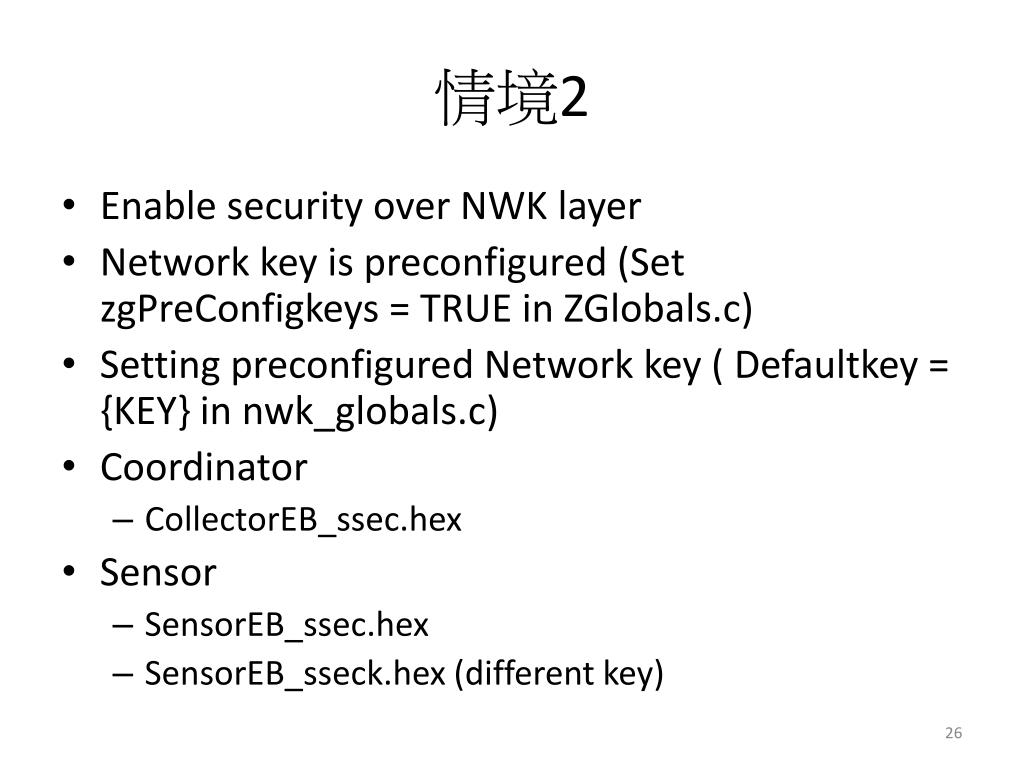

  26. 情境2 • Enable security over NWK layer • Network key is preconfigured (Set zgPreConfigkeys = TRUE in ZGlobals.c) • Setting preconfigured Network key ( Defaultkey = {KEY} in nwk_globals.c) • Coordinator • CollectorEB_ssec.hex • Sensor • SensorEB_ssec.hex • SensorEB_sseck.hex (different key)

  27. 情境3 • Enable security over NWK layer • Network key is not preconfigured (Set zgPreConfigkeys = FALSE in ZGlobals.c) • Setting preconfigured Network key ( Defaultkey = {KEY} in nwk_globals.c) • Coordinator • CollectorEB_ssecf.hex • Sensor • SensorEB_ssecf.hex

  28. 參考資料 • TI 802.15.4_MAC_API.pdf • IAR 設定 • http://e2e.ti.com/support/low_power_rf/f/160/p/18242/70813.aspx#70813
