Modem Standards

Modem Standards. Two Modems Must Follow Same Standards Speed standards (modulation method) Error correction and compression standards Facsimile standards Modern modem standards are created by the ITU-T. Modem Standards. Training Period

sonja
Télécharger la présentation

Modem Standards

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

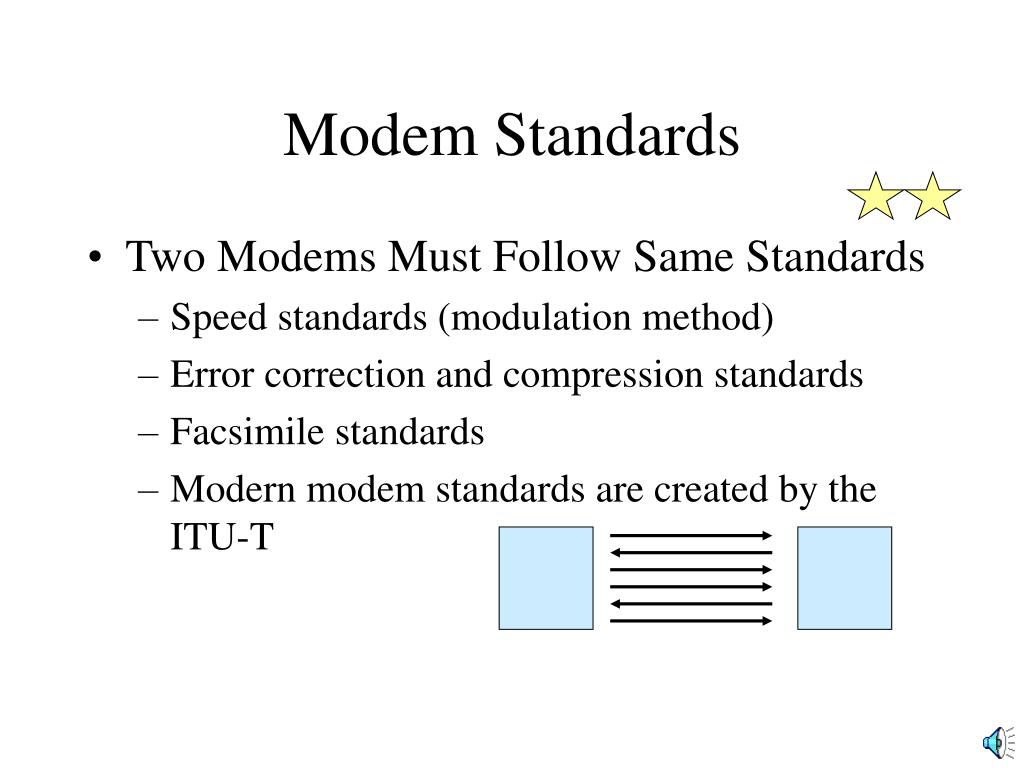

  1. Modem Standards • Two Modems Must Follow Same Standards • Speed standards (modulation method) • Error correction and compression standards • Facsimile standards • Modern modem standards are created by the ITU-T

  2. Modem Standards • Training Period • When two modems first start talking, they negotiate standards to use; settle on highest common standards

  3. Modem Speed Standards (ITU-T) • V.90 • Receive at 56 kbps but send at only 33.6 kbps • Not all phone lines, ISPs support 56 kbps • Fall back to 33.6 kbps if cannot support • V.34 • 33.6 kbps send and receive • V.32 bis • 14.4 kbps send and receive • bis means second (version of the standard)

  4. Modem Standards: Error Correction and Compression • ITU-T • V.42: Error detection and correction • V.42 bis:Compression (up to 4:1) • Most newer modems have both • MNP Level 5 • Proprietary standard of Microcom • Once widely used • Provides both error correction and compression • Now largely superceded by V.42 and V.42 bis New

  5. Modem Standards • Facsimile Modem Standards • Most modems also act as fax modems • Facsimile requires different modulation than data transmission • V.14: 14.4 kbps • V.29: 9.6 kbps
