  1. Response Checks of PortableRadiation Detection Instruments

  2. Enabling Objectives • Name Instrument Control Procedure • State Calibration Organization • State Frequency of Response Checks • Identify Response Check Equipment • Identify Shepherd Components

  3. Enabling Objectives • State Isotopes & Activity for Shepherd Sources • Identify Response Window Criteria • Identify Instruments Response Checked with Plutonium • State Purpose of Scintrex Model 309A

  4. Instrumentation Controls • “Radiological Instrument/ Equipment Controls”

  5. Instrument Calibration • Portable Radiation Detection Instruments Calibrated by:Environmental RadiologicalMonitoring & Instrumentation (ERM&I)Western Area Radiological Laboratory,(WARL) Muscle Shoals, AL

  6. Response Check Frequency • Teletector & RSO-7 Daily • Beta-Gamma Instruments Weekly • Alpha & Beta Friskers Weekly • Neutron Dose Instruments Weekly • On-Site REP Instruments Weekly • Electronic Dosimeters Quarterly

  7. Response Checks ofBeta-Gamma Dose Instruments • Shepherd Model 89 Irradiator- Source Rod Assembly- Shielded Calibration Range Assembly- Attenuator Assembly- Table Assembly

  8. Shepherd Source Rod AssemblyCs-137130 mCi 400 Ci

  9. Shepherd Shielded Calibration Range Assembly

  10. Shepherd Attenuator Assembly

  11. Shepherd Table Assembly

  12. Shepherd Precautions • Plugs in Unused Access Ports • Hands & Fingers Clear of Door • Never Lubricate Source Rod • Don’t Twist Attenuator Handles • Move Table Slowly • Utilize Survey Meter

  13. Shepherd Performance Checks • Test the Interlock System- Attempt to Raise Source or Open Door with Power Off- Attempt to Raise Source with Door Open- Attempt to Open Door with Source Raised

  14. Establishing Response Windows • Expose at Least Four Instruments • Exposure Values Near Midscale • Set Window for Each Scale

  15. Response Window Criteria • Arithmetic Mean of all Instruments • Calculate Highest Percent Difference • Calculate Lowest Percent Difference • Discard Highest or Lowest Percent Difference if Exceed 10 Percent • Response Window = Mean ± 20 % • Expressed as Range

  16. Instrument Pre-Operational Checks • Inspect for Damage • Inspect Switches, Alarms, Controls • Inspect Cables & Power Cords • Check Battery Strength • Instrument in Calibration

  17. Performing Response Checks with Shepherd Irradiator • Position Instrument on Guide- Beta Gamma Survey Meter- Teletector- Electronic Dosimeter

  18. Beta-Gamma Survey Meter

  19. Teletector

  20. Electronic Dosimeter

  21. Performing Response Checks with Shepherd Irradiator • Position Attenuators and Platform • Close Door • Raise Source to make Exposure • Lower Source to “Off” • Repeat for Each Scale • Document Results

  22. Observation Window

  23. Response Check of AlphaSurvey Instruments • Alpha Sources, ie Pu-239 • Inspect Mylar Windows • Perform Light Test • Expose Detector • Compare Results with Response Log • Check Each Scale or Decade • Document Results

  24. Alpha Survey Instrument

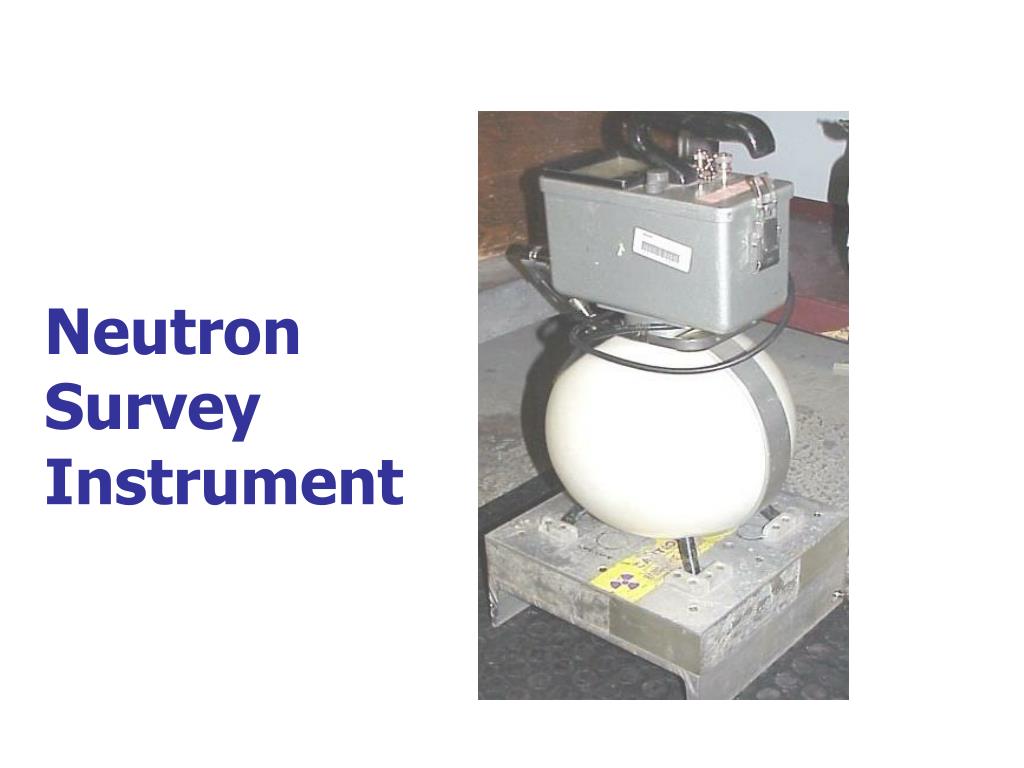

  25. Neutron Survey Instrument

  26. Response Check ofNeutron Instruments • Set up the Instrument Scale • Instrument Over Neutron Source • Check Other Scales/Decades withPulse Generator • Compare Results with Response Log • Document Results

  27. Frisker

  28. Response Check ofFriskers • Sources Identified in Response Log • Set Frisker to Appropriate Range/Scale • Position Probe over Source • Repeat for Other Scales • Compare Results with Response Log • Document Results

  29. Tritium in Air Monitor

  30. Response Check ofScintrex Model 309A • Inspect Filter Paper • Ensure Battery >3.0 volts • Set Function Switch to ‘Display On’ • Press ‘Test’ Button • Observe Display < 50

  31. Response Check ofScintrex Model 309A • Position Gamma Source on Right Side • Wait 1-2 Minutes • Observe Reading Between 8 & 24 • Depress ‘Test’ Button • Document Results

  32. Summary • Instrument Calibration Critical • Response Checks Confirm Operation • Shepherd Model 89 Irradiator • Other Response Checks:- Alpha Survey Instruments- Neutron Instruments- Friskers- Tritium-in-Air

  33. Prevent Errors -Reduce Contamination
