Presentation Transcript

  1. 10.5 Area and Arc Length in Polar Coordinates Miss Battaglia AP Calculus

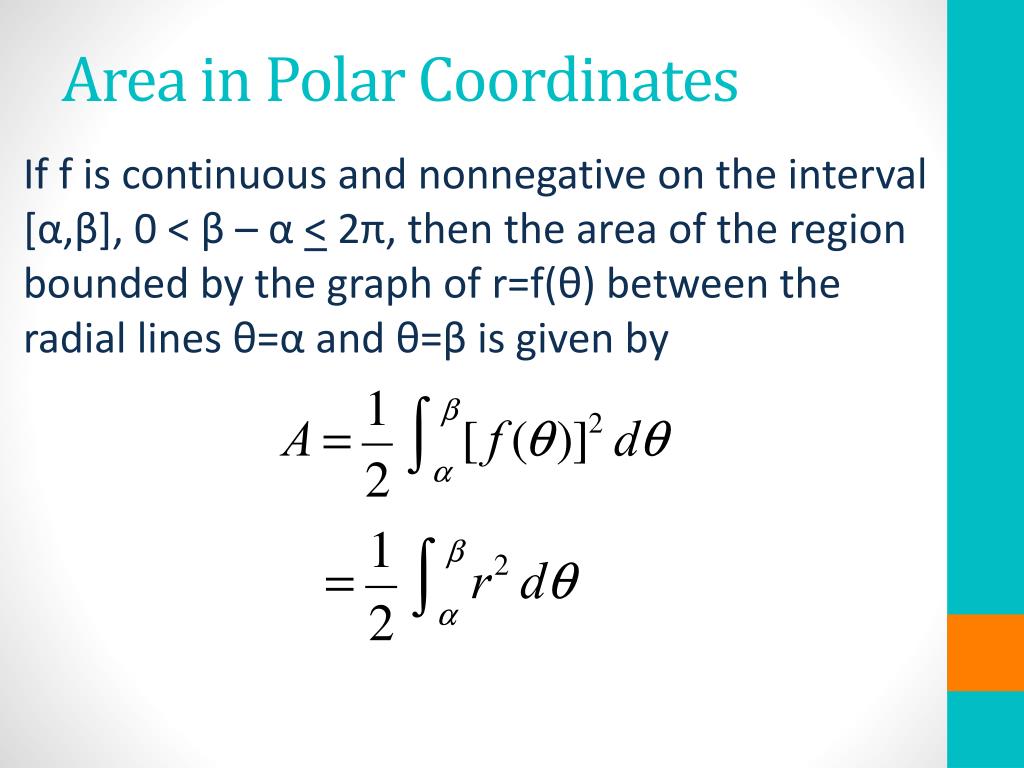

  2. Area in Polar Coordinates If f is continuous and nonnegative on the interval [α,β], 0 < β – α < 2π, then the area of the region bounded by the graph of r=f(θ) between the radial lines θ=α and θ=β is given by

  3. Proof of Area Remember the area of a sector is given by ½θr2 Radius of ith sector = f(θi) Central angle of ith sector = (β – α)/n = Δθ Taking the limit as n  ∞ produces

  4. Find the area enclosed by one loop of r=sin(4θ)

  5. Arc Length of a Polar Curve Let f be a function whose derivative is continuous on an intervalα <θ< β. The length of the graph of r=f(θ) from θ=α to θ=β is (Proof is Exercise 89 Section 10.5)

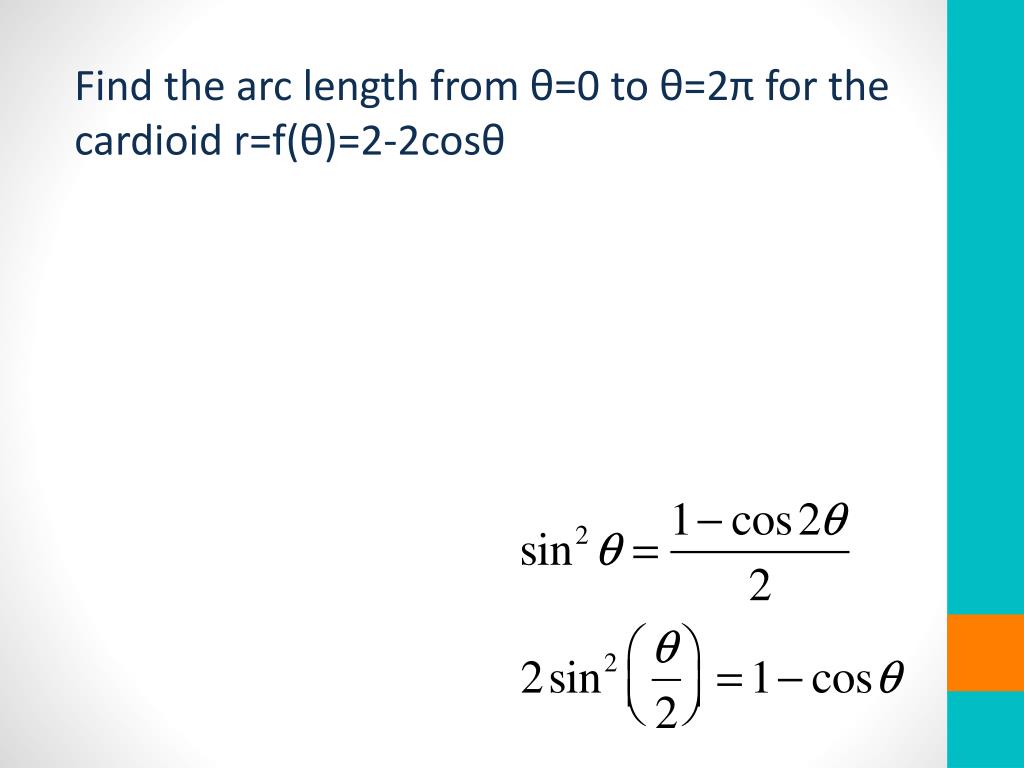

  6. Find the arc length from θ=0 to θ=2π for the cardioid r=f(θ)=2-2cosθ

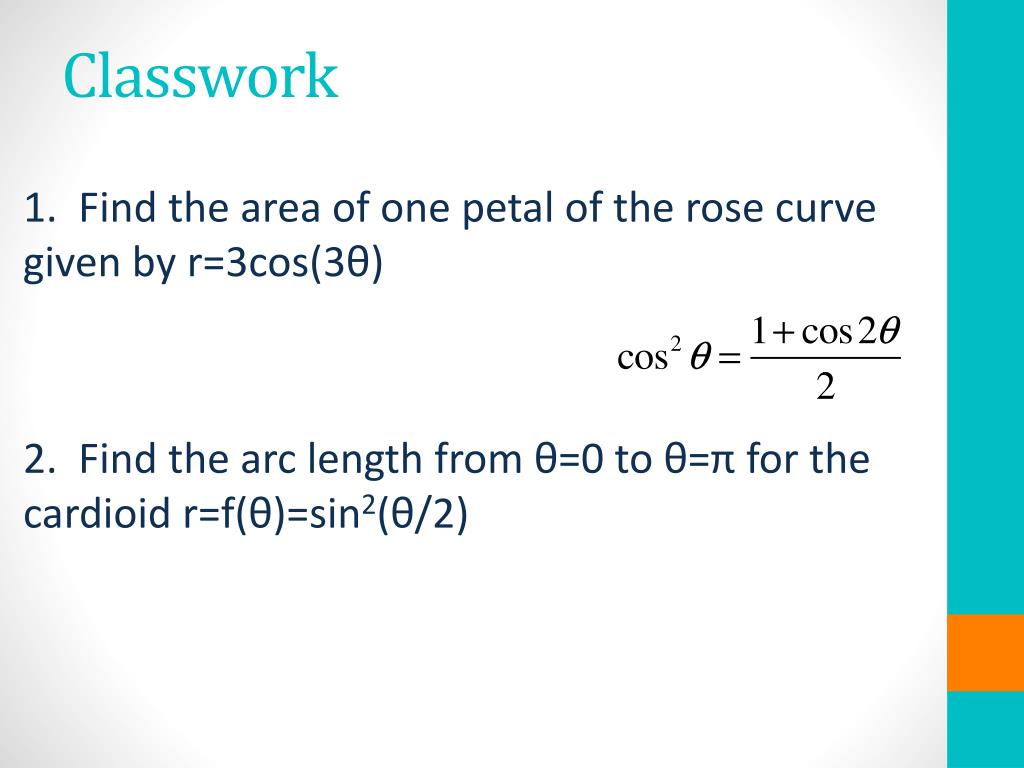

  7. Classwork 1. Find the area of one petal of the rose curve given by r=3cos(3θ) 2. Find the arc length from θ=0 to θ=π for the cardioid r=f(θ)=sin2(θ/2)

  8. Homework • Read 10.5 Page 715 #1, 4, 7, 9, 11, 13, 25
