Advanced Research Methods I 11/17/08

Advanced Research Methods I 11/17/08. ANALYSIS: Repeated Measure ANOVA. REVIEW Representation of Linear Effects in ANOVA. One-Factor ANOVA: Score of a subject i within group j : X ij = μ + β j + ε ij Recall: Partitioning of score variations

stacey
Télécharger la présentation

Advanced Research Methods I 11/17/08

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

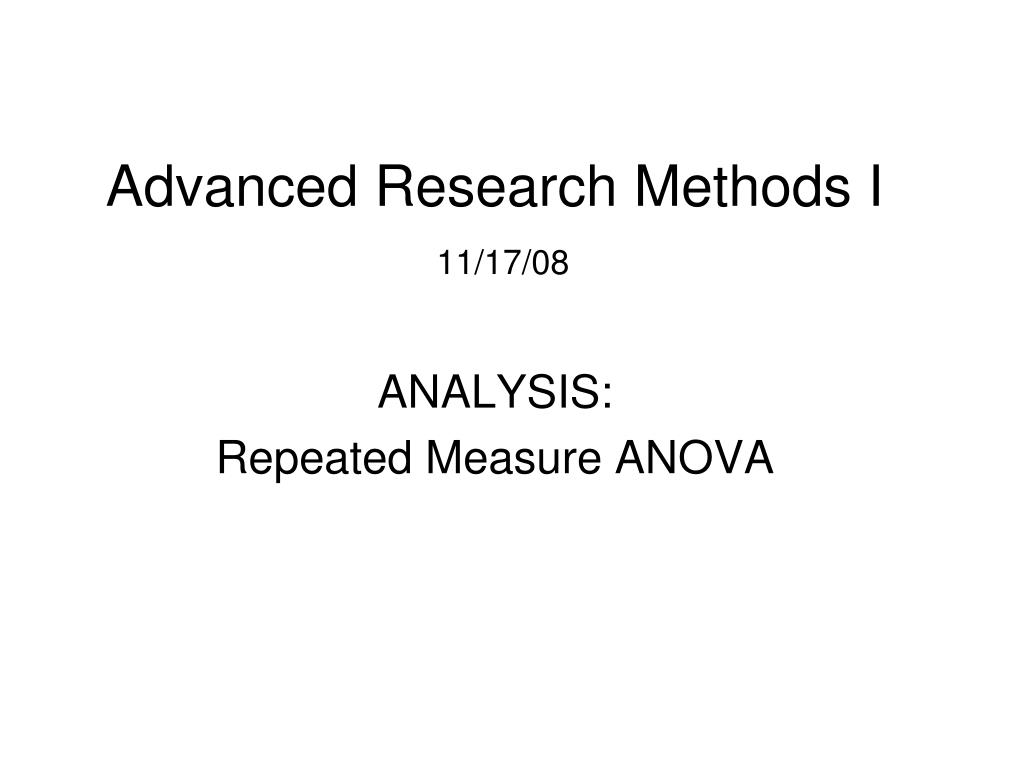

  1. Advanced Research Methods I11/17/08 ANALYSIS: Repeated Measure ANOVA

  2. REVIEW Representation of Linear Effects in ANOVA • One-Factor ANOVA: Score of a subject i within group j: Xij = μ + βj + εij Recall: Partitioning of score variations Xij – M = (X – mj) + (mj – M) Within group Between Group  Xij = M + (mj – M) + (X – mj) Overall Mean Group (Treatment) Effect Error (due to factors not accounted by the model)

  3. REVIEW Representation of Linear Effects in ANOVA • Factorial ANOVA (Two Factor): Score of a subject i within cell jk (belonging to row j and column k representing factors B and A, respectively) Xijk = μ + βj + αk + γjk + εijk Partitioning of Score Variation: Xijk = M + ( mj – M) + (mk – M) + (mjk – mj – mk + M) + (Xijk – mjk) Error (due to factors not included in the model) Effect due to Interaction between A and B Effect due to Factor B (Row) Effect due to Factor A (Column) Overall Mean

  4. Review: Factorial ANOVAEstimates of Variance Components SS df MS Variances Estimated by the MS Row (B) R – 1 SS/df Column (A) C – 1 A x B (R – 1)(C – 1) Within nRC – RC Var(ε) Total nRC - 1

  5. The Within-Group Error Variance Var(ε) • Represents Factors Unexplained by the Model (Individual differences on the Dependent Variables) • Determines Power of the F-test; so reducing Var(ε)  Improving Power • How?  By Including factors that are theoretically expected to “explain” (account for) the Var(ε): • ε = θ + ε’  Var(ε ) = Var(θ)* + Var(ε’ )  Var(ε’ ) < Var(ε) • One special way to address the issue: Including measures of the dependent variable ε = ρ + ε’  Var(ε ) = Var(ρ)* + Var(ε’ )  Subjects (people) as a factor in ANOVA *This variance component may also include variances due to interaction effects

  6. Repeated Measure ANOVA As Two-Way Factorial ANOVA T1 T2 T1 T2 x11 x11 x12 x21 x21 x22 x31 x31 x32 x42 x52 x62 Repeated measure t-test or Two-factor ANOVA (Factor A includes 2 levels and Factor B, being subjects, include 3 levels) or Repeated measure ANOVA Independent Sample t-test or One-way ANOVA (Factor A includes 2 levels: T1, T2). n = 3; k = 2

  7. Repeated Measure ANOVA As Two-Way Factorial ANOVA T1 T2 T3 T1 T2 T3 x11 x11 x12 x13 x21 x21 x22 x23 x31 x31 x32 x33 x42 x52 x62 x73 x83 x93 Two-Factor ANOVA with Subjects as the second factor or Repeated-Measure ANOVA with three levels of Factor A One-Factor ANOVA (Factor A includes 3 levels: T1, T2, T3). n = 3

  8. Repeated Measures ANOVA • Designs that include subjects as a factor • Also called: Within-subject designs • Research Design (single factor repeated measures) X1 O1 X2 O2 X3 O3 ……. • If there are only two levels (X1 and X2 corresponding to O1 and O2)  T-test for repeated measures (matched-samples T-test) • Advantages: - Very powerful thanks to smaller within-group/cell error variance (Var(ε)) - Efficient use of sample  maximizing sample size. • Disadvantages: - Order Effect (Time as a confounding factor)  Solution randomizing subjects on time - Strong assumptions (sphericity – discussed later)

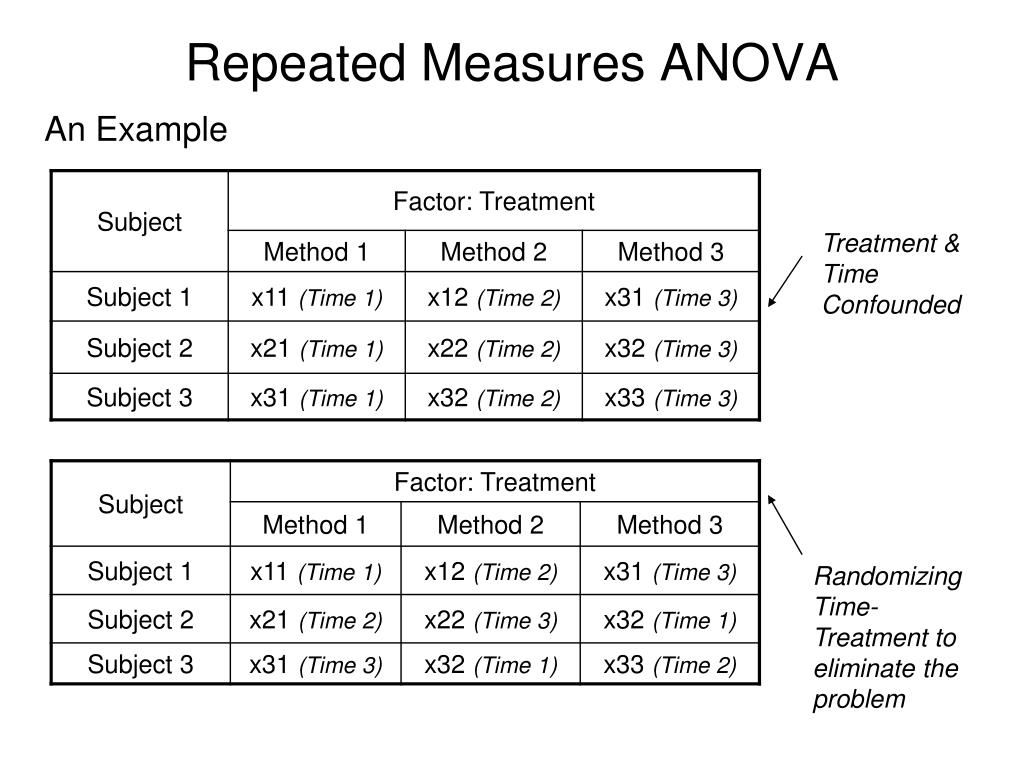

  9. Repeated Measures ANOVA An Example Treatment & Time Confounded Randomizing Time-Treatment to eliminate the problem

  10. Repeated Measures ANOVA as Two-Factor ANOVA Score of a subject i within level k of factor A (belonging to row i and column k representing the subject factor and factor A, respectively) Xik = μ + i+ αk + γik + εik Partitioning of Score Variation: Xik = M + ( mi – M) + (mk – M) + (mik – mi – mk + M) + (Xik – mik) Pre-existing individual differences on the DV Measure (Row) Effect due to Interaction between subjects and treatment Effect due to Factor A (Column) Random Error Overall Mean n=1  Xik = mik  these two sources of variation cannot be partitioned

  11. Repeated Measures ANOVAEstimates of Variance Components SS df MS Variances Estimated by the MS Row (Subjects) n – 1 SS/df Column (A) C – 1 Subjects*A (n – 1)(C – 1) Within Confounded with Interaction (Subject*A) Total nC - 1 Note: Compared to two-factor ANOVA: i = j, n= 1, R = n here.

  12. Repeated Measures ANOVAEstimates of Variance Components df Variances Estimated F by the MS Row (Subjects) n – 1 MSRow /MSSxA Column (A) C – 1 MSColumn /MSSxA Subjects*A (n – 1)(C – 1) Within Confounded with A x B 0 If there is no subject-treatment interaction (γik=0)  MSSxA estimates Var(ε)  Use it as Within-Cell error variance to compute the F-ratios

  13. An Example Example 1: Page 1169 in Neter et al. (Additional Reading) – Open the Excel File attached

  14. Assumptions • Normal distribution of scores under each treatment • Independence of scores within treatment • No subject by Treatment interaction • Sphericity

  15. Understanding the Assumptions • Sphericity: Equal variance of difference scores between any two treatment conditions: For all k1 ,k2 ,k3 ,k4 (k1 ,k2 ,k3 ,k4 = 1, 2, 3, 4…..): Var(Xk1- Xk2) = Var(Xk1- Xk3) = Var(Xk1- Xk4) = Var(Xk2- Xk3)……

  16. When the Sphericity Assumption Is Not Met • Adjusted degree of freedom  critical value (Huynh-Feldt or Greenhouse-Geisser) • Multivariate Approach Effect Size: Partial Eta Square

  17. Two Within-Subject Factor ANOVA • Designs: e.g. Factors A (2 levels), B (3 levels) A1B1 A1B2 A1B3 A2B1 A2B2 A2B3 O1 x O2 x O3 x O4 x O5 x O6 In general: • Factor A has a levels; • Factor B has b levels; • Sample size = n; • Mean of subject i (across all levels of A and B): mi • Mean of level j of factor B (across all subjects and levels of A): mj • Mean of level k of factor A (across all subjects and levels of B): mk • Mean of cell jk (across all subjects in the cell): mjk

  18. Two Within-Subject Factor ANOVA SS df MS Estimated Variances Subjects n – 1 SS/df Factor A a – 1 Factor B b - 1 A x B (a – 1)(b – 1) Within (n – 1)(ab – 1) (Error)

  19. One Between-Subject Factor and One Within-Subject Factor ANOVA • A is the within-subject factor with a levels • B is the between-subject factor with b levels • There are n subjects in each level of Factor B (total number of subjects = n*b)

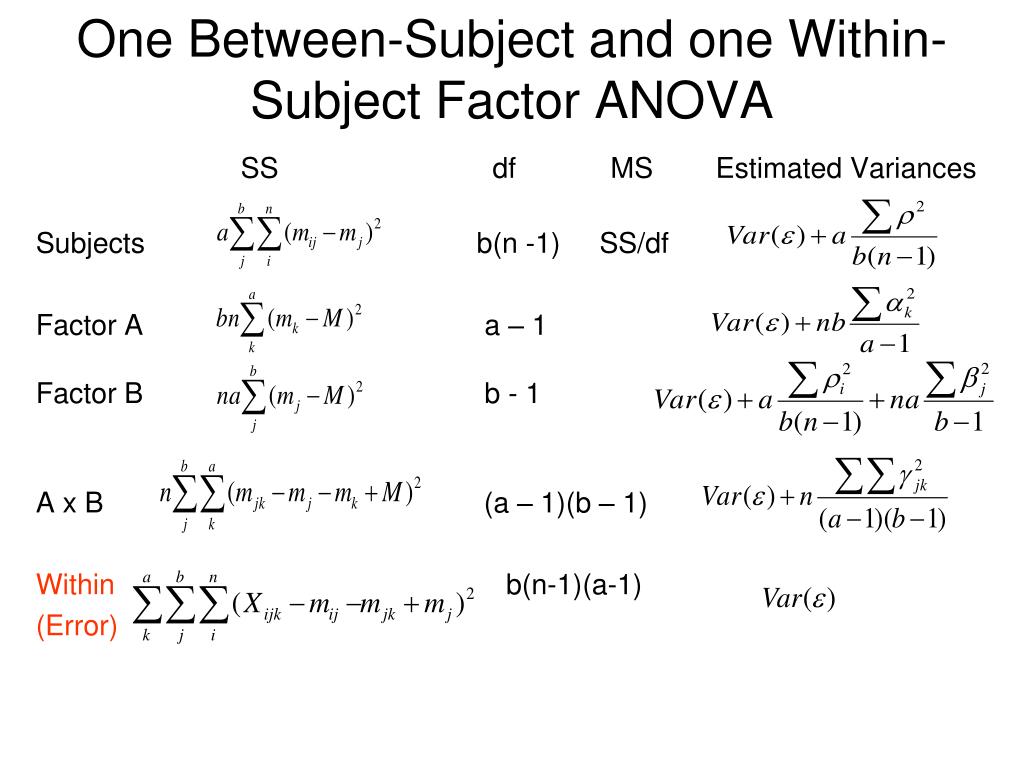

  20. One Between-Subject and one Within-Subject Factor ANOVA SS df MS Estimated Variances Subjects b(n -1) SS/df Factor A a – 1 Factor B b - 1 A x B (a – 1)(b – 1) Within b(n-1)(a-1) (Error)

  21. One Between-Subject and one Within-Subject Factor ANOVA F-ratio: • FSubjects = MSSubjects / MSWithin • FFactorA = MSA / MSWithin • FFactor B = MSB / MSSubjects • FAB = MSAB / MSWithin

  22. One Between-Subject Factor and One Within-Subject Factor ANOVA E.g. Treatment – Control, Pre-Post Measure O1 X O2 O3 O4 Within-subject Factor: Pre-post test (Time) Between-subject Factor: Treatment Interaction Effect  Treatment effect.

  23. One Between-Subject Factor and One Within-Subject Factor ANOVA Treatment – Control, Pre-Post Measure • Can be seen as including pretest measure (x) as a factor • Within-subject factor : Testing the difference (d) between pre and post tests • Interaction: Testing the difference of d across the Between-subject factor (Treatment and Between groups). x1 y1 d1 = y1 – x1 x2 y2 d2 = y2 – x2 . Treatment 1 md1, Var(ed) xn yn xn+1 yn+1 . . Treatment 2 md2, Var(ed) x2n y2n d2n = y2n – x2n
