  1. S&I Framework LRI Validation Suite Vocabulary Testing Proposal (Lab Results Interface) Robert Snelick National Institute of Standards and Technology February 28th, 2012 Contact: robert.snelick@nist.gov

  2. How do we Test the Required Vocabulary Standards? • Limit discussion to LOINC • In particular the use of LOINC for the observation result identifier (OBX.3) • How do we interpret the Meaningful Use Requirements? • “Incorporate results. Electronically attribute, associate, or link a laboratory test result to a laboratory order or patient record.” • How do we ensure that the LOINC codes are used meaningfully? How do we ensure this: • “The LOINC code is the anchor that discretely and accurately identifies the lab test that was ordered/performed. No matter what a hospital or physician chooses to call the test, the LOINC code is the one constant that tells everyone which test it was.” • How do we test the sender (the LIS)? • How do we test the receiver (the EHR)? • How do we test the universe of possible codes? • Considerations: • Meaningful Use Requirements • Labs and EHR use local codes today • EHR likely to translate/map LOINC code to local code and display local text name on user’s screen (what impact does this have on testing?) • Two perspectives I’ve heard from the community: • “LOINC codes should not be tested for “correct” values, just that it is a valid LOINC code”—what is the purpose of the standardized code then? • “If local codes are sent and used in conjunction with the standardized codes then we are no closer to achieving terminology interoperability”

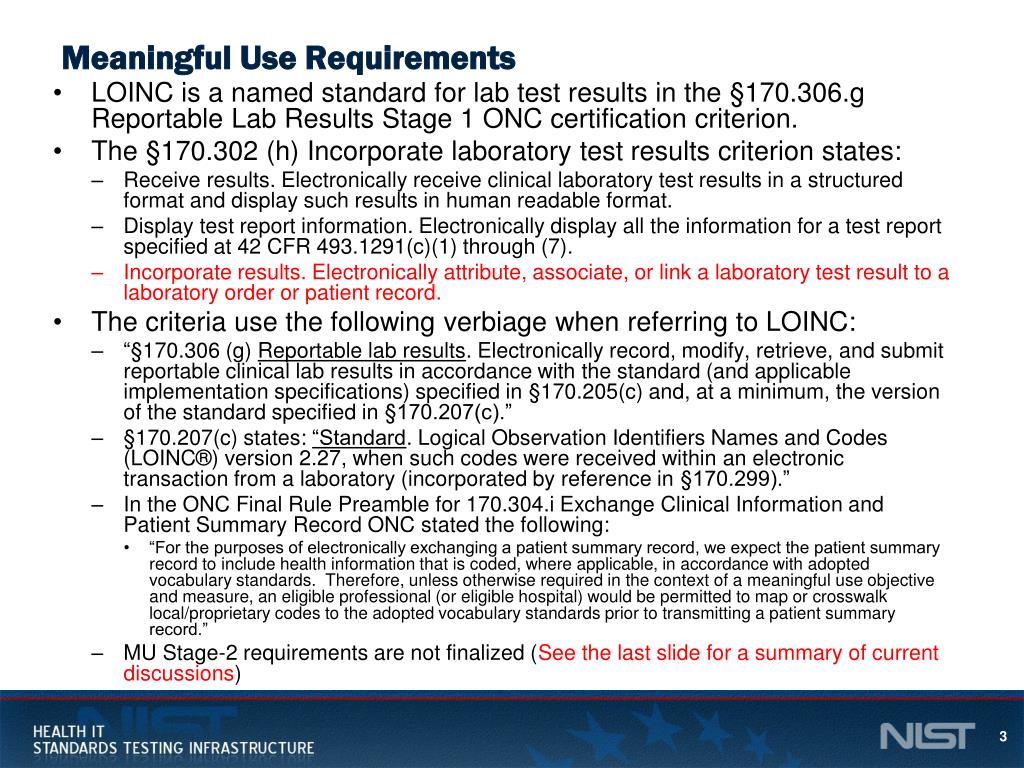

  3. Meaningful Use Requirements • LOINC is a named standard for lab test results in the §170.306.g Reportable Lab Results Stage 1 ONC certification criterion. • The §170.302 (h) Incorporate laboratory test results criterion states: • Receive results. Electronically receive clinical laboratory test results in a structured format and display such results in human readable format. • Display test report information. Electronically display all the information for a test report specified at 42 CFR 493.1291(c)(1) through (7). • Incorporate results. Electronically attribute, associate, or link a laboratory test result to a laboratory order or patient record. • The criteria use the following verbiage when referring to LOINC:  • “§170.306 (g) Reportable lab results. Electronically record, modify, retrieve, and submit reportable clinical lab results in accordance with the standard (and applicable implementation specifications) specified in §170.205(c) and, at a minimum, the version of the standard specified in §170.207(c).” • §170.207(c) states: “Standard. Logical Observation Identifiers Names and Codes (LOINC®) version 2.27, when such codes were received within an electronic transaction from a laboratory (incorporated by reference in §170.299).” • In the ONC Final Rule Preamble for 170.304.i Exchange Clinical Information and Patient Summary Record ONC stated the following: • “For the purposes of electronically exchanging a patient summary record, we expect the patient summary record to include health information that is coded, where applicable, in accordance with adopted vocabulary standards.  Therefore, unless otherwise required in the context of a meaningful use objective and measure, an eligible professional (or eligible hospital) would be permitted to map or crosswalk local/proprietary codes to the adopted vocabulary standards prior to transmitting a patient summary record.” • MU Stage-2 requirements are not finalized (See the last slide for a summary of current discussions)

  4. Testing LOINC—LIS (Sending Application) • Lab Test Order (options) • Test case will indicate a lab test order on a paper form • Test case may indicate the lab test order in electronic format • This is simulated (i.e., it is assumed that the LIS received the order)? • A specific LOINC code in OBR.4 may be specified (Lab dependent) • Lab Results • Test Case will provide lab test order/results data sheet (indicates all the results of the lab test) • A LIS user enters the information into the LIS system (including the appropriate LOINC code for the order) • The LIS system generates an LRI message • Validation • The message is imported in the LRI LIS validation tool • The LIS LRI validation tool validates the message • For LOINC the validation tool will examine the content of OBX.3 for a valid observation identifier (LOINC code)

  5. Testing LOINC—LIS (Sending Application) • For a given order request a finite number of valid observation identifiers (LOINC codes) are identified and associated with that order • For example if the order requested is a Hemoglobin in blood test (LOINC code is 718-7) then the following LOINC codes would be considered valid: Test tool can give guidance—default to expert Verify LOINC mappings with Regenstrief • The LRI LIS validation will check OBX.3 (OBX.3.1 or OBX.3.4) for one of the listed LOINC codes for this test case • The LRI LIS validation tool in-scope tests are limited to the most common lab tests (i.e., the entire LOINC database is not in scope) for testing • The list of the in-scope lab tests and their respective LOINC codes can be found in a spreadsheet located on the validation suite WG wiki • Current version: Categorized Tests for LRI Testing Compiled ST v11.xlsx

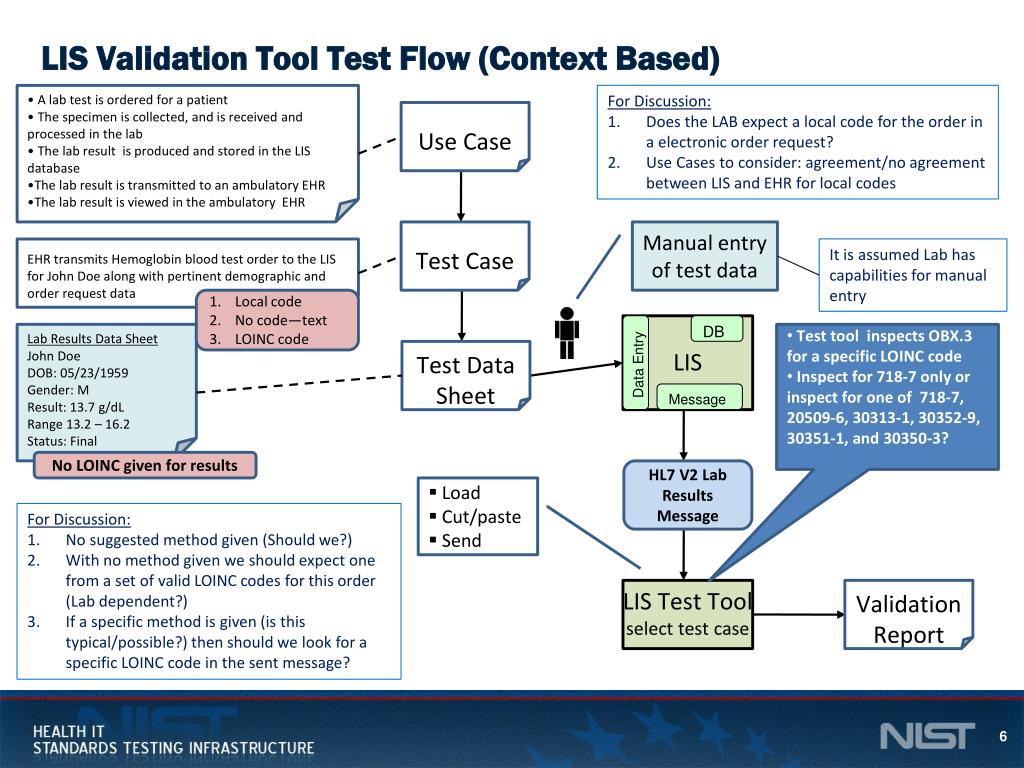

  6. LIS Validation Tool Test Flow (Context Based) • A lab test is ordered for a patient • The specimen is collected, and is received and processed in the lab • The lab result is produced and stored in the LIS database • The lab result is transmitted to an ambulatory EHR • The lab result is viewed in the ambulatory EHR For Discussion: Does the LAB expect a local code for the order in a electronic order request? Use Cases to consider: agreement/no agreement between LIS and EHR for local codes Use Case Test Case Manual entry of test data • EHR transmits Hemoglobin blood test order to the LIS for John Doe along with pertinent demographic and order request data It is assumed Lab has capabilities for manual entry • Local code • No code—text • LOINC code DB Lab Results Data Sheet John Doe DOB: 05/23/1959 Gender: M Result: 13.7 g/dL Range 13.2 – 16.2 Status: Final • Test tool inspects OBX.3 for a specific LOINC code • Inspect for 718-7 only or inspect for one of 718-7, 20509-6, 30313-1, 30352-9, 30351-1, and 30350-3? Test Data Sheet LIS Data Entry Message No LOINC given for results HL7 V2 Lab Results Message • Load • Cut/paste • Send For Discussion: No suggested method given (Should we?) With no method given we should expect one from a set of valid LOINC codes for this order (Lab dependent?) If a specific method is given (is this typical/possible?) then should we look for a specific LOINC code in the sent message? LIS Test Tool select test case Validation Report

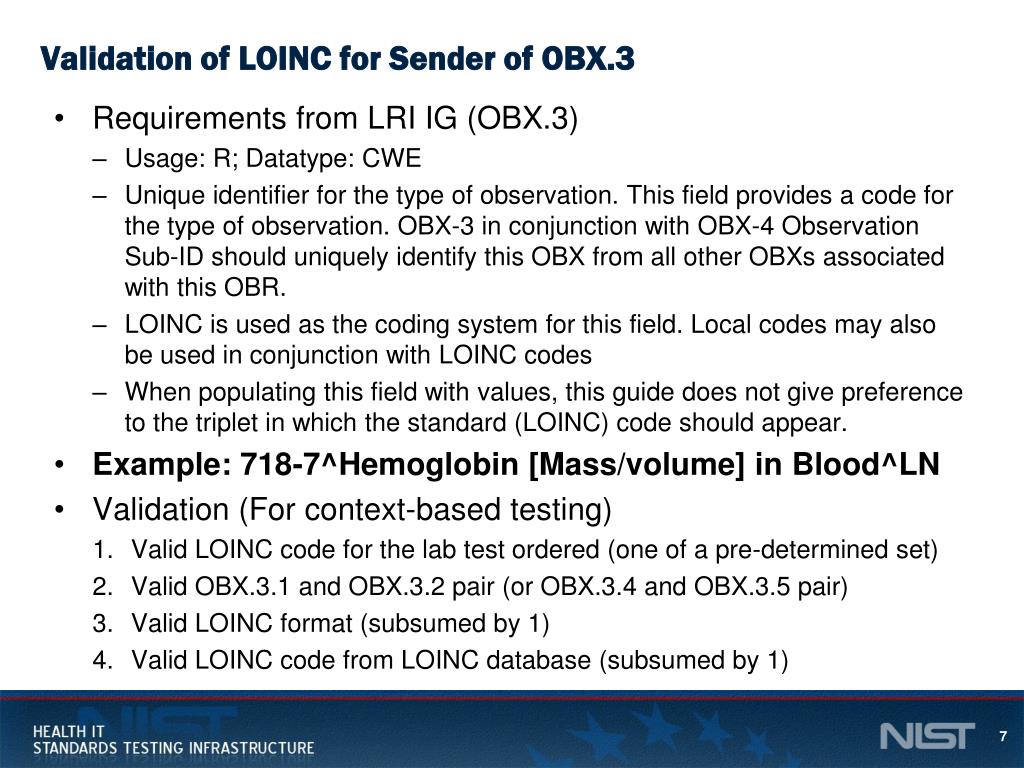

  7. Validation of LOINC for Sender of OBX.3 • Requirements from LRI IG (OBX.3) • Usage: R; Datatype: CWE • Unique identifier for the type of observation. This field provides a code for the type of observation. OBX-3 in conjunction with OBX-4 Observation Sub-ID should uniquely identify this OBX from all other OBXs associated with this OBR. • LOINC is used as the coding system for this field. Local codes may also be used in conjunction with LOINC codes • When populating this field with values, this guide does not give preference to the triplet in which the standard (LOINC) code should appear. • Example: 718-7^Hemoglobin [Mass/volume] in Blood^LN • Validation (For context-based testing) • Valid LOINC code for the lab test ordered (one of a pre-determined set) • Valid OBX.3.1 and OBX.3.2 pair (or OBX.3.4 and OBX.3.5 pair) • Valid LOINC format (subsumed by 1) • Valid LOINC code from LOINC database (subsumed by 1)

  8. Testing LOINC—EHR (Receiving Application) • Lab Result LRI test message is sent to the EHR • Test case will indicate the lab result in a data sheet • A LRI message is generated and sent to the EHR • Message will contain a LOINC code in OBX.3 (observation identifier) UPDATE: Maybe not, in fact uses a local code in one message and a LOINC code in another might provide the test case (show aggregated results) • How to test that the EHR incorporates the LOINC code? • Option 1: Send only the LOINC code in OBX.3 • EHR can translate into internal code and display local text string of lab test name • If only the LOINC code is sent then this provides a mechanism to better ascertain that the EHR incorporated the LOINC code (since no local code is provided) UPDATE: yes, since system may use LOINC internally and if not they have to provide the mapping (maybe send without text?) • EHR can use LOINC code directly • Option 2: Send a LOINC code and local code in OBX.3 • Is this a necessary option? Can the actual incorporate be circumvented? UPDATE: probably not a useful test case at all • Validation (details to follow) • The lab results are inspected by viewing the EHR display (GUI) • Certain elements can be displayed as equivalent concept (e.g., lab test display name) • Certain elements are to be displayed exactly as received (e.g., result and units)

  9. LRI EHR Test Harness Test Flow—Testing the EHR (Model 1) For Discussion: What are the requirements on the EHR with regards to LOINC—given the LRI IG, CLIA, and meaningful use? What are the EHR display (GUI) requirements for the received lab results? What are the EHR storage requirements for the received lab results? Given that the LOINC code is likely to be translated into the EHR internal representation, what lab test names need to be displayed in exact form and what lab test names can be displayed in an equivalence text (same concept)? What qualifies as “equivalence—same concept”? How is that determined? Can it be? Expert inspector only? Should displaying of the LOINC text (only) be the requirement—i.e., no mapping? What is the impact of sending only the LOINC code (i.e., no local code) on testing? Use Case LRI EHR Test Harness Test Case Test Data Juror Document 718-7 (LN) LRI Test Message 718-7 (LN) Lab Message EHR Communication Displayed as internal display text representation ACK 718-7 (LN) ACK Validation Report Validation Translated into internal representation

  10. Processing of Standardized Vocabulary (Proposed) • Receiver requirements for Standardized Vocabulary: • The receiver shall persist (store) the original standardized code and the original standardized code text as received in exact representation UPDATE: No, I don’t think this is a requirement. The receiver could use/store it’s local code but have the capability to translate into LOINC whenever necessary. This provides an equivalent capability. • The receiver may perform a translation/mapping to a locally defined representation UPDATE: Yes, but LOINC has to be the anchor • If a translation is performed the concept of the original standardized code shall be maintained UPDATE: Yes

  11. Assessment of Standardized Vocabulary (Proposed) • Procedure for assessing the receiver for incorporation of standardized vocabulary: • Note: discussion is limited to standardized vocabulary (i.e., the LOINC code received and associated components, e.g., the display text). The lab results values are not in scope for this discussion. • Where applicable to meet CLIA and MU requirements the receiver shall display on the EHR GUI the equivalent representation of the received coded lab test name. The receiver shall display at least one of the following: • Original standardized code text • Original standardized code (probably not very useful, but is it acceptable?) • Local code text (local display representation) • UPDATE: one of the following: • The receiver shall be capable of demonstrating the persistent of the original standardized code and the original standardized code text. Acceptable methods for attestation: • Administrative access to database • Inspector approved method • UPDATE: test case showing aggregation of test results (See SLIDES to follow) • If applicable the receiver shall be capable of demonstrating the linkage of the original standardized code and the locally translated/mapped code. Acceptable methods for attestation: • Administrative access to database • Browse capabilities of configuration files • Inspector approved method • UPDATE: test case showing aggregation of test results (See SLIDES to follow) SEE NEXT SLIDE FOR UPDATED PROPOSAL (To replace this slide????)

  12. Assessment of Standardized Vocabulary (Proposed II) • Procedure for assessing the receiver for incorporation of standardized vocabulary: • Note: discussion is limited to standardized vocabulary (i.e., the LOINC code received and associated components, e.g., the display text). The lab results values are not in scope for this discussion. • Where applicable to meet CLIA and MU requirements the receiver shall display on the EHR GUI the equivalent representation of the received coded lab test name. The receiver shall display at least one of the following: • Original standardized code text • Original standardized code (probably not very useful, but is it acceptable?) • Local code text (local display representation) • The receiver shall demonstrate that the LOINC code is the anchor that discretely and accurately identifies the lab test that was ordered/performed. No matter what a hospital or physician chooses to call the test, the LOINC code is the one constant that tells everyone which test it was. Attestation requirements: • (A) The receiver shall be capable of demonstrating that LOINC is used natively to import, attribute, associate, or link lab results. OR • (B) The receiver shall be capable of demonstrating that the LOINC code is the anchor to import, attribute, associate, or link lab results(A mapping table or external mapping service are acceptable means). AND • The EHR may store of the original standardized code or if applicable the receiver shall be capable of demonstrating the linkage of the original standardized code and the locally translated/mapped code.Acceptable methods for attestation: • Administrative access to database • Browse capabilities of configuration files • Inspector approved method • The receiver shall be capable of performing computable activities on received LOINC results (e.g., test case showing aggregation of test results (See SLIDES to follow)) • The receiver shall be capable of instantiating correct LOINC codes in messages and documents being sent from the EHR (e.g., test using MU workflow—reportable labs and CDA) • The receiver shall not break when receiving an unknown LOINC code - displaying the text description of the lab test if the received LOINC code is not recognized by the EHR (text description as provided in the received message)

  13. What does Equivalent Representation (Concept) Mean? • The exact original code • The exact original code text (Make this the only acceptable method?) UPDATE: Probable not; it is unnecessary • For translated/mapped local code text an equivalent representation as determined by a clinical terminology expert. The following rules and guidance are given to promote consistency in assessment: • Rule: A terminology shall never be made more specific in the translation/mapping. • Rule: A terminology shall never be made more specific in the display of standardized terminology. • Guidance: A limited number of synonyms are provided to assist the clinical terminology expert. Note: a predefined finite set is not possible—there are too many possible equivalent local representations. • Guidance: The inspector must consider the context in which the code is used as this may impact the translation/mapping.

  14. Discussion (Mapping to a more general code) • What should be the assessment if a specific terminology code is received that is mapped to a less specific code? • For example, 30351-1 (Hemoglobin [Mass/volume] in Mixed venous blood) to 718-7 (Hemoglobin [Mass/volume] in Blood) • Assuming this is relevant • This mapping will lead to a loss of information if the original code is not persisted. • Is it valid to display a representation that has less specificity? • Is it valid to display a representation that has less specificity as long as the original data is persisted in the system? • Is it acceptable for a loss of information to occur when data is rendered as a report or forwarded on to another system (e.g., public health)? That is, we sent a specific code and then a general code is forwarded on to public health. Is it acceptable for either the general or specific LOINC code to be forwarded? • LOINC codes often indicate a specific processing method for a particular lab test; the NLM has recommended use of LOINC codes that do not specify a method (i.e., are “method-less”) • What is the testing impact? • Do we focus on the general codes? • Does method-less mean less specific?

  15. Proposed Test Cases • Send single message LOINC code only • Send two messages (expect to see aggregate results) • LAB-A Local Code • LAB-B LOINC Code • Send two messages (expect to see aggregate results) • LAB-A Local Code • LAB-B Local Code • Send two messages (expect to see aggregate results) • LAB-A LONIC (same) Code • LAB-B LOINC (same) Code • Send two messages (expect to see aggregate results) • LAB-A LONIC (different) Code • LAB-B LOINC (different) Code • Test workflow of reportable lab results to public health • Use LOINC or local code only • Test workflow of Lab CCD (MU-2 Consolidated CDA?) document • Use LOINC or local code only

  16. Test Case Proposal for LOINC incorporation – Case 0 EHR EHR is expected to map LOINC to local and display local text or display LOINC text LRI EHR Test Harness Simulated Test Lab - A 718-7 (LN) LRI Test Message A Hemoglobin Lab Result for Patient PAT-1234 on 03/03/2012 718-7 (LN) XY7187 (L) 718-7 (LN) 718-7 (LN) Displayed as internal display text representation For Discussion: Test case is set up to send lab results for hemoglobin Lab – A sends the results using the LOINC code only for the hemoglobin teston March 3rd, 2012 The EHR is expected to display the LOINC text name or map to an internal code an then display the internal test name Note: LOINC does not need to be the internal code for the lab result that is linked to the patient record; it is OK for the internal code to be translated as needed.

  17. Test Case Proposal for LOINC incorporation – Case 1 LRI EHR Test Harness Simulated Test Lab - A XY7187 (L) Pre-test setup indicates that the LIS - A and the EHR negotiated XY7187 as the code for hemoglobin LRI Test Message A Hemoglobin Lab Result for Patient PAT-1234 on 02/24/2012 EHR EHR is expected to link and aggregate the results XY7187 (L) XY7187 (L) LRI EHR Test Harness Simulated Test Lab - B XY7187 (L) 718-7 (LN) 718-7 (LN) LRI Test Message B Hemoglobin Lab Result for Patient PAT-1234 on 03/03/2012 718-7 (LN) Displayed as internal display text representation For Discussion: Test case is set up to send lab results for the same test from two different labs on different dates Lab – A sends the results using their local code only for the hemoglobin teston February 24th, 2012 Lab – B sends the results using the LOINC code only for the hemoglobin test on March 3rd, 2012 The EHR is expected to link the results given that they are for the same test. An EHR can demonstrate that the results have been link by providing an aggregation of the results (e.g., a consolidated tables of hemoglobin results or a graph over time)—is this a MU requirement?—UPDATE: may not be a MU requirement but this is a valid approach (i.e., EHR can demonstrate using this method) If this can be demonstrated then can we make the assumption that LOINC has been incorporated into the EHR Note: LOINC does not need to be the internal code for the lab result that is linked to the patient record; it is OK for the internal code to be translated as needed.

  18. Test Case Proposal for LOINC incorporation – Case 2 LRI EHR Test Harness Simulated Test Lab - A XY7187 (L) Pre-test setup indicates that the LIS - A and the EHR negotiated XY7187 as the code for hemoglobin and LIS – B negotiated RS7187 as the code for hemoglobin RS7187 (L) LRI Test Message A Hemoglobin Lab Result for Patient PAT-1234 on 02/24/2012 EHR could link to LOINC but could also link to an internal code EHR EHR is expected to link and aggregate the results XY7187 (L) XY7187 (L) LRI EHR Test Harness Simulated Test Lab - B 718-7 (LN) XY7187 (L) RS7187 (L) RS7187 (L) LRI Test Message B Hemoglobin Lab Result for Patient PAT-1234 on 03/03/2012 RS7187 (L) Displayed as internal display text representation For Discussion: Test case is set up to send lab results for the same test from two different labs on different dates Lab – A sends the results using their local code only for the hemoglobin teston February 24th, 2012 Lab – B sends the results using their local code only for the hemoglobin test on March 3rd, 2012 The EHR is expected to link the results given that they are for the same test. An EHR can demonstrate that the results have been link by providing an aggregation of the results (e.g., a consolidated tables of hemoglobin results or a graph over time)—is this a MU requirement?—UPDATE: may not be a MU requirement but this is a valid approach (i.e., EHR can demonstrate using this method) If this can be demonstrated then can we make the assumption that LOINC has been incorporated into the EHR (or can we?) Note: LOINC does not need to be the internal code for the lab result that is linked to the patient record; it is OK for the internal code to be translated as needed.

  19. Test Case Proposal for LOINC incorporation – Case 3 LRI EHR Test Harness Simulated Test Lab - A Since LOINC is the only code sent aggregation is not possible unless LONIC is supported either natively or mapped to an internal code system? Correct? LRI Test Message A Hemoglobin Lab Result for Patient PAT-1234 on 02/24/2012 EHR EHR is expected to link and aggregate the results 718-7 (LN) 718-7 (LN) LRI EHR Test Harness Simulated Test Lab - B 718-7 (LN) 718-7 (LN) LRI Test Message B Hemoglobin Lab Result for Patient PAT-1234 on 03/03/2012 718-7 (LN) Displayed as internal display text representation For Discussion: Test case is set up to send lab results for the same test from two different labs on different dates Lab – A sends the results using the LOINC code only for the hemoglobin teston February 24th, 2012 Lab – B sends the results using the LOINC code only for the hemoglobin test on March 3rd, 2012 The EHR is expected to link the results given that they are for the same test. An EHR can demonstrate that the results have been link by providing an aggregation of the results (e.g., a consolidated tables of hemoglobin results or a graph over time)—is this a MU requirement?—UPDATE: may not be a MU requirement but this is a valid approach (i.e., EHR can demonstrate using this method) If this can be demonstrated then can we make the assumption that LOINC has been incorporated into the EHR (or can we?) Note: LOINC does not need to be the internal code for the lab result that is linked to the patient record; it is OK for the internal code to be translated as needed.

  20. Test Case Proposal for LOINC incorporation – Case 4 LRI EHR Test Harness Simulated Test Lab - A Both labs sent LOINC codes for hemoglobin but they are different. The EHR is expected to aggregate results. What does this tell us about the “incorporation” of LOINC? LRI Test Message A Hemoglobin Lab Result for Patient PAT-1234 on 02/24/2012 EHR EHR is expected to link and aggregate the results 718-7 (LN) 718-7 (LN) LRI EHR Test Harness Simulated Test Lab - B 718-7 (LN) 30350-3 (LN) 30350-3 (LN) LRI Test Message B Hemoglobin Lab Result for Patient PAT-1234 on 03/03/2012 30350-3 (LN) Displayed as internal display text representation For Discussion: Test case is set up to send lab results for the same test from two different labs on different dates Lab – A sends the results using the LOINC code (718-7 – general) only for the hemoglobin teston February 24th, 2012 Lab – B sends the results using the LOINC code (30350-3 – Venous) only for the hemoglobin test on March 3rd, 2012 The EHR is expected to link the results given that they are for the same test. An EHR can demonstrate that the results have been link by providing an aggregation of the results (e.g., a consolidated tables of hemoglobin results or a graph over time)—is this a MU requirement?—UPDATE: may not be a MU requirement but this is a valid approach (i.e., EHR can demonstrate using this method) If this can be demonstrated then can we make the assumption that LOINC has been incorporated into the EHR (or can we?) Note: LOINC does not need to be the internal code for the lab result that is linked to the patient record; it is OK for the internal code to be translated as needed.

  21. We propose to Leverage MU Stage-1 Requirements S&I Framework LRI HL7 ELR IG 2010 LAB (or any sending system or tool) EHR (System under Test) Public Health Meaningful Use Scope Stage 2 Meaningful Use Scope Stage 1 ORU Message ORU Message ORU Elements DirectData Entry NIST Message Validation Tool ORU Message Elements Meaningful Use Stage-1 requirements includes the EHRs to send reportable lab results to public health using the HL7 Version 2.5.1 Implementation Guide: ELR to Public Health (Release 1: February 2010) NIST test tool already exists and used for Meaningful Use stage-1 certification Identify which test cases fall into the category of reportable lab results Identify the differences in the implementation guides (data elements, etc.) Provide data sheet for additional information that needs to be entered into the EHR system Correlate content of public health message to original LRI test case message This process provides additional automated testing Test EHR workflow

  22. LRI EHR Test Harness Test Flow—Testing the EHR (Model 2) For Discussion: Employ a testing technique that leverages other EHR capabilities and MU requirements In this case, leveraging reportable lab results to public health It is expected that the EHR send exactly the same LOINC code as it received? Can the EHR translate a specific LOINC code to a general LOINC code? In general, what transformation rules are acceptable if any? Use Case LRI EHR Test Harness Test Case Translated into internal representation Displayed as internal display text representation Test Data Juror Document 718-7 (LN) 718-7 (LN) LRI Test Message 718-7 (LN) Lab Message EHR MU-1 Public Health Message Communication 718-7 (LN) ACK ACK Validation Report Validation Public Health Lab Message Validation Tool

  23. LRI EHR Test Harness Test Flow—Testing the EHR (Model 2’) For Discussion: Employ a testing technique that leverages other EHR capabilities and MU requirements In this case, leveraging reportable lab results to public health It is expected that the EHR send an equivalent LOINC code based on the local code it received? In general, what transformation rules are acceptable if any? We can narrow down the “acceptable” codes based on the test. Use Case LRI EHR Test Harness Test Case Translated into internal representation Displayed as internal display text representation Test Data Juror Document XY7187 (L) XY7187 (L) LRI Test Message XY7187 (L) Lab Message EHR MU-1 Public Health Message Communication 718-7 (LN) ACK ACK 718-7 (LN) Maps Code Validation Report Validation Public Health Lab Message Validation Tool Validation Suite Call 02/28/2012: Group agreed this is a valid method; also noted that lab may send to public health directly but EHR (per MU) also is required

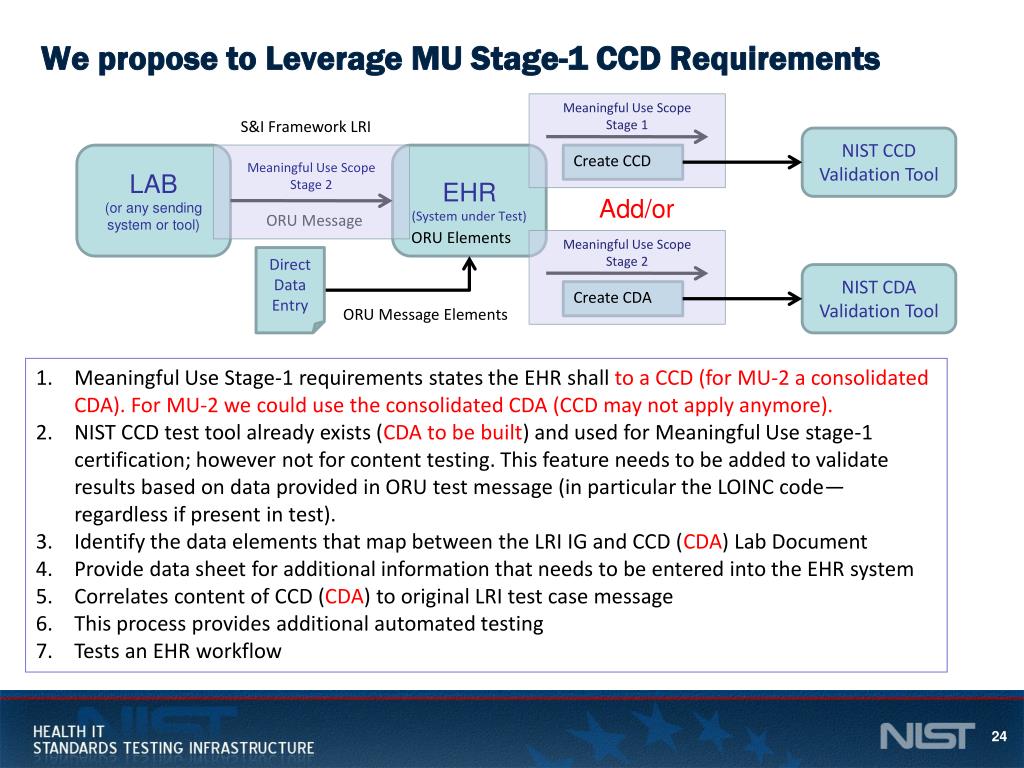

  24. We propose to Leverage MU Stage-1 CCD Requirements Meaningful Use Scope Stage 1 S&I Framework LRI NIST CCD Validation Tool LAB (or any sending system or tool) EHR (System under Test) Create CCD Meaningful Use Scope Stage 2 Add/or ORU Message ORU Elements Meaningful Use Scope Stage 2 DirectData Entry NIST CDAValidation Tool Create CDA ORU Message Elements Meaningful Use Stage-1 requirements statesthe EHR shall to a CCD (for MU-2 a consolidated CDA). For MU-2 we could use the consolidated CDA (CCD may not apply anymore). NIST CCD test tool already exists (CDA to be built) and used for Meaningful Use stage-1 certification; however not for content testing. This feature needs to be added to validate results based on data provided in ORU test message (in particular the LOINC code—regardless if present in test). Identify the data elements that map between the LRI IG and CCD (CDA) Lab Document Provide data sheet for additional information that needs to be entered into the EHR system Correlates content of CCD (CDA) to original LRI test case message This process provides additional automated testing Tests an EHR workflow

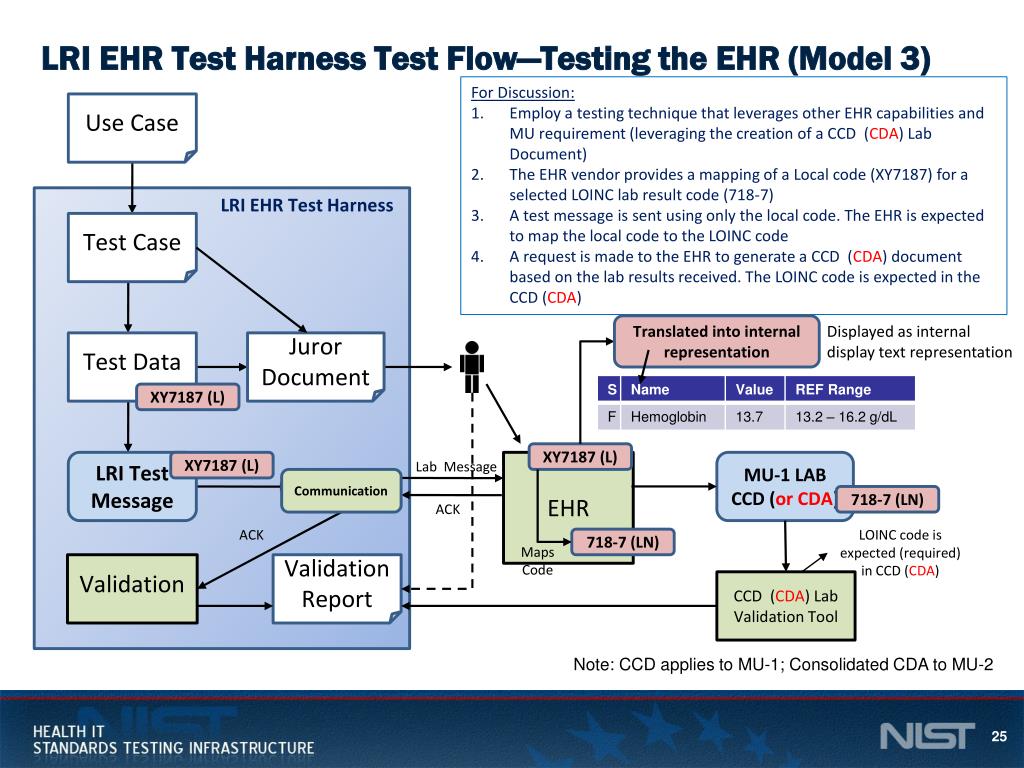

  25. LRI EHR Test Harness Test Flow—Testing the EHR (Model 3) For Discussion: Employ a testing technique that leverages other EHR capabilities and MU requirement (leveraging the creation of a CCD (CDA) Lab Document) The EHR vendor provides a mapping of a Local code (XY7187) for a selected LOINC lab result code (718-7) A test message is sent using only the local code. The EHR is expected to map the local code to the LOINC code A request is made to the EHR to generate a CCD (CDA) document based on the lab results received. The LOINC code is expected in the CCD (CDA) Use Case LRI EHR Test Harness Test Case Translated into internal representation Displayed as internal display text representation Test Data Juror Document XY7187 (L) XY7187 (L) LRI Test Message XY7187 (L) Lab Message EHR MU-1 LAB CCD (or CDA) Communication 718-7 (LN) ACK ACK LOINC code is expected (required) in CCD (CDA) 718-7 (LN) Maps Code Validation Report Validation CCD (CDA) Lab Validation Tool Note: CCD applies to MU-1; Consolidated CDA to MU-2

  26. Other Issues for Testing Standardized Vocabulary • EHR – Options for implementing standardized vocabulary • Use standardized coding internally • Map to local codes • Need to account for options in test procedure • How do we test for complete coverage of recommended standardized vocabulary? • Create all messages for all possible (recommended) terms (for important code system, e.g., LOINC)—This is the preferred approach • Alternative approach: Create a subset and inspect/verify configuration tables for coverage and accuracy • The LAB is not restricted to sending the recommended list of LOINC codes and the EHR should not fail when it does not recognize a LOINC code. • How can this be tested; should it be tested? • We should test that the EHR recognizes an invalid LOINC code and rejects the message. • Given that LOINC changes often what mechanisms will a system use to identify invalid codes (based on a certain format?) • We could send messages where code and text don’t match as another negative test • Selection of approach may be made on a case-by-case analysis • It may be necessary to provide coverage for all recommended LOINC codes. However, for other vocabularies it may not be a priority (e.g., state) or may not be feasible (SNOMED). What is the testing approach?

  27. NIST’s understanding of the request from the Vocabulary Task Force (For Meaningful Use Stage-2) EHR MU Capabilities Discussed on June 6th 2011 TF call: • Require that an EHR be capable of understanding a subset of 2000 most commonly used LOINC codes for lab results reporting • Subset would be published by Regenstrief (see LOINC Mapper’s Guide to Top 2000+ Lab Tests v1.0a) • EHR would need to be capable of * • R1: performing computable activities on received LOINC codes - storing LOINC codes received in a lab results message in such a way that the EHR can perform computable activities on the received LOINC codes • R2: don’t break if receive unknown LOINC code - displaying the text description of the lab test if the received LOINC code is not recognized by the EHR (text description as provided in the received message) • R3: transmitting LOINC codes - instantiating correct LOINC codes in messages and documents being sent from the EHR * Note that the required capabilities are still being discussed in the Vocabulary TF. The criterion statements have not been written by ONC.This is NIST’s understanding as of 06/06/2011 Source: Ken Gebhart, NIST
