  1. Deep Typecheckingand Refactoring Zachary Tatlock, Chris Tucker, David Shuffleton, RanjitJhala, Sorin Lerner University of California, San Diego

  2. Communicating with Databases String based queries are prevalent: • JPA, Hibernate, TopLink Strings JAVA DB

  3. Example: Using JPA to query DB Query in JPA Query Language: “SELECT w FROM Weblog w WHERE w.id = ?1 AND w.link.id = ?2” Java syntax in query String • Mapping Java Classes to DB Tables: • Expressed in Object Relational Mapping (ORM)

  4. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  5. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string

  6. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string Create query

  7. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string Create query Set parameters

  8. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string Create query Set parameters

  9. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string Create query Set parameters Execute query

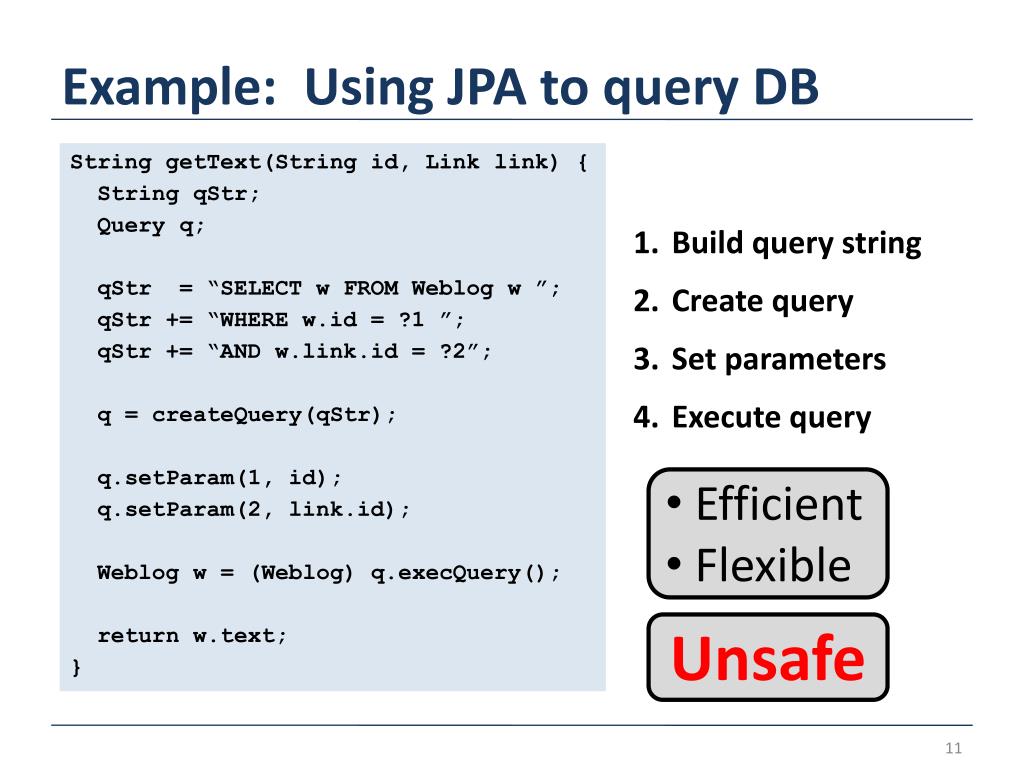

  10. Example: Using JPA to query DB String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Build query string Create query Set parameters Execute query • Efficient • Flexible Unsafe

  11. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  12. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); // q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  13. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); // q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter

  14. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter

  15. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, new Weblog()); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type

  16. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type

  17. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Warranty w = (Warranty)q.execQuery(); return w.text; } Unset parameter Unsafe param type Unsafe downcast

  18. Uncaught Errors String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type Unsafe downcast Java compiler does not reason about the query strings; cannot typecheck.

  19. Refactor: Weblog.id  Weblog.name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type Unsafe downcast

  20. Refactor: Weblog.id  Weblog.name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Refactor Unset parameter Unsafe param type Unsafe downcast Don’t Refactor Need to know type of w and w.link to refactor safely.

  21. Refactor: Weblog.id  Weblog.name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type Unsafe downcast Refactoring difficult

  22. String Based Query Challenges String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Unset parameter Unsafe param type Unsafe downcast Refactoring difficult

  23. Contributions Deep Typechecking: • All parameters set • Parameters correctly set • Results safely downcast Unset parameter Unsafe param type Unsafe downcast Refactoring difficult • Deep Refactoring: • Builds on Deep Typechecking • Enables class and field renaming

  24. Outline • Introduction and Motivation • Deep Typechecking and Refactoring • Straight Line Code • Control Flow • Multiple Methods • Experimental Results • Related Work and Conclusion

  25. Deep Typechecking Example String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } • Query safety: • All params set • Params safely set • Result safely downcast Is this query exec safe? Needto know: query string param types

  26. Deep Typechecking Example • Bound Query: • query string • param types String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Example : query : “SELECT … ?1 … ?2 … ?3 …” ?1 : String ?2 : Weblog ?3 : unknown At each program point map each var to a set of BQs.

  27. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  28. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2”

  29. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2”

  30. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2”

  31. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2” query : “SELECT …” ?1 : unknown ?2 : unknown

  32. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2” query : “SELECT …” ?1 : unknown ?2 : unknown query : “SELECT …” ?1 : String ?2 : unknown

  33. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } qStr = “SELECT … ?2” query : “SELECT …” ?1 : unknown ?2 : unknown query : “SELECT …” ?1 : String ?2 : unknown query : “SELECT …” ?1 : String ?2 : int

  34. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Checking param types: Parse query string Check all params set Check param types Bound Queries: query : “SELECT …” ?1 : String ?2 : int

  35. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } Checking result type: Infer result type Propagate result type Check downcasts Bound Queries: query : “SELECT …” ?1 : String ?2 : int result : Weblog query : “SELECT …” ?1 : String ?2 : int

  36. Bound Query Analysis String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } If a query passes Deep Typechecking, then it will not cause an error at runtime. Therefore, Bound Query Analysis has no silent failures.

  37. Deep Refactoring Example String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  38. Deep Refactoring Example Refactor Weblog field: id  name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  39. Deep Refactoring Example Refactor Weblog field: id  name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  40. Deep Refactoring Example Refactor Weblog field: id  name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  41. Deep Refactoring Example Refactor Weblog field: id  name String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } query : SELECT w FROM Weblog w WHERE w.id = ?1 AND w.link.id = ?2 ?1 : String ?2 : int

  42. Deep Refactoring Example Refactor Weblog field: id  name Refactor full query String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } query : SELECT w FROM Weblog w WHERE w.id = ?1 AND w.link.id = ?2 ?1 : String ?2 : int

  43. Deep Refactoring Example Refactor Weblog field: id  name Refactor full query String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } query : SELECT w FROM Weblog w WHERE w.name = ?1 AND w.link.id = ?2 ?1 : String ?2 : int

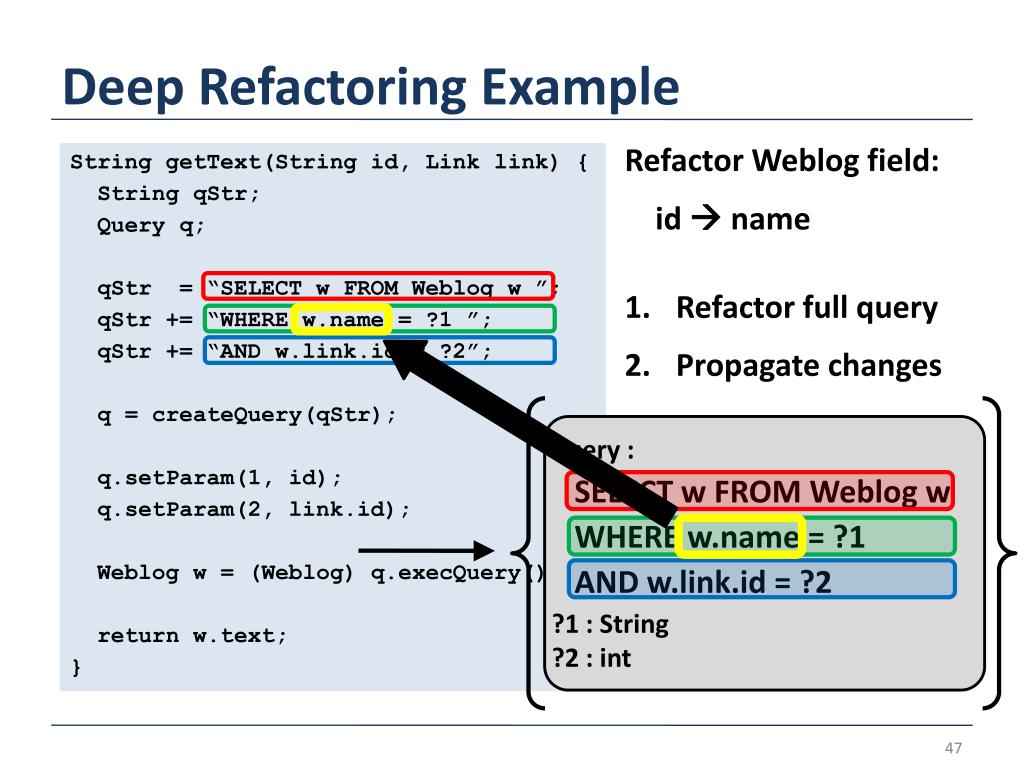

  44. Deep Refactoring Example Refactor Weblog field: id  name Refactor full query Propagate changes String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } query : SELECT w FROM Weblog w WHERE w.name = ?1 AND w.link.id = ?2 ?1 : String ?2 : int

  45. Deep Refactoring Example Refactor Weblog field: id  name Refactor full query Propagate changes String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.name = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; } query : SELECT w FROM Weblog w WHERE w.name = ?1 AND w.link.id = ?2 ?1 : String ?2 : int

  46. Outline • Introduction and Motivation • Deep Typechecking and Refactoring • Straight Line Code • Control Flow • Multiple Methods • Experimental Results • Related Work and Conclusion

  47. Flow Sensitivity String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  48. Flow Sensitivity String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  49. Flow Sensitivity String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); Weblog w = (Weblog) q.execQuery(); return w.text; }

  50. Flow Sensitivity String getText(String id, Link link) { String qStr; Query q; qStr = “SELECT w FROM Weblog w ”; qStr += “WHERE w.id = ?1 ”; if(link != null) { qStr += “AND w.link.id = ?2”; q = createQuery(qStr); q.setParam(1, id); q.setParam(2, link.id); } else { } Weblog w = (Weblog) q.execQuery(); return w.text; }
