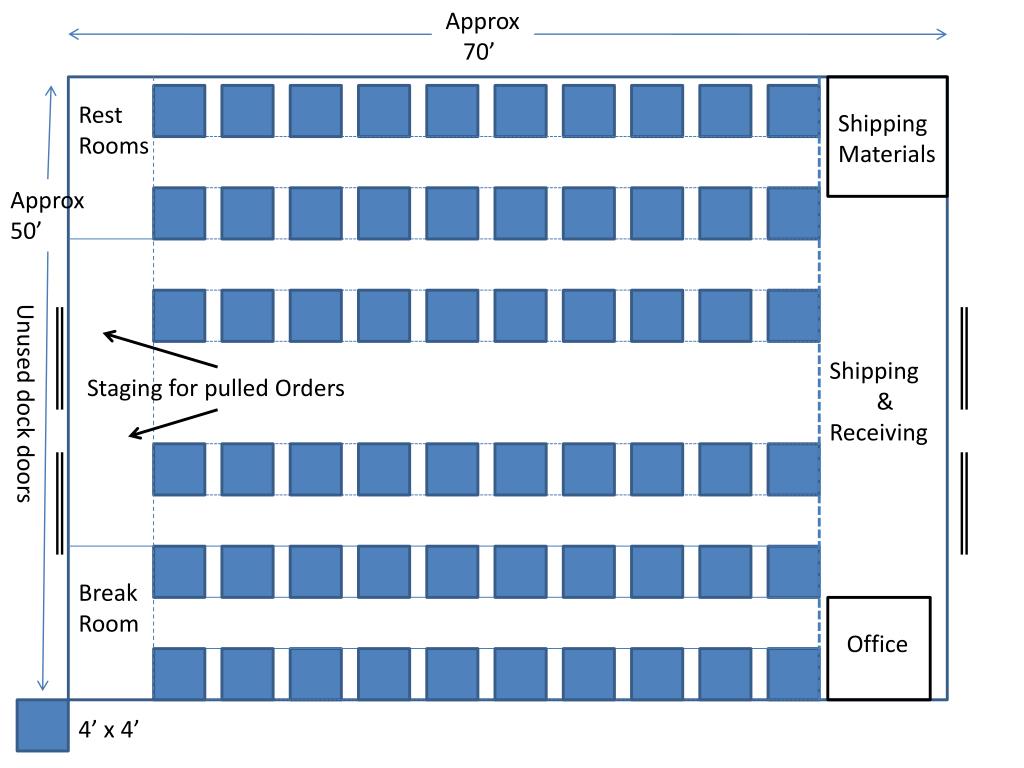

Approx 70’. B. Rest Rooms. Shipping Materials. Approx 50’. Unused dock doors. Shipping & Receiving. Staging for pulled Orders. Break Room. Office. 4’ x 4’. 4’. 3’. 4’. Top View. 3’. Hat Box = 2’x2’x1’. 1’. 3’. 2’. Side View of Box. No hats On Floor

stacy
Télécharger la présentation

Office

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Approx 70’ B Rest Rooms Shipping Materials Approx 50’ Unused dock doors Shipping & Receiving Staging for pulled Orders Break Room Office 4’ x 4’

  2. 4’ 3’ 4’ Top View 3’ Hat Box = 2’x2’x1’ 1’ 3’ 2’ Side View of Box No hats On Floor (bugs, mice, small dinosaurs lurking) 3’ 28 hats per rack…60 racks = 1680 hat capacity Side View Not to Scale

  3. Salesmen in Texas, New Mexico, and Oklahoma Billy Bob’s Office Downtown Dallas Sales/Marketing Dept. Route of Orders Billy Bob’s other Business Downtown Ft. Worth 30 miles 120 miles 150 miles Accounting/Credit Department 30 miles Inventory Control Mgr.– Canton Texas Warehouse/Manufacturing Tyler, Texas

  4. Route of Orders Layout of Billy Bob’s Ft. Worth Location Offices Dressing Rooms Liquor, Food, Supply Storage Acctg. Dept. Mail Room Maint- enance Area Mgr. Bar Bull Riding Dance Hall Café Area Animal Pens Stinky Credit Dept. Stage Storage
