  1. SESSION CODE: COS211 Steven Nagy A lap around the entire Windows Azure Platform (c) 2011 Microsoft. All rights reserved.

  2. Steven Nagy • @snagy • #cos211 • #auteched

  3. beta Virtual Machines Compute Access Control Storage Service Bus Database CTP Caching BI / Reporting Marketplace CDN CTP Virtual Network

  4. Architects /Key Decision Makers DBA DEV ARC INF InfrastructureProfessionals DatabaseAdministrators Developers

  5. Compute DEV ARC • Platform as a Service (PaaS) • Web Roles / Worker Roles • Config Driven • Automated Deployments / Failover • 1 to 8 cores • Managed by Microsoft • 6 datacentres

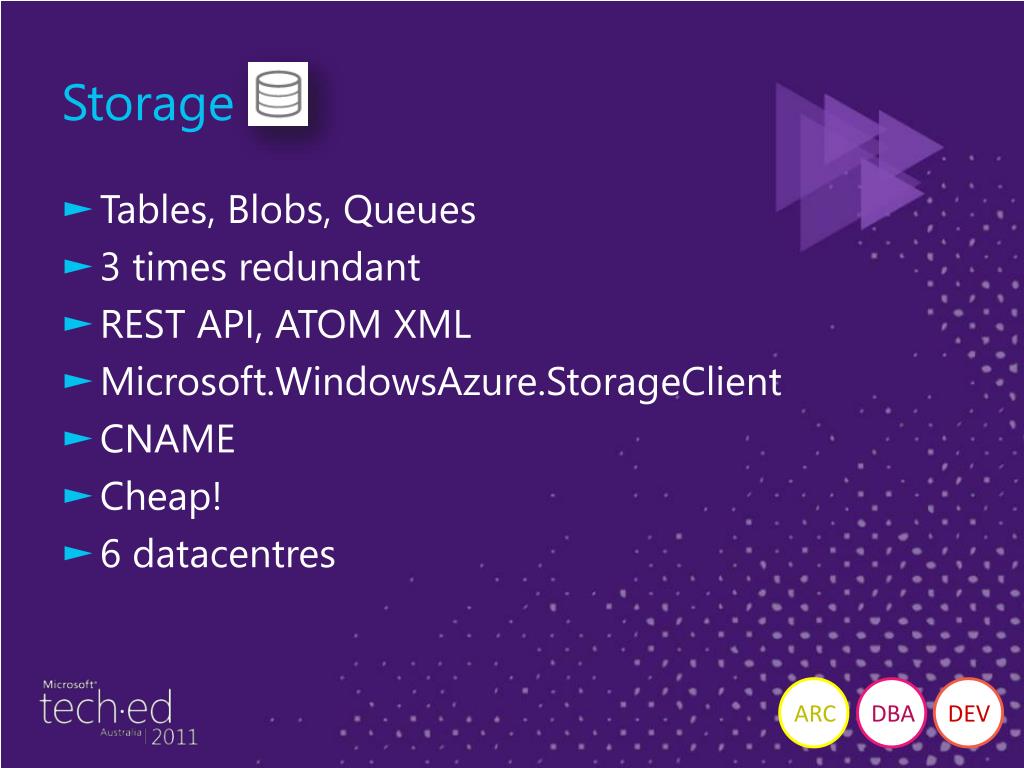

  6. Storage DBA DEV ARC • Tables, Blobs, Queues • 3 times redundant • REST API, ATOM XML • Microsoft.WindowsAzure.StorageClient • CNAME • Cheap! • 6 datacentres

  7. CDN ARC INF • Extend blob storage • Control cache headers • Smooth Streaming • 24 locations (Sydney) • Reduce web role traffic • CNAME CTP

  8. Database DBA DEV ARC • Database as a Service (DaaS) • SQL Server 2008 fork • 3 times redundant • Throttle

  9. CTP Reporting DBA DEV • SQL Server Reporting Services on SQL Azure • Applications, SQL Azure Portal, or Direct URL • Standard RDL file and tooling (BIDS) • High availability / scale • No email delivery, scheduled subscriptions • SQL Azure Authentication only

  10. beta Virtual Machines DEV ARC INF • VM role • Windows Server 2008 R2 (Stand. or Ent.) • Load balanced / Failover • No Guest OS Patching • Is NotInfrastructure as a Service (IaaS)

  11. Service Bus DEV ARC INF • Relay for messaging • Upgrade to direct connections • BizTalk Integration • Set of WCF bindings

  12. Access Control DEV ARC INF • Claims based authentication and authorization • Segregate auth from app • Federated Identity

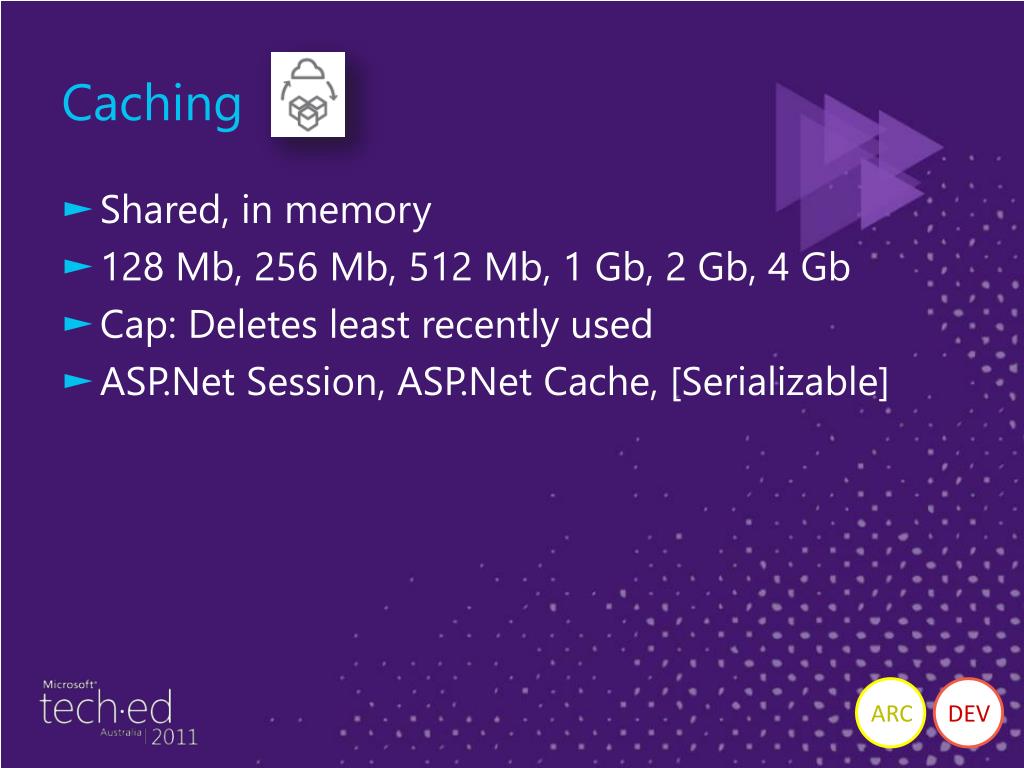

  13. Caching DEV ARC • Shared, in memory • 128 Mb, 256 Mb, 512 Mb, 1 Gb, 2 Gb, 4 Gb • Cap: Deletes least recently used • ASP.NetSession, ASP.Net Cache, [Serializable]

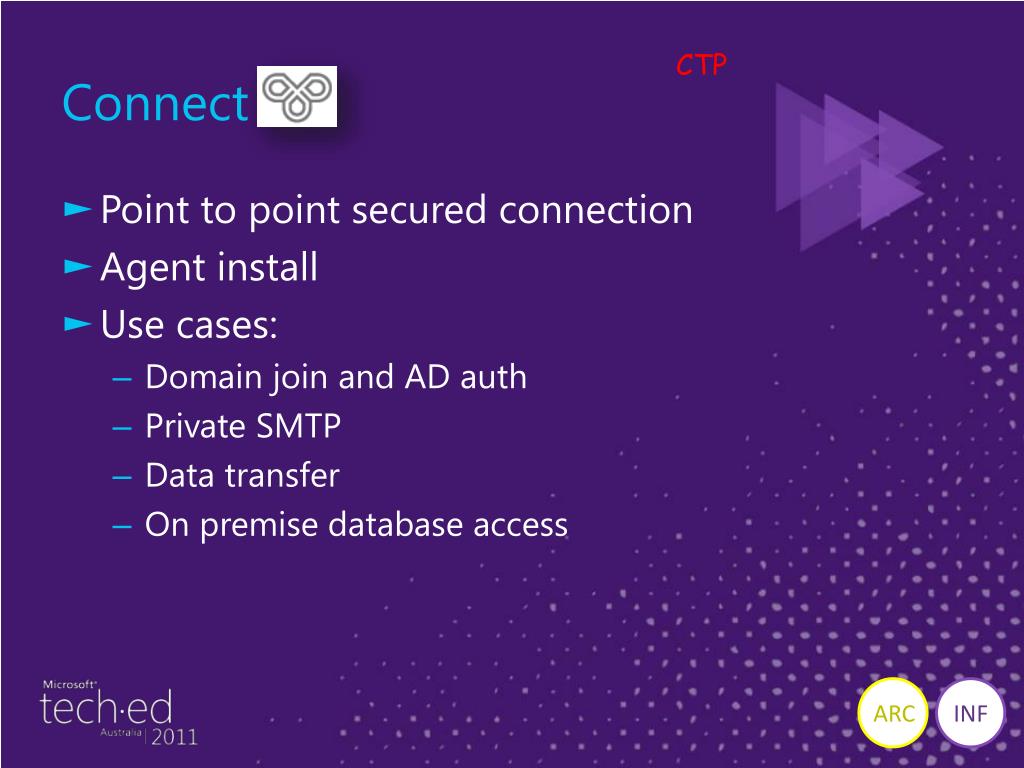

  14. Connect CTP ARC INF • Point to point secured connection • Agent install • Use cases: • Domain join and AD auth • Private SMTP • Data transfer • On premise database access

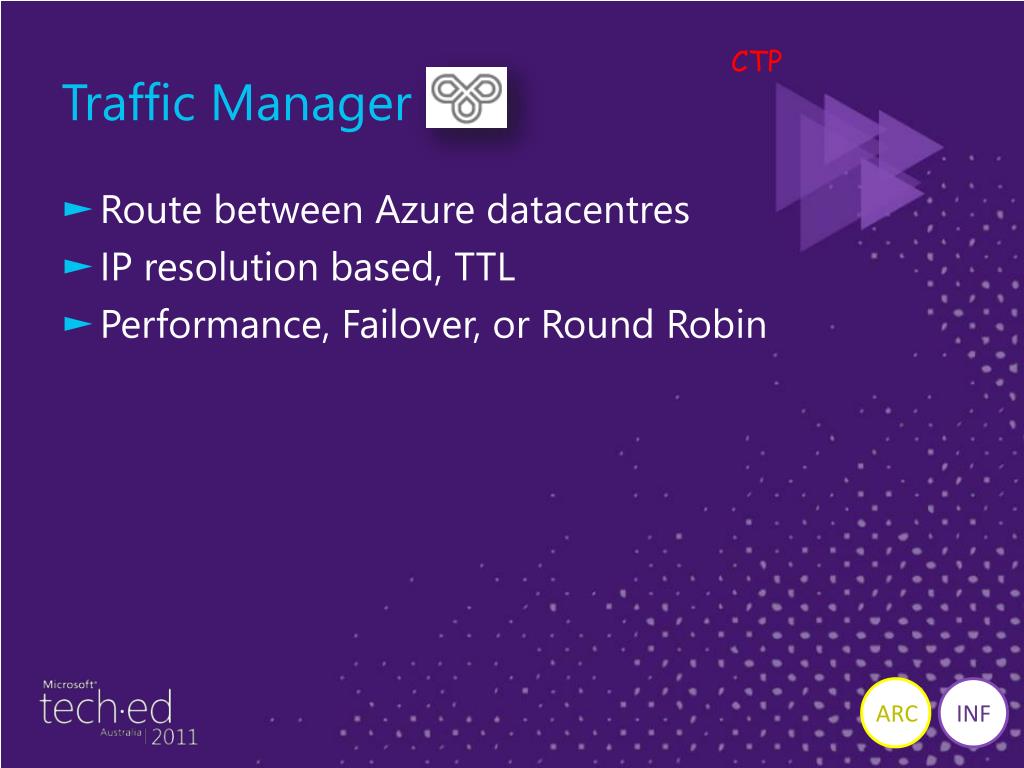

  15. Traffic Manager CTP ARC INF • Route between Azure datacentres • IP resolution based, TTL • Performance, Failover, or Round Robin

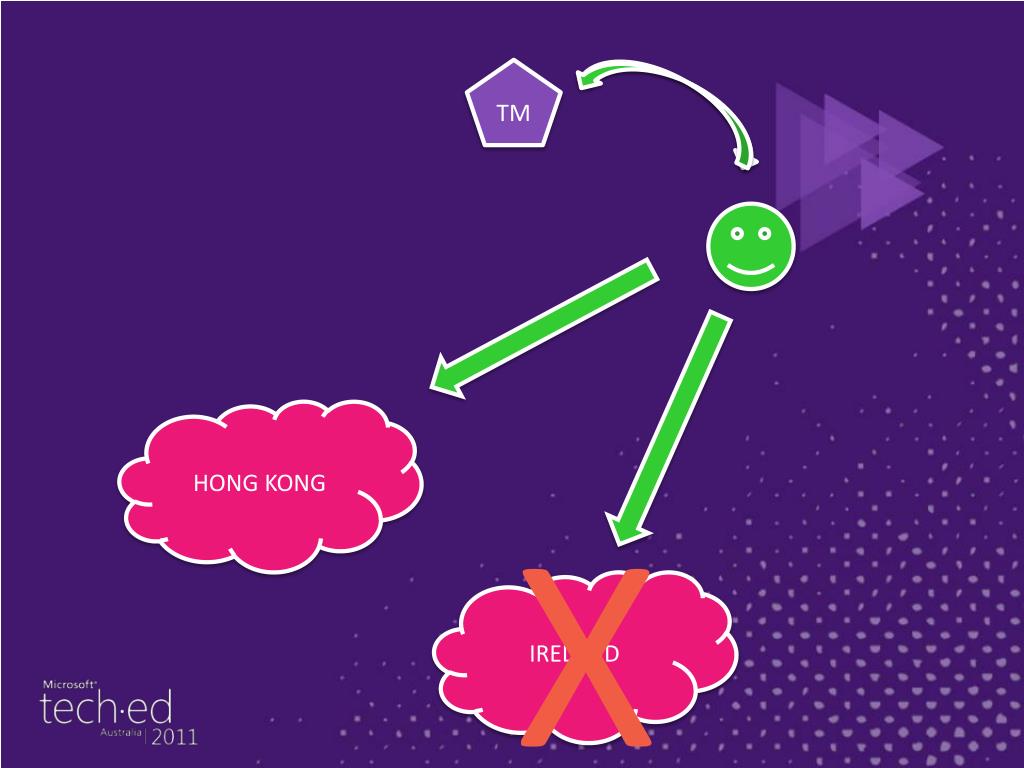

  16. TM HONG KONG X IRELAND

  17. Marketplace ARC • Application and data marketplace • Free and monthly subscription

  18. Summary DBA DEV ARC INF

  19. http://snagy.name

  20. Win a Touch Mouse! Complete your session evaluation on Schedule Builder for your chance to win a Windows 7 Touch Mouse • Exclusive for Windows 7 • Eleven multi touch gestures • Contoured shape for superior comfort 10 prizes drawn every day!* *Please see Registration for full terms and conditions

  21. GET REWARDED FOR SIMPLY PARTICIPATING IN TECH∙ED AUSTRALIA DOWNLOAD QR CODE READER FOR YOUR MOBILE DEVICE Windows Phone 7 we suggest Quick Reader Symbian we suggest the built in reader or mobile Tag IOS we suggest QR Reader Blackberry we suggest Mobile Tag Android phones we suggest Barcode Scanner GO TO THE TECHQUEST WEBSITE WWW.TAGLY.COM & CREATE A PROFILE EXAMPLE ONLY

  22. TECH∙ED EXCLUSIVE OFFER $729 HP ProLiant Micro ServerBundled with Microsoft Small Business Essentials Available at Mission Control on the show floor KEY SPECS: • AMD Athlon II Processor Model NEO N36L • 2GB (2 x 1GB included; Maximum 8 GB (2 x 4 GB)) • 250GB SATA 7200 rpm (Maximum 8TB internal and 4TB external) • Small Business Server 2011 Essentials • SHOW OFFER: $729 (save over $490 off RRP)

  23. © 2010 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION. (c) 2011 Microsoft. All rights reserved.

  24. Resources • www.msteched.com/Australia • Sessions On-Demand & Community • www.microsoft.com/australia/learning • Microsoft Certification & Training Resources • http:// technet.microsoft.com/en-au • Resources for IT Professionals • http://msdn.microsoft.com/en-au • Resources for Developers (c) 2011 Microsoft. All rights reserved.
