Linked Genes, Sex Linkage and Pedigrees

1. Linked Genes, Sex Linkage and Pedigrees Chapter 15 Pages333 - 354

2. One homologous pair of chromosomes Oocyte Meiosis Ab Ab aB aB Gametes Linked Genes 1 • Genes on the same chromosome are said to be linked. They are inherited together as a unit and do not undergo independent assortment. • Linkage can alter expected genotype and phenotype ratios in the offspring. • In this example, only two types of gamete are produced instead ofthe expected four kinds if the geneswere assorted independently. Genes A and B control different traits and are on the same chromosome

3. Parent 1 (2N) Parent 2 (2N) Two genes are linked when they are on the same chromosome Line indicates linkage Linked Genes 2 • Genes located on the same chromosome are said to be linked (e.g. genes A and B). • Linked genes tend to be inherited together. • Linkage results in fewer genetic combinations of alleles in offspring (compared to genes on separate chromosomes). • In describing linkage, the appropriate notation shows a horizontal line separating linkage groups. Linked AB ab ab ab Linked Chromosome pair before replication Chromosomes after replication

4. Meiosis Gametes (N) Only one gamete from each replicated chromosome is shown Chromosomes after replication X Linked Genes 3 • The inheritance patterns involving linked genes do not follow expected Mendelian ratios. • In this example of linked genes, only two kinds of genotype combinations occur in the offspring. • Without linkage, the same parents would provide four possible genotypes: AaBb, Aabb, aaBb, aabb. Possible offspring Only two genotype combinations occur aabb aabb AaBb AaBb

5. Non-recombinant offspring AB ab ab ab Recombinant offspring Meiosis Parent 1 (2N) Parent 2 (2N) Offspring Before replication AaBb aabb Aabb aaBb Linked genes After replication X Crossing over has occurred ab ab ab ab AB Ab aB ab Gametes (N) Recombination • Recombination refers to the exchange of alleles between homologous chromosomes as a result of crossing over between linked genes. • Recombination results in new combinations of parental characteristics in the offspring.These offspring are called recombinants. • Recombination between allelesof parental linkage groups isindicated by the appearance of recombinants in the offspring,although not in the proportionsthat would be expected withindependent assortment.

6. Autosomal & Sex-Linked Genes Autosomal Genes 1. All individuals carry two alleles of each gene 2. Dominance operates in both males and females 3.Reciprocal crosses produce the same results 4. Alleles passed equally to male and female offspring Sex-Linked Genes 1. Males carry only one allele of each gene (hemizygous) 2. Dominance operates in females only. 3. Reciprocal crosses produce different results. 4. ‘Criss-cross’ inheritance pattern: father to daughter to grandson, etc • Genes on one or other of the sex chromosomes produce inheritance patterns different from that shown by autosomes:

7. Sex Linkage • Sex linkage refers to the phenotypic expression of an allele that is dependent on the sex of theindividual and is directly tied to the sex chromosomes. • Most sex linked genes are present on the X chromosome (X-linkage) and have no corresponding allele on the smaller male chromosome. • In some cases, a phenotypic trait is determined by an allele on the Y chromosome. Because the Y chromosome is small and does not contain many genes, few traits are Y-linked and Y-linked diseases are rare. X Y Note the size differences between the X and Y chromosomes. The Y lacks alleles for many of the genes present on the X.

8. X X X X Y X Y X Unaffected father Carrier mother Unaffected son Unaffected daughter X Y X X Affected son Carrier daughter Sex Linkage • Sex-linked traits show a distinct pattern of inheritance. • Fathers pass sex-linked alleles to all their daughters but not to their sons. • Mothers can pass sex-linked alleles to both sons and daughters. • In females, sex-linked recessive traits will be expressed only in the homozygous condition. • In contrast, any male receiving the recessive allele from his mother will express the trait.

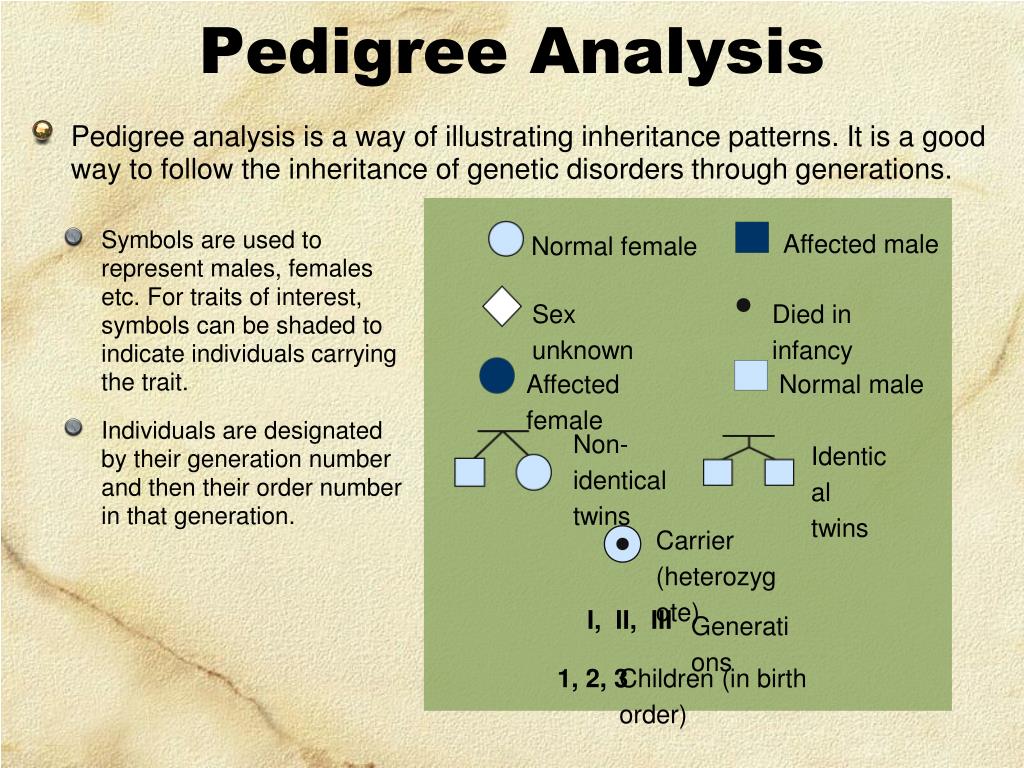

9. I, II, III 1, 2, 3 Children (in birth order) Non-identical twins Carrier (heterozygote) Died in infancy Generations Affected male Identical twins Normal male Affected female Normal female Sex unknown Pedigree Analysis • Pedigree analysis is a way of illustrating inheritance patterns. It is a good way to follow the inheritance of genetic disorders through generations. • Symbols are used to represent males, females etc. For traits of interest, symbols can be shaded to indicate individuals carrying the trait. • Individuals are designated by their generation number and then their order number in that generation.

10. Famously, Queen Victoria was a carrier of the allele for hemophilia, passing it to one of her sons and, through her daughters, to the royal families of Prussia, Russia, and Spain. Sex Linked Recessive Inheritance Affected male Unaffected female • For a recessive trait controlled by a gene on the X chromosome, the features of inheritance can be illustrated with the standard symbols used on pedigree charts. Note that: • More males than females express the trait. • Carrier females do not show the trait but pass it to sons. • All daughters of affected males will at least be carriers of the trait. Carrier

11. Some X-linked dominant conditions, such as Aicardi syndrome, are lethal to boys. They are usually seen only in girls but may be seen in males with Klinefelter syndrome (XXY) Sex Linked Dominant Inheritance Unaffected female Affected male • Sex-linked dominant inheritance is rarer because all daughters of affected males will be affected (the heterozygous condition is not a carrier). • Sex-linked dominant traits are never passed from father to son. • Affected females produce 50% normal and 50% affected offspring.

12. Sex Linkage in Humans • A rare form of rickets in humans is a sex-linked dominant trait. It is determined by a dominant allele of a gene on the X chromosome. • This condition is not treatable with vitamin D therapy. • A typical inheritance pattern is shown. XR indicates affected by rickets.

13. XXR XXR XX XRY XY XY Children Possible fertilizations Normalwoman Affectedmale Affectedfemale Normalmale Affectedfemale Normalmale X Parents X X XR Y Gametes Genetic Counseling • In the example of the sex-linked dominant form of rickets, the ratios of affected children can be determined if the phenotype and genotype of each parent is known. • In this case, the prospective parents would be advised that there is a 50% chance of having an affected child. Only girls would be at risk.

14. Autosomal Dominant Disorders • These are inherited disorders caused by dominant alleles on autosomes. Dominant conditions are evident both in heterozygotes and in homozygous dominant individuals. Examples include: • Huntington disease

15. Autosomal Dominant Pattern • An idealised pattern of inheritance of an autosomal dominant trait includes the following features: • both males and females can be affected • all affected individuals have at least one affected parent • transmission can be from fathers to daughters and sons, or from mothers to daughters and sons • once the trait disappears from a branch of the pedigree, it does not reappear • in a large sample, approximately equal numbers of each sex will be affected.

17. Autosomal Recessive Disorders Inherited disorders caused by recessive alleles on autosomes. Recessive conditions are evident only in homozygous recessive genotypes. Eg. Cystic fibrosis. • The pedigree for albinism (lack of pigment in the hair, skin and eyes) is inherited as an autosomal recessive trait. • The trait is not sex linked and is shown by both males and females. The affected female in the third generation has phenotypically normal parents. • All generation II offspringare carriers for the albinoallele. • III-2 is an albino girl whosepaternal grandmother andmaternal grandfather arealso albinos. • All her other relatives are phenotypically normal. (Photo: UK Cystic Fibrosis Gene Therapy Consortium)

18. An idealised pattern of inheritance of an autosomal recessive trait includes the following features: • both males and females can be affected • two unaffected parents can have an affected child • all the children of two persons with the condition must also show the condition • the trait may disappear from a branch of the pedigree, but reappear in later generations • over a large number of pedigrees, there are approximately equal numbers of affected females and males.

20. Inheritance of X-LinkedRecessive Traits • Hemophilia is an X-linked disorder in which blood clotting time is prolonged. • Women who are heterozygotes are carriers for the recessive allele but do not have hemophilia. They can pass the allele to their sons (XY) who will express the recessive allele and have hemophilia. • In the first generation, the femaleof the affected family is a carrierfor the hemophilia allele. • Two of the offspring of the affectedfamily also carry the allele; the maleis affected and the female is a carrier. • Offspring of the female carrier andan unaffected male can be unaffected,carrier females, or affected males.

21. X linked Recessive Pattern • An idealised pattern of inheritance of an X-linked recessive trait includes the following features: • all the sons of a female with the trait are affected • all the daughters of a male with the trait will be carriers of the trait and will not show the trait; the trait can appear in their sons • none of the sons of a male with the trait and an unaffected female will show the trait, unless the mother is a carrier • all children of two individuals with the trait will also show the trait • in a large sample, more males than females show the trait.

23. Inheritance of X-LinkedDominant Traits • In this rare pattern of inheritance, all the daughters of affected males will be affected and more females than males will show the trait. • An affected male must always have an affected mother. • The inheritance of a rareform of rickets follows thisinheritance pattern. • The male I-2 is affected and allhis daughters II-2, II-3, and II-4are affected. • The affected female II-4 canproduce affected offspring ofboth sexes (III-2, III-3).

24. X linked Dominant Pattern • An idealised pattern of inheritance of an X-linked dominant trait includes the following features: • a male with the trait passes it on to all his daughters and none of his sons • a female with the trait may pass it on to both her daughters and her sons • every affected person has at least one parent with the trait • if the trait disappears from a branch of the pedigree, it does not reappear • over a large number of pedigrees, there are more affected females than males Examples include: • Vitamin D resistant rickets

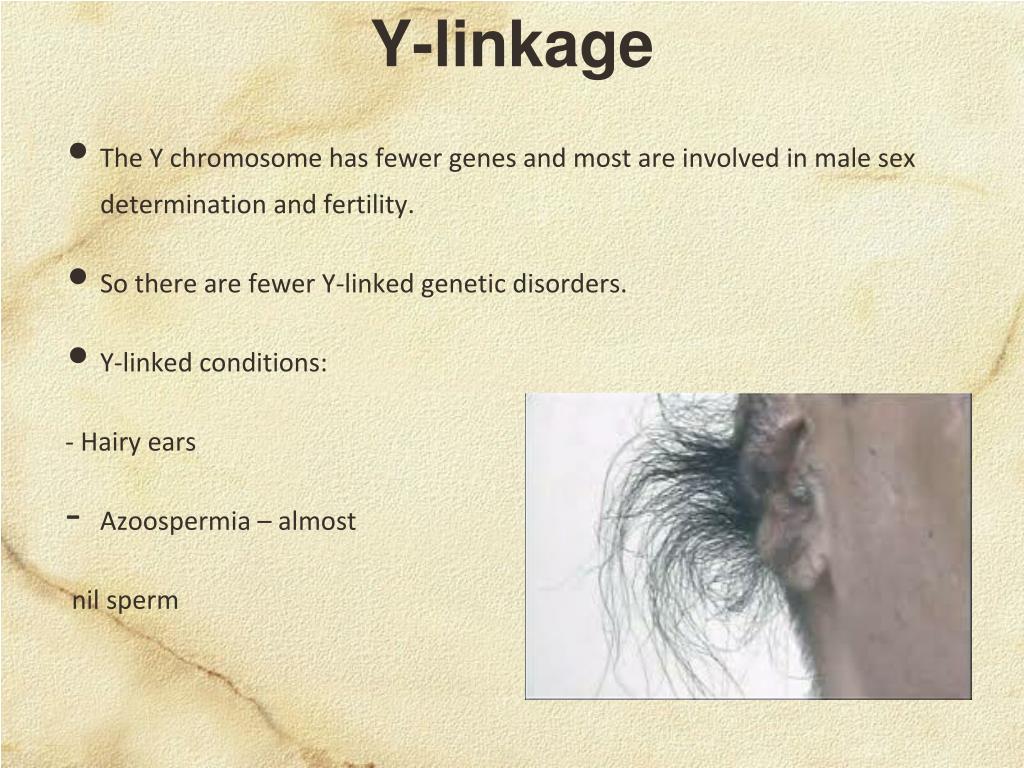

26. Y-linkage • The Y chromosome has fewer genes and most are involved in male sex determination and fertility. • So there are fewer Y-linked genetic disorders. • Y-linked conditions: - Hairy ears • Azoospermia – almost nil sperm

28. Is the condition observed in each generation of a family in which it occurs? NO YES Is the condition mainly in males? If daughters have the condition does their father also have it? Do males with the condition who mate with a normal female have all daughters, but no sons with the condition? Do only males have condition, passing it from father to son? ON NO YES NO YES YES Autosomal recessive Autosomal dominant Y linkage Sex-linked recessive Sex-linked dominant

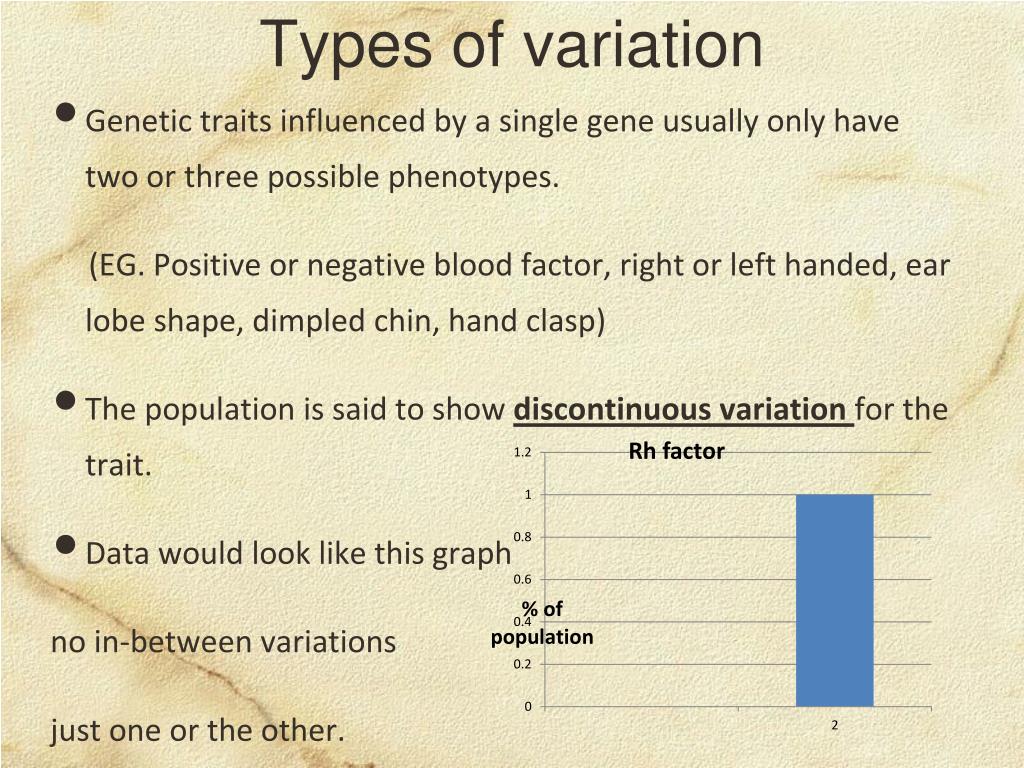

29. Types of variation • Genetic traits influenced by a single gene usually only have two or three possible phenotypes. (EG. Positive or negative blood factor, right or left handed, ear lobe shape, dimpled chin, hand clasp) • The population is said to show discontinuous variation for the trait. • Data would look like this graph no in-between variations just one or the other.

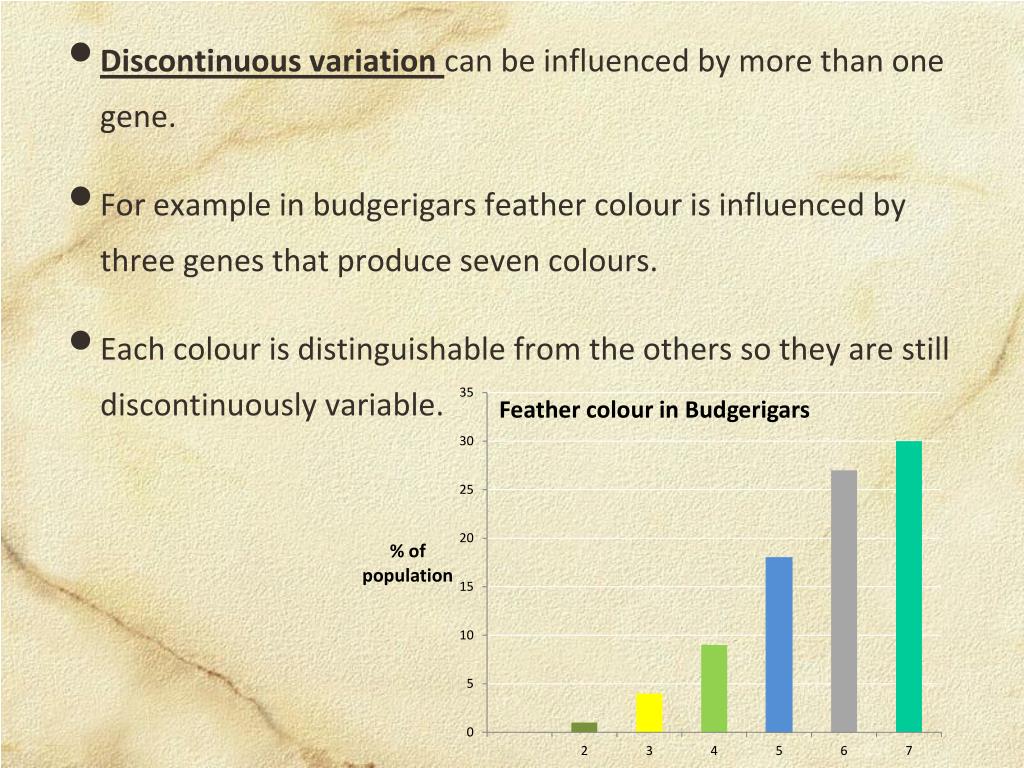

30. Discontinuous variation can be influenced by more than one gene. • For example in budgerigars feather colour is influenced by three genes that produce seven colours. • Each colour is distinguishable from the others so they are still discontinuously variable.

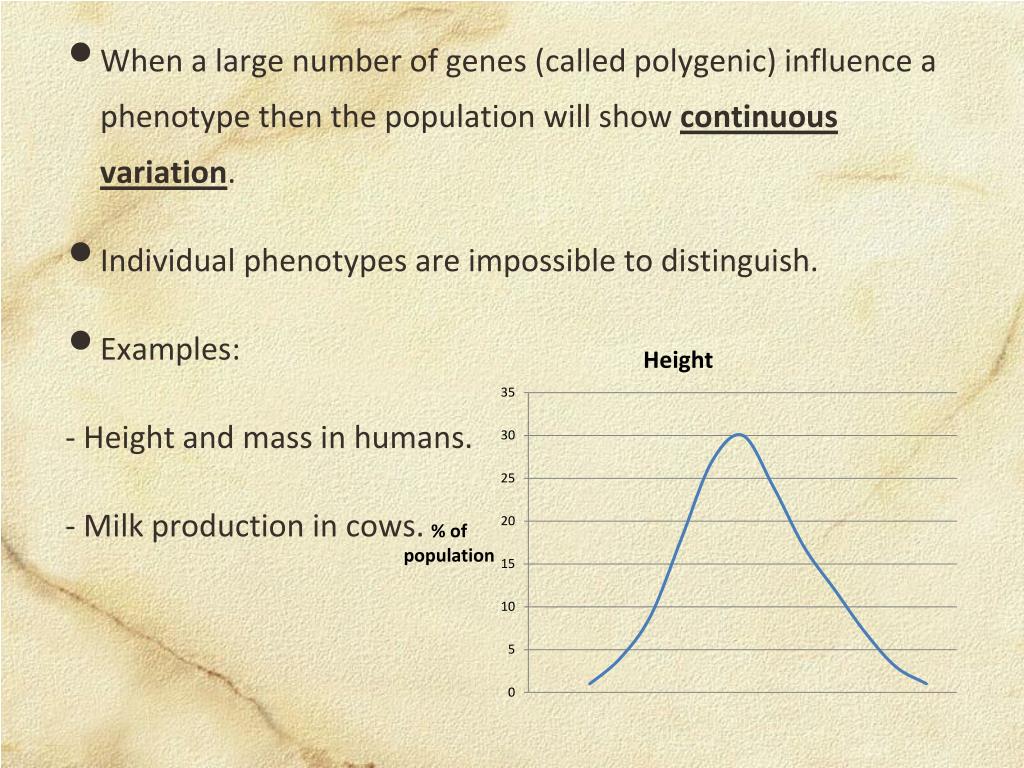

31. When a large number of genes (called polygenic) influence a phenotype then the population will show continuous variation. • Individual phenotypes are impossible to distinguish. • Examples: - Height and mass in humans. - Milk production in cows.
