  1. DR400/135 CDI

  2. Niveau liquide de refroid FADEC A ET B Alerte Moteur

  3. BATTERIE CONTACT MOTEUR ( FADEC ) Full Authority Digital Engine Control Voyant de préchauffage

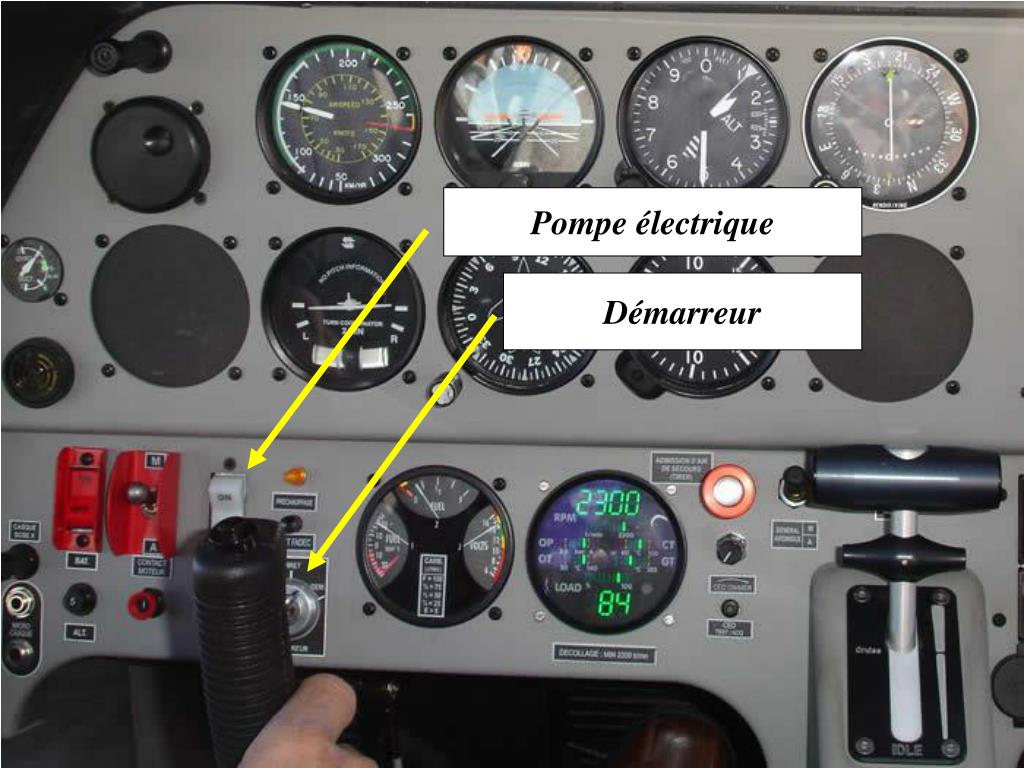

  4. Pompe électrique Démarreur

  5. C.E.D Compact Engine Display Eclairage + RAZ CED

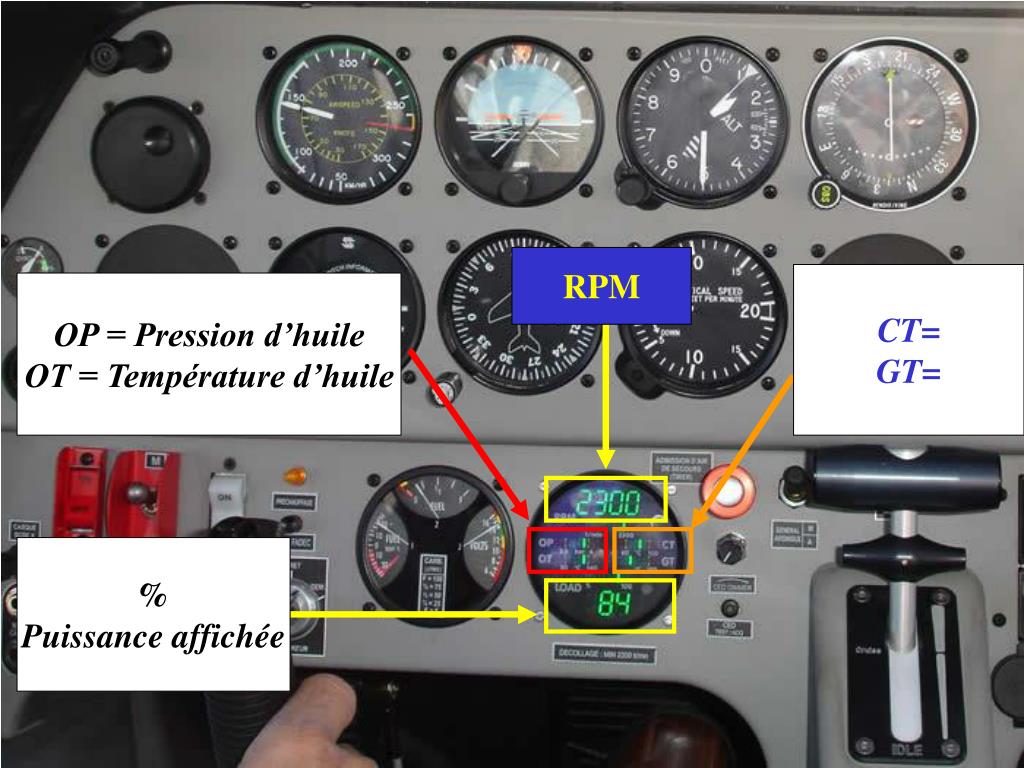

  6. RPM CT= GT= OP = Pression d’huile OT = Température d’huile % Puissance affichée

  7. Indicateur 3 infos

  8. CARBURANT VOLTMETRE Température carburant

  9. Commande by-pass du Turbo Admission air de secours

  10. Avionic Master Radio MP3

  11. Commande de Frein de parc

  12. Forçage FADEC B Test FADEC

  13. Disjoncteur alternateur

  14. Commande de chauffage cabine Commande de chauffage désembuage

  15. Des Questions?

  16. FADEC ? CED ? ,,??? BON VOL…
