  1. DAT321SQLCLR--在SQL Server 2005中运行.NET程序 邓英达 yindeng@microsoft.com 产品技术部 微软(中国)有限公司

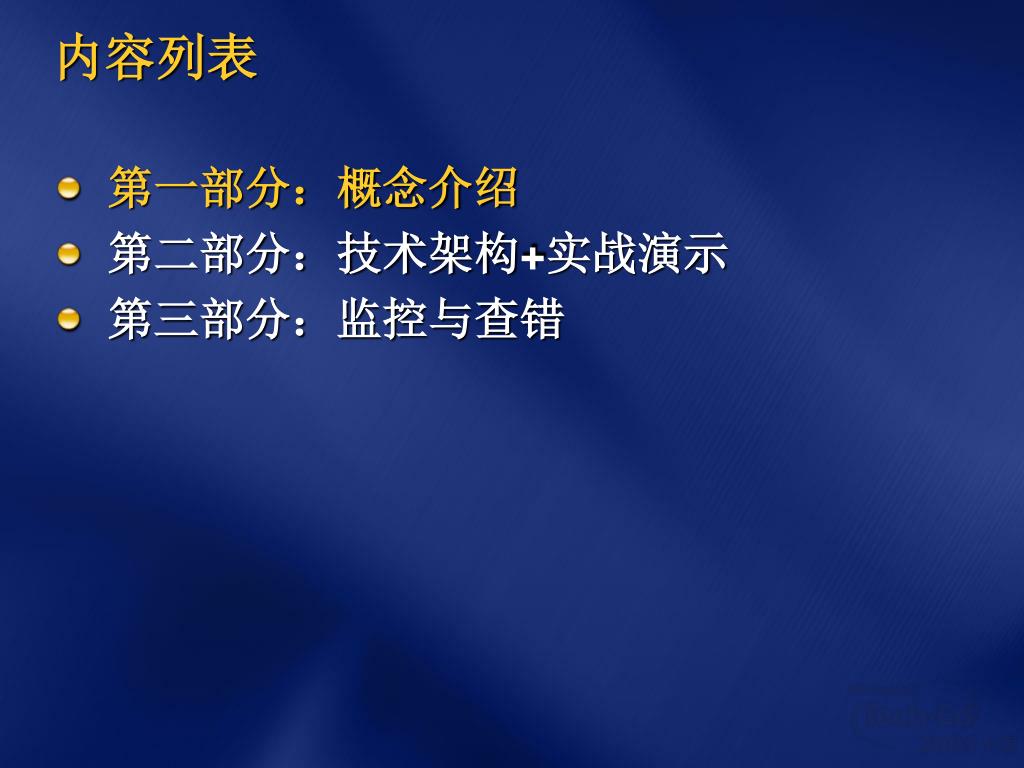

  2. 内容列表 • 第一部分：概念介绍 • 第二部分：技术架构+实战演示 • 第三部分：监控与查错

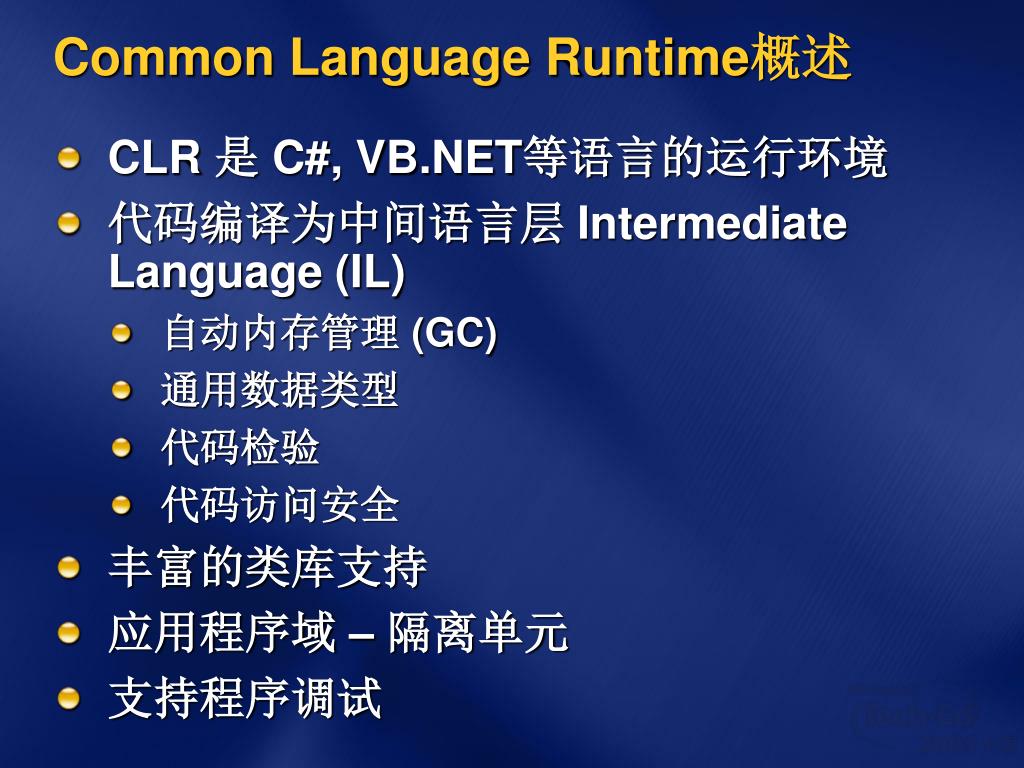

  3. Common Language Runtime概述 • CLR 是 C#, VB.NET等语言的运行环境 • 代码编译为中间语言层 Intermediate Language (IL) • 自动内存管理 (GC) • 通用数据类型 • 代码检验 • 代码访问安全 • 丰富的类库支持 • 应用程序域 – 隔离单元 • 支持程序调试

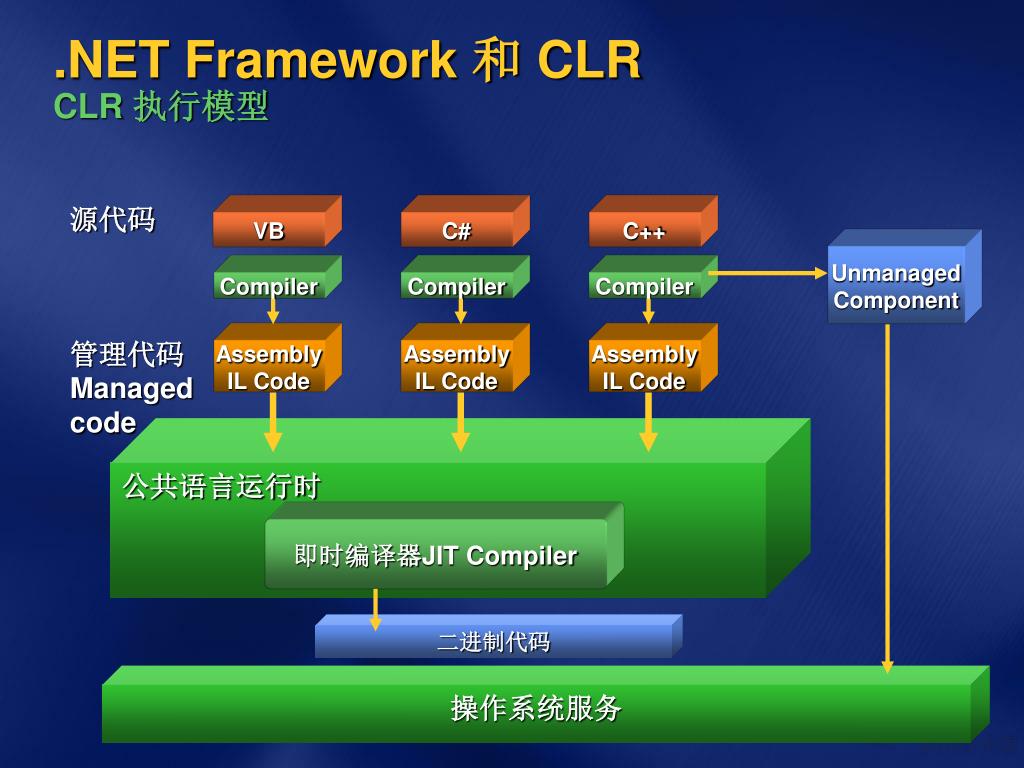

  4. .NET Framework 和 CLR CLR 执行模型 源代码 VB C# C++ Unmanaged Component Compiler Compiler Compiler 管理代码 Managed code Assembly IL Code Assembly IL Code Assembly IL Code 公共语言运行时 即时编译器JIT Compiler 二进制代码 操作系统服务

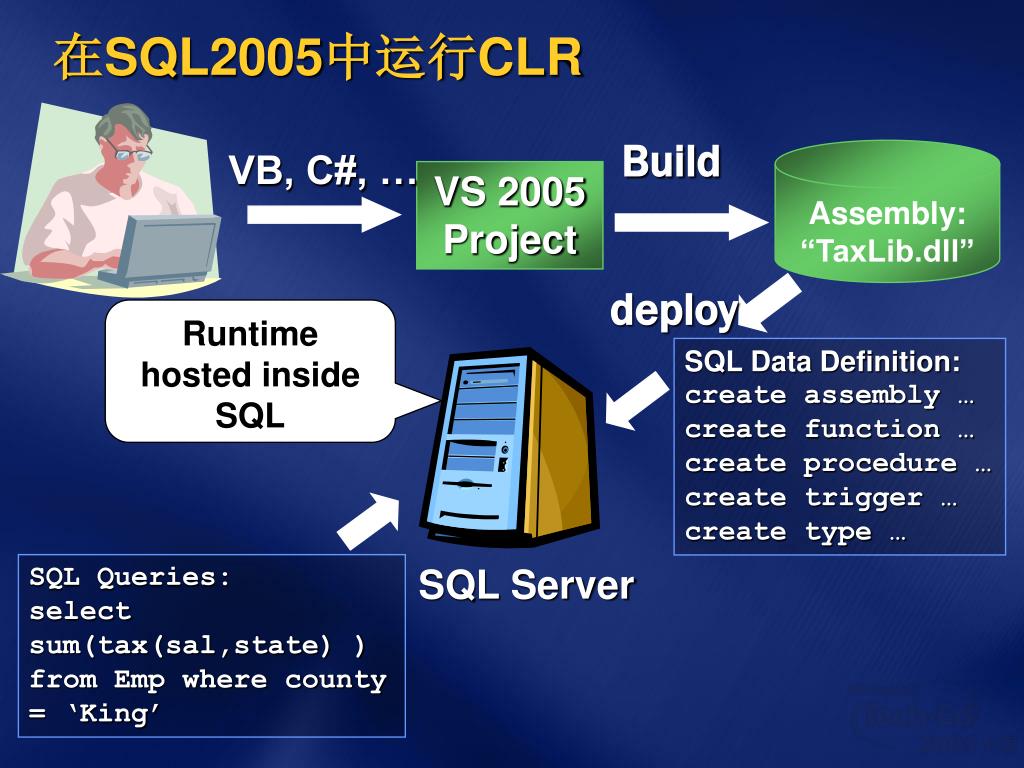

  5. VB, C#, … Assembly: “TaxLib.dll” SQL Data Definition: create assembly … create function … create procedure … create trigger … create type … SQL Queries: select sum(tax(sal,state) ) from Emp where county = ‘King’ SQL Server 在SQL2005中运行CLR Build VS 2005 Project deploy Runtime hosted inside SQL

  6. 内容列表 • 第一部分：概念介绍 • 第二部分：技术架构+实战演示 • 第三部分：监控与查错

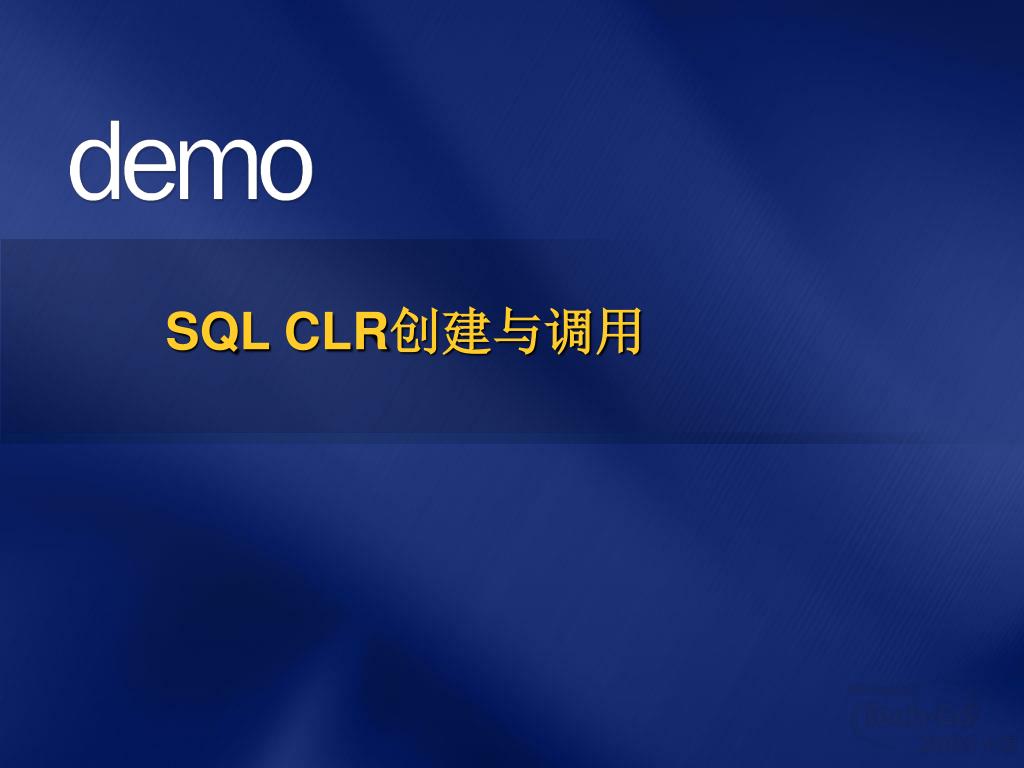

  7. SQL CLR创建与调用

  8. CLR通过SQL Server进行: Memory Threads Synchronization SQL和CLR协作完成： Assembly Loading Security management App domains Escalation policy for exceptions 在SQL中Hosting CLR SQL Server Process CLR Hosting Layer SQL OS Windows

  9. 技术架构 • 内存管理 • 程序集管理 • 应用程序域管理 • CPU管理: 线程、同步、死锁等 • 安全管理

  10. 内存管理 • All memory allocation from CLR through SQL Server • Most of CLR memory (GC Heap) comes from multi-page memory allocator (outside Buffer-pool, from “MemToLeave”) • Max server memory setting does not cover CLR memory • On memory pressure, SQL and CLR coordinate in order to initiate a GC • DMVs for monitoring CLR memory usage • Sys.dm_os_memory_clerks • Sys.dm_os_memory_objects • Memory clerks of interest: SQLCLR, SQLCLRASSEMBLY • Perf counters: everything under .NET CLR Memory

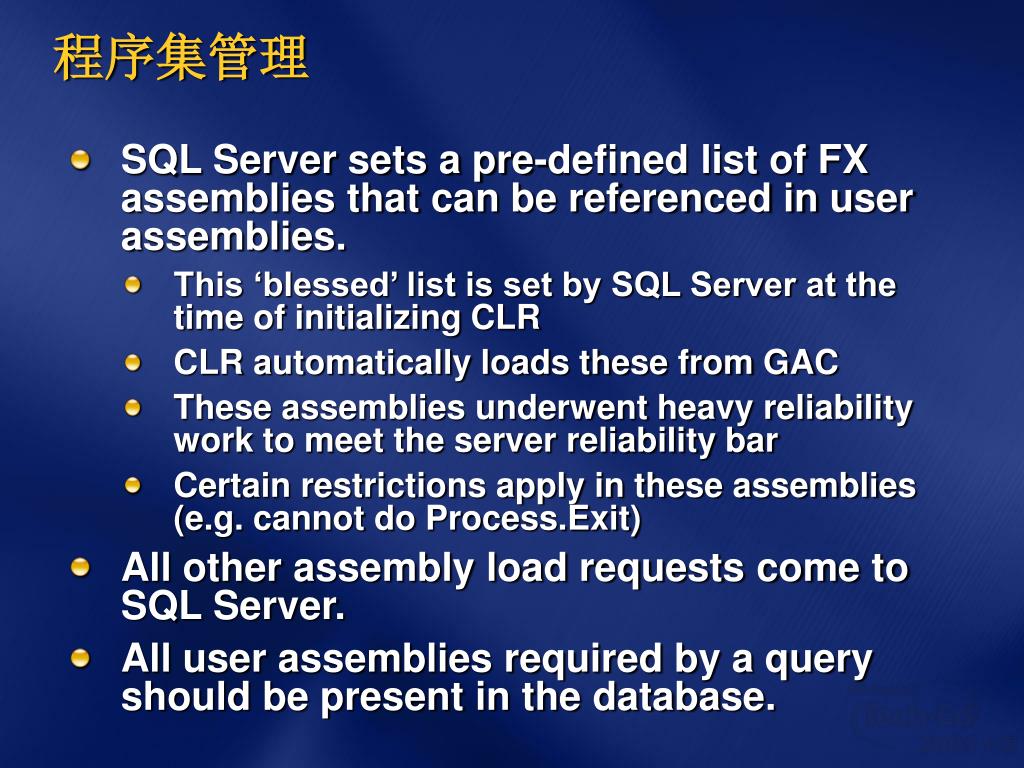

  11. 程序集管理 • SQL Server sets a pre-defined list of FX assemblies that can be referenced in user assemblies. • This ‘blessed’ list is set by SQL Server at the time of initializing CLR • CLR automatically loads these from GAC • These assemblies underwent heavy reliability work to meet the server reliability bar • Certain restrictions apply in these assemblies (e.g. cannot do Process.Exit) • All other assembly load requests come to SQL Server. • All user assemblies required by a query should be present in the database.

  12. 程序集管理Blessed Assemblies • Microsoft.VisualBasic • Mscorlib • System • System.Data • System.Data.SqlXml • System.Data.OracleClient • System.Transactions • System.Configuration • System.Xml • System.Security • System.Web.Services • Microsoft.VisualC • CustomMarshalers

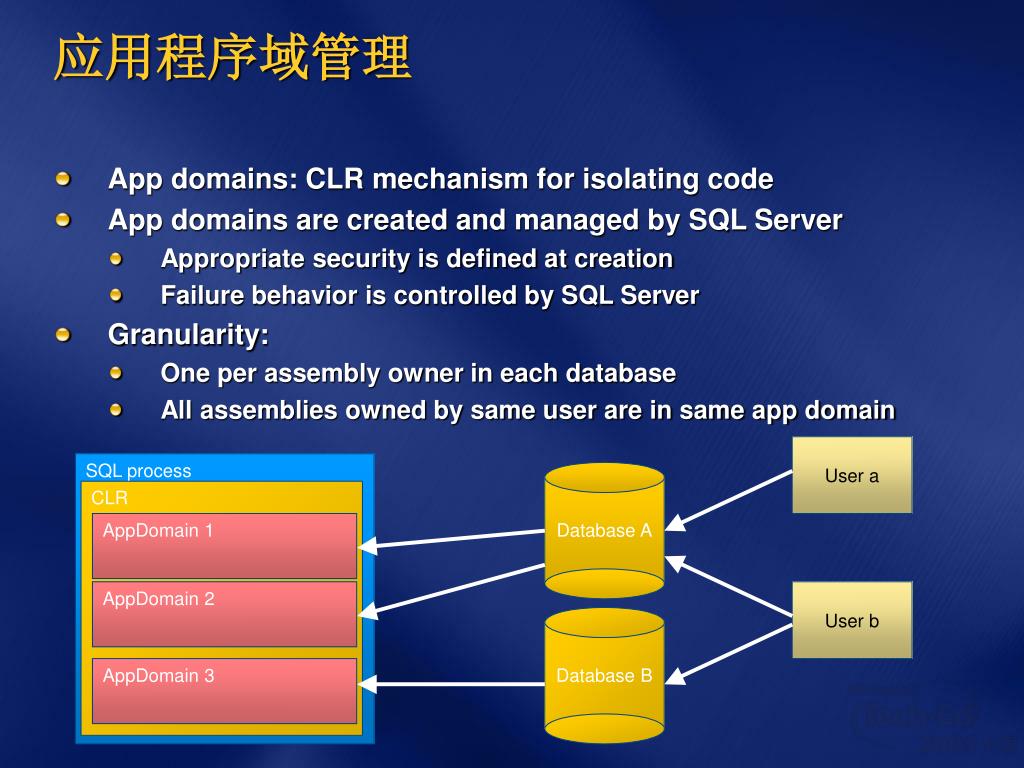

  13. Database A Database B 应用程序域管理 • App domains: CLR mechanism for isolating code • App domains are created and managed by SQL Server • Appropriate security is defined at creation • Failure behavior is controlled by SQL Server • Granularity: • One per assembly owner in each database • All assemblies owned by same user are in same app domain User a SQL process CLR AppDomain 1 AppDomain 2 User b AppDomain 3

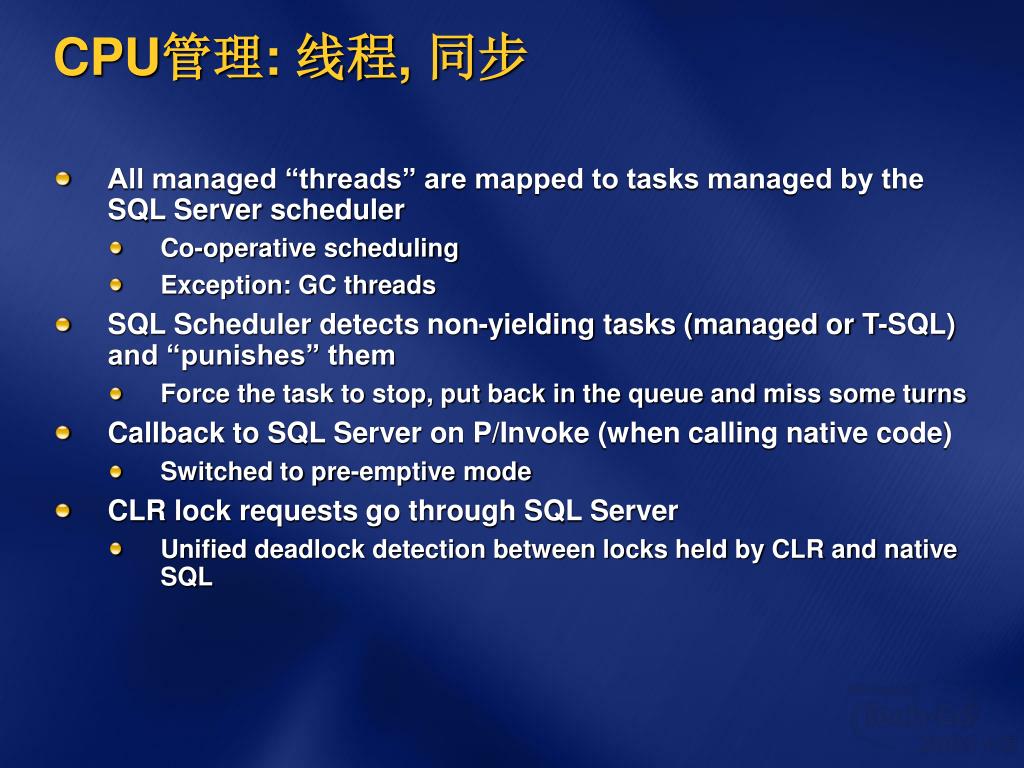

  14. CPU管理: 线程, 同步 • All managed “threads” are mapped to tasks managed by the SQL Server scheduler • Co-operative scheduling • Exception: GC threads • SQL Scheduler detects non-yielding tasks (managed or T-SQL) and “punishes” them • Force the task to stop, put back in the queue and miss some turns • Callback to SQL Server on P/Invoke (when calling native code) • Switched to pre-emptive mode • CLR lock requests go through SQL Server • Unified deadlock detection between locks held by CLR and native SQL

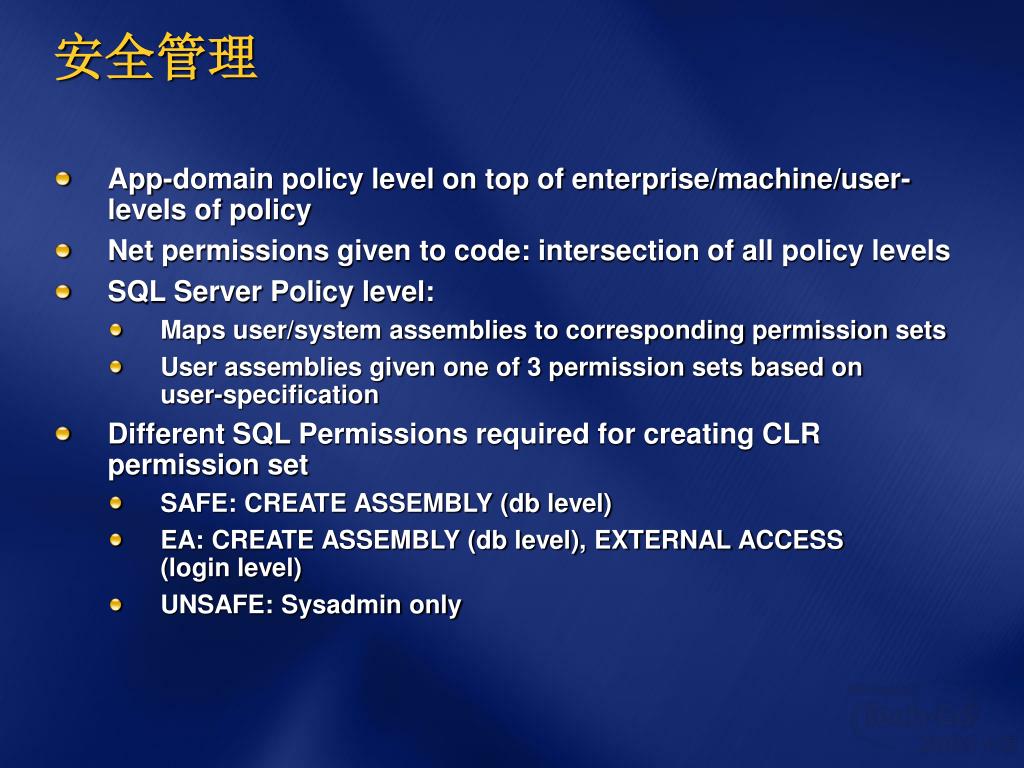

  15. 安全管理 • App-domain policy level on top of enterprise/machine/user-levels of policy • Net permissions given to code: intersection of all policy levels • SQL Server Policy level: • Maps user/system assemblies to corresponding permission sets • User assemblies given one of 3 permission sets based on user-specification • Different SQL Permissions required for creating CLR permission set • SAFE: CREATE ASSEMBLY (db level) • EA: CREATE ASSEMBLY (db level), EXTERNAL ACCESS (login level) • UNSAFE: Sysadmin only

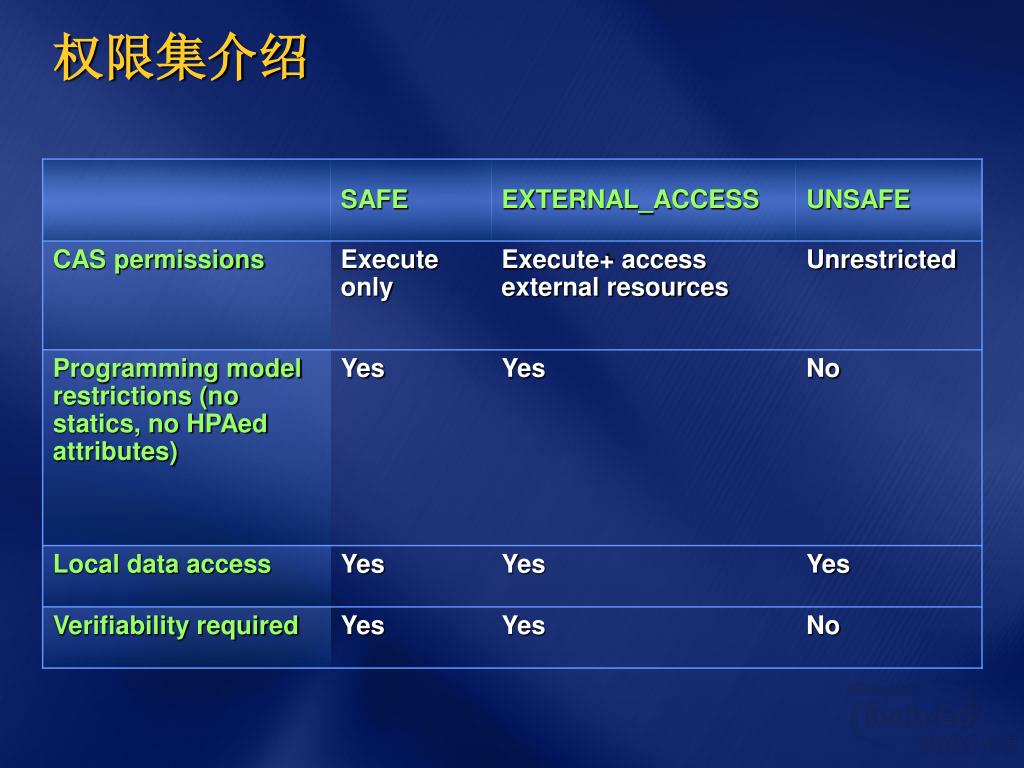

  16. 权限集介绍

  17. 外部资源操作与运行权限

  18. SQL CLR与T-SQL的区别

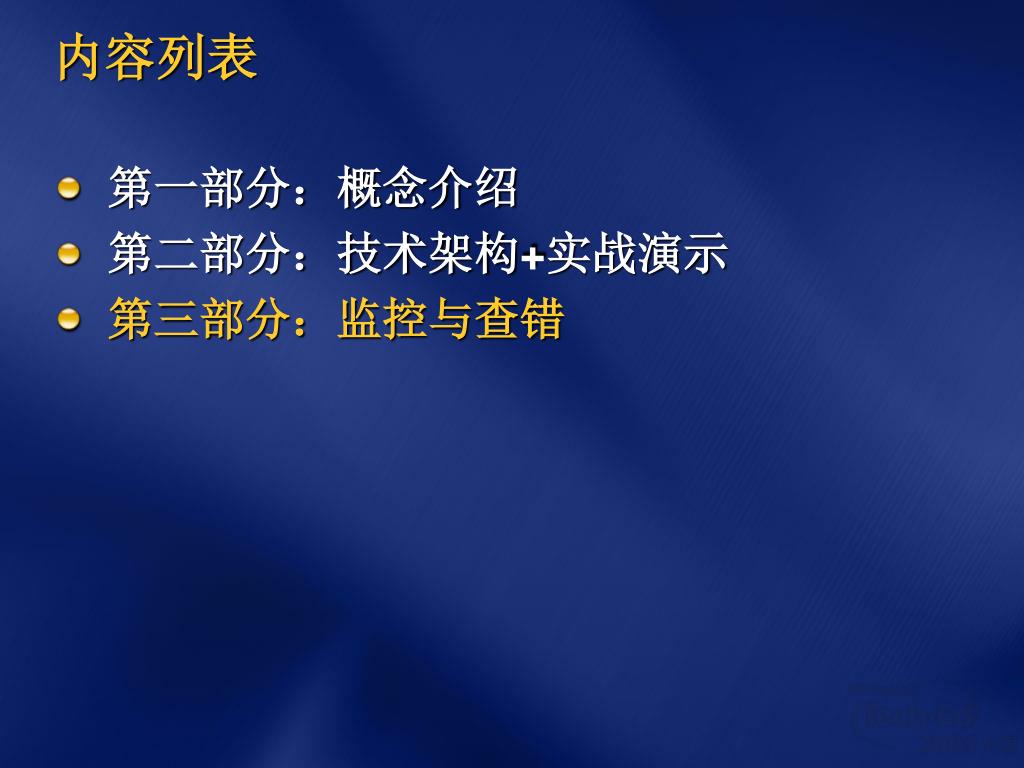

  19. 内容列表 • 第一部分：概念介绍 • 第二部分：技术架构+实战演示 • 第三部分：监控与查错

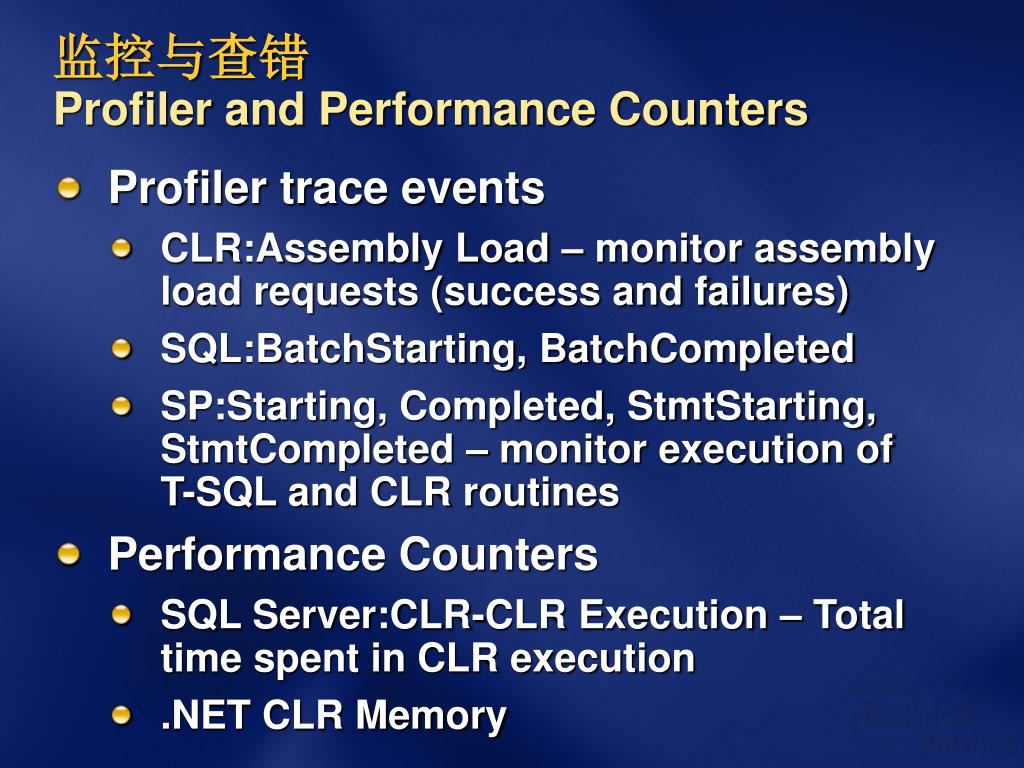

  20. 监控与查错Profiler and Performance Counters • Profiler trace events • CLR:Assembly Load – monitor assembly load requests (success and failures) • SQL:BatchStarting, BatchCompleted • SP:Starting, Completed, StmtStarting, StmtCompleted – monitor execution of T-SQL and CLR routines • Performance Counters • SQL Server:CLR-CLR Execution – Total time spent in CLR execution • .NET CLR Memory

  21. 监控与查错DMVs and Catalog views • sys.assembly* • sys.dm_os_memory_clerks • sys.dm_clr* • sys.dm_exec_query_stats • sys.dm_exec_requests • sys.dm_exec_cached_plans

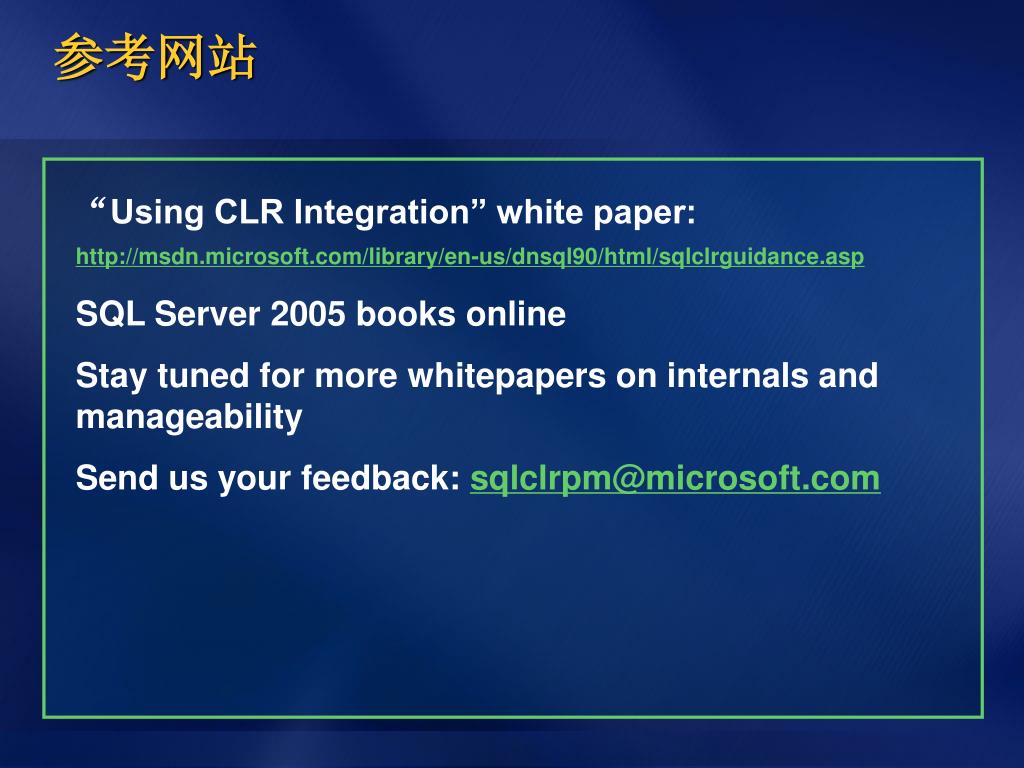

  22. “Using CLR Integration” white paper: http://msdn.microsoft.com/library/en-us/dnsql90/html/sqlclrguidance.asp SQL Server 2005 books online Stay tuned for more whitepapers on internals and manageability Send us your feedback: sqlclrpm@microsoft.com 参考网站
