  1. Transverse Spin dependent Fragmentation Functions at Anselm Vossen (University of Illinois) Matthias Grosse Perdekamp (University of Illinois) Martin Leitgab (University of Illinois) Akio Ogawa (BNL/RBRC) Ralf Seidl (RBRC) Kieran Boyle (RBRC)

  2. Outline • Motivation • Collins FF for transversity extraction in global QCD Analysis of single transverse spin asymmetries in pp and SIDIS • Measuring Fragmentation Functions at Belle • Experimental techniques • Collins FF results • Interference Fragmentation Functions • Planned measurements of IFF at Belle • Recent results from pp and SIDIS • Summary & Outlook

  3. Transverse Spin Asymmetries at RHIC PHENIX, forward p0at s = 62 GeV, nucl-ex/0701031 Transversity • QCD: : very small • Single transverse spin asymmetries pick up: • Sivers Effect: kT in quark distribution • Quark transverse polarization x Collins fragmentation function: kT in fragmentation function δq x CFF 3

  4. Transversity Quark Distributions δq(x)from Transverse Single Spin Asymmetries in Semi Inclusive Deep Inelastic Scattering (SIDIS) Example: New COMPASS results for Collins Asymmetries on proton target (consistent with previous HERMES results) Collins- and IFF- asymmetries in semi-inclusive deep inelastic scattering (SIDIS) and pp measure ~ δq(x) x CFF(z)  combined analysis with CFF from e+e- annihilation

  5. Collins Effect in Quark Fragmentation J.C. Collins, Nucl. Phys. B396, 161(1993) q Collins Effect: Fragmentation of a transversely polarized quark q into spin-less hadron h carries an azimuthal dependence:

  6. General Form of Fragmentation Functions Number density for finding hadron h from a transversely polarized quark, q: unpolarized FF Collins FF 6

  7. Collins FF in e+e- : Need Correlation between Hemispheres ! • Quark spin direction unknown: measurement of • Collins function in one hemisphere is not possible • sin φ modulation will average out. • Correlation between two hemispheres with • sin φi Collins single spin asymmetries results in • cos(φ1+φ2) modulation of the observed di-hadron • yield. • Measurement of azimuthal correlations for pion pairs • around the jet axis in two-jet events!

  8. Collins Effect in di-Hadron Correlations In e+e- Annihilation into Quarks! • Collins effect in e+e- • quark fragmentation • will lead to azimuthal • asymmetries in di-hadron • correlation measurements! • Experimental requirements: • Small asymmetries  • very large data sample! • Good particle ID to high • momenta. • Hermetic detector electron q1 z2 z1 q2 quark-1 spin quark-2 spin z1,2 relative pion momenta positron 8

  9. KEKB: L>1.96 x 1034cm-2s-1 !! Belle detector KEKB • Asymmetric collider • 8GeV e- + 3.5GeV e+ • √s = 10.58GeV (U(4S)) • e+e-U(4S)BB • Continuum production: 10.52 GeV • e+e-qq (u,d,s,c) • Integrated Luminosity: >700 fb-1 • >60fb-1 => continuum 9

  10. Large acceptance, good tracking and particle identification! Collins Asymmetries in Belle 10 May 28th

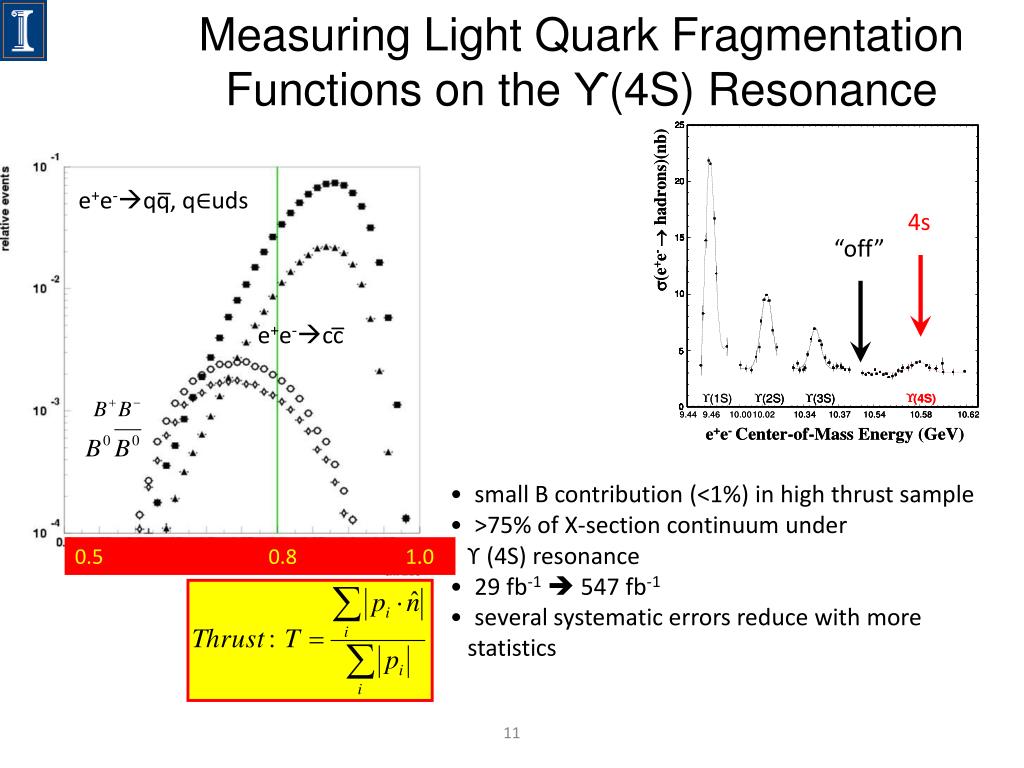

  11. Measuring Light Quark Fragmentation Functions on the ϒ(4S) Resonance e+e-qq̅, q∈uds 4s “off” e+e-cc̅ • small B contribution (<1%) in high thrust sample • >75% of X-section continuum under • ϒ(4S) resonance • 29 fb-1 547 fb-1 • several systematic errors reduce with more • statistics 0.5 0.8 1.0 11

  12. Collins Fragmentation: Angles and CrossSection: cos(f1+f2) Method (e+e- CMS frame) Observable: yield, N12 ( φ1+φ2 )of π+π- pairs j2-p e- Q j1 j2 j1 e+ 2-hadron inclusive transverse momentum dependent cross section: Net anti-alignment of transverse quark spins 12

  13. Collins Fragmentation: Angles and Cross Section cos(2f0) Method (CMS Frame) Observable: yield, N0 ( 2φ0 ) of π+π- pairs e- Q Independent of thrust-axis Convolution integralI over transverse momenta [Boer,Jakob,Mulders: NPB504(1997)345] j0 e+ 2-hadron inclusive transverse momentum dependent cross section: Net anti-alignment of transverse quark spins 13

  14. Examples of fits to azimuthal asymmetries Cosine modulations clearly visible P1 contains information on Collins function N(f)/N0 2f0 (f1+f2) D1 : spin averaged fragmentation function, H1: Collins fragmentation function 14

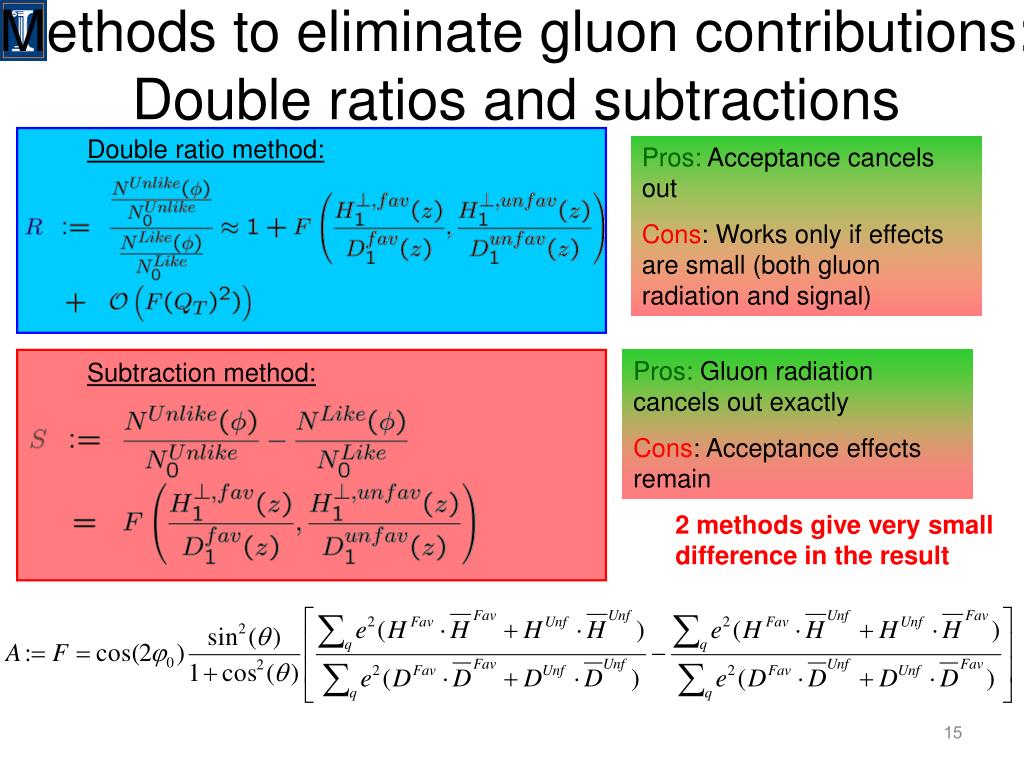

  15. Methods to eliminate gluon contributions: Double ratios and subtractions Double ratio method: Pros: Acceptance cancels out Cons: Works only if effects are small (both gluon radiation and signal) Pros: Gluon radiation cancels out exactly Cons: Acceptance effects remain Subtraction method: 2 methods give very small difference in the result 15

  16. Applied Cuts, Binning Two data sets: off-resonance data ( 29.1 fb-1 ) on-resonance data ( 547 fb-1 ) Track selection: pT > 0.1GeV vertex cut:dr < 2cm, |dz| <4cm Acceptance cut -0.6 < cosqi< 0.9 Event selection: Ntrack 3 Thrust > 0.8 z1, z2 > 0.2 • Hemisphere cut • QT < 3.5 GeV • Pion PID selection (z1, z2)-binning z2 1.0 3 6 8 9 0.7 2 5 7 8 0.5 1 4 5 6 0.3 1 2 3 0 0.2 0.2 0.3 0.5 0.7 1.0 z1 16

  17. Final Collins results Belle 547 fb-1 data set (Phys.Rev.D78:032011,2008.) 17

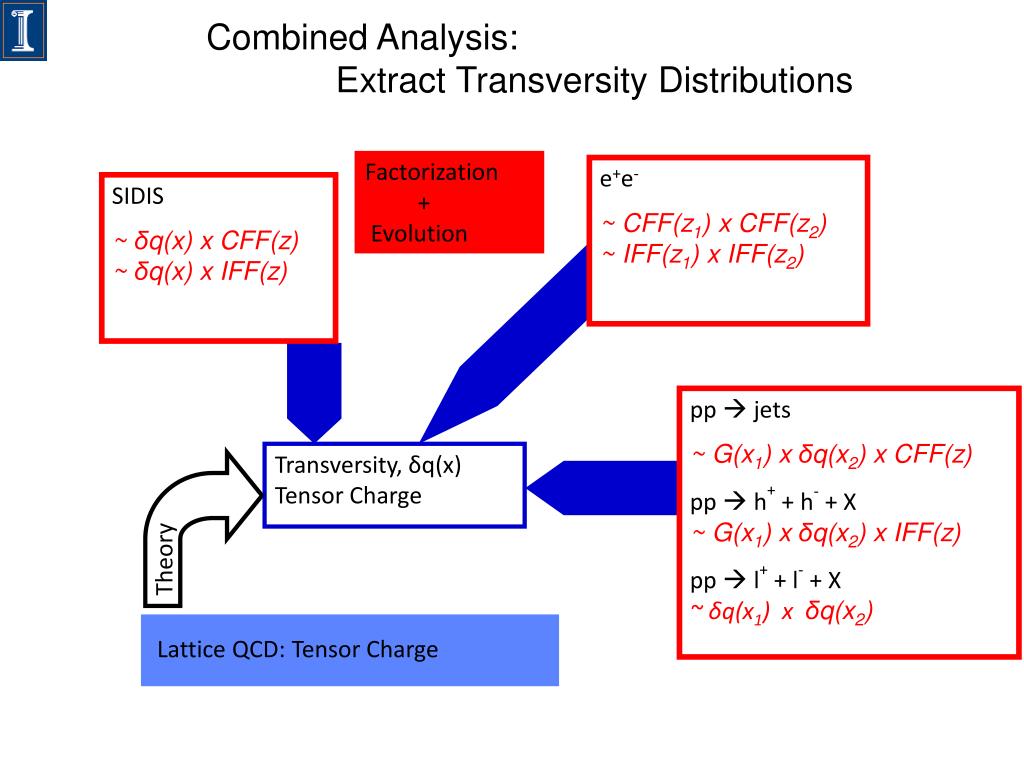

  18. Combined Analysis: Extract Transversity Distributions Factorization + Evolution e+e- ~ CFF(z1) x CFF(z2) ~ IFF(z1) x IFF(z2) SIDIS ~ δq(x) x CFF(z) ~ δq(x) x IFF(z) pp  jets ~ G(x1) x δq(x2) x CFF(z) pp  h+ + h- + X ~ G(x1) x δq(x2) x IFF(z) pp  l+ + l- + X ~ δq(x1) x δq(x2) Transversity, δq(x) Tensor Charge Theory Lattice QCD: Tensor Charge

  19. Extraction of Quark Transversity Distributions and Collins Fragmentation Functions SIDIS + e+e- Fit includes: Soffer Bound HERMES SIDIS (p) + COMPASS SIDIS (d) + Belle e+e- Old fit New fit transversity dist. + Collins FF Anselmino, Boglione, D’Alesio, Kotzinian, Murgia, Prokudin, Turk and Melis at Transversity 2008, Ferrara. Previously: Phys. Rev. D75:05032,2007 19

  20. Collins Extraction of Transversity:unknown Transverse Momentum Dependences! Collins FF transversity hadron FF quark pdf k┴transverse quark momentum in nucleon p┴ transverse hadron momentum in fragmentation Anselmino, Boglione, D’Alesio, Kotzinian, Murgia, Prokudin, Turk Phys. Rev. D75:05032,2007 The transverse momentum dependencies are unknown and very Difficult to obtain experimentally! 20

  21. Interference Fragmentation–thrust method j2-p p-j1 • Model predictions by: • Jaffe et al. [PRL 80,(1998)] • Radici et al. [PRD 65,(2002)] • e+e-(p+p-)jet1(p-p+)jet2X • Find pion pairs in opposite hemispheres • Observe angles j1+j2between the event-plane (beam, jet-axis) and the two two-pion planes. • Transverse momentum is integrated (universal function, evolution easy  directly applicable to semi-inclusive DIS and pp) collinear factorization • Theoretical guidance by papers of Boer,Jakob,Radici[PRD 67,(2003)] and Artru,Collins[ZPhysC69(1996)] • Early work by Collins, Heppelmann, Ladinsky [NPB420(1994)] • Independent Measurement • Favourable in pp: no Sivers 21

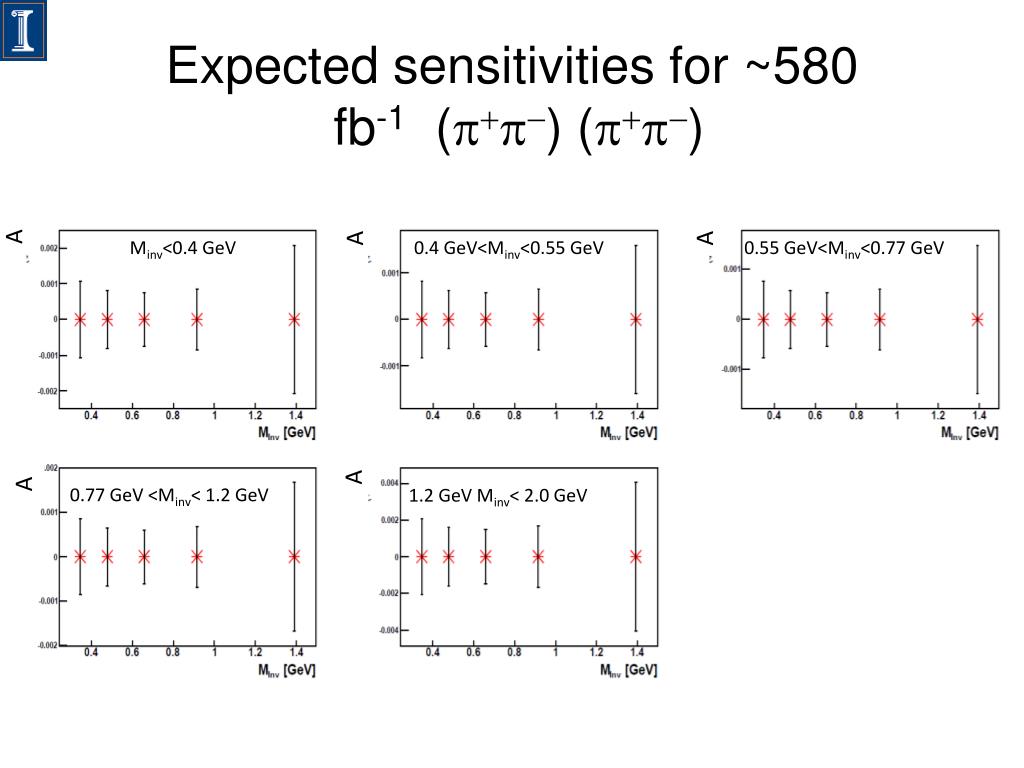

  22. Expected sensitivities for ~580 fb-1 (p+p-) (p+p-) A A A Minv<0.4 GeV 0.4 GeV<Minv<0.55 GeV 0.55 GeV<Minv<0.77 GeV A A 0.77 GeV <Minv< 1.2 GeV 1.2 GeV Minv< 2.0 GeV

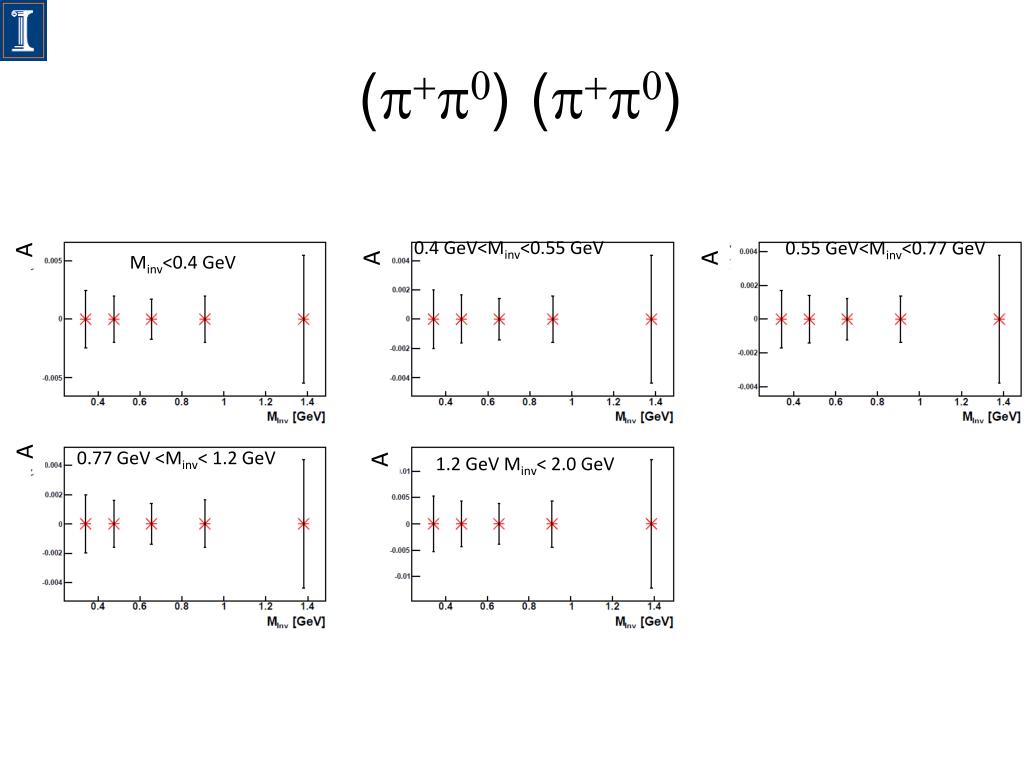

  23. (p+p0) (p+p0) A A A 0.4 GeV<Minv<0.55 GeV 0.55 GeV<Minv<0.77 GeV Minv<0.4 GeV A A 0.77 GeV <Minv< 1.2 GeV 1.2 GeV Minv< 2.0 GeV

  24. (p+K-) (K+p-) A A Minv<0.7 GeV 0.7 GeV<Minv<0.85 GeV A A A 0.85 GeV<Minv<1.0 GeV 1.0 GeV<Minv

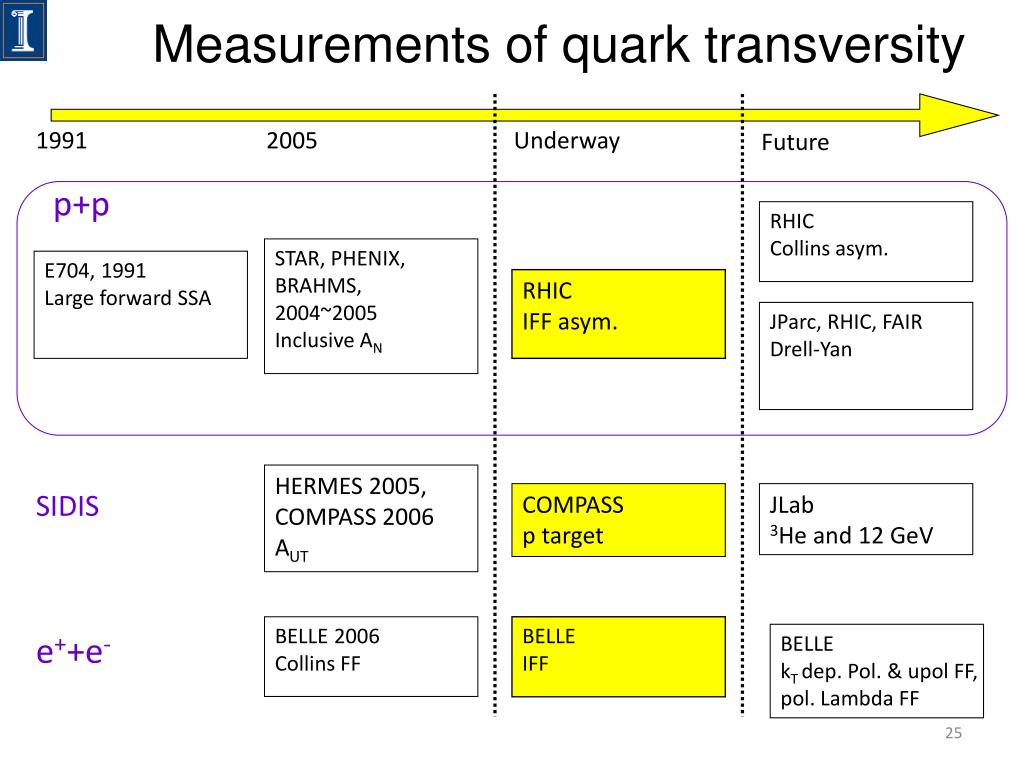

  25. Measurements of quark transversity 1991 2005 Underway Future p+p RHIC Collins asym. STAR, PHENIX, BRAHMS, 2004~2005 Inclusive AN E704, 1991 Large forward SSA RHIC IFF asym. JParc, RHIC, FAIR Drell-Yan HERMES 2005, COMPASS 2006 AUT SIDIS COMPASS p target JLab 3He and 12 GeV BELLE 2006 Collins FF BELLE IFF e++e- BELLE kT dep. Pol. & upol FF, pol. Lambda FF 25

  26. Definition of Vectors and Angles Bacchetta and Radici, PRD70, 094032 (2004) 26

  27. Models • Main contribution: interference of hadron pairs produced in relative s and p wave • P wave from Vector meson decay • S wave from non-resonant background • Signal around vector meson mass • Two different theoretical models gave different prediction of mass dependence • Sign change is not observed in HERMES/COMPASS results Jaffe, Jin and Tang, PRL 80 (1998) 1166 Bacchetta and Radici, Phys. Rev. D 74, 114007 (2006)

  28. SSA from di-hadron production See Talk R. Yang

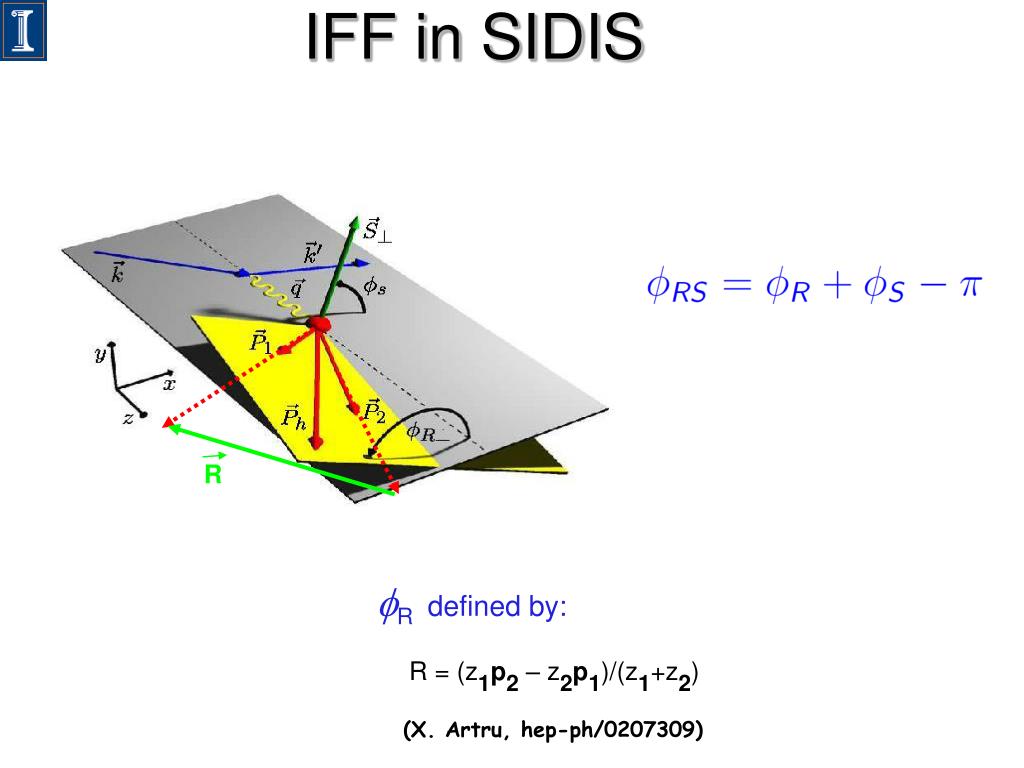

  29. IFF in SIDIS • R defined by: • R = (z1p2 – z2p1)/(z1+z2) • (X. Artru, hep-ph/0207309) R

  30. Di-Hadron SSA in SIDIS

  31. Summary & Outlook Gluon contribution is Small (Phenix, Compass results) Proposed Transverse Spin Sum rule Bakker, Leader, Trueman Phys.Rev.D70:114001,2004 • Collins FF at Belle final ->global analysis • 2H Interference FF Analysis underway • Plans for kT dependent Pol. & Upol. FFs • Necessary for global analysis w/o model assumptions • Polarized Lambda FF • 2H Interference FF Measurements at Phenix, HERMES and COMPASS • Non vanishing effect at HERMES and COMPASS • Together with Belle results -> Independent extraction of transversity
