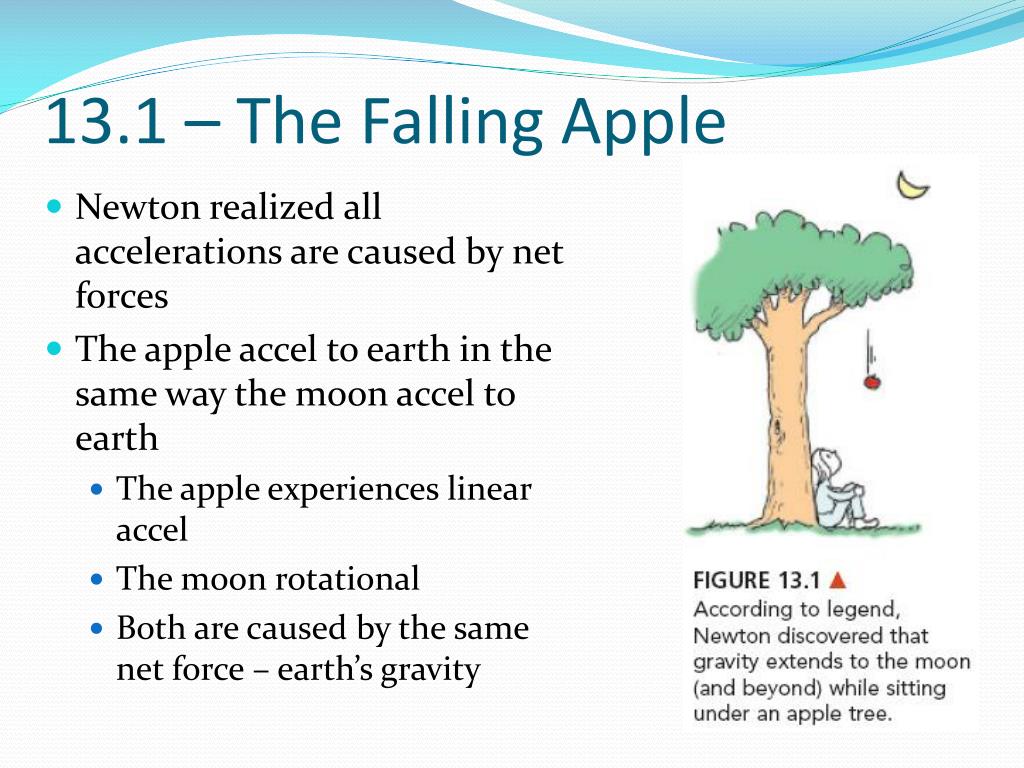

  1. 13.1 – The Falling Apple • Newton realized all accelerations are caused by net forces • The apple accel to earth in the same way the moon accel to earth • The apple experiences linear accel • The moon rotational • Both are caused by the same net force – earth’s gravity

  2. 13.2 – The Falling Moon • If the moon did not accel, it would follow a straight line – and leave orbit • It acts like a projectile with such a high velocity the earth curves before the moon can hit the surface • Thus, the moon “falls” around the earth

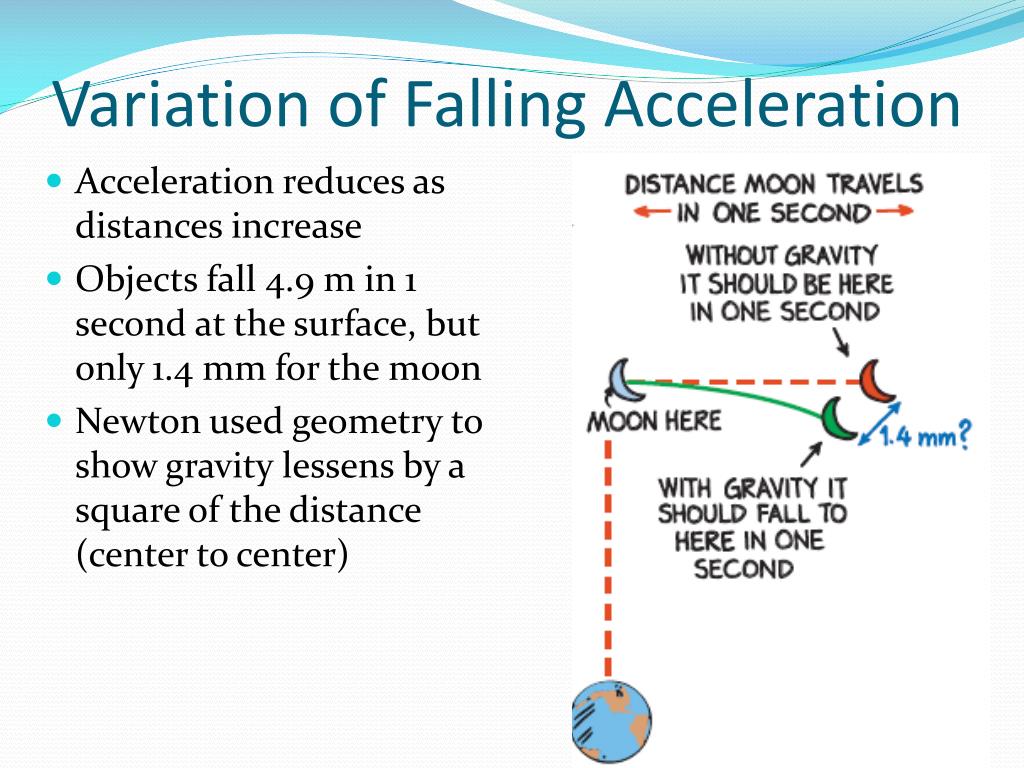

  3. Variation of Falling Acceleration • Acceleration reduces as distances increase • Objects fall 4.9 m in 1 second at the surface, but only 1.4 mm for the moon • Newton used geometry to show gravity lessens by a square of the distance (center to center)

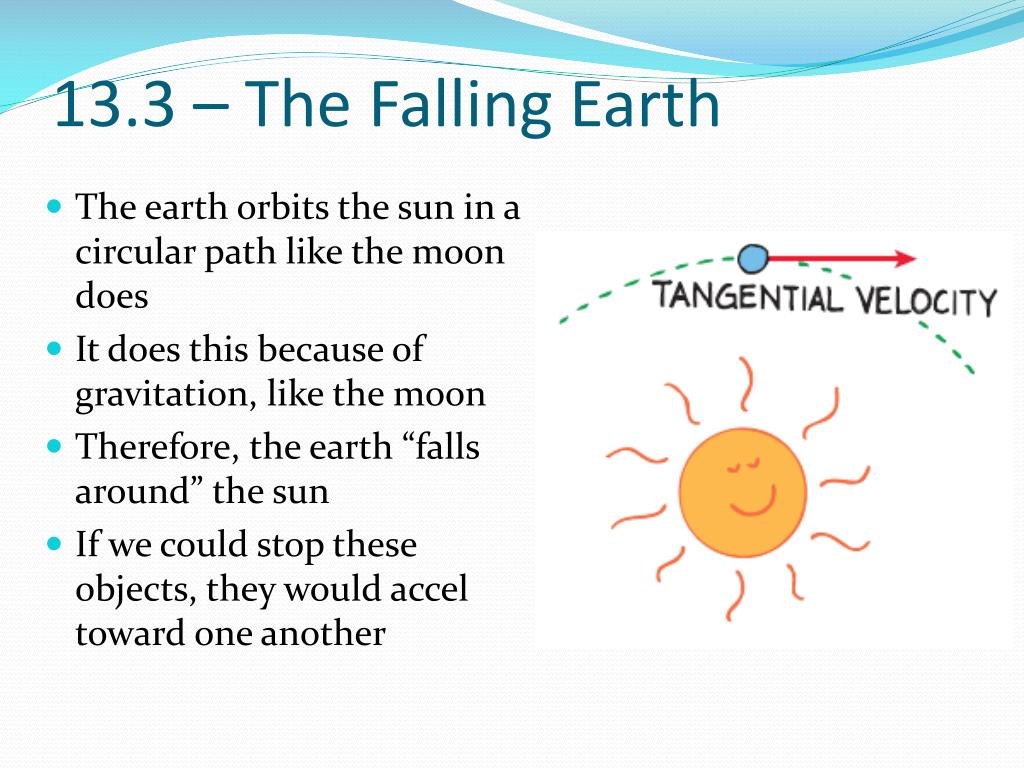

  4. 13.3 – The Falling Earth • The earth orbits the sun in a circular path like the moon does • It does this because of gravitation, like the moon • Therefore, the earth “falls around” the sun • If we could stop these objects, they would accel toward one another

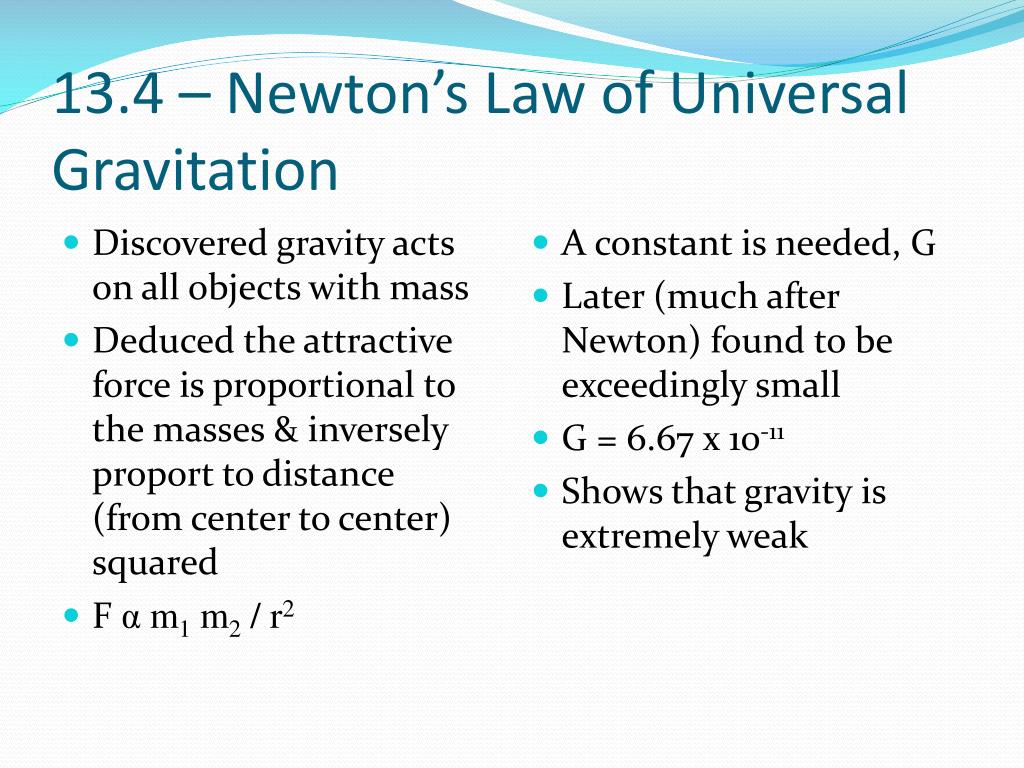

  5. 13.4 – Newton’s Law of Universal Gravitation • Discovered gravity acts on all objects with mass • Deduced the attractive force is proportional to the masses & inversely proport to distance (from center to center) squared • F α m1 m2 / r2 • A constant is needed, G • Later (much after Newton) found to be exceedingly small • G = 6.67 x 10-11 • Shows that gravity is extremely weak

  6. Measuring G • 150 years later (1798), Henry Cavendish measured the first true value • Often referred to as “weighing the earth” • Once “G” is determined, the masses of all celestial objects can be determined

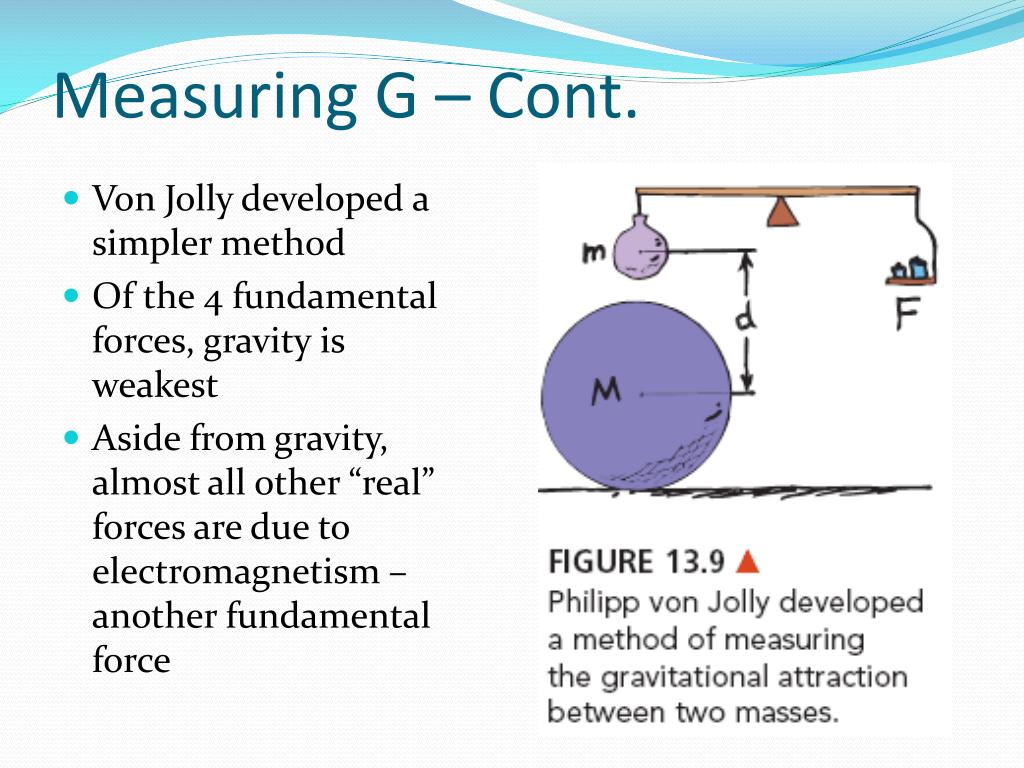

  7. Measuring G – Cont. • Von Jolly developed a simpler method • Of the 4 fundamental forces, gravity is weakest • Aside from gravity, almost all other “real” forces are due to electromagnetism – another fundamental force

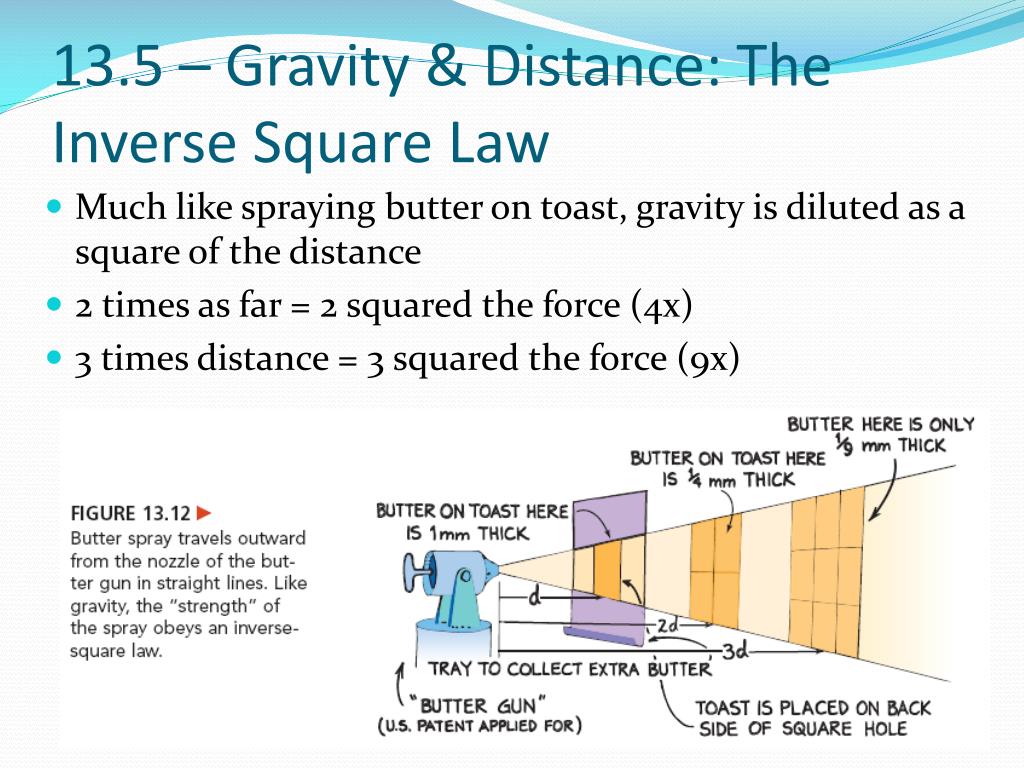

  8. 13.5 – Gravity & Distance: The Inverse Square Law • Much like spraying butter on toast, gravity is diluted as a square of the distance • 2 times as far = 2 squared the force (4x) • 3 times distance = 3 squared the force (9x)

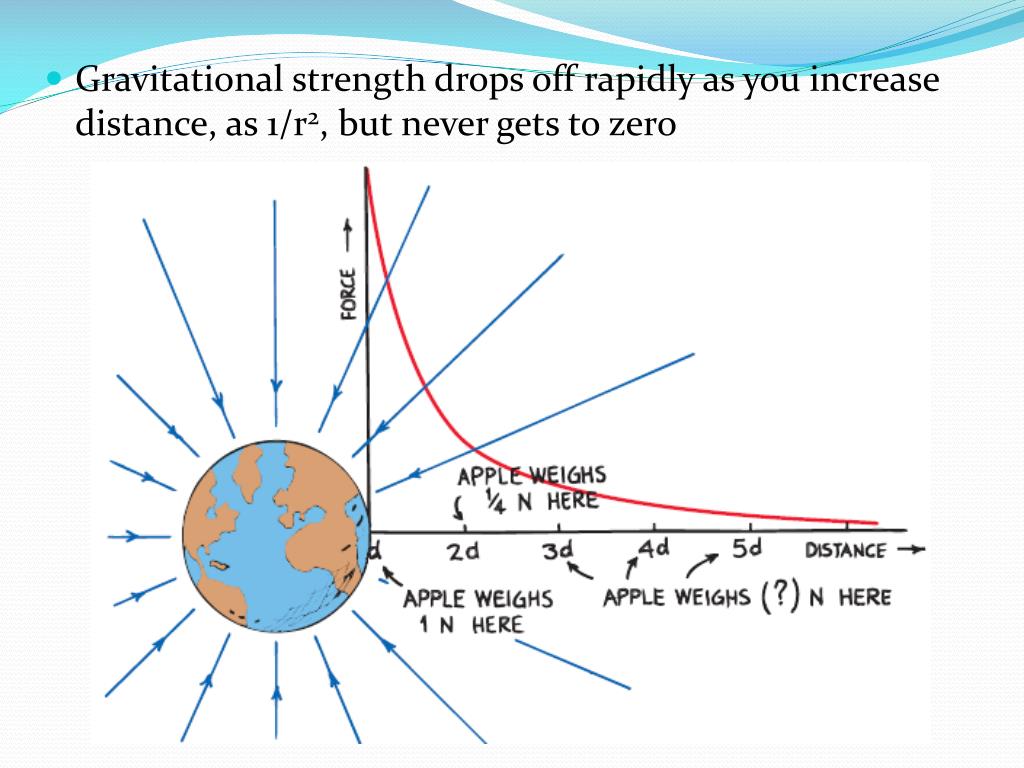

  9. Gravitational strength drops off rapidly as you increase distance, as 1/r2, but never gets to zero

  10. 13.6 – Gravitational Field • Something created by mass that cause other masses to experience a force • The closer to the surface the stronger the field, and the more force on other masses • The arrows point in direction of force

  11. 13.7 – Gravitational Field Inside a Planet • Gravitational acceleration decreases as you move towards center • Because of mass above as well as below • Gravity in center = zero

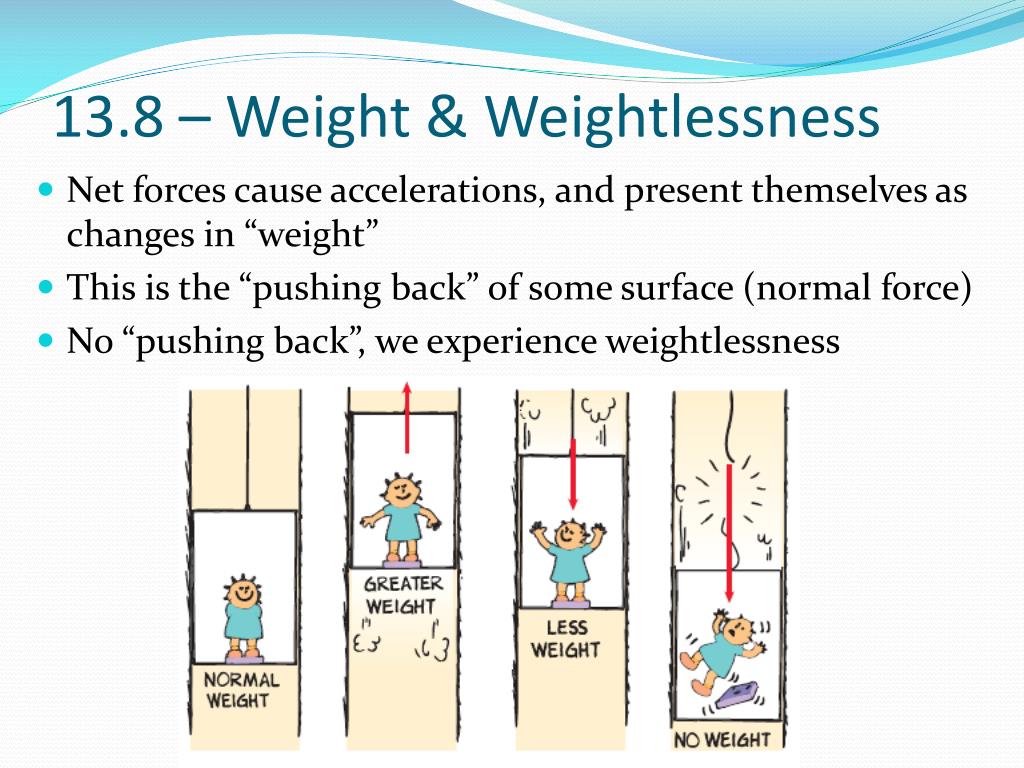

  12. 13.8 – Weight & Weightlessness • Net forces cause accelerations, and present themselves as changes in “weight” • This is the “pushing back” of some surface (normal force) • No “pushing back”, we experience weightlessness

  13. Anytime something falls (free fall), it is “weightless” • Jumping off a building • Astronauts in shuttle falling around the earth

  14. 13.9 – Ocean Tides • Caused by differences in gravitational pull of moon on opposite sides of the earth • Water closest to moon is pulled closer (high tide) • On opposite side, earth is pulled and deformed away from water – also high tide • Water perpendicular is lower than normal – low tide

  15. The sun also causes tides, the overall force is much greater than moon • But, the difference between sides is much smaller • Sun, Earth & Moon line up – Spring Tide – extremes in tides • Sun, Earth & Moon perpendicular – Neap tide – leveling of tides

  16. Other Types of Tides • Part of earth’s interior is molten, causing “Earth tides” • The atmosphere is a fluid (it flows) creating “atmospheric tides” • Small bodies of water do not experience tides because the difference from one side to another is too small • Tilt of earth also effects tides

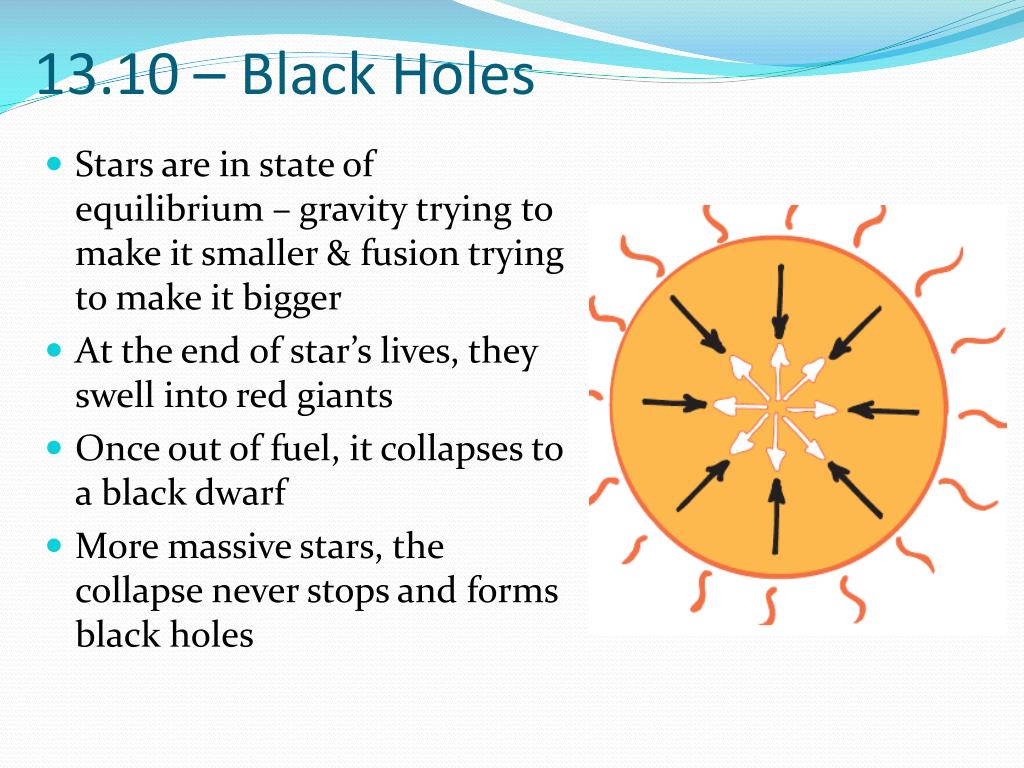

  17. 13.10 – Black Holes • Stars are in state of equilibrium – gravity trying to make it smaller & fusion trying to make it bigger • At the end of star’s lives, they swell into red giants • Once out of fuel, it collapses to a black dwarf • More massive stars, the collapse never stops and forms black holes

  18. Gravitational Field Near Black Holes • The black hole has the same mass as the star creating it, therefore the same gravity • Mass is so concentrated, the space surrounding it is distorted and warped • We “see” them because of their effect on objects around them

  19. 13.11 – Universal Gravitation Perturbations in Solar System • All planets tug on all others • This causes deviations in orbits – perturbations • Distant planets were discovered using this technique The Expanding Universe • Universe began with Big Bang (Theory) • All matter spewing outward • Gravity should slow it down, but there appears to be acceleration • Due to dark matter/dark energy

  20. Project Orion • http://www.youtube.com/watch?v=E3Lxx2VAYi8 • http://www.youtube.com/watch?NR=1&v=V1vKMTYa40A&feature=endscreen
