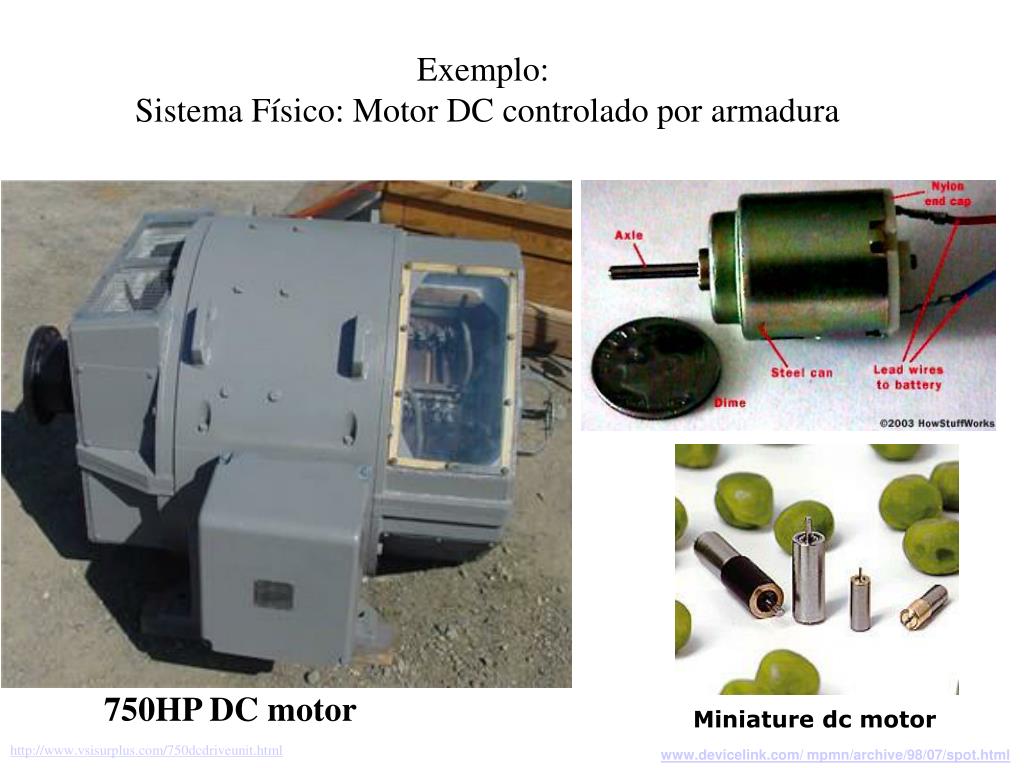

  1. Miniature dc motor Exemplo: Sistema Físico: Motor DC controlado por armadura 750HP DC motor http://www.vsisurplus.com/750dcdriveunit.html www.devicelink.com/ mpmn/archive/98/07/spot.html

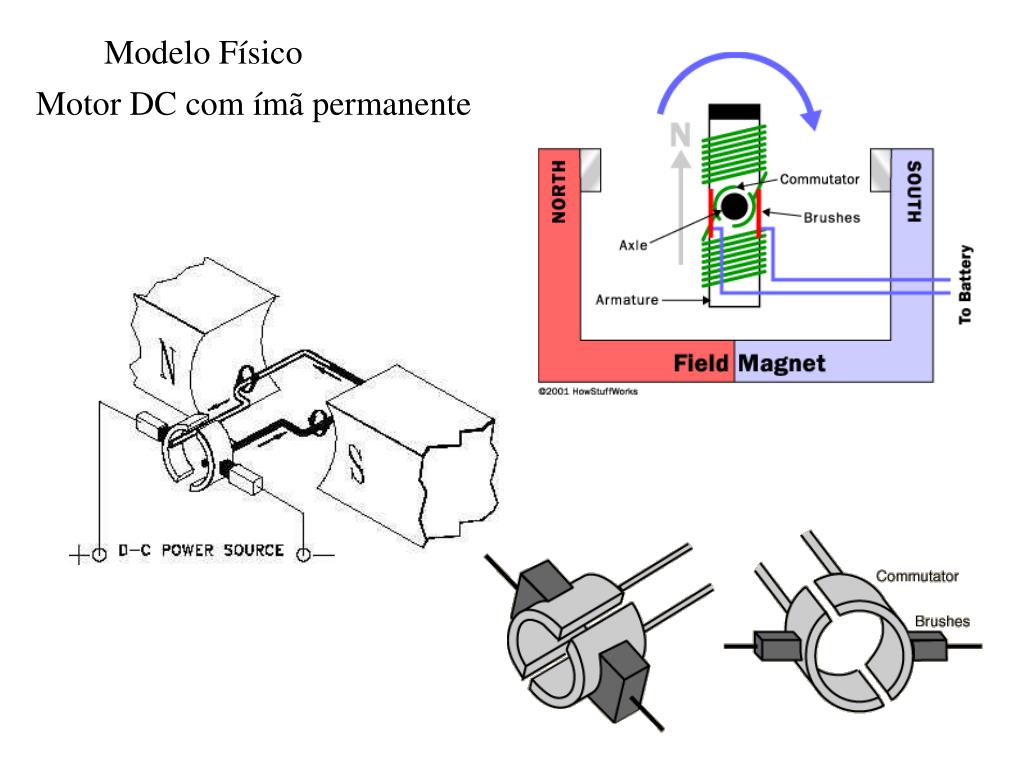

  2. Modelo Físico Motor DC com ímã permanente

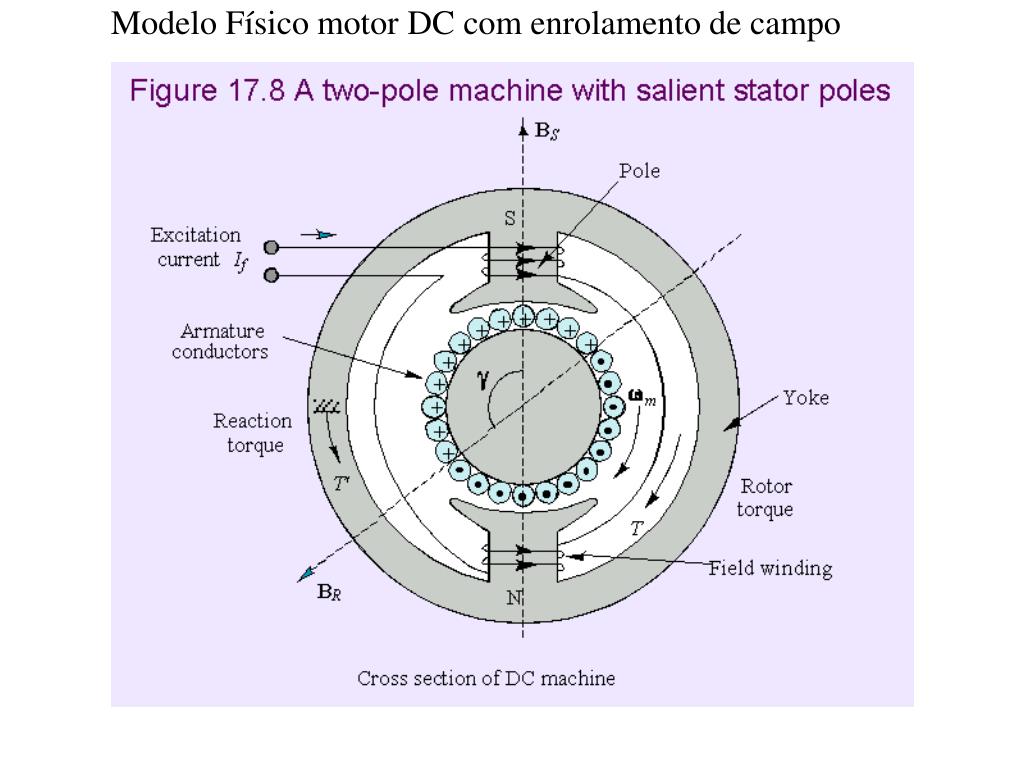

  3. Modelo Físico motor DC com enrolamento de campo

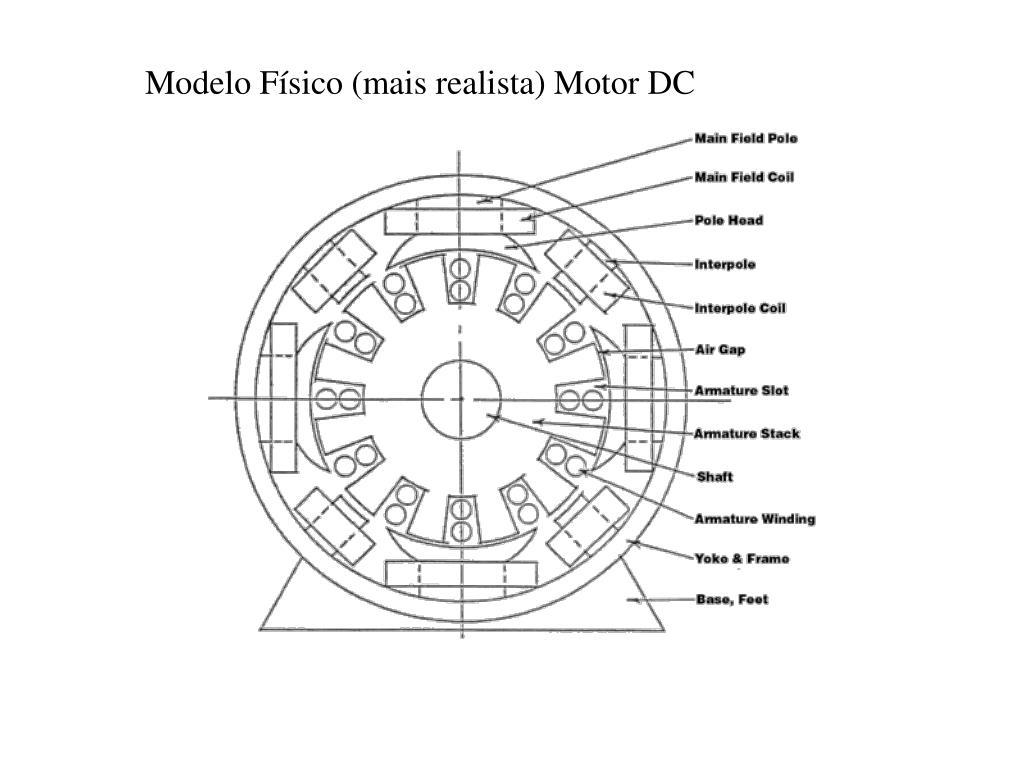

  4. Modelo Físico (mais realista) Motor DC

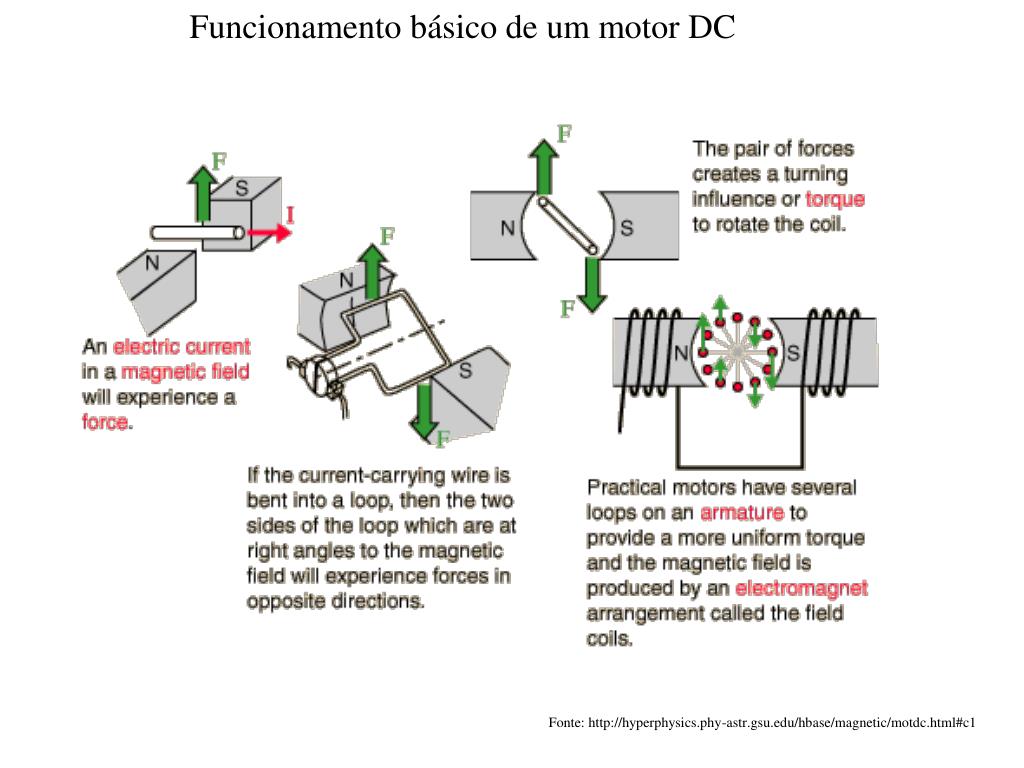

  5. Funcionamento básico de um motor DC Fonte: http://hyperphysics.phy-astr.gsu.edu/hbase/magnetic/motdc.html#c1

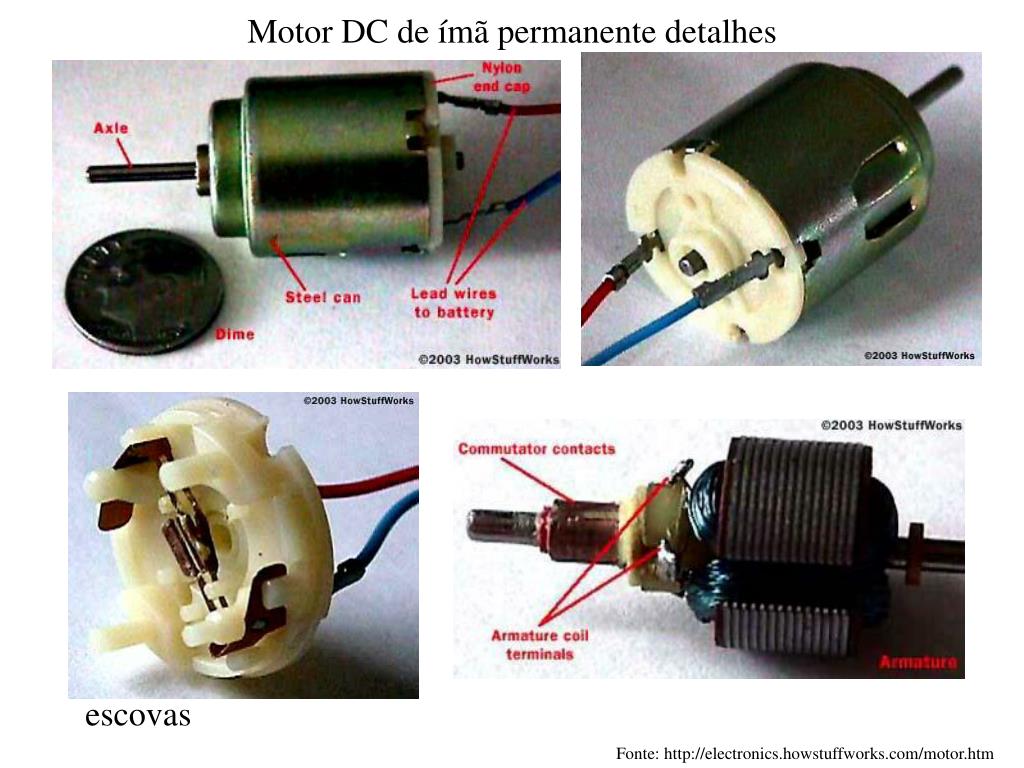

  6. Motor DC de ímã permanente detalhes escovas Fonte: http://electronics.howstuffworks.com/motor.htm

  7. Motor DC de ímã permanente detalhes Campo magnético

  8. Motor DC de ímã permanente detalhes

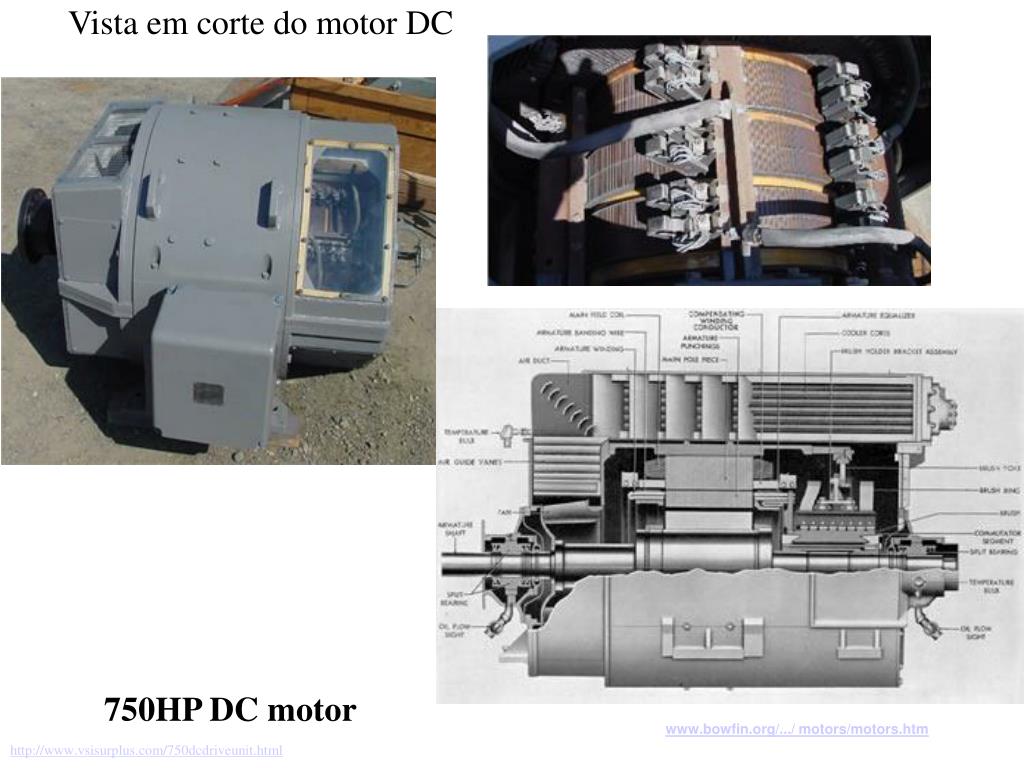

  9. Vista em corte do motor DC 750HP DC motor www.bowfin.org/.../ motors/motors.htm http://www.vsisurplus.com/750dcdriveunit.html

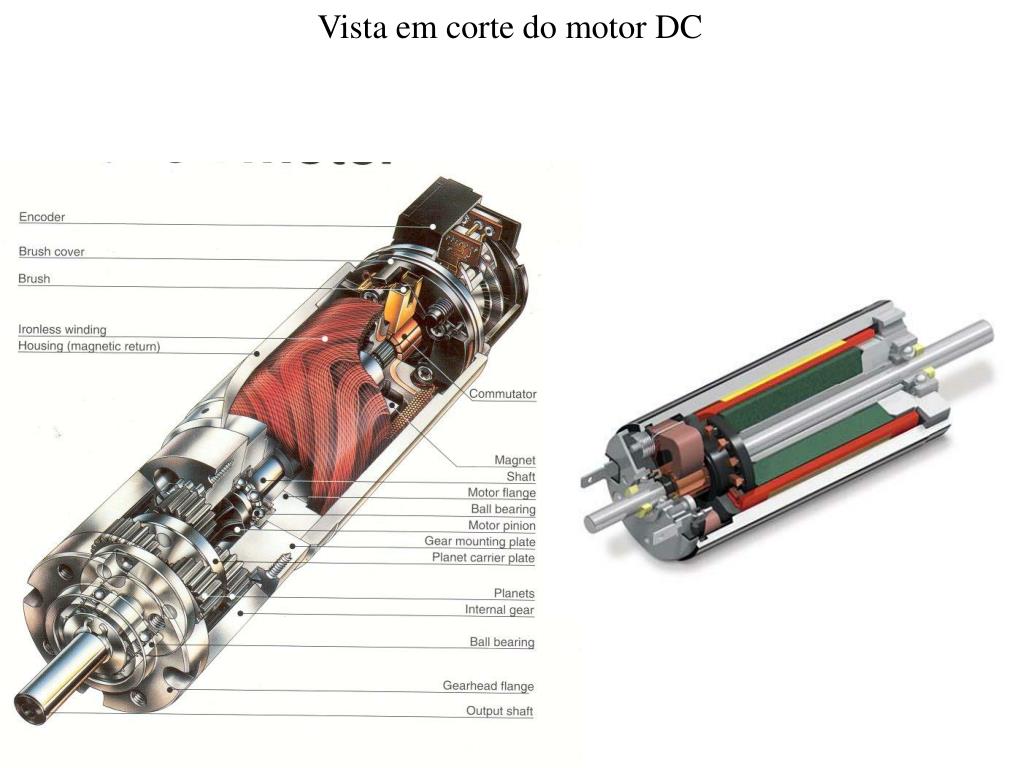

  10. Vista em corte do motor DC

  11. http://hyperphysics.phy-astr.gsu.edu/hbase/magnetic/magmom.html#c2http://hyperphysics.phy-astr.gsu.edu/hbase/magnetic/magmom.html#c2

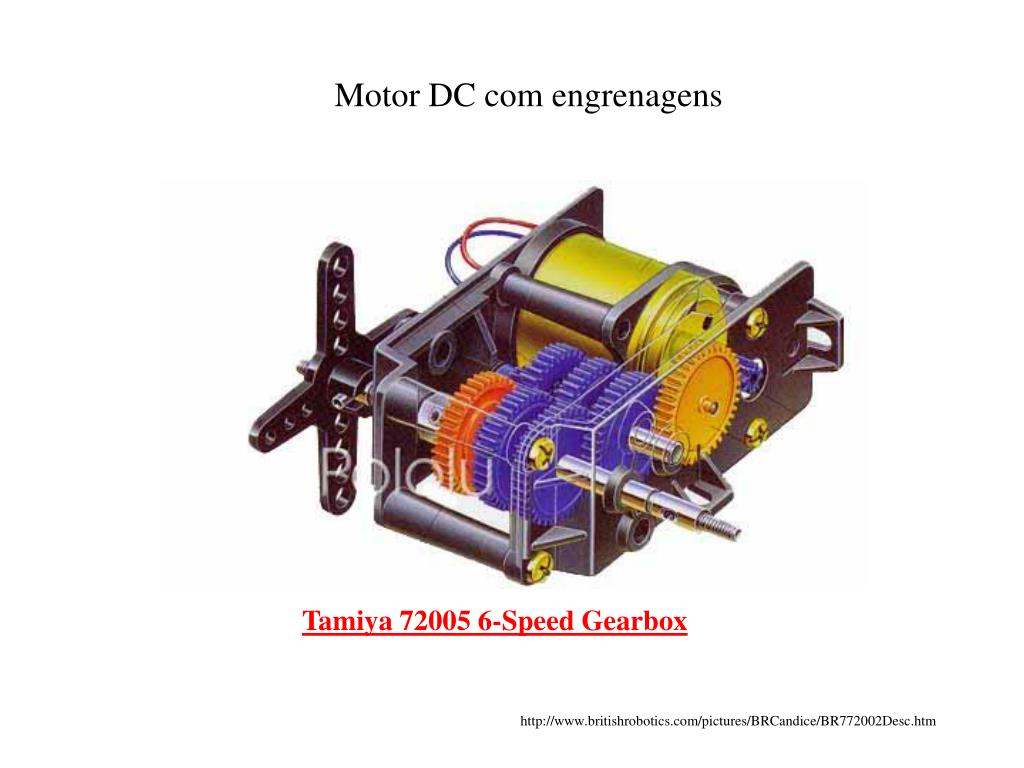

  12. Motor DC com engrenagens Tamiya 72005 6-Speed Gearbox http://www.britishrobotics.com/pictures/BRCandice/BR772002Desc.htm
