Blood Gas Analyzer 150 ul

Labnic Blood Gas Analyzer handles 150 u00b5L samples and delivers results in about 60 sec. Operating between 10u2103 and 31u2103, it features a 10.4-inch color LCD display. Its compact, user-friendly design includes a touchscreen interface and automates sample intake and waste disposal for seamless use.

susanlabnic
Télécharger la présentation

Blood Gas Analyzer 150 ul

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

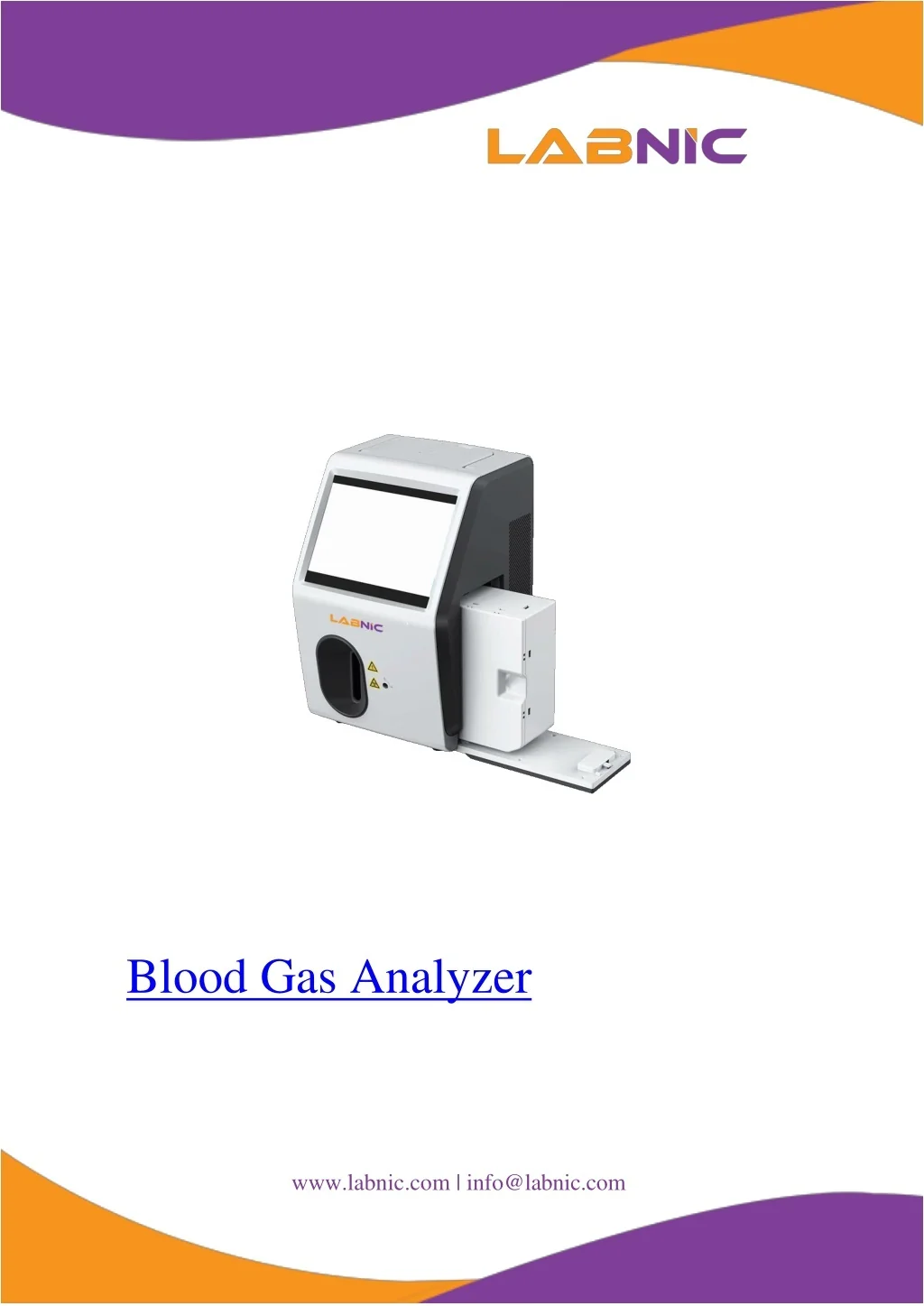

  1. Blood Gas Analyzer www.labnic.com | info@labnic.com

  2. Overview Blood Gas Analyzer LBN-BA121 can accommodate 150 ul of sample volume and deliver fast results, typically within 60 seconds. Capable of analyzing various types of blood samples, including arterial, venous, capillary, and cardiac whole blood samples. It can operate within a temperaturerange of 10 to 31 and provides accurate and reliable results. Specifications : Sample volume 150 ul Analysis Time 60 seconds Operational Temperature 10 to 31 Display 10.4-inch color LCD Display Resolution 1024 768 Battery Lithium-ion battery 14.8V/6500mAh Battery Standby time 4 hours Input device Touch screen and barcode scanner Interface 4 USB 2.0 host, WLAN Fan 12V Measuring Parameter pH, pO2, pCO2, Na+, K+, Ca++, Cl-, Glu, Lac, Hematocrit Storage capacity 100000+ tests Power supply AC100-240V, 50Hz/60H Dimension 260 270 410 mm Packaging Dimension 395 345 660 mm Net weight 9.5 kg (without cartridge)

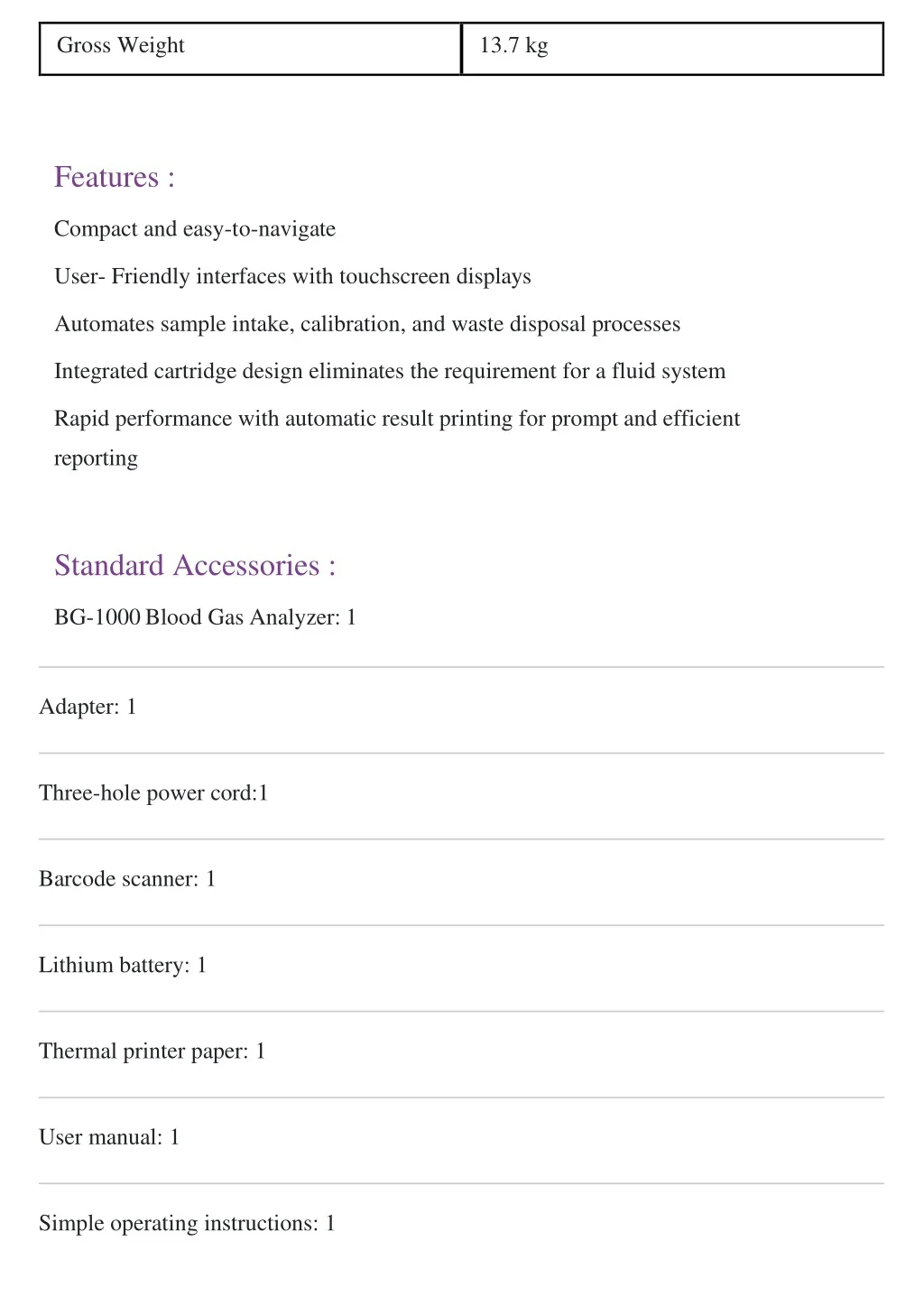

  3. Gross Weight 13.7 kg Features : Compact and easy-to-navigate User- Friendly interfaces with touchscreen displays Automates sample intake, calibration, and waste disposal processes Integrated cartridge design eliminates the requirement for a fluid system Rapid performance with automatic result printing for prompt and efficient reporting Standard Accessories : BG-1000 Blood Gas Analyzer: 1 Adapter: 1 Three-hole power cord:1 Barcode scanner: 1 Lithium battery: 1 Thermal printer paper: 1 User manual: 1 Simple operating instructions: 1

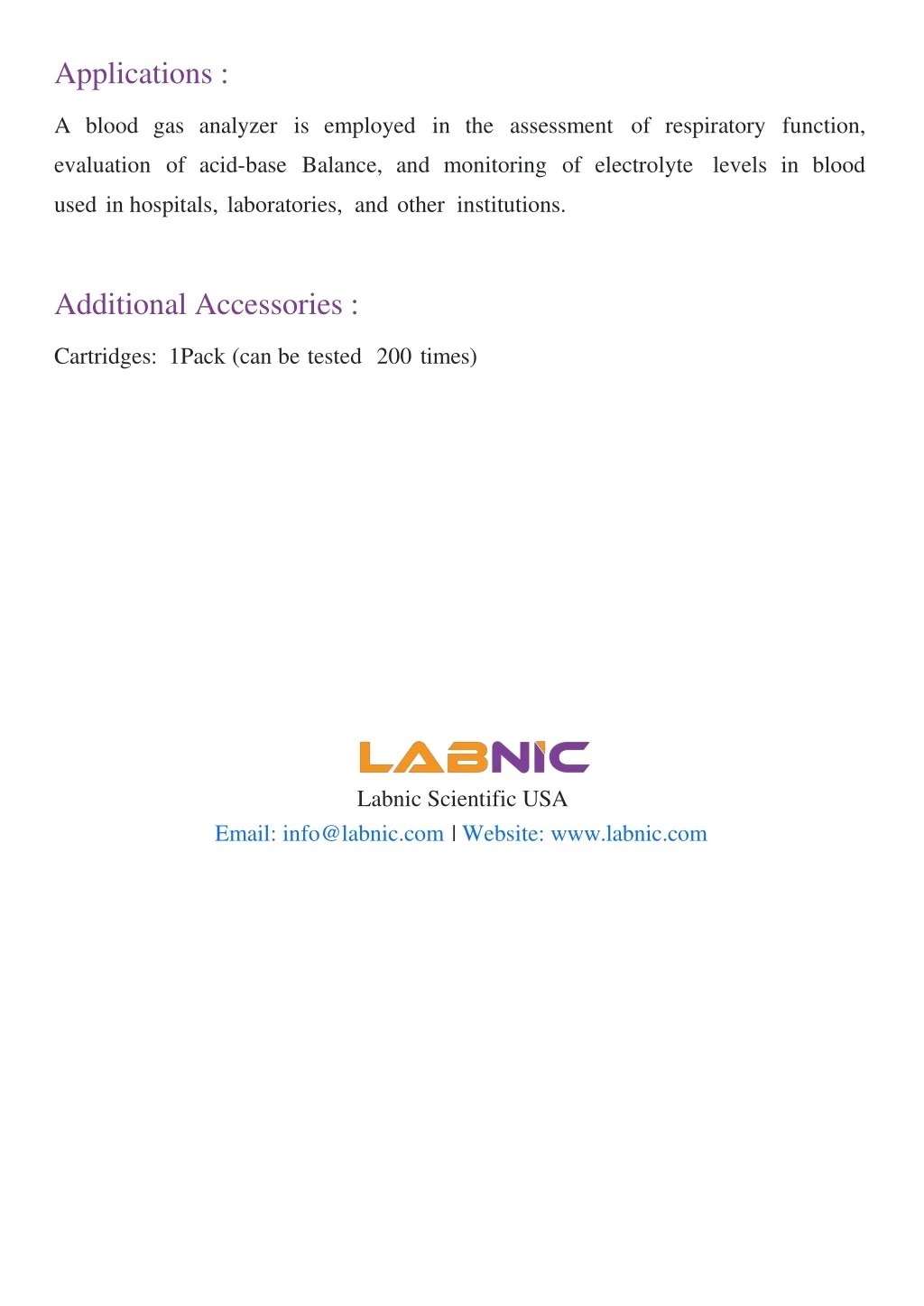

  4. Applications : A blood gas analyzer is employed in the assessment of respiratory function, evaluation of acid-base Balance, and monitoring of electrolytelevels in blood used in hospitals, laboratories, and other institutions. Additional Accessories : Cartridges: 1Pack (can be tested200 times) Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
