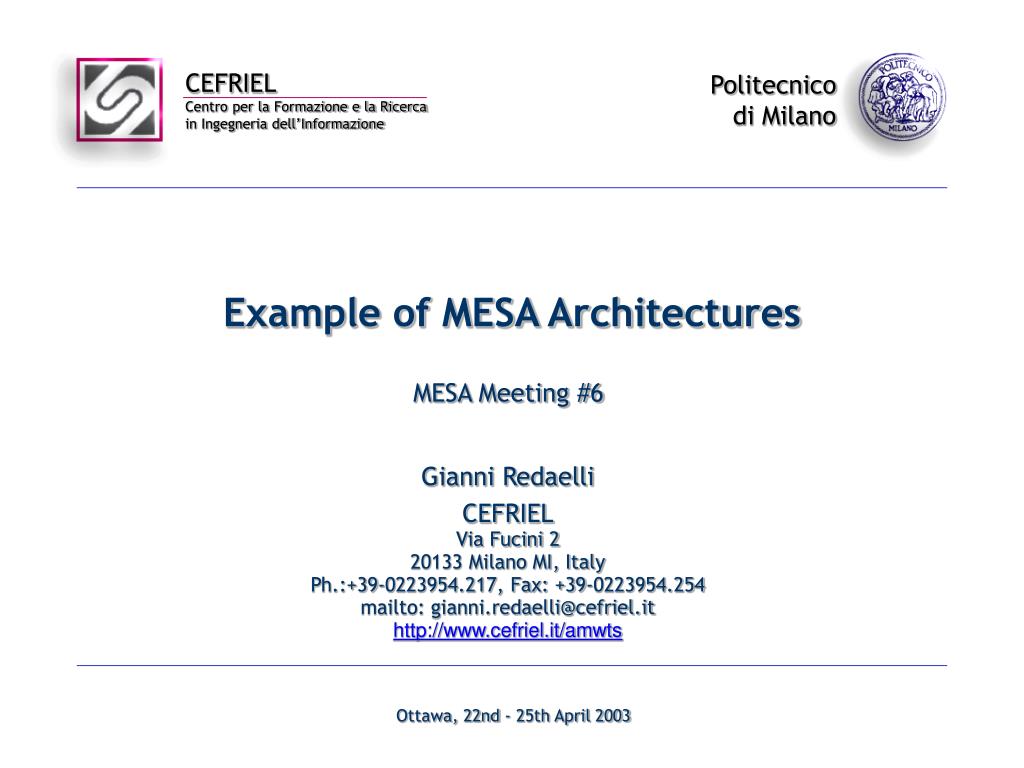

  1. Example of MESA Architectures MESA Meeting #6 Gianni Redaelli CEFRIEL Via Fucini 2 20133 Milano MI, Italy Ph.:+39-0223954.217, Fax: +39-0223954.254 mailto: gianni.redaelli@cefriel.it http://www.cefriel.it/amwts Ottawa, 22nd - 25th April 2003

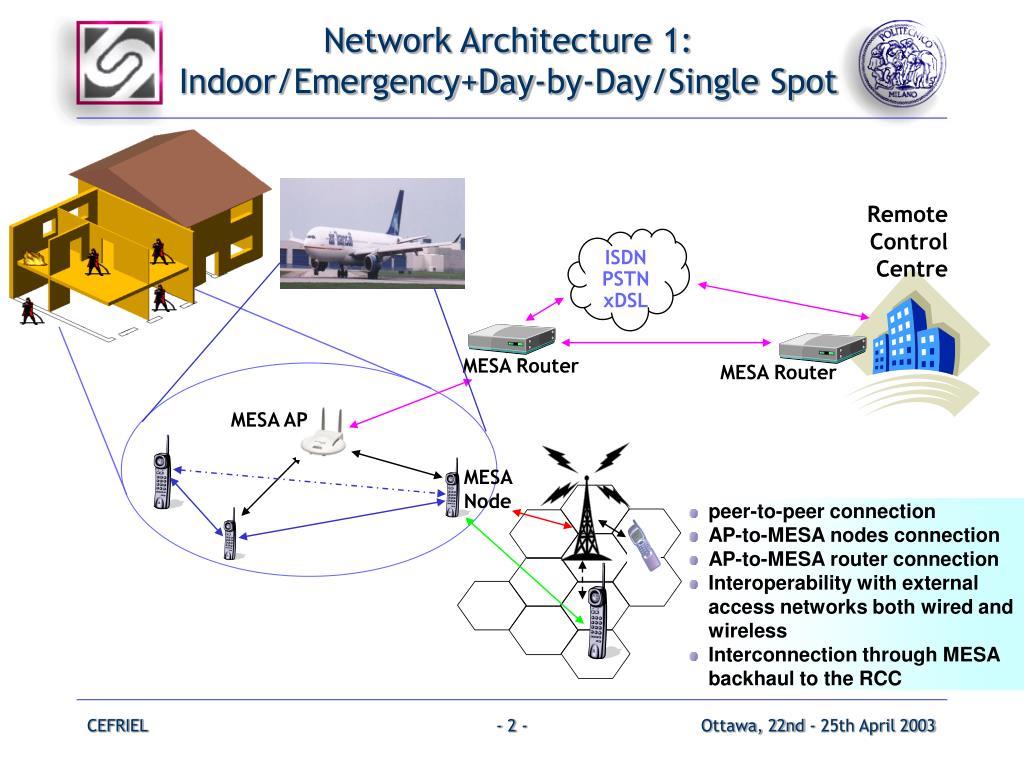

  2. Network Architecture 1:Indoor/Emergency+Day-by-Day/Single Spot Remote Control Centre ISDN PSTN xDSL MESA Router MESA Router MESA AP MESA Node • peer-to-peer connection • AP-to-MESA nodes connection • AP-to-MESA router connection • Interoperability with external access networks both wired and wireless • Interconnection through MESA backhaul to the RCC Ottawa, 22nd - 25th April 2003

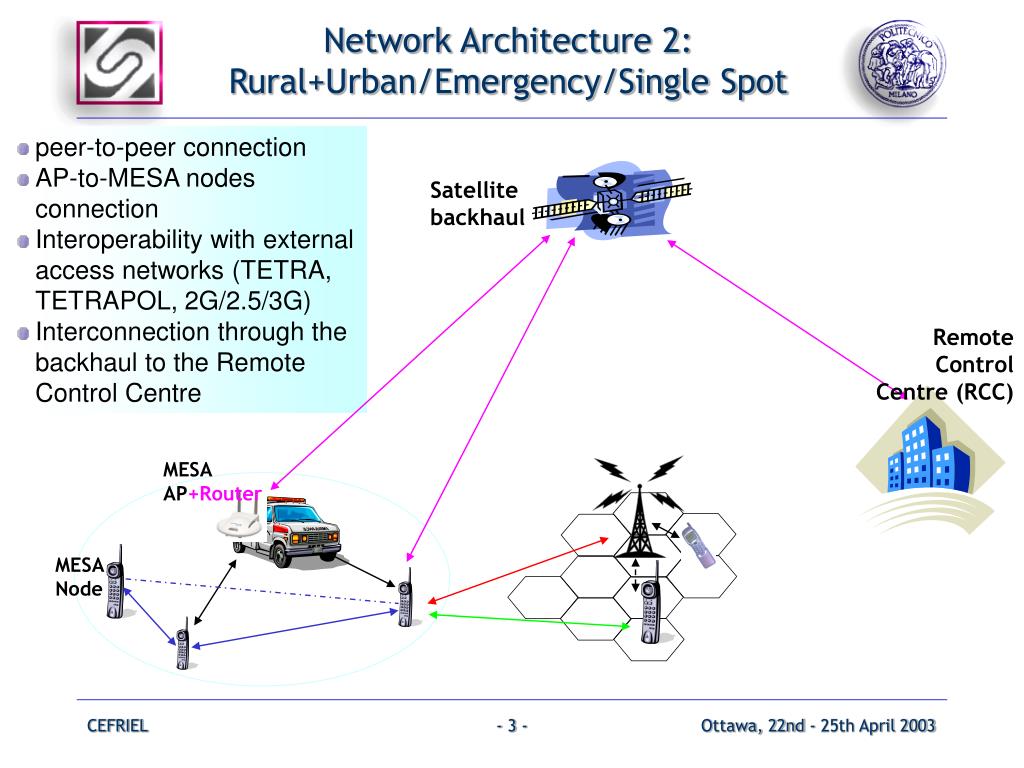

  3. Network Architecture 2:Rural+Urban/Emergency/Single Spot • peer-to-peer connection • AP-to-MESA nodes connection • Interoperability with external access networks (TETRA, TETRAPOL, 2G/2.5/3G) • Interconnection through the backhaul to the Remote Control Centre Satellite backhaul Remote Control Centre (RCC) MESA AP+Router MESA Node Ottawa, 22nd - 25th April 2003

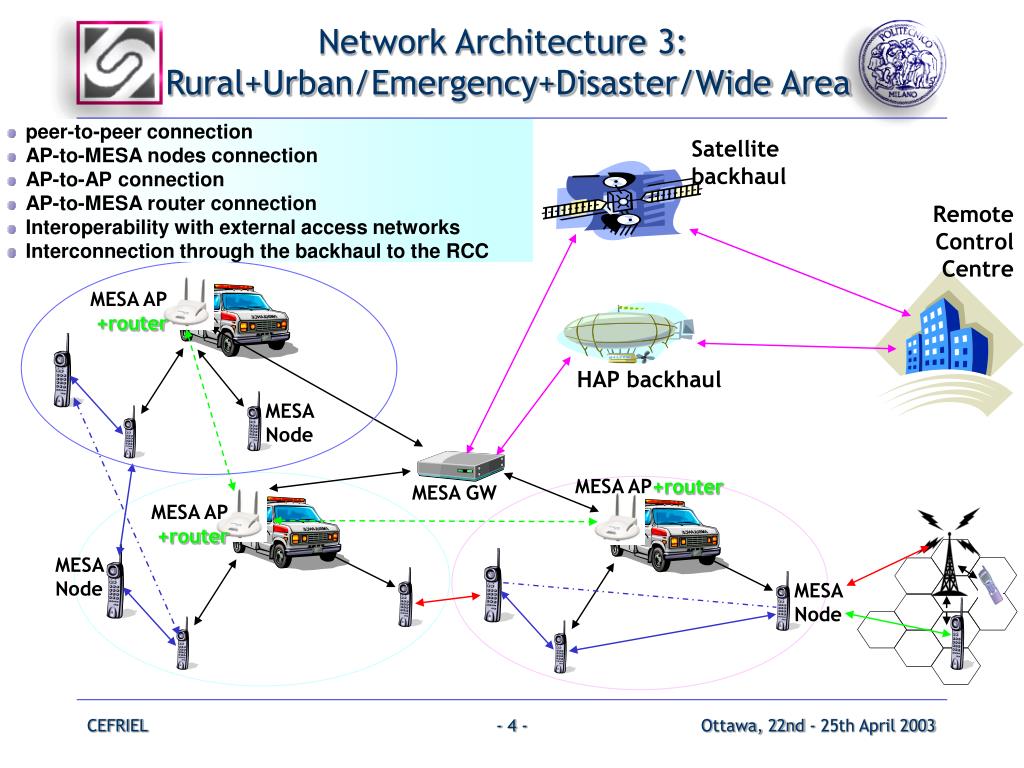

  4. Network Architecture 3: Rural+Urban/Emergency+Disaster/Wide Area • peer-to-peer connection • AP-to-MESA nodes connection • AP-to-AP connection • AP-to-MESA router connection • Interoperability with external access networks • Interconnection through the backhaul to the RCC Satellite backhaul Remote Control Centre MESA AP +router HAP backhaul MESA Node MESA AP+router MESA GW MESA AP +router MESA Node MESA Node Ottawa, 22nd - 25th April 2003

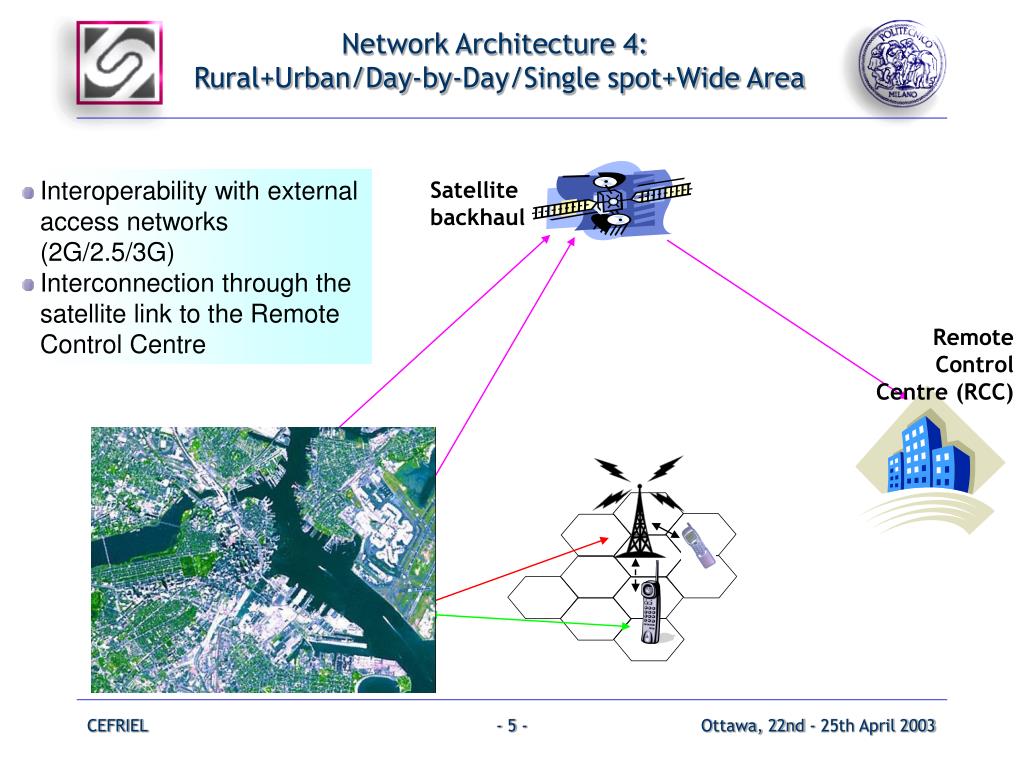

  5. Network Architecture 4: Rural+Urban/Day-by-Day/Single spot+Wide Area • Interoperability with external access networks (2G/2.5/3G) • Interconnection through the satellite link to the Remote Control Centre Satellite backhaul Remote Control Centre (RCC) Ottawa, 22nd - 25th April 2003
