  1. TowardsModel-Driven Unit TestingGregor EngelsBaris GüldaliMarc Lohmann02. October 20063rd Workshop on Model design and Validation @ MoDELS 2006

  2. Unit Testing Model-driven Unit Testing 1 Models 3 2 generate generate 4 Test Case Input Expected Output Test Oracle Test Case Input Actual Result Test Cases Operation Comparator Pass/No Pass

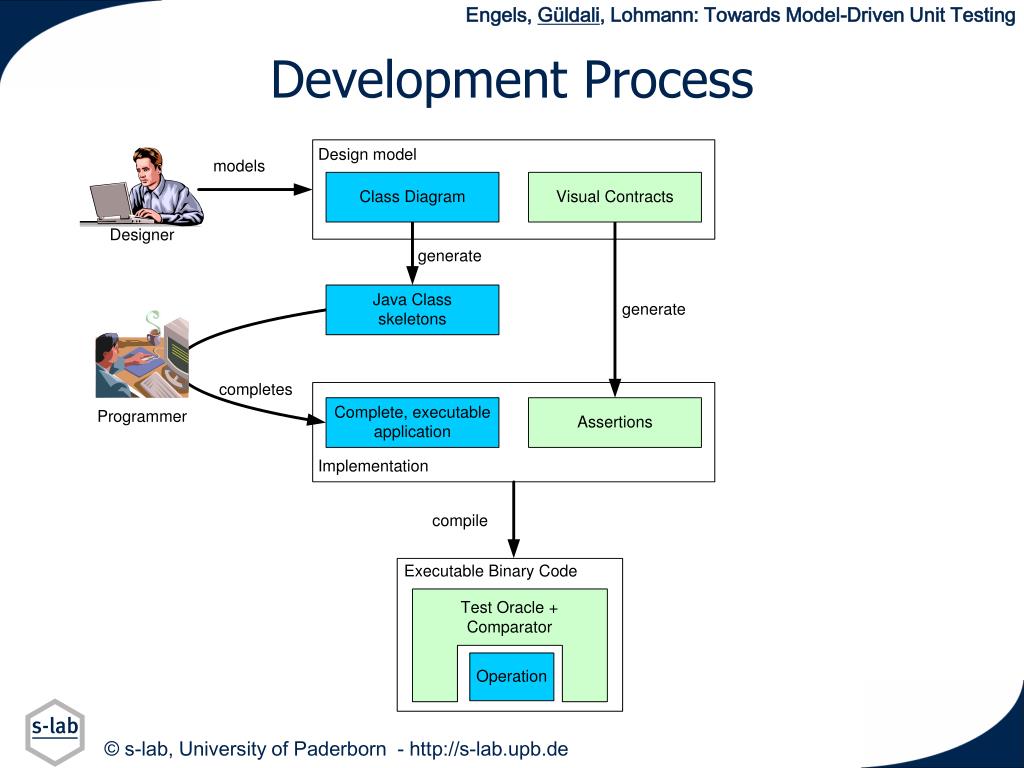

  3. Development Process

  4. UML Class Diagrams & Visual Contracts

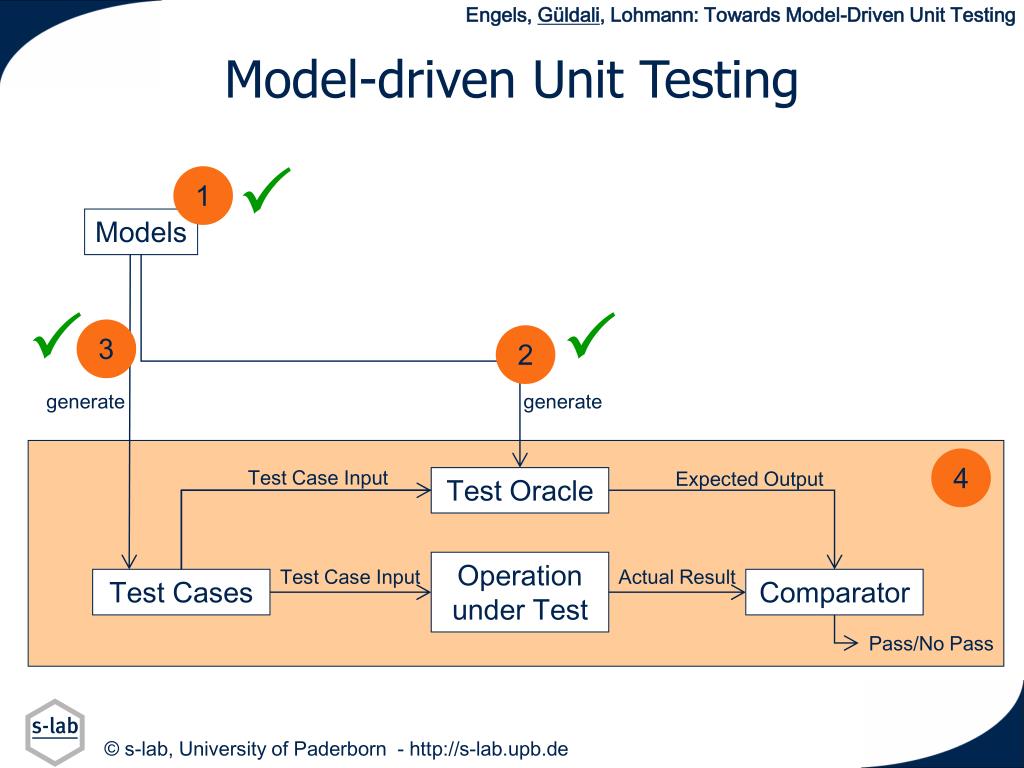

  5. Model-driven Unit Testing  1 Models 3 2 generate generate 4 Test Case Input Expected Output Test Oracle Operation under Test Test Case Input Actual Result Test Cases Comparator Pass/No Pass

  6. Test Oracle Designer created by Test driver SUT check pre-condition created by [else] throw pre-condition exception [pre-condition holds] … system state sk+1 execute originaloperation with call parameters system state sk implemented by call operation under test Programmer Pass check post-condition return [else] throw post-condition exception exception [post-condition holds] No Pass return normally

  7. Model-driven Unit Testing • Which test cases are adequate for testing a system wrt. a testing criterion? • How can a SUT be set to a state where the test cases can be executed?  1 Models  3 2 generate generate 4 Test Case Input Expected Output Test Oracle Operation under Test Test Case Input Actual Result Test Cases Comparator Pass/No Pass

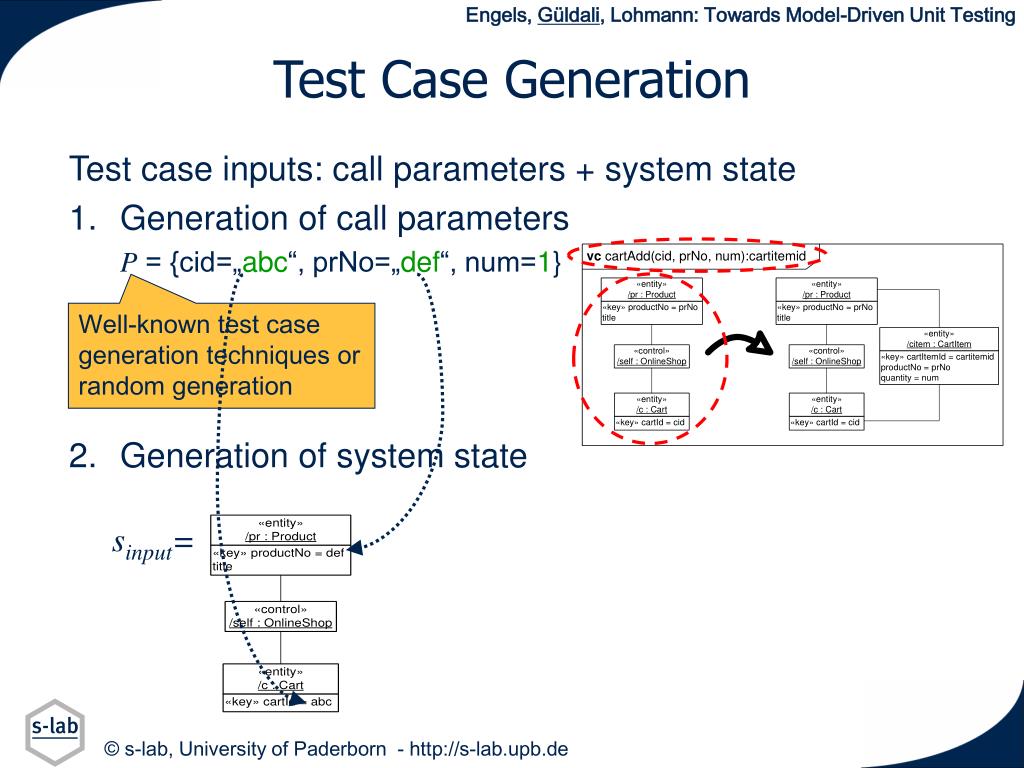

  8. Test Case Generation Test case inputs: call parameters + system state • Generation of call parameters P = {cid=„abc“, prNo=„def“, num=1} • Generation of system state Well-known test case generation techniques or random generation sinput=

  9. Setting System State …

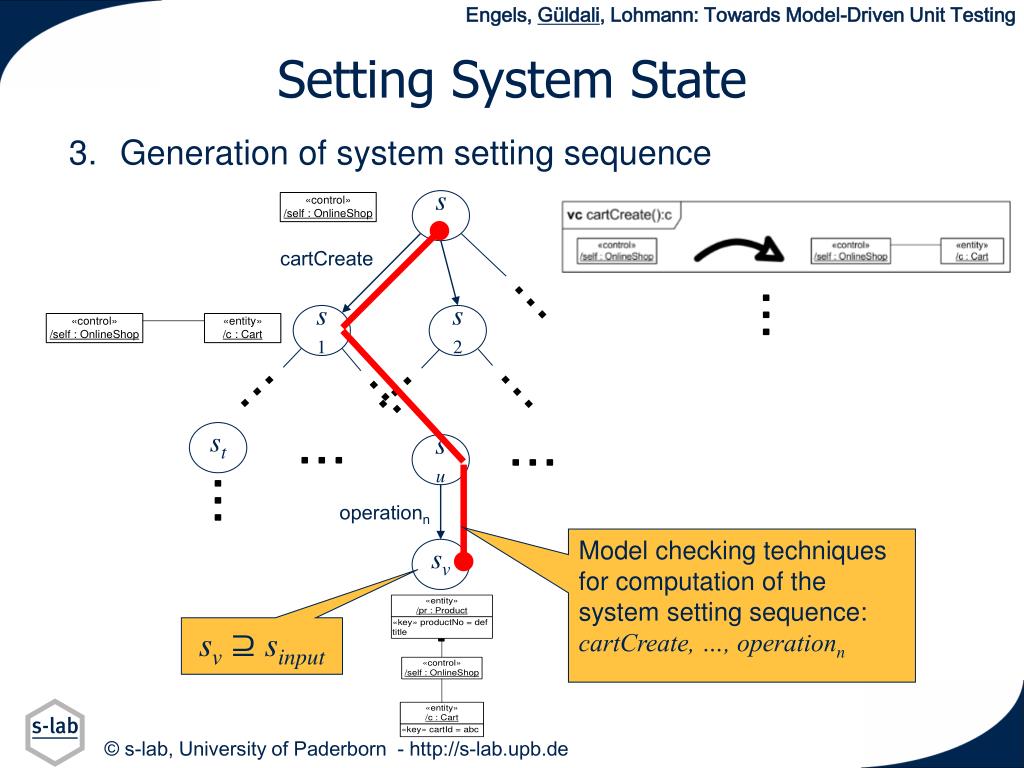

  10. Setting System State • Generation of system setting sequence s0 cartCreate … … s1 s2 … … … … … … st su … operationn Model checking techniques for computation of the system setting sequence: cartCreate, …, operationn sv … sv⊇ sinput

  11. Model-driven Unit Testing  1 Models   3 2 generate generate 4 Test Case Input Expected Output Test Oracle Operation under Test Test Case Input Actual Result Test Cases Comparator Pass/No Pass

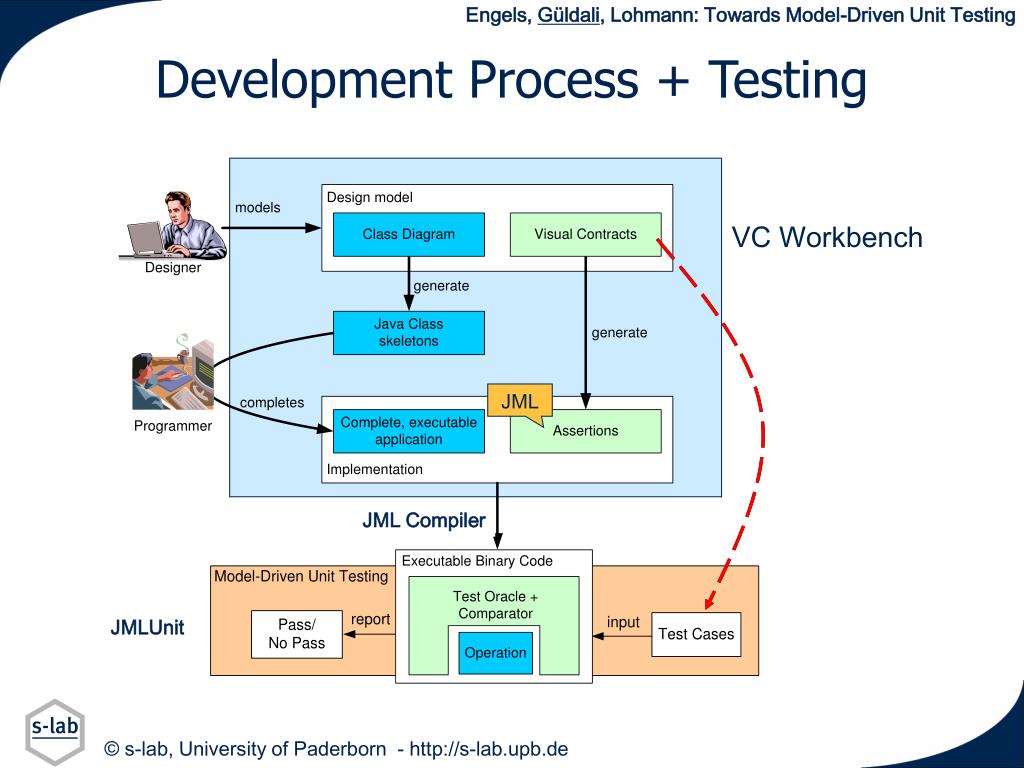

  12. Development Process + Testing VC Workbench JML JML Compiler JMLUnit

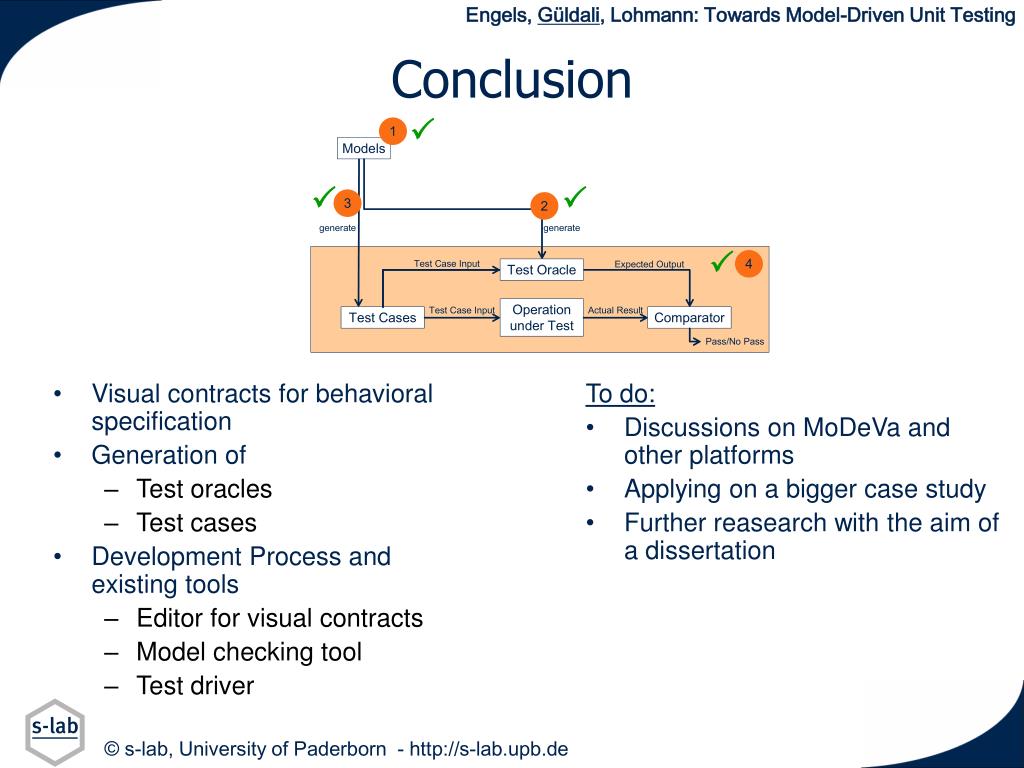

  13. To do: Discussions on MoDeVa and other platforms Applying on a bigger case study Further reasearch with the aim of a dissertation Visual contracts for behavioral specification Generation of Test oracles Test cases Development Process and existing tools Editor for visual contracts Model checking tool Test driver Conclusion

  14. Thank you for your attention!Any questions?
