  1. Impact Analysis for COBOL & PL/I helps to understand foreign software. ITP-PANORAMA

  2. Operating Systems supported /Operating Platforms MVS/zOS DEC VAX DOS-VSE DEC Alpha BS2000 TANDEM NonStop UNIX/LINUX Windows UNIX 64Bit Opteron WINDOWS 64Bit Edition LINUX ITP-PANORAMA Platforms: PANORAMA Platforms

  3. One Tool for all Languages Copies COBOL PL/I Inc‘s Assembler Macro‘s DBD/PSB DB2 IMS NATURAL IMS IDMS IDMS COLUMBUS CICS PL/SQL ORACLE DELTA UTM ADABAS JAVA ADABAS Defs. TUXEDO UDS C# EXEC CICS EXEC IMS EXEC SQL C++ XML

  4. Function Point Analysis Making applications transparent HyperCube Repository Generated Documents Recall of Complex Searches. XML Online, Real-time Information

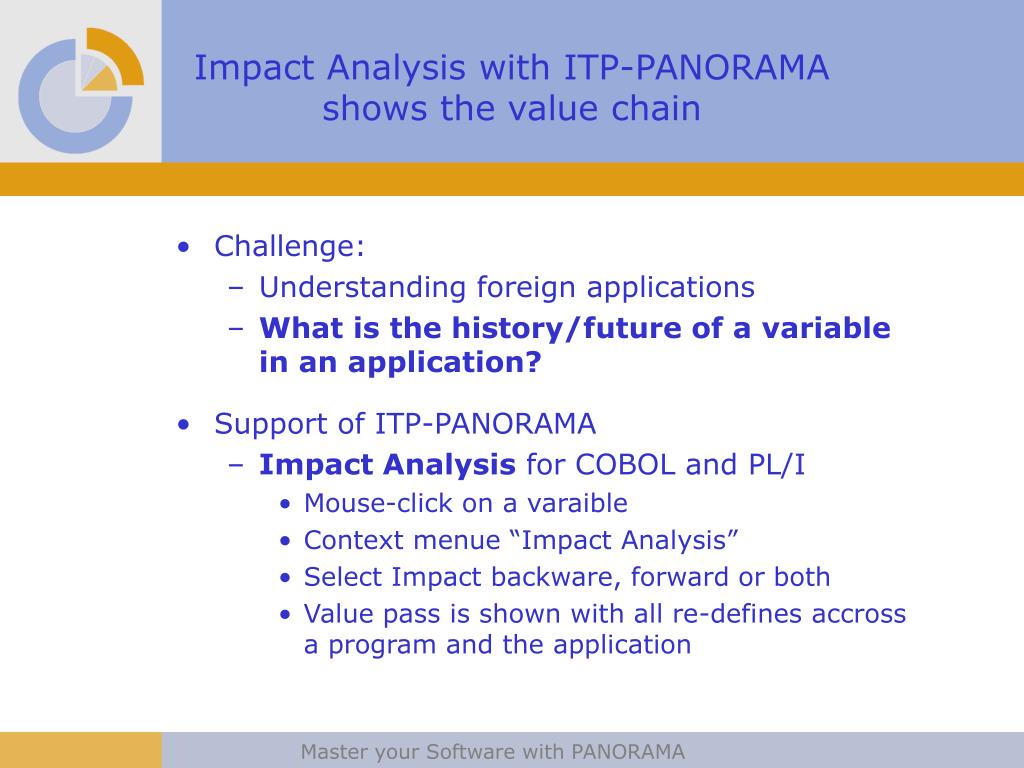

  5. Challenge: Understanding foreign applications What is the history/future of a variable in an application? Support of ITP-PANORAMA Impact Analysis for COBOL and PL/I Mouse-click on a varaible Context menue “Impact Analysis” Select Impact backware, forward or both Value pass is shown with all re-defines accross a program and the application Impact Analysis with ITP-PANORAMAshows the value chain

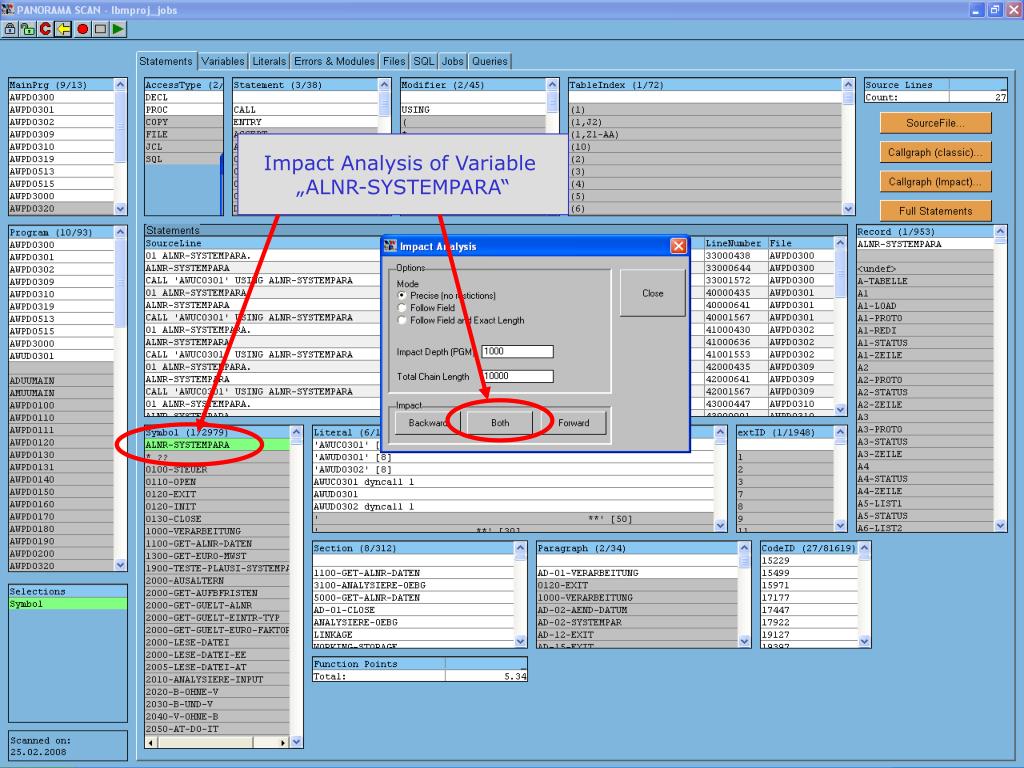

  6. Impact Analysis of Variable „ALNR-SYSTEMPARA“

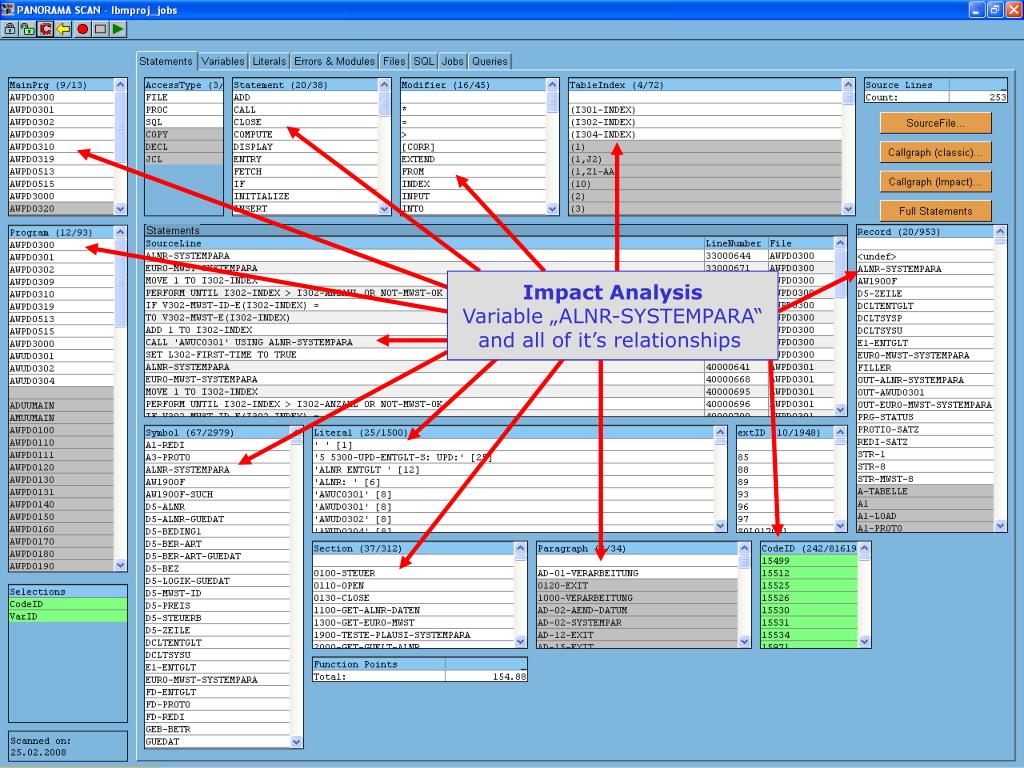

  7. Impact Analysis Variable „ALNR-SYSTEMPARA“ and all of it’s relationships

  8. Impact Analysis Variable „ALNR-SYSTEMPARA“ and all of it’s relationships

  9. Challenge: Understanding foreign applications What is the flow between two programs? Support of ITP-PANORAMA Impact Analysis Mouse-click on both programs Context menue “Find call path” List and graph show all called programs between the two programs Impact Analysis with ITP-PANORAMAsaves thousands of hours search time

  10. Challenge: Understanding foreign applications How are the fields after a READ used in an application? Support of ITP-PANORAMA Impact Analysis Mouse-click on a READ Context menue “Impact Analysis” Select <Impact forward> All statements i a program or application that use the read date are displayed Impact Analysis with ITP-PANORAMAshows the data-flow

  11. Challenge: Understanding foreign applications How are the fields prepared before an INSERT can write to a database? Support of ITP-PANORAMA Impact Analysis for COBOL and PL/I Mouse-click on an INSERT Context menue “Impact Analysis” Select <Impact backward> All statements i a program or application that have been processed to prepare the data that are written here, are displayed. Impact Analysis with ITP-PANORAMAshows the data-flow

  12. Challenge: Dynamic Calls Difficult to understand Time consuming to follow Support of ITP-PANORAMA By mouse-click all source lines and all relationships are displayed that modify call statements. Transparence in Dynamic Calls

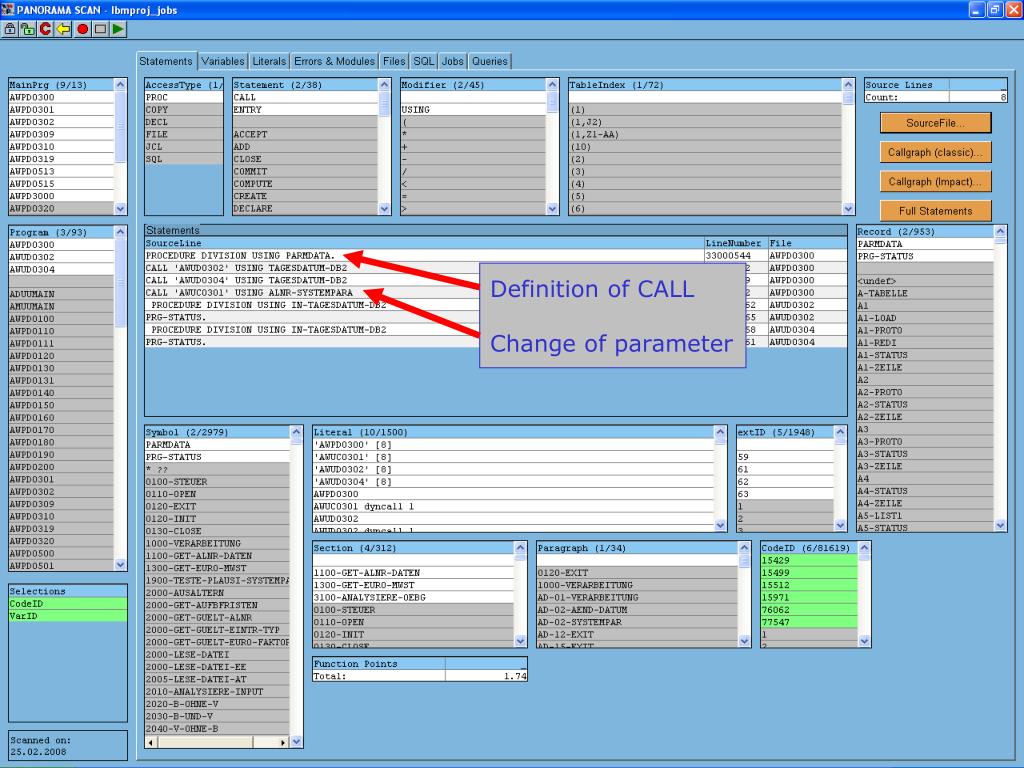

  13. Definition of CALL Change of parameter

  14. Depending on the program flow, program A04621 is calling either YGKL000 or YGKL001

  15. Juergen Overhoff VP Marketing & Sales Phone + 49 89 64 91 90 67 Mobile + 49 170 7 64 54 09 Juergen.Overhoff@itp-panorama.com For more information: www.itp-panorama.com ITP Software Systems GmbH, MunichPanorama View Software Corp., USA

  16. .... for taking the time to learn that Impact Analysis helps to understand foreign software We would like to thank you ....
