SQUID Performance in a HV Environment

This study examines the performance of Superconducting Quantum Interference Devices (SQUIDs) in high voltage (HV) environments, addressing potential breakdown scenarios and their impact on SQUID functionality. HV-induced currents can exceed the limits of Josephson junctions, necessitating remedies like employing Faraday cages. We explore noise characteristics, the effects of radio frequency interference (RFI), and the relationship between HV conditions and SQUID performance. Our results indicate effective shielding methods and improvements needed for optimal SQUID operation in future HV studies.

swain
Télécharger la présentation

SQUID Performance in a HV Environment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SQUID Performance in a HV Environment Chen-Yu Liu Craig Huffer, Maciej Karcz, Josh Long Indiana University

  2. Scenarios to study • HV Breakdown • Induce HV from sparks (ESD) • could produce current exceeding the current limit of the Josephson junctions, destroy SQUID (remedy: SQUID in a Faraday Cage) • Induced current • could drive superconductor over its critical field, cause flux trap, increase noise (no remedy required, might need to heat up SQUID periodically) • Radio Frequency Interference (RFI) • minor: Increase the SQUID noise • moderate: flux jumps • serious: unable to lock SQUID • RF Source: micro-discharge, ground loop, switching mode power supply • Remedy: SQUID in Faraday Cage, low pass filtered PS, proper RF shield, proper ground

  3. Experimental Setup • Disk electrodes: 1.25” diameter, 0.25” thick • Pb S.C. shield • HV feedthrough (ceramic) rated for 20kV. • Star Cryoelectronic magnetometer on chip

  4. SQUID Noise Spectrum • Star Cryoelectronics magnetometer prototype. • 8x8mm2 pick-up coil built in on the SQUID chip. • 0.64 nT/0 • Intrinsic noise < 5/Hz • no HV, SQUID sensor is placed in a faraday cage (4 layers of Al coated mylar super-insulation) • Measurements: • Noise ~ 30 0/Hz • S.C. Shielding should be improved. • HV should also be better shielded.

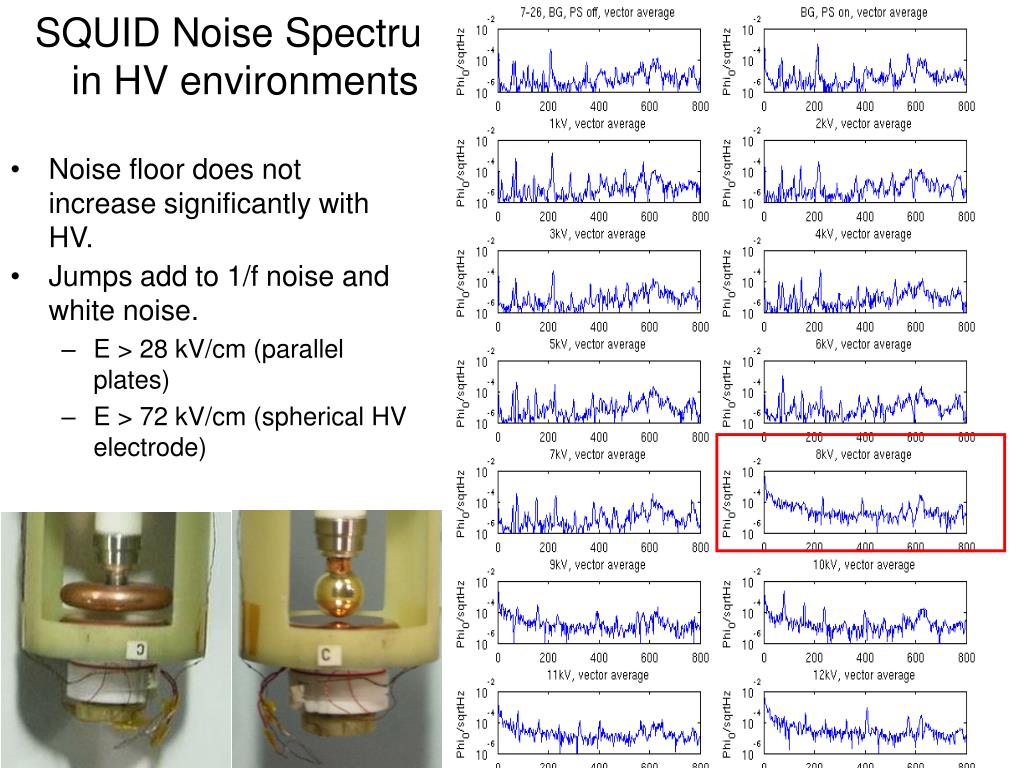

  5. SQUID Noise Spectrumin HV environments • Noise floor does not increase significantly with HV. • Jumps add to 1/f noise and white noise. • E > 28 kV/cm (parallel plates) • E > 72 kV/cm (spherical HV electrode)

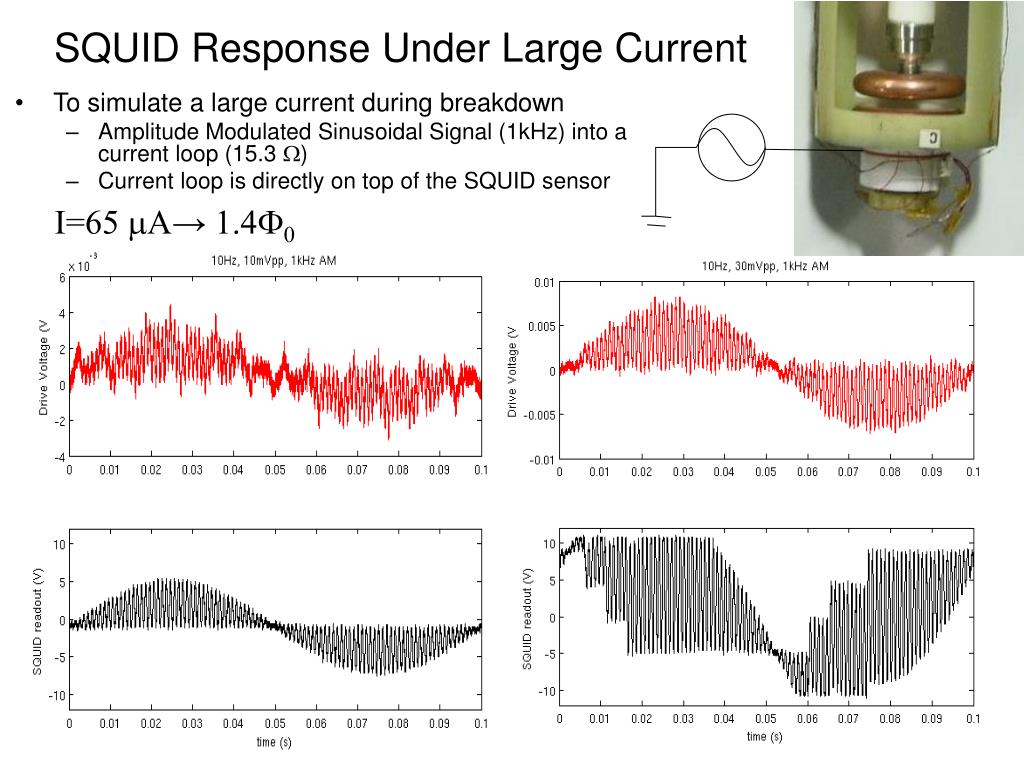

  6. SQUID Response Under Large Current • To simulate a large current during breakdown • Amplitude Modulated Sinusoidal Signal (1kHz) into a current loop (15.3 ) • Current loop is directly on top of the SQUID sensor I=65 A→ 1.40

  7. Observations • Largest applied current • I=10Vpp/15.3 = 0.65A • SQUID recovers to working condition right after the current is off. • In nEDM system, assuming the discharge time is ~ micro-seconds, the spark current is about 23 A (~ 35 times bigger than the small system) • However, the SQUID is further away from the high field region

  8. D. Drung, Supercond. Sci. Technol. 16 (2003) 1320 SQUID Electronics Input coil Pickup coil

  9. Radio-Frequency Interference 1k • SQUID in flux lock mode (feedback circuit is on). • Apply 50mVpp Sinusoidal Waveform into the current loop with 1k resistor in series. • BW = 40kHz

  10. Radio-Frequency Interference 1k • SQUID in TUNE mode • Measure the amplitude of the V- curve. • Apply 50mVpp Sinusoidal waveform into the current loop with 1 k resistor in series. • Faraday cage • shields the high frequency components. • Ensures the large V- amplitude. • f3dB~1MHz • Al thickness=85m • 4 layers of 0.0001 in =10 m SQUID in FC no FC

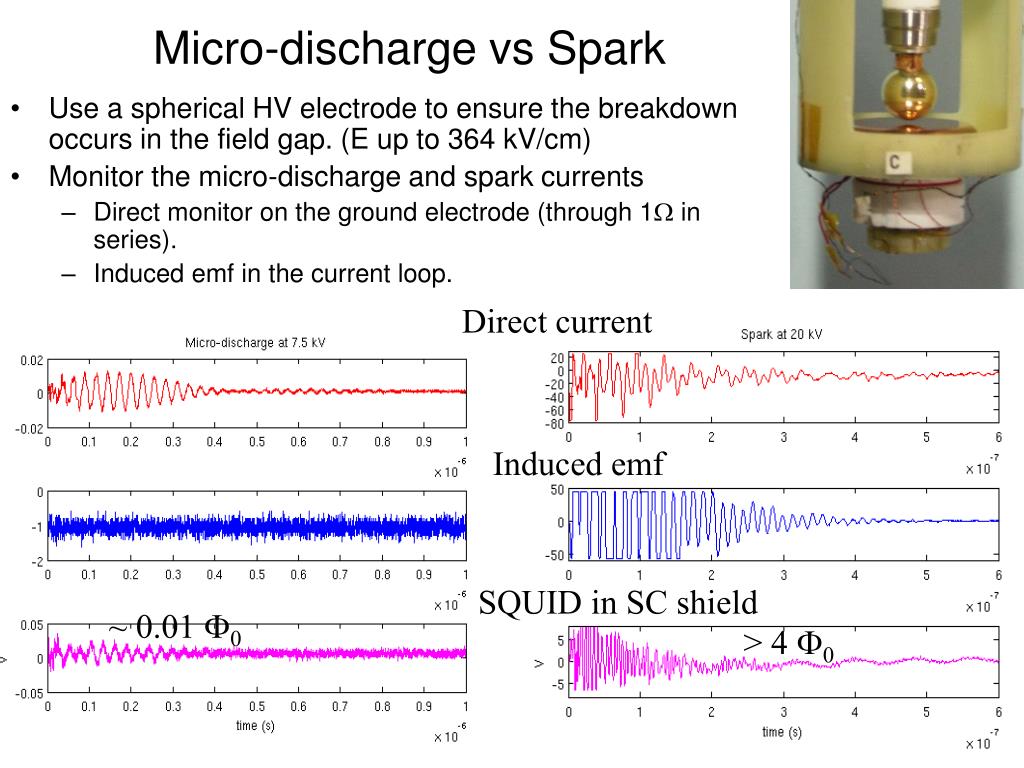

  11. Micro-discharge vs Spark • Use a spherical HV electrode to ensure the breakdown occurs in the field gap. (E up to 364 kV/cm) • Monitor the micro-discharge and spark currents • Direct monitor on the ground electrode (through 1 in series). • Induced emf in the current loop. Direct current Induced emf SQUID in SC shield ~ 0.01 0 > 4 0

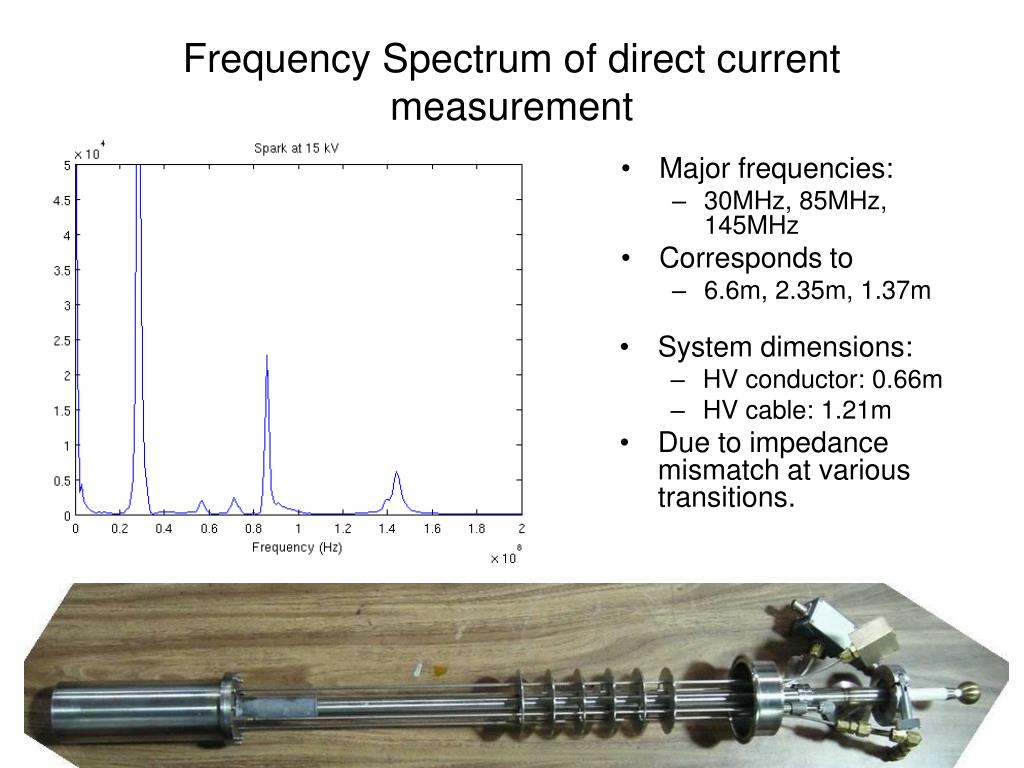

  12. Frequency Spectrum of direct current measurement • Major frequencies: • 30MHz, 85MHz, 145MHz • Corresponds to • 6.6m, 2.35m, 1.37m • System dimensions: • HV conductor: 0.66m • HV cable: 1.21m • Due to impedance mismatch at various transitions.

  13. Summary • Destroyed one SQUID sensor in breakdown • Field = 15kV / 0.55mm = 273 kV/cm • Instantaneous spark current > 80A • Micro-discharge • E> 7kV / 2.5mm = 28kV/cm (disk electrode) • E> 4kV / 0.55mm = 72kV/cm (spherical electrode) • I ~ 20 mA (4000 times smaller than the spark current) • SQUID jumps • Increases the 1/f noise, corner ~ 200Hz • Starts at a lower field than the HV breakdown fields. • Continuing study of effective RF shielding • Micro-discharge. • HV power supply (Glassman HV, series EH)

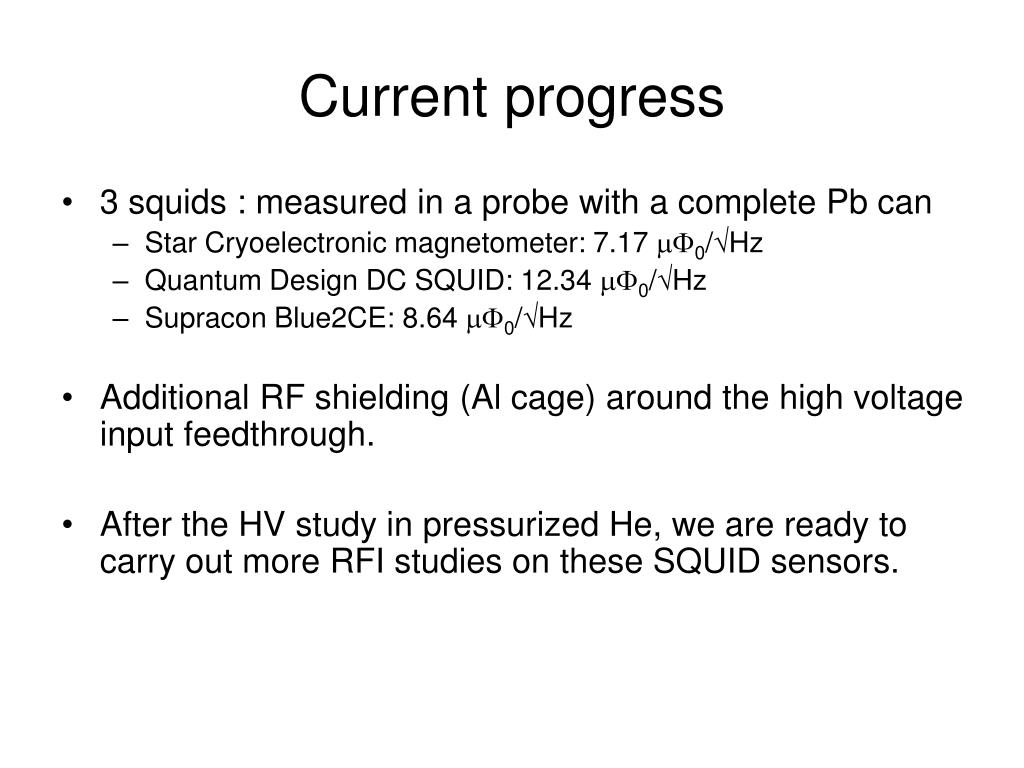

  14. Current progress • 3 squids : measured in a probe with a complete Pb can • Star Cryoelectronic magnetometer: 7.17 0/Hz • Quantum Design DC SQUID: 12.34 0/Hz • Supracon Blue2CE: 8.64 0/Hz • Additional RF shielding (Al cage) around the high voltage input feedthrough. • After the HV study in pressurized He, we are ready to carry out more RFI studies on these SQUID sensors.
