METO 621 Lesson 15
Adding-Doubling Techniques • Consider two layers in the atmosphere with the same reflectance and transmittance. Then the combined reflectance and transmittance of the two layers can be written as

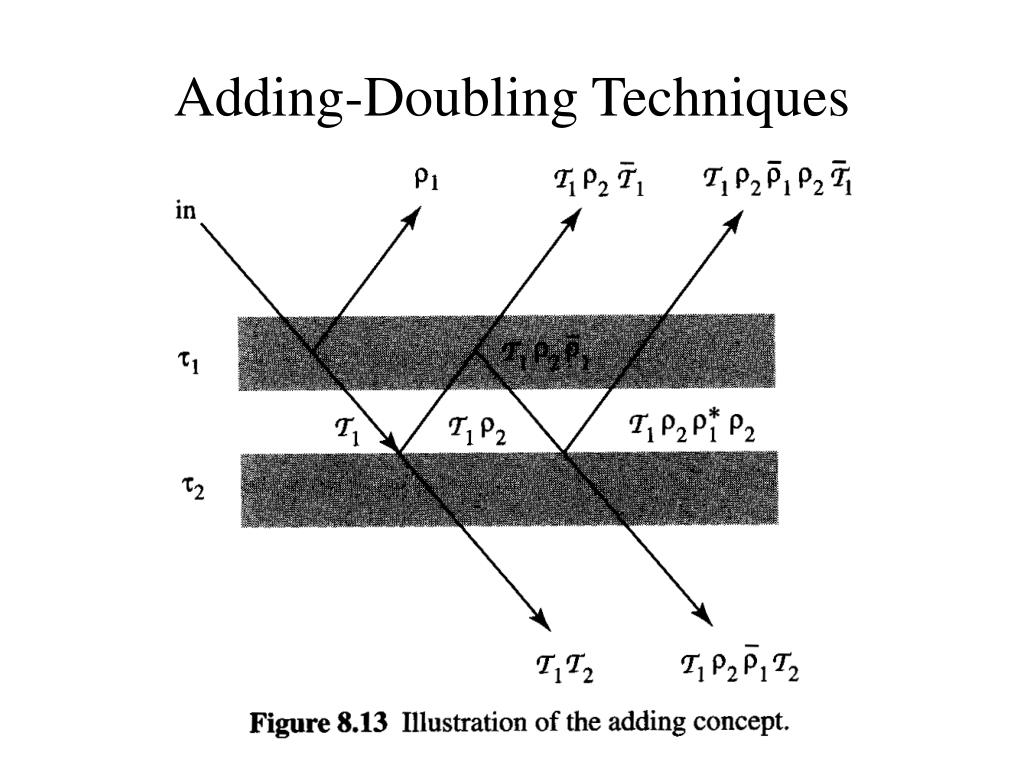

Adding-Doubling Techniques • The advantage of the technique is that one can start with thin layers – small optical depths – which are easier to handle mathematically. There is no limit as to how many of the layers one eventually adds. • If the two layers are dissimilar, then we must take into account that the transmittance and reflectance will be different for illumination from above and below. • The equations for the combined reflectance and transmittance can also be determined.

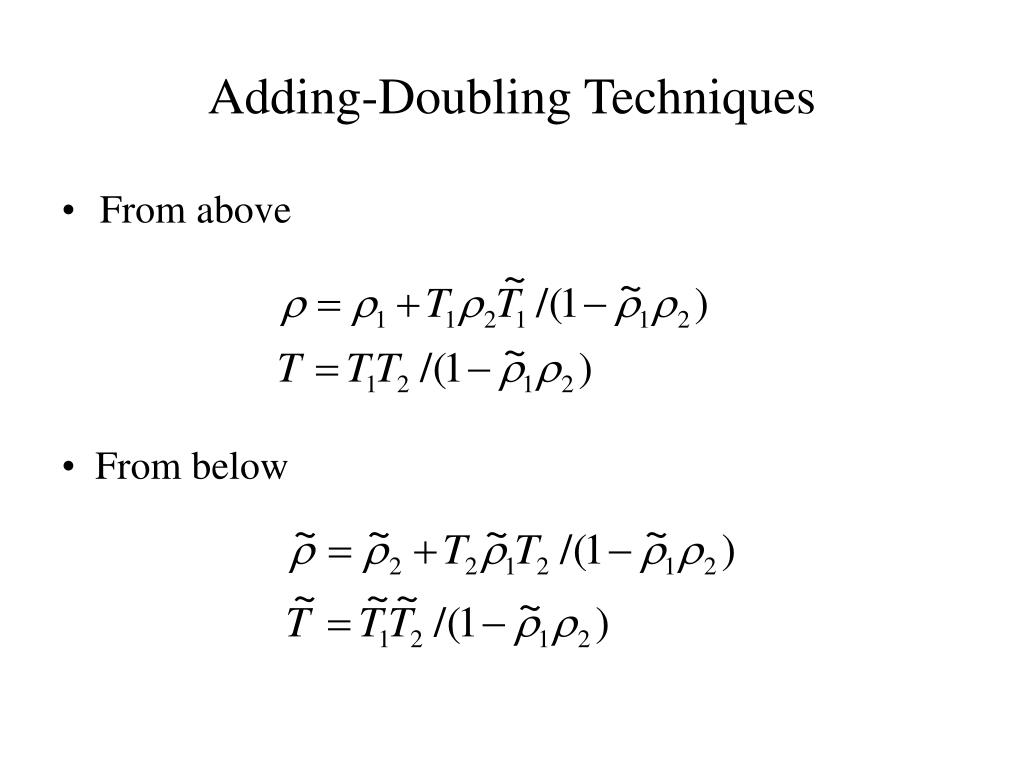

Adding-Doubling Techniques • From above • From below
Discrete Ordinate Method – Isotropic Scattering • The solution of the isotropic scattering problem involves the following integral over angle • In the two stream method we replaced the integration over m with the simple formula
Discrete Ordinate Method – Isotropic Scattering • This is obviously a crude approximation. We can improve the accuracy by including more points in a numerical quadrature formula • Where w’j is a quadrature weight, and uj is the discrete ordinate • Most commonly used radiative transfer computer codes is DISORT – DIScreteOrdinateRadiativeTransfer
