  1. Programming Logic and DesignFifth Edition, Comprehensive Chapter 14 Using Relational Databases

  2. Objectives • Understand relational database fundamentals • Create databases and table descriptions • Be able to identify primary keys • Understand database structure notation • Understand the principles of adding, deleting, updating, and sorting records within a table Programming Logic and Design, Fifth Edition, Comprehensive

  3. Objectives (continued) • Create queries • Understand relationships between tables • Recognize poor table design • Understand anomalies, normal forms, and the normalization process • Understand database performance and security issues Programming Logic and Design, Fifth Edition, Comprehensive

  4. Understanding Relational Database Fundamentals • Data hierarchy: • Smallest unit of data is the character • Characters form fields • Fields form records • Records form files • Database: • Group of files needed to support an organization • Files in a database are called tables Programming Logic and Design, Fifth Edition, Comprehensive

  5. Understanding Relational Database Fundamentals (continued) • Data in tables can be arranged in rows and columns • Each column represents a field • Each row represents a record Figure 14-1 A telephone book table Programming Logic and Design, Fifth Edition, Comprehensive

  6. Understanding Relational Database Fundamentals (continued) • Primary key (or key): • Uniquely identifies a record • May be composed of one or multiple columns • Compound key: constructed from multiple columns • Also known as composite key Programming Logic and Design, Fifth Edition, Comprehensive

  7. Understanding Relational Database Fundamentals (continued) • Database management software allows you to: • Create table descriptions • Identify keys • Add, delete, and update records within a table • Sort records by different fields • Write questions to select specific records for viewing • Write questions to combine information from multiple tables • Relationaldatabase: tables with related columns • Create reports • Secure the data Programming Logic and Design, Fifth Edition, Comprehensive

  8. Creating Databases and Table Descriptions • Creating a database requires planning and analysis • What data to store • How to divide the data between tables • How the tables will interrelate • Designing a database table: • Required columns • And how they are named • Type of data in each column Programming Logic and Design, Fifth Edition, Comprehensive

  9. Creating Databases and Table Descriptions (continued) Figure 14-2 Customer table description Programming Logic and Design, Fifth Edition, Comprehensive

  10. Identifying Primary Keys • Identify a column or combination of columns to be the primary key • Values of primary keys must be unique, such as: • Student ID number • Inventory part number • Social Security number Programming Logic and Design, Fifth Edition, Comprehensive

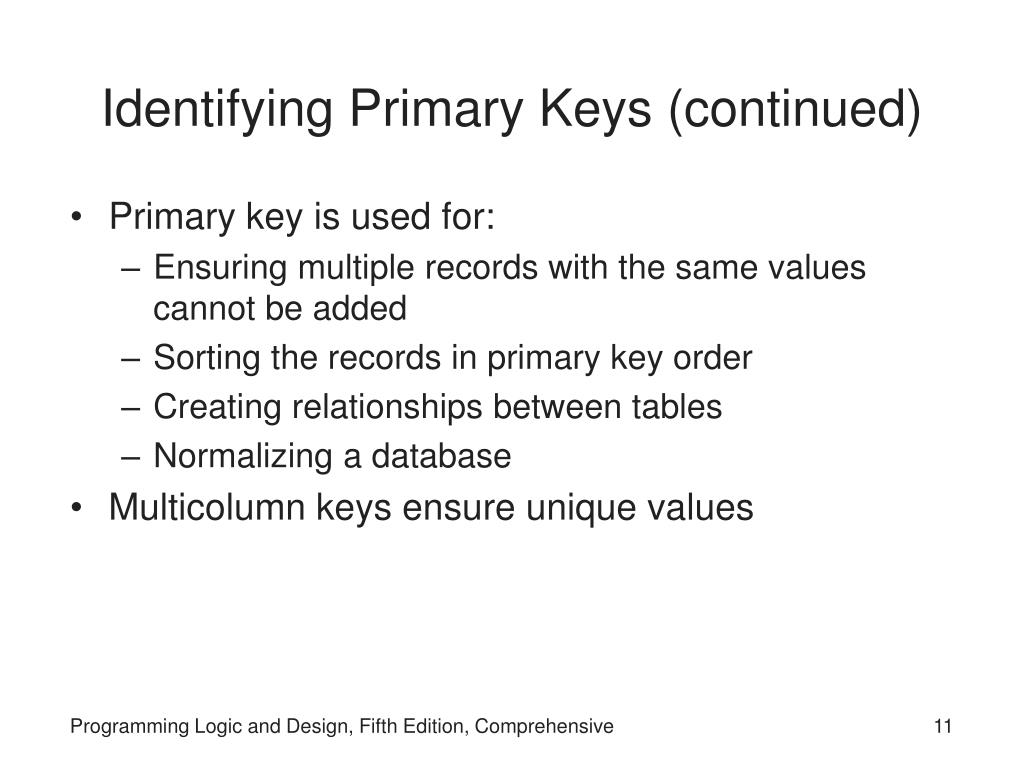

  11. Identifying Primary Keys (continued) • Primary key is used for: • Ensuring multiple records with the same values cannot be added • Sorting the records in primary key order • Creating relationships between tables • Normalizing a database • Multicolumn keys ensure unique values Programming Logic and Design, Fifth Edition, Comprehensive

  12. Identifying Primary Keys (continued) Figure 14-3 Table containing residence hall student records Programming Logic and Design, Fifth Edition, Comprehensive

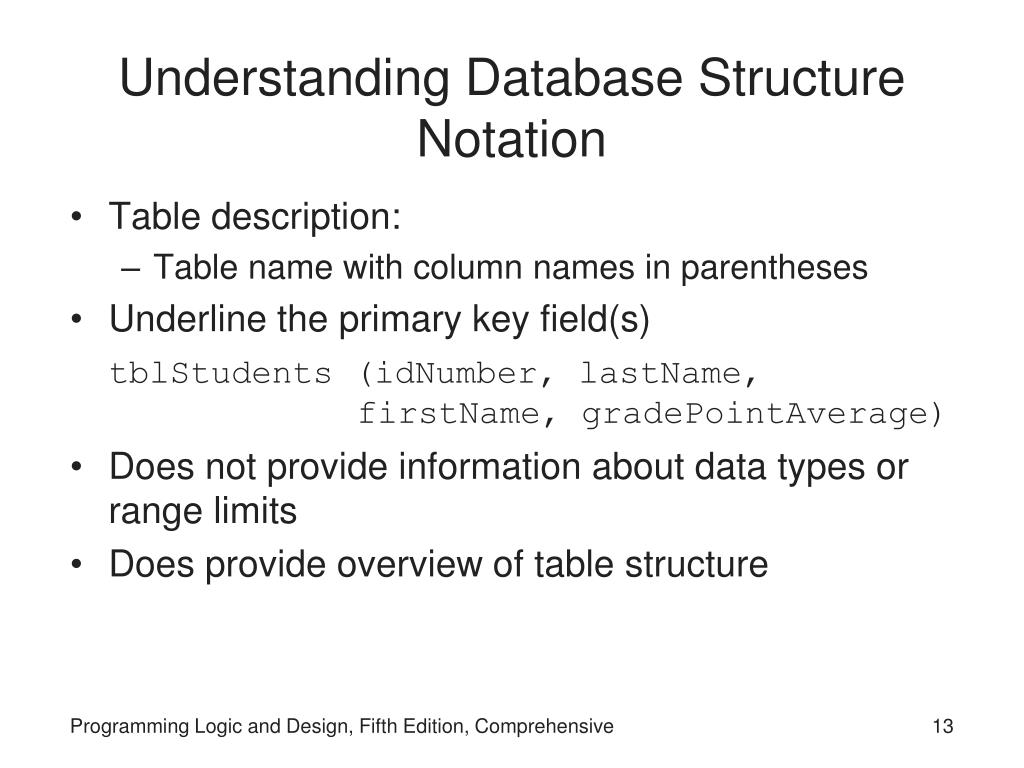

  13. Understanding Database Structure Notation • Table description: • Table name with column names in parentheses • Underline the primary key field(s) tblStudents (idNumber, lastName, firstName, gradePointAverage) • Does not provide information about data types or range limits • Does provide overview of table structure Programming Logic and Design, Fifth Edition, Comprehensive

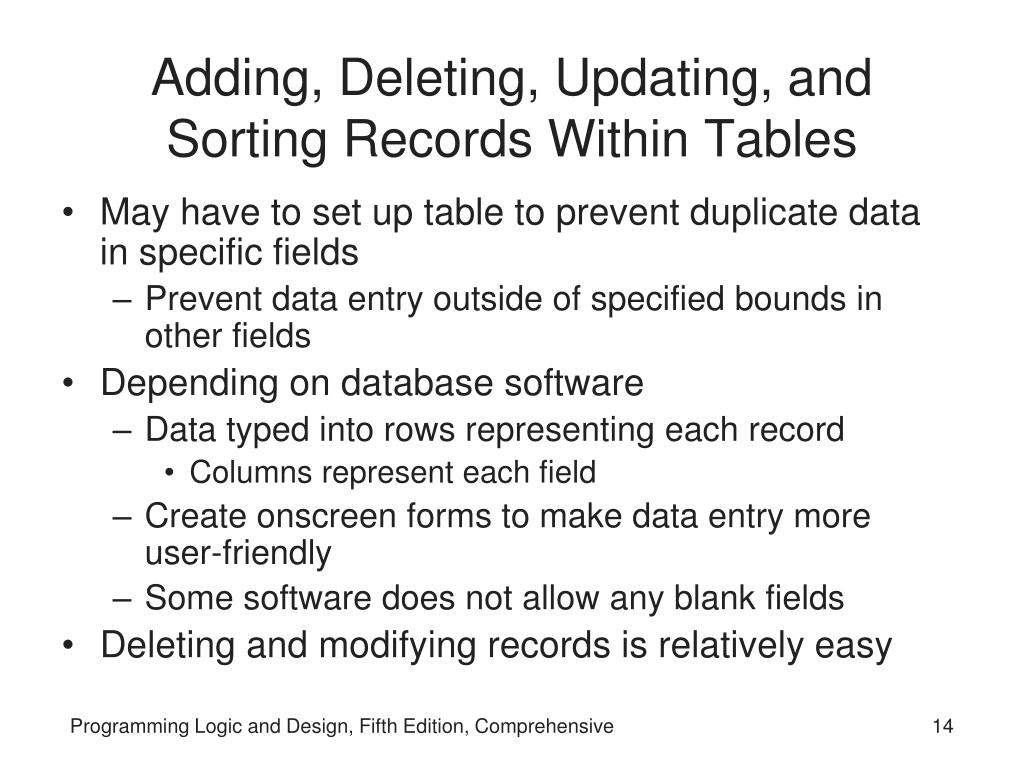

  14. Adding, Deleting, Updating, and Sorting Records Within Tables • May have to set up table to prevent duplicate data in specific fields • Prevent data entry outside of specified bounds in other fields • Depending on database software • Data typed into rows representing each record • Columns represent each field • Create onscreen forms to make data entry more user-friendly • Some software does not allow any blank fields • Deleting and modifying records is relatively easy Programming Logic and Design, Fifth Edition, Comprehensive

  15. Sorting the Records in a Table • Can sort a table based on any column • After sorting: • Records can be grouped by specific values or ranges • Aggregate values can be calculated (counts, sums, averages, etc.) • Database software provides the means to create displays in various formats Programming Logic and Design, Fifth Edition, Comprehensive

  16. Creating Queries • Query: question that causes database software to extract appropriate records from the table • Query by example: fill in blanks to create queries • Structured Query Language (SQL): most common language used to query a database Programming Logic and Design, Fifth Edition, Comprehensive

  17. Creating Queries (continued) • SELECT-FROM-WHERE is the basic form of a query: • Selects columns to view • From a specific table • Where one or more conditions are met • Wildcard symbol specifies “any” or “all” • Compound conditions using AND, OR, or NOT Programming Logic and Design, Fifth Edition, Comprehensive

  18. Creating Queries (continued) Figure 14-4 The tblInventory table Programming Logic and Design, Fifth Edition, Comprehensive

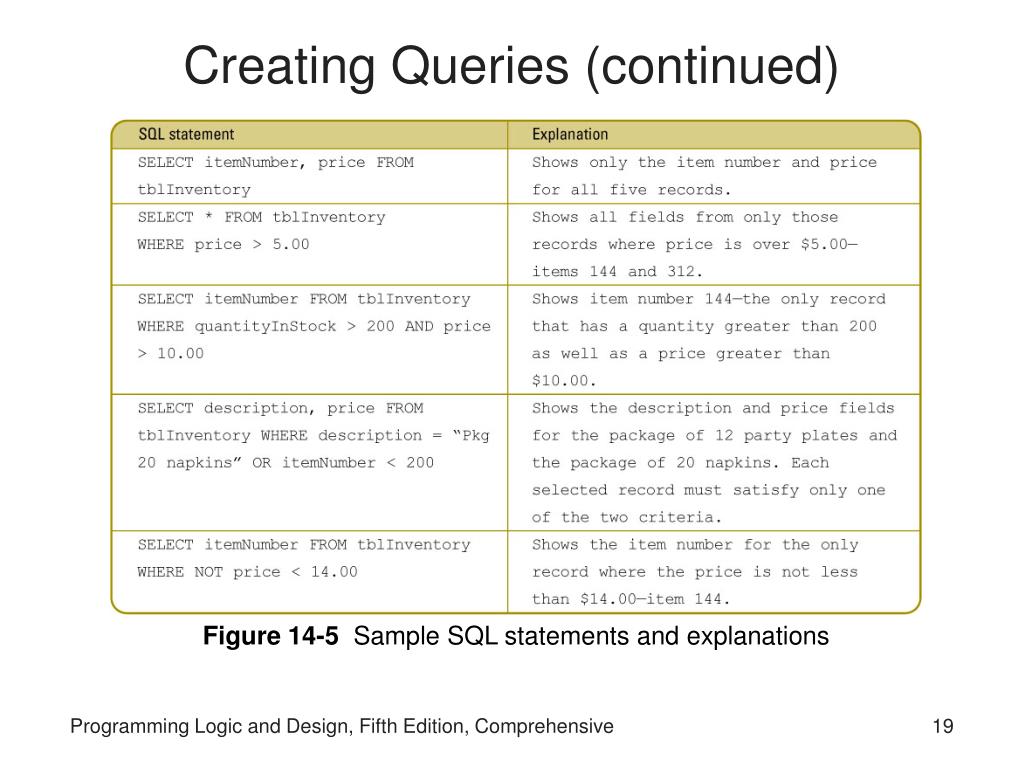

  19. Creating Queries (continued) Figure 14-5 Sample SQL statements and explanations Programming Logic and Design, Fifth Edition, Comprehensive

  20. Understanding Relationships Between Tables • Relationship: connection between two tables • Relational database: database containing relationships • Join operation (or join): connecting two tables based on values in a common column • Query returns data taken from each joined table • Three types of relationships: • One-to-many • Many-to-many • One-to-one Programming Logic and Design, Fifth Edition, Comprehensive

  21. Understanding Relationships Between Tables (continued) Figure 14-6 Sample customers and orders Programming Logic and Design, Fifth Edition, Comprehensive

  22. Understanding One-to-Many Relationships • One-to-many relationship: • Row in one table related to one or more rows in another table • Most common type of table relationship • Relationship based on one or more columns • “One” side is the base table • Primary key is used for the join • “Many” side is the related table • May be a non-key attribute • Foreign key: field in one table which is primary key in another table Programming Logic and Design, Fifth Edition, Comprehensive

  23. Understanding One-to-Many Relationships (continued) Figure 14-7 Sample items and categories: a one-to-many relationship Programming Logic and Design, Fifth Edition, Comprehensive

  24. Understanding Many-to-Many Relationships • Many-to-many relationship: • Multiple rows in each table can correspond to multiple rows in the other table • Additional table contains pairs of primary keys from each table • New table contains compound primary key • These pairs form unique keys in the new table Programming Logic and Design, Fifth Edition, Comprehensive

  25. Understanding Many-to-Many Relationships (continued) Figure 14-8 Sample items, categories, and item categories: a many-to-many relationship Programming Logic and Design, Fifth Edition, Comprehensive

  26. Understanding One-to-One Relationships • One-to-one relationship: • Row in one table corresponds to exactly one row in another table • Least frequently encountered relationship • Tables could be combined into a single table • Often keep the tables separate for security purposes Programming Logic and Design, Fifth Edition, Comprehensive

  27. Understanding One-to-One Relationships (continued) Figure 14-9 Employees and salaries tables: a one-to-one relationship Programming Logic and Design, Fifth Edition, Comprehensive

  28. Recognizing Poor Table Design • Often table design is inadequate to support needs of the application • Structure may be cumbersome • Prone to data errors • Take time to ensure well-designed table structures initially Programming Logic and Design, Fifth Edition, Comprehensive

  29. Recognizing Poor Table Design (continued) Figure 14-10Students table before normalization process Programming Logic and Design, Fifth Edition, Comprehensive

  30. Understanding Anomalies, Normal Forms, and the Normalization Process • Normalization: • Designing a database structure to satisfy user needs • Reduce duplication of data • Data redundancy: unnecessary repetition of data • Anomaly: irregularity in database design that causes problems • Update anomalies • Delete anomalies • Insert anomalies Programming Logic and Design, Fifth Edition, Comprehensive

  31. Understanding Anomalies, Normal Forms, and the Normalization Process (continued) • Update anomaly: when updating data in one table, you must update the same data in another table • Delete anomaly: deleting a record causes other problems, such as loss of unrelated information • Insert anomaly: inability to add a new record due to lack of related data Programming Logic and Design, Fifth Edition, Comprehensive

  32. Understanding Anomalies, Normal Forms, and the Normalization Process (continued) • Normalization removes redundancies and anomalies • Three normal forms: • First normal form (or 1NF): eliminate repeating groups • Second normal form (or 2NF): eliminate partial key dependencies • Third normal form (3NF): eliminate transitive dependencies Programming Logic and Design, Fifth Edition, Comprehensive

  33. First Normal Form • Unnormalized: table contains repeating groups • Repeating group: subset of rows in a table all depend on the same key • Table in 1NF contains no repeating groups of data • Primary key attributes are defined • Atomic attributes: columns as small as possible • Containing undividable pieces of data • In 1NF, all values for intersecting row and column must be atomic Programming Logic and Design, Fifth Edition, Comprehensive

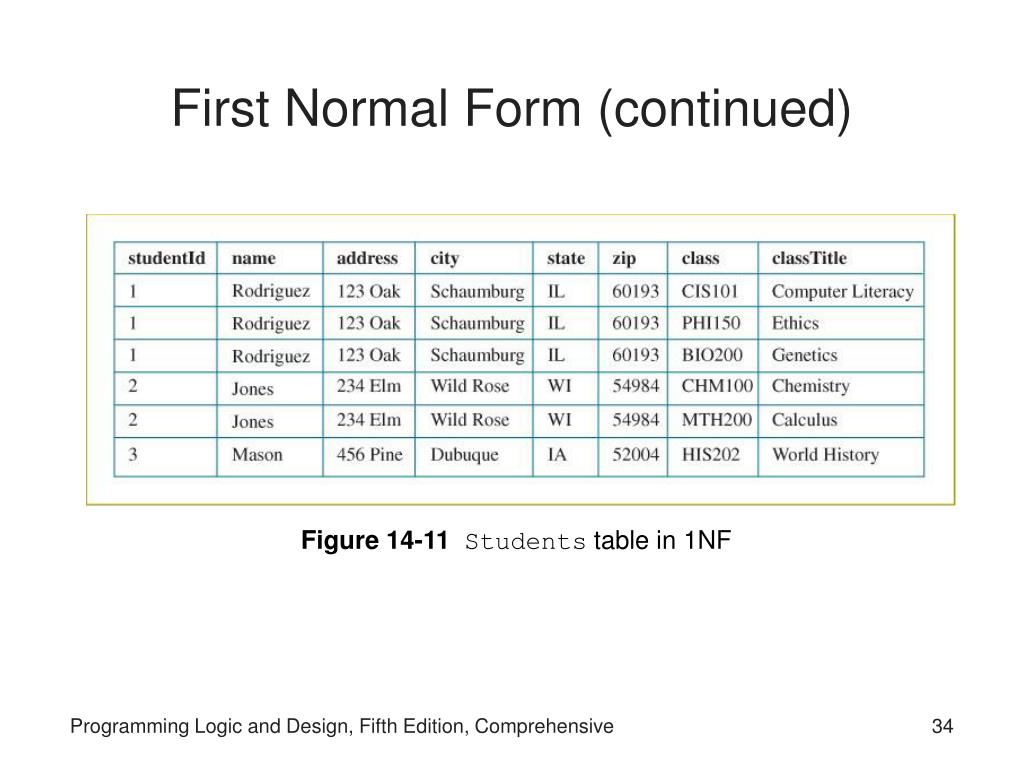

  34. First Normal Form (continued) Figure 14-11Students table in 1NF Programming Logic and Design, Fifth Edition, Comprehensive

  35. Second Normal Form • Partial key dependencies: column depends on only part of the key • For 2NF: • Database must already be in 1NF • All non-key fields must be dependent on the entire primary key • Eliminate partial key dependencies by creating multiple tables Programming Logic and Design, Fifth Edition, Comprehensive

  36. Second Normal Form (continued) Figure 14-12Students table in 2NF Programming Logic and Design, Fifth Edition, Comprehensive

  37. Second Normal Form (continued) • Improvements over 1NF: • Eliminate update anomalies • Eliminating redundancies reduces anomalies • Eliminate insert anomalies • Eliminate delete anomalies • When breaking a table into multiple tables, consider relationships among tables Programming Logic and Design, Fifth Edition, Comprehensive

  38. Third Normal Form • Transitive dependency: value of a non-key attribute determines value of another non-key attribute • For 3NF: • Database must already be in 2NF • No transitive dependencies • Remove attributes that are functionally dependent on the attribute that causes the transitive dependency Programming Logic and Design, Fifth Edition, Comprehensive

  39. Third Normal Form (continued) Figure 14-13 The complete Students database Programming Logic and Design, Fifth Edition, Comprehensive

  40. Third Normal Form (continued) • All redundancies and anomalies are removed • Determinant is allowed in 3NF if it is a candidate key • Normalization summary: • 1NF: no repeating groups • 2NF: 1NF plus no partial key dependencies • 3NF: 2NF plus no transitive dependencies Programming Logic and Design, Fifth Edition, Comprehensive

  41. Database Performance and Security Issues • A company’s data must be protected • Data security includes: • Providing data integrity • Recovering lost data • Avoiding concurrent update problems • Providing authentication and permissions • Providing encryption Programming Logic and Design, Fifth Edition, Comprehensive

  42. Providing Data Integrity • Data integrity: • Data is accurate and consistent • Database software must enforce data integrity Programming Logic and Design, Fifth Edition, Comprehensive

  43. Recovering Lost Data • Data loss caused by: • User mistakes • Hackers or other malicious users • Hardware problems • Fire, flood, or other natural disasters • Recovery: return the database to a correct form that existed before the problem occurred • Make a backup copy of the database • Record of all transactions to recover a database Programming Logic and Design, Fifth Edition, Comprehensive

  44. Avoiding Concurrent Update Problems • Concurrent update problem: • Two users make changes to the same record • One update will be lost • Lock: mechanism to prevent changes to a record for some period of time • Solving concurrent update problem: • Use record-level locking • Make transactions offline, and process as a batch Programming Logic and Design, Fifth Edition, Comprehensive

  45. Providing Authentication and Permissions • Database software must determine that a user is legitimate and is authorized to use the database • Authentication techniques include: • Storing and verifying passwords • Using biometric data to identify users • Permissions: settings that determine what actions a user is allowed to perform • Authentication determines what permissions a user has Programming Logic and Design, Fifth Edition, Comprehensive

  46. Providing Encryption • Encryption: coding data into a format that humans cannot read • Prevents use of the data by unauthorized users Programming Logic and Design, Fifth Edition, Comprehensive

  47. Summary • Database: collection of tables containing an organization's data • Primary key: value that uniquely identifies a record • Database management software allows you to add, delete, and update records in the database Programming Logic and Design, Fifth Edition, Comprehensive

  48. Summary (continued) • Query: question that selects data from database • Database creation requires planning and analysis • Primary key can consist of one or multiple columns • Most data is in a constant state of change Programming Logic and Design, Fifth Edition, Comprehensive

  49. Summary (continued) • Functions • Can sort a table based on any column • Can do aggregate calculations on data • Normalization: designing a database to meet the needs, yet avoiding redundancies and anomalies • Three forms of normalization are commonly used Programming Logic and Design, Fifth Edition, Comprehensive

  50. Summary (continued) • Database may be one of a company’s most important assets, so it must be secured • Security issues: • Data integrity • Recovery • Avoiding concurrent update problems • Authentication and permissions • Providing encryption Programming Logic and Design, Fifth Edition, Comprehensive
