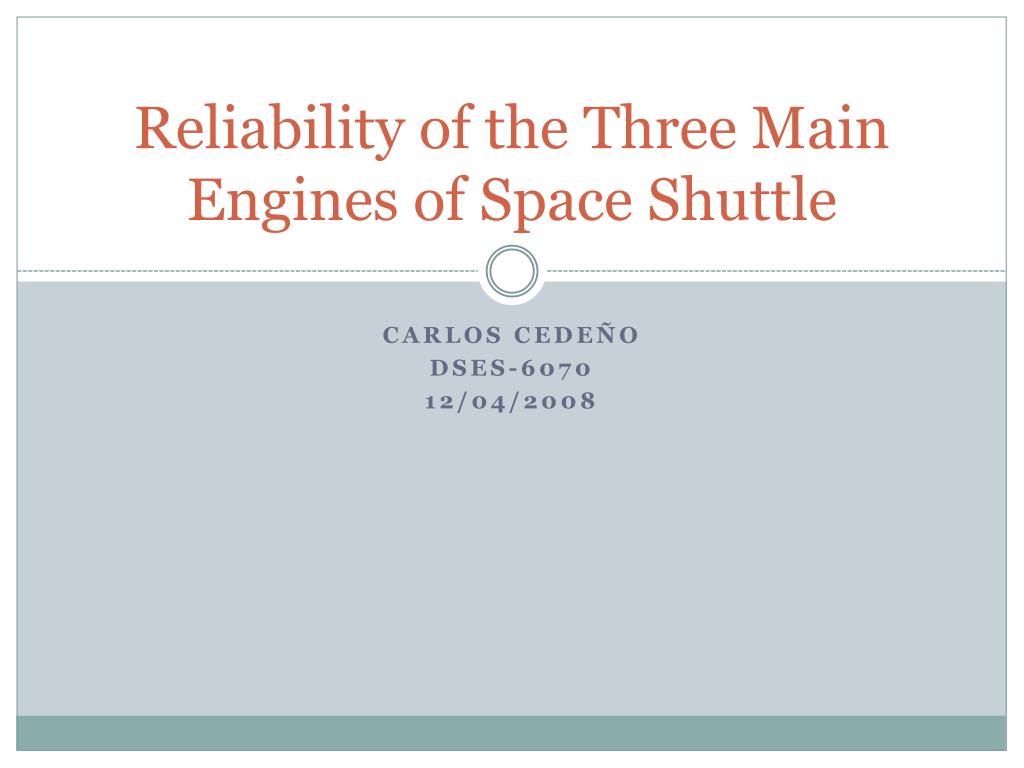

  1. Reliability of the Three Main Engines of Space Shuttle Carlos Cedeño DSES-6070 12/04/2008

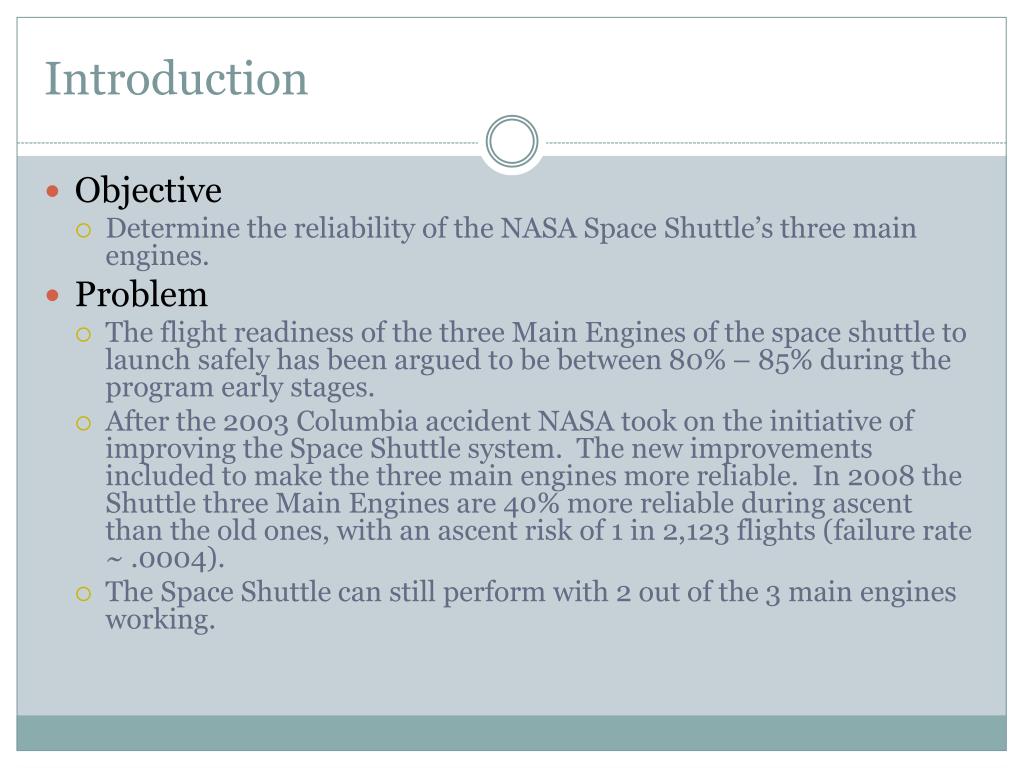

  2. Introduction • Objective • Determine the reliability of the NASA Space Shuttle’s three main engines. • Problem • The flight readiness of the three Main Engines of the space shuttle to launch safely has been argued to be between 80% – 85% during the program early stages. • After the 2003 Columbia accident NASA took on the initiative of improving the Space Shuttle system. The new improvements included to make the three main engines more reliable. In 2008 the Shuttle three Main Engines are 40% more reliable during ascent than the old ones, with an ascent risk of 1 in 2,123 flights (failure rate ~ .0004). • The Space Shuttle can still perform with 2 out of the 3 main engines working.

  3. Reliability Functions • It was assumed that the three engines have the following cumulative probability distribution: • F = 1-exp(-.0004*t) • Using Maple, the reliability functions were calculated for a system that fails when 2 out of the 3 components fail. • MTTFs2oo3 = 2083 flights

  4. Reliability Plots

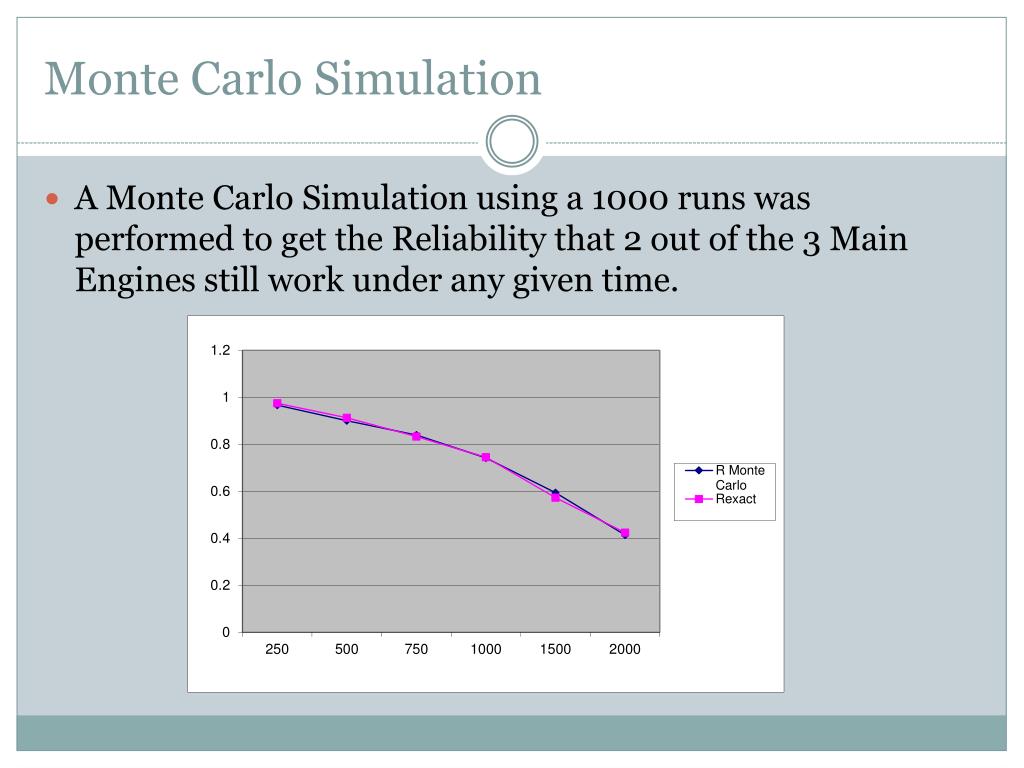

  5. Monte Carlo Simulation A Monte Carlo Simulation using a 1000 runs was performed to get the Reliability that 2 out of the 3 Main Engines still work under any given time.

  6. Conclusion The new improvements to the Shuttle Main Engines makes the Shuttle very reliable and safe.

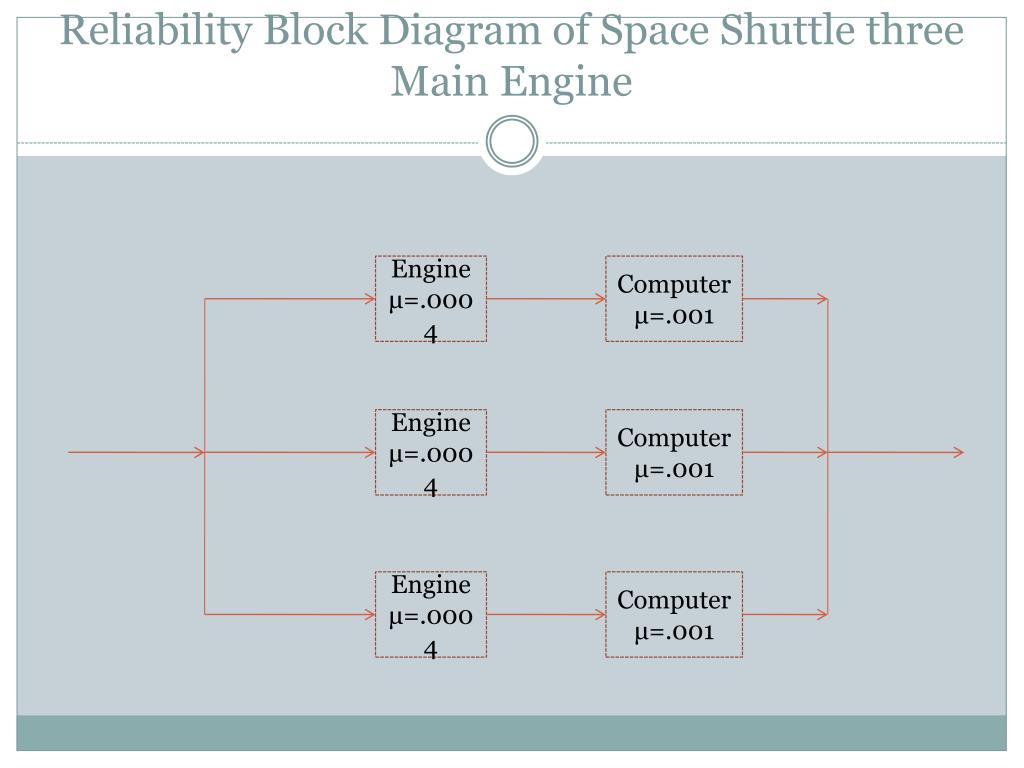

  7. Reliability Block Diagram of Space Shuttle three Main Engine Engine μ=.0004 Computer μ=.001 Engine μ=.0004 Computer μ=.001 Engine μ=.0004 Computer μ=.001

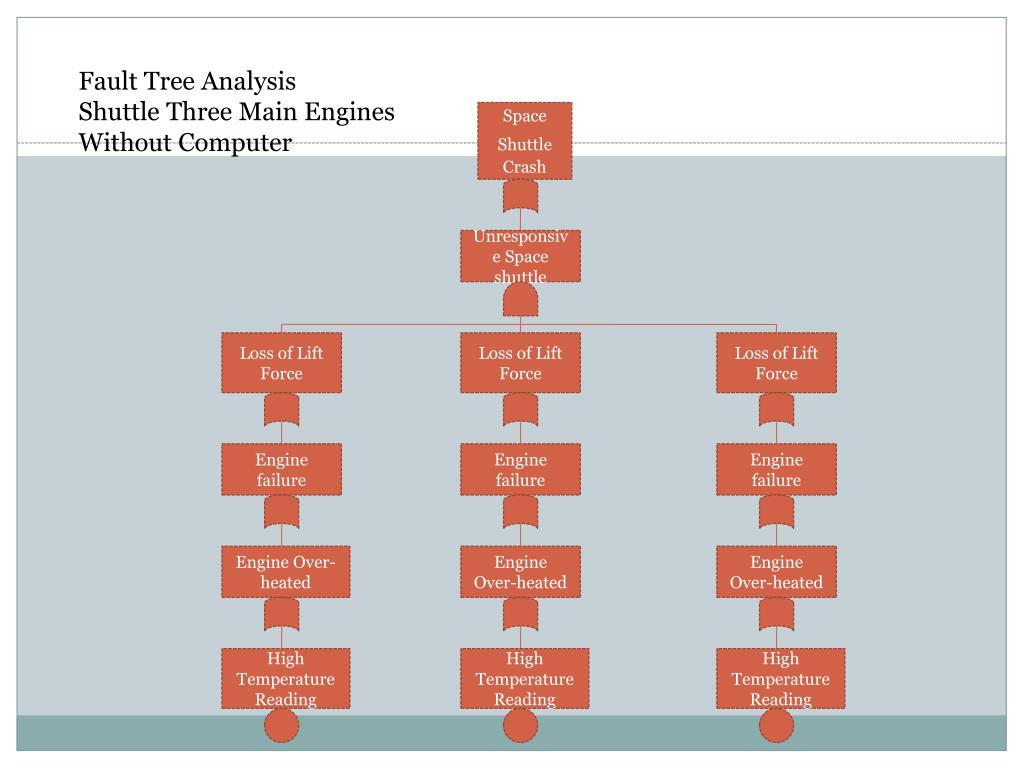

  8. Fault Tree Analysis Shuttle Three Main Engines Without Computer Space ShuttleCrash Unresponsive Space shuttle Loss of Lift Force Loss of Lift Force Loss of Lift Force Engine failure Engine failure Engine failure Engine Over-heated Engine Over-heated Engine Over-heated High Temperature Reading High Temperature Reading High Temperature Reading

  9. Event Tree Analysis Shuttle Three Main Engines Without computer Uncontrolled Landing, with Possible loss of vehiche True True High Temperature Reading False Mission aborted with Controlled Landing False Normal Operation Of Engine
