  1. SAFARI C3 Advanced Carrier-Class IP Multi-Media Switching

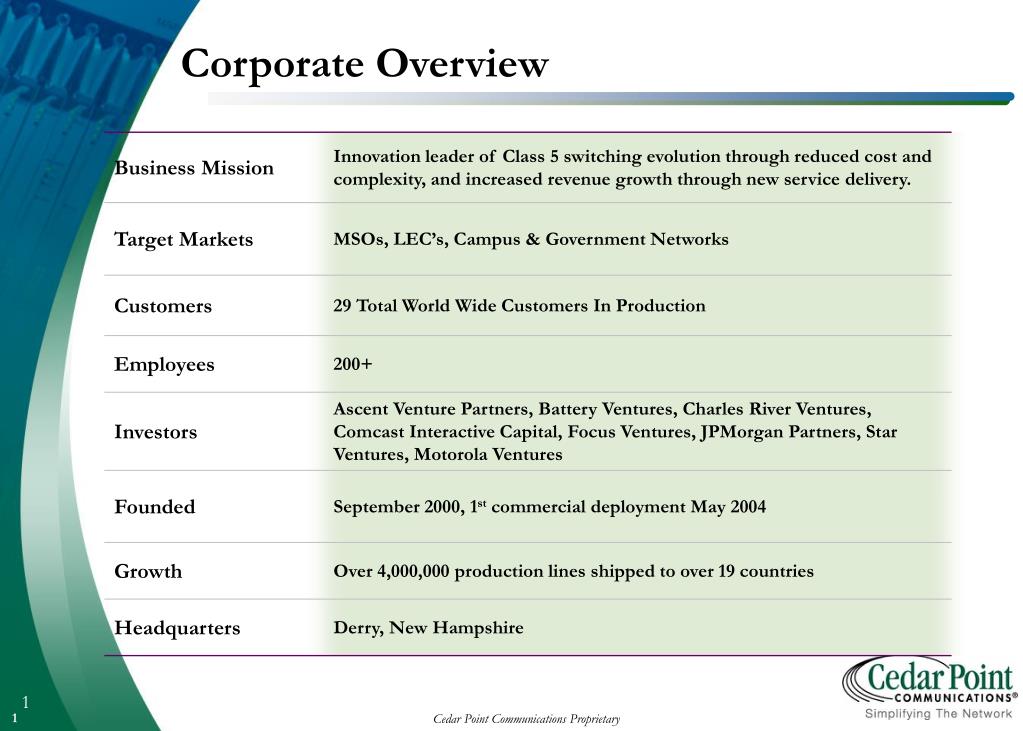

  2. Corporate Overview

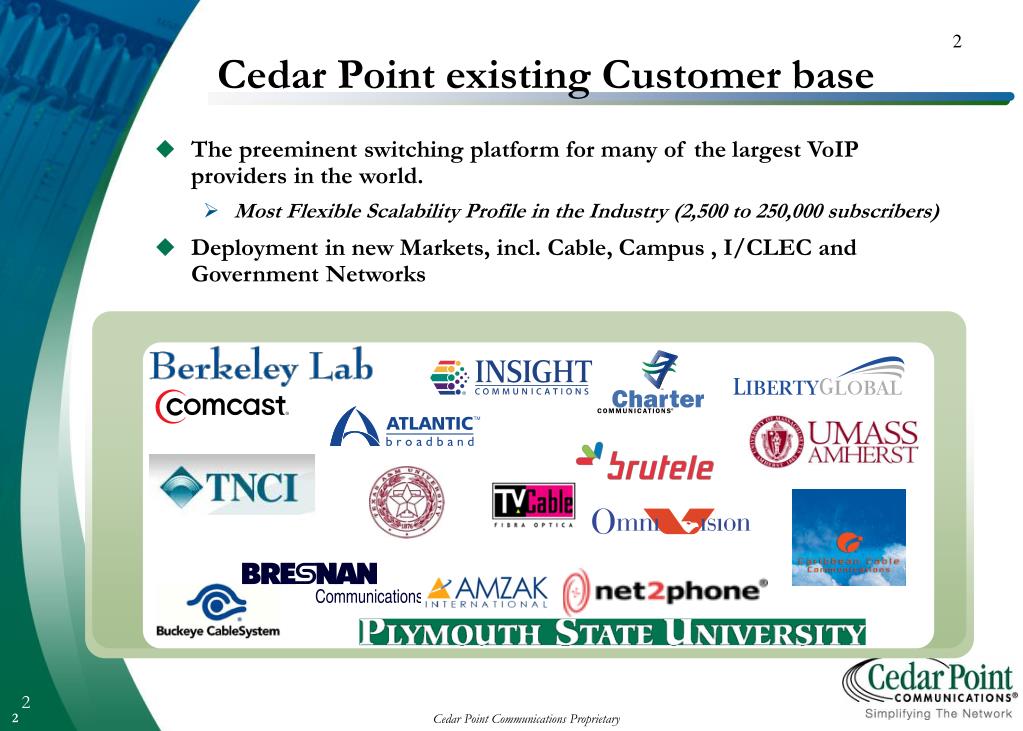

  3. Cedar Point existing Customer base 2 • The preeminent switching platform for many of the largest VoIP providers in the world. • Most Flexible Scalability Profile in the Industry (2,500 to 250,000 subscribers) • Deployment in new Markets, incl. Cable, Campus , I/CLEC and Government Networks

  4. Key Benefits of Integration The SAFARI C3 Integrated Architecture • Cedar Point’s integrated solution significantly simplifies network architecture SAFARI C3 Integrated Solution Competitive Soft Switching Solution • Softswitches • SAFARI C3 • SafariView EMS • Local Subscriber Databases • Fewer components, interfaces, protocols and software loads to manage • Higher reliability • Improved Mean Time to Detect/Repair, upgrades • Operational improvements through back office OSS integration • Low capex and opex cost • Highly scalable from 2,500 to 250,000 lines • Improved Security • Deterministic point in the network • Signaling Gateways • Media Gateway • RKS’s • Announcement/Media Bridge • Ethernet Switch • Lawful Intercept Delivery Function • EMS’s

  5. SAFARI C3 Functional Highlights • Call Features/Processing/Routing • Media Functions • Packet/Circuit handoffs • Encoding/Decoding/EC • Announcements • Bridging • Signaling functions • (SS7, SIP, SIGTRAN, ISDN, R2) • TGCP for Media Gateway control • All packet switching fabric • Access interfaces (End Points) • MGCP and SIP • GR303/V5.2, ISDN • Lawful Intercept • Call detail records (AMA) • Event Messages

  6. 12 Universal Cards Common Cards – Switching & Control SAFARI C3Physical Attributes • 16 slots: 12 universal slots, 4 switching and control • 80 Gbps Redundant Switching Fabric • Protection • Control and Switching 1:1 • SONET/SDH APS • Line cards either 1:1 and 1:N protection supported • Environmental • Operating temp: -0C to 50C • Operation humidity: 10-90% • Non-operating humidity: 5-95% • NEBS Level 3 • Power Dissipation: 2000W typical • Power: -48V DC, -40 to –56.7VDC • 62.23cmx48.26cmx53.24.5cm (24”x19”x19”) • 1 SAFARI Chassis supports: • 250k subscriber entries • 152cps • 24,192 DS0 using DS3 Interfaces • 6 GigEthernet Interfaces

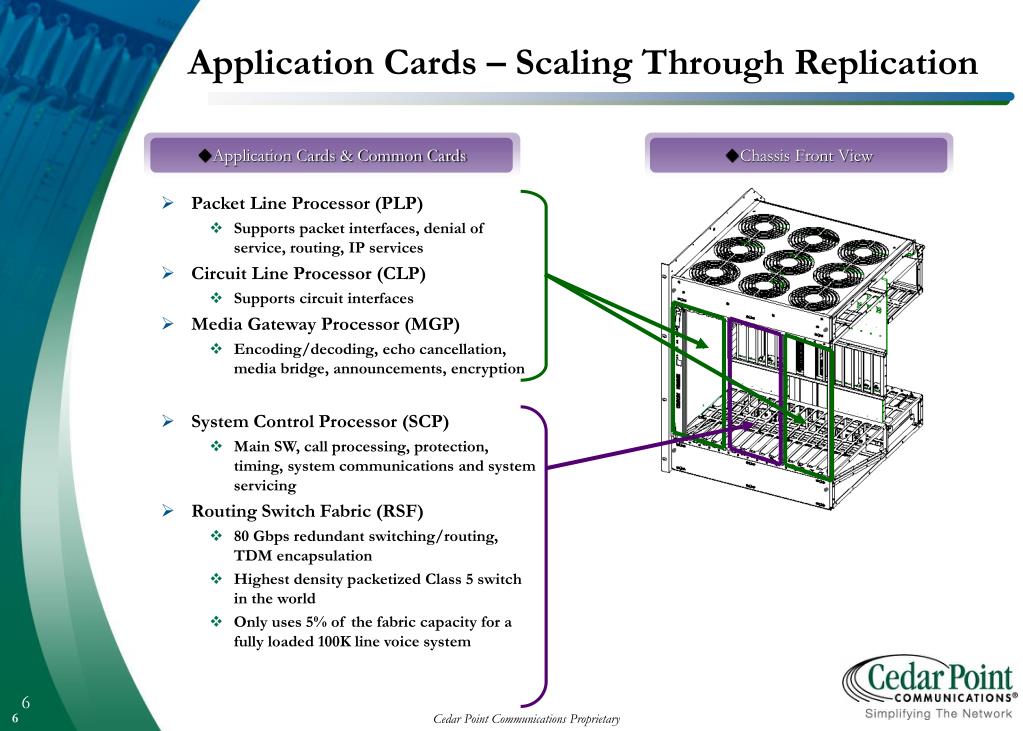

  7. Chassis Front View • Application Cards & Common Cards Application Cards – Scaling Through Replication • Packet Line Processor (PLP) • Supports packet interfaces, denial of service, routing, IP services • Circuit Line Processor (CLP) • Supports circuit interfaces • Media Gateway Processor (MGP) • Encoding/decoding, echo cancellation, media bridge, announcements, encryption • System Control Processor (SCP) • Main SW, call processing, protection, timing, system communications and system servicing • Routing Switch Fabric (RSF) • 80 Gbps redundant switching/routing, TDM encapsulation • Highest density packetized Class 5 switch in the world • Only uses 5% of the fabric capacity for a fully loaded 100K line voice system

  8. Chassis Rear View • Physical Layer & Rear Cards • Common Equipment Physical Connections • For use with PLP (packet based) • 1GE (2 ports) • OC-3/12/48-STM-1/4/16 (Future) • For use with CLP (circuit based) • DS1/E1/J1 (36 ports) • DS3 (6 ports) • OC-3/STM-1 (2 ports) • Chassis • Fan Assembly • System IO Card (SIO) • Timing and Operation Interfaces • Optical Interconnect Backplane • Optical Service Card (OSC) • 1GE (1 port) • Redundant Power Distribution Units (PDU) • Redundancy Mid-plane

  9. E1 TDM STM-1/OC-3 TDM 1 GigE T1/T3 TDM T1/T3 TDM E1 TDM 1 GigE STM-1/OC-3 TDM SAFARI C3 Management and Physical Interfaces Northbound OSS Interfaces SOAP/XML SafariViewTM Element Management System User Interfaces Web GUI OSS Interfaces SNMP, FTP, Radius EM Northbound Management Interface XML PSTN/Trunk Interfaces Line Interfaces User Interface CLI SAFARI C3 TM Media Switching System

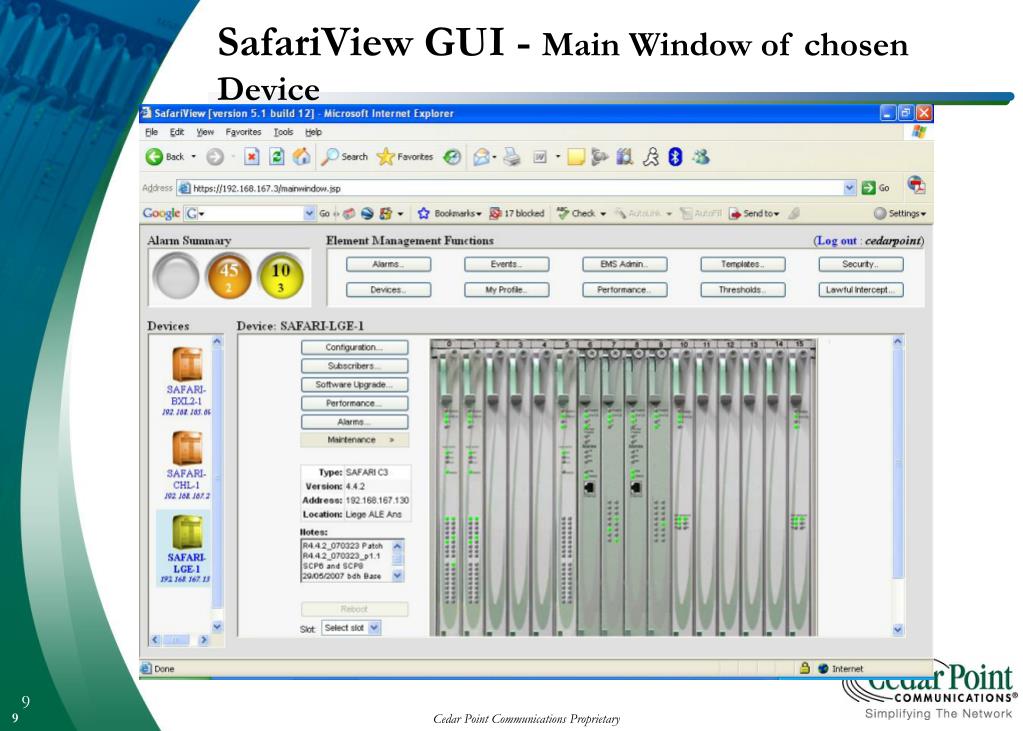

  10. SafariView GUI - Main Window of chosen Device

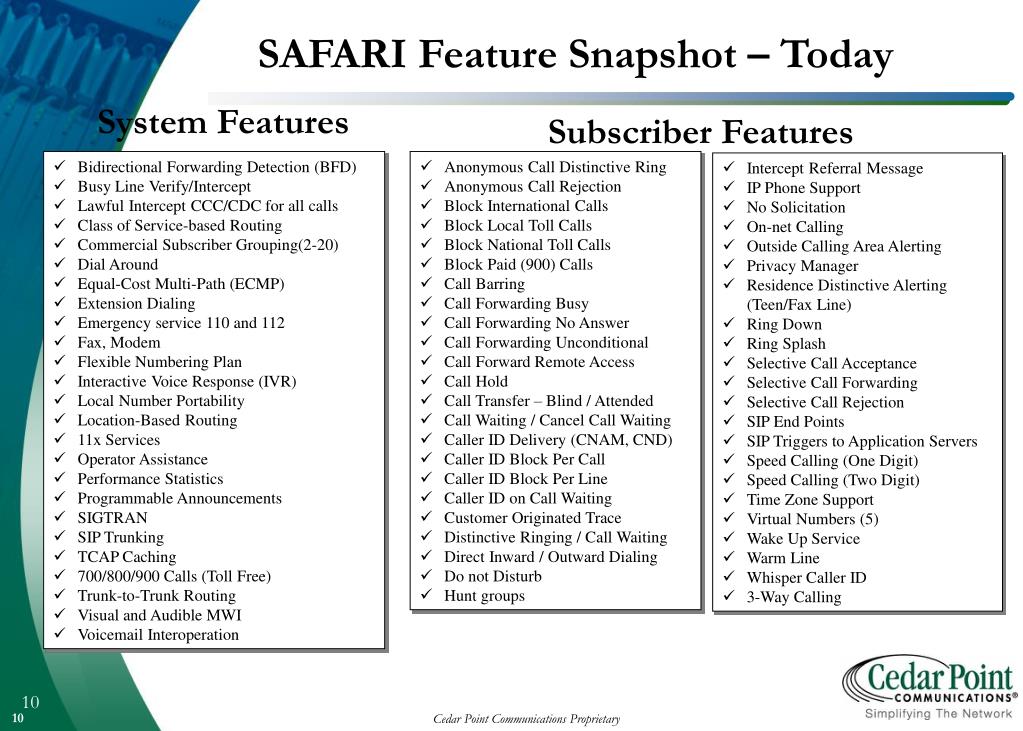

  11. SAFARI Feature Snapshot – Today System Features Subscriber Features • Bidirectional Forwarding Detection (BFD) • Busy Line Verify/Intercept • Lawful Intercept CCC/CDC for all calls • Class of Service-based Routing • Commercial Subscriber Grouping(2-20) • Dial Around • Equal-Cost Multi-Path (ECMP) • Extension Dialing • Emergency service 110 and 112 • Fax, Modem • Flexible Numbering Plan • Interactive Voice Response (IVR) • Local Number Portability • Location-Based Routing • 11x Services • Operator Assistance • Performance Statistics • Programmable Announcements • SIGTRAN • SIP Trunking • TCAP Caching • 700/800/900 Calls (Toll Free) • Trunk-to-Trunk Routing • Visual and Audible MWI • Voicemail Interoperation • Anonymous Call Distinctive Ring • Anonymous Call Rejection • Block International Calls • Block Local Toll Calls • Block National Toll Calls • Block Paid (900) Calls • Call Barring • Call Forwarding Busy • Call Forwarding No Answer • Call Forwarding Unconditional • Call Forward Remote Access • Call Hold • Call Transfer – Blind / Attended • Call Waiting / Cancel Call Waiting • Caller ID Delivery (CNAM, CND) • Caller ID Block Per Call • Caller ID Block Per Line • Caller ID on Call Waiting • Customer Originated Trace • Distinctive Ringing / Call Waiting • Direct Inward / Outward Dialing • Do not Disturb • Hunt groups • Intercept Referral Message • IP Phone Support • No Solicitation • On-net Calling • Outside Calling Area Alerting • Privacy Manager • Residence Distinctive Alerting (Teen/Fax Line) • Ring Down • Ring Splash • Selective Call Acceptance • Selective Call Forwarding • Selective Call Rejection • SIP End Points • SIP Triggers to Application Servers • Speed Calling (One Digit) • Speed Calling (Two Digit) • Time Zone Support • Virtual Numbers (5) • Wake Up Service • Warm Line • Whisper Caller ID • 3-Way Calling

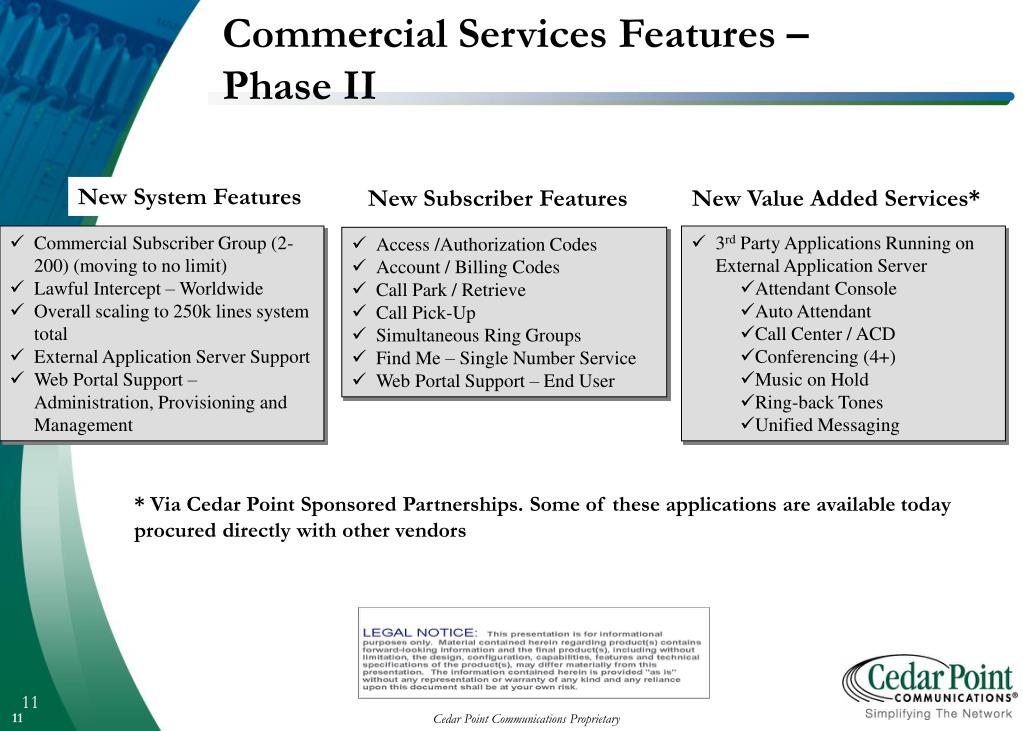

  12. Commercial Services Features – Phase II New System Features New Subscriber Features New Value Added Services* • Commercial Subscriber Group (2-200) (moving to no limit) • Lawful Intercept – Worldwide • Overall scaling to 250k lines system total • External Application Server Support • Web Portal Support – Administration, Provisioning and Management • 3rd Party Applications Running on External Application Server • Attendant Console • Auto Attendant • Call Center / ACD • Conferencing (4+) • Music on Hold • Ring-back Tones • Unified Messaging • Access /Authorization Codes • Account / Billing Codes • Call Park / Retrieve • Call Pick-Up • Simultaneous Ring Groups • Find Me – Single Number Service • Web Portal Support – End User * Via Cedar Point Sponsored Partnerships. Some of these applications are available today procured directly with other vendors
