  1. TOSSIM v01.a TOSSIM 17.ix.2001

  2. TOSSIM Capabilities • Simulates large mote networks under Linux • Uses existing TinyOS code (different compilation) • Extensible network model • Logs network activity TOSSIM 17.ix.2001

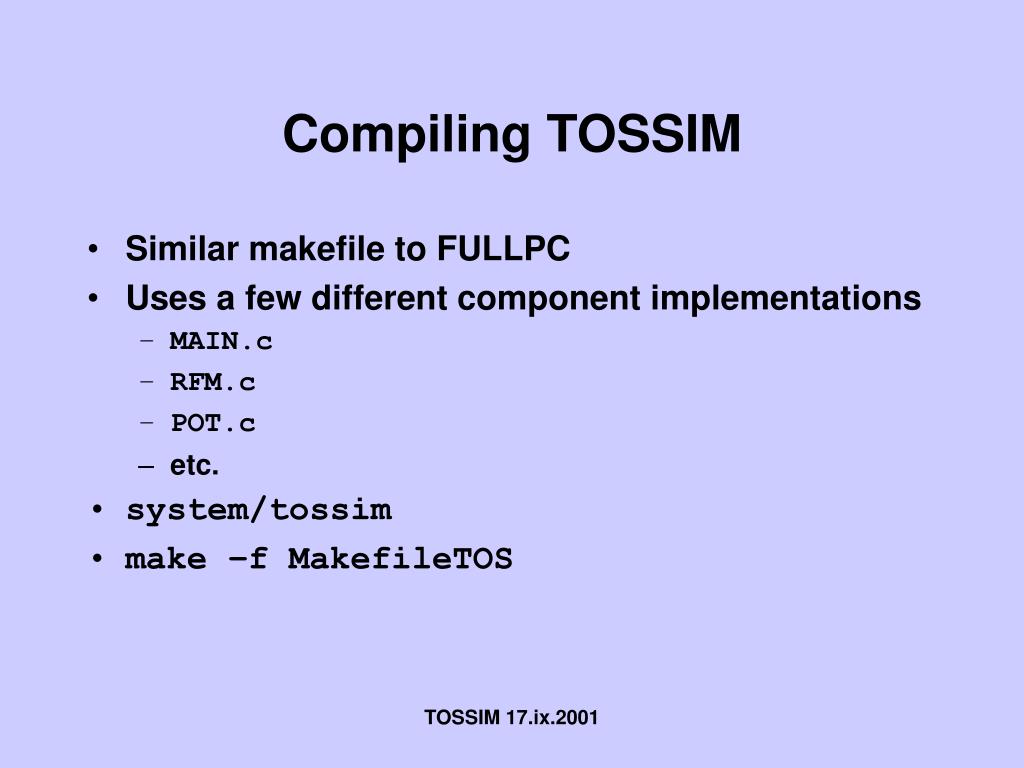

  3. Compiling TOSSIM • Similar makefile to FULLPC • Uses a few different component implementations • MAIN.c • RFM.c • POT.c • etc. • system/tossim • make –f MakefileTOS TOSSIM 17.ix.2001

  4. Running TOSSIM • A few command line parameters • main [OPTIONS] num_nodes • Network model: simple is default • [-r <static|simple|space>] • Pause on system clock interrupts • [-p usec] TOSSIM 17.ix.2001

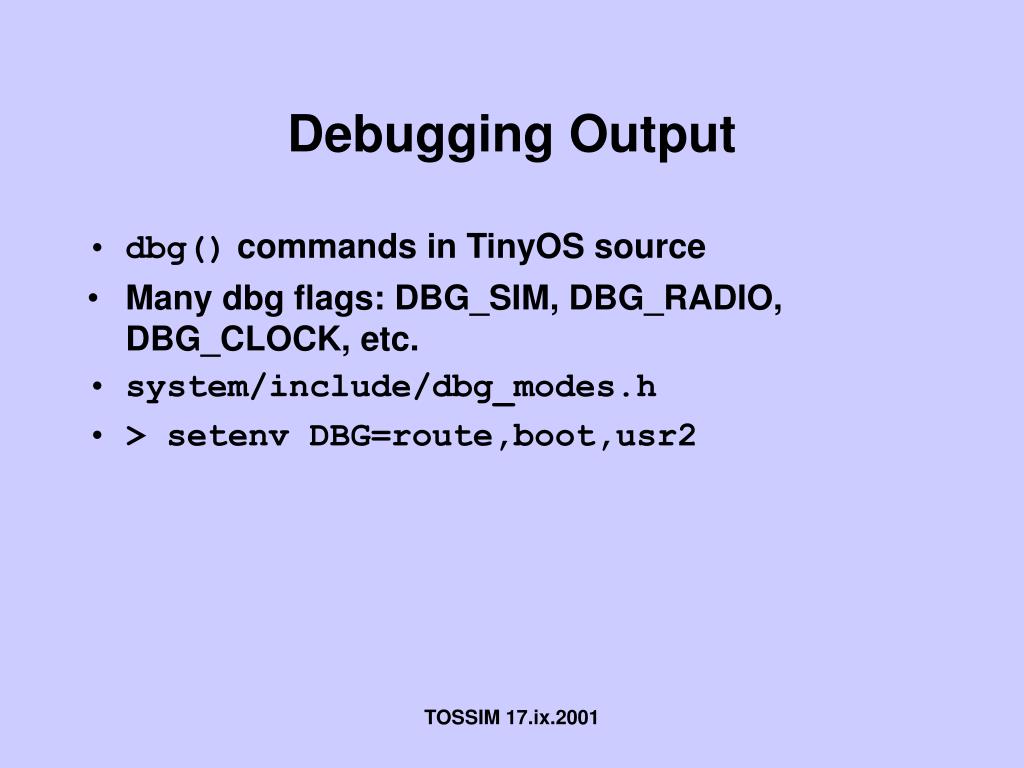

  5. Debugging Output • dbg() commands in TinyOS source • Many dbg flags: DBG_SIM, DBG_RADIO, DBG_CLOCK, etc. • system/include/dbg_modes.h • > setenv DBG=route,boot,usr2 TOSSIM 17.ix.2001

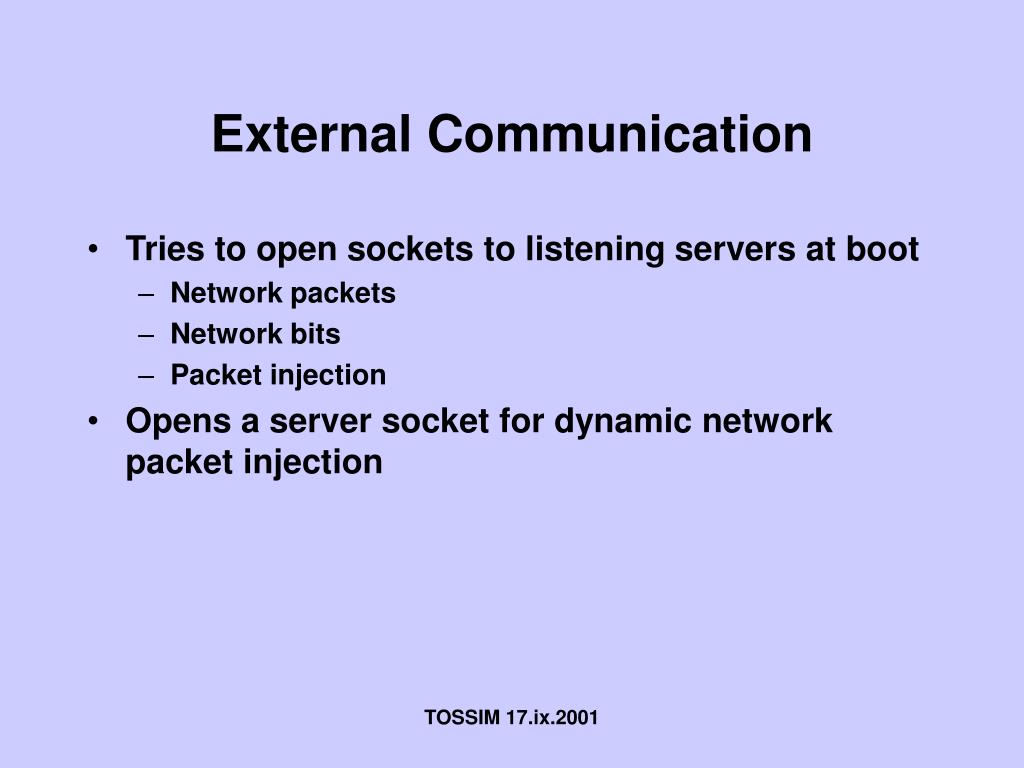

  6. External Communication • Tries to open sockets to listening servers at boot • Network packets • Network bits • Packet injection • Opens a server socket for dynamic network packet injection TOSSIM 17.ix.2001

  7. Network Traffic GUI • tools/TossimGUI.class • Reads in and displays network traffic • Allows packet source filtering • Static packet injection (at startup) TOSSIM 17.ix.2001

  8. TOSSIM 17.ix.2001

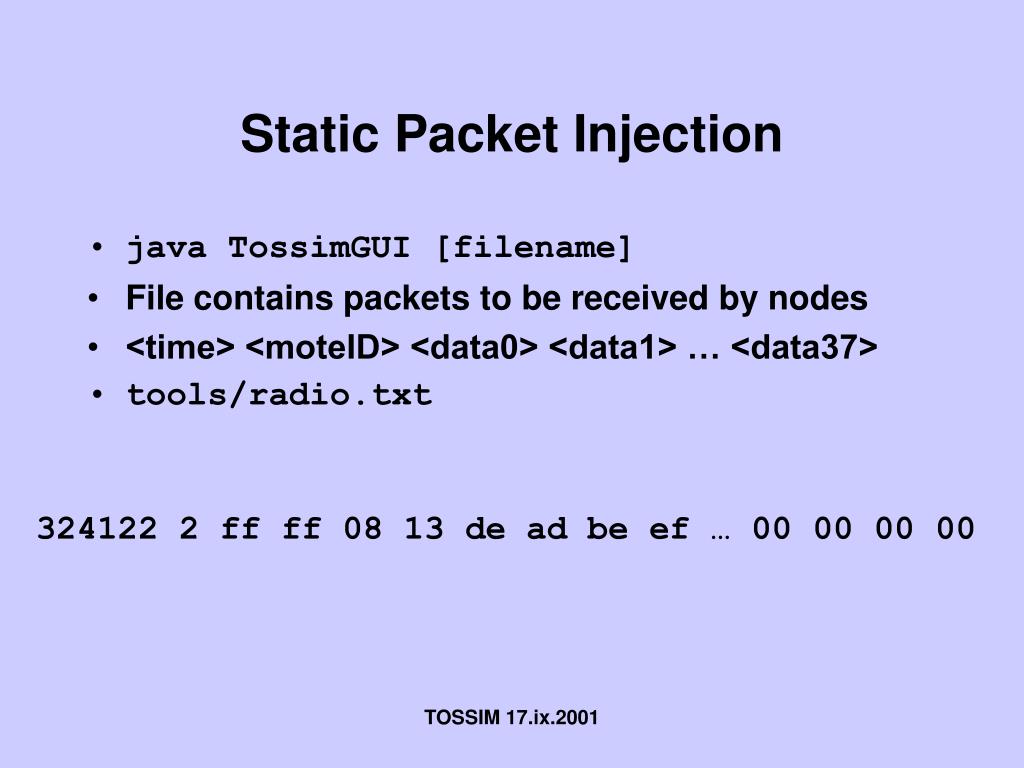

  9. Static Packet Injection • java TossimGUI [filename] • File contains packets to be received by nodes • <time> <moteID> <data0> <data1> … <data37> • tools/radio.txt 324122 2 ff ff 08 13 de ad be ef … 00 00 00 00 TOSSIM 17.ix.2001

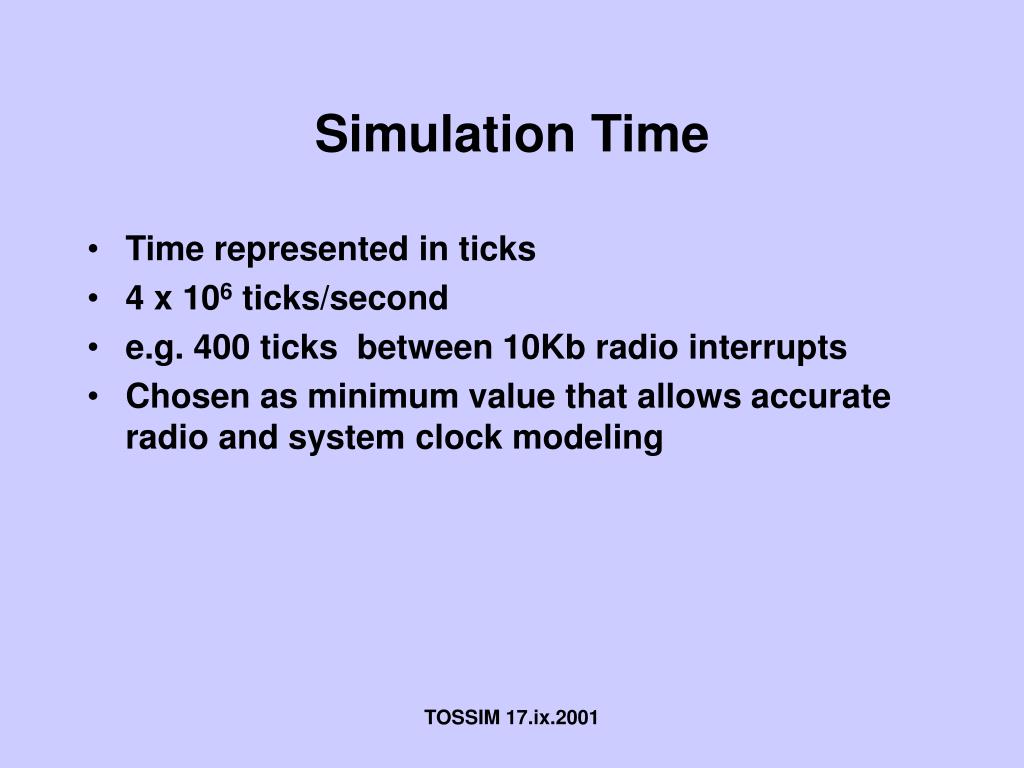

  10. Simulation Time • Time represented in ticks • 4 x 106 ticks/second • e.g. 400 ticks between 10Kb radio interrupts • Chosen as minimum value that allows accurate radio and system clock modeling TOSSIM 17.ix.2001

  11. Dynamic Packet Injection • Connect to port 10579 on host • Message format detailed in documentation • system/tossim/doc/tossim.tex • Will be building dynamic injection tool TOSSIM 17.ix.2001

  12. RFM Models • Simple: every mote in one cell • Static: connectivity determined at startup • Space: silly space-based model which uses potentiometer settings: proof of extensibility TOSSIM 17.ix.2001

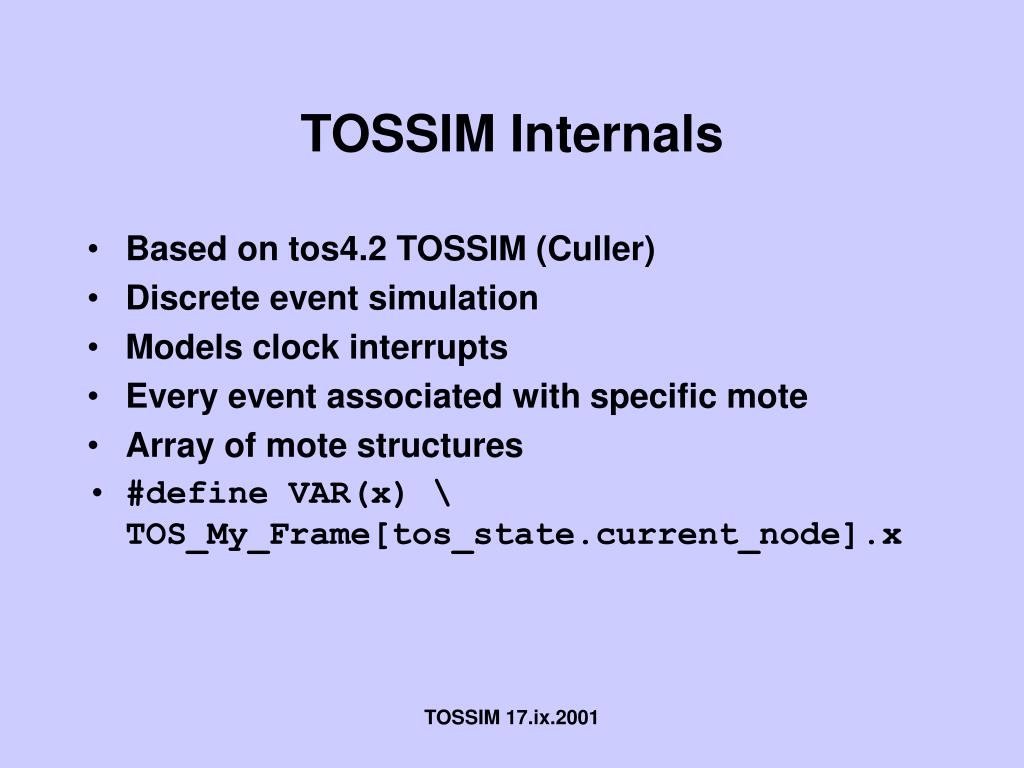

  13. TOSSIM Internals • Based on tos4.2 TOSSIM (Culler) • Discrete event simulation • Models clock interrupts • Every event associated with specific mote • Array of mote structures • #define VAR(x) \ TOS_My_Frame[tos_state.current_node].x TOSSIM 17.ix.2001

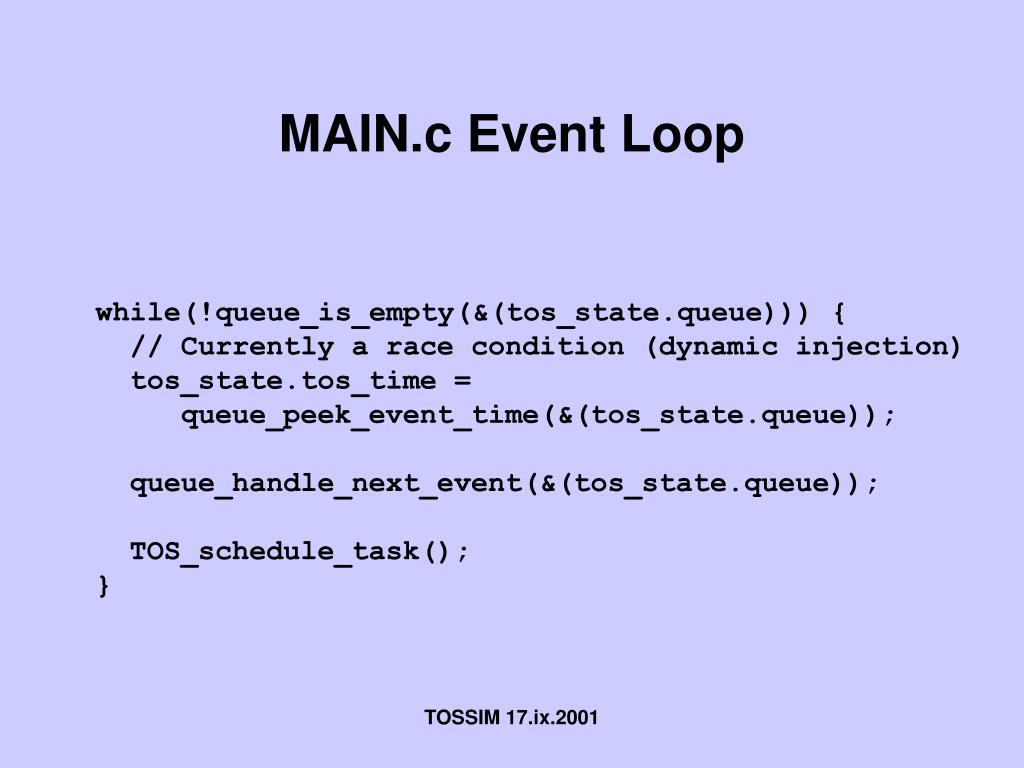

  14. MAIN.c Event Loop while(!queue_is_empty(&(tos_state.queue))) { // Currently a race condition (dynamic injection) tos_state.tos_time = queue_peek_event_time(&(tos_state.queue)); queue_handle_next_event(&(tos_state.queue)); TOS_schedule_task(); } TOSSIM 17.ix.2001

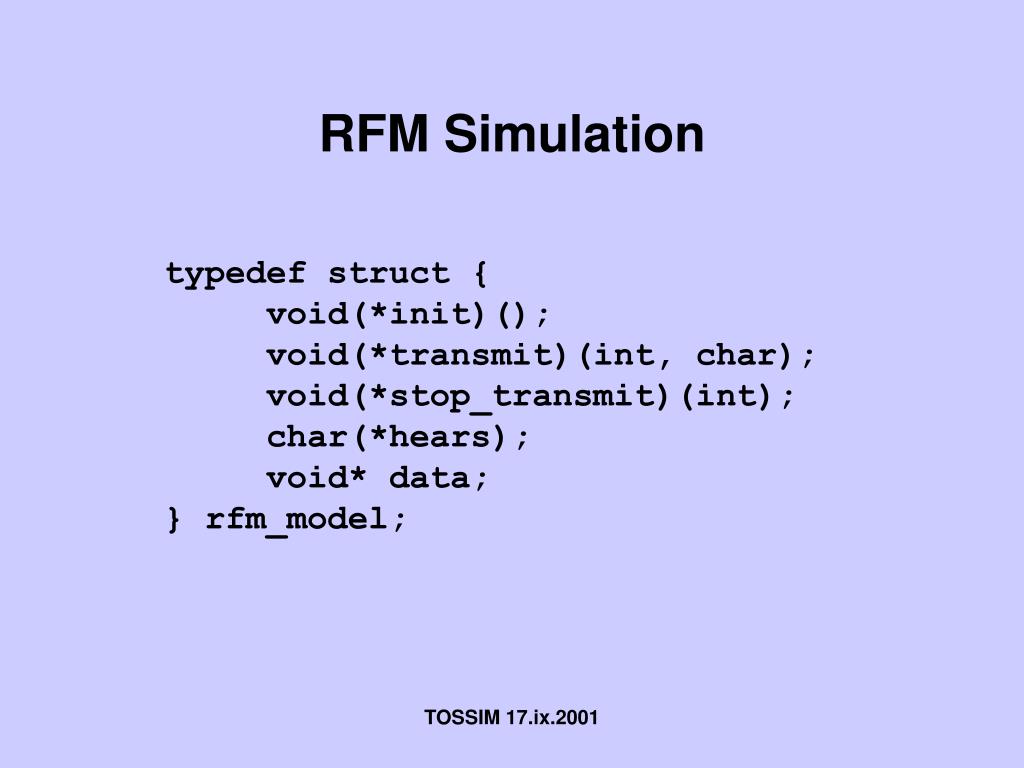

  15. RFM Simulation typedef struct { void(*init)(); void(*transmit)(int, char); void(*stop_transmit)(int); char(*hears); void* data; } rfm_model; TOSSIM 17.ix.2001

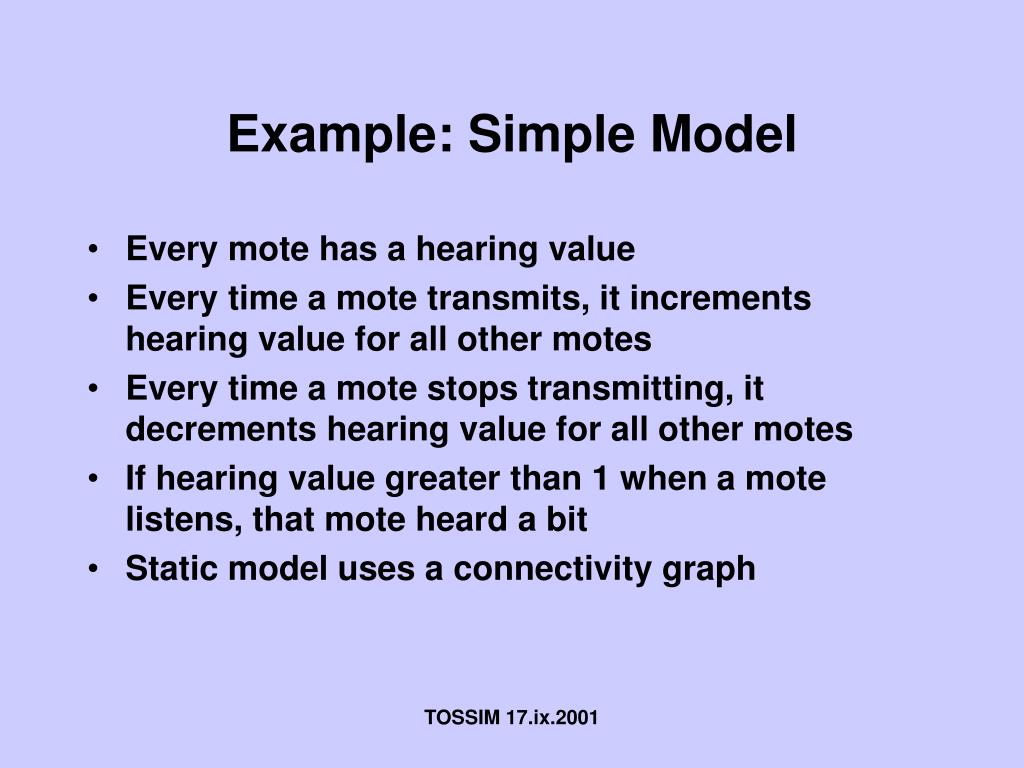

  16. Example: Simple Model • Every mote has a hearing value • Every time a mote transmits, it increments hearing value for all other motes • Every time a mote stops transmitting, it decrements hearing value for all other motes • If hearing value greater than 1 when a mote listens, that mote heard a bit • Static model uses a connectivity graph TOSSIM 17.ix.2001

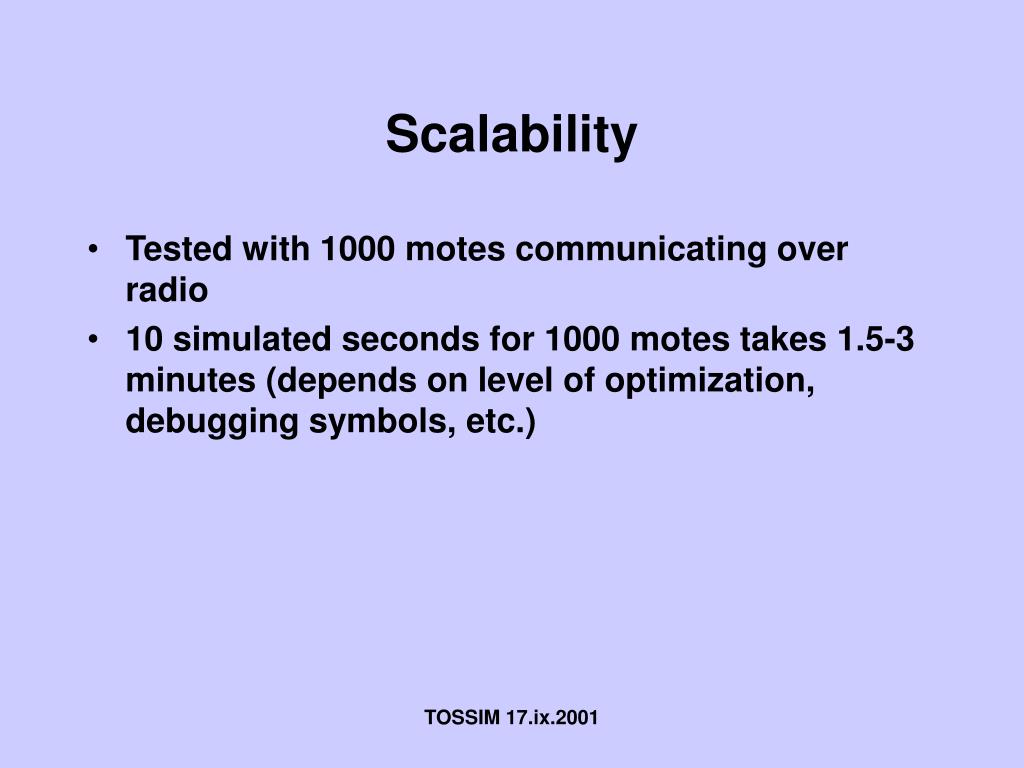

  17. Scalability • Tested with 1000 motes communicating over radio • 10 simulated seconds for 1000 motes takes 1.5-3 minutes (depends on level of optimization, debugging symbols, etc.) TOSSIM 17.ix.2001

  18. Conclusion • Demonstration • Questions TOSSIM 17.ix.2001
