  1. UNIQUE GSM Camera With REMOTE Operation Vinay Salodkar May 2011

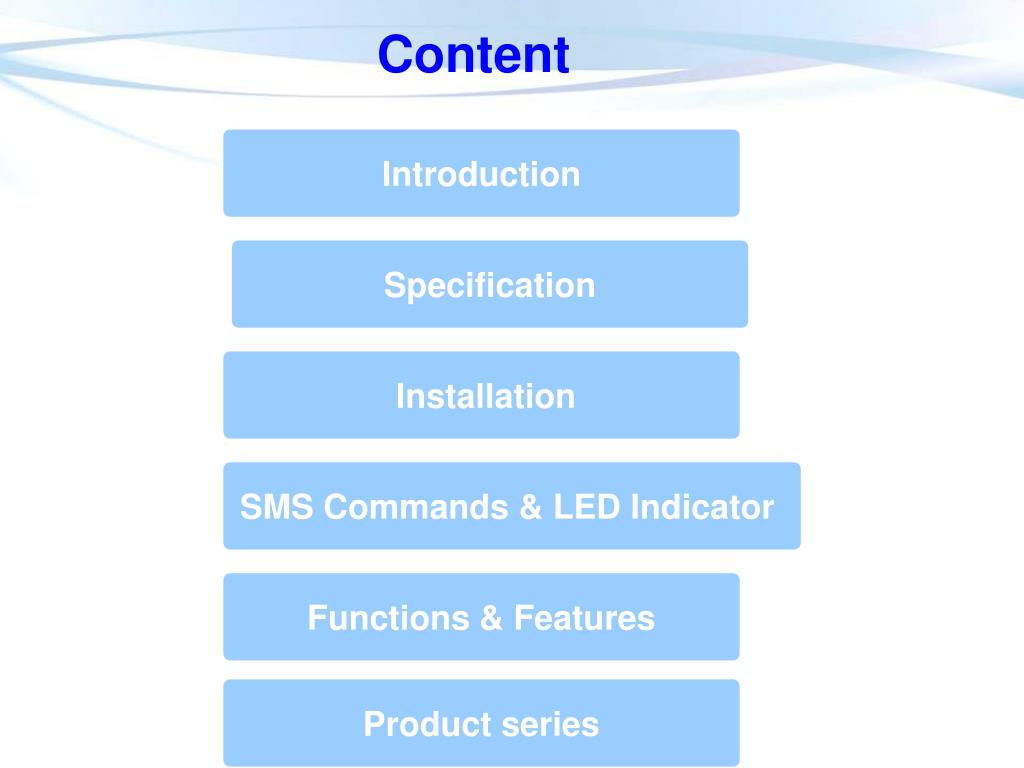

  2. Content Introduction Specification Installation SMS Commands & LED Indicator Functions & Features Product series

  3. UNIQUE CameraIntroduction

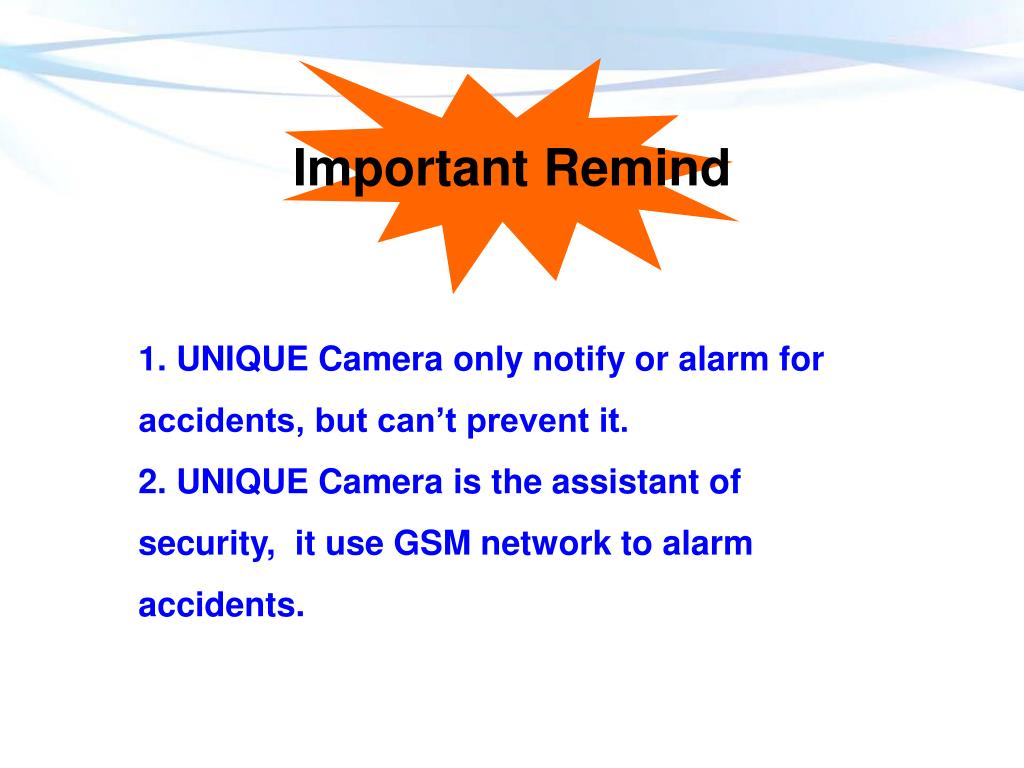

  4. Important Remind 1. UNIQUE Camera only notify or alarm for accidents, but can’t prevent it.2. UNIQUE Camera is the assistant of security, it use GSM network to alarm accidents.

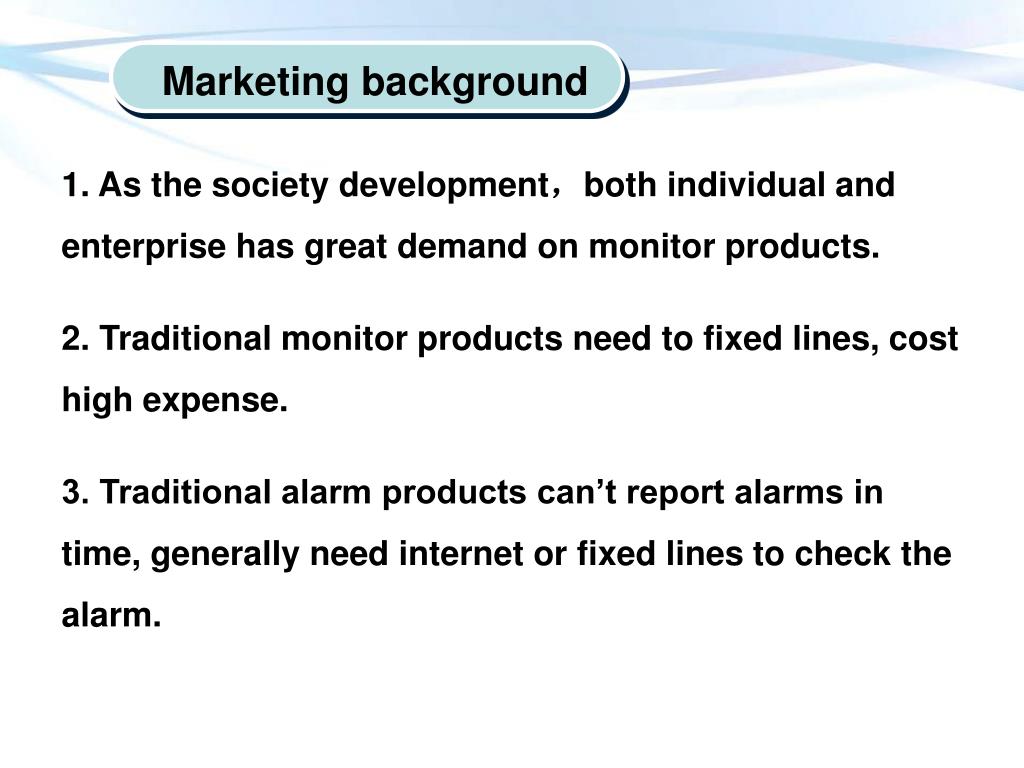

  5. Marketing background 1. As the society development，both individual and enterprise has great demand on monitor products. 2. Traditional monitor products need to fixed lines, cost high expense. 3. Traditional alarm products can’t report alarms in time, generally need internet or fixed lines to check the alarm.

  6. The developed GSM remote camera is based on the market requirement, it can meet the practical needs and is easy to use with price advantage.

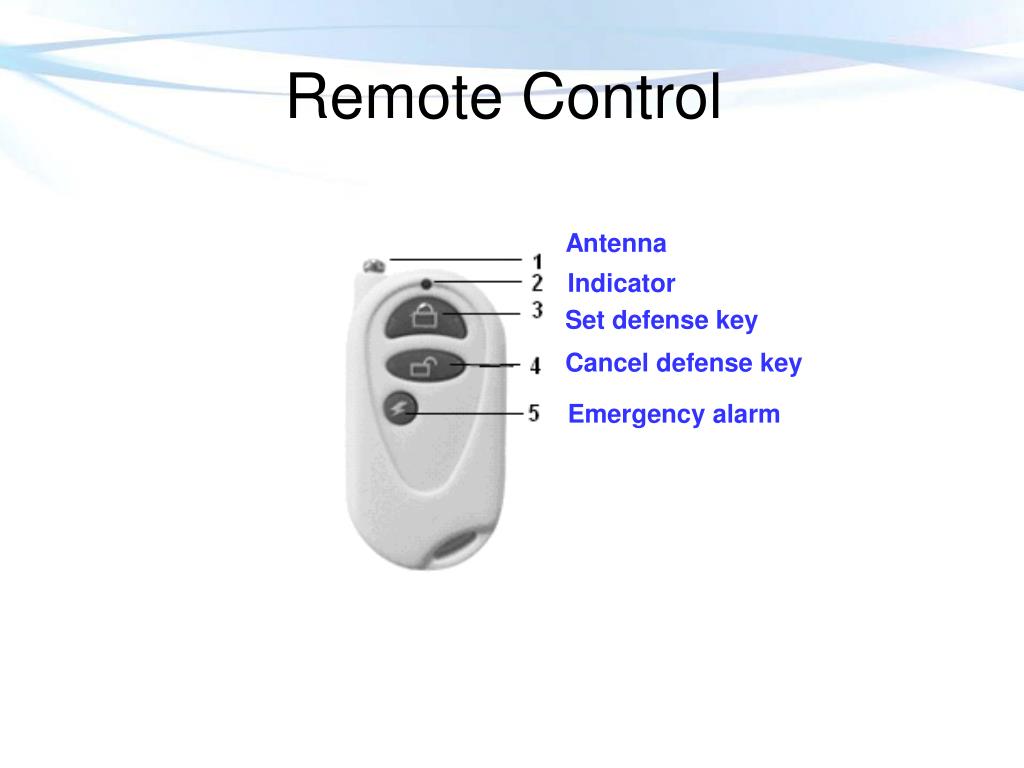

  7. Remote Control Antenna Indicator Set defense key Cancel defense key Emergency alarm

  8. Wireless sensor

  9. Smoke detector Door sensor Door sensor PIR Sample House Installation Map Waterlogging detector

  10. Introduction

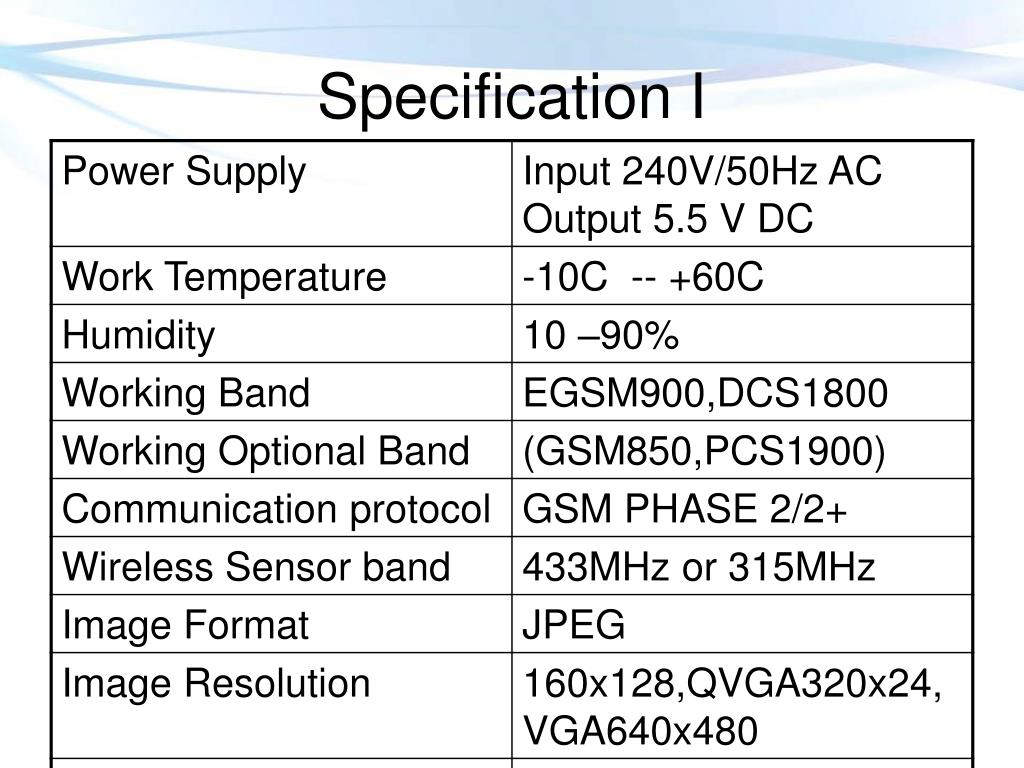

  11. Specification I

  12. Installation

  13. Specification II

  14. Installation SIMCard Installation

  15. Installation External power Connect the power adapter to external electricity, the other end plug in CAMERA.

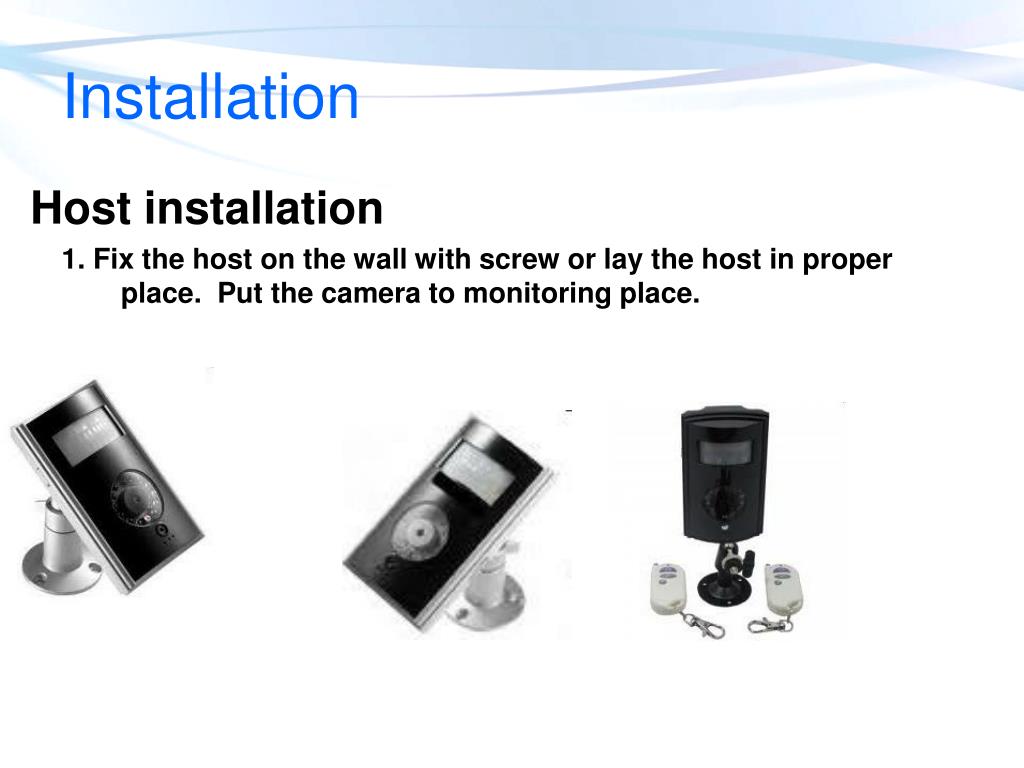

  16. Installation Host installation 1. Fix the host on the wall with screw or lay the host in proper place. Put the camera to monitoring place.

  17. Installation Host installation 2. Avoid to lay the camera confront with strong light , it may affect the image quality.

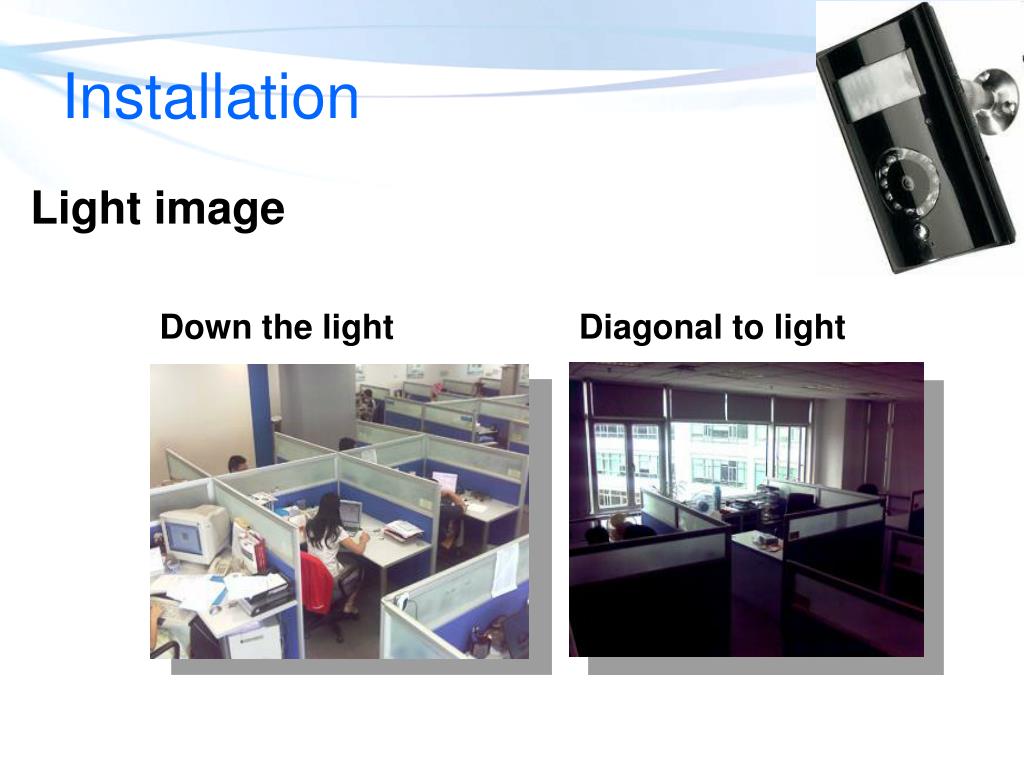

  18. Installation Light image Down the light Diagonal to light

  19. Light Indicator I

  20. Light Indicator II

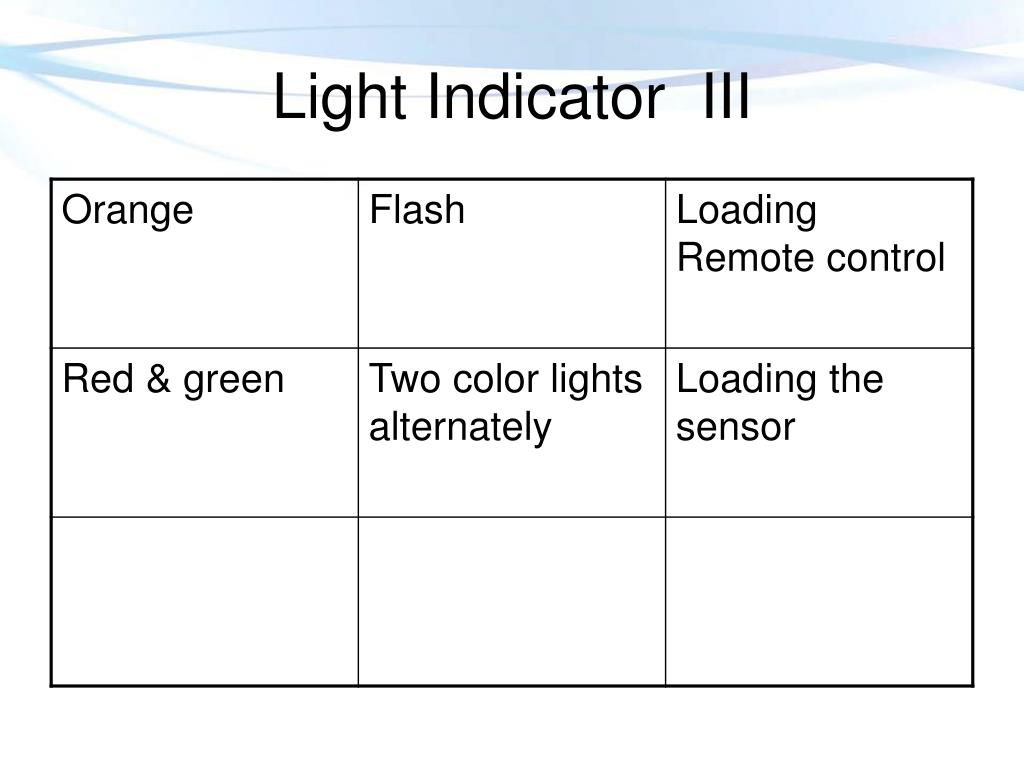

  21. Light Indicator III

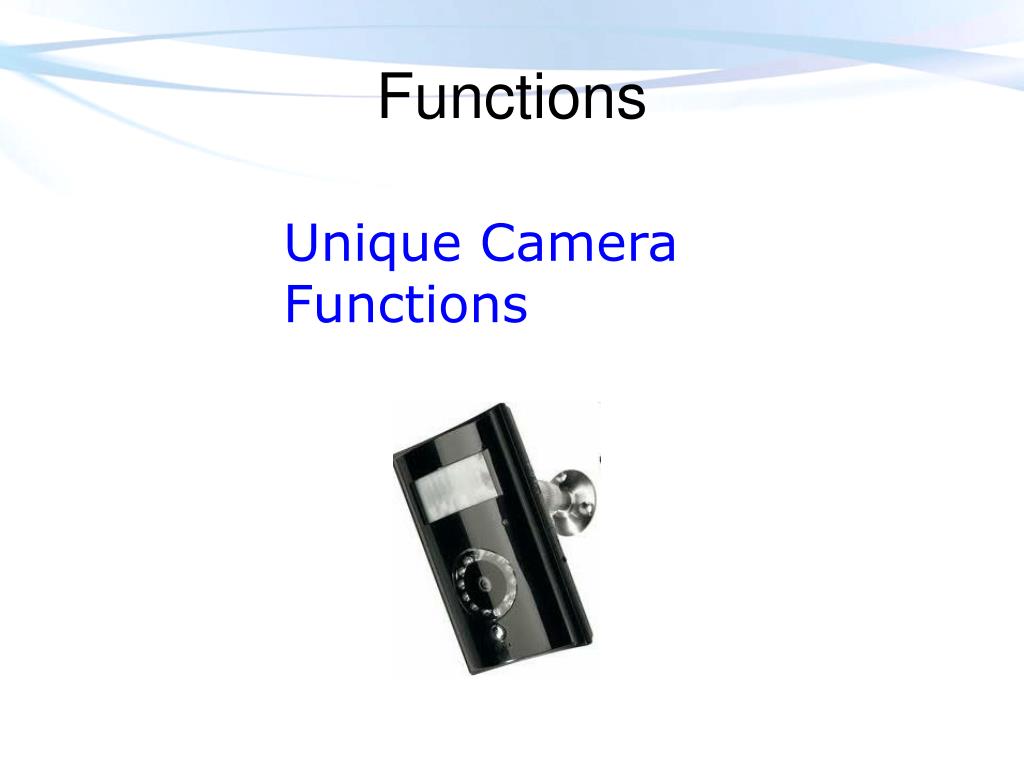

  22. Functions Unique Camera Functions

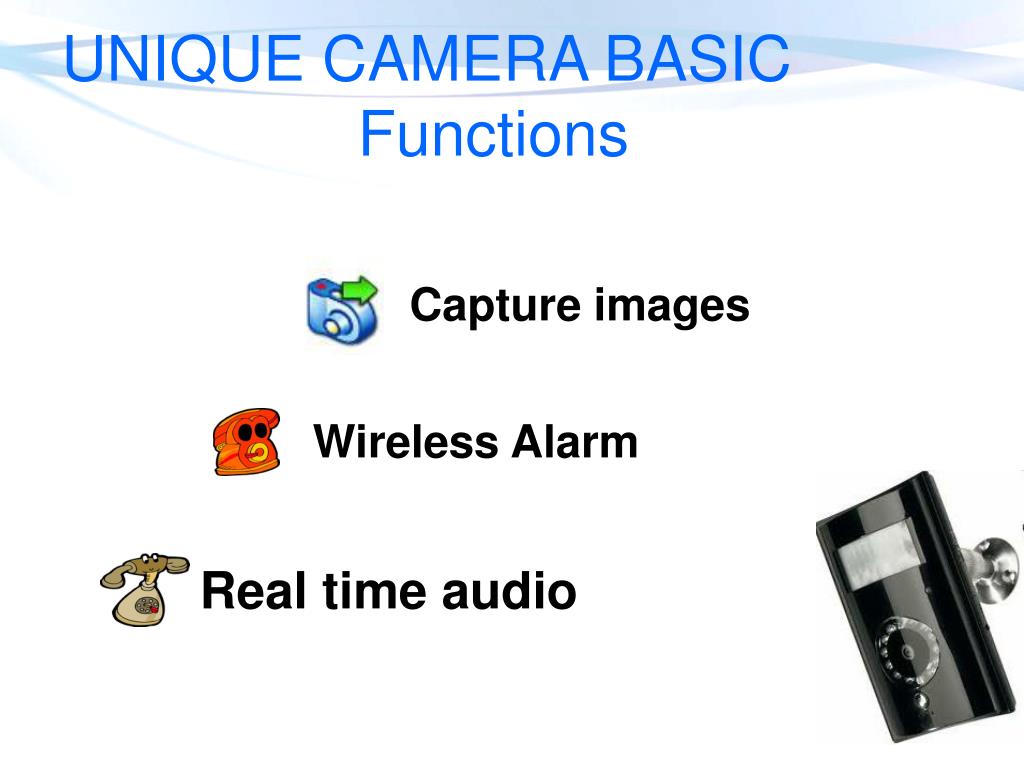

  23. UNIQUE CAMERA BASIC Functions Real time audio Capture images Wireless Alarm

  24. Capture images Capture images method1： Master call the CAMERA number & hang up once connected, it will send you one/more MMS image(s). Capture images method 2： Send SMS command #03# to CAMERA, it will send you one/more MMS image(s).

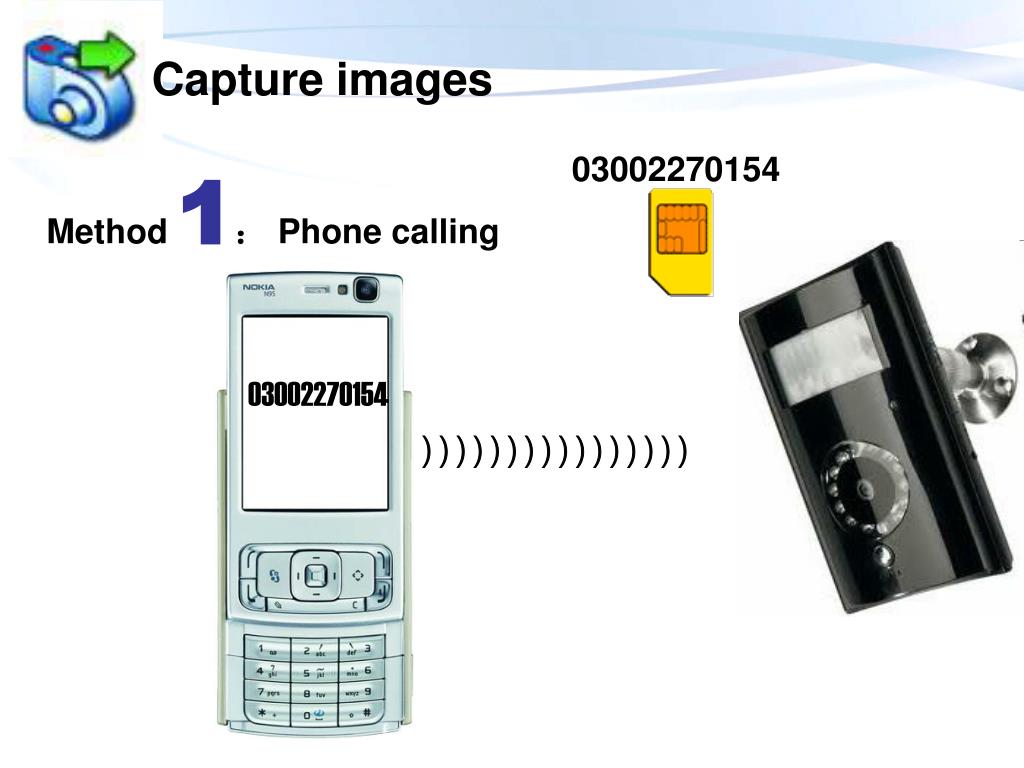

  25. 03002270154 13812345678 Capture images Method 1： Phone calling 03002270154 ))))))))))))))))

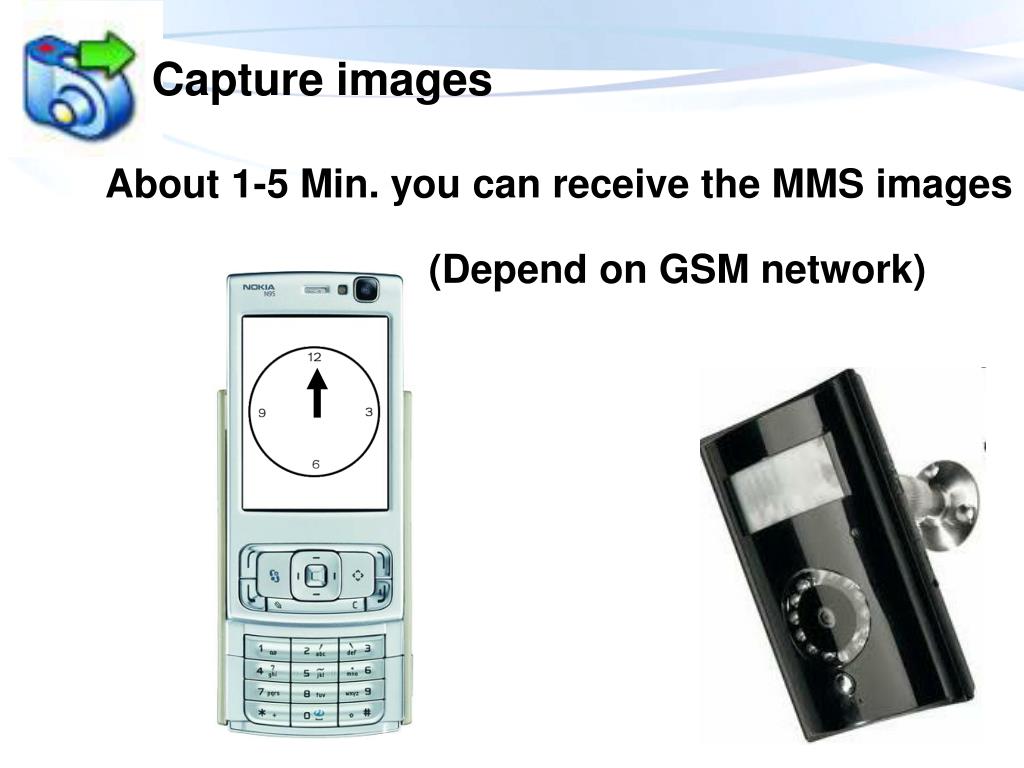

  26. Capture images About 1-5 Min. you can receive the MMS images (Depend on GSM network)

  27. Capture images MMS downloading.. ))))))))))))))))

  28. Capture images

  29. 03002270154 13812345678 Capture images Method 2：SMS command： # 03 # )))))))))))))))) Sending.. 03002270154

  30. Capture images About 1-5 Min. you can receive the MMS images (Depend on GSM network)

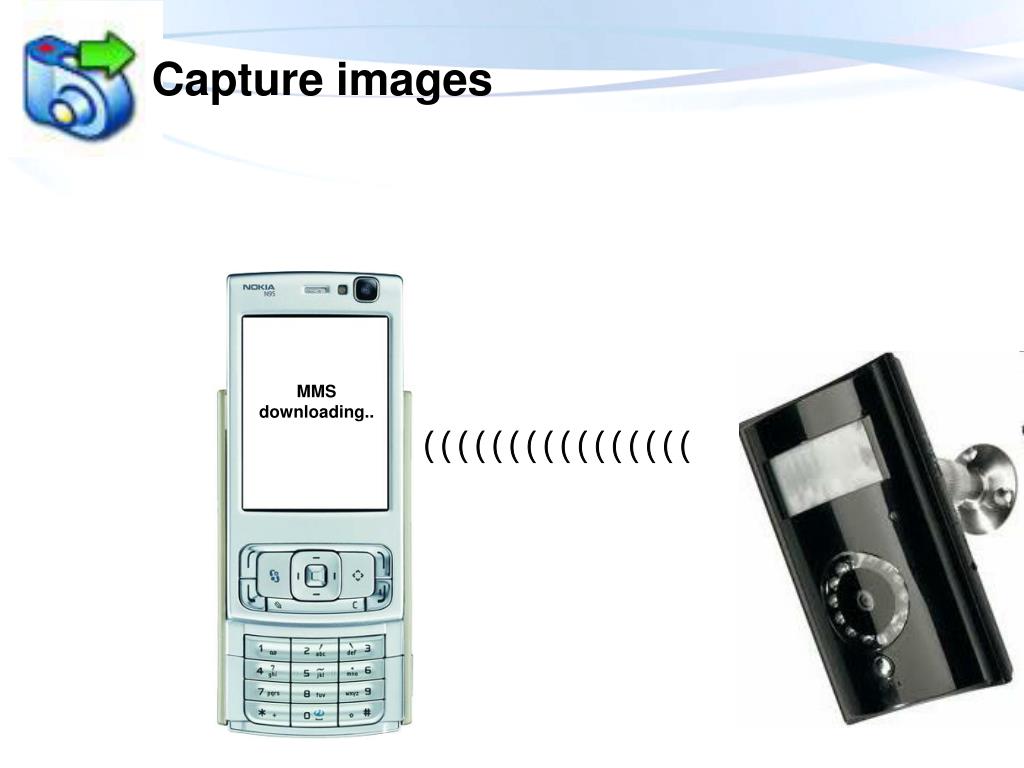

  31. Capture images MMS downloading.. ))))))))))))))))

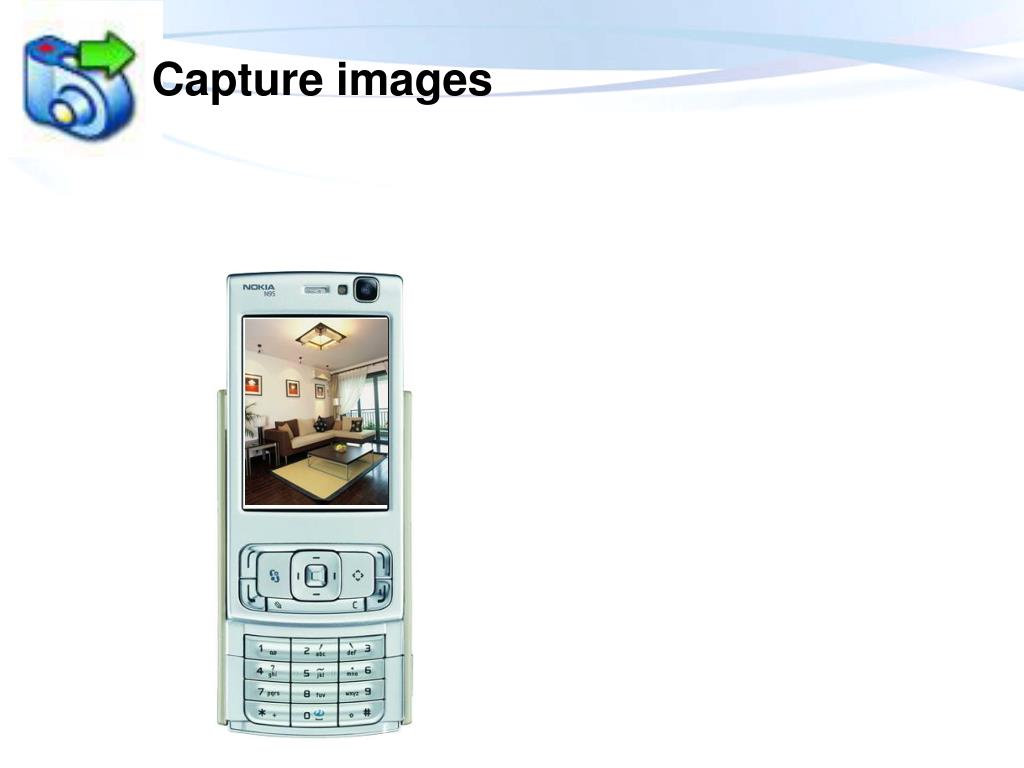

  32. Capture images

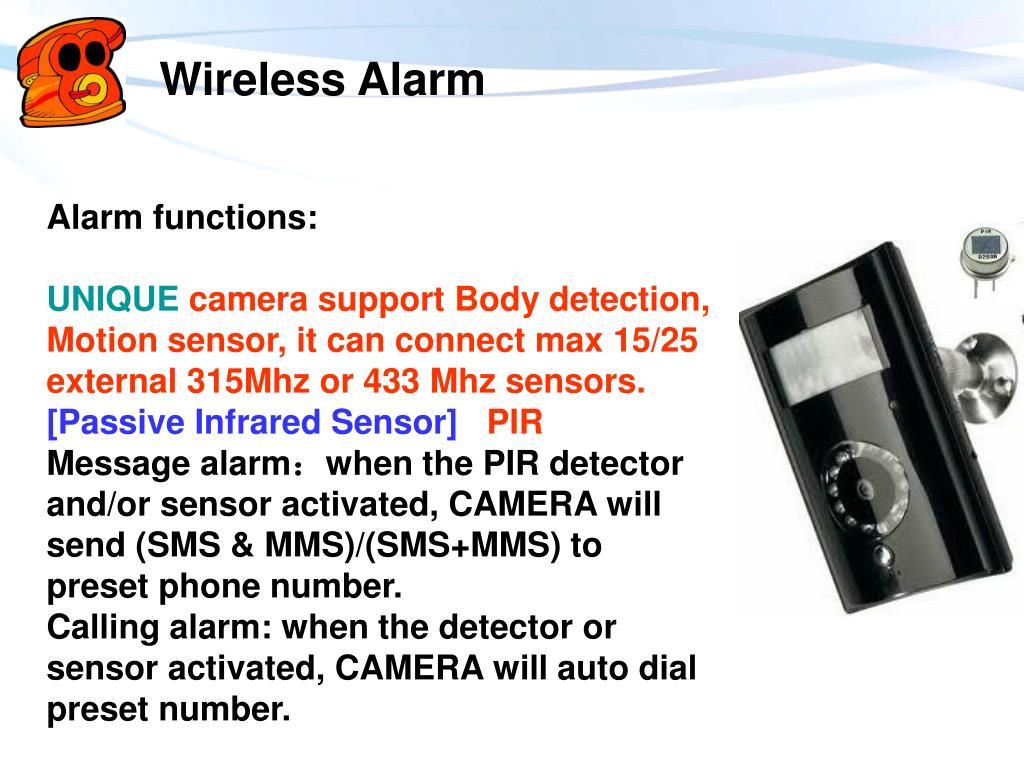

  33. Wireless Alarm Alarm functions: UNIQUE camera support Body detection, Motion sensor, it can connect max 15/25 external 315Mhz or 433 Mhz sensors. [Passive Infrared Sensor] PIR Message alarm：when the PIR detector and/or sensor activated, CAMERA will send (SMS & MMS)/(SMS+MMS) to preset phone number. Calling alarm: when the detector or sensor activated, CAMERA will auto dial preset number.

  34. Wireless Alarm Alarm method1 Camera motion detect You can press remote control or sending SMS command to start motion detection OR Human body detection. The camera will capture one image each 0.5 second, and compare the images all the time. Once found image change, it will send SMS to notify master, and send 5 or more images by MMS to master’s cell phone or email.

  35. Wireless Alarm Alarm method1 Camera Motion/PIR detect ))))))))))))))

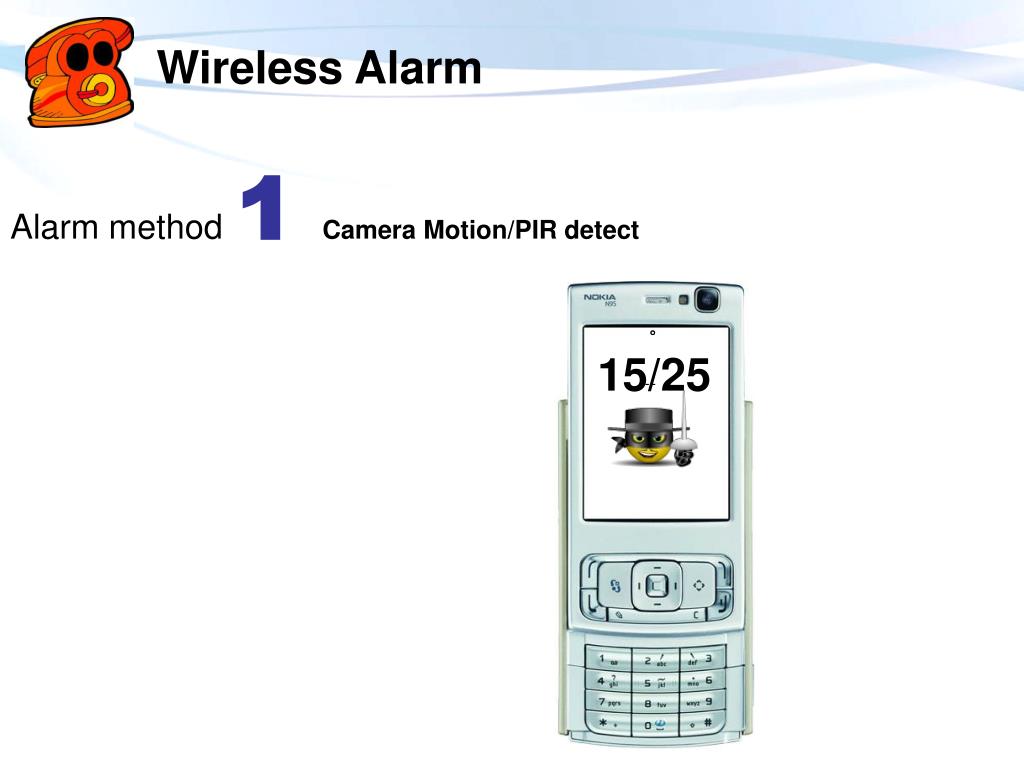

  36. Wireless Alarm Alarm method1 Camera Motion/PIR detect 。 15/25 ..

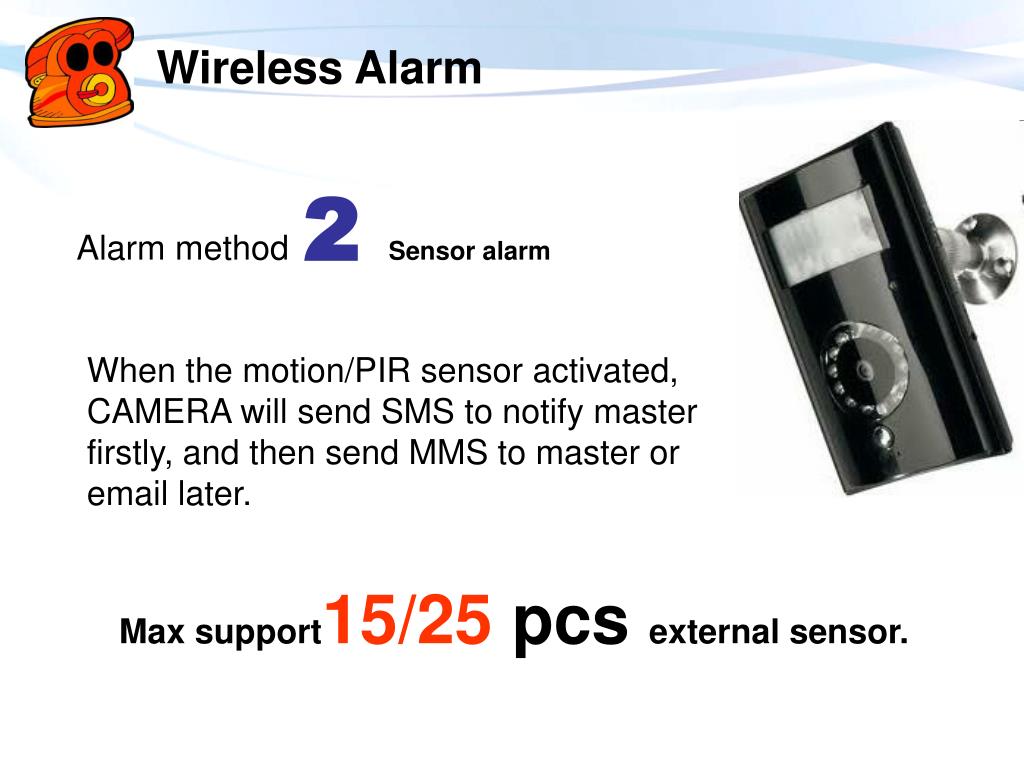

  37. Wireless Alarm Alarm method2 Sensor alarm When the motion/PIR sensor activated, CAMERA will send SMS to notify master firstly, and then send MMS to master or email later. Max support15/25 pcs external sensor.

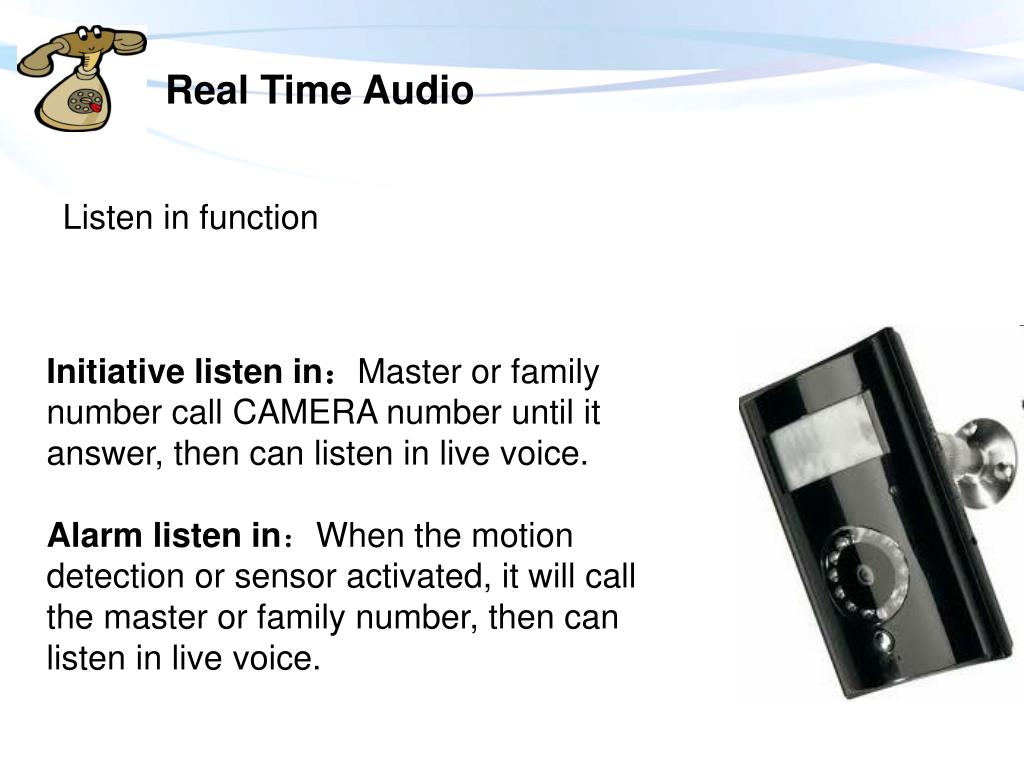

  38. Real Time Audio Listen in function Initiative listen in：Master or family number call CAMERA number until it answer, then can listen in live voice. Alarm listen in：When the motion detection or sensor activated, it will call the master or family number, then can listen in live voice.

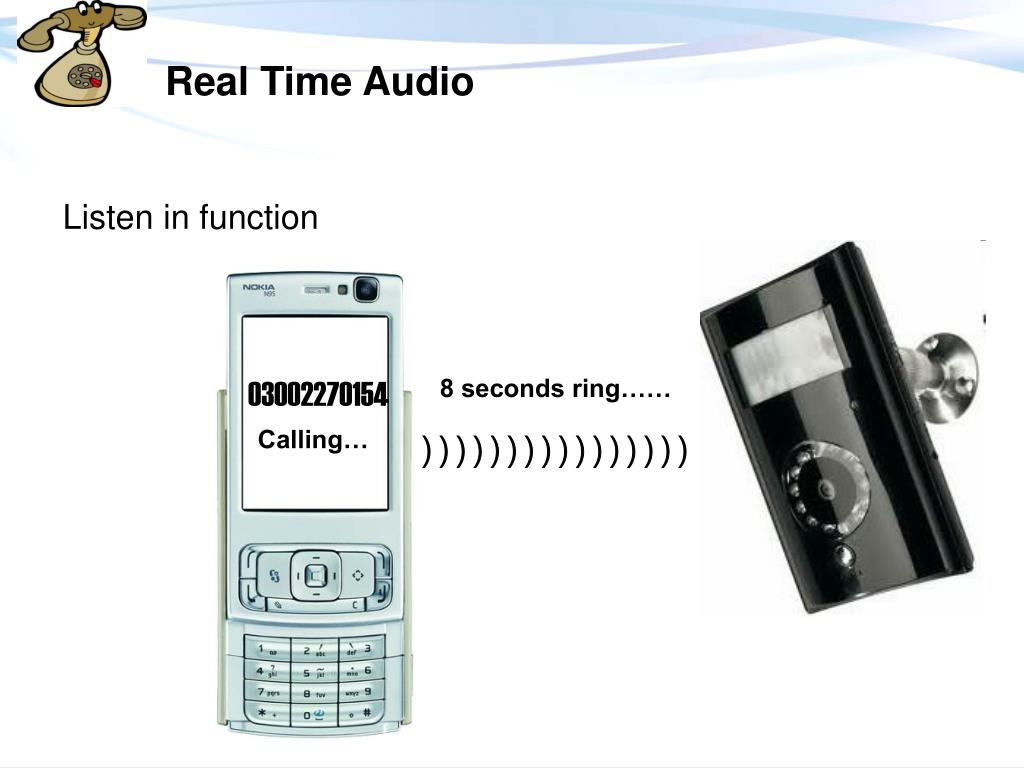

  39. 13812345678 13812345678 Real Time Audio Listen in function 03002270154 8 seconds ring…… Calling… ))))))))))))))))

  40. 13812345678 13812345678 Real Time Audio Listen in function Connected… ))))))))))))))))

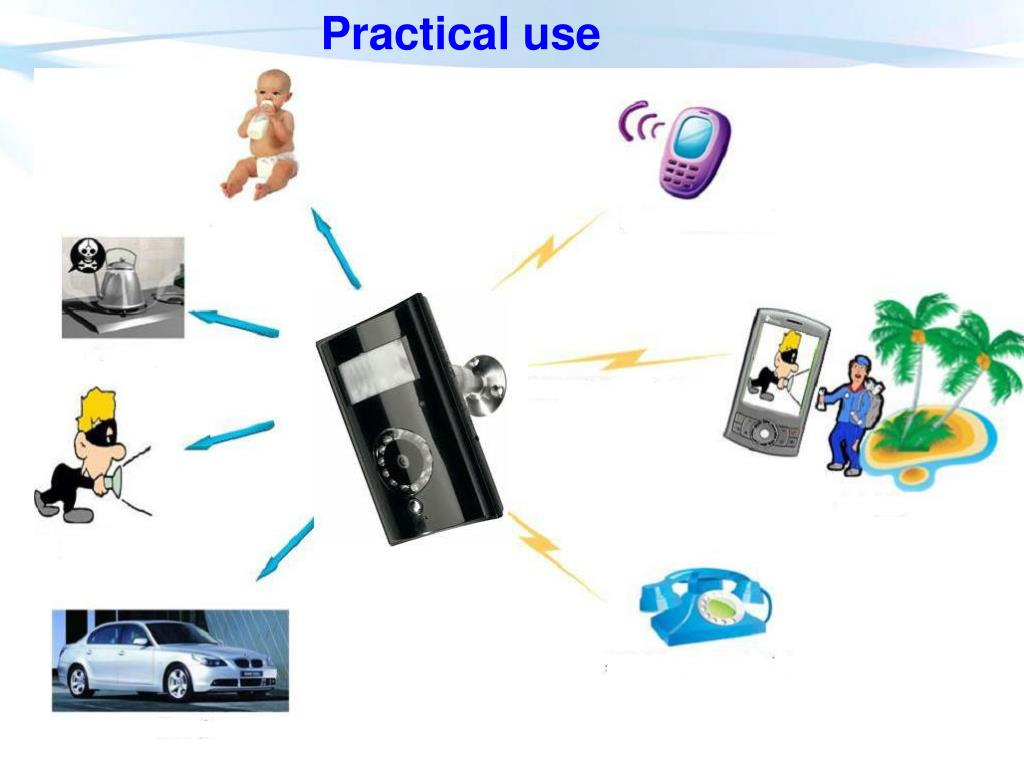

  41. Practical use

  42. SMS Commands I • Define the User [Add/Modify/Delete] • 1. MASTER, [1] • 2.Family members (Relatives), [9] • 3 Emergency numbers, [9] • 4.Guest’s [Unlimited] • Cellular Network parameter Setting • Set MMS, WAP,APN,HTTP,E-mail. • Image Settings • Size,No., Timed Image (Mon—Sun.)

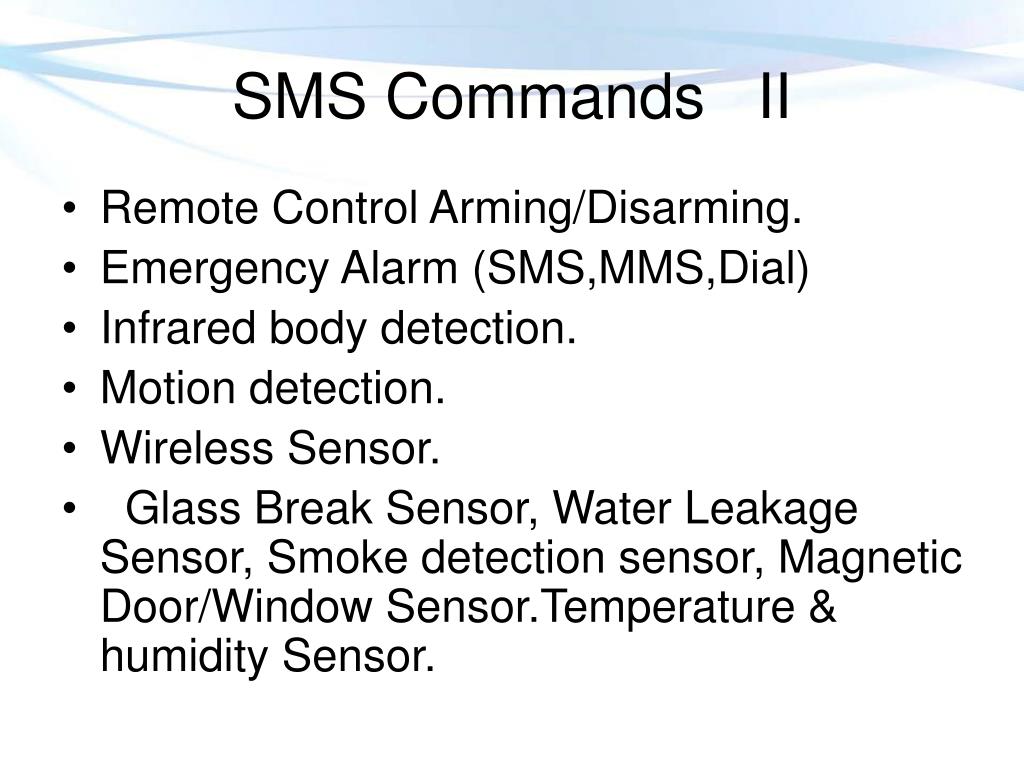

  43. SMS Commands II • Remote Control Arming/Disarming. • Emergency Alarm (SMS,MMS,Dial) • Infrared body detection. • Motion detection. • Wireless Sensor. • Glass Break Sensor, Water Leakage Sensor, Smoke detection sensor, Magnetic Door/Window Sensor.Temperature & humidity Sensor.

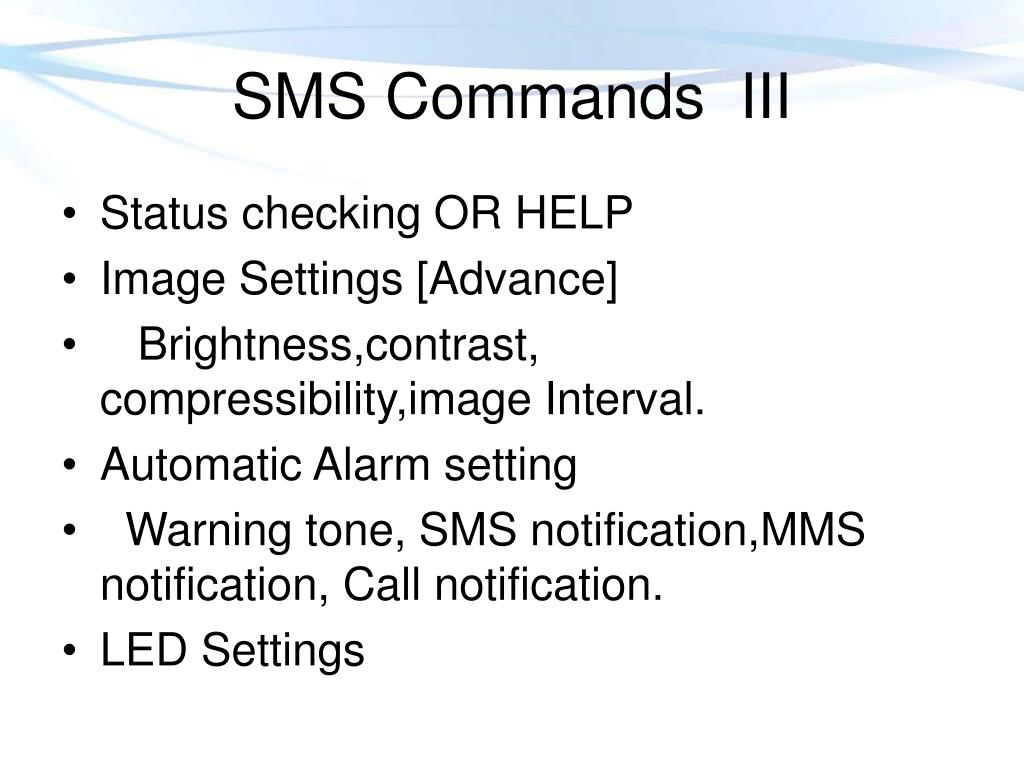

  44. SMS Commands III • Status checking OR HELP • Image Settings [Advance] • Brightness,contrast, compressibility,image Interval. • Automatic Alarm setting • Warning tone, SMS notification,MMS notification, Call notification. • LED Settings

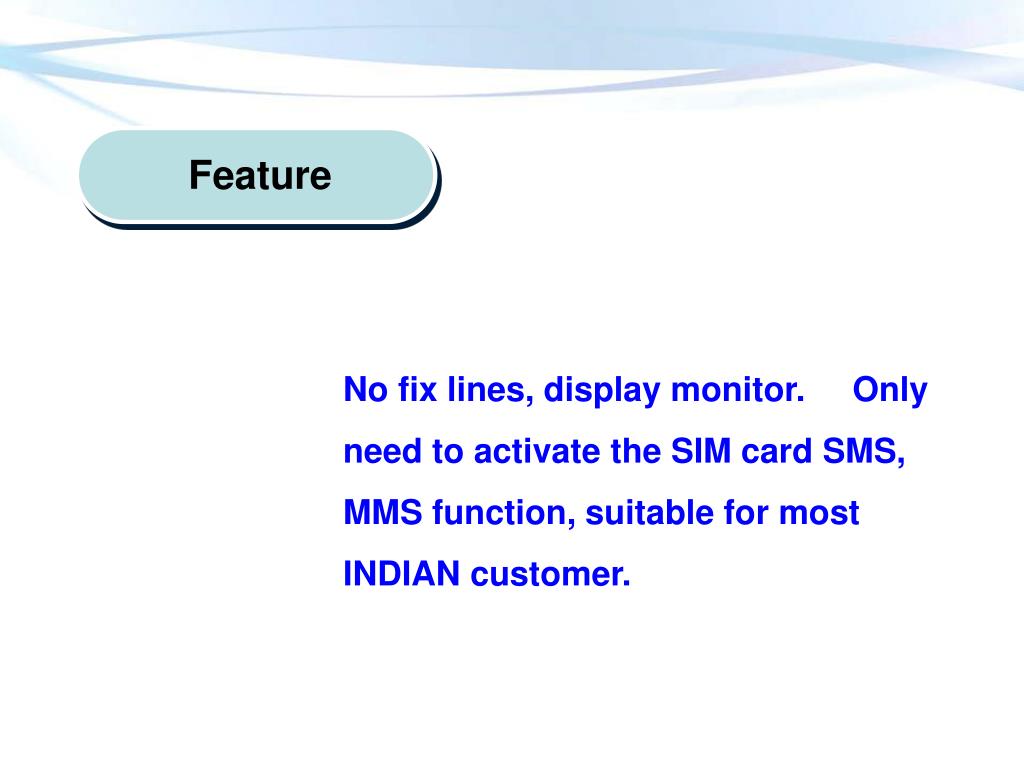

  45. Feature No fix lines, display monitor.Only need to activate the SIM card SMS, MMS function, suitable for most INDIAN customer.

  46. Product Series

  47. Product Series

  48. Product Series

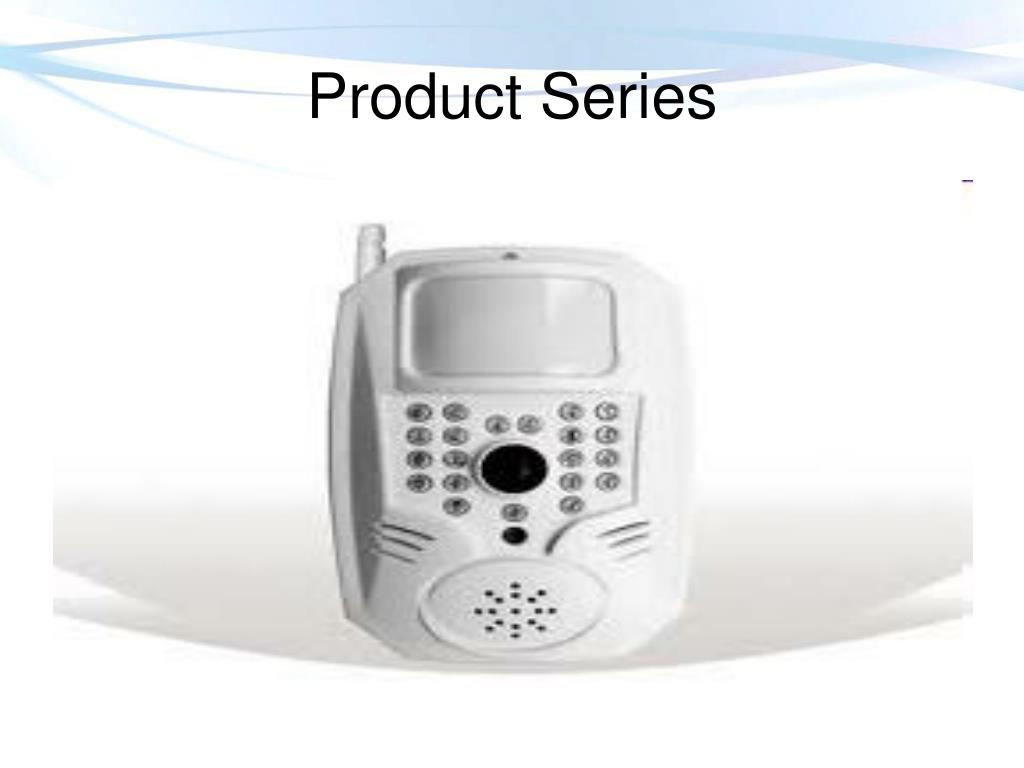

  49. Product Series

  50. Product Series
