  1. Standards First!™

  2. AAA Authentication, Authorization, Accounting Gerhard Gross Standards First!™

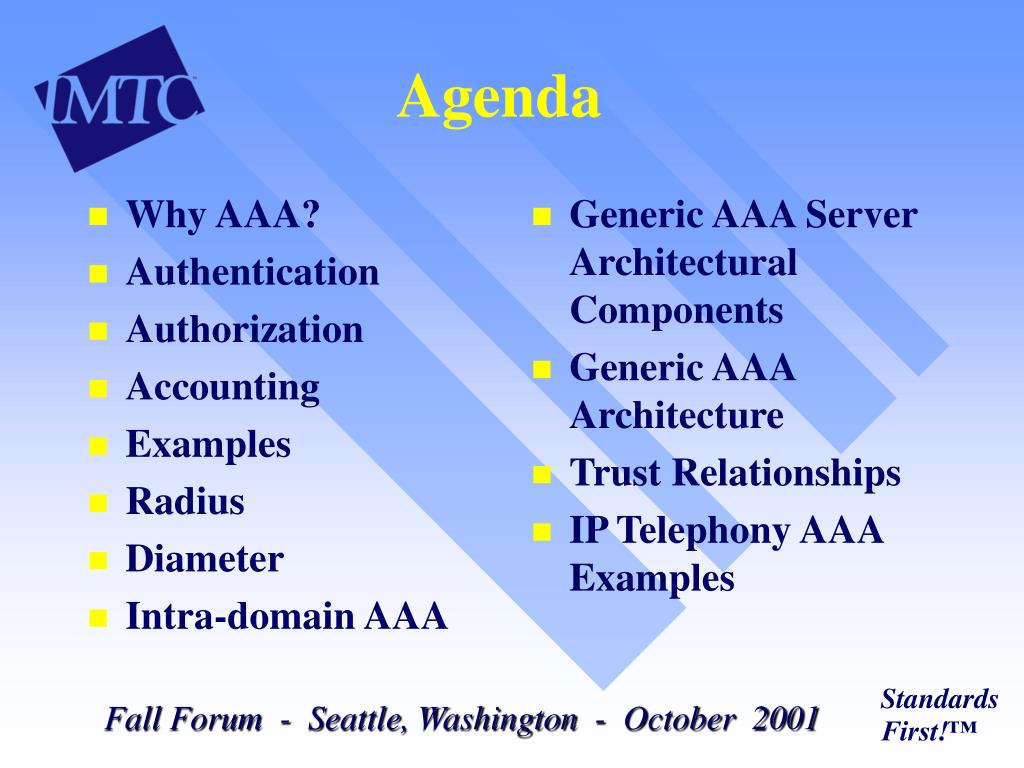

  3. Why AAA? Authentication Authorization Accounting Examples Radius Diameter Intra-domain AAA Generic AAA Server Architectural Components Generic AAA Architecture Trust Relationships IP Telephony AAA Examples Agenda

  4. Why AAA? • Protection of investments, business • Auditing, session info (now, later) • Support for billable services: • Network access • Gateway services (IP  PSTN) • High bandwidth path • Low latency path • Low jitter path

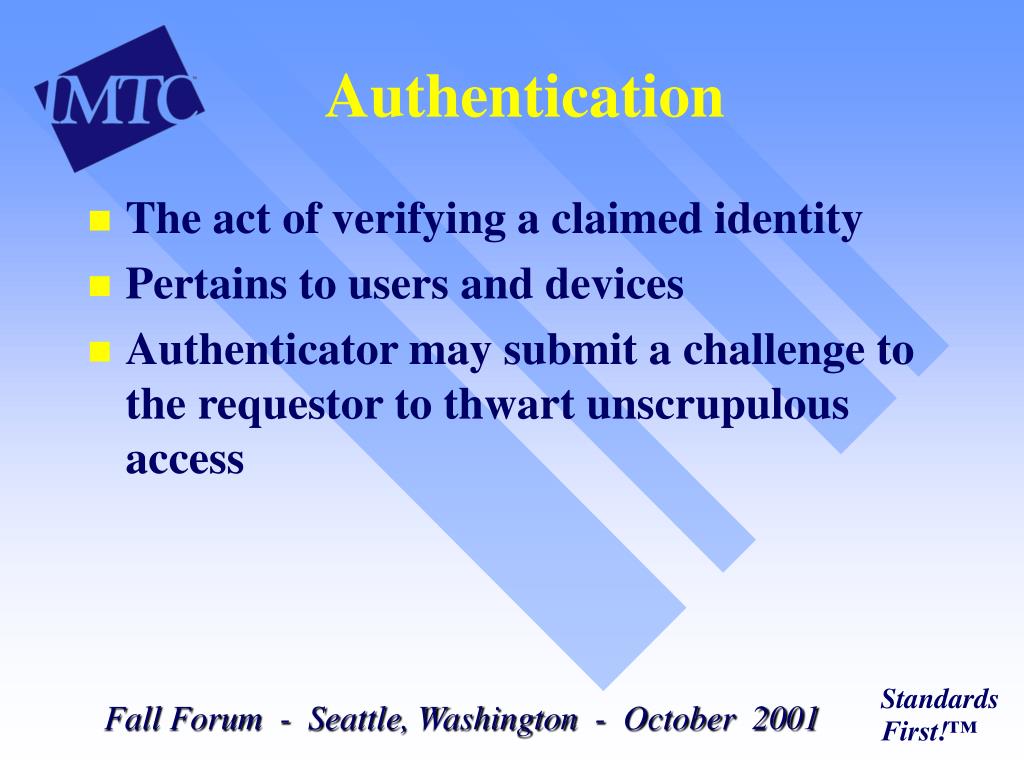

  5. Authentication • The act of verifying a claimed identity • Pertains to users and devices • Authenticator may submit a challenge to the requestor to thwart unscrupulous access

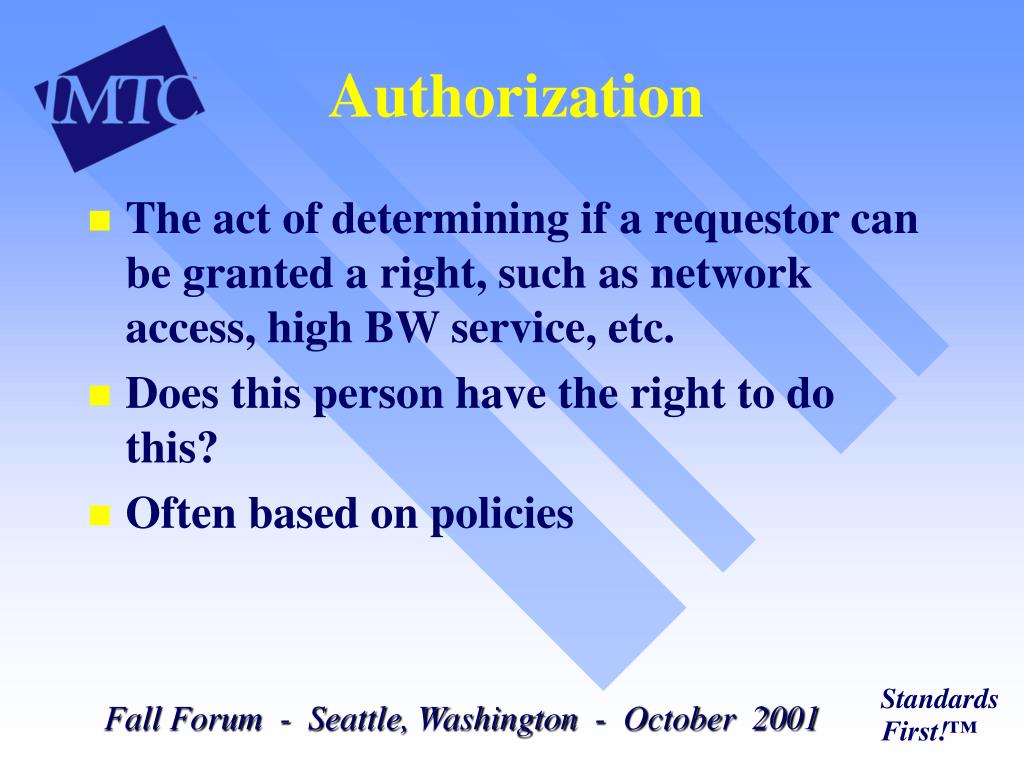

  6. Authorization • The act of determining if a requestor can be granted a right, such as network access, high BW service, etc. • Does this person have the right to do this? • Often based on policies

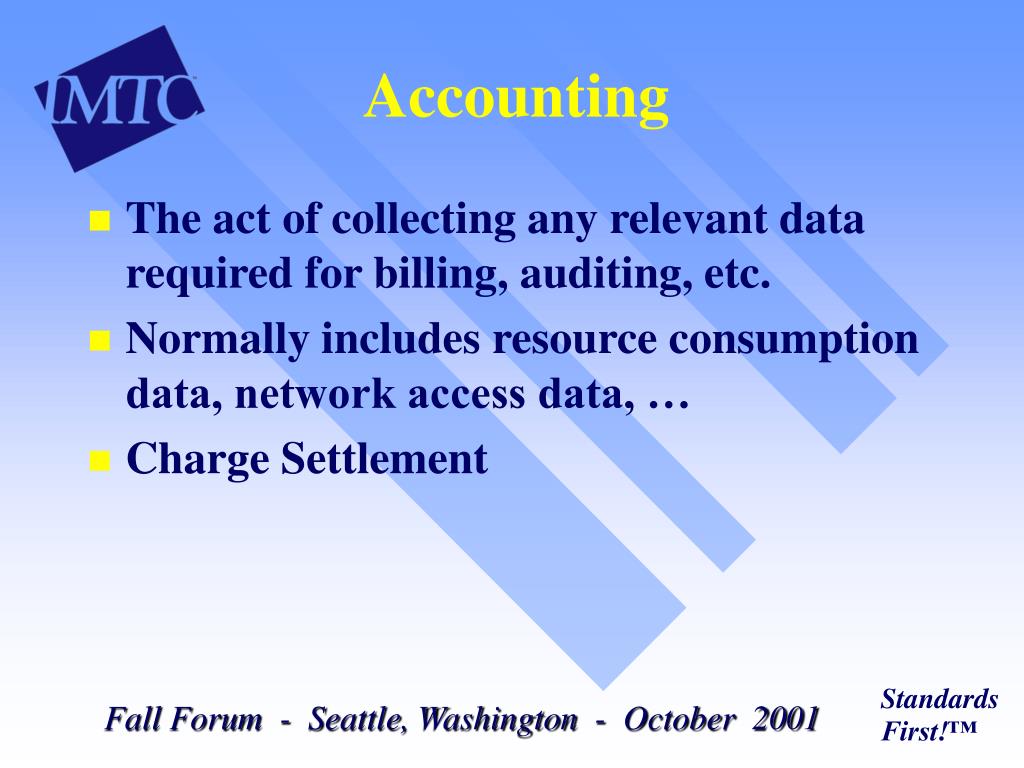

  7. Accounting • The act of collecting any relevant data required for billing, auditing, etc. • Normally includes resource consumption data, network access data, … • Charge Settlement

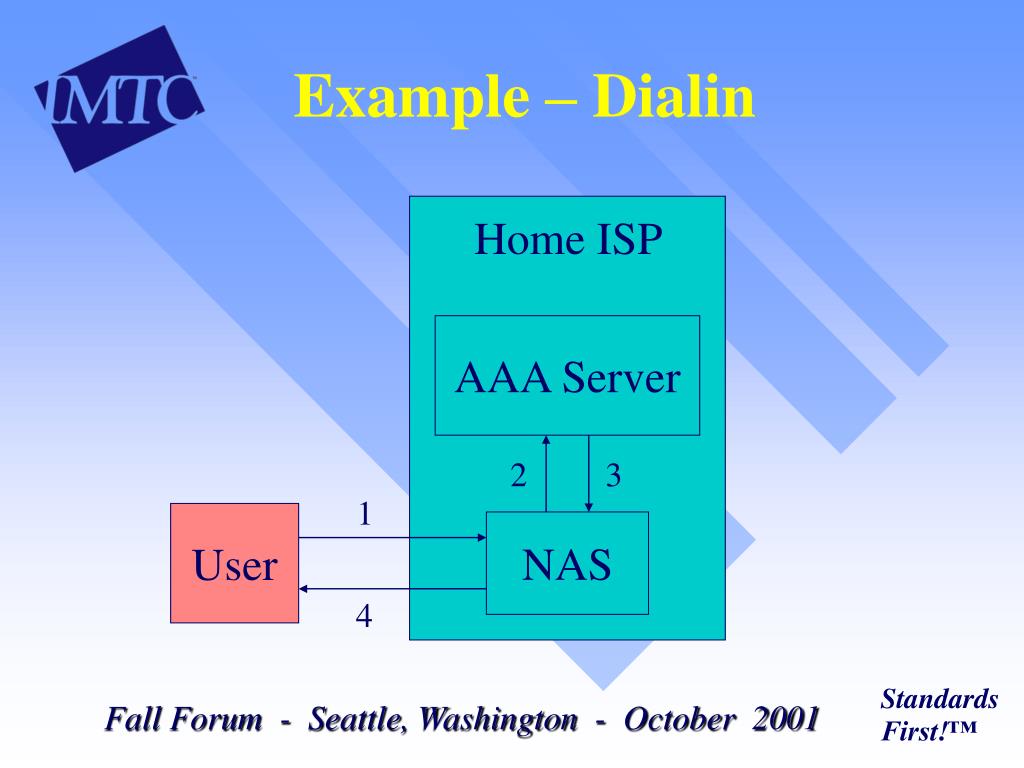

  8. NAS Example – Dialin Home ISP AAA Server 2 3 1 User 4

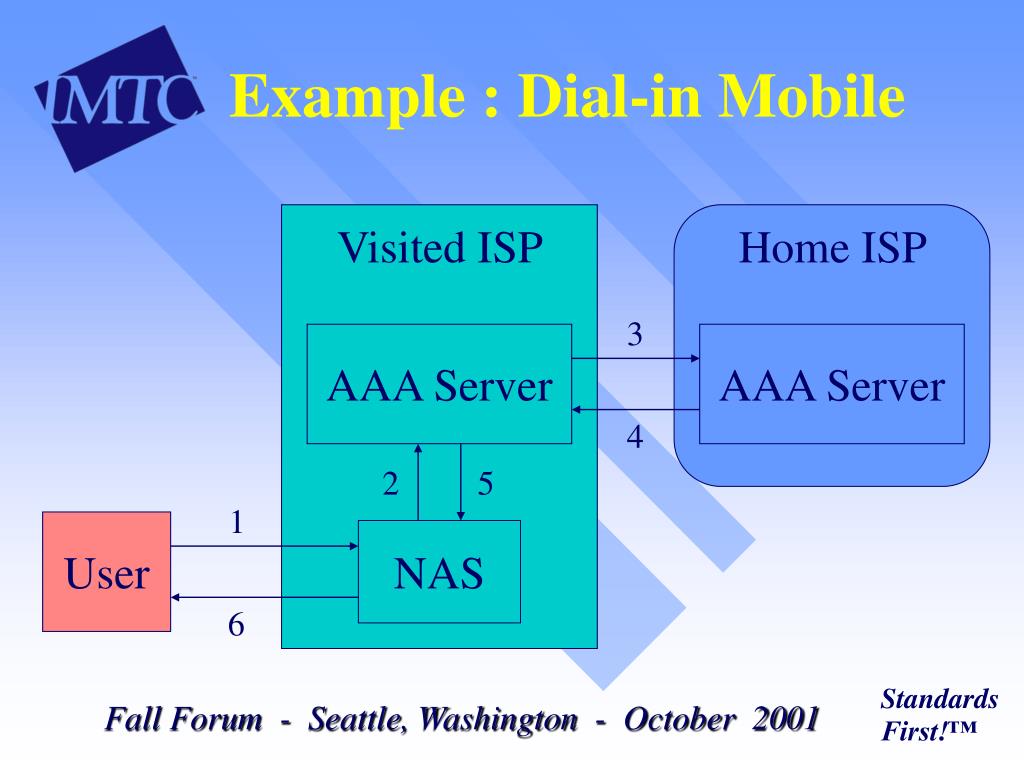

  9. NAS Example : Dial-in Mobile Visited ISP Home ISP 3 AAA Server AAA Server 4 2 5 1 User 6

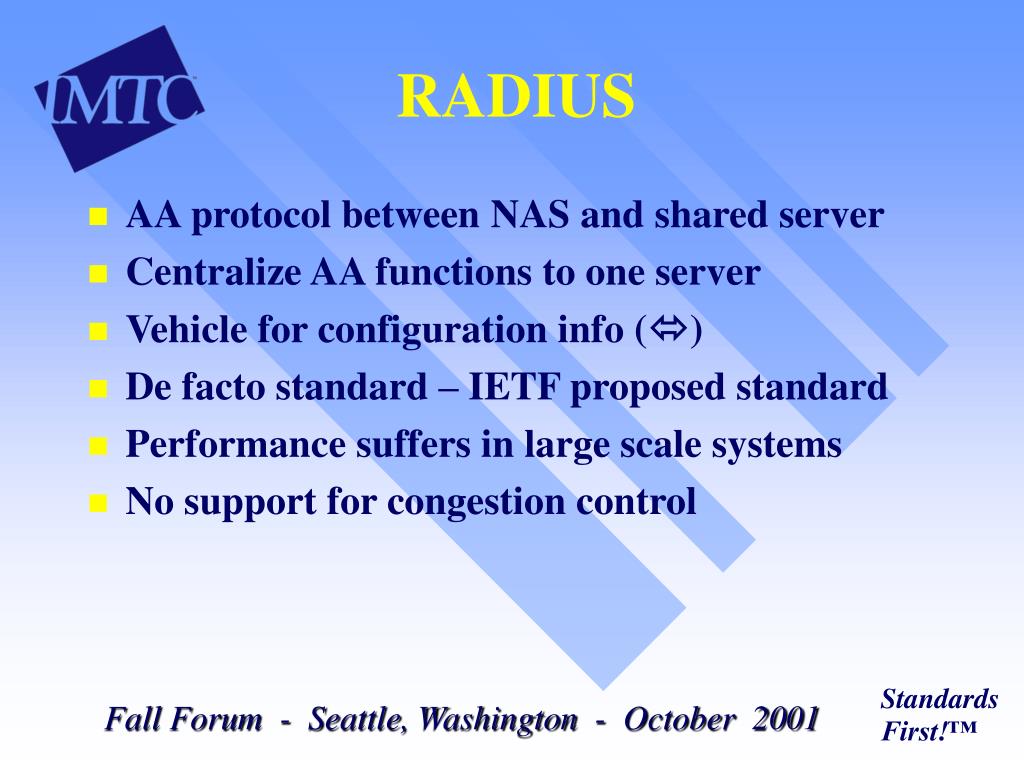

  10. RADIUS • AA protocol between NAS and shared server • Centralize AA functions to one server • Vehicle for configuration info () • De facto standard – IETF proposed standard • Performance suffers in large scale systems • No support for congestion control

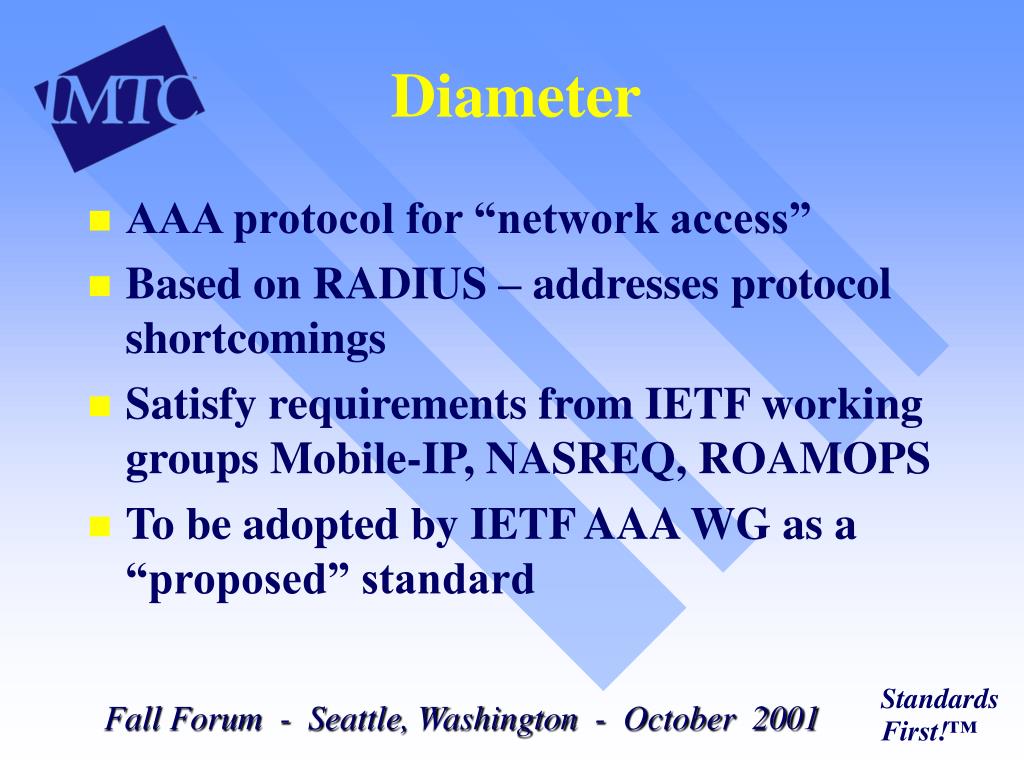

  11. Diameter • AAA protocol for “network access” • Based on RADIUS – addresses protocol shortcomings • Satisfy requirements from IETF working groups Mobile-IP, NASREQ, ROAMOPS • To be adopted by IETF AAA WG as a “proposed” standard

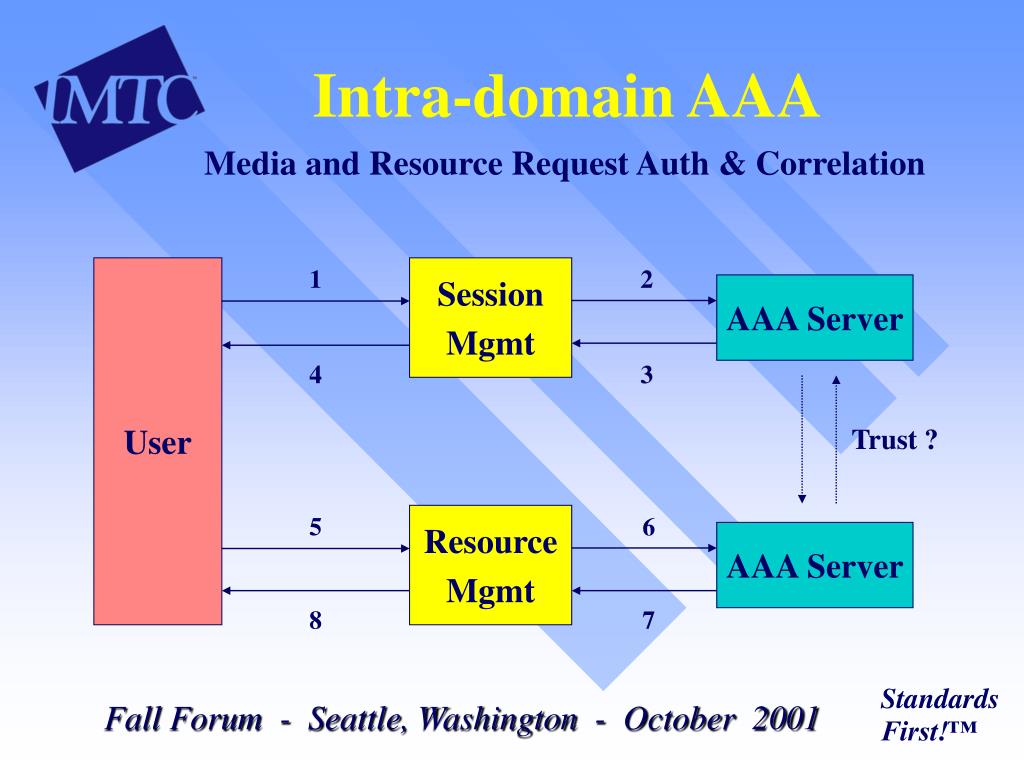

  12. Intra-domain AAA Media and Resource Request Auth & Correlation User 1 Session Mgmt 2 AAA Server 4 3 Trust ? 5 Resource Mgmt 6 AAA Server 8 7

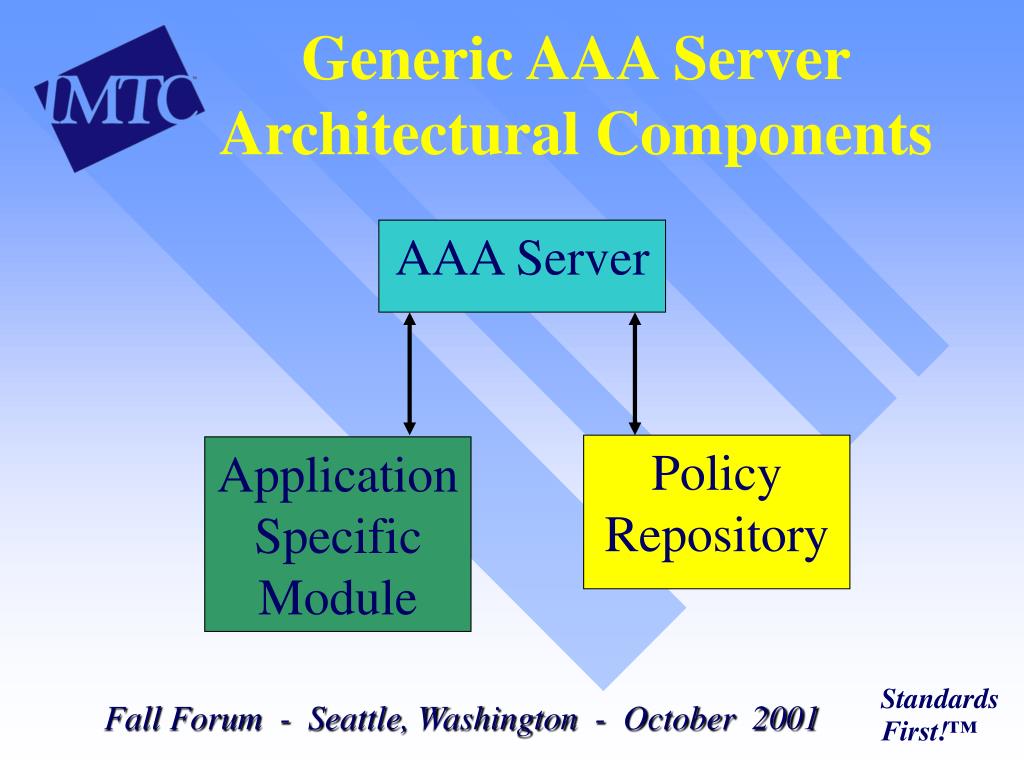

  13. Generic AAA ServerArchitectural Components AAA Server Policy Repository Application Specific Module

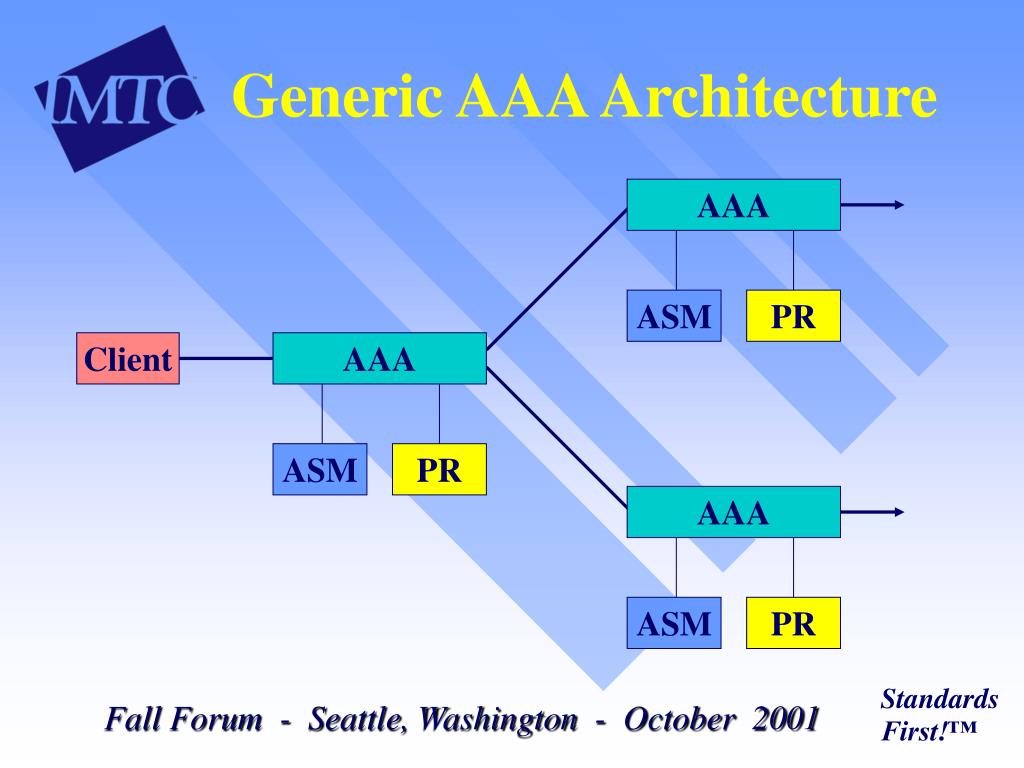

  14. Generic AAA Architecture AAA ASM PR Client AAA ASM PR AAA ASM PR

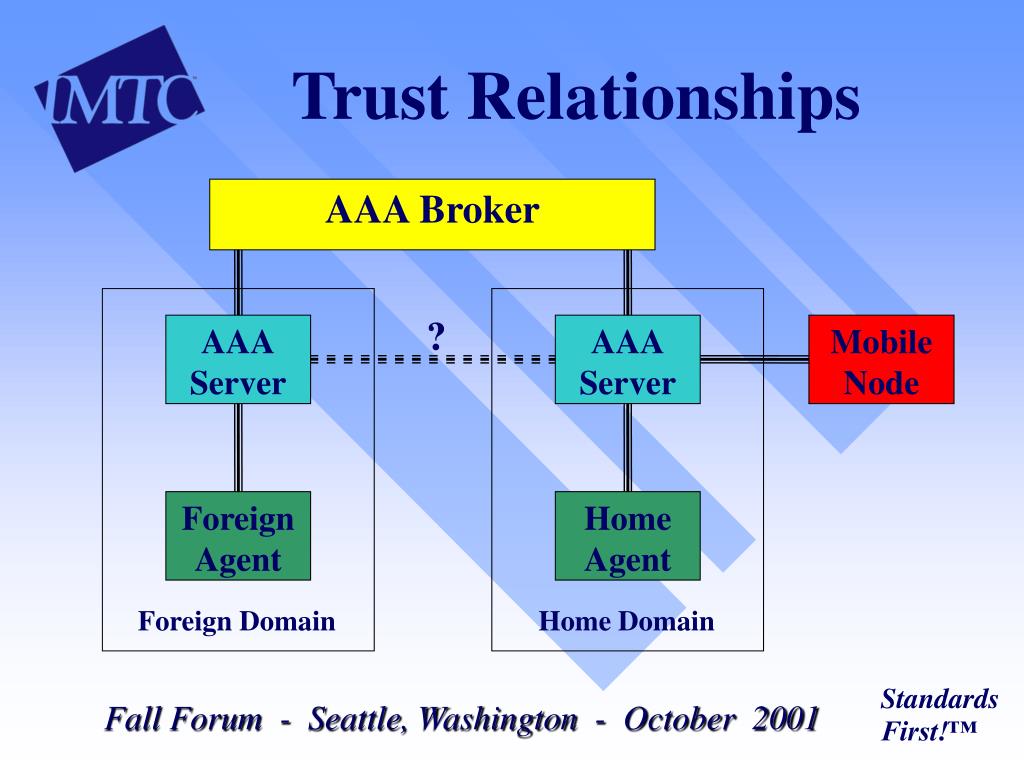

  15. Trust Relationships AAA Broker ? AAA Server AAA Server Mobile Node Foreign Agent Home Agent Foreign Domain Home Domain

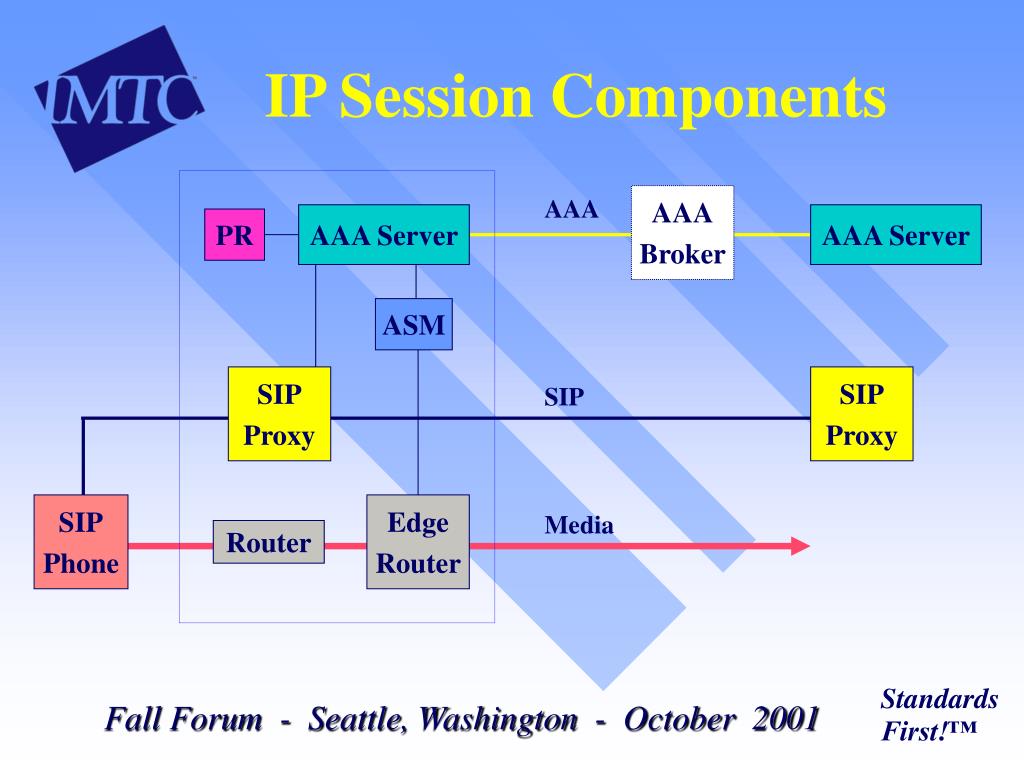

  16. IP Session Components AAA Broker AAA AAA Server AAA Server PR ASM SIP Proxy SIP Proxy SIP SIP Phone Edge Router Media Router

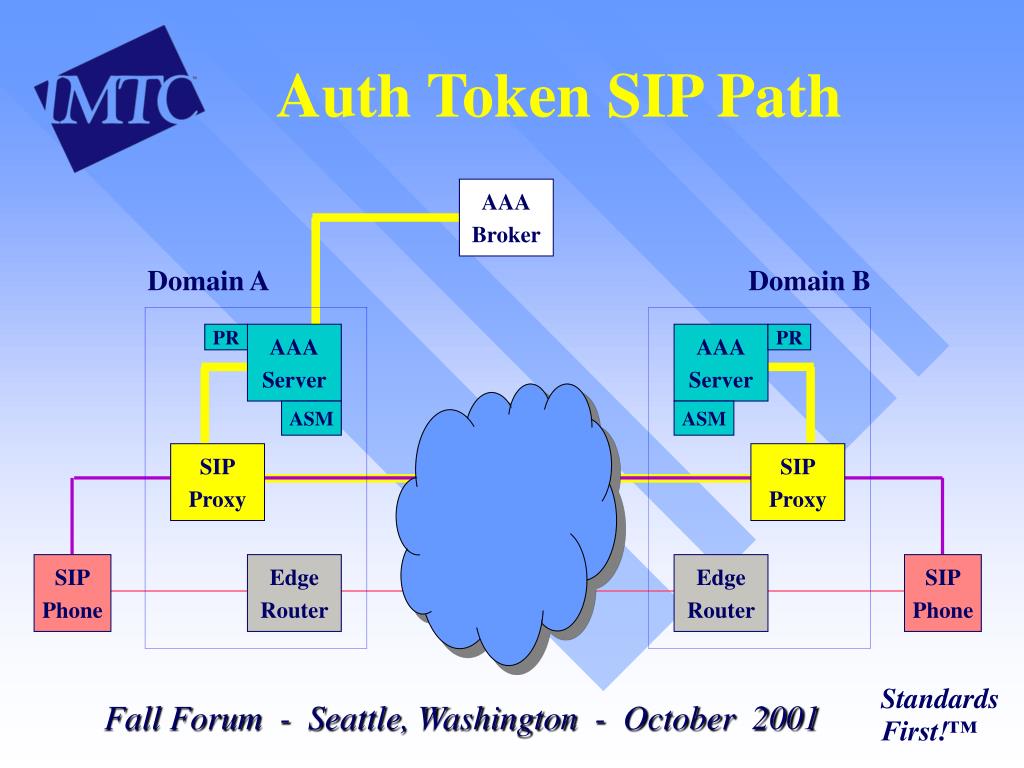

  17. Auth Token SIP Path AAA Broker Domain A Domain B PR AAA Server AAA Server PR ASM ASM SIP Proxy SIP Proxy SIP Phone Edge Router Edge Router SIP Phone

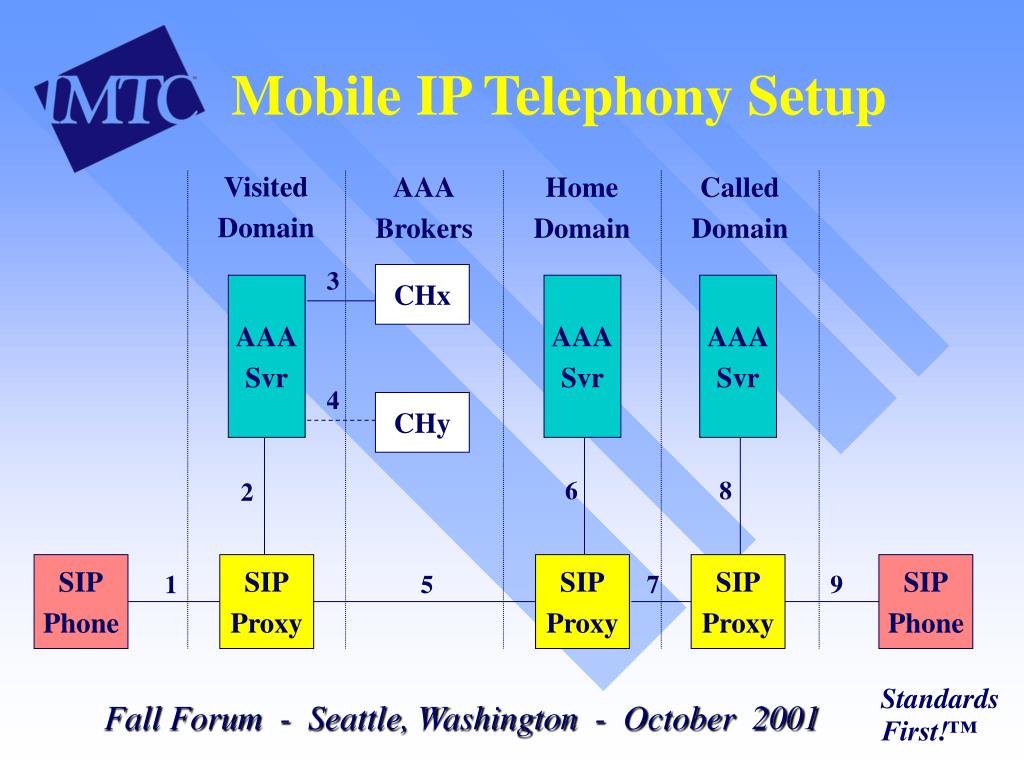

  18. Mobile IP Telephony Setup Visited Domain AAA Brokers Home Domain Called Domain 3 CHx AAA Svr AAA Svr AAA Svr 4 CHy 6 8 2 SIP Phone SIP Proxy SIP Proxy SIP Proxy SIP Phone 1 5 7 9

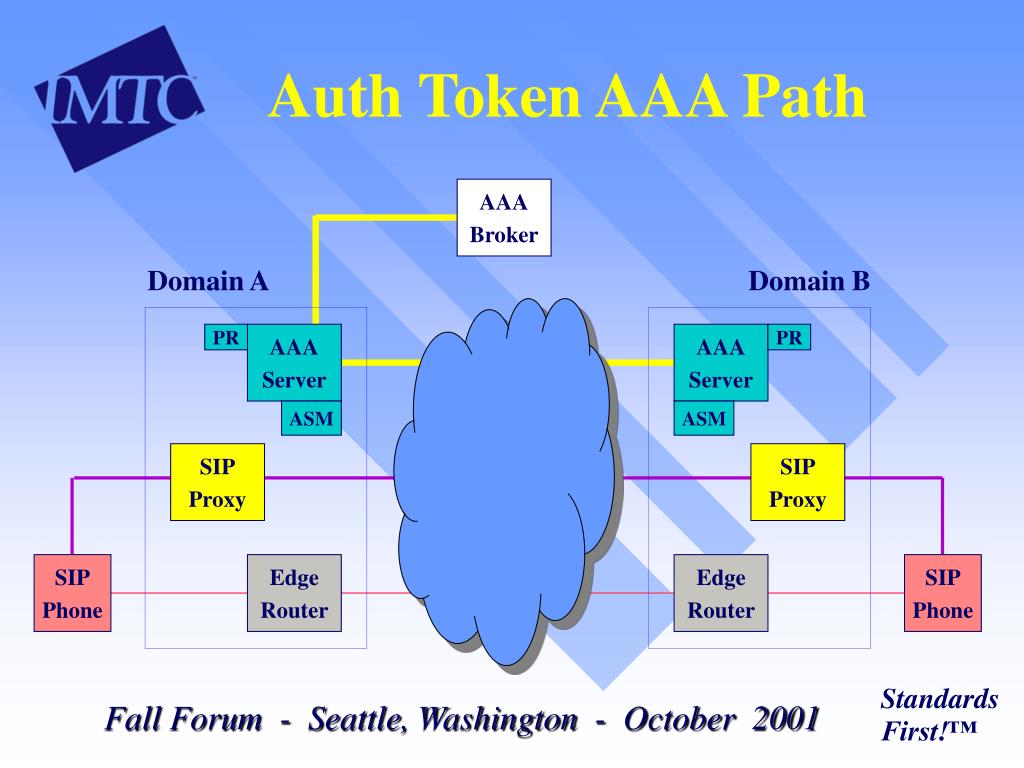

  19. Auth Token AAA Path AAA Broker Domain A Domain B PR AAA Server AAA Server PR ASM ASM SIP Proxy SIP Proxy SIP Phone Edge Router Edge Router SIP Phone

  20. Mobile IP Telephony Setup Visited Domain AAA Brokers Home Domain Called Domain 3 CHx AAA Svr AAA Svr AAA Svr CHy 4 6 8 2 SIP Phone SIP Proxy SIP Proxy SIP Proxy SIP Phone 1 5 7 9

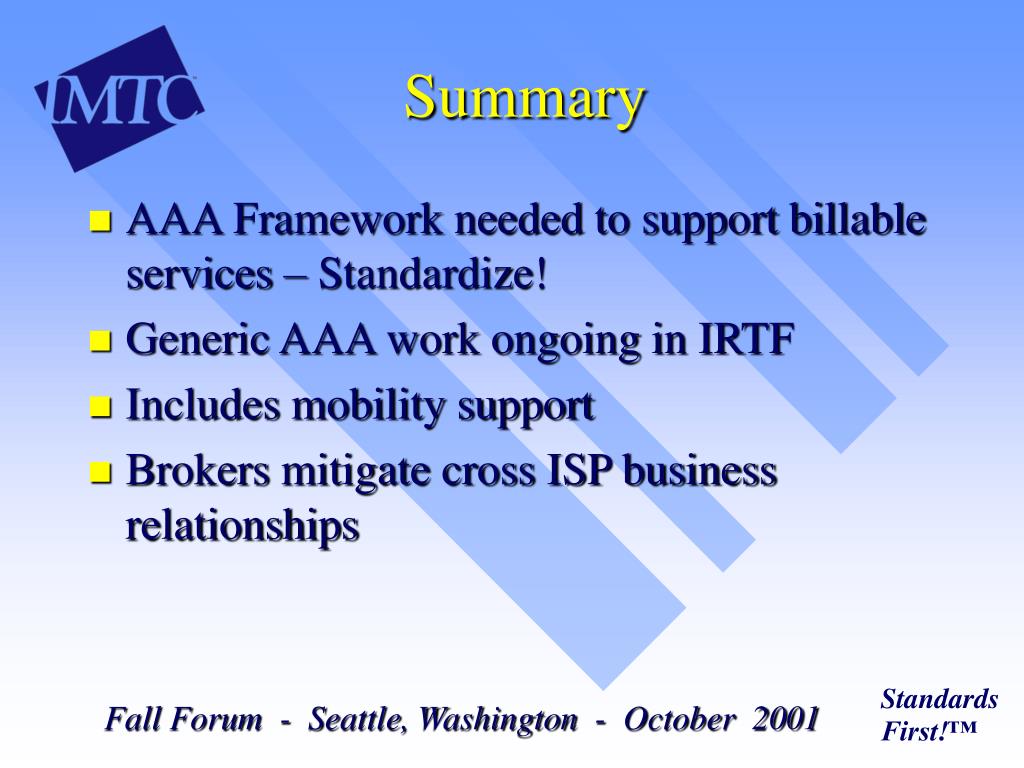

  21. Summary • AAA Framework needed to support billable services – Standardize! • Generic AAA work ongoing in IRTF • Includes mobility support • Brokers mitigate cross ISP business relationships

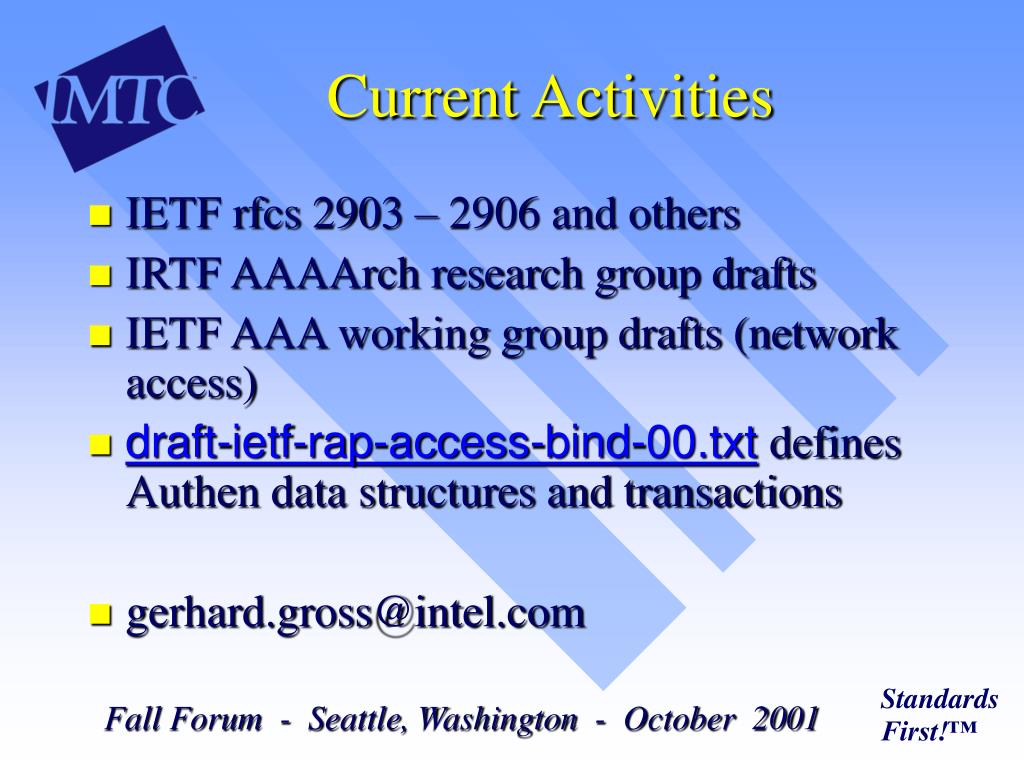

  22. Current Activities • IETF rfcs 2903 – 2906 and others • IRTF AAAArch research group drafts • IETF AAA working group drafts (network access) • draft-ietf-rap-access-bind-00.txtdefines Authen data structures and transactions • gerhard.gross@intel.com
