  1. Application Compatibility Remediation: The Dark Magic of Fixing Broken Applications Aaron Margosis Principal Consultant Microsoft Session Code: CLI405

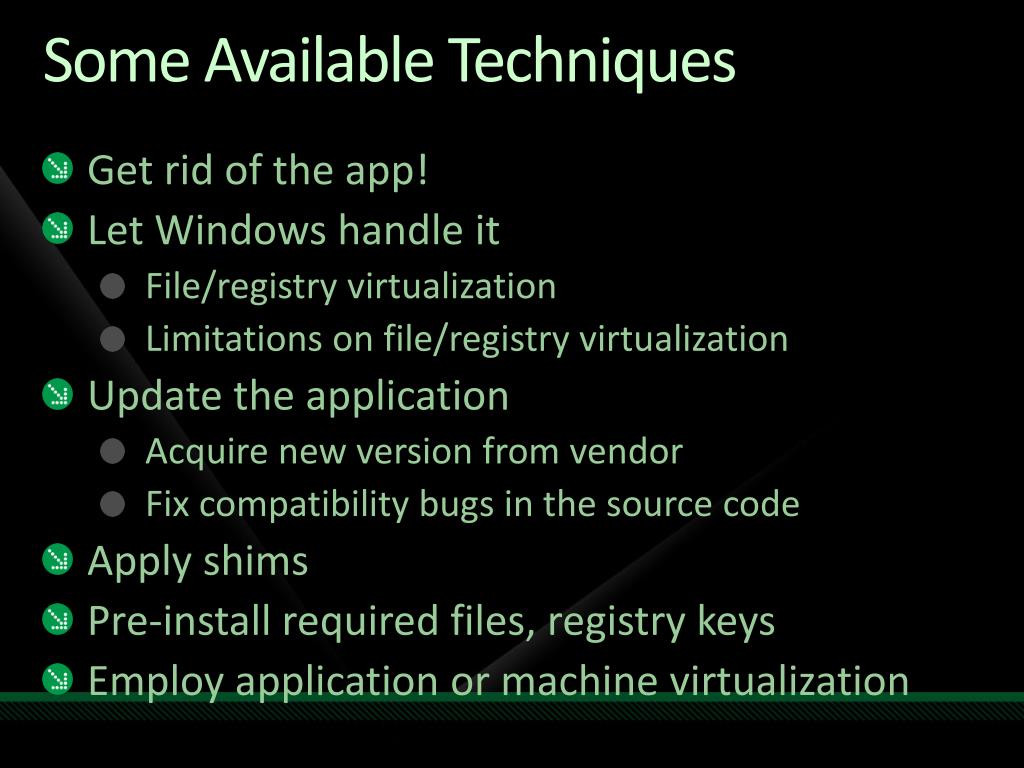

  2. Some Available Techniques • Get rid of the app! • Let Windows handle it • File/registry virtualization • Limitations on file/registry virtualization • Update the application • Acquire new version from vendor • Fix compatibility bugs in the source code • Apply shims • Pre-install required files, registry keys • Employ application or machine virtualization

  3. When to Use Shims • Define standards for when to use this technique: • Vendor no longer in business • Internal applications • Support negotiable • Shimming applications can be outsourced

  4. How Shims Work Application Windows Import Function Import Function Export Function Shim DLL

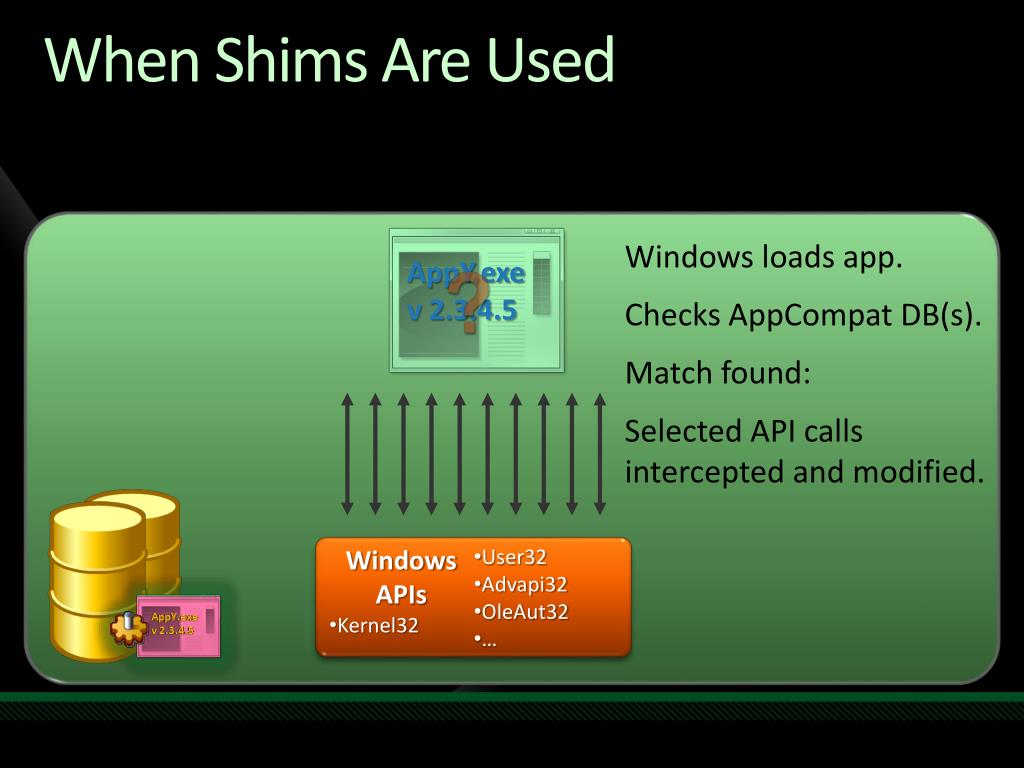

  5. When Shims Are Used Windows loads app. Checks AppCompat DB(s). Match found: Selected API calls intercepted and modified. AppY.exe v 2.3.4.5 AppY.exe v 2.3.4.5 • Windows APIs • Kernel32 • User32 • Advapi32 • OleAut32 • …

  6. Some Useful Shims

  7. Detailed Shim Information • Install App Compat Toolkit and look in act.chm • Also on technet.microsoft.com • Chris Jackson’s blog (blogs.msdn.com/cjacks)

  8. demo Show me the shims

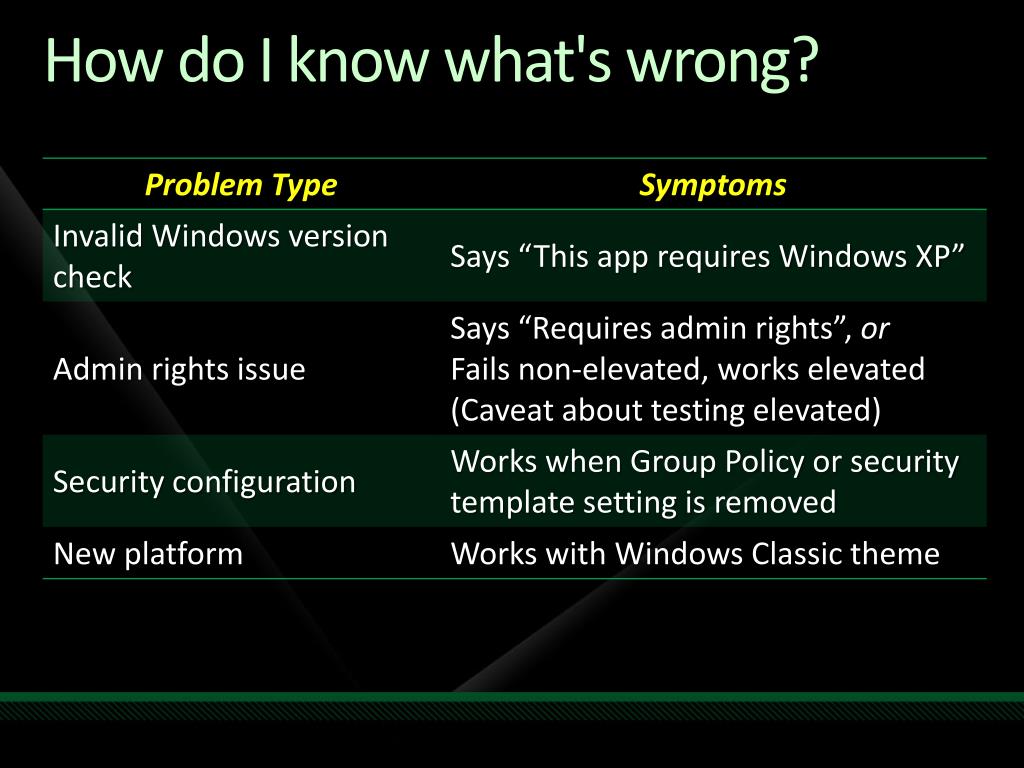

  9. How do I know what's wrong?

  10. Testing environment • Have multiple configurations available • Be able to reimage quickly • Virtual machines (snapshots, undo disks) • MDT deployment (e.g., PXE boot) • Apply security policies to local Group Policy rather than domain • LGPO utilities: blogs.technet.com/fdcc

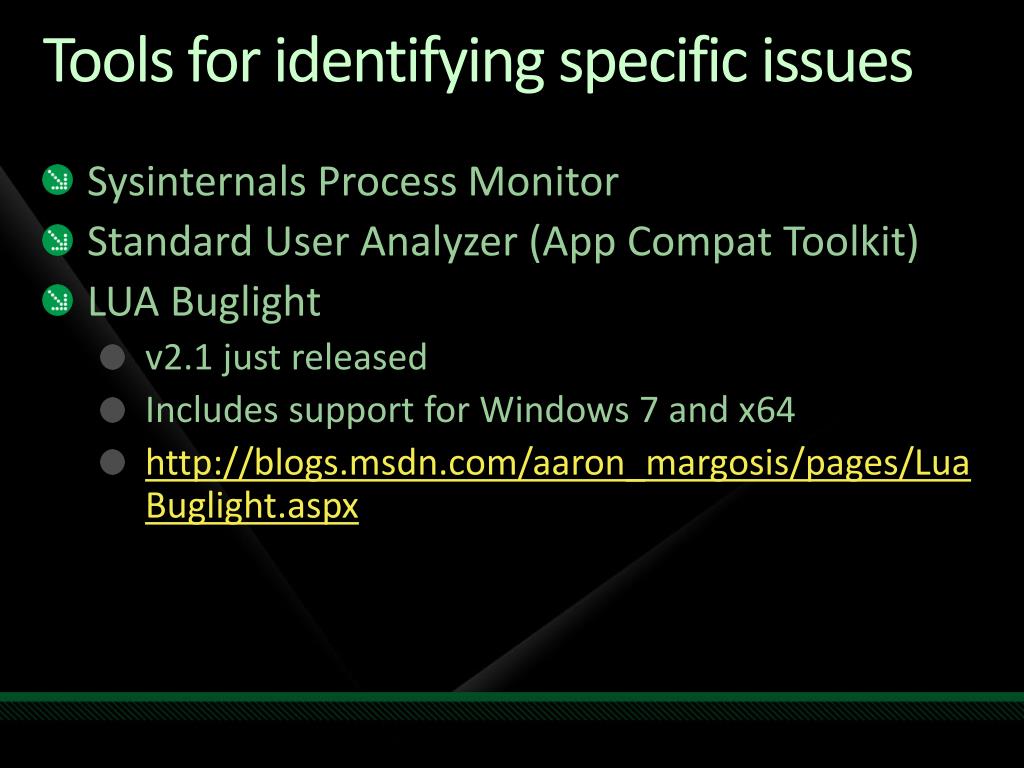

  11. Tools for identifying specific issues • Sysinternals Process Monitor • Standard User Analyzer (App Compat Toolkit) • LUA Buglight • v2.1 just released • Includes support for Windows 7 and x64 • http://blogs.msdn.com/aaron_margosis/pages/LuaBuglight.aspx

  12. demo LUA Buglight, Process Monitor, SUA

  13. Required Slide Speakers, TechEd 2009 is not producing a DVD. Please announce that attendees can access session recordings at TechEd Online. Resources • www.microsoft.com/teched Sessions On-Demand & Community • www.microsoft.com/learning • Microsoft Certification & Training Resources • http://microsoft.com/technet • Resources for IT Professionals • http://microsoft.com/msdn Resources for Developers
