Presentation Transcript

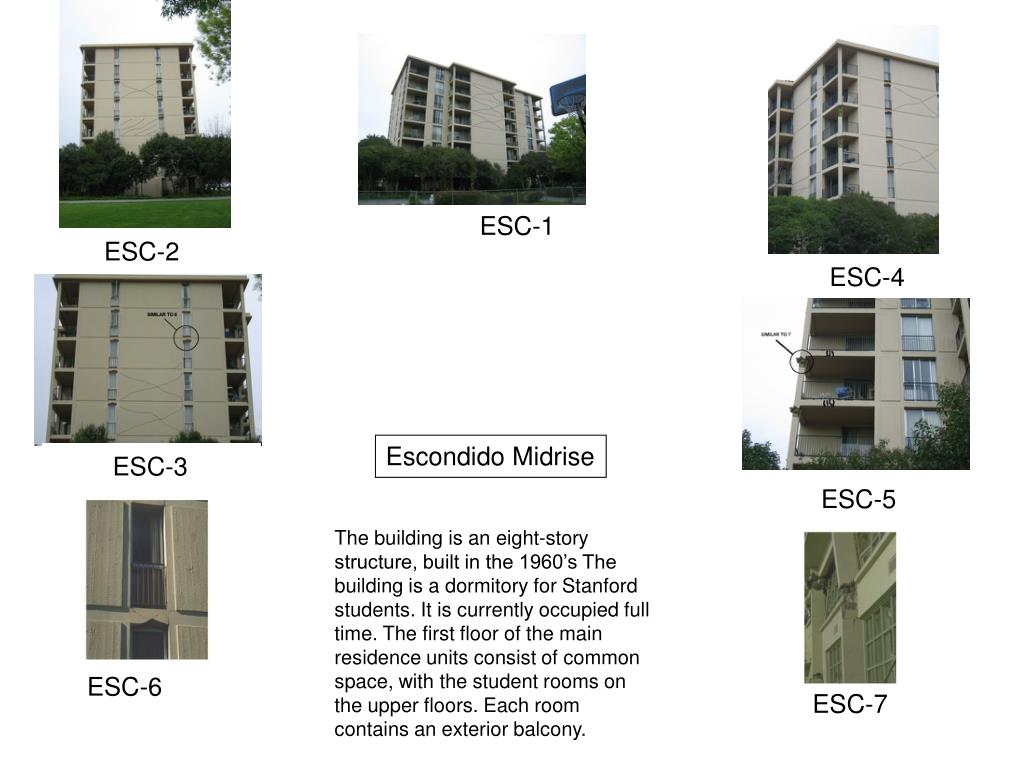

  1. ESC-1 ESC-2 ESC-4 Escondido Midrise ESC-3 ESC-5 The building is an eight-story structure, built in the 1960’s The building is a dormitory for Stanford students. It is currently occupied full time. The first floor of the main residence units consist of common space, with the student rooms on the upper floors. Each room contains an exterior balcony. ESC-6 ESC-7

  2. QUD-1 QUD-4 QUD-6 QUD-5 QUD-8 Outer Quad Building QUD-7 The building is an older masonry faced structure outside the main Quad. It is a stand alone structure that sits on a small hill above the main Quad. The building houses offices and classrooms as well as mechanical engineering laboratories. There may be hazardous chemicals within. It is occupied by students and faculty nearly full time throughout the year. QUD-3

  3. FOR-1 FOR-4 FOR-7 FOR-3 FOR-6 Forsythe Parking Structure FOR-5 The building is a multi-level structure. It was built in the 1980’s and serves as a parking structure.

  4. RO1a RO5a RO3a The building is a four-story structure, built in the 1910’s and seismically upgraded in the 1990’s. The building is a dormitory for Stanford students. It is currently occupied full time. The first floor of the main residence units consist of common space, with the student rooms on the upper floors. RO6a RO2a Roble Hall

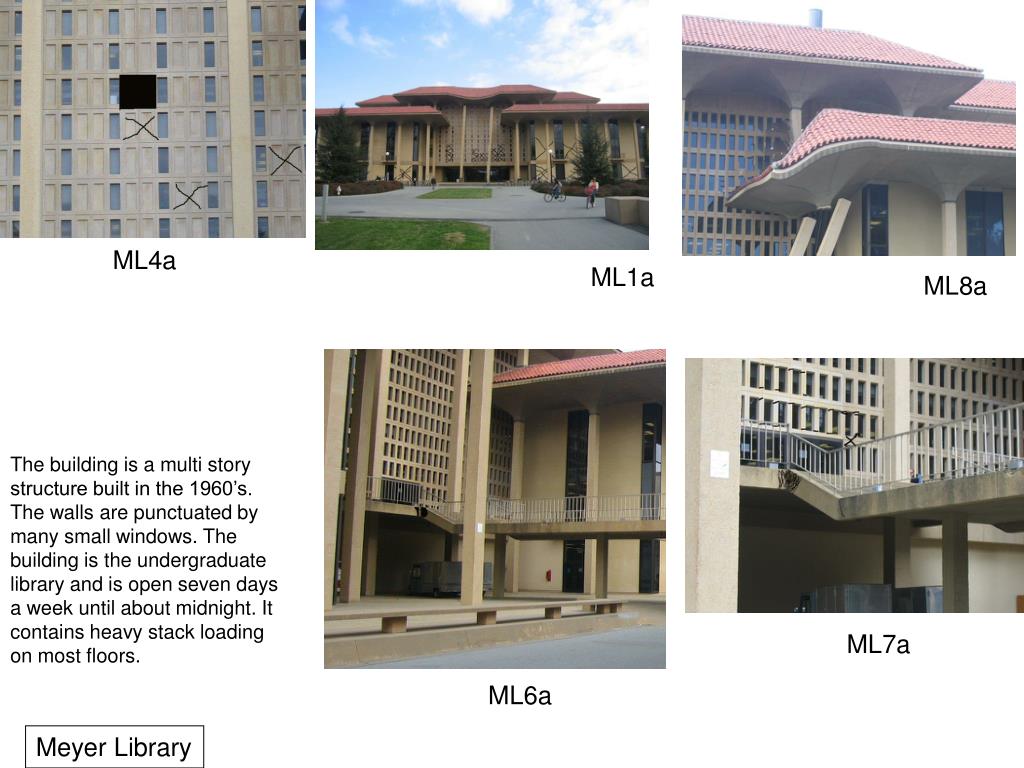

  5. ML4a ML1a ML8a The building is a multi story structure built in the 1960’s. The walls are punctuated by many small windows. The building is the undergraduate library and is open seven days a week until about midnight. It contains heavy stack loading on most floors. ML7a ML6a Meyer Library

  6. CCSR2 CCSR3 CCSR1 The building is a multi story steel structure built in the 2000’s. The walls are continuous glass windows. An exterior steel sunshade surrounds the building. It has an interior atrium. The building is a center for clinical research and contains numerous labs, offices and specialized equipment. CCSR4 CCSR5 CCSR

  7. Lyman2 Lyman1 Lyman3 The building is a multi story stucco clad structure, built in the 1990’s, The walls are punctuated by regular openings. The building is a graduate dormitory and is occupied 24/7. It is part of a larger complex of similar dorms. Lyman5 Lyman4 Lyman Graduate Housing

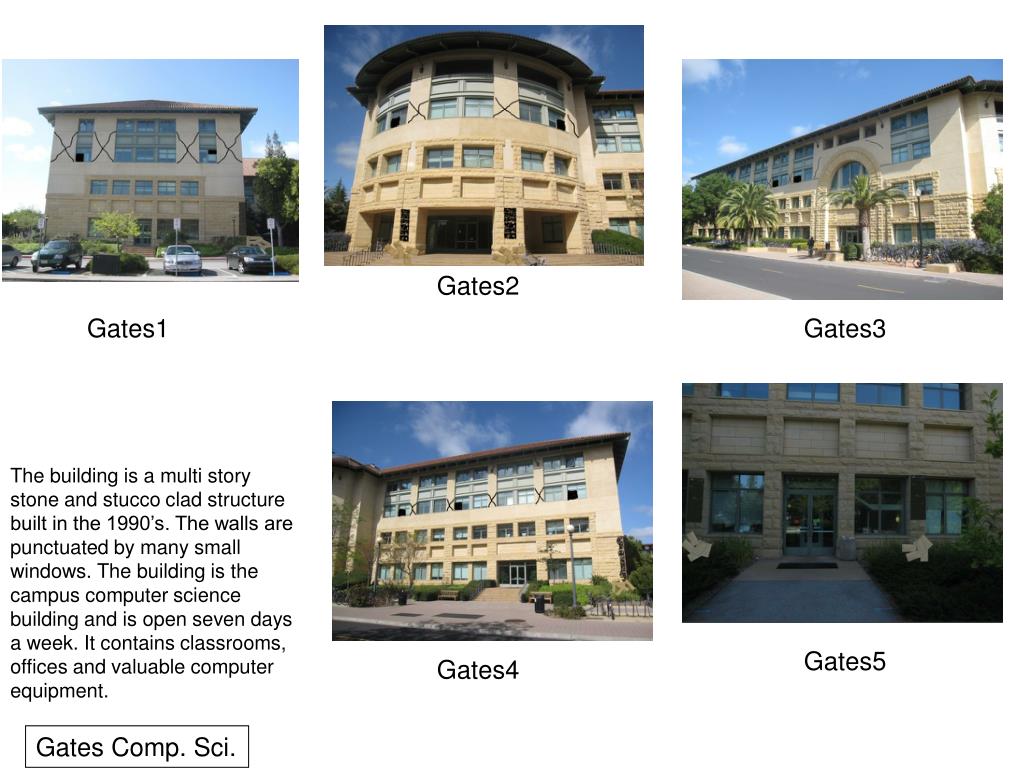

  8. Gates2 Gates1 Gates3 The building is a multi story stone and stucco clad structure built in the 1990’s. The walls are punctuated by many small windows. The building is the campus computer science building and is open seven days a week. It contains classrooms, offices and valuable computer equipment. Gates5 Gates4 Gates Comp. Sci.
