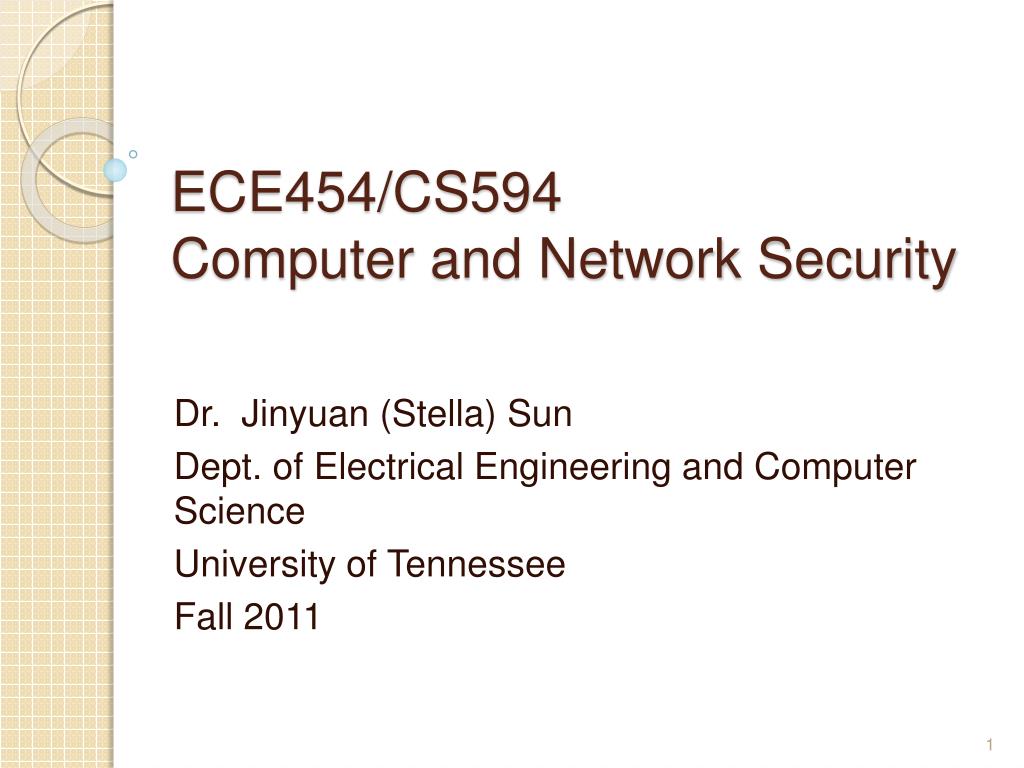

  1. ECE454/CS594 Computer and Network Security Dr. Jinyuan (Stella) Sun Dept. of Electrical Engineering and Computer Science University of Tennessee Fall 2011

  2. Kerberos V4 Tickets and ticket-granting tickets Configuration Replicated KDCs Realms and interrealm authentication Encryption for integrity only/privacy and integrity Message formats

  3. Many-to-Many Authentication • How do users prove their identities when requesting services from servers on the network? • Naïve solution: every server knows every user’s password: - insecure: compromise of any server will compromise all users - inefficient: a user must contact every server to change password ? Servers Users

  4. Servers Using Trusted Third Party Trusted authentication service on the network: • knows all passwords, can grant access to any server • convenient, but also the single point of failure • requires high level of physical security Knows all users’ and servers’ passwords User requests ticket for some service; proves his identity User receives ticket Ticket is used to access desired network service User

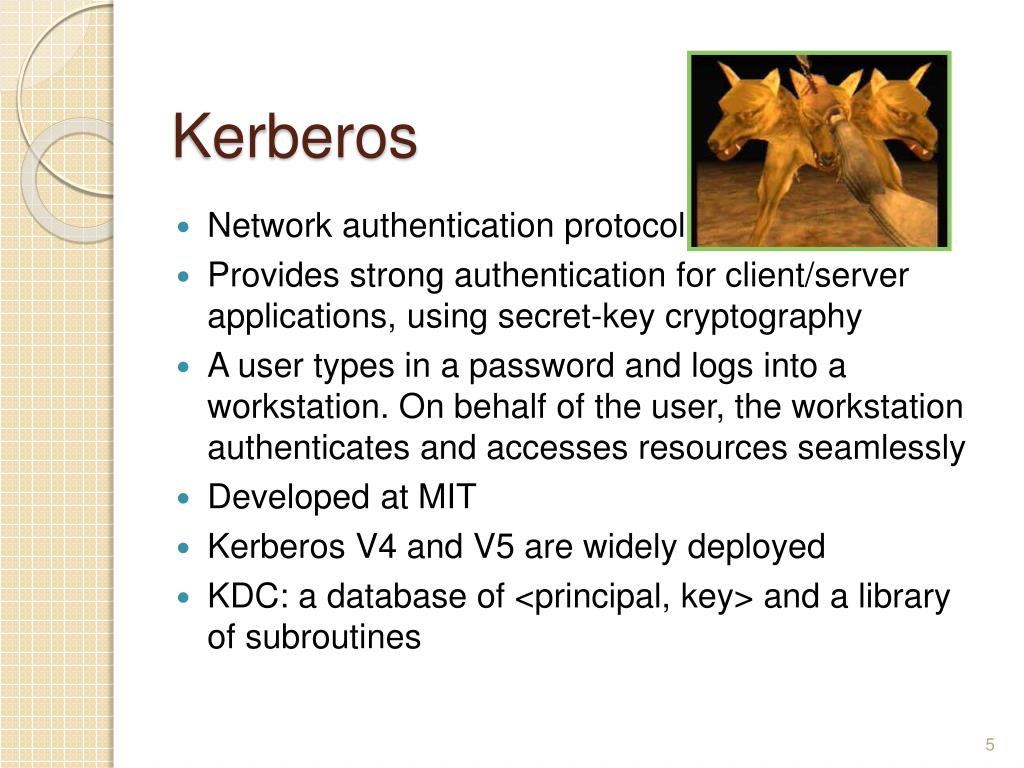

  5. Kerberos • Network authentication protocol • Provides strong authentication for client/server applications, using secret-key cryptography • A user types in a password and logs into a workstation. On behalf of the user, the workstation authenticates and accesses resources seamlessly • Developed at MIT • Kerberos V4 and V5 are widely deployed • KDC: a database of <principal, key> and a library of subroutines

  6. Configuration • Kerberos server: KDC • Each principal has its master key, KAlice, shared with KDC • - human user: key is derived from password • - machine: key is pre-configured • KDC has a master key, KKDC, known only by itself, to encrypt user master keys and ticket-granting tickets • KDC keeps a database of <principal, key>, where “key” for each user is encrypted by KKDC • Based on secret-key cryptography: DES, V5 theoretically can use other encryption algorithms

  7. Session Keys • For login sessions • Should we use the master key KAlice(long-term key)? • Use KAliceat the beginning of each session to negotiate a session key SA • - eavesdropping • - database reading • - password guessing: online, offline (dictionary attack)

  8. Ticket-Granting Ticket (TGT) • Recall: ticket • TGT: KKDC{Alice, SA, expiration time,…}, for assigning the session key Obtaining a TGT

  9. Obtaining Services from A Remote Node After obtaining TGT, the credential for Alice… Step 1: Alice uses TGT to obtain a ticket Step 2: Alice uses ticket to log into remote node

  10. Step 1: Obtaining A Ticket to Bob

  11. Step 2: Accessing Bob

  12. Overview of Kerberos

  13. Replicated KDCs • Purposes: • - Prevent single point failure • - Prevent performance bottleneck • Multiple KDCs • - One master copy for read/write • - Multiple replicas for read only • - All having the same database and the same master key • Updating KDC database • - KDC’s database is transferred in clear • - Privacy: keys are stored as ciphertext encrypted by KKDC • - Integrity: a cryptographic hash of the database file and a timestamp

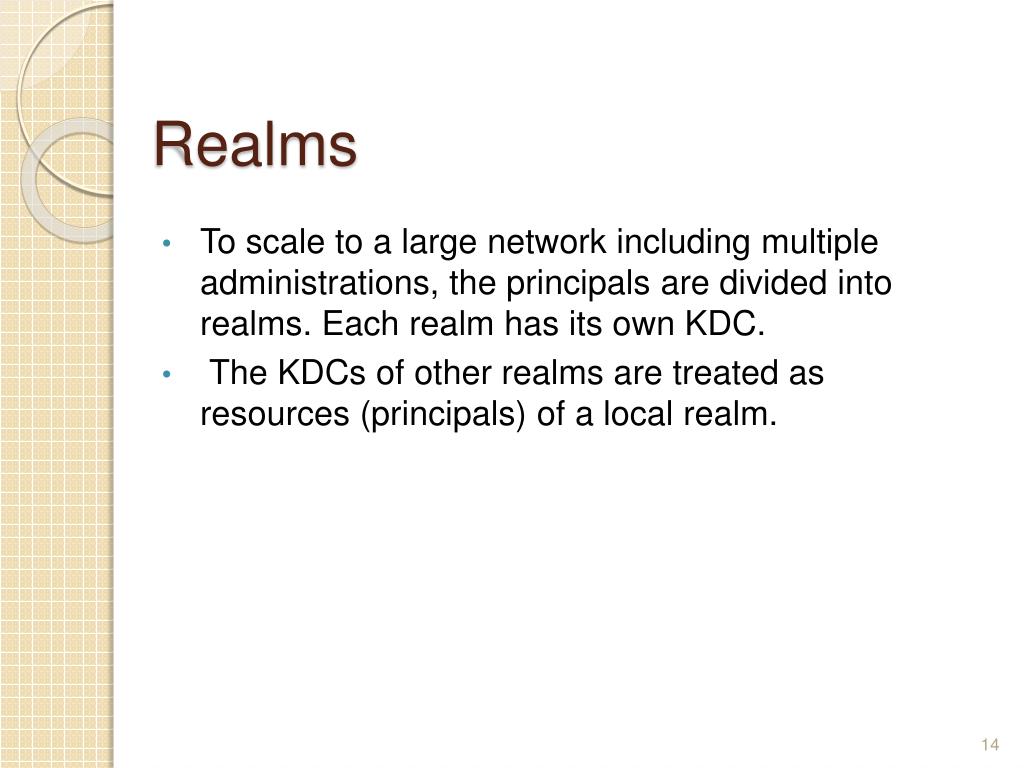

  14. Realms • To scale to a large network including multiple administrations, the principals are divided into realms. Each realm has its own KDC. • The KDCs of other realms are treated as resources (principals) of a local realm.

  15. Interrealm Authentication • Kerberos V4 does not allow authentication through a chain of KDCs: a rogue KDC can impersonate other realms • Kerberos V5 does: hierarchy of realms

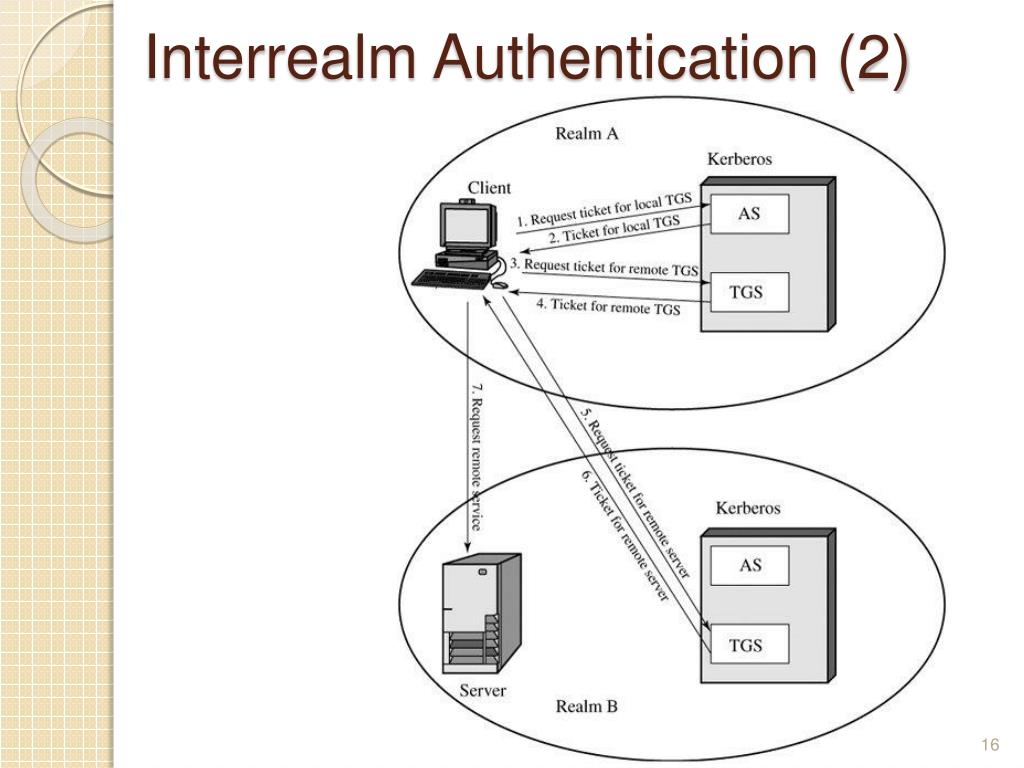

  16. Interrealm Authentication (2)

  17. Key Version Numbers • If Bob changes his master key, Alice’s ticket for Bob will be invalidated without Alice knowing it • Solution: Each key has a version number. Old keys are maintained for a period of time. Different keys are identified by their version numbers. Tickets are sent together with the key version numbers.

  18. Other Uses of Kerberos • Besides authentication… • Integrity only: perform an undocumented arithmetic based on mod 2^63 – 1 on the message concatenated with the session key, which results in a checksum. Send the message with the checksum • Privacy and integrity

  19. Privacy and Integrity • Plaintext Cipher Block Chaining (PCBC) • - Modify any cipher block will garble the rest of the message • - Put recognizable data at the end of a message • - Does not prevent swapping attack (why?)

  20. Message Types • AS_REQ • TGS_REQ • AS_REP (also TGS_REP) • AP_REQ • AP REP • AS_REQ_MUTUAL • AS_ERR • AP_ERR • PRIV • SAFE

  21. Use of AS_REQ Obtaining a TGT

  22. AS_REQ

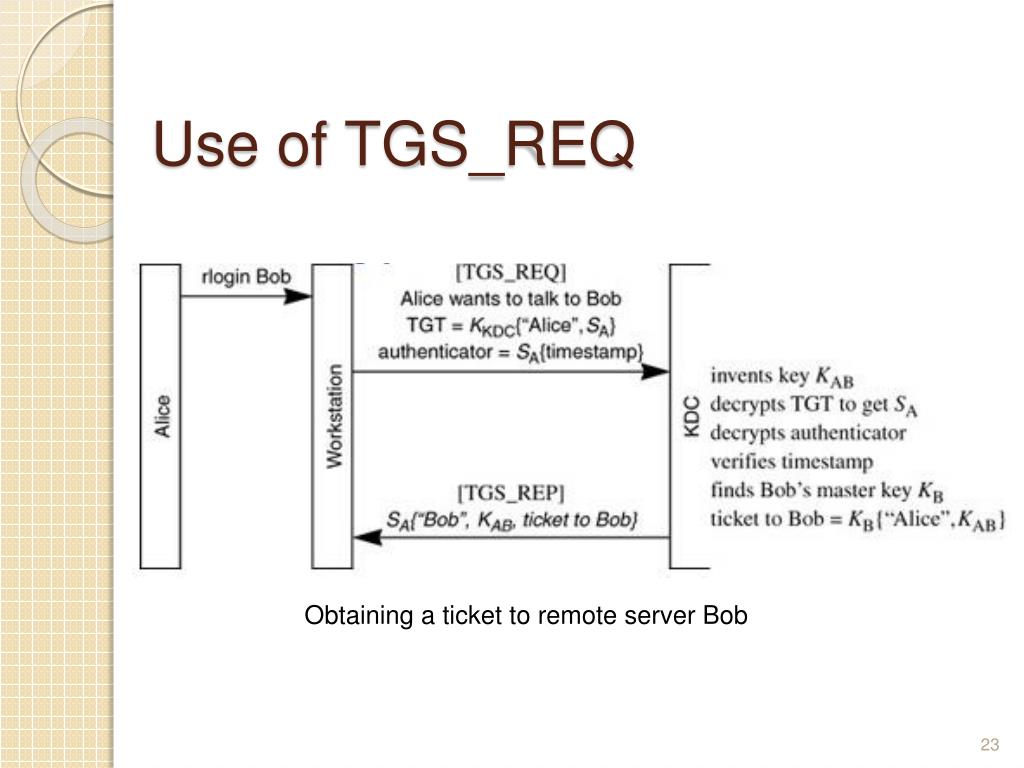

  23. Use of TGS_REQ Obtaining a ticket to remote server Bob

  24. TGS_REQ

  25. AS_REP and TGS_REP

  26. AS_REP and TGS_REP

  27. AS_ERR

  28. Tickets

  29. Authenticators

  30. Credentials

  31. Use of AP_REQ and AP_REP Accessing the remote server Bob

  32. AP_REQ

  33. AP_REP and Encrypted Data PRIV • AP_REP is application specific, when mutual authentication is needed, it takes the format of encrypted data PRIV Decrypted Data

  34. SAFE: Integrity-Checked Data

  35. AP_ERR

  36. Kerberos V4 vs. V5 • Encryption system: V4 requires DES, V5 can use any • Internet protocol: V4 requires IP, V5 can use other types • Message byte ordering: V4 uses B BIT, all message structures are defined using Abstract Syntax Notation One (ASN.1) and Basic Encoding Rules (BER) in V5 providing unambiguous byte ordering • Ticket lifetime: 21 hours in V4 (encoded in a 1-octet quantity), V5 tickets include explicit start and end time allowing arbitrary lifetimes

  37. Kerberos V4 vs. V5 (Cont’d) • Authentication forwarding/delegation: V4 does not allow and V5 allows • Interrealm authentication: no chaining in V4 (N realms require O(N2) Kerberos-to-Kerberos relationships), V5 supports KDC hierarchy • Session keys: negotiation of subsession keys is supported in V5 for different sessions of the same service type • Privacy + integrity: V4 uses PCBC, V5 uses explicit integrity mechanisms (e.g., hash) with CBC encryption • Password attacks: both versions are vulnerable

  38. Exercises (1) • [Kaufman] 13.5: • With CBC, if one ciphertext block is lost, how many plaintext blocks are lost? With PCBC, why do things get back in sync if cn and cn+1 are switched? How about if a ciphertext block is lost? How about if ciphertext block n is switched with ciphertext block n+2? How about any permutation of the first n blocks?

  39. Exercises (1): Answer • [Kaufman] 13.5: • In CBC decryption, each ciphertext block affects two plaintext blocks, one through decryption and one through XOR. In PCBC decryption, each ciphertext block affects the corresponding plaintext block by XORing its decryption, while it affects all following plaintext blocks by XORing the XOR of it and its decryption. Thus, a set of ciphertext blocks affects the following plaintext blocks in a manner independent of the order of ciphertext blocks within the set—the effect is just an XOR of the XOR of all the ciphertext blocks and their decryptions.

  40. Exercises (2) • [Kaufman] 14.4: • Design a different method of Bob authenticating Alice when Bob does not remember his own master key, which places the work on Bob instead of Alice. In other words, Alice will act as if Bob was an ordinary civilized thing that does not remember its own master key, and Bob interacts appropriately with the KDC so that Alice will be unaware that Bob didn't know his own master key.

  41. Exercises (2): Answer • [Kaufman] 14.4: • We assume that Bob has a valid TGT and still remembers the session key SB. With the cooperation of the KDC, Bob can still decrypt messages encrypted with his master key, and thus authenticate Alice as follows. Bob gets the KDC to decrypt a message encrypted with his master key by sending the encrypted message and his TGT (which contains Bob’s name and the session key encrypted with the KDC’s master key) to the KDC. The KDC (which knows Bob’s master key) decrypts the message and sends it back to Bob encrypted with the session key. Since Bob knows the session key, he can now decrypt the message.

  42. Exercises (3) Alice wants to send Bob a large data file containing confidential data. She wants to make sure the file cannot be modified undetected during transmission. All Alice and Bob have is their public/private key pair PUBA/PRVA and PUBB/PRVB, respectively. Show how Alice will construct the message to be transmitted in a secure and efficient way. Show also how Bob will extract the data file from the received message. You can draw diagrams or write down the message construction/extraction using notations.

  43. Exercises (3): Answer

  44. Reading Assignment • [Kaufman] Chapter 13
