Puget Sound Oceanography

Puget Sound Oceanography. An introduction by Fritz Stahr & Christian Sarason Outline estuary definition examples - PS, SF Bay, Chesapeake tides & other cycles (view model runs) exercise with real data. San Francisco Bay where the Central Valley rivers meets the Pacific is an estuary.

taite
Télécharger la présentation

Puget Sound Oceanography

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Puget Sound Oceanography • An introduction by Fritz Stahr & Christian Sarason • Outline • estuary definition • examples - PS, SF Bay, Chesapeake • tides & other cycles (view model runs) • exercise with real data

  2. San Francisco Bay where the Central Valley rivers meets the Pacific is an estuary. Where the Mississippi River meets the Gulf of Mexico is not an estuary, though some side drainage is. An estuary is... A place where river(s) meets the ocean... that has surrounding land and a limited opening...

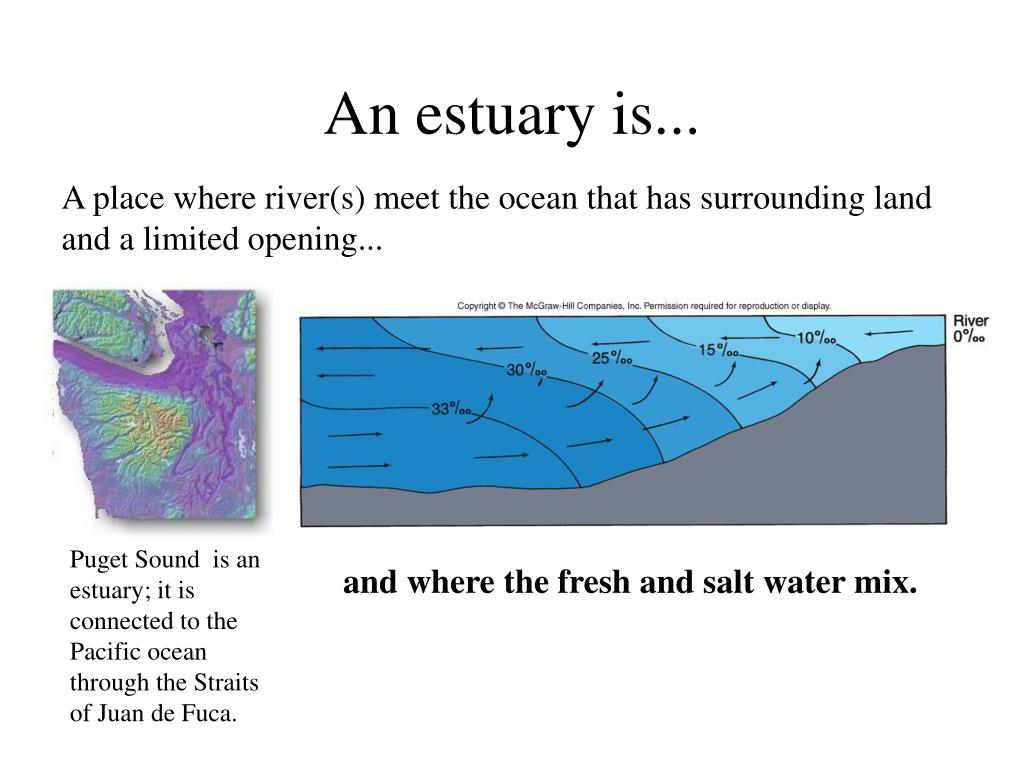

  3. and where the fresh and salt water mix. An estuary is... A place where river(s) meet the ocean that has surrounding land and a limited opening... Puget Sound is an estuary; it is connected to the Pacific ocean through the Straits of Juan de Fuca.

  4. U.S. Estuary Examples Chesapeake Bay

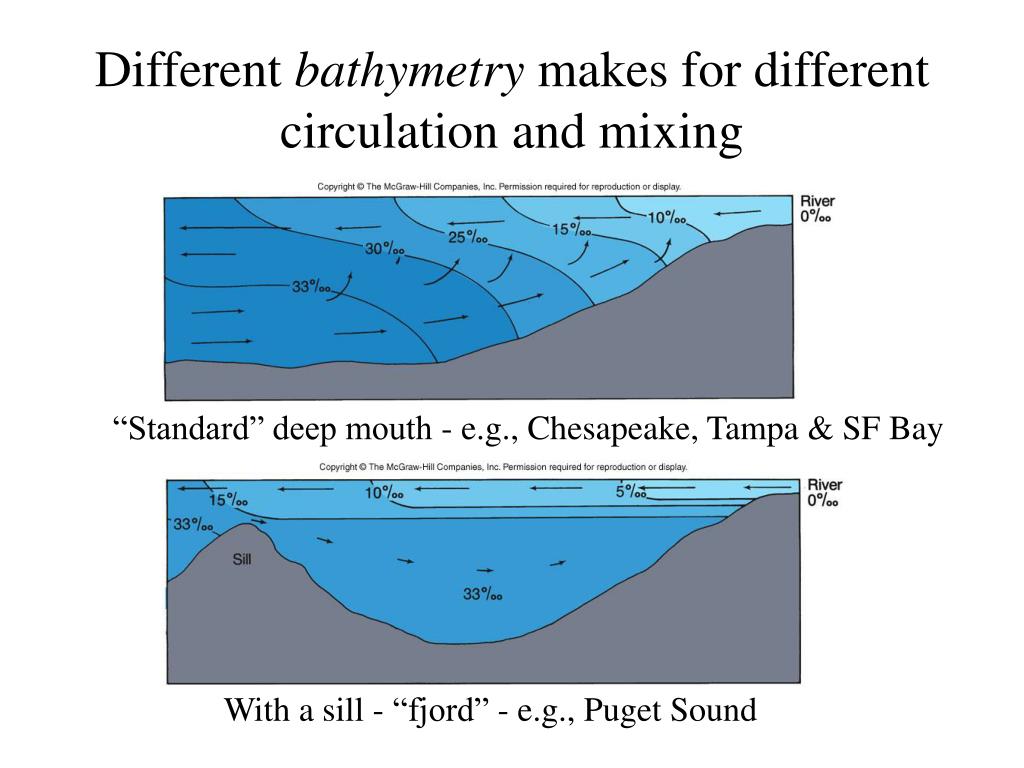

  5. With a sill - “fjord” - e.g., Puget Sound Different bathymetry makes for different circulation and mixing “Standard” deep mouth - e.g., Chesapeake, Tampa & SF Bay

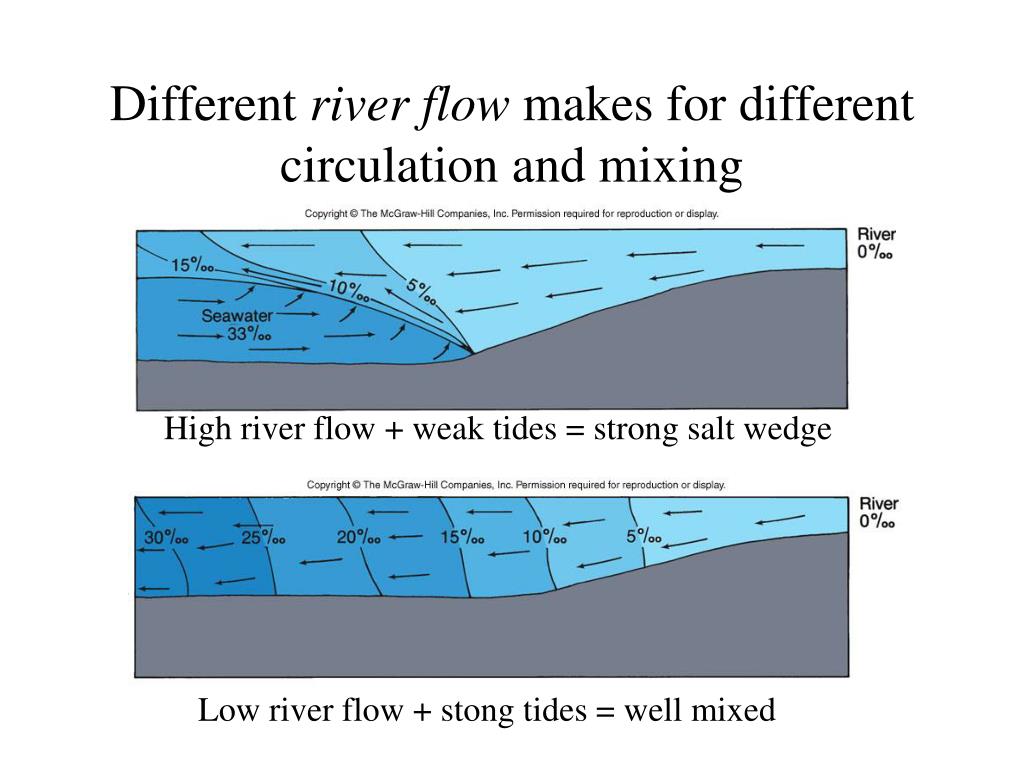

  6. Low river flow + stong tides = well mixed Different river flow makes for different circulation and mixing High river flow + weak tides = strong salt wedge

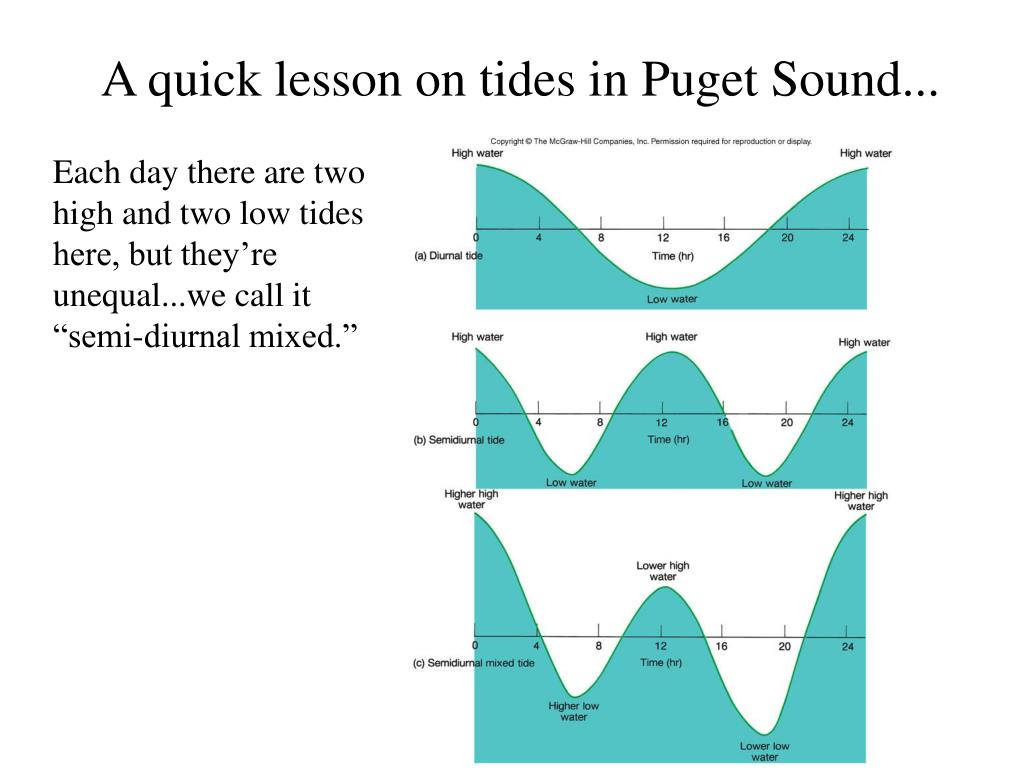

  7. A quick lesson on tides in Puget Sound... Each day there are two high and two low tides here, but they’re unequal...we call it “semi-diurnal mixed.”

  8. A quick lesson on tides in Puget Sound... Every other week, the “phase” or type of tidal range changes between “spring” - large differences between high and low- and “neap” - smaller differences. This plays a role in circulation within the Sound. Predictions for October 2-28, 2003

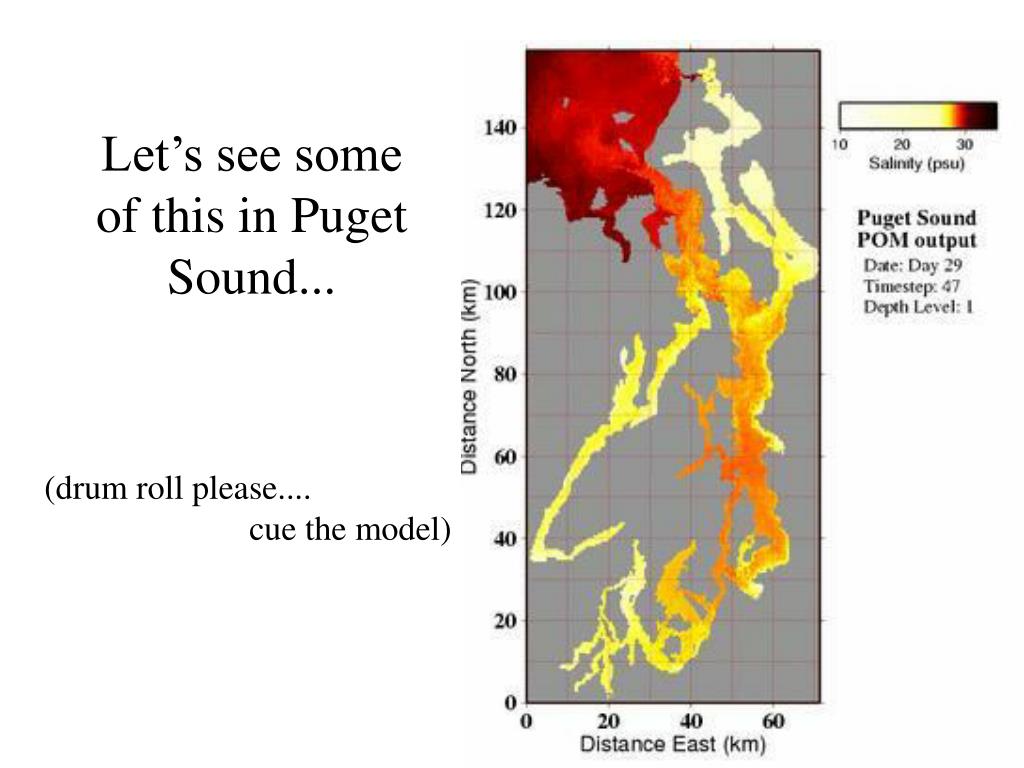

  9. Let’s see some of this in Puget Sound... (drum roll please.... cue the model)
